Equilibrium In Solutions Of Weak Acids And Weak Bases

Equilibrium In Solutions Of Weak Acids And Weak Bases. weak acid: HA + H 2 O  H 3 O + + A - [H 3 O + ][A - ] K a = [HA] weak base: B + H 2 O  HB + + OH - [HB + ][OH - ] K b = [B]. Some Acid-Base Equilibrium Calculations.

bran
Télécharger la présentation

Equilibrium In Solutions Of Weak Acids And Weak Bases

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. http:\\asadipour.kmu.ac.ir........57 slides

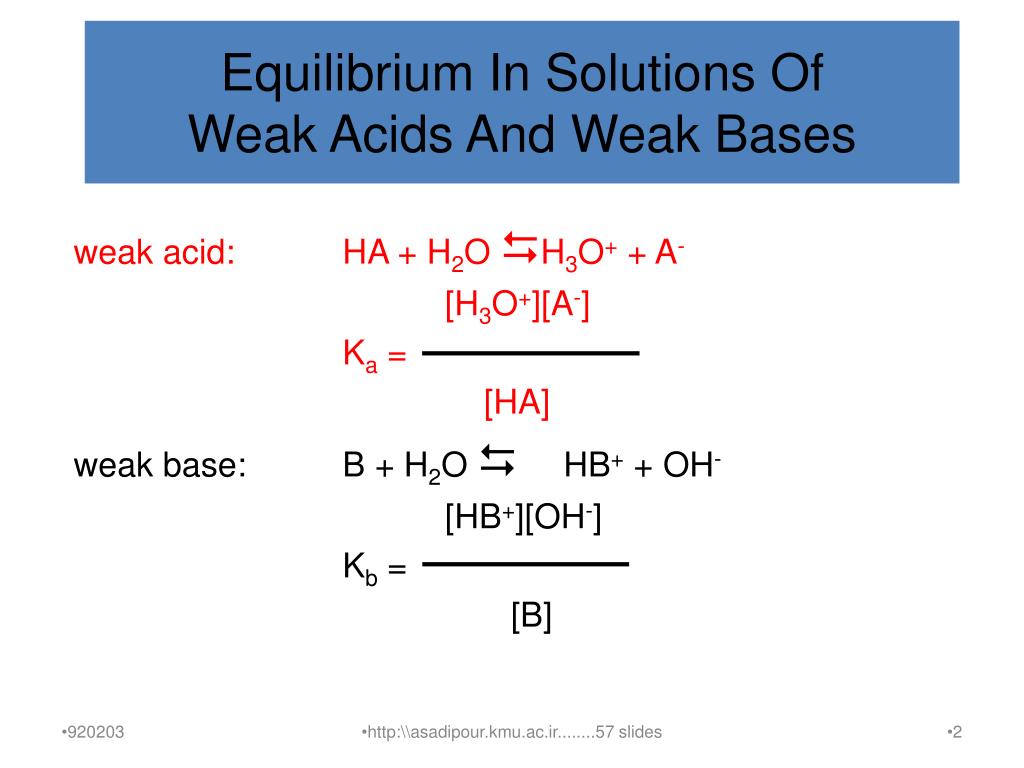

  2. Equilibrium In Solutions Of Weak Acids And Weak Bases weak acid: HA + H2O H3O+ + A- [H3O+][A-] Ka = [HA] weak base: B + H2O  HB+ + OH- [HB+][OH-] Kb = [B] http:\\asadipour.kmu.ac.ir........57 slides

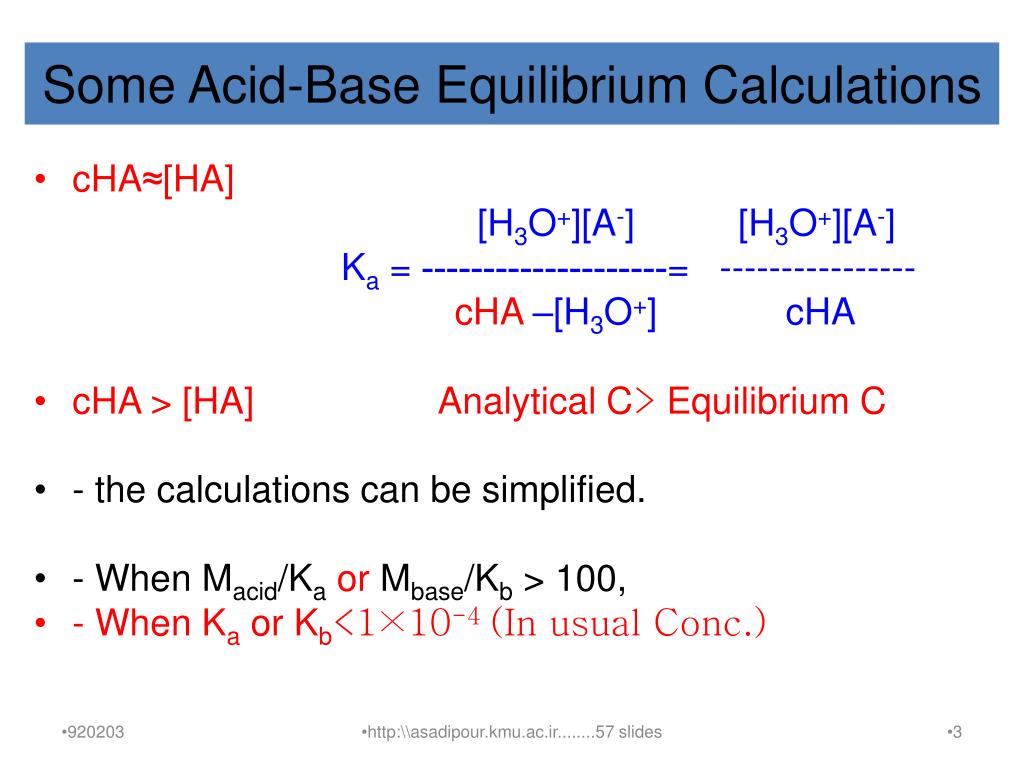

  3. Some Acid-Base Equilibrium Calculations • cHA≈[HA] [H3O+][A-] [H3O+][A-] Ka = --------------------= ---------------- cHA–[H3O+]cHA • cHA> [HA] Analytical C> Equilibrium C • - the calculations can be simplified. • - When Macid/KaorMbase/Kb > 100, • - When Ka or Kb<1×10-4 (In usual Conc.) http:\\asadipour.kmu.ac.ir........57 slides

  4. http:\\asadipour.kmu.ac.ir........57 slides

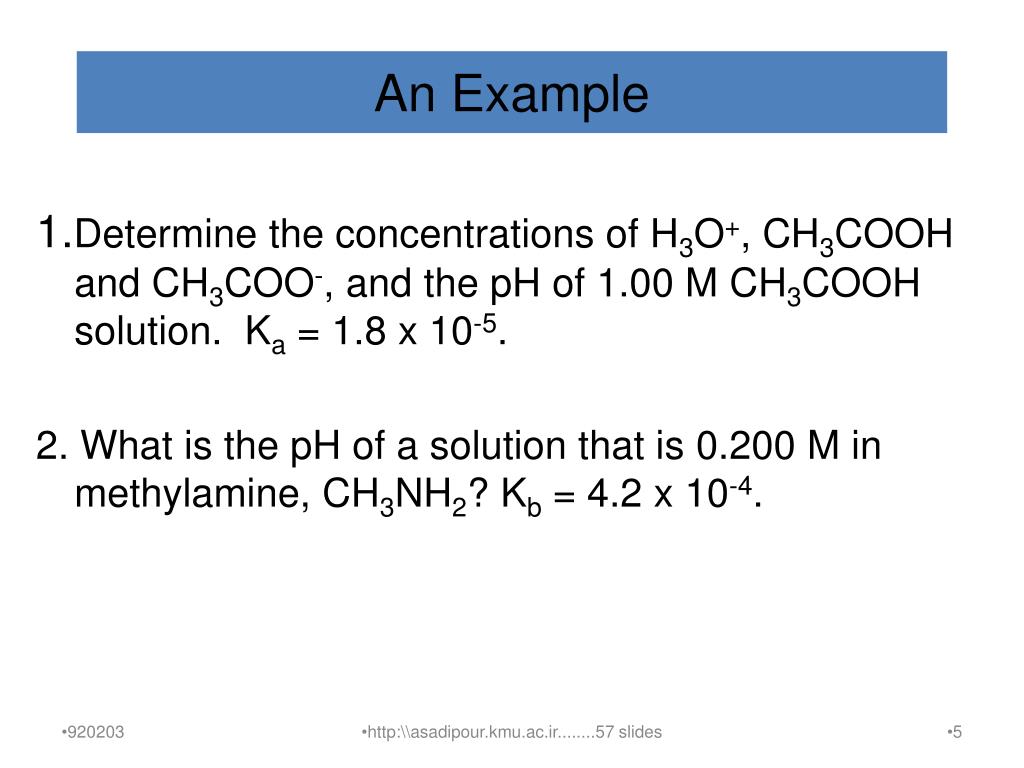

  5. An Example 1.Determine the concentrations of H3O+, CH3COOH and CH3COO-, and the pH of 1.00 M CH3COOH solution. Ka = 1.8 x 10-5. 2. What is the pH of a solution that is 0.200 M in methylamine, CH3NH2? Kb = 4.2 x 10-4. http:\\asadipour.kmu.ac.ir........57 slides

  6. Are Salts Neutral, Acidic or Basic? Salts are ionic compounds formed in the reaction between an acid and a base. 1. NaCl Na+ is from NaOH , a strong base Cl- is from HCl, a strong acid H2O NaCl (s) → Na+ (aq) + Cl- (aq) Na+ and Cl- ions do not react with water. The solution is neutral. http:\\asadipour.kmu.ac.ir........57 slides

  7. Are Salts Neutral, Acidic or Basic? 2. KCN K+ is from KOH , a strong base CN- is from HCN, a weak acid H2O KCN (s) → K+ (aq) + CN- (aq) K+ ions do not react with water, but CN- ions do. CN- + H2O  HCN + OH-hydrolysis The OH- ions are produced, so the solution is basic. http:\\asadipour.kmu.ac.ir........57 slides

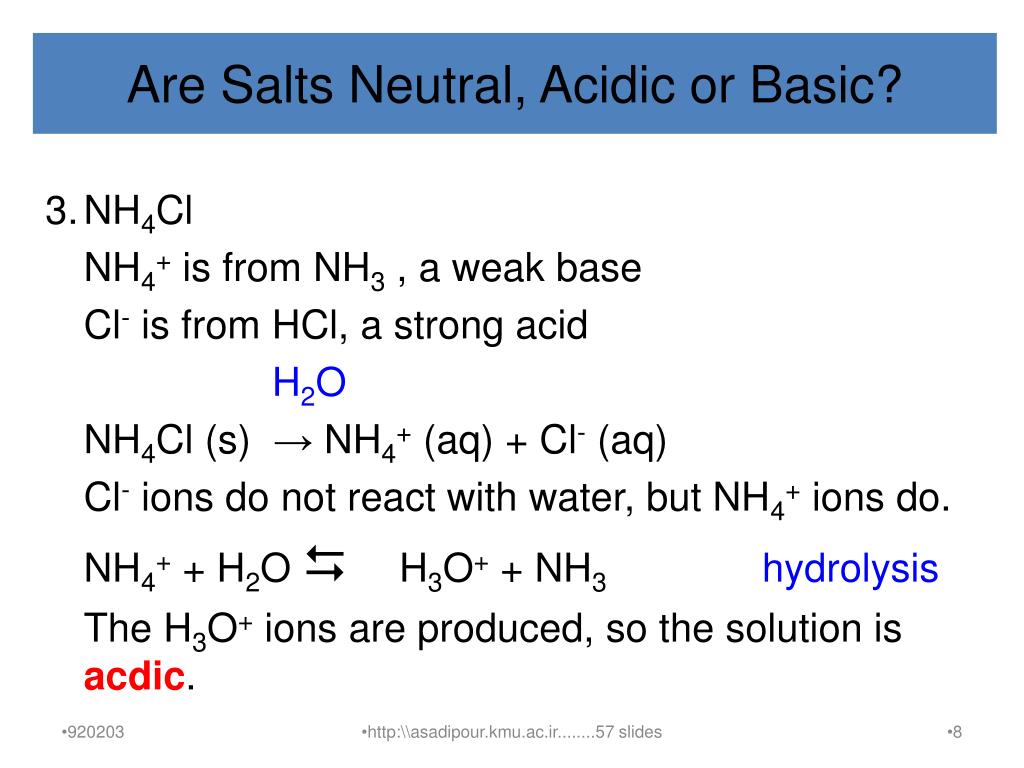

  8. Are Salts Neutral, Acidic or Basic? 3. NH4Cl NH4+ is from NH3 , a weak base Cl- is from HCl, a strong acid H2O NH4Cl (s) → NH4+ (aq) + Cl- (aq) Cl- ions do not react with water, but NH4+ ions do. NH4+ + H2O  H3O+ + NH3 hydrolysis The H3O+ ions are produced, so the solution is acdic. http:\\asadipour.kmu.ac.ir........57 slides

  9. Are Salts Neutral, Acidic or Basic? 3. NH4CN NH4+ is from NH3 , a weak base CN- is from HCN, a weak acid H2O NH4CN (s) → NH4+ (aq) + CN- (aq) NH4+ + H2O  H3O+ + NH3 Kahydrolysis CN- + H2O  HCN + OH- Kbhydrolysis (Ka>Kb ,Acidic)’’’(Ka<Kb,Basic)‘’’(Ka=Kb,Nutral) http:\\asadipour.kmu.ac.ir........57 slides

  10. Ions As Acids And Bases Certain and anion ions can cause an aqueous solution to become acidic or basic due to hydrolysis. • Salts of strong acids and strong bases form neutral solutions. • Salts of weak acids and strong bases form basic solutions. • Salts of strong acids and weak bases form acidic solutions. • Salts of weak acids and weak bases form solutions that are acidic in some cases, neutral or basic in others. http:\\asadipour.kmu.ac.ir........57 slides

  11. Strong Acids And Strong Bases Strong acids: HCl, HBr, HI, HNO3, H2SO4, HClO4 Strong bases: Group IA and IIA hydroxides http:\\asadipour.kmu.ac.ir........57 slides

  12. An Example Indicate whether the solutions (a) Na2S and (b) KClO4 are acidic, basic or neutral. http:\\asadipour.kmu.ac.ir........57 slides

  13. The pH Of a Salt Solution What is the pH of 0.1M NaCN solution? What is the pH of 0.1M NH4Cl solution? What is the pH of 0.1M NH4CN solution? Ka of HCN=1.0×10-9. Kb for NH3=1.0×10-5 Ka xKb = Kw so, Kb = Kw/Ka http:\\asadipour.kmu.ac.ir........57 slides

  14. http:\\asadipour.kmu.ac.ir........57 slides

  15. Common Ion Effect Illustrated CH3COOH  CH3COO- + H+ blue-violet: pH > 4.6 yellow: pH < 3.0 ((1.00 M CH3COOH)) ((1.00 M CH3COOH + 1.00 M CH3COONa)) http:\\asadipour.kmu.ac.ir........57 slides

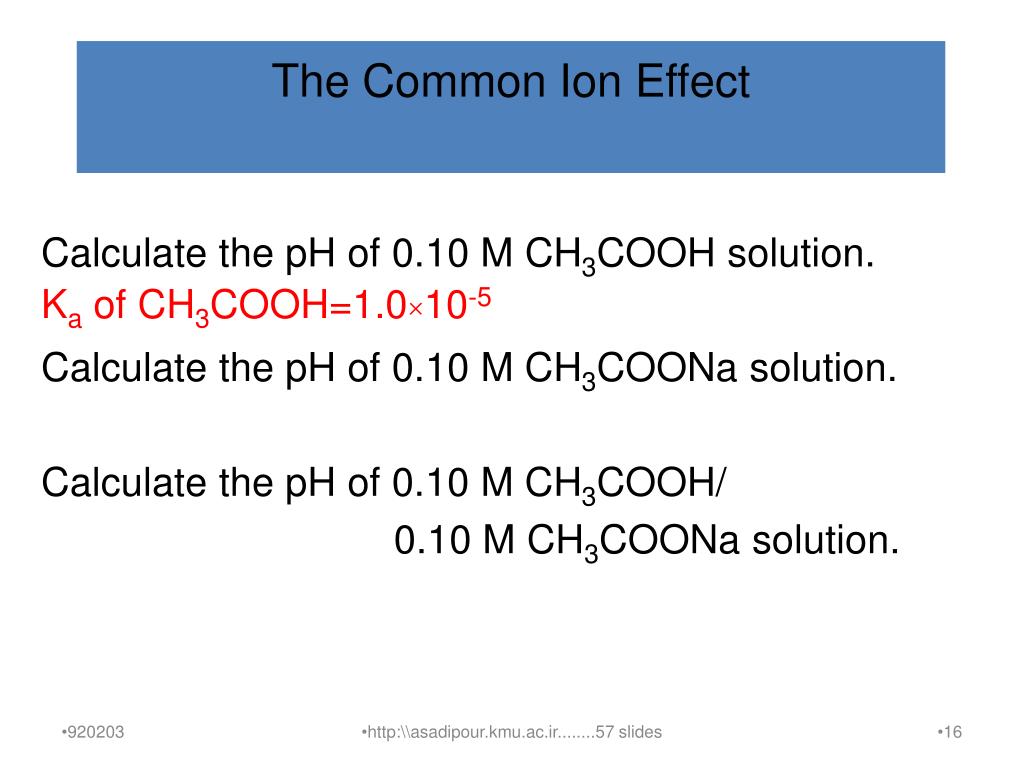

  16. The Common Ion Effect Calculate the pH of 0.10 M CH3COOH solution. Ka of CH3COOH=1.0×10-5 Calculate the pH of 0.10 M CH3COONa solution. Calculate the pH of 0.10 M CH3COOH/ 0.10 M CH3COONa solution. http:\\asadipour.kmu.ac.ir........57 slides

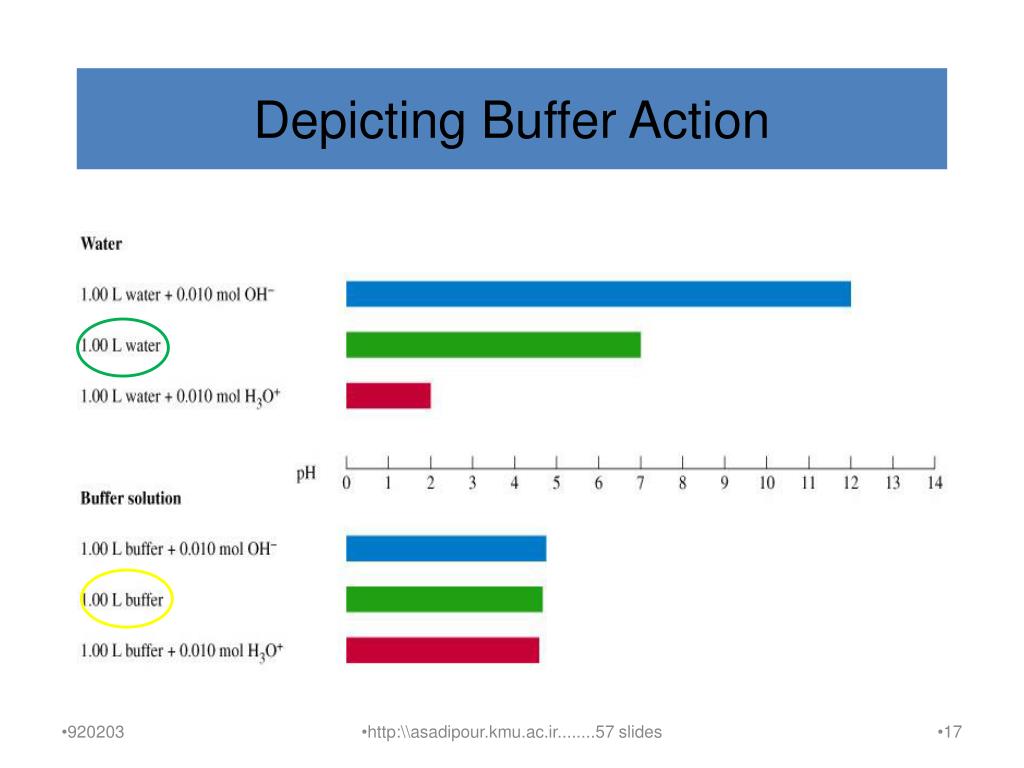

  17. Depicting Buffer Action http:\\asadipour.kmu.ac.ir........57 slides

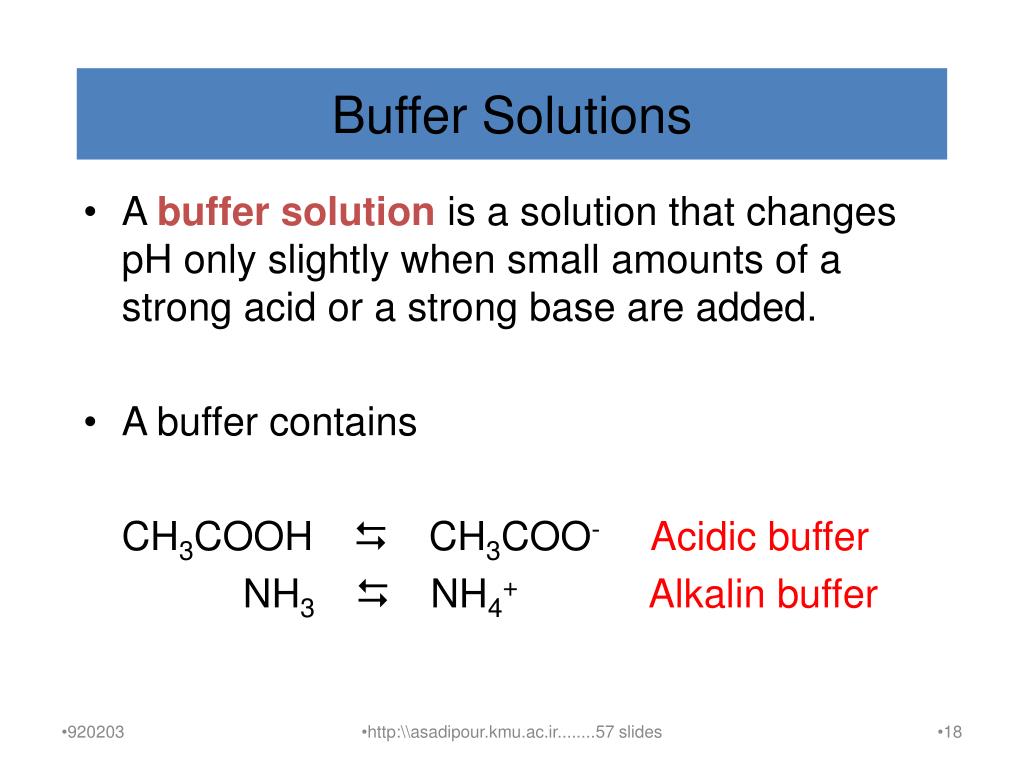

  18. Buffer Solutions • A buffer solution is a solution that changes pH only slightly when small amounts of a strong acid or a strong base are added. • A buffer contains CH3COOH  CH3COO- Acidic buffer NH3  NH4+Alkalin buffer http:\\asadipour.kmu.ac.ir........57 slides

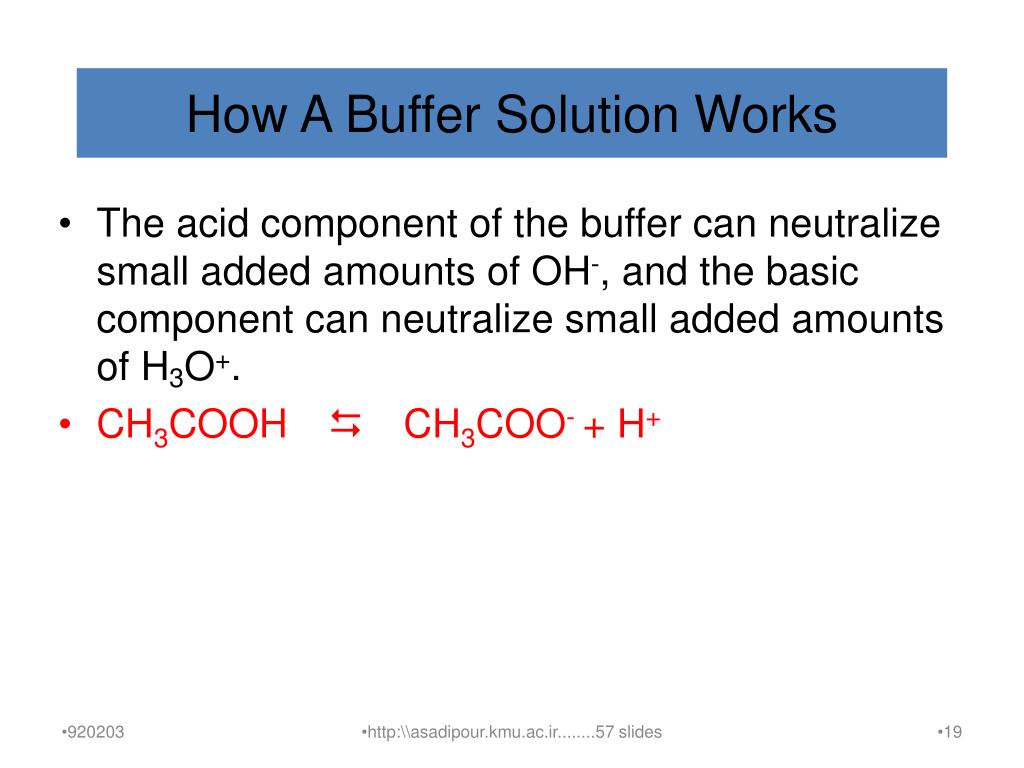

  19. How A Buffer Solution Works • The acid component of the buffer can neutralize small added amounts of OH-, and the basic component can neutralize small added amounts of H3O+. • CH3COOH  CH3COO- + H+ http:\\asadipour.kmu.ac.ir........57 slides

  20. Ionization constant of an acid Taking log of the equation on both sides, http:\\asadipour.kmu.ac.ir........57 slides

  21. Ionization constant of an acid Multiplying both sides of the equation by -1 Henderson-Hasselbach equation http:\\asadipour.kmu.ac.ir........57 slides

  22. Henderson-Hasselbalch Equation For Buff Solutions [conjugate base] pH = pKa + log [conjugate acid] If [conjugate acid] = [conjugate base], pH = pKa Requirement: • [B] / [A] between 0.10 and 10 http:\\asadipour.kmu.ac.ir........57 slides

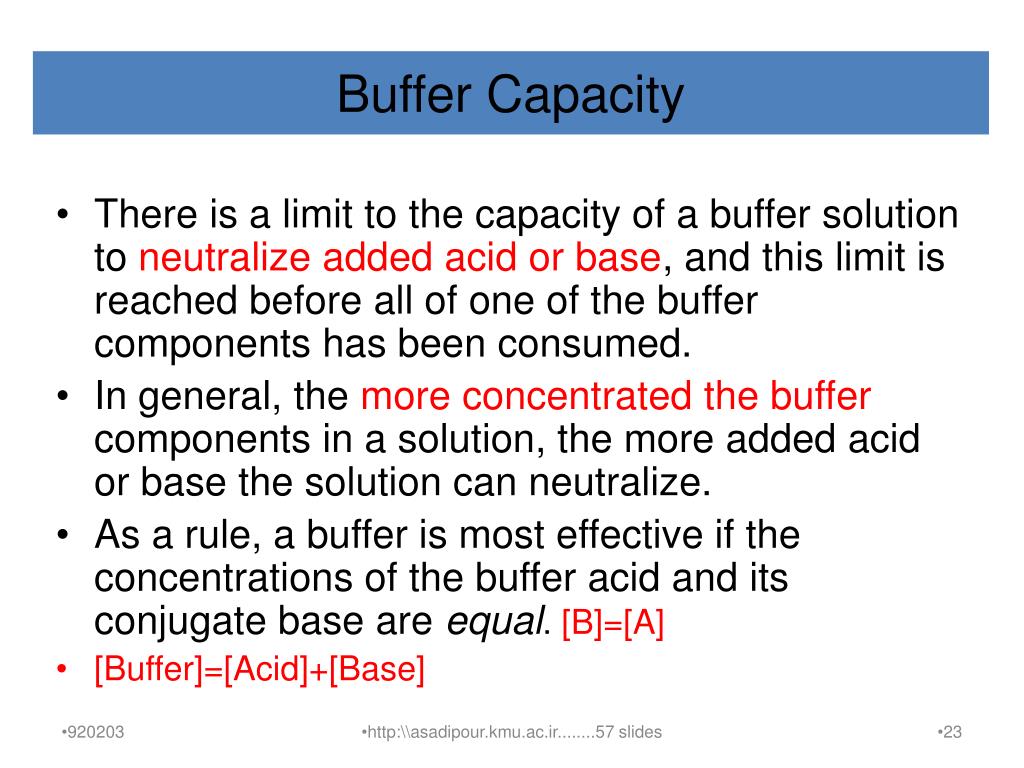

  23. Buffer Capacity • There is a limit to the capacity of a buffer solution to neutralize added acid or base, and this limit is reached before all of one of the buffer components has been consumed. • In general, the more concentrated the buffer components in a solution, the more added acid or base the solution can neutralize. • As a rule, a buffer is most effective if the concentrations of the buffer acid and its conjugate base are equal. [B]=[A] • [Buffer]=[Acid]+[Base] http:\\asadipour.kmu.ac.ir........57 slides

  24. Buffer Capacity • [Buffer]=[Acid]+[Base] • [Acid]↑ & [Base]↑Capacity↑ • In equimolarbuffersis is important • Capacity↑ http:\\asadipour.kmu.ac.ir........57 slides

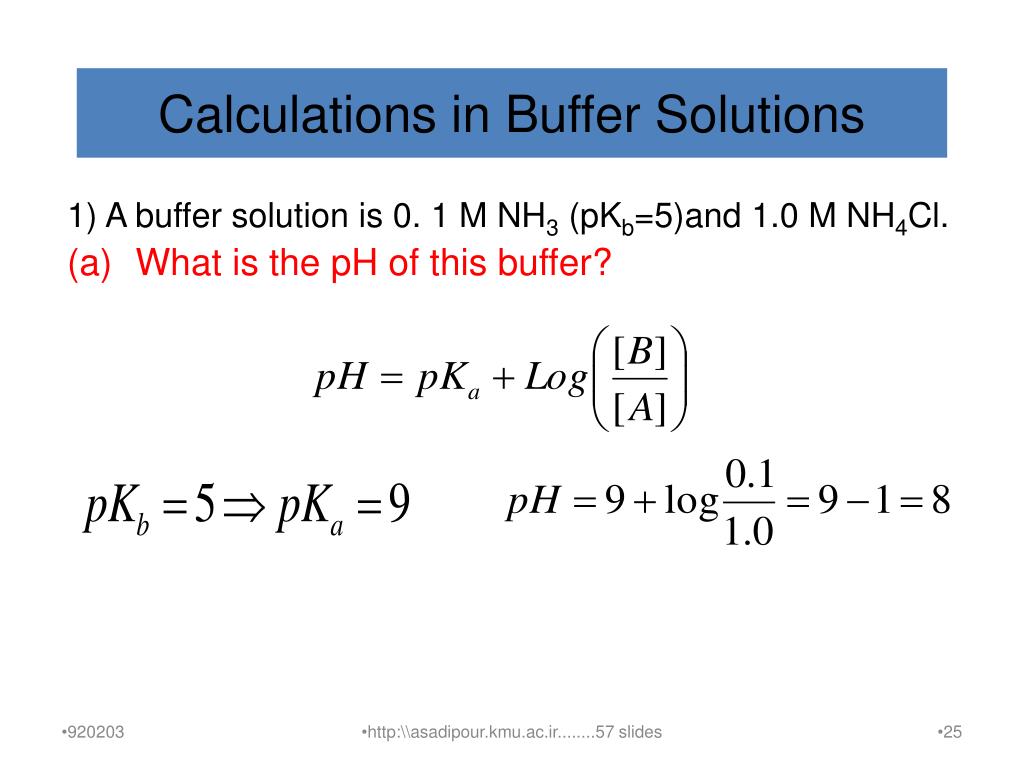

  25. Calculations in Buffer Solutions 1) A buffer solution is 0. 1 M NH3 (pKb=5)and 1.0 M NH4Cl. • What is the pH of this buffer? http:\\asadipour.kmu.ac.ir........57 slides

  26. Calculations in Buffer Solutions 1) A buffer solution is 0. 1 M NH3 (pKb=5)and 1.0 M NH4Cl. • What is the pH of this buffer? • If 5 mmolNaOHis added to 0.500 L of this solution, what will be the pH? http:\\asadipour.kmu.ac.ir........57 slides

  27. Calculations in Buffer Solutions 1) A buffer solution is 0. 1 M NH3 (pKb=5)and 1.0 M NH4Cl. • What is the pH of this buffer? • If 5 mmolNaOH is added to 0.500 L of this solution, what will be the pH? • If 5 mmolHClis added to 0.500 L of this solution, what will be the pH? http:\\asadipour.kmu.ac.ir........57 slides

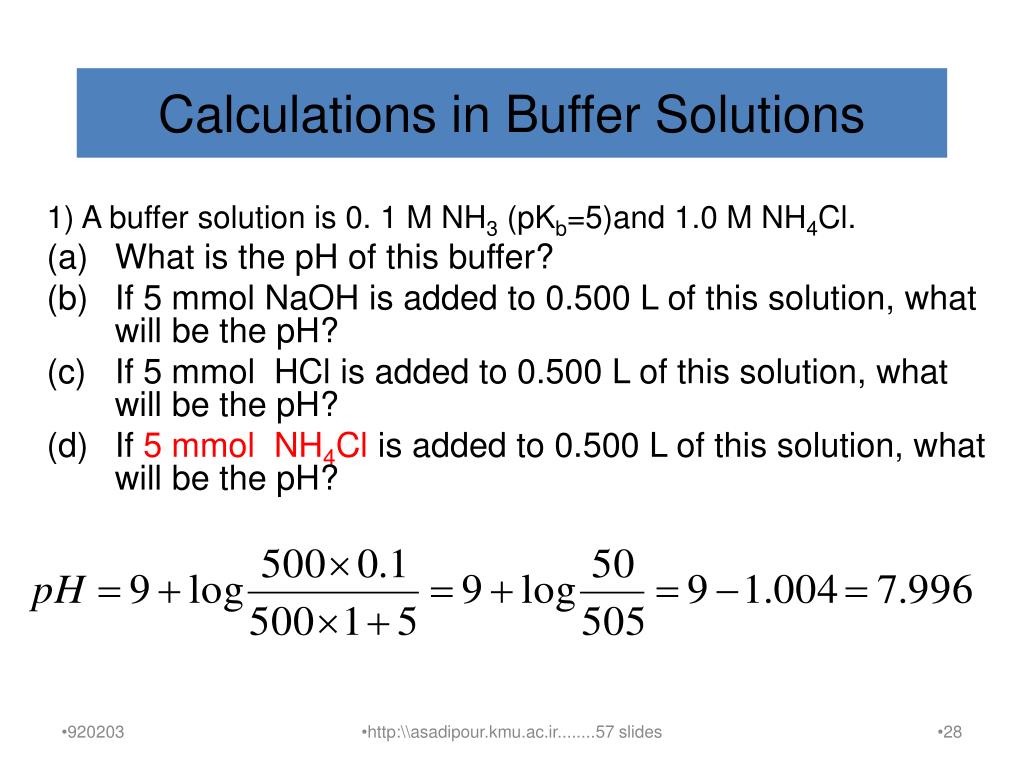

  28. Calculations in Buffer Solutions 1) A buffer solution is 0. 1 M NH3 (pKb=5)and 1.0 M NH4Cl. • What is the pH of this buffer? • If 5 mmolNaOH is added to 0.500 L of this solution, what will be the pH? • If 5 mmolHCl is added to 0.500 L of this solution, what will be the pH? • If 5 mmol NH4Cl is added to 0.500 L of this solution, what will be the pH? http:\\asadipour.kmu.ac.ir........57 slides

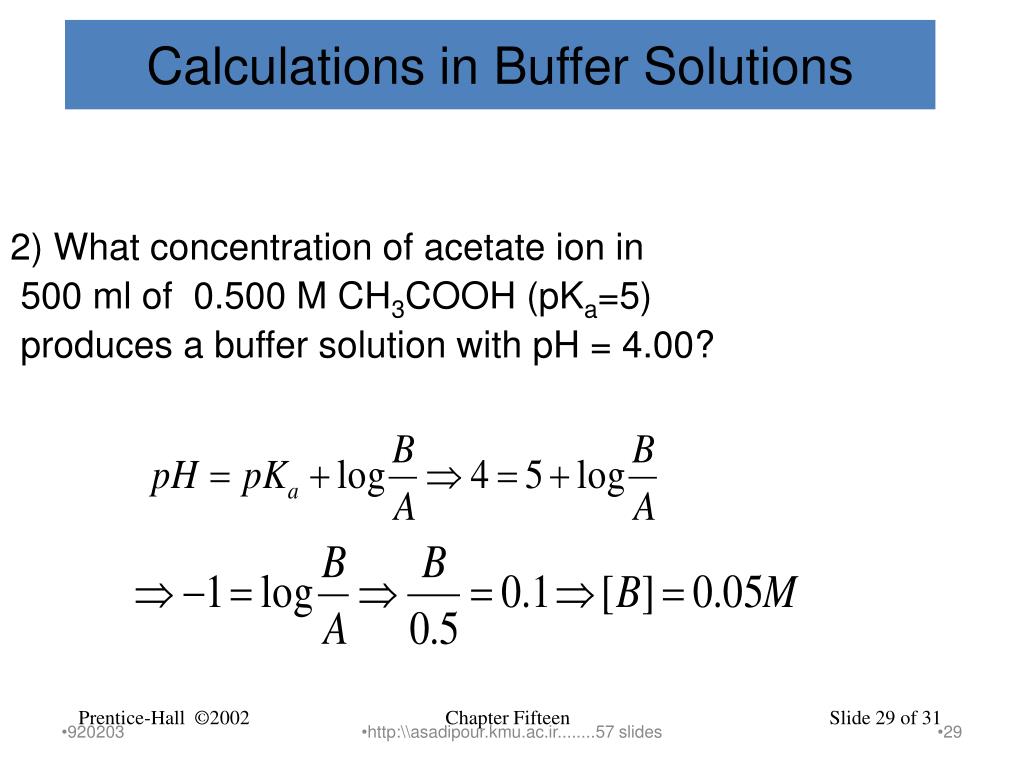

  29. Calculations in Buffer Solutions 2) What concentration of acetate ion in 500 ml of 0.500 M CH3COOH (pKa=5) produces a buffer solution with pH = 4.00? http:\\asadipour.kmu.ac.ir........57 slides

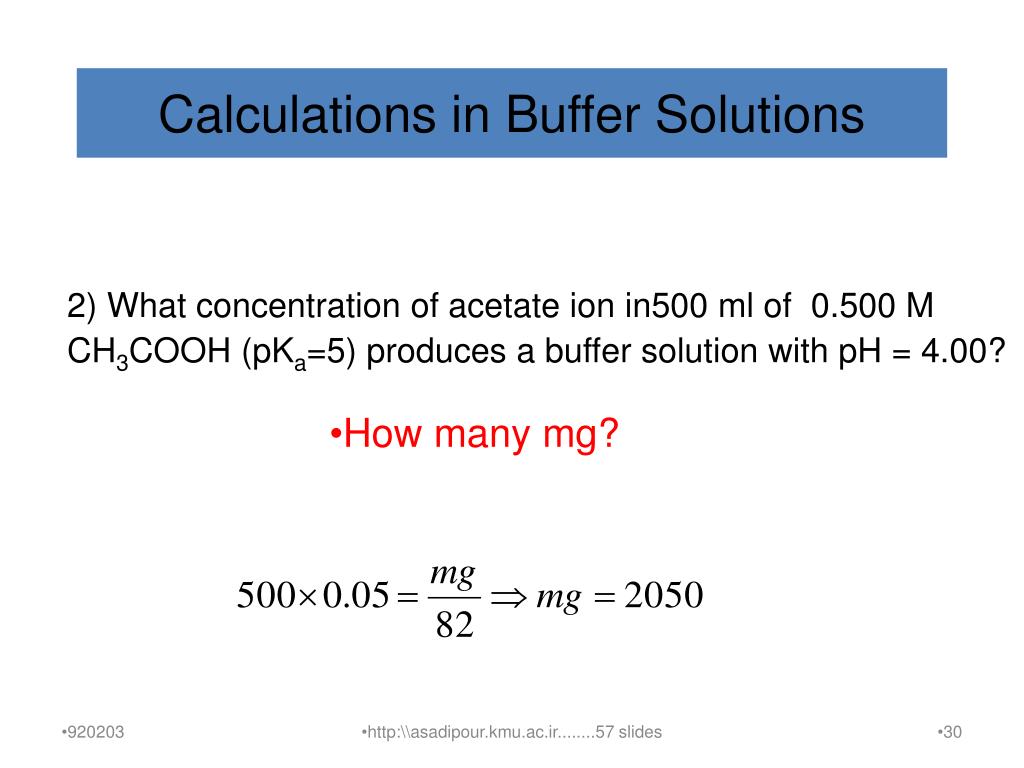

  30. Calculations in Buffer Solutions 2) What concentration of acetate ion in500 ml of 0.500 M CH3COOH (pKa=5) produces a buffer solution with pH = 4.00? How many mg? http:\\asadipour.kmu.ac.ir........57 slides

  31. Acid-Base Indicators • An acid-base indicator is a weak acid having one color and the conjugate base of the acid having a different color. One of the “colors” may be colorless. HIn + H2OH3O+ + In- • Acid-base indicators are often used for applications in which a precise pH reading isn’t necessary. • A common indicator used in chemistry laboratories is Phenolphetalein. http:\\asadipour.kmu.ac.ir........57 slides

  32. http:\\asadipour.kmu.ac.ir........57 slides

  33. http:\\asadipour.kmu.ac.ir........57 slides

  34. Neutralization Reactions • Neutralization is the reaction of an acid and a base. • Titration is a common technique for conducting a neutralization. • At the equivalence point in a titration, the acid and base have been brought together in exact stoichiometric proportions. • The point in the titration at which the indicator changes color is called the end point. • The indicator endpoint and the equivalence point for a neutralization reaction can be best matched by plotting a titration curve, a graph of pH versus volume of titrant. • In a typical titration, 50 mL or less of titrant that is 1 M or less is used. http:\\asadipour.kmu.ac.ir........57 slides

  35. Drawing titration Curve ForStrong Acid - Strong Base HCl + NaOH→ NaCl +H2O Calculate the pH at the some points and draw the curve. 4 essential points. 1)initial point 2)equivalence point 3)before the equivalence point 4)beyond the equivalence point http:\\asadipour.kmu.ac.ir........57 slides

  36. Drawing titration Curve ForStrong Acid - Strong Base HCl + NaOH→ NaCl +H2O 4 questions. 1)What are the present compounds? 2)Which of them is effective on pH? 3)How much are the concentrations? 4)What is the relationship between their Conc. And pH? http:\\asadipour.kmu.ac.ir........57 slides

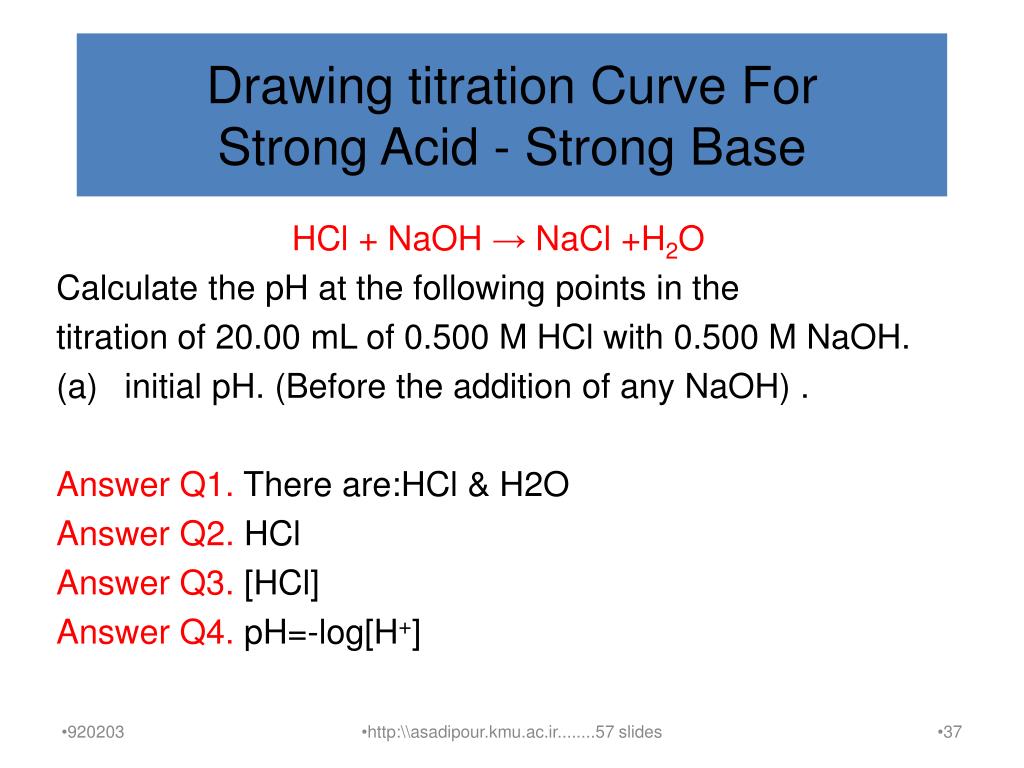

  37. Drawing titration Curve ForStrong Acid - Strong Base HCl + NaOH→ NaCl +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M HCl with 0.500 M NaOH. • initial pH. (Before the addition of any NaOH) . Answer Q1. There are:HCl & H2O Answer Q2.HCl Answer Q3. [HCl] Answer Q4. pH=-log[H+] http:\\asadipour.kmu.ac.ir........57 slides

  38. Drawing titration Curve ForStrong Acid - Strong Base HCl + NaOH→ NaCl +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M HCl with 0.500 M NaOH. b)equivalence point. Answer Q1. There are:NaCl & H2O Answer Q2. H2O Answer Q3. Answer Q4. pH=7 http:\\asadipour.kmu.ac.ir........57 slides

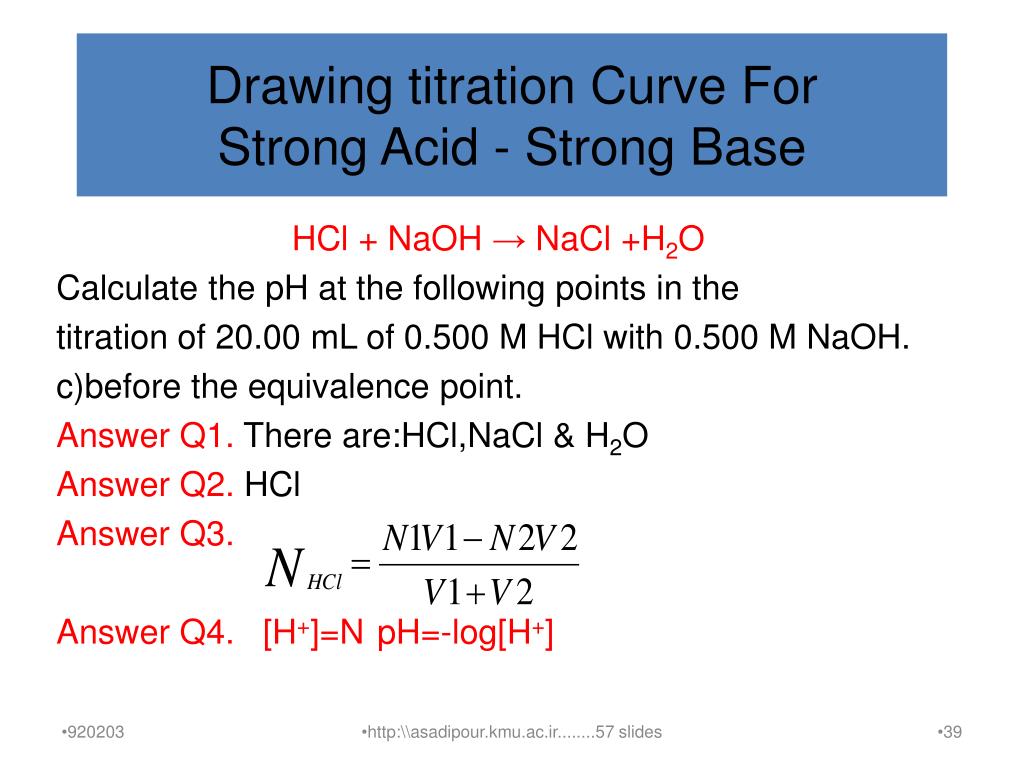

  39. Drawing titration Curve ForStrong Acid - Strong Base HCl + NaOH→ NaCl +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M HCl with 0.500 M NaOH. c)before the equivalence point. Answer Q1. There are:HCl,NaCl & H2O Answer Q2.HCl Answer Q3. Answer Q4. [H+]=NpH=-log[H+] http:\\asadipour.kmu.ac.ir........57 slides

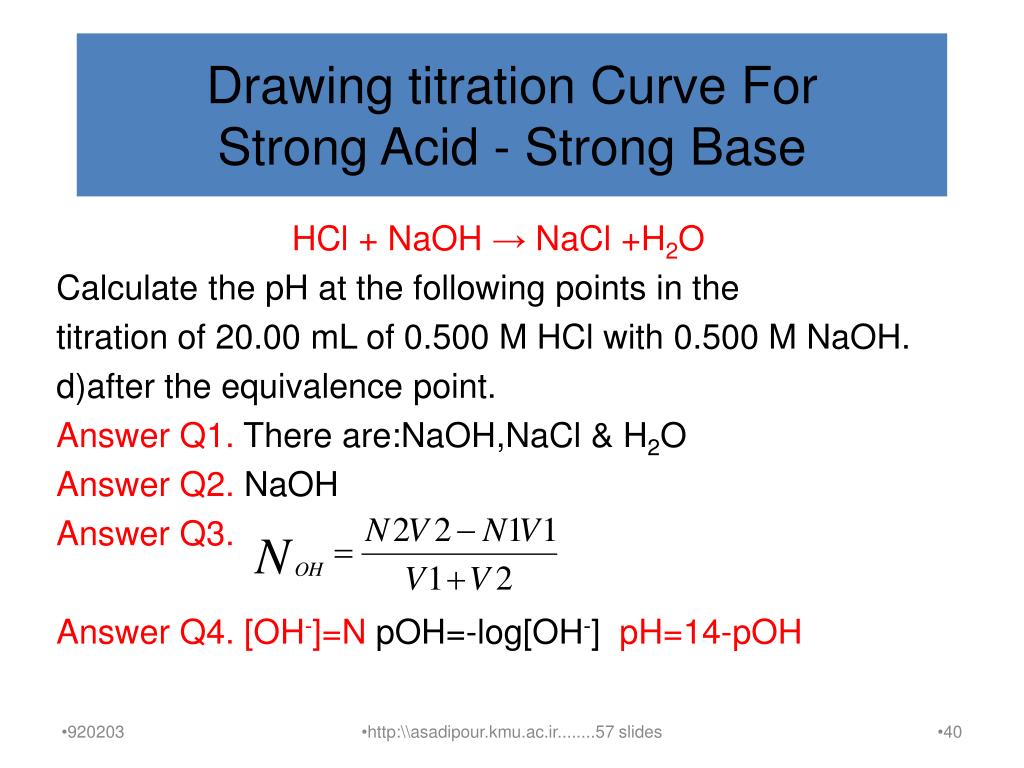

  40. Drawing titration Curve ForStrong Acid - Strong Base HCl + NaOH→ NaCl +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M HCl with 0.500 M NaOH. d)after the equivalence point. Answer Q1. There are:NaOH,NaCl & H2O Answer Q2.NaOH Answer Q3. Answer Q4. [OH-]=N pOH=-log[OH-] pH=14-pOH http:\\asadipour.kmu.ac.ir........57 slides

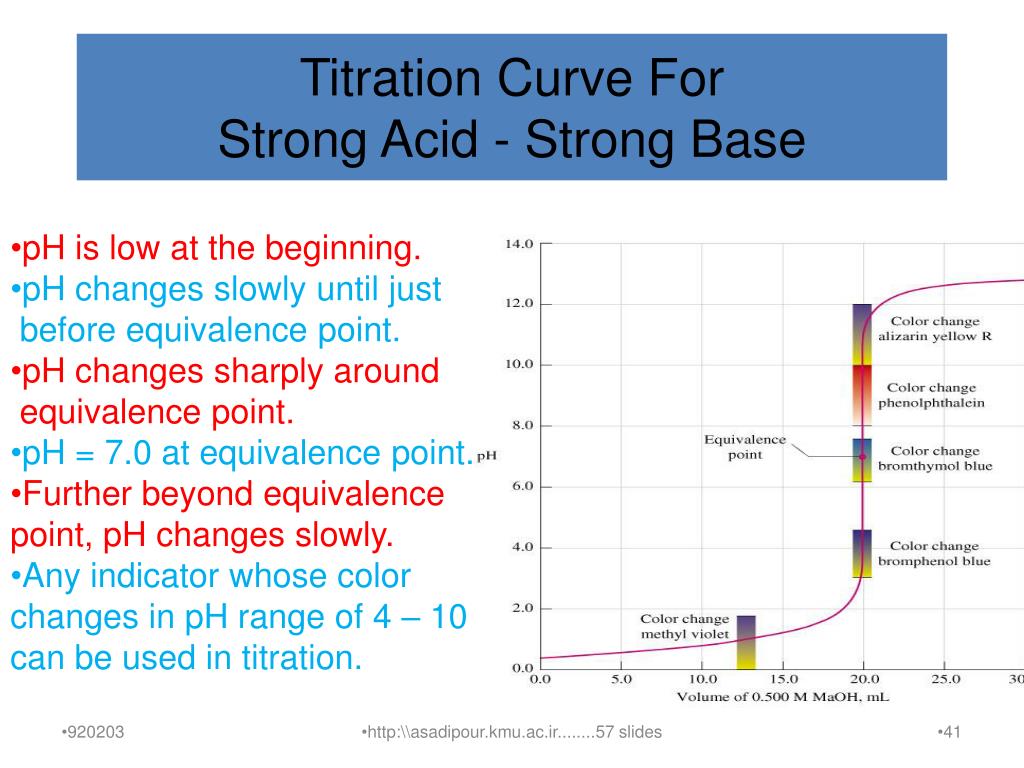

  41. Titration Curve ForStrong Acid - Strong Base pH is low at the beginning. pH changes slowly until just before equivalence point. pH changes sharply around equivalence point. pH = 7.0 at equivalence point. Further beyond equivalence point, pH changes slowly. Any indicator whose color changes in pH range of 4 – 10 can be used in titration. http:\\asadipour.kmu.ac.ir........57 slides

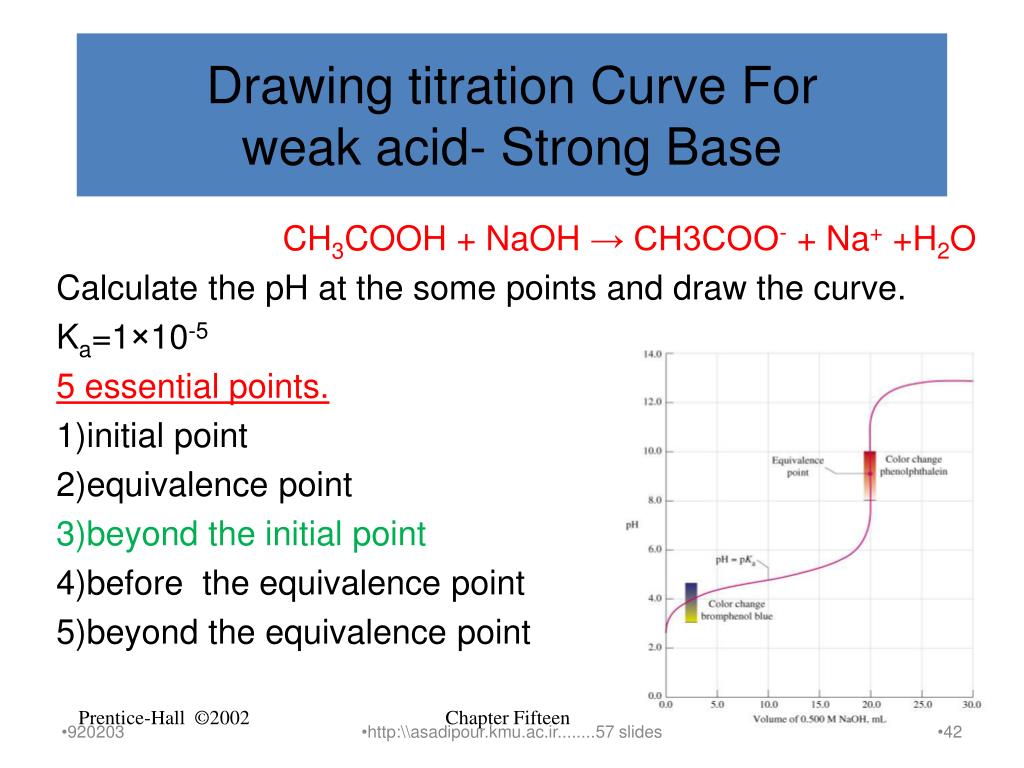

  42. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O Calculate the pH at the some points and draw the curve. Ka=1×10-5 5 essential points. 1)initial point 2)equivalence point 3)beyond the initial point 4)before the equivalence point 5)beyond the equivalence point http:\\asadipour.kmu.ac.ir........57 slides

  43. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O 4 questions. 1)What are the present compounds? 2)Which of them is effective on pH? 3)How much are the concentrations? 4)What is the relationship between their Conc. And pH? http:\\asadipour.kmu.ac.ir........57 slides

  44. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M CH3COOH with 0.500 M NaOH. • initial pH. (Before the addition of any NaOH) . Answer Q1. There are: CH3COOH & H2O Answer Q2. CH3OOH Answer Q3. CH3OOH Answer Q4. pH=-log[H+] http:\\asadipour.kmu.ac.ir........57 slides

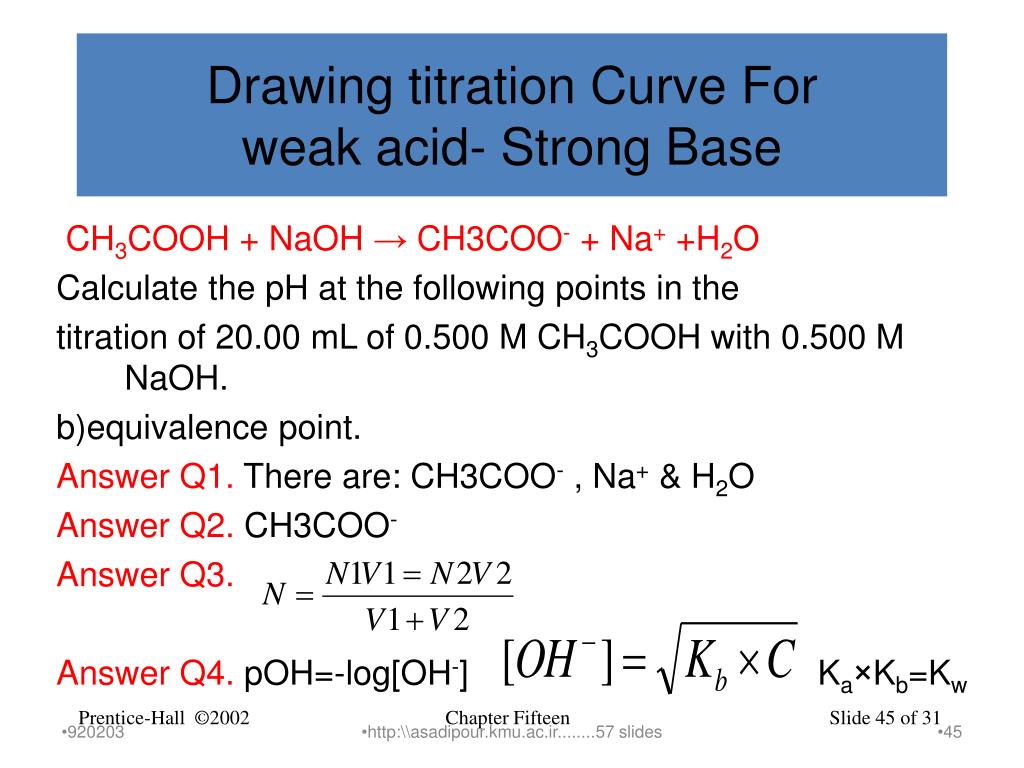

  45. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M CH3COOH with 0.500 M NaOH. b)equivalence point. Answer Q1. There are:CH3COO- , Na+ & H2O Answer Q2.CH3COO- Answer Q3. Answer Q4. pOH=-log[OH-] Ka×Kb=Kw http:\\asadipour.kmu.ac.ir........57 slides

  46. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M CH3COOH with 0.500 M NaOH. c)beyond the initial point. Answer Q1. There are: CH3COOH,CH3COO- ,Na+ & H2O Answer Q2. CH3COOH,CH3COO- Answer Q3. Answer Q4. http:\\asadipour.kmu.ac.ir........57 slides

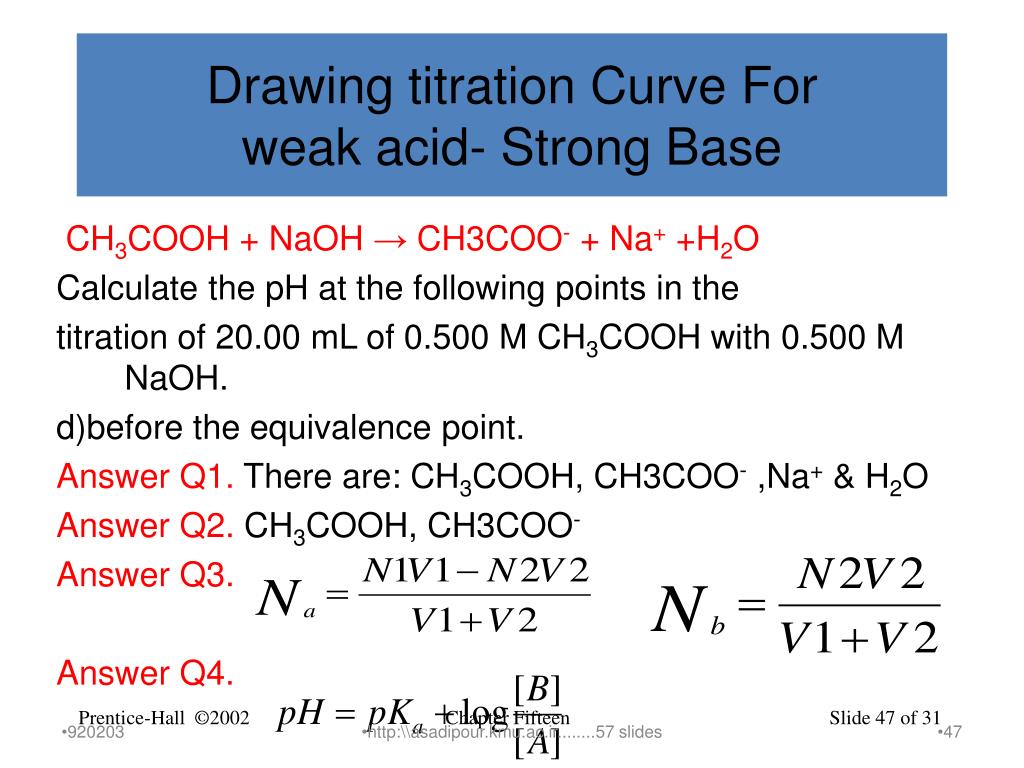

  47. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M CH3COOH with 0.500 M NaOH. d)before the equivalence point. Answer Q1. There are: CH3COOH,CH3COO- ,Na+ & H2O Answer Q2. CH3COOH,CH3COO- Answer Q3. Answer Q4. http:\\asadipour.kmu.ac.ir........57 slides

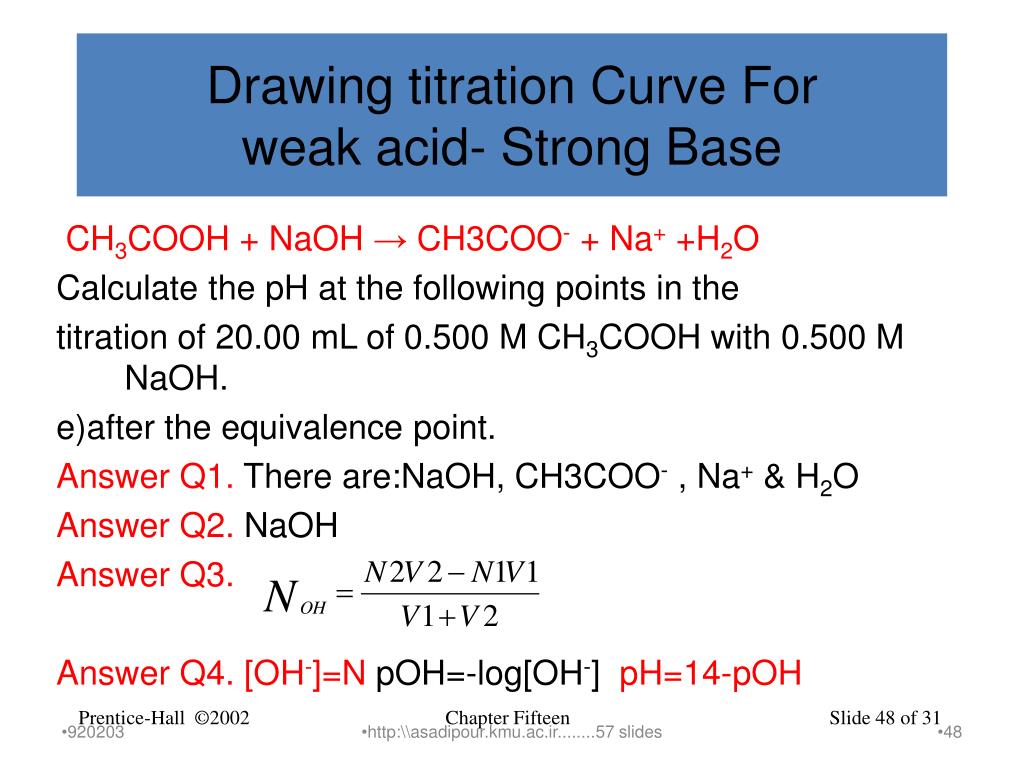

  48. Drawing titration Curve Forweak acid- Strong Base CH3COOH + NaOH→ CH3COO- + Na+ +H2O Calculate the pH at the following points in the titration of 20.00 mL of 0.500 M CH3COOH with 0.500 M NaOH. e)after the equivalence point. Answer Q1. There are:NaOH,CH3COO- , Na+ & H2O Answer Q2.NaOH Answer Q3. Answer Q4. [OH-]=N pOH=-log[OH-] pH=14-pOH http:\\asadipour.kmu.ac.ir........57 slides

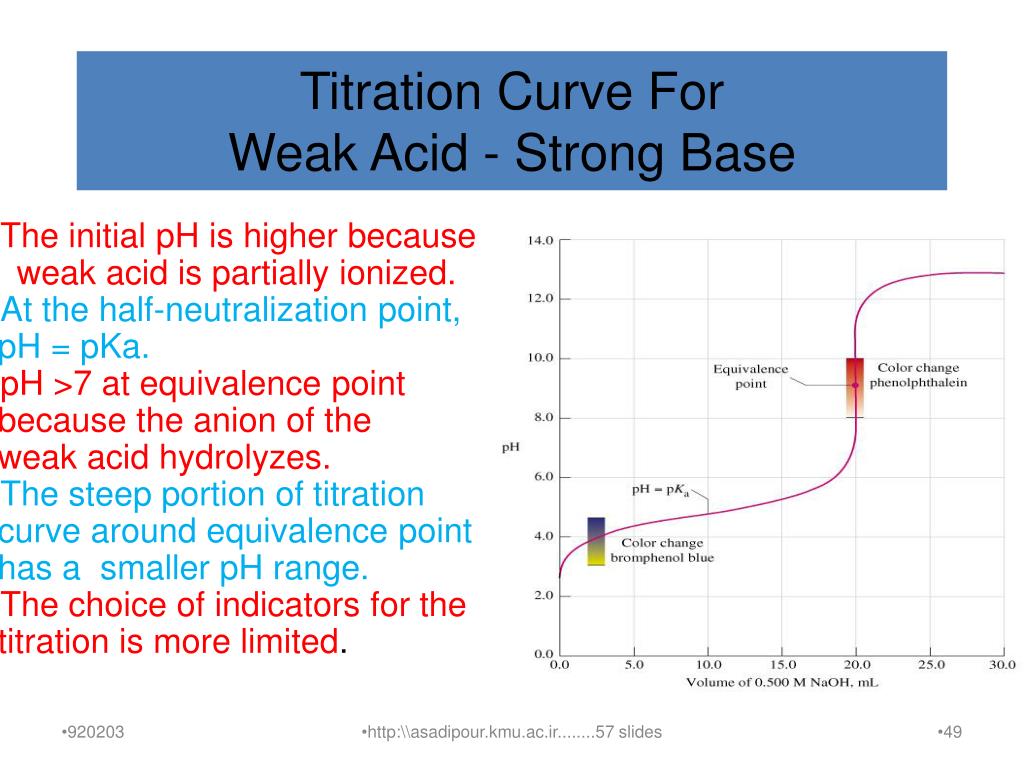

  49. Titration Curve ForWeak Acid - Strong Base The initial pH is higher because weak acid is partially ionized. At the half-neutralization point, pH = pKa. pH >7 at equivalence point because the anion of the weak acid hydrolyzes. The steep portion of titration curve around equivalence point has a smaller pH range. The choice of indicators for the titration is more limited. http:\\asadipour.kmu.ac.ir........57 slides

  50. http:\\asadipour.kmu.ac.ir........57 slides
