  1. MSE-415: Product DesignLecture #11 Chapter 12 Prototyping

  2. Lecture Objectives: • Discuss Prototyping • Discuss Robust Design

  3. Chapter 12 - Prototyping What is a prototype? Book Definition: An approximation of the product along one or more dimensions of interest. Wikipedia Definition: an original type, form, or instance of something serving as a typical example, basis, epitome, or standard. The word prototype comes from the Latin words proto, meaning original, and typus, meaning form or model.

  4. Chapter 12 - Prototyping Types of prototypes: Prototypes can be classified alongtwo dimensions. • Physical/Analytical • Comprehensive/Focused

  5. Chapter 12 - Prototyping Physical Aspects being studied are built intothe prototype. Actual working blower unit. What are other examples?

  6. Chapter 12 - Prototyping Analytical Represent the product in non-tangibleways. Product is computergenerated. What are other examples?

  7. Chapter 12 - Prototyping Comprehensive Most (if not all) aspects of a productare incorporated. Fully functionalprototype. What are other examples?

  8. Chapter 12 - Prototyping Focused One (or a few) of the attributes are implemented. Not fully functional.Focused on just seat. What are other examples?

  9. Chapter 12 - Prototyping physical comprehensive focused Not generally feasible. WHY? analytical

  10. Chapter 12 - Prototyping What are prototypes used for? • Learning • Will it work? • How well will it actually meet customer needs? • Communication • Enhanced communication to top management, vendorspartners, extended team members, customers, investors. • Integration • Insure that components and subsystems work togetheras expected. • Milestones • Demonstrate that a product has achieved a desired levelof functionality.

  11. Chapter 12 - Prototyping Prototype Principles • Analytical prototypes are generally more flexiblethan physical prototypes. • Physical prototypes are easier to detect unanticipatedphenomena. • Creation of a prototype may reduce the risk of costlyiterations. • A prototype may expedite other development steps. • A prototype may restructure task dependencies.

  12. Chapter 12 - Prototyping Prototype Technologies • 3-D Computer Modeling • Design created and manipulated in a computer.

  13. Chapter 12 - Prototyping Prototype Technologies • Free-form Fabrication • Strereolithography (and others) to create physicalobjects from 3-D computer models.

  14. Chapter 12 - Prototyping Planning for a Prototype • Define the purpose of the prototype. • Establish the level of approximation of the prototype. • Outline the experimental plan. • Create a schedule for procurement, construction and testing.

  15. Chapter 12 - Prototyping 1. Define the purpose of the prototype List specific learning and communicationneeds. • Demonstrate to customers. • Show it will function. • Make sure it fits in its intended location. • Others?

  16. Chapter 12 - Prototyping 2. Establish the level of approximation of the prototype. The best prototype is the one that will meetthe needs of step 1. • Comprehensive? • Focused? • Analytical?

  17. Chapter 12 - Prototyping 3. Outline the experimental plan. • Identify: • Experimental variables • Test protocol • Measurements to be performed • Plan to analyze data

  18. Chapter 12 - Prototyping 4. Create a schedule for procurement, construction and testing. • Identify 3 key dates: • When parts are ready to be assembled. • When prototype will be first tested. • When testing is expected to be completed.

  19. Bad design examples

  20. Bad designs continued

  21. MSE-415: Product DesignLecture #12 Chapter 13 Robust Design

  22. Chapter 13 – Robust Design What is robust design/process/product?: A robust product (process) is one that performs as intended even under non-ideal conditionssuch as process variations or a range ofoperating situations. !

  23. Chapter 13 – Robust Design What is robust design/process/product?: For a given performance target there may bemany combinations that yield desired results. But, some combinations may be more sensitive to variation than others. Which combinations work the best?Which combinations have the most ‘robust’ Design to meet customer needs?

  24. Chapter 13 – Robust Design The robust design process has 7 primary steps: • Identify Signal Factor(s), Response Variable or Ideal Function, Control Factors, Noise Factors, and Error States (or the failure modes). • Formulate an objective function. • Develop the experimental plan. • Run the experiment. • Conduct the analysis. • Select and confirm factor setpoints. • Reflect and repeat.

  25. P-Diagram • The P-Diagram is based on the concept of converting 100% of input energy (input signal) into 100% of the ideal function.  • Any engineered system reaches its "ideal function" when all of its applied energy (input) is transformed efficiently into creating desired output energy. In reality, nothing functions like this. Every system is less than 100% efficient in its energy transformation. This loss goes to creating unintended functions, or error states. Signal Ideal Function Noise Error States =

  26. Chapter 13 – Robust Design • Identify Signal Factor(s), Response Variable or Ideal Function, Control Factors, Noise Factors, and Error States (or the failure modes). • Signal Factor (inputs) pass through the design of the product and is output into measured Response Variable or Ideal Function. • The Signal Factor is transformed via the Control Factors to convert the input to the desired Output. • Control Factors are typically elements such as design, materials and processes that the engineer has 'control' over. • Error States are the Failure Modes or Effects of Failure as defined by an end user when using the product. • Noise Factors are things that can influence the design but are not under the control of the engineer, such as environmental factors, customer usage, interfaces with other systems, degradation over time, piece-to-piece variation, among others. These • Noise Factors, if not protected for, can make the design useless and it can be said that the design is not robust against the expected noise factors.

  27. Example • I want to determine how long it takes to boil enough water for a of cup tea. • Complete the Parameter Diagram

  28. Chapter 13 – Robust Design 2. Formulate an objective function. An experiments performance metrics must be turnedinto an objective function that relates to the desiredrobust performance. Maximizing: Used for performance dimensionswhere larger values are better. Example? Minimizing: Used for performance dimensionswhere smaller values are better. Example? Target Value: Used for performance dimensionswhere values closest to a point are better. Example? Signal-to-noise ratio: Used to measure robustness. pg. 271 Signal Ideal Function Noise Error States =

  29. Chapter 13 – Robust Design 3. Develop the experimental plan. D.O.E.

  30. Step 3: DOE • DOE a method for obtaining the maximum amount of information for the least amount of data (saving resources, money and time) • Basic question – What is the effect on Y when changing X? • Simplest case: one factor, pick various levels of X (hold other X’s constant)

  31. Which levels of X should be picked? • First ask what is the range of interest? • Statistical model valid only inside the experimental range (Can NOT extrapolate)

  32. How many level of X to pick? • What is happening between the two points?

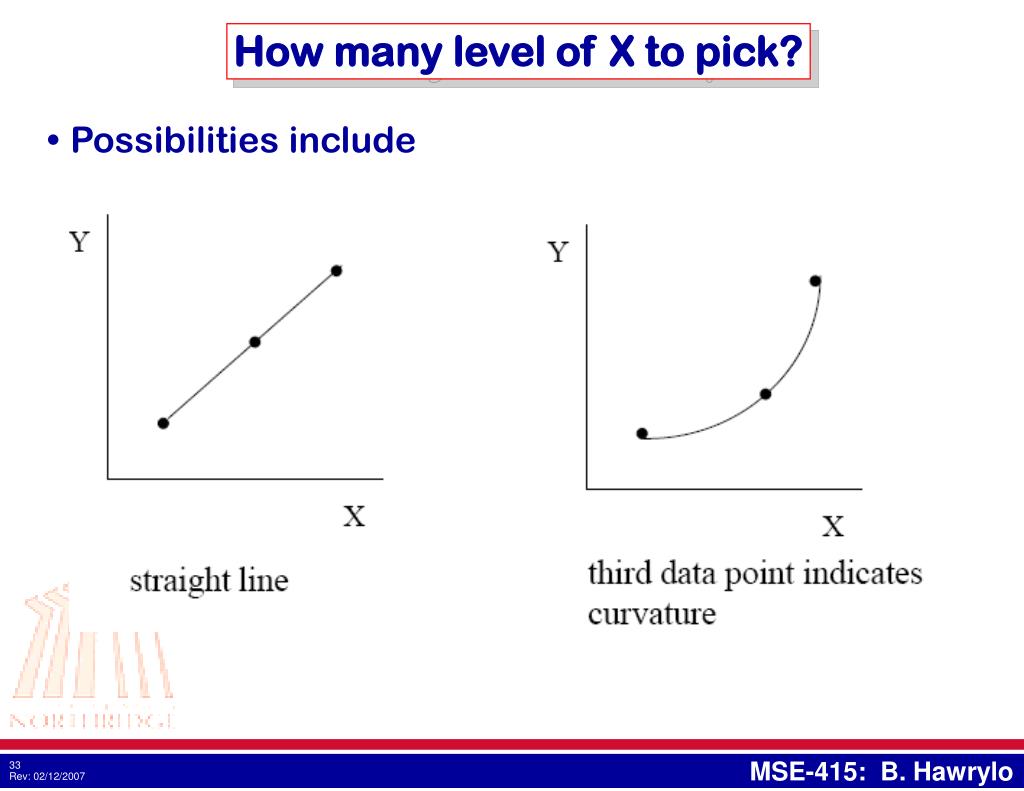

  33. How many level of X to pick? • Possibilities include

  34. Confounding • Confounding is when a factorial experiment is run in blocks and the blocks are too small to contain a complete replication of the experiment, one can run a fraction of the replicate in each block, but the result is losing information on some effects. • When two factors are varied such that their individual effects can not be determined separately, their effects are said to be confounding • What if there are more than one independent variable? Which levels should be picked? • Clearly there is a trend. But is the increase in Y due to an increase in X1 or an increase in X2 or both • Note: In this situation, X1 and X2 are said to be confounding.

  35. Orthogonal Design • A better way to set-up the experiment is to use an orthogonal design. • Clearly there is a trend. Increasing X1 causes Y to increase, while increasing X2 cause Y to decrease

  36. What if there are many X’s? • What if you had this design: • X1 – 7 levels • X2 – 5 levels • X3 – 2 levels • X4 – 2 levels • This design would require 7x5x2x2 = 140 cases • With more variables this can get out of hand. • Fortunately DOE offers a better way. Examples? ???

  37. DOE Process • Early stage of DOE • Which factors are important and what is their overall effect? • Later stages of DOE • What is the exact relationship between each factor and its response? • How can we optimize combinations of factor levels to maximize or minimize a response?

  38. DOE Approach #1All Possible Combinations • Measure effect of one particular factor by fixing levels of remaining factors and running experiments at various levels of factors of interest. • Repeat entire process for each of the other factors, one at a time. • This allows one to measure the “simple effect” of X’s on Y. • Problem: too many runs needed. In our case 140 runs

  39. DOE approach #22k Factorial Design • Choose two levels for each of k possible factors and run experiments at each of the 2k factor-level combinations • Allows us to estimate the “main effect” on X’s on Y. • Advantage: Less runs required.

  40. 2k Factorial Design • Two levels of factors are denoted by “-” or “low” level and “+” or “high” level, respectively • Example: 3 factors (23 design) • Note: R1….R8 are values of the response associated with the i’th combination of factor levels.

  41. Main Effect (ME) • Formal definition: average change in the response due to moving a factor from its “-” level to its “+” level while holding all other factors fixed • For the previous example, ME of X1 can be calculated as follows: • ME(X1) = (R2 – R1) + (R4 - R3) + (R6 - R5) + (R8 - R7) 4

  42. Interaction Effect • Sometimes two factors can interact with each other. • Consider the following case • X1 is varied over 4 levels, X2 is held constant – Y appears to be increasing as a function of X1. 1

  43. Interaction Effect • Suppose the experiment is repeated for a different level of X2: • Y appears to be decreasing as a function of X1 (the exact opposite of the previous case)

  44. Interaction Effect • Interactions • Effect of one factor (X1) depends on level of another factor (X2) • Synergistic or antagonistic • Determine via plots or statistical test • Higher order interactions are possible but rare

  45. Fractional Factorial Designs • What if there are many factors? Clearly this can get out of hand!

  46. Fractional Factorial Designs • Is it necessary to run every single combination of every single factor at every single level? • Fortunately, the answer is NO? • Fractional Factorial Design allows us to get good estimates of main effects and interactions at a fraction of the price or time and money! • A certain subset of the 2k possible design points are selected. • But, which ones to choose? • Theoretical statistics give the answer and computer programs do the work.

  47. Fractional Factorial Designs • How does it work? • Price of fractional factorial: certain effects confounded with each other • Example: • Main effect confounded with interaction: • Assumption: • Higher order interactions are negligible main effects and lower order interactions

  48. Fractional Factorial Designs • If we can assume that higher-order interactions are negligible, we don’t need to run every single case. • Subject matter expert/analyst is consulted to determine which interactions are likely to be negligible. • Design (run matrix) is chosen accordingly. • DOE Strategy • Objective: screen out unimportant factors, identify significant ones • Another name for a fractional factorial design is “screen design” • Original design matrix allows us to identify significant factors – BUT-

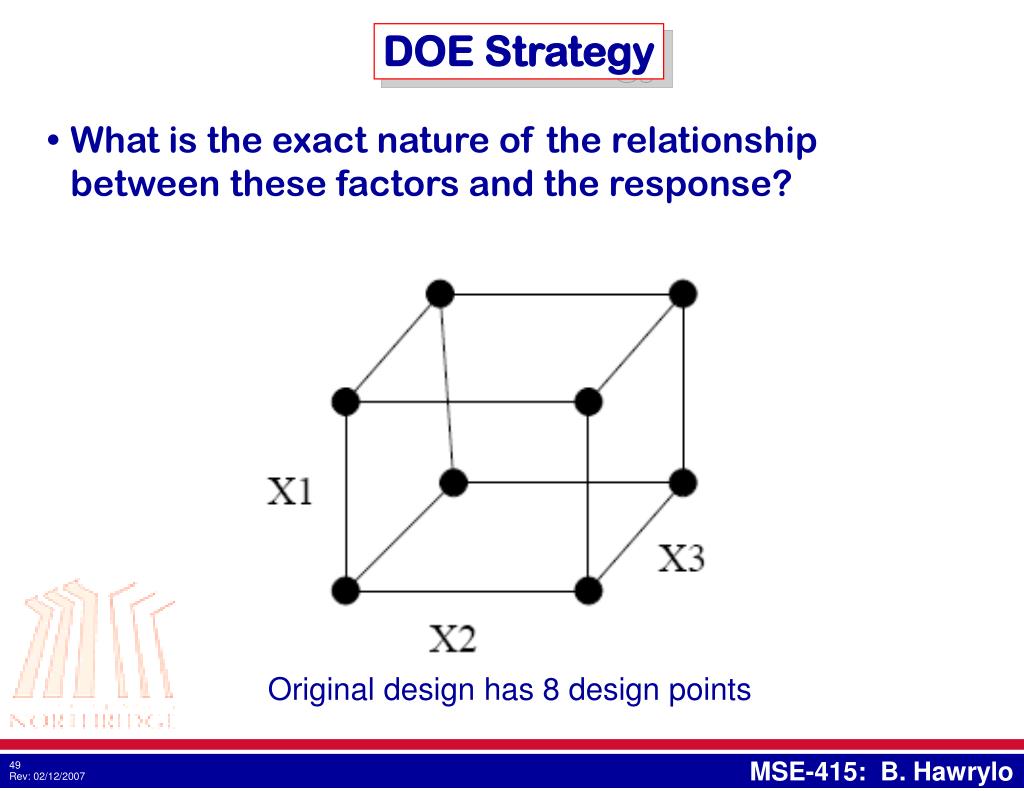

  49. DOE Strategy • What is the exact nature of the relationship between these factors and the response? Original design has 8 design points

  50. DOE Strategy • Additional data points can be added to the original design • A “follow-up” study can be done to optimize or determine sensitivity of a response. • Other types of design exist.
