  1. Tech Meeting UniNet Network Update By UniNet NOC Team noc@uni.net.th WUNCA 19th July 3, 2008

  2. UniNet Network Update Schedule WUNCA 19th • UniNet Network Update • Co-Operation with Regional POP • UniNet NetworkFuture Plan (2009-2010) • R/E Routing Problem • Security Policy

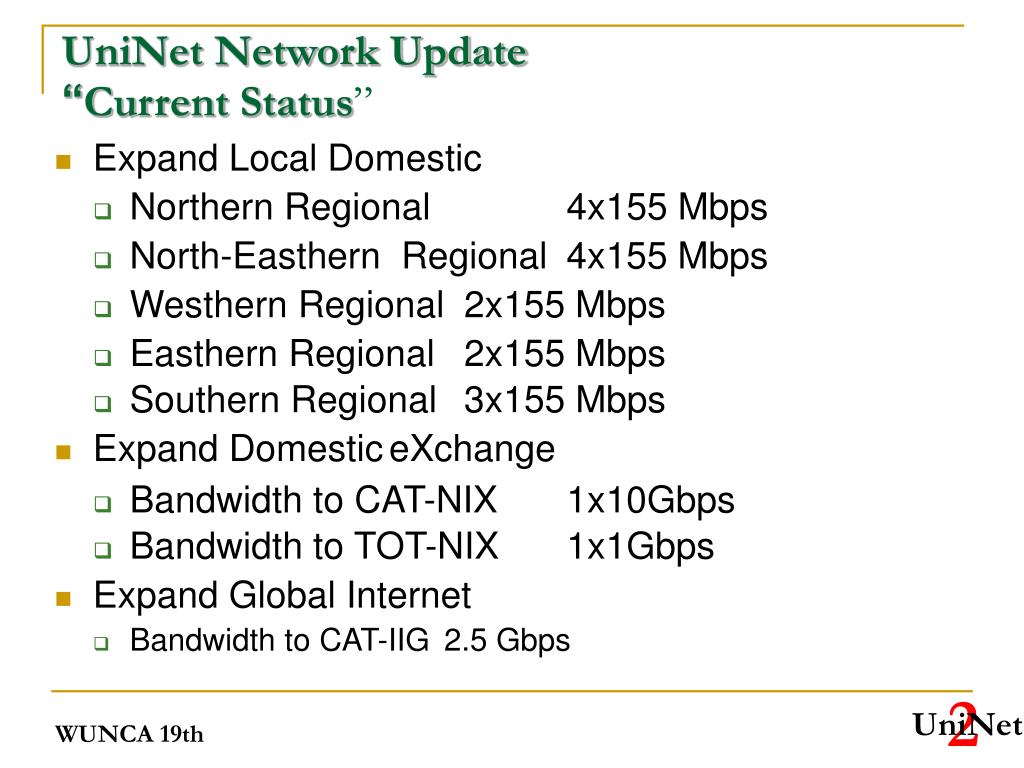

  3. UniNet Network Update “Current Status” • Expand Local Domestic • Northern Regional 4x155 Mbps • North-Easthern Regional 4x155 Mbps • Westhern Regional 2x155 Mbps • Easthern Regional 2x155 Mbps • Southern Regional 3x155 Mbps • Expand DomesticeXchange • Bandwidth to CAT-NIX 1x10Gbps • Bandwidth to TOT-NIX 1x1Gbps • Expand Global Internet • Bandwidth to CAT-IIG 2.5 Gbps

  4. UniNet Network Topology Current Status • Network Diagram • Regional POP Configuration Diagram

  5. UniNet Network Topology Current Status “2008”

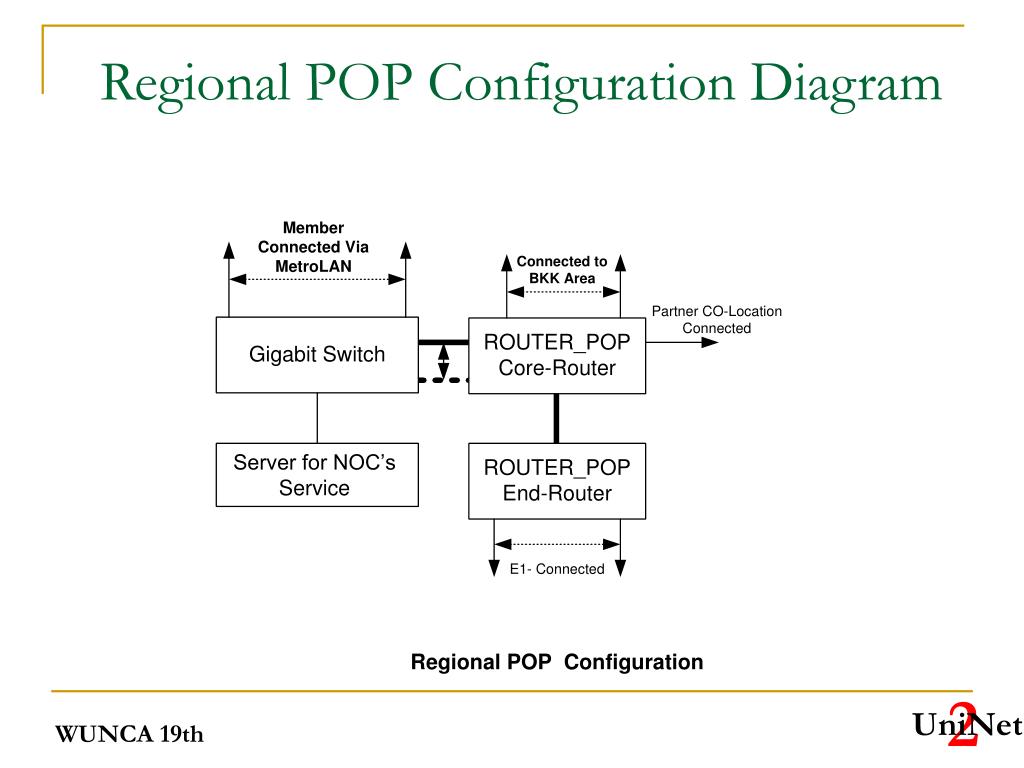

  6. Regional POP Configuration Diagram

  7. Peering Network Total 15.8 Gbps Global Internet Domestic Exchange TOT-NIX CAT-IIG CAT-NIX 2.5 Gbps 1 Gbps 10 Gbps Internet2 155 Mbps Abilene,KAREN,CalREN UniNet Research Internet 155 Mbps TEIN2 1 Gbps 1 Gbps ThaiSARN MOE

  8. IPv6 UniNetStatus • Allocated a subTLA IPv6 Addresses from APNIC (2001:03C8::/32). • All Member Can request IPv6 Form UniNet (::/48) • Current Connected with 14 Campus Network and 6 Peering Network • Support 6-to-4 Relay • V6Tunnel Broker soon!!!

  9. Multicast Network Update • UniNet Backbone Multicast Support: • MBGP • MSDP • PIM-ASM • PIM-SSM • Support Both IPv4 and IPv6

  10. Co-Operation with Regional POP • Facility Support • Power supply, Air Condition, Area for Implement Network System, Telephone for Remotely,etc • People Operation Support • Operation Management • Connected Management • Communication Management • Helpdesk Management

  11. Point Of Present :POP List • Chiangmai POP,Chiangrai POP Phisanulok POP • Khonkean POP,Sakon POP,Ubon POP Nakonratchasima POP • Chonburi POP • Nakonpratom POP • Songkla POP, Nakonsri POP • Bangken POP,Payathai POP,Patumwan POP Bangmod POP, Bangsue POP

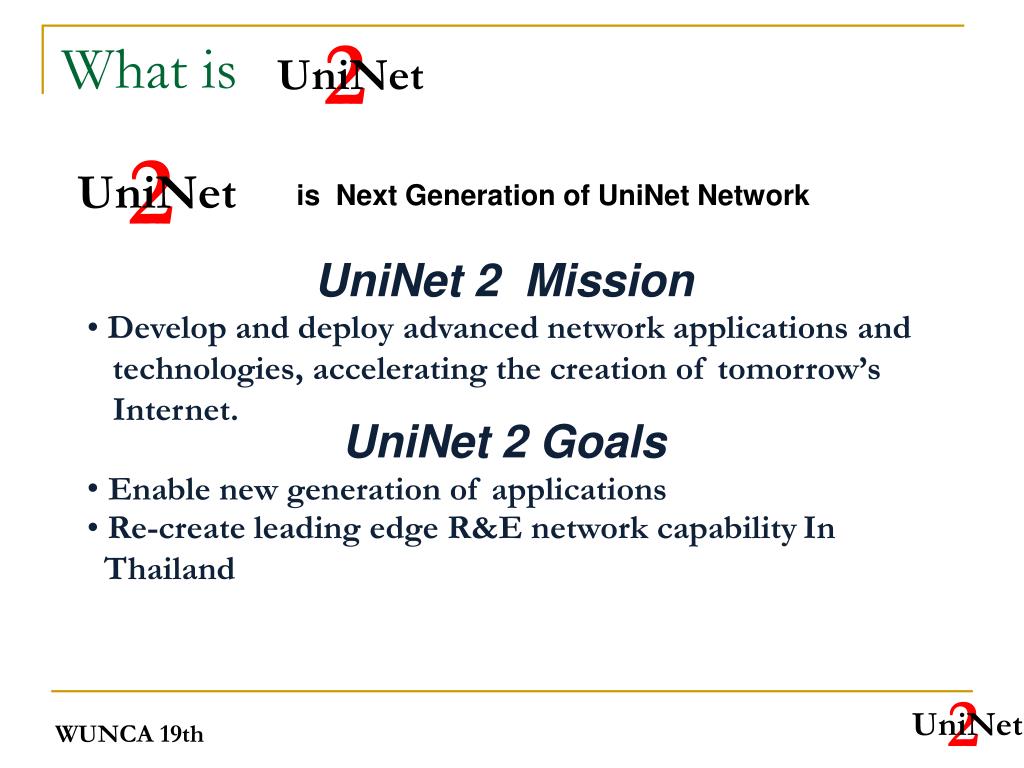

  12. What is is Next Generation of UniNet Network • UniNet 2 Mission • Develop and deploy advanced network applications and • technologies, accelerating the creation of tomorrow’s • Internet. • UniNet 2 Goals • Enable new generation of applications • Re-create leading edge R&E network capabilityIn • Thailand

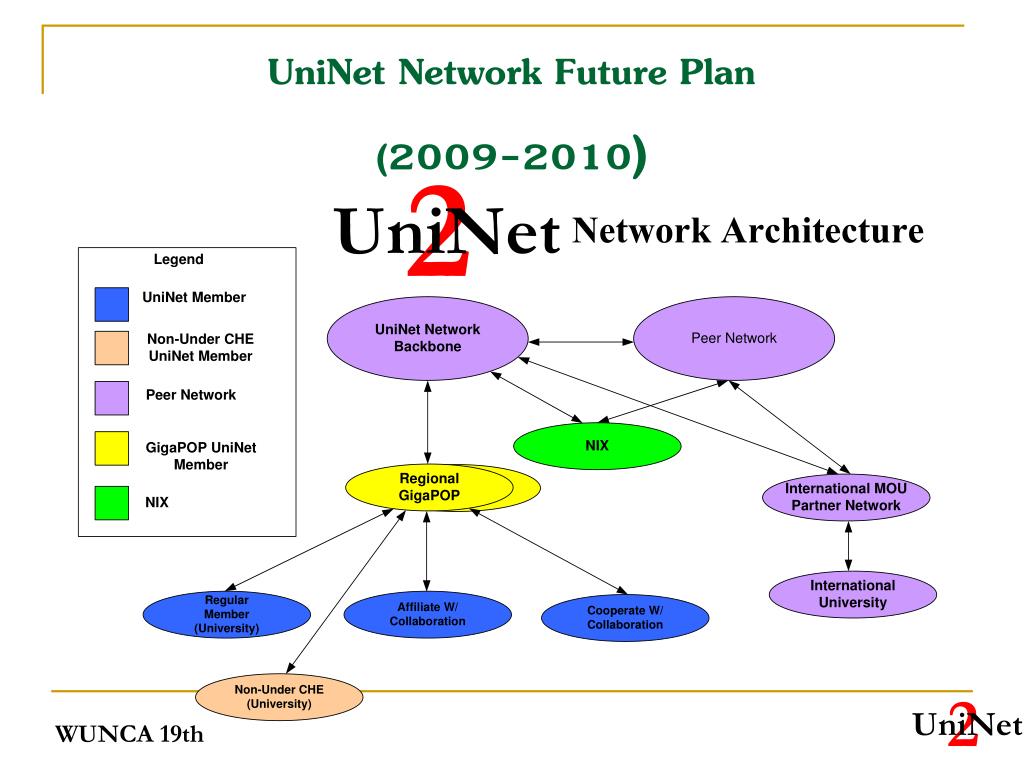

  13. UniNet Network Future Plan (2009-2010)

  14. UniNet Network Update “Plan 2009-2010” • Expand Local Domestic • Northern Regional 2x10Gbps (Lamda) • North-Easthern Regional 2x10Gbps (Lamda) • Westhern Regional 2x10 Gbps • Easthern Regional 2x10 Gbps • Southern Regional 3x10 Gbps • Expand DomesticeXchange • Bandwidth to CAT-NIX 2x10Gbps • Bandwidth to TOT-NIX 1x10Gbps • Expand Global Internet • Bandwidth to CAT-IIG 4 Gbps

  15. UniNet Network Update “Plan 2009-2010”con’t • Dedicate Research Traffic to 1x10 Gbps (Lamda) • Create New Research POP for Research Traffic Only • Chiangmai POP ,Phisanulok POP • Khonkean POP,Nakonratchasima POP • Nakonpatom POP,Chonburi POP • Songkla POP,Nakonsri POP • Bangken POP,Payathai POP

  16. UniNet Network Update “Plan 2009-2010”con’t • Network Diagram • Regional_POP Diagram

  17. UniNet Network Update “Plan 2009-2010”

  18. Regional POP Configuration Diagram

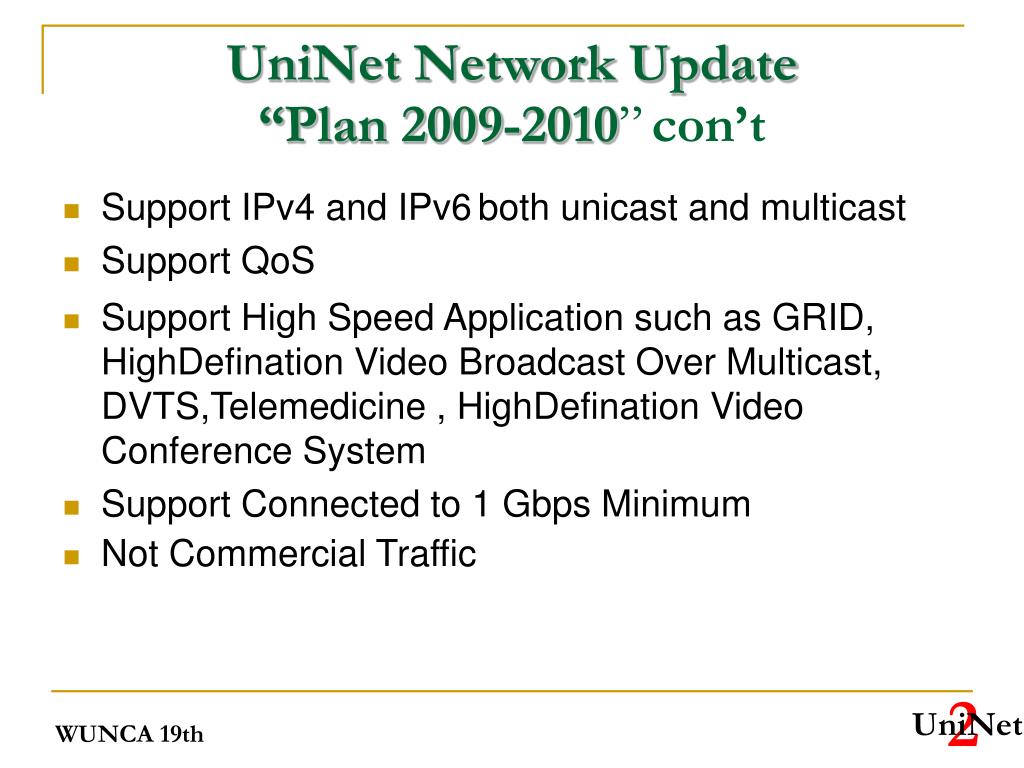

  19. UniNet Network Update “Plan 2009-2010”con’t • Support IPv4 and IPv6both unicast and multicast • Support QoS • Support High Speed Application such as GRID, HighDefination Video Broadcast Over Multicast, DVTS,Telemedicine , HighDefination Video Conference System • Support Connected to 1 Gbps Minimum • Not Commercial Traffic

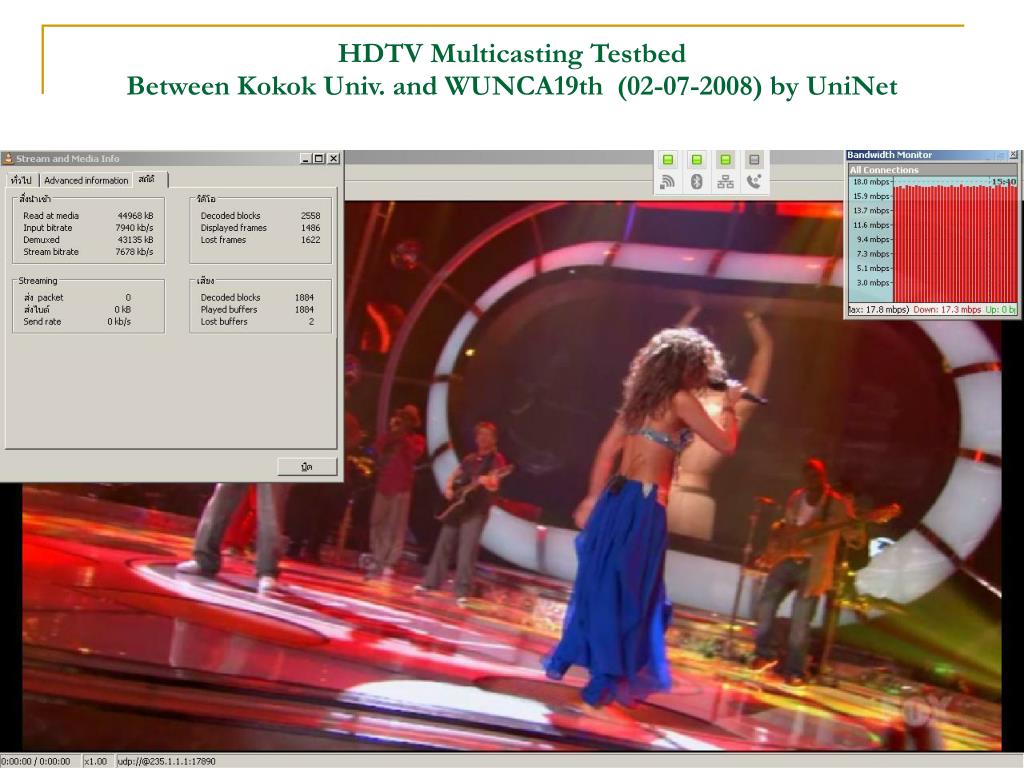

  20. HDTV Multicasting TestbedBetween Kokok Univ. and WUNCA19th (02-07-2008) by UniNet

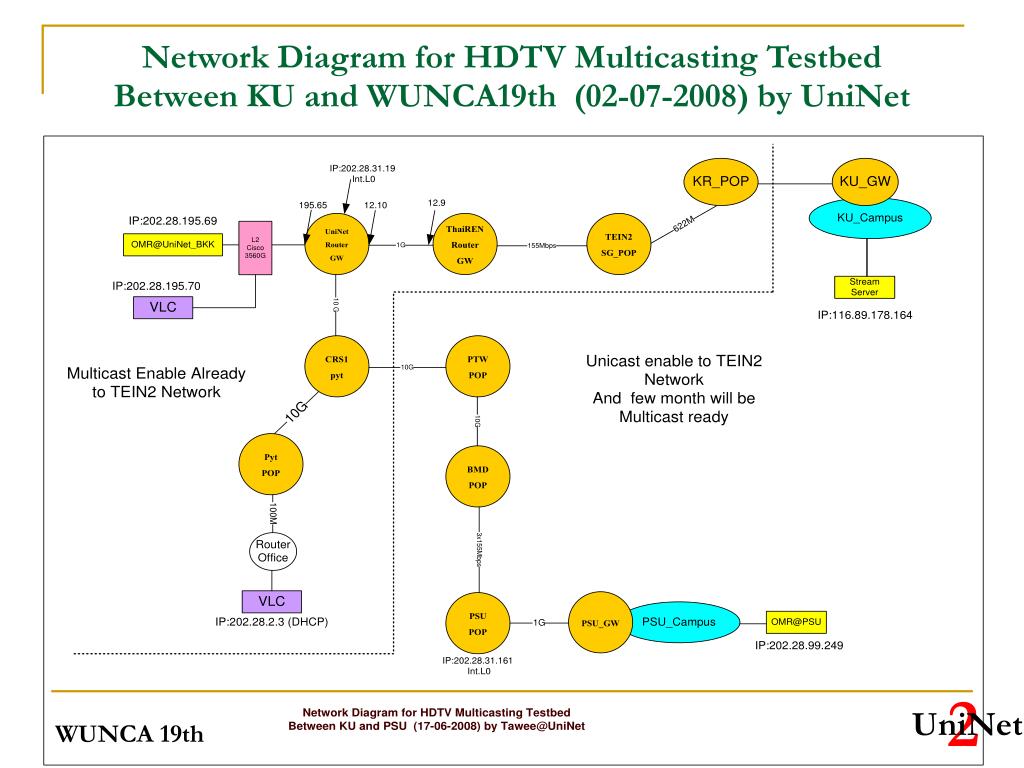

  21. Network Diagram for HDTV Multicasting TestbedBetween KU and WUNCA19th (02-07-2008) by UniNet

  22. Research and Education Routing • Description of the problem • Description of inter-networking in both R/E and commercial networks • Example of a R/E routing problem • Summary and Recommendations

  23. Example of a R/E routing problem

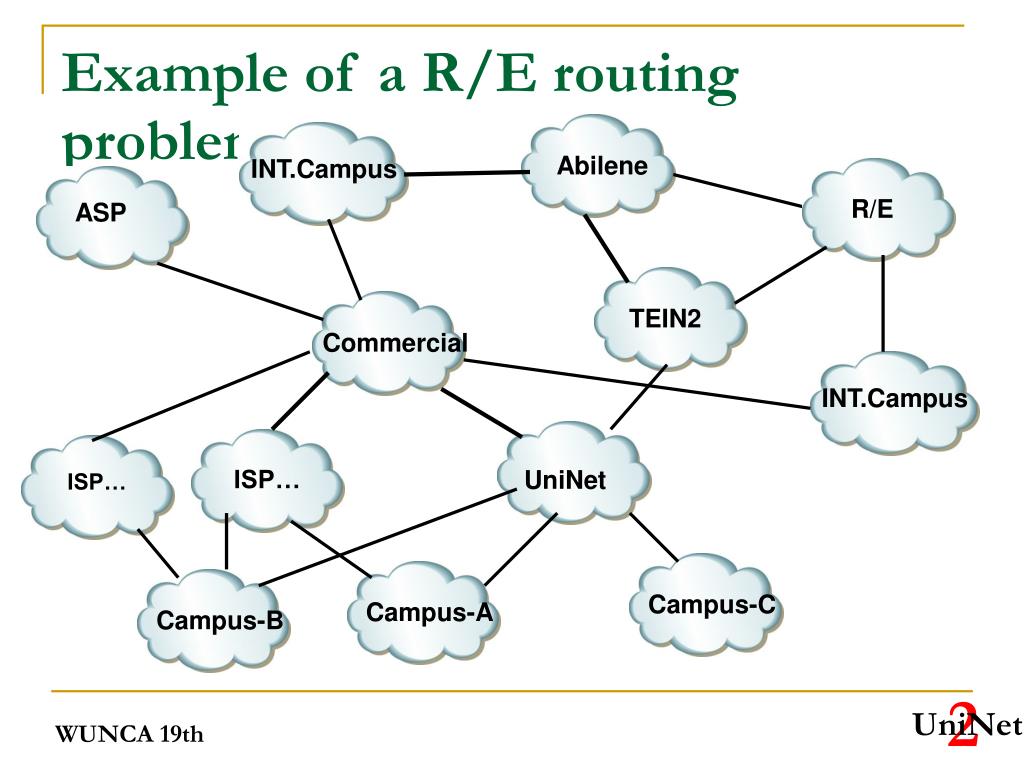

  24. Commercial INT.Campus ASP INT.Campus TEIN2 R/E Abilene Campus-A Campus-C Campus-B Example of a R/E routing problem ISP… UniNet ISP…

  25. NIX-2 ISP… ISP… NIX-1 UniNet ASP Campus-A Campus-B Campus-C Example of a R/E routing problem

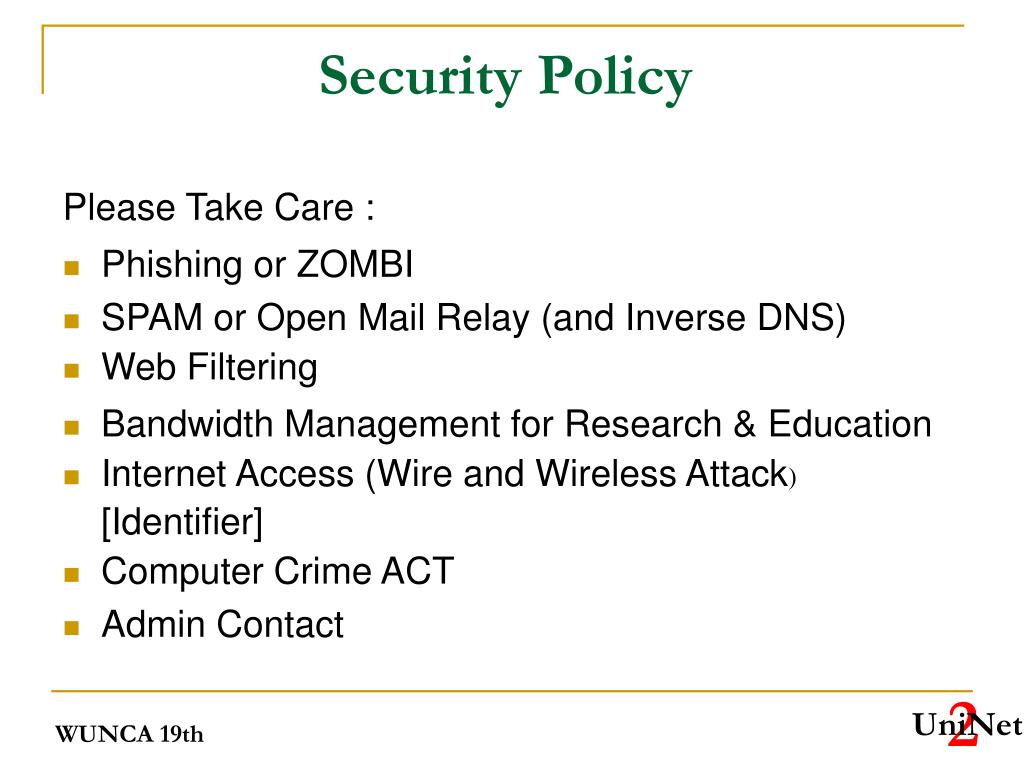

  26. Security Policy Please Take Care : • Phishing or ZOMBI • SPAM or Open Mail Relay (and Inverse DNS) • Web Filtering • Bandwidth Management for Research & Education • Internet Access (Wire and Wireless Attack) [Identifier] • Computer Crime ACT • Admin Contact

  27. Thanks you If you need more information please contact : E-Mail: noc@uni.net.th Tel.+66-2-354-5678 ext.5003-5011
