  1. Christian Schulte cschulte@kth.se Software andComputer Systems School of Information and Communication Technology KTH – Royal Institute of Technology Stockholm, Sweden Getting Started With C++ ID1218 Lecture 08 2009-11-23

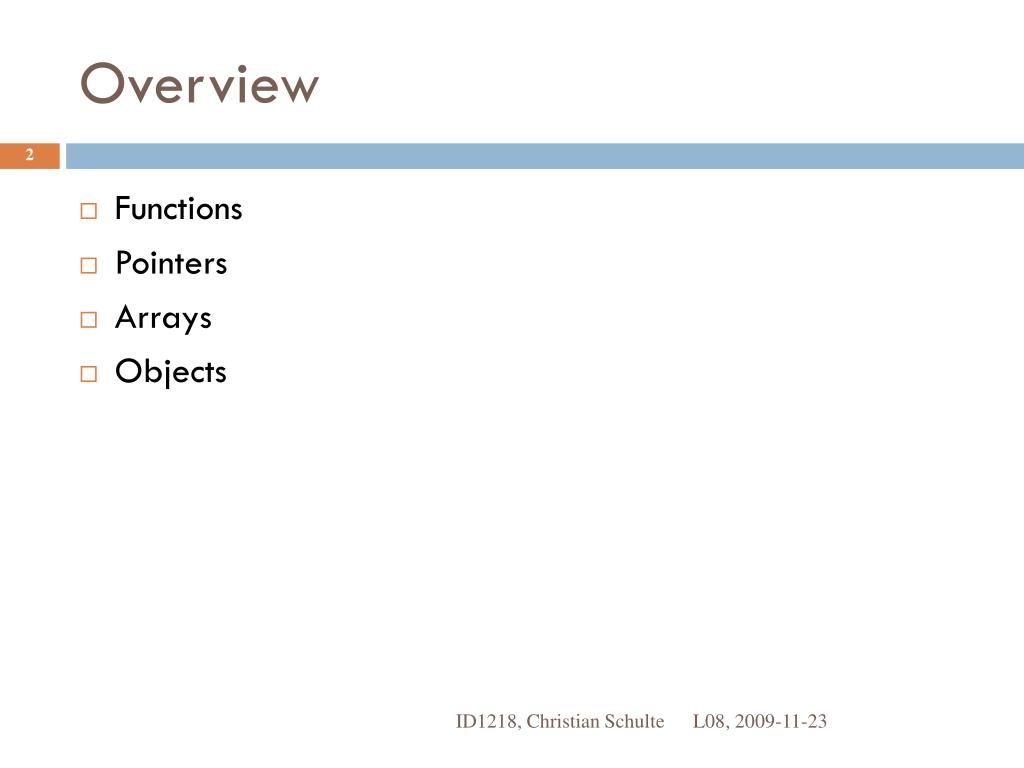

  2. Overview • Functions • Pointers • Arrays • Objects ID1218, Christian Schulte

  3. Reading Suggestions • All of you • thorough reading of chapters 0 to 4 • take a peek at chapter 11 ID1218, Christian Schulte

  4. Functions ID1218, Christian Schulte

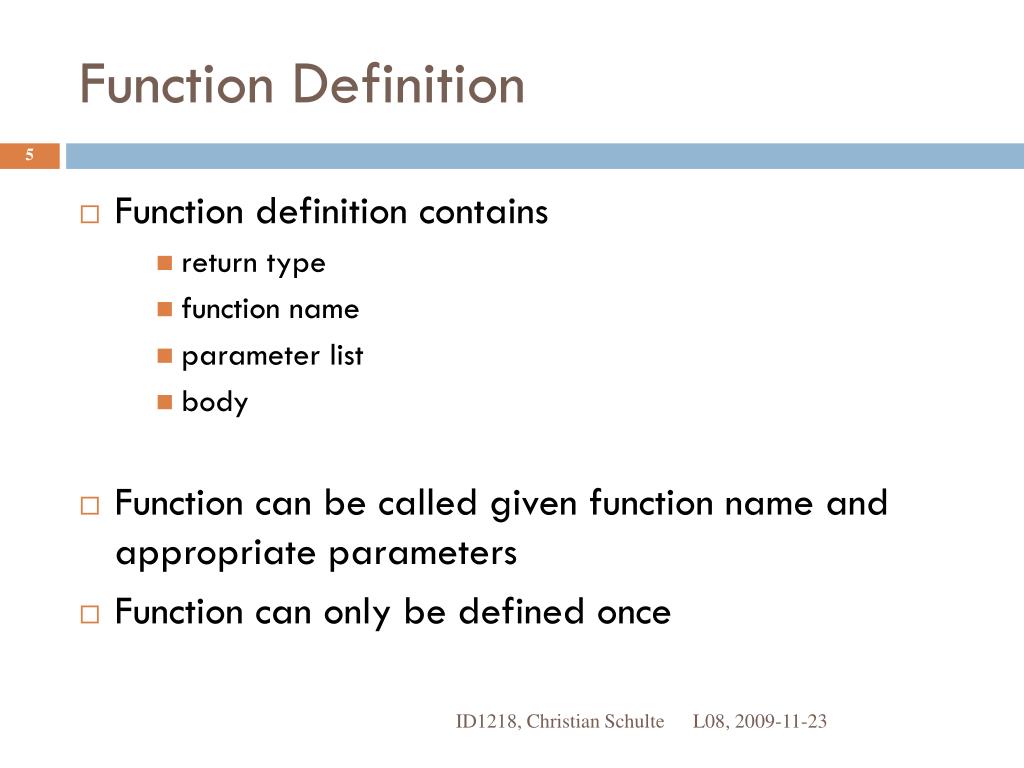

  5. Function Definition • Function definition contains • return type • function name • parameter list • body • Function can be called given function name and appropriate parameters • Function can only be defined once ID1218, Christian Schulte

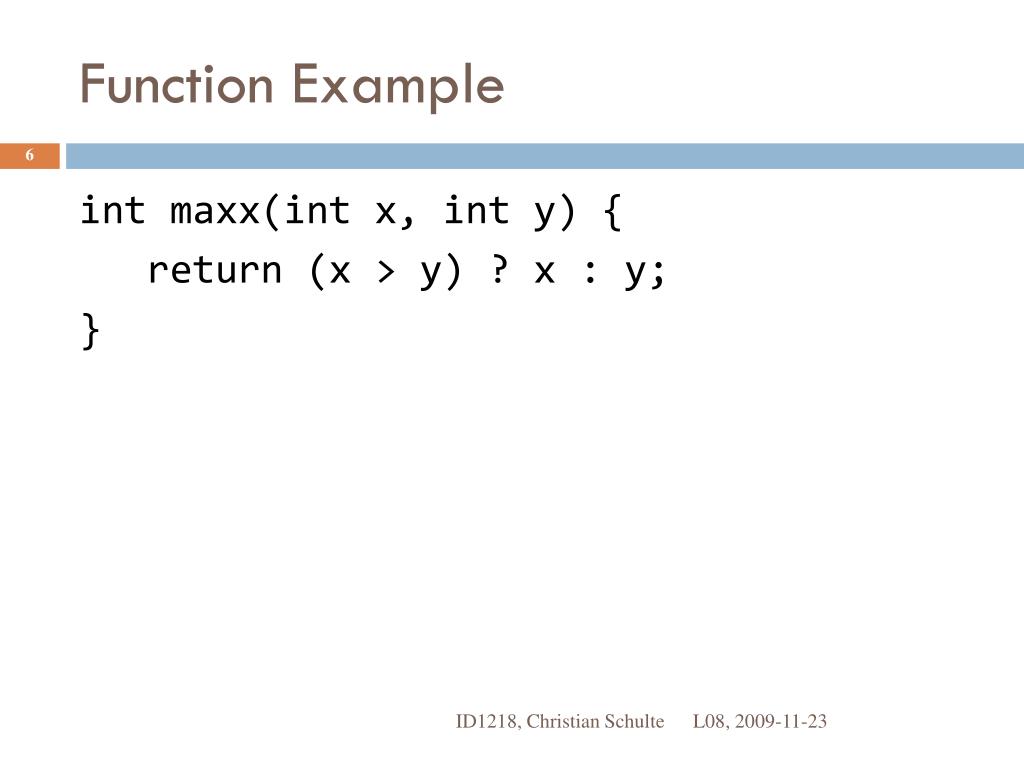

  6. Function Example int maxx(int x, int y) { return (x > y) ? x : y; } ID1218, Christian Schulte

  7. Function Invocation • Print maximum of two numbers cout << maxx(43,27) << endl; • Uses call-by-value • Parameters need not be of type int • automatic cast long int • possibly with warning ID1218, Christian Schulte

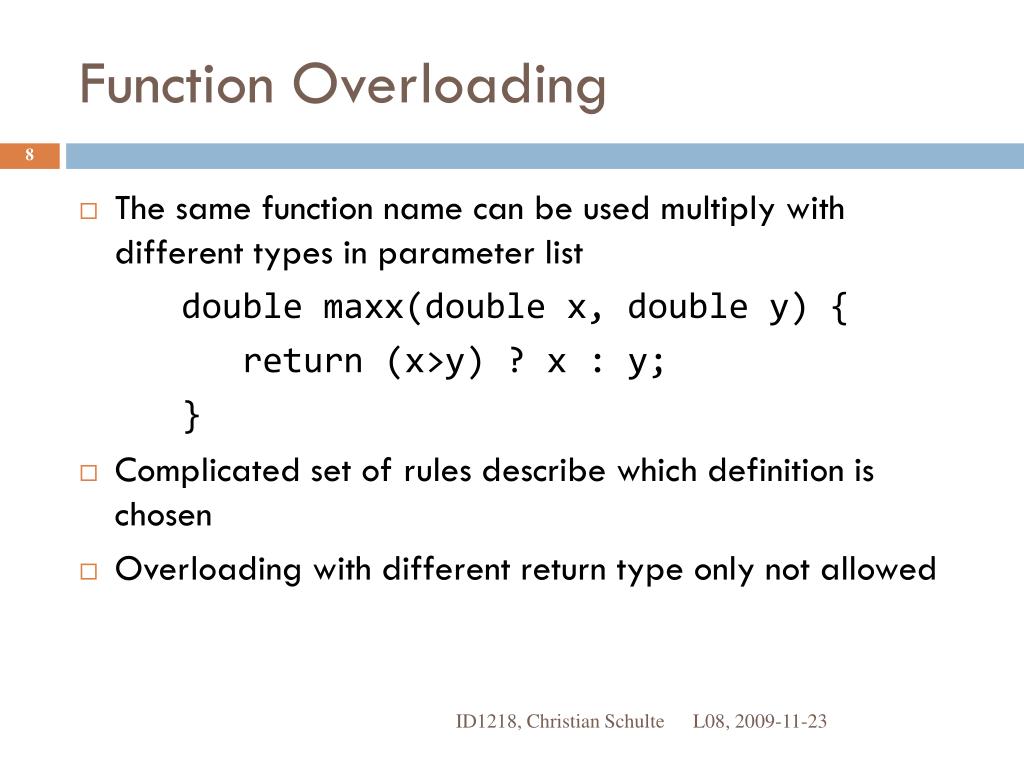

  8. Function Overloading • The same function name can be used multiply with different types in parameter list double maxx(double x, double y) { return (x>y) ? x : y; } • Complicated set of rules describe which definition is chosen • Overloading with different return type only not allowed ID1218, Christian Schulte

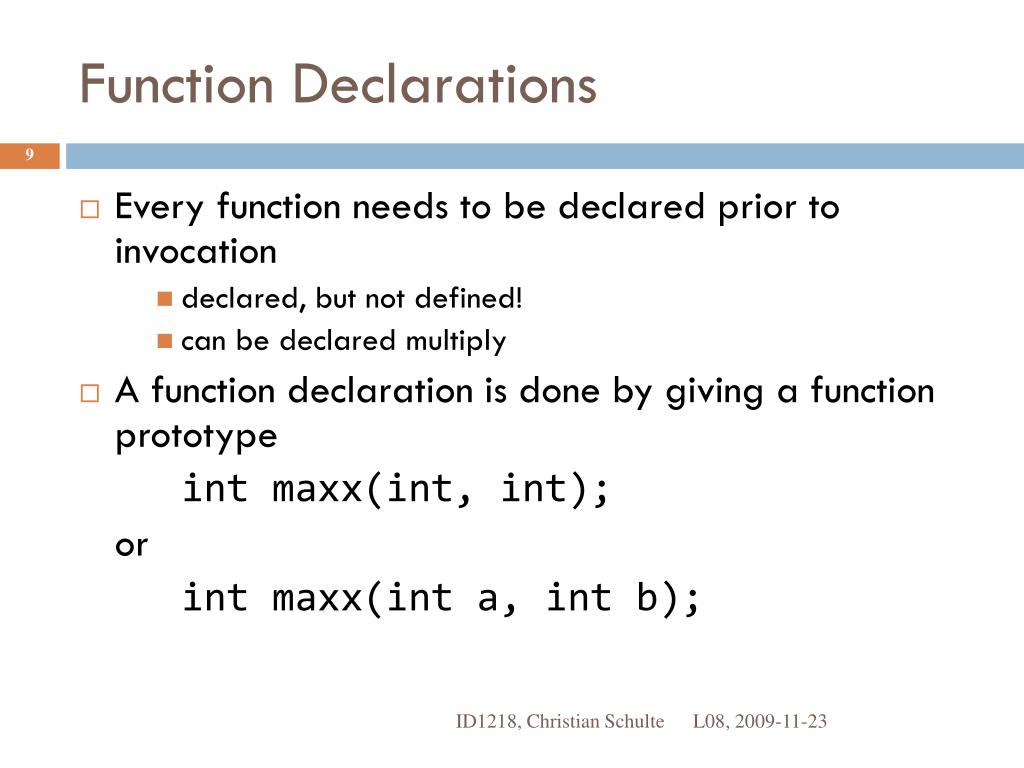

  9. Function Declarations • Every function needs to be declared prior to invocation • declared, but not defined! • can be declared multiply • A function declaration is done by giving a function prototype int maxx(int, int); or int maxx(int a, int b); ID1218, Christian Schulte

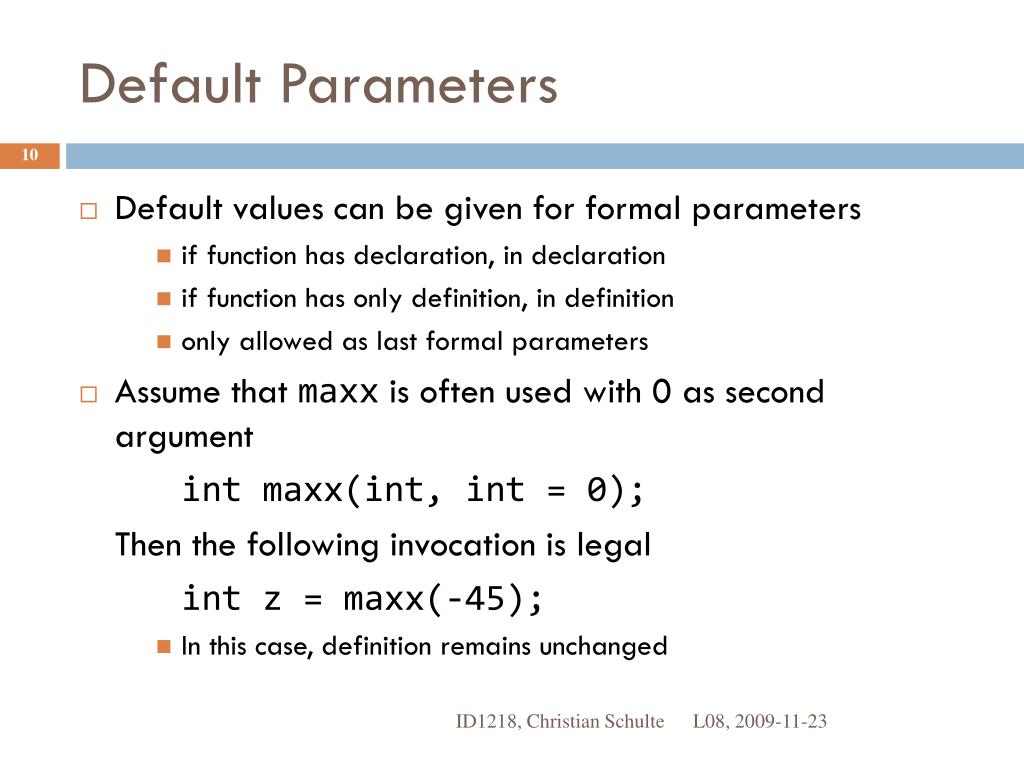

  10. Default Parameters • Default values can be given for formal parameters • if function has declaration, in declaration • if function has only definition, in definition • only allowed as last formal parameters • Assume that maxx is often used with 0 as second argument int maxx(int, int = 0); Then the following invocation is legal int z = maxx(-45); • In this case, definition remains unchanged ID1218, Christian Schulte

  11. Inline Functions • Overhead of function call be significant: maxx is good example • Give function definition an inline directive inline int maxx(int x, int y) { … } • Invocation of function is replaced by body • Definition must be textually before first invocation • Compilers will also inline other, small functions ID1218, Christian Schulte

  12. Separate Compilation • Structure larger programs into separate files • each file contains some functions: better structure • each file can be compiled independently: save compilation time during development • Header file • contains declarations and definitions of inline functions • file name extensions: .h, .hh • Implementation file • contains definition of functions (implementation) ID1218, Christian Schulte

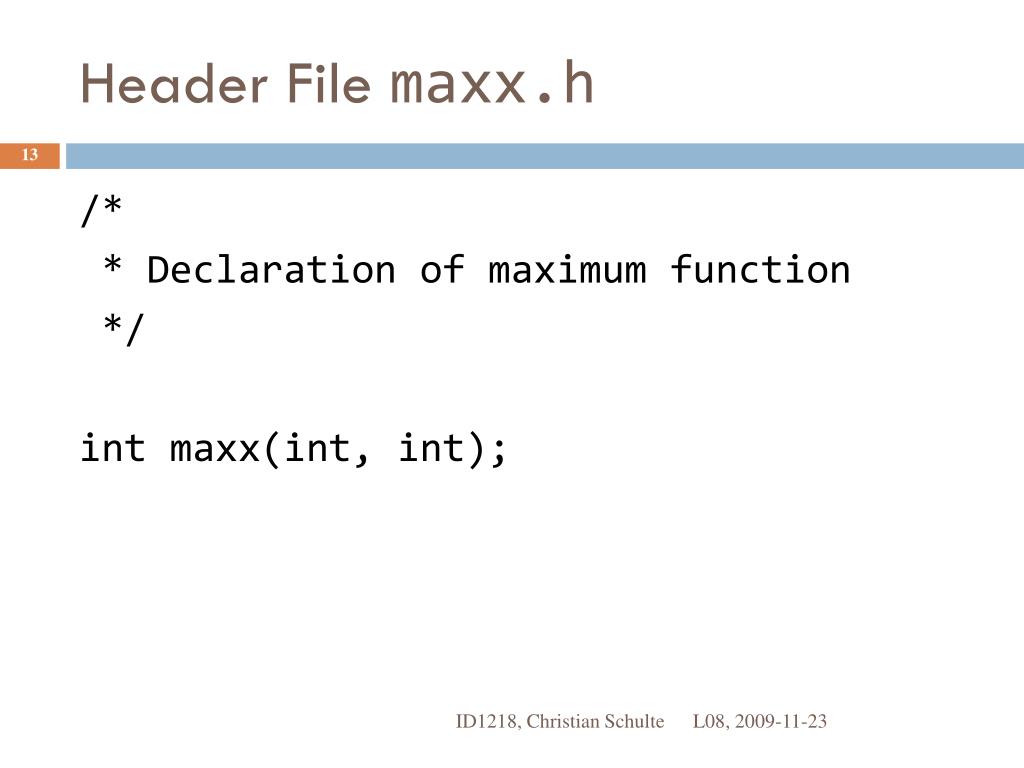

  13. Header File maxx.h /* * Declaration of maximum function */ int maxx(int, int); ID1218, Christian Schulte

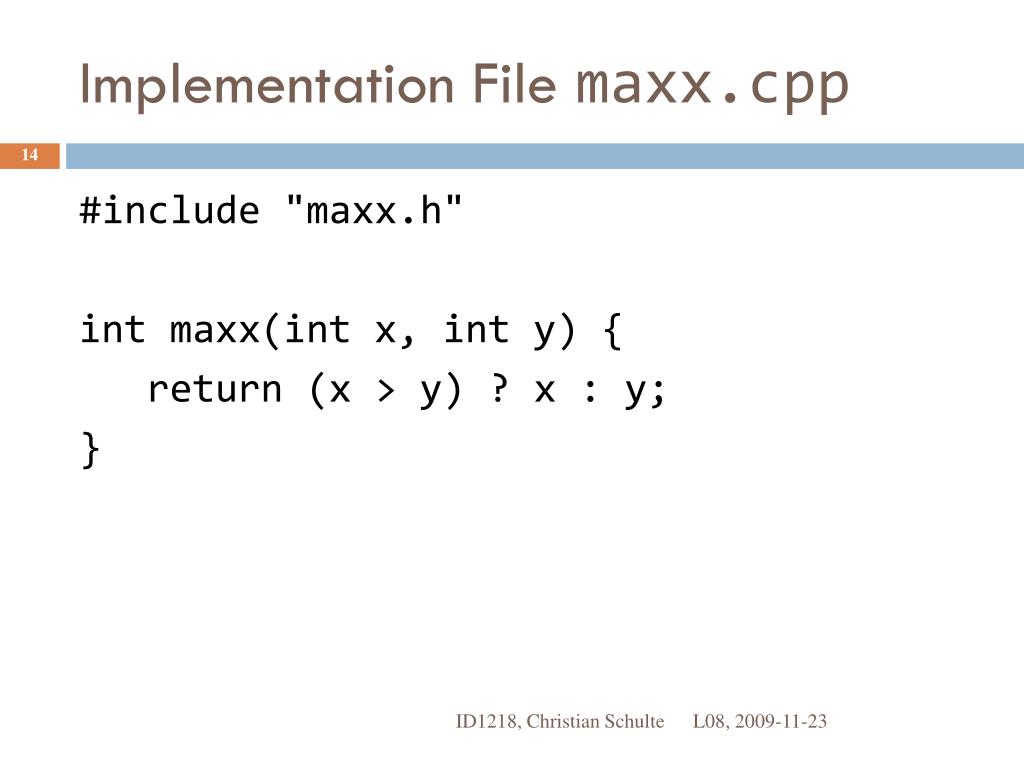

  14. Implementation File maxx.cpp #include "maxx.h" int maxx(int x, int y) { return (x > y) ? x : y; } ID1218, Christian Schulte

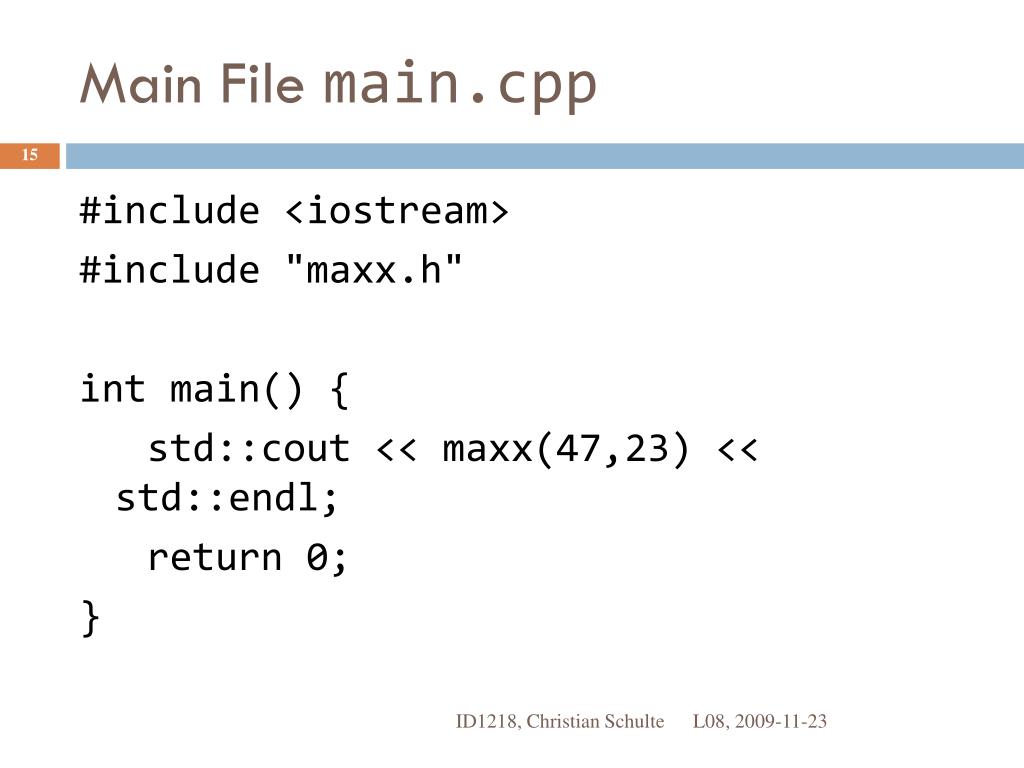

  15. Main File main.cpp #include <iostream> #include "maxx.h" int main() { std::cout << maxx(47,23) << std::endl; return 0; } ID1218, Christian Schulte

  16. Putting Everything Together • Compile each implementation file independently g++ -c main.cpp g++ -c maxx.cpp • creates the files main.o and maxx.o • contain object code but require linking • Put everything together (linking) g++ main.o maxx.o –o main.exe ID1218, Christian Schulte

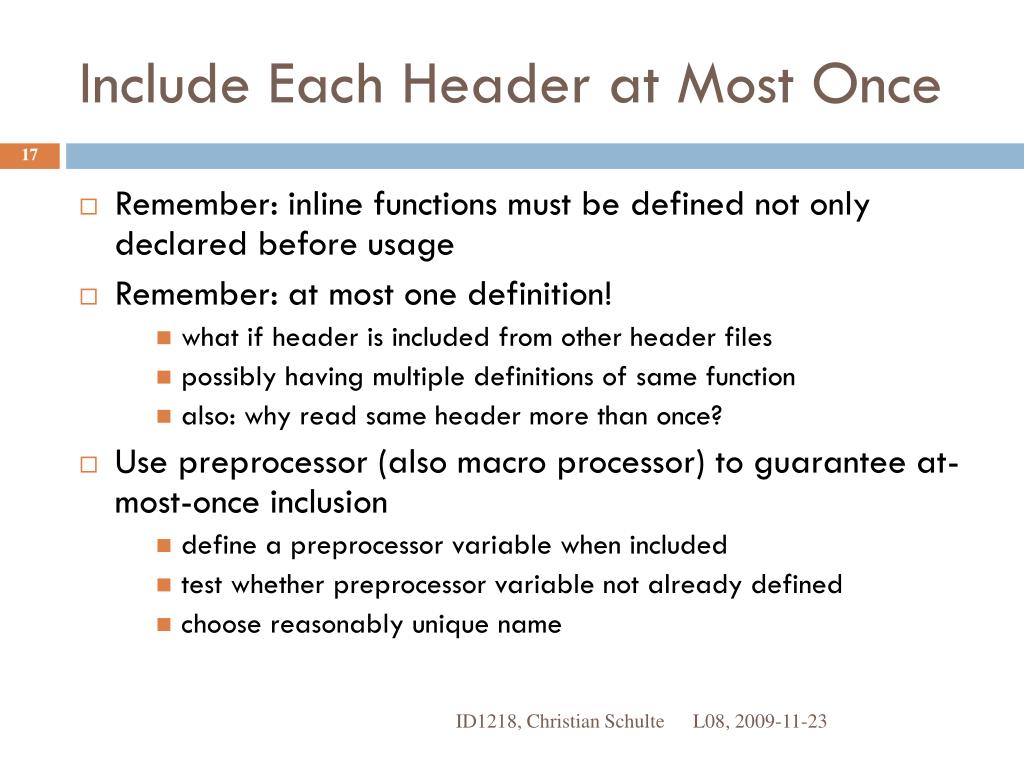

  17. Include Each Header at Most Once • Remember: inline functions must be defined not only declared before usage • Remember: at most one definition! • what if header is included from other header files • possibly having multiple definitions of same function • also: why read same header more than once? • Use preprocessor (also macro processor) to guarantee at-most-once inclusion • define a preprocessor variable when included • test whether preprocessor variable not already defined • choose reasonably unique name ID1218, Christian Schulte

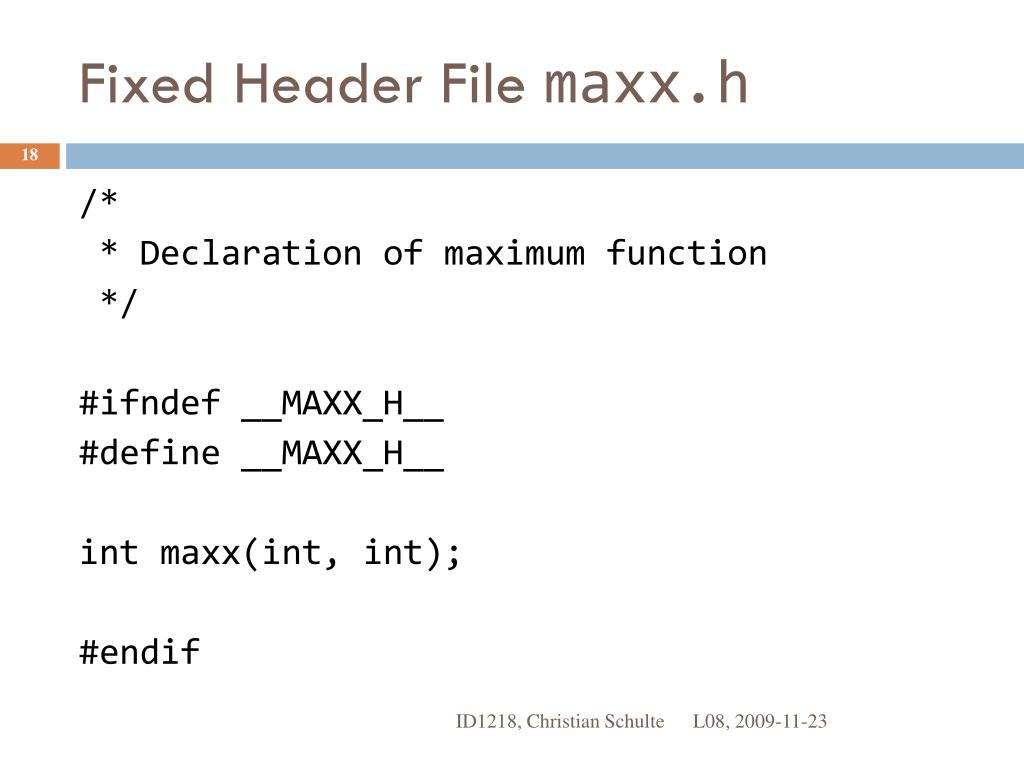

  18. Fixed Header File maxx.h /* * Declaration of maximum function */ #ifndef __MAXX_H__ #define __MAXX_H__ int maxx(int, int); #endif ID1218, Christian Schulte

  19. Organizing Compilation • How to organize compilation • recompilation needed if included header file changes • compilation can be time-consuming: > 1000 files? • only recompile what is needed • Use make: express dependencies among files • files only recompiled, if dependencies change • rules for how to perform compilation • .cpp  .o • .o  .exe • later (first lab session) more ID1218, Christian Schulte

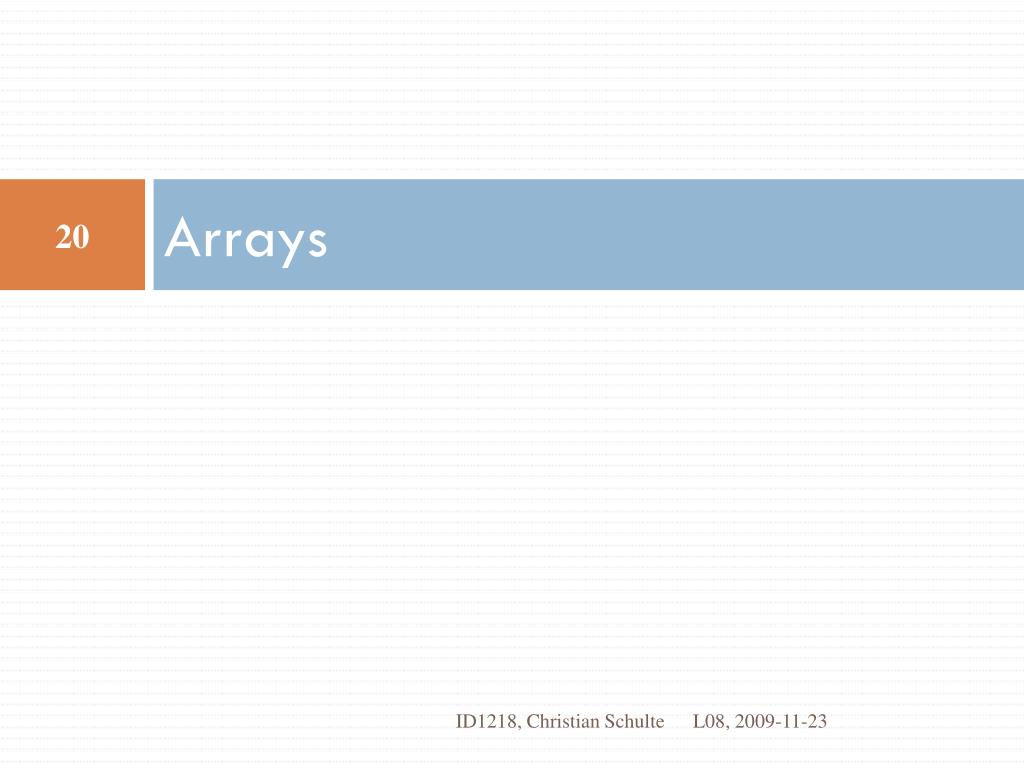

  20. Arrays ID1218, Christian Schulte

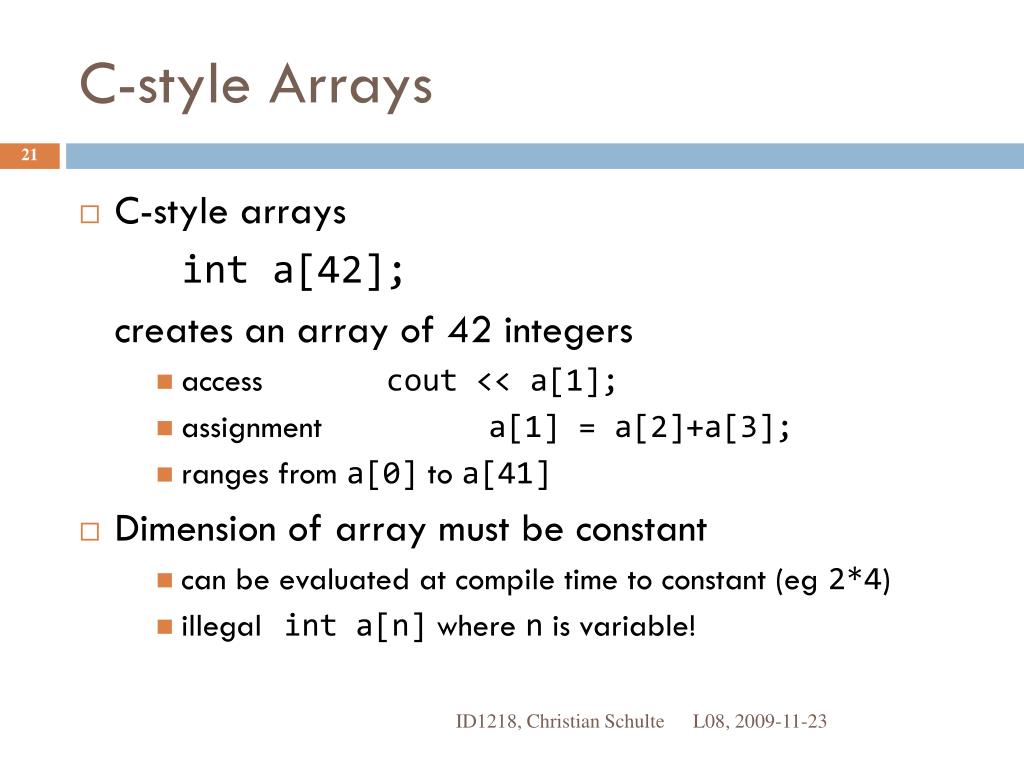

  21. C-style Arrays • C-style arrays int a[42]; creates an array of 42 integers • access cout << a[1]; • assignment a[1] = a[2]+a[3]; • ranges from a[0] to a[41] • Dimension of array must be constant • can be evaluated at compile time to constant (eg 2*4) • illegal int a[n] where n is variable! ID1218, Christian Schulte

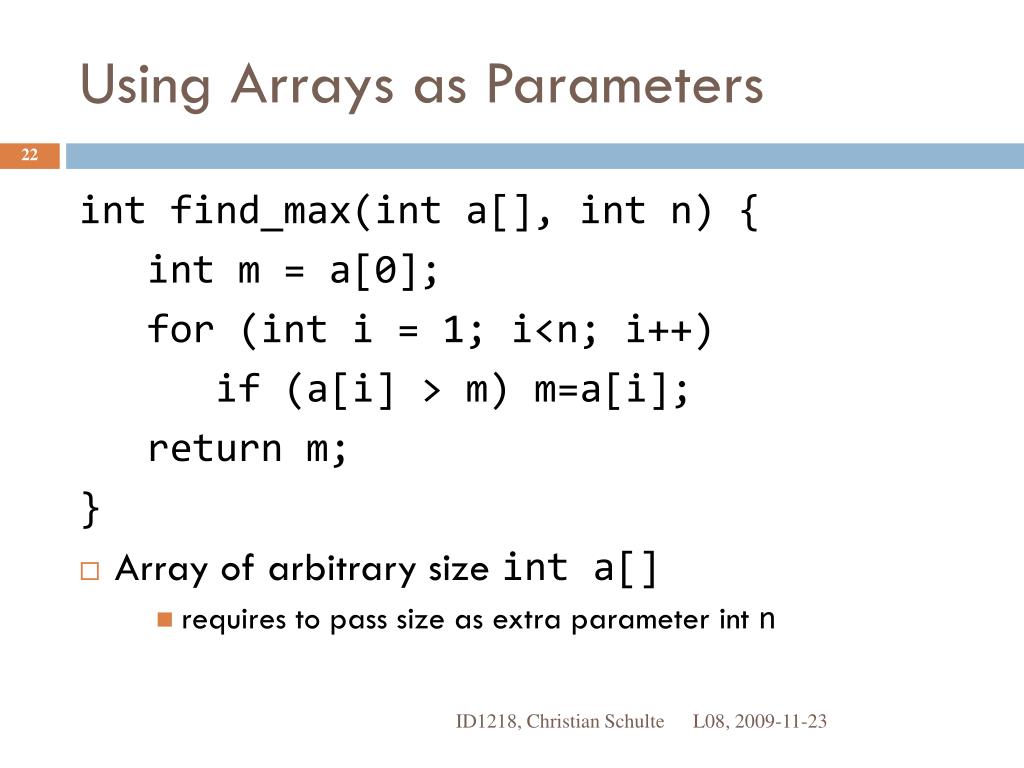

  22. Using Arrays as Parameters int find_max(int a[], int n) { int m = a[0]; for (int i = 1; i<n; i++) if (a[i] > m) m=a[i]; return m; } • Array of arbitrary size int a[] • requires to pass size as extra parameter int n ID1218, Christian Schulte

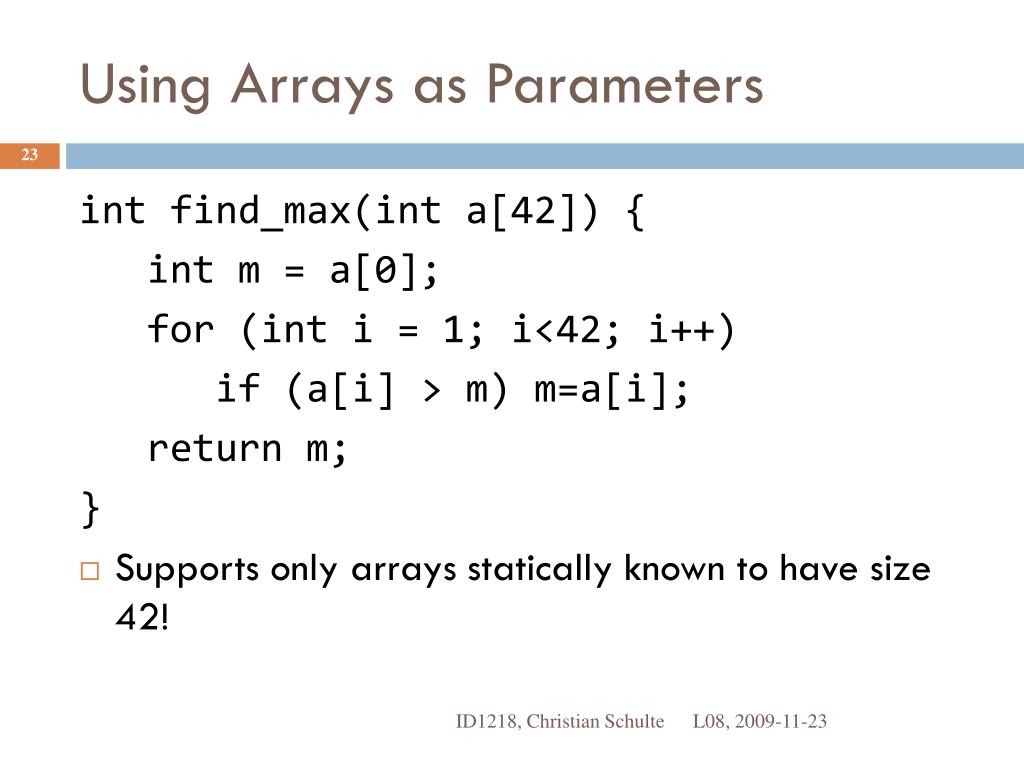

  23. Using Arrays as Parameters int find_max(int a[42]) { int m = a[0]; for (int i = 1; i<42; i++) if (a[i] > m) m=a[i]; return m; } • Supports only arrays statically known to have size 42! ID1218, Christian Schulte

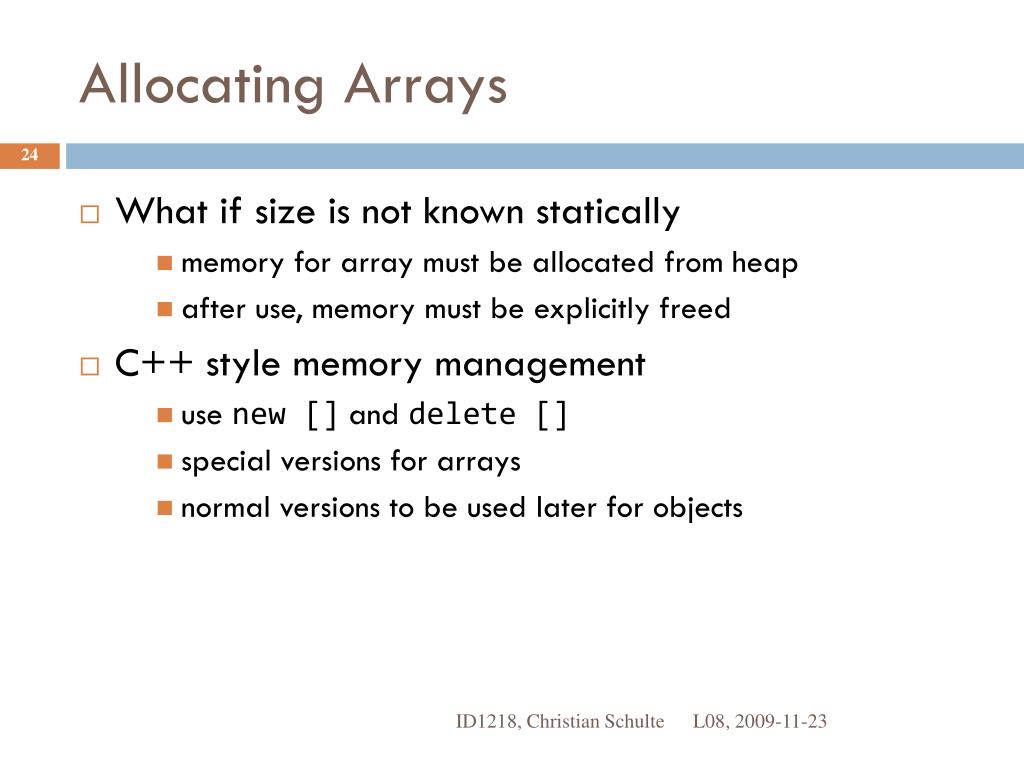

  24. Allocating Arrays • What if size is not known statically • memory for array must be allocated from heap • after use, memory must be explicitly freed • C++ style memory management • use new [] and delete [] • special versions for arrays • normal versions to be used later for objects ID1218, Christian Schulte

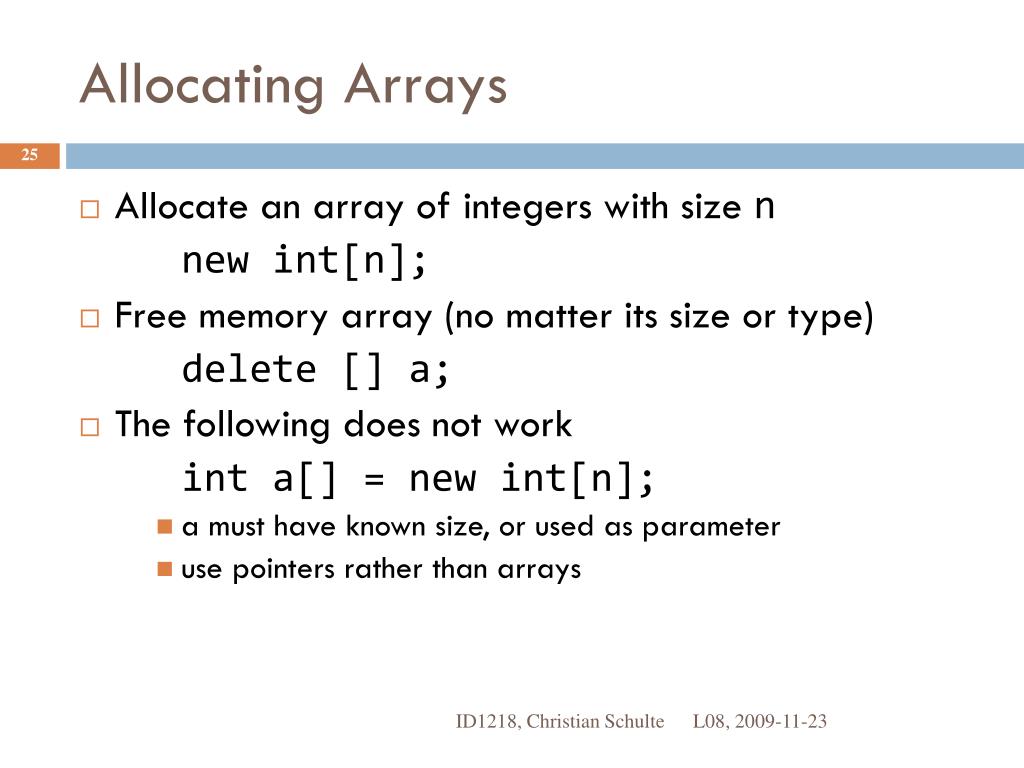

  25. Allocating Arrays • Allocate an array of integers with size n new int[n]; • Free memory array (no matter its size or type) delete [] a; • The following does not work int a[] = new int[n]; • a must have known size, or used as parameter • use pointers rather than arrays ID1218, Christian Schulte

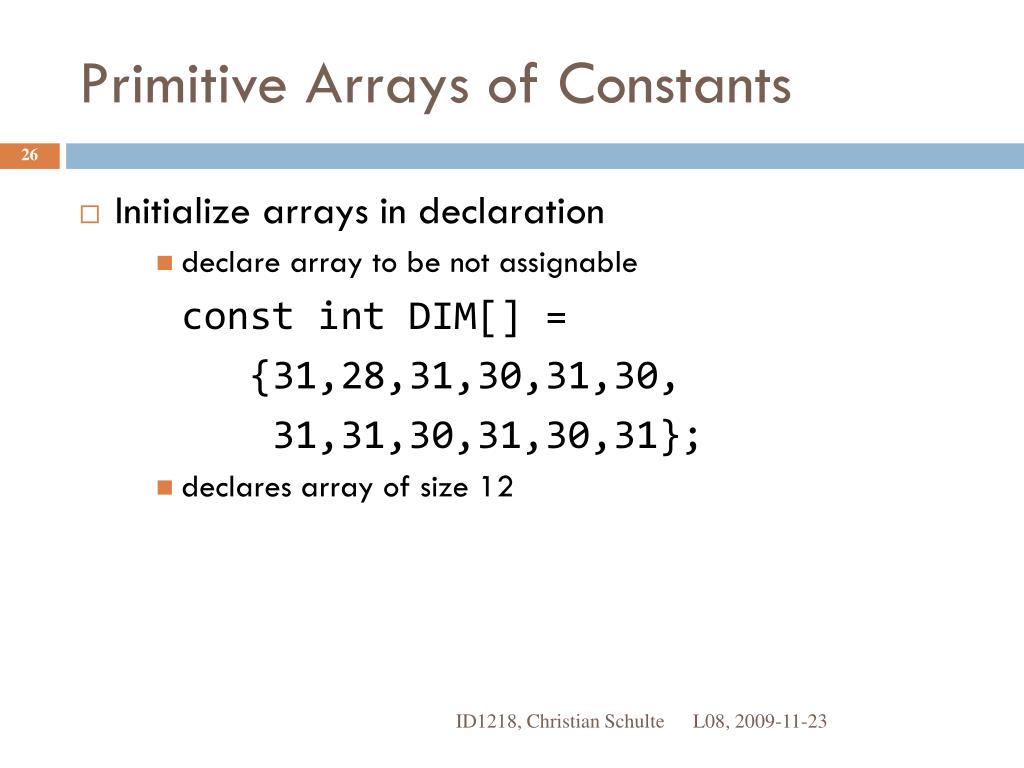

  26. Primitive Arrays of Constants • Initialize arrays in declaration • declare array to be not assignable const int DIM[] = {31,28,31,30,31,30, 31,31,30,31,30,31}; • declares array of size 12 ID1218, Christian Schulte

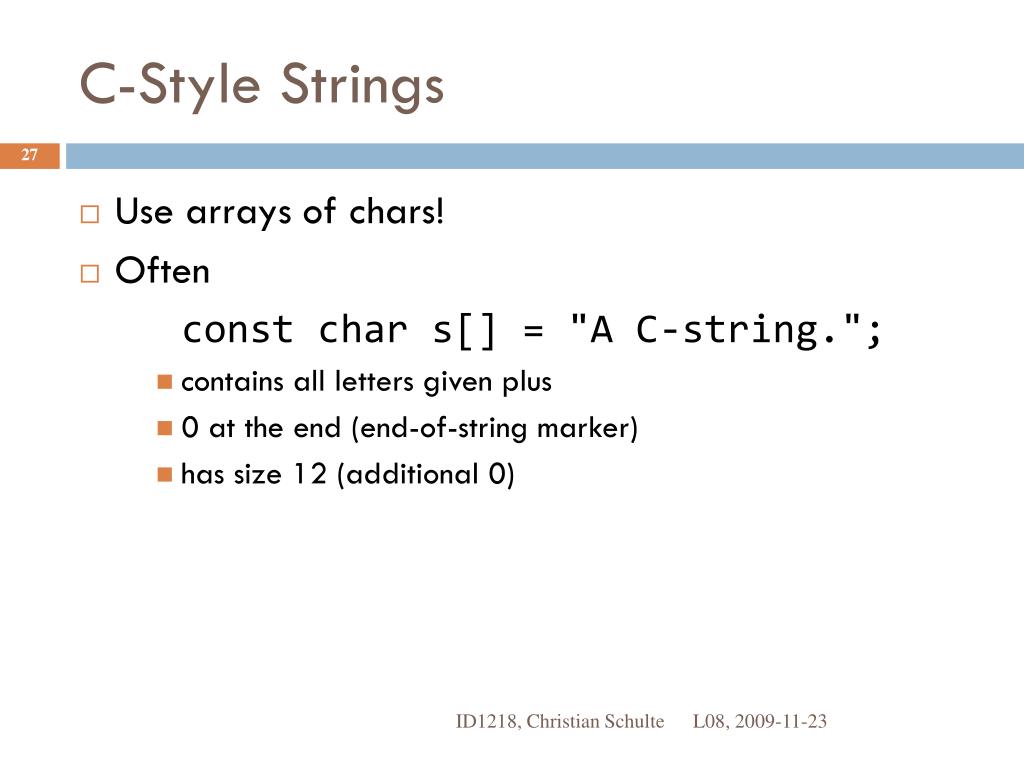

  27. C-Style Strings • Use arrays of chars! • Often const char s[] = "A C-string."; • contains all letters given plus • 0 at the end (end-of-string marker) • has size 12 (additional 0) ID1218, Christian Schulte

  28. Vectors and C++ Strings • Vectors are C++ arrays • #include <vector> • automatic resize • automatic memory management • copied when passed as parameters • Strings • #include <string> • same advantages as above • support for comparison, copying on assignment, … • Please read book about both vectors and strings ID1218, Christian Schulte

  29. Parameter Passing ID1218, Christian Schulte

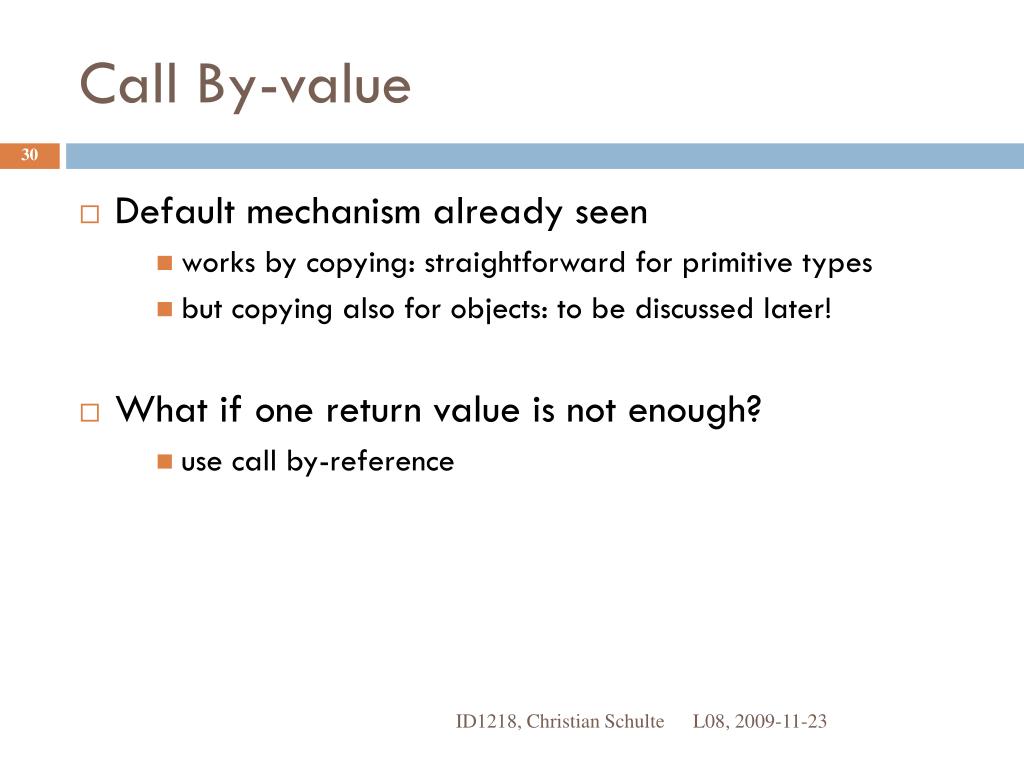

  30. Call By-value • Default mechanism already seen • works by copying: straightforward for primitive types • but copying also for objects: to be discussed later! • What if one return value is not enough? • use call by-reference ID1218, Christian Schulte

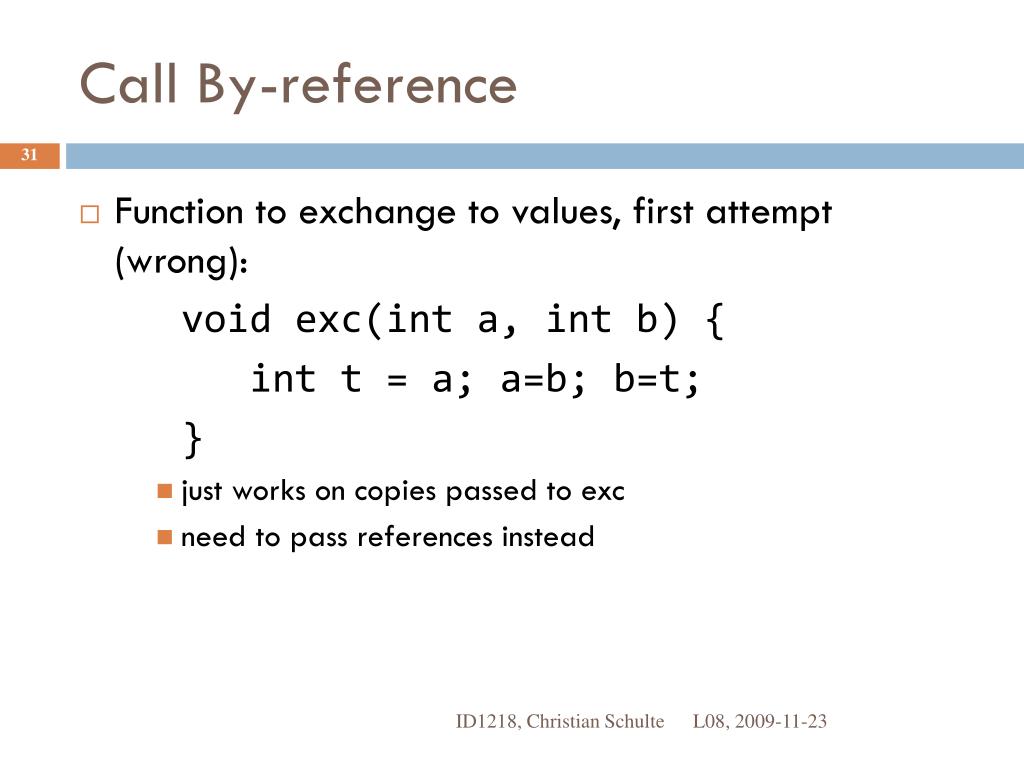

  31. Call By-reference • Function to exchange to values, first attempt (wrong): void exc(int a, int b) { int t = a; a=b; b=t; } • just works on copies passed to exc • need to pass references instead ID1218, Christian Schulte

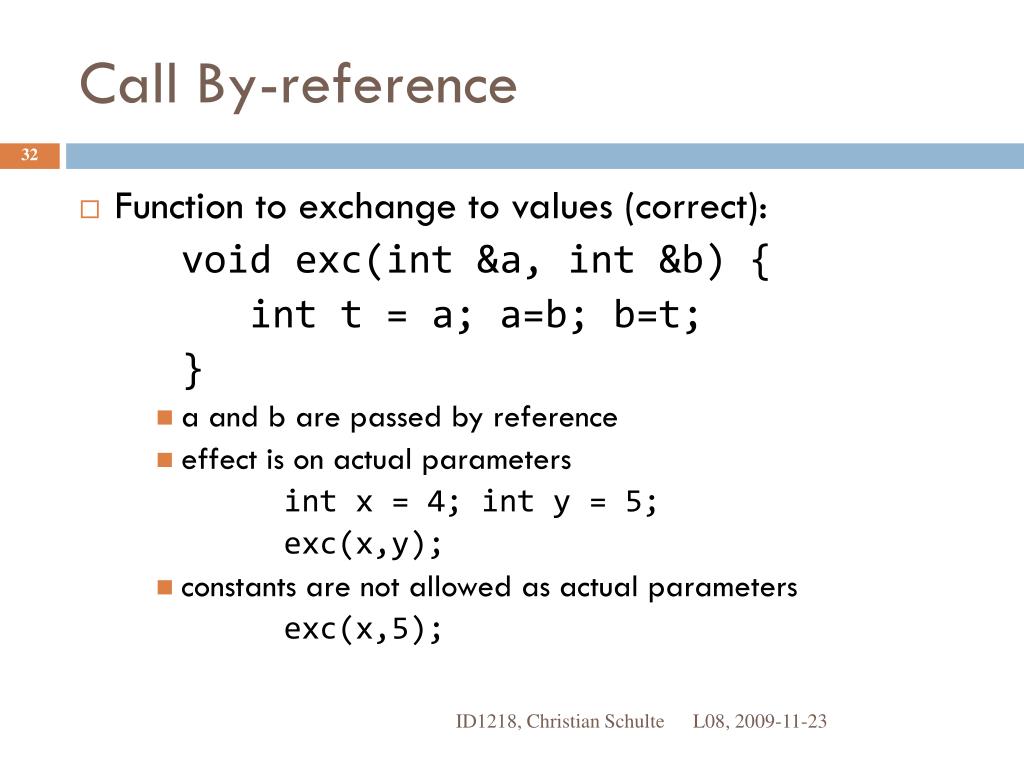

  32. Call By-reference • Function to exchange to values (correct): void exc(int &a, int &b) { int t = a; a=b; b=t; } • a and b are passed by reference • effect is on actual parameters int x = 4; int y = 5; exc(x,y); • constants are not allowed as actual parameters exc(x,5); ID1218, Christian Schulte

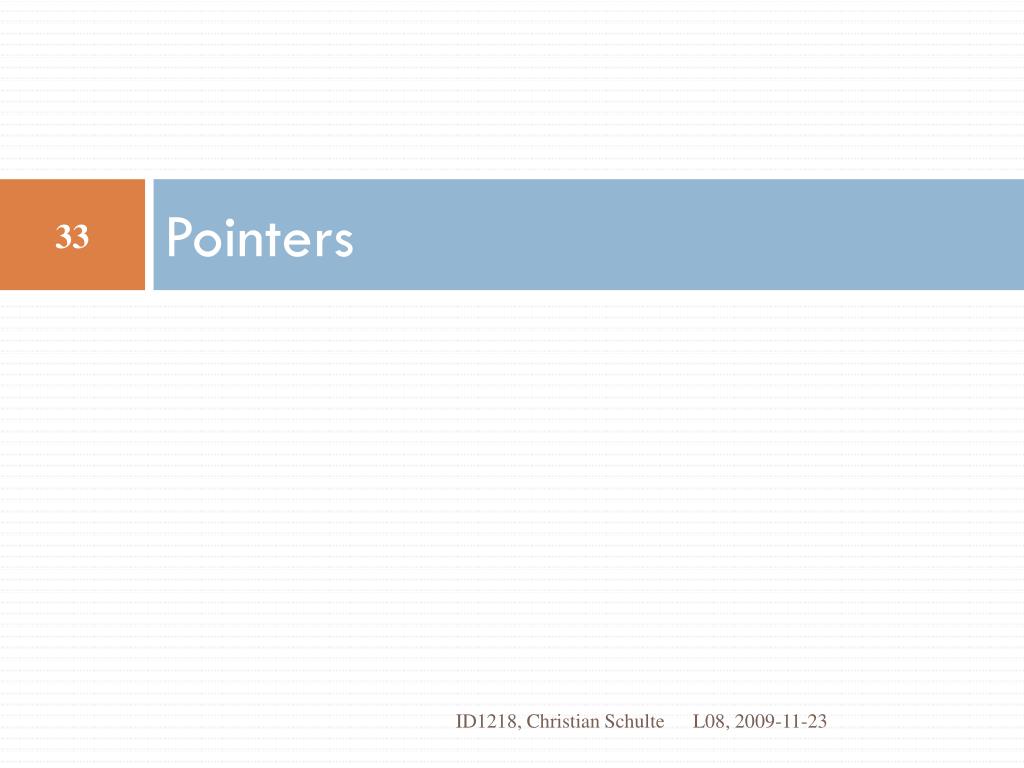

  33. Pointers ID1218, Christian Schulte

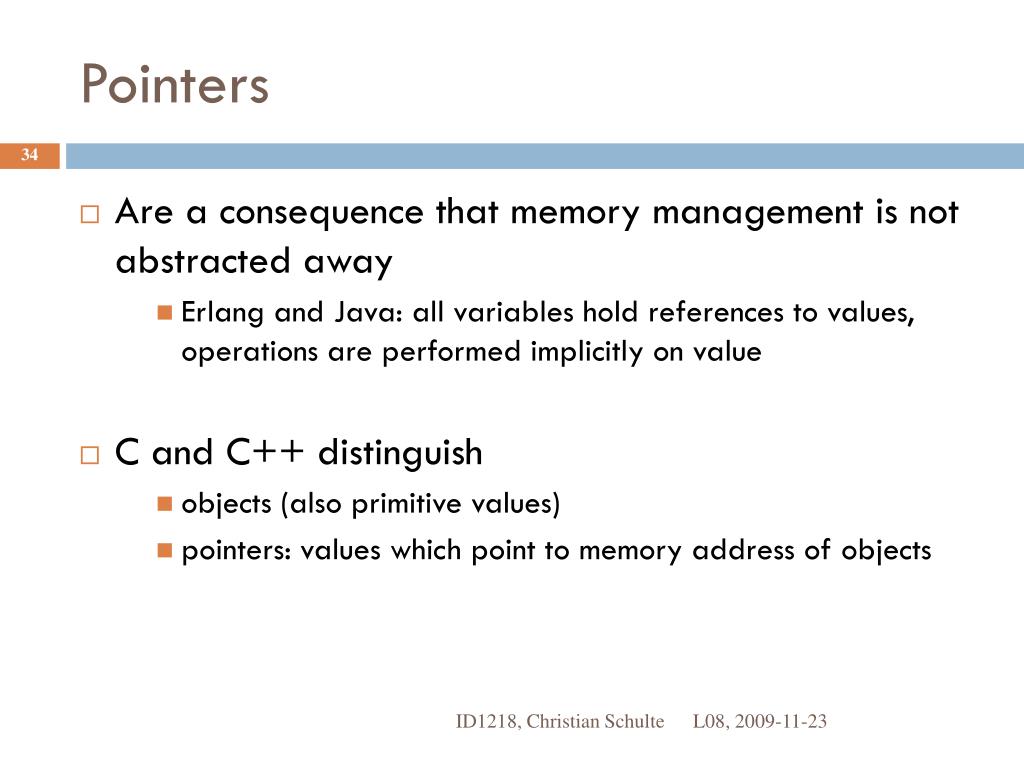

  34. Pointers • Are a consequence that memory management is not abstracted away • Erlang and Java: all variables hold references to values, operations are performed implicitly on value • C and C++ distinguish • objects (also primitive values) • pointers: values which point to memory address of objects ID1218, Christian Schulte

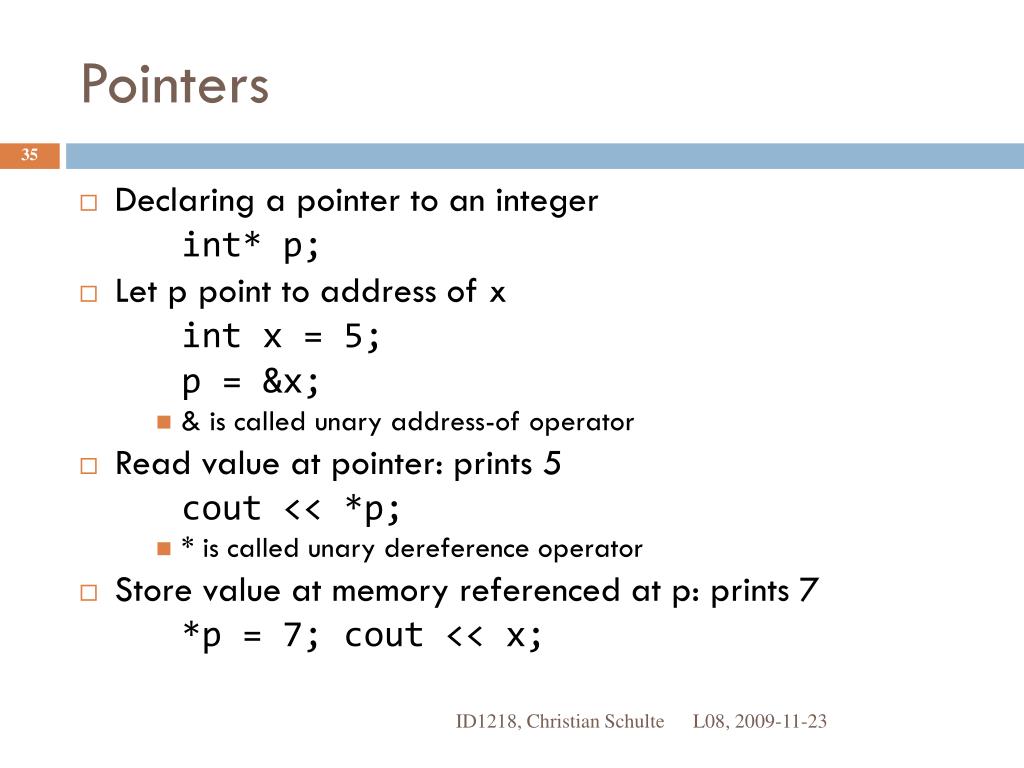

  35. Pointers • Declaring a pointer to an integer int* p; • Let p point to address of x int x = 5; p = &x; • & is called unary address-of operator • Read value at pointer: prints 5 cout << *p; • * is called unary dereference operator • Store value at memory referenced at p: prints 7 *p = 7; cout << x; ID1218, Christian Schulte

  36. (&x) 100 (&y) 104 (&p) 200 x = 10 y = 7 … … p = ???? … Pointers Illustrated… • After declaration int x = 10; int y = 7; int* p; • p points somewhere (unitialized) ID1218, Christian Schulte

  37. (&x) 100 (&y) 104 (&p) 200 x = 10 y = 7 … … p = ???? … Segmentation Fault or Bus Error… • Assign object pointed to by p a value *p = 124; • but: not necessarily, p can also point to some other location (overrides other variables contents…) ID1218, Christian Schulte

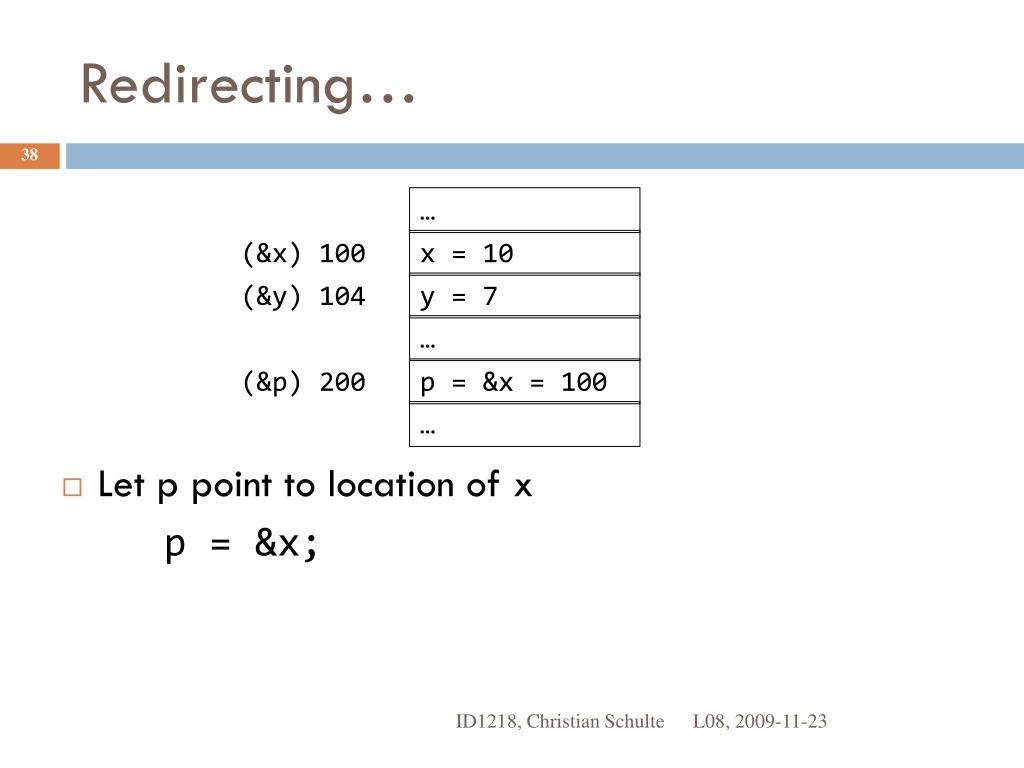

  38. (&x) 100 (&y) 104 (&p) 200 x = 10 y = 7 … … p = &x = 100 … Redirecting… • Let p point to location of x p = &x; ID1218, Christian Schulte

  39. (&x) 100 (&y) 104 (&p) 200 x = 5 y = 7 … … p = &x = 100 … Assigning… • Assign object pointed to by p a value *p = 5; ID1218, Christian Schulte

  40. (&x) 100 (&y) 104 (&p) 200 x = 5 y = 7 … … p = &y = 104 … Redirecting… • Let p point to location of y p = &y; ID1218, Christian Schulte

  41. (&x) 100 (&y) 104 (&p) 200 x = 5 y = 99 … … p = &y = 104 … Assigning… • Assign object pointed to by p a value *p = 99; ID1218, Christian Schulte

  42. Common Idioms • Testing that pointers refer to same location p1 == p2 • Testing that objects pointed to have same value *p1 == *p2 • Use NULL for ptr not pointing anywhere const int NULL = 0; • use in initialization, tests, etc ID1218, Christian Schulte

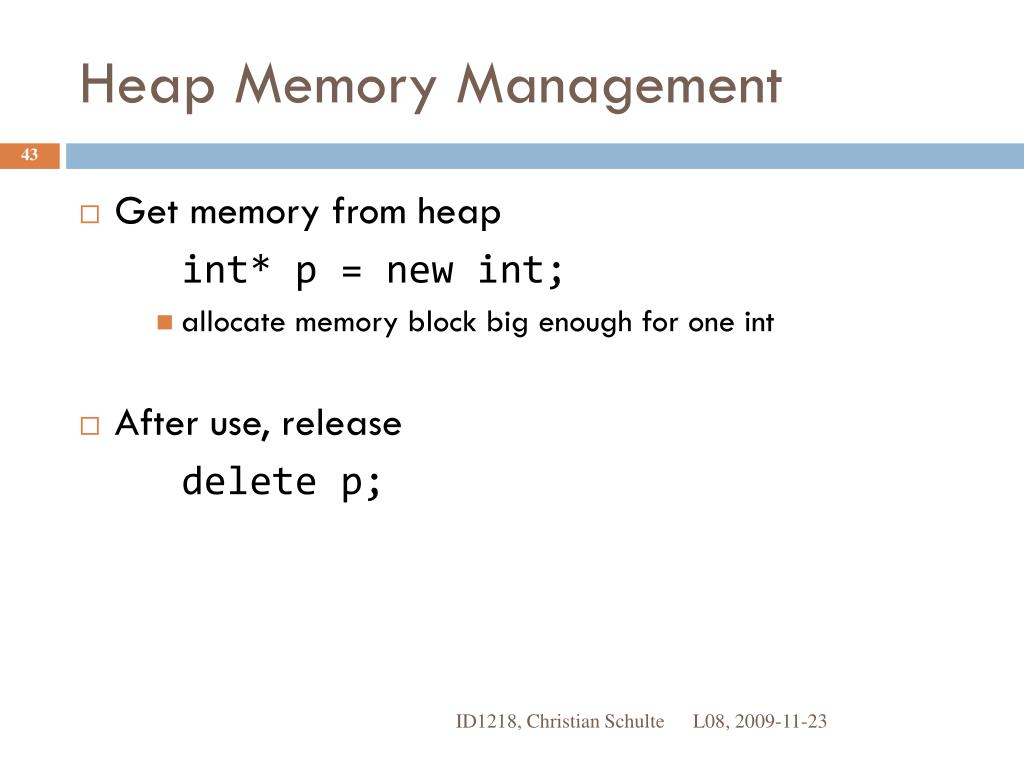

  43. Heap Memory Management • Get memory from heap int* p = new int; • allocate memory block big enough for one int • After use, release delete p; ID1218, Christian Schulte

  44. Getting It Wrong • Forget to delete • program crashes when running out of memory • Delete to early • lucky case: program crashes due to OS knowing that memory has been freed • unlucky case: already reused, arbitrary things can happen! • Delete twice • runtime error ID1218, Christian Schulte

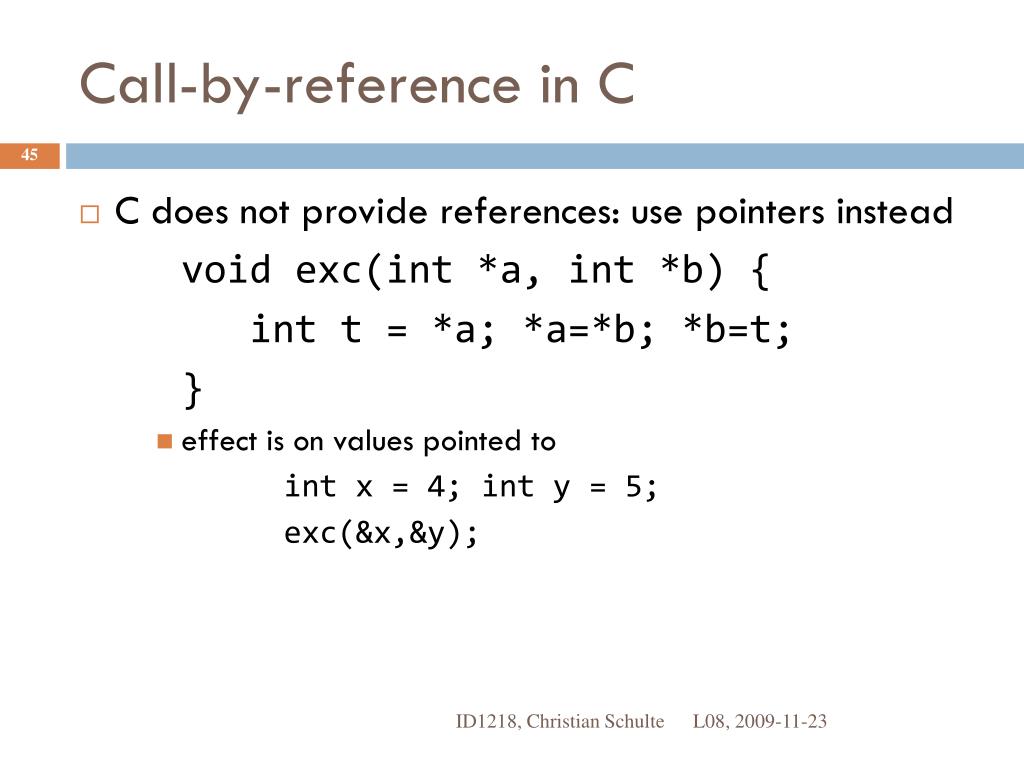

  45. Call-by-reference in C • C does not provide references: use pointers instead void exc(int *a, int *b) { int t = *a; *a=*b; *b=t; } • effect is on values pointed to int x = 4; int y = 5; exc(&x,&y); ID1218, Christian Schulte

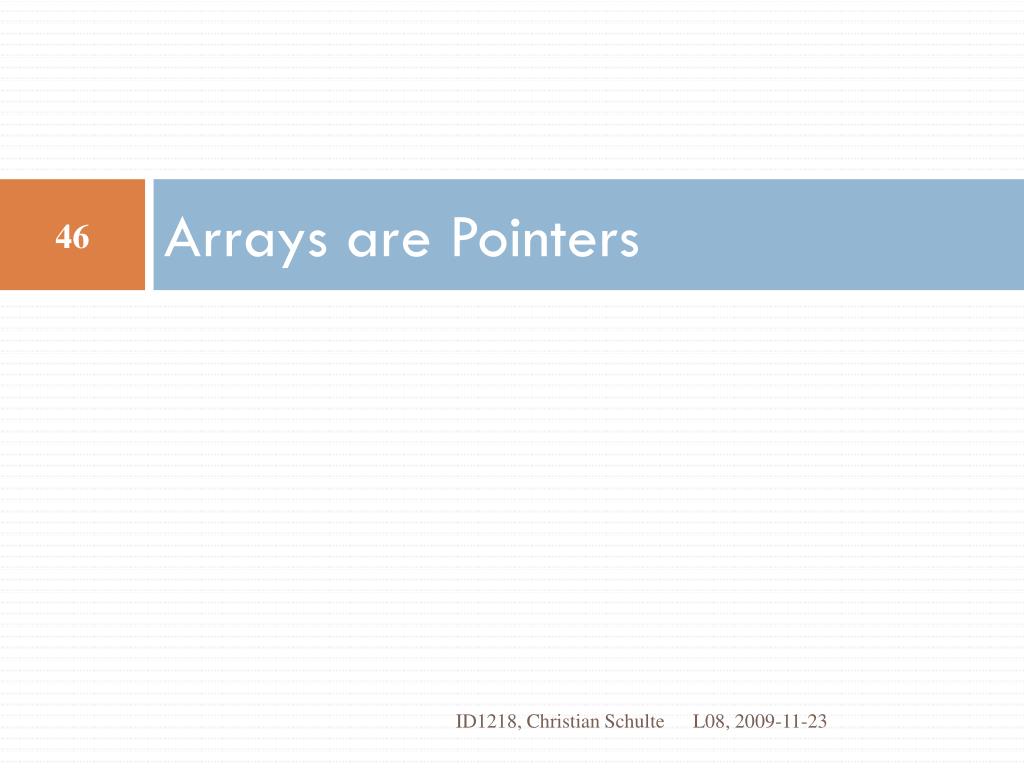

  46. Arrays are Pointers ID1218, Christian Schulte

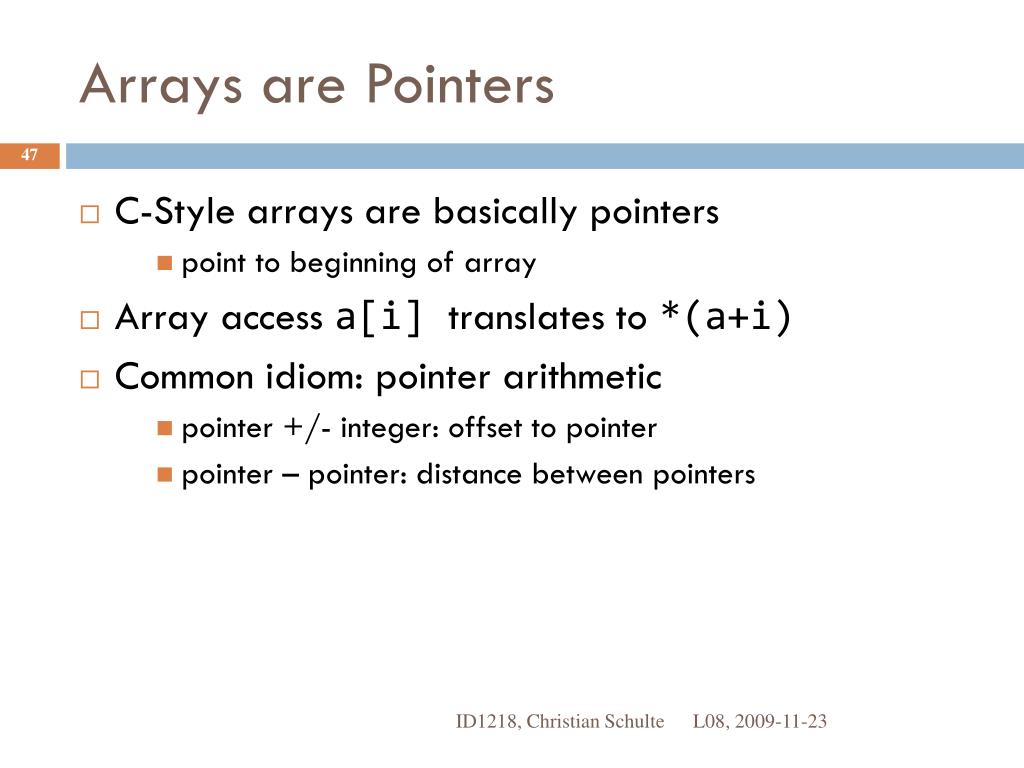

  47. Arrays are Pointers • C-Style arrays are basically pointers • point to beginning of array • Array access a[i] translates to *(a+i) • Common idiom: pointer arithmetic • pointer +/- integer: offset to pointer • pointer – pointer: distance between pointers ID1218, Christian Schulte

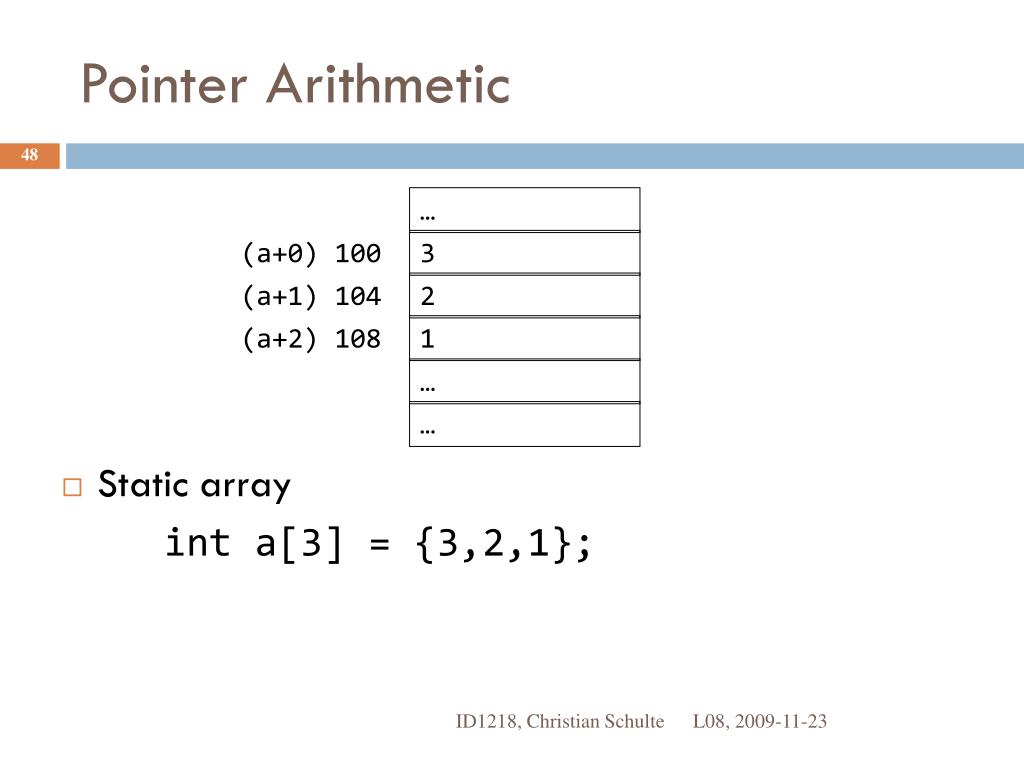

  48. (a+0) 100 (a+1) 104 3 2 … 1 … Pointer Arithmetic • Static array int a[3] = {3,2,1}; (a+2) 108 … ID1218, Christian Schulte

  49. (a+0) 100 (a+1) 104 3 2 … 2 … Pointer Arithmetic • Static array int a[3] = {3,2,1}; • a[2] = *(a+1); (a+2) 108 … ID1218, Christian Schulte

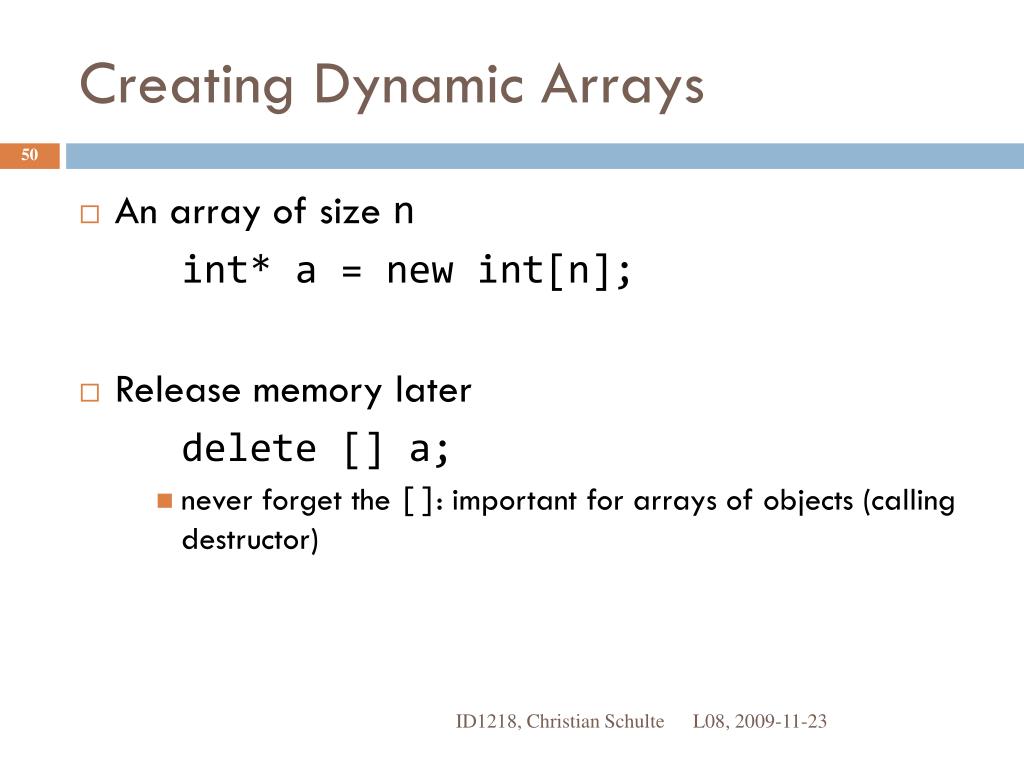

  50. Creating Dynamic Arrays • An array of size n int* a = new int[n]; • Release memory later delete [] a; • never forget the []: important for arrays of objects (calling destructor) ID1218, Christian Schulte
