  1. TDM Photonic Network using Deposited Materials Robert Hendry, Gilbert Hendry, Keren Bergman Lightwave Research Lab Columbia University HPEC 2011

  2. Motivation for Silicon Photonics • Performance scaling becoming extremely difficult • Data movement cost increasingly expensive • On/off-chip communication bandwidth limited • Photonics offers: • Higher bandwidth density • High datarate and parallel wavelengths • Low operating power • Low latency HPEC 2011 2

  3. Target Architectures Optical link to memory Optical interconnection network on stacked memory HPEC 2011 3

  4. Ring Resonators electric control Off resonance switch modulator waveguide waveguide optical message light source signal On resonance electric control switch signal waveguide waveguide signal filter HPEC 2011 4

  5. Photonic Communication Electrical control Photonic Network Light source Optical signal ring-resonator modulators filters Optical signal detectors HPEC 2011 4

  6. Photonic Communication Electrical control Photonic Network Light source Optical signal 10 Gb/s x 3 = 30 Gb/s aggregate bandwidth filters Optical signal detectors HPEC 2011 5

  7. Optical Power Budget Nonlinear Effects The total injectable power Ptotalmust remain below a threshold to avoid non-linear effects. Ptotalis then divided among the N wavelengths of a WDM packet, where each channels injects at Pchannel. Total Injected Power Ptotal = Pchannel × N Optical Power Injected Power Per Wavelength Maximum Network-Level Insertion Loss Received Power Detector Sensitivity HPEC 2011 6

  8. Silicon Photonics Technologies • Crystalline Silicon • Best electrical and optical properties • Unable to deposit HPEC 2011 9

  9. Silicon Photonics Technologies • Crystalline Silicon • Best electrical and optical properties • Unable to deposit • Polycrystalline Silicon • Can deposit • Very lossy HPEC 2011 9

  10. Silicon Photonics Technologies • Crystalline Silicon • Best electrical and optical properties • Unable to deposit • Polycrystalline Silicon • Can deposit • Very lossy • Silicon Nitride • Very low loss • Can deposit • Not useful active devices HPEC 2011 9

  11. Poly-Si / SiN Combination approach • We can use silicon nitride and polycrystalline silicon in combination • SiN for non-active wave guides • Poly-Si for active devices (e.g. ring-resonator based switch) Designs for a layered modulator and switch HPEC 2011 10

  12. Poly-Si / SiN Combination approach • Waveguide crossings eliminated • Insertion loss, crosstalk both incurred heavily in waveguide crossings • However, .1 dB insertion loss per vertical coupling [Sun et al. 2008] HPEC 2011 11

  13. Insertion Loss Analysis • Worst-case insertion loss for a photonic mesh [Biberman et al. 2011] HPEC 2011 12

  14. Insertion Loss Analysis • Worst-case insertion loss for a photonic mesh [Biberman et al. 2011] HPEC 2011 13

  15. Photonic TDM NoC Architecture • Mesh topology • No electronic links, other than TDM clock distribution Time slot 1 Time slot 2 TIME Time slot 3 Time slot 4 Time slot 5 HPEC 2011 15

  16. Photonic TDM NoC Architecture • Mesh topology • No electronic links, other than TDM clock distribution Time slot 1 Time slot 2 TIME Time slot 3 Time slot 4 Time slot 5 HPEC 2011 16

  17. Photonic TDM NoC Architecture • Mesh topology • No electronic links, other than TDM clock distribution Time slot 1 Time slot 2 TIME Time slot 3 Time slot 4 Time slot 5 HPEC 2011 17

  18. Photonic TDM NoC Architecture • Mesh topology • No electronic links, other than TDM clock distribution Time slot 1 Time slot 2 TIME Time slot 3 Time slot 4 Time slot 5 HPEC 2011 18

  19. Photonic TDM NoC Architecture • Mesh topology • No electronic links, other than TDM clock distribution Time slot 1 Time slot 2 TIME Time slot 3 Time slot 4 Time slot 5 HPEC 2011 19

  20. Photonic TDM NoC Architecture • Mesh topology • No electronic links, other than TDM clock distribution Time slot 1 Time slot 2 TIME Time slot 3 Time slot 4 Time slot 5 HPEC 2011 20

  21. X-Y Buffering • Mesh topology • No electronic links, other than TDM clock distribution Nonlinear Effects Ptotal = Pchannel × N Optical Power Maximum Network-Level Insertion Loss Detector Sensitivity HPEC 2011 21

  22. Photonic TDM vs. Photonic Circuit-Switched Insertion Loss HPEC 2011 22

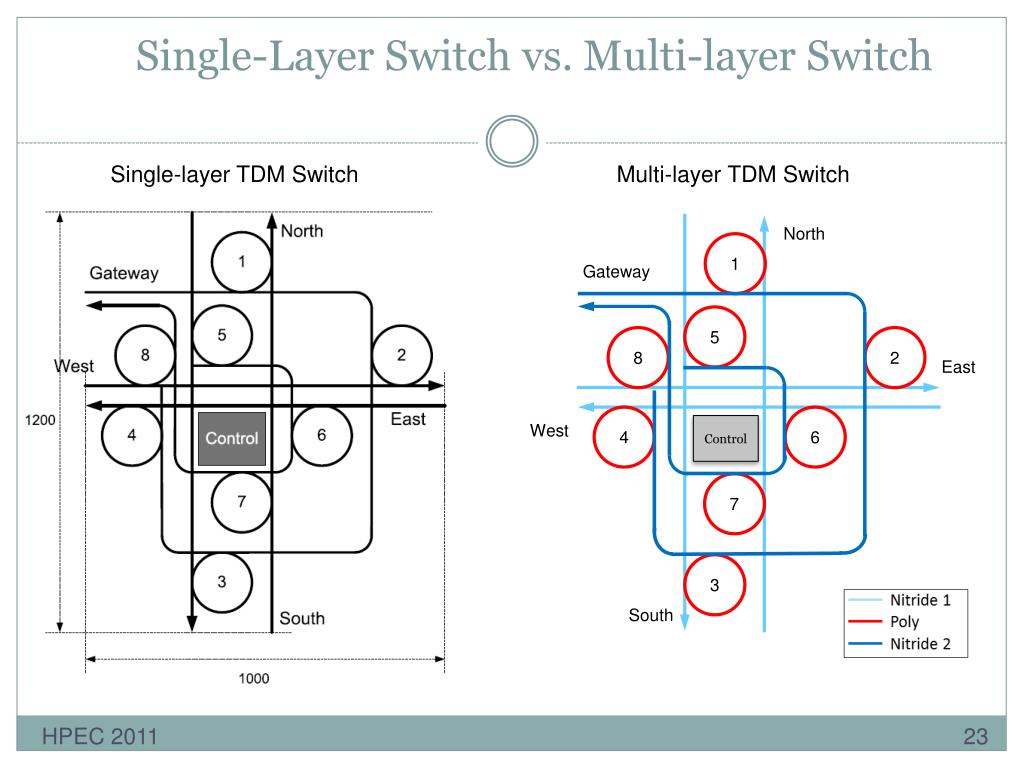

  23. Single-Layer Switch vs. Multi-layer Switch Single-layer TDM Switch Multi-layer TDM Switch North 1 Gateway 5 8 2 East 4 6 West Control 7 3 South HPEC 2011 23

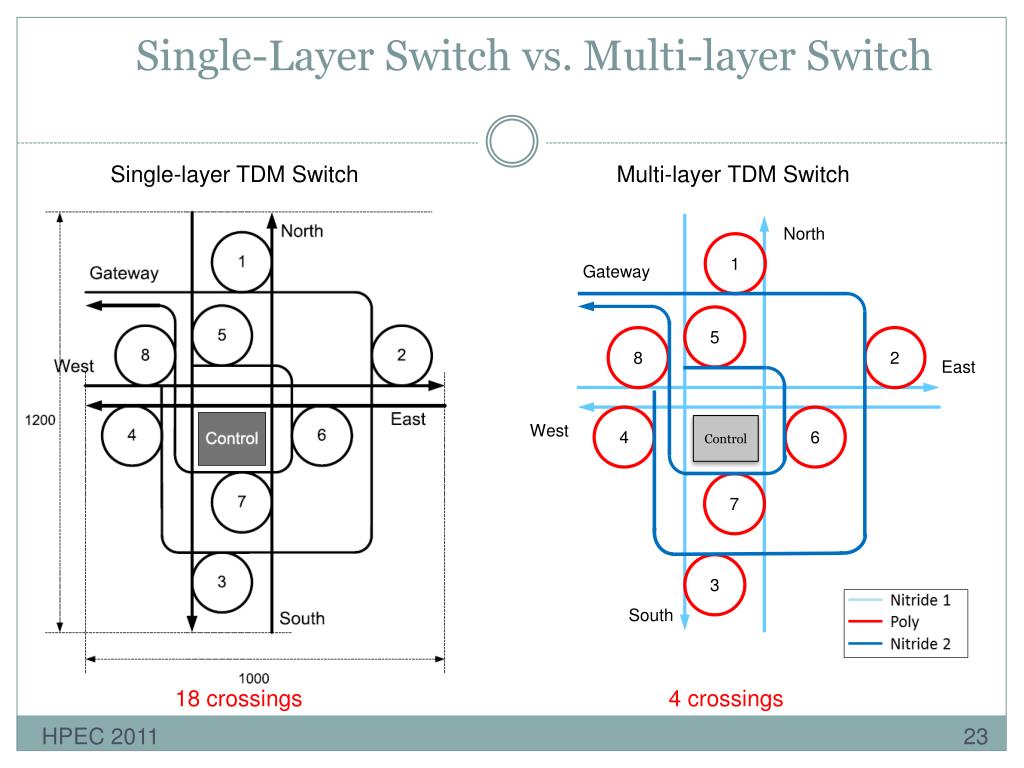

  24. Single-Layer Switch vs. Multi-layer Switch Single-layer TDM Switch Multi-layer TDM Switch North 1 Gateway 5 8 2 East 4 6 West Control 7 3 South 18 crossings 4 crossings HPEC 2011 23

  25. TDM Network Insertion Loss Analysis 8x8 Network 4x4 Network 64x64 Network 16x16 Network HPEC 2011 25

  26. Maximum Bandwidth (# of Wavelengths) 8x8 Network 4x4 Network 16x16 Network 64x64 Network HPEC 2011 26

  27. Summary of Results HPEC 2011 27

  28. Conclusions • Poly-Silicon and Silicon Nitride in conjunction are a good choice of materials for photonic interconnection networks • Low-loss • = more wavelengths = higher bandwidth • We’ve shown that our best network, when at large scale, can be improved with a multi-layer implementation • Future work: We expect the elimination of waveguide crossings to significantly reduce crosstalk across a wide variety of network architectures HPEC 2011 28
