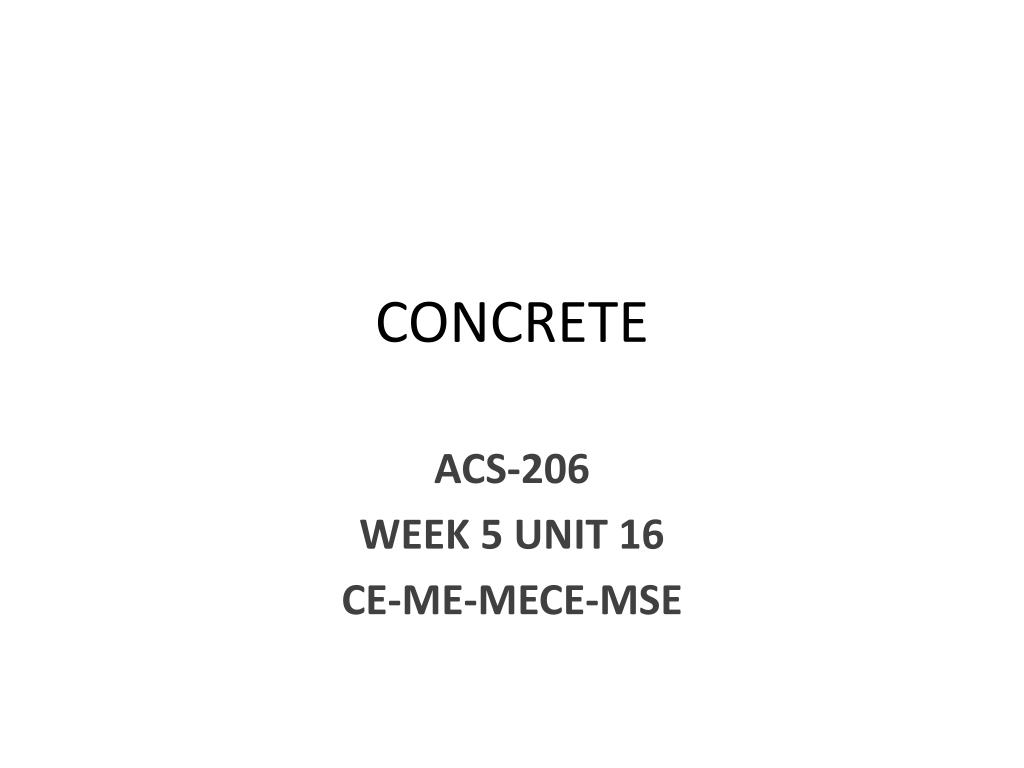

  1. CONCRETE ACS-206 WEEK 5 UNIT 16 CE-ME-MECE-MSE

  2. Concrete Mix Design • Cement: It is the key material in construction. It is a fine, soft, powdery-typesubstance.

  3. Concrete Mix Design • Cement is made from a mixture of elements that are found in natural materials such as limestone, clay, sand and/or shale.

  4. Concrete Mix Design • Concrete is a cement-based material. It is a mixture of cement, water, fine aggregate (sand) and coarse aggragate (gravel). + cement water sand gravel CONCRETE

  5. Concrete Mix Design • After concrete has set, it needs time to reach its structural strength – the strength needed to perform effectively. • Generally, engineers consider that this strength is reached after 28 days – a point called 28-day strength.

  6. Concrete Mix Design 28-day strength in details: Concrete hardens and gains strength as it hydrates.Thehydration process continues over a long period oftime.It happens rapidly at first and slows down astime goes by.

  7. Concrete Mix Design 28-day strength:  To measure the ultimate strength of concrete would require a wait of several years. This would be impractical, so a time period of 28 days was selected by authorities as the age that all concrete should be tested. At this age, a substantial percentage of the hydration has taken place.

  8. Concrete Mix Design • The process of selecting suitable ingredients of concrete and determining their relative amounts with the objective of producing a concrete of the required, strength, durability, and workability as economically as possible, is named as concrete mix design.

  9. Mix Design Sample

  10. Concrete Mix Design • Concrete mix designs state the proportions of cement, fine aggregate and coarse aggregate to be used for specific structures. For example, a 1:2:4 (one-two-four)mix consists of one part cement, two parts fine aggregate and four parts coarse aggregate.

  11. Concrete Mix Design • For mixing precise quantities – known as batching – proportions are measured by weight.

  12. Concrete Mix Design • Mix designs also specify the water-cementratio – the amount of water added relative to the amount of cement used.

  13. Concrete Mix Design • Excess water reduces the strength of concrete, so the quantity of water is kept to a minimum. But as drier concrete is more difficult to work with, an additive (added chemical substance) called a plasticizer is often used.

  14. Concrete Mix Design • Other additives can also be used – for example, a retarder may be added to delay setting, which gives workers more time to pour (place) the concrete. pouring concrete

  15. Aggregate (n): A mass formed by the union of homogeneous particles; – in distinction from a compound, formed by the union of heterogeneous particles • Word formation: Aggregate (v): To add or unite, as, a person, to an association. • Collocation:coarseaggreate (gravel) - fineaggregate (sand) Fineaggregate :Coarseaggregate:

  16. Reinforced Concrete • Reinforced concrete (RC) structures contain steel bars. steel bars

  17. Reinforced Concrete • Steel reinforcement is needed mainly because concrete is weak in tension – that is, bad at resisting stretching forces. As steel is strong in tension, reinforcing bars overcome this weakness.

  18. Reinforcement Concrete formwork • In order to form the different parts of structures, formwork – sometimes also called shuttering – is used.

  19. steel formwork timber formwork

  20. Reinforced Concrete • When wet concrete is cast (placed) in its final position, it is called in-situ concrete.

  21. Reinforced Concrete • Instead of being cast in-situ, reinforced concrete elements can also be precast – cast at a factory – then delivered to the construction site ready for assembly.
