4.2 Request/Reply Communication Wooyoung Kim Fall 2009
Part I : Basic Information  • Introduction • Request /Reply communication • Remote Procedure Call (RPC) • RPC Operations • Parameter Passing and Data Conversion • Binding • RPC compilation • RPC Exception and Failure Handling • Secure RPC
Introduction • Request/Reply Communication • Common technique for one application to request the services of another.
Introduction – Cont’d • Remote Procedure Call (RPC) • Most widely used request/reply communication model • A language-level abstraction of the request/reply communication mechanism • How RPC work? • What is the implementation issues for RPC?

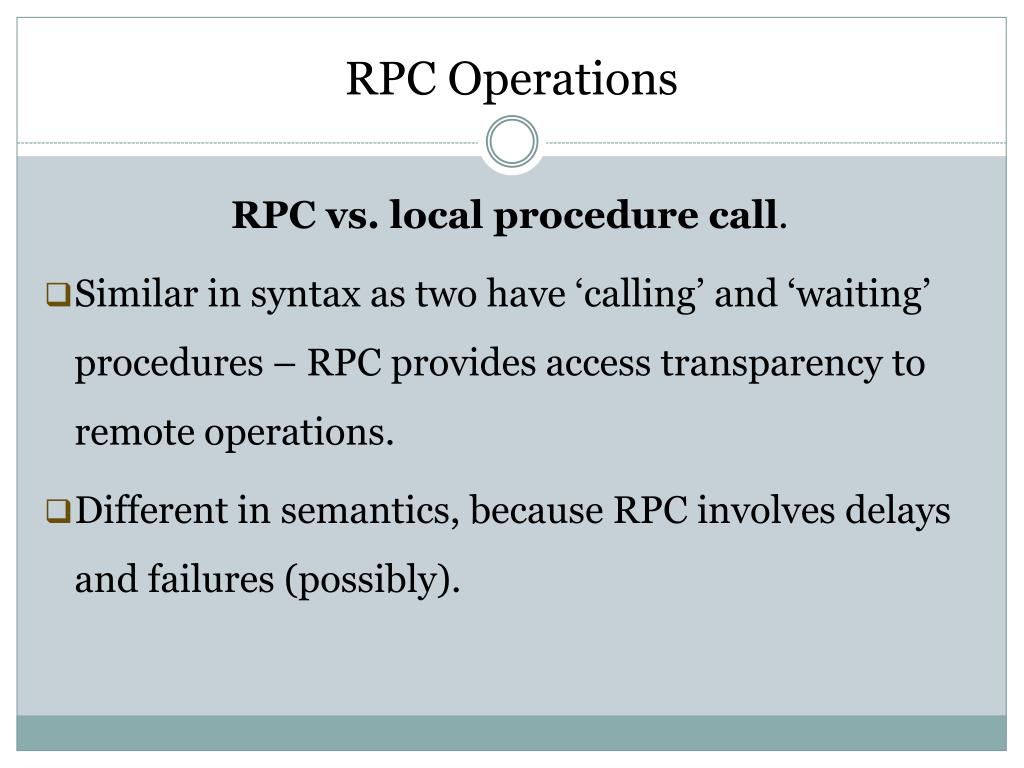

RPC Operations RPC vs. local procedure call. • Similar in syntax as two have ‘calling’ and ‘waiting’ procedures – RPC provides access transparency to remote operations. • Different in semantics, because RPC involves delays and failures (possibly).

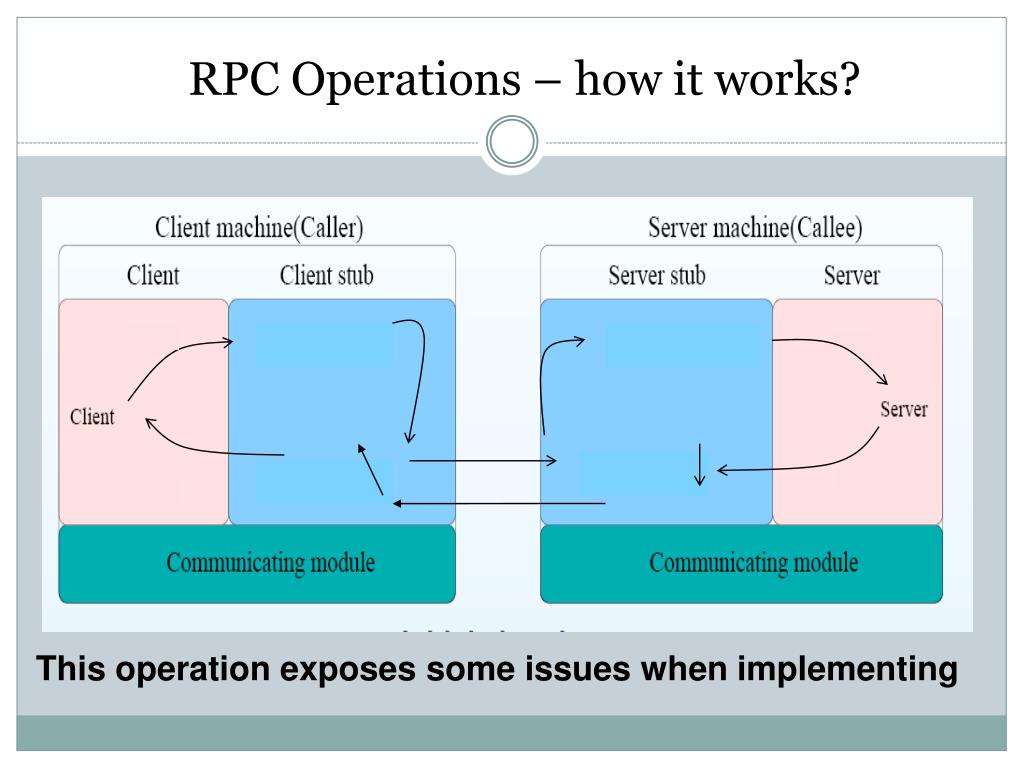

RPC Operations – how it works? This operation exposes some issues when implementing
RPC Operations – implementation issues • Parameter passing and data conversion. • Binding – locating server and registering the service • Compilation – origination of stub procedures and linking • Exception and failure handling • Security
Parameter Passing • In a single process : via parameters and/or global variables • In multiple processes on the same host : via message passing . • However, RPC-based clients and servers : passing parameters is typically the only way • Parameter marshaling : Rules for parameter passing and data/message conversion. Primary responsibility of Stub procedure
Parameter Passing – Cont’d • Call-by-value are fairly simple to handle • The client stub copies the value packages into a network message • Call-by -name requires dynamic run-time evaluation of symbolic expression. • Call-by-reference is hard to implement in distributed systems with non-shared memory. • Call-by-copy/restore: combination of call-by-value and call-by-reference. Call-by-value at the entry of call and call-by-reference to the exit of the call

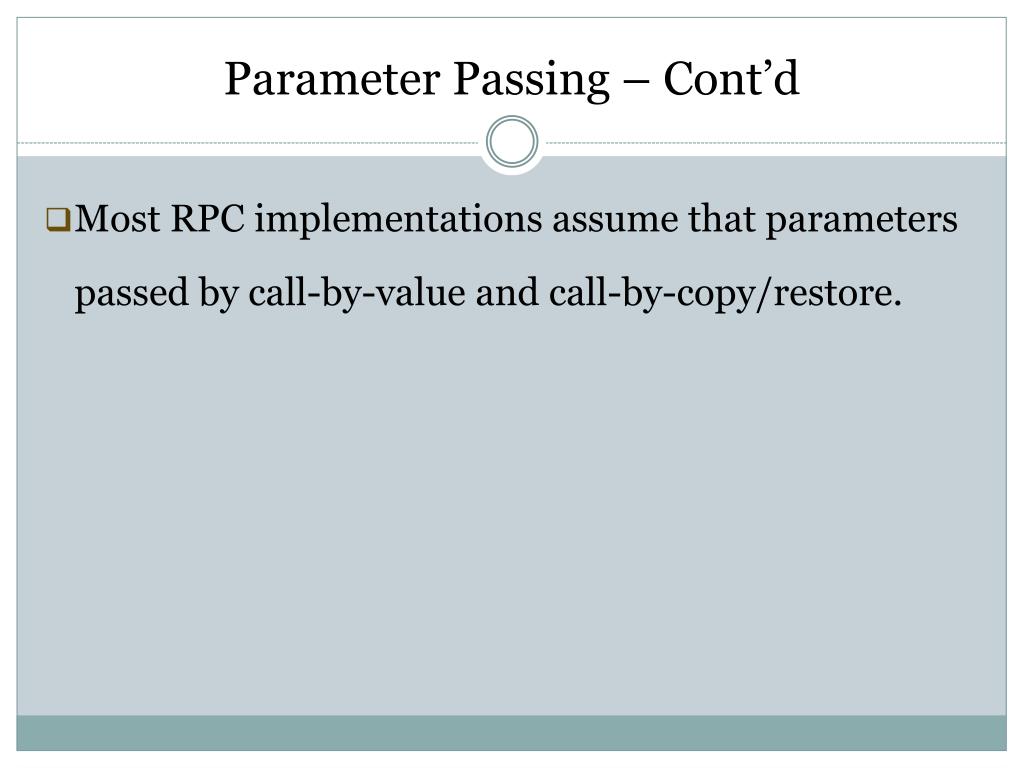

Parameter Passing – Cont’d • Most RPC implementations assume that parameters passed by call-by-value and call-by-copy/restore.
Data Conversion • Three problems in conversion between data and message • Data typing • Data representation • Data transfer syntax
Data Conversion – Cont’d • Type checking across machines is difficult, because the data is passed through interprogram messages. • Data should carry type information? • Each machine has its own internal representation of the data types. • Complicated by the Serial representation of bits and bytes in communication channels. • Different machines have different standards for the bits or bytes with the least or the most significant digit first.
Data Conversion – Cont’d • Transfer syntax • Rules regarding of messages in a network. • For n data representations, n*(n-2)/2 translators are required. • Better solution: inventing an universal language : 2*n translators. • However, this increase the packing/unpacking overhead.
Data Conversion – Cont’d • ASN.1 • Abstract Syntax Notation One • Most important developments in standards. • Used to define data structures. • Used for specifying formats of protocol data units in network communications.

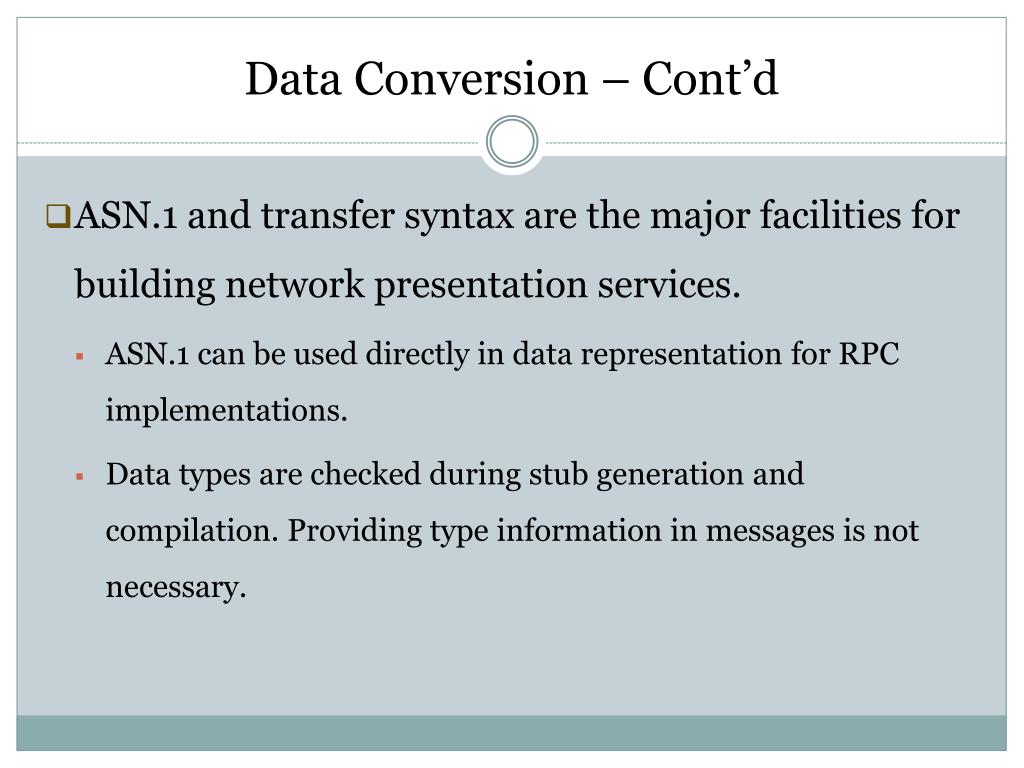

Data Conversion – Cont’d • ASN.1 and transfer syntax are the major facilities for building network presentation services. • ASN.1 can be used directly in data representation for RPC implementations. • Data types are checked during stub generation and compilation. Providing type information in messages is not necessary.
Data Conversion– Cont’d • Examples of canonical data representations for RPC • Sun ’s XDR: eXternal Data Representation • DCE’s IDL : Interface Definition Language
Binding • Binding is the process of connecting the client to the server • Services are specified by a server interface with interface definition language such as XDR.
Binding – Cont’d • The server, when it starts up • Register its communication endpoint by sending a request (program, version number, port number) to the port mapper . • Port mapper manages the mapping. • Before RPC, client call RPC run-time library routine create, whichcontacts the port mapper to obtain a handle for accessing. • Create message contains the server name, program, version number, transport protocol.
Binding – Cont’d • Port mapper verifies the program and version numbers, returns the port number of the server to the client. • Client builds a client handle for subsequent use in RPC. This establishes socket connections between clients and server.
Binding – Cont’d Server machine address or handle to server Register service (if server is unknown) directory server port mapper 2. create 1. register 3. port # client server 4. handle
RPC compilation • Compilation of RPC requires the followings: • An interface specification file • An RPC generator : input is the interface specification file and output is the client and server stub procedure source codes. • A run-time library for supporting execution of an RPC, including support for binding, data conversion, and communication.

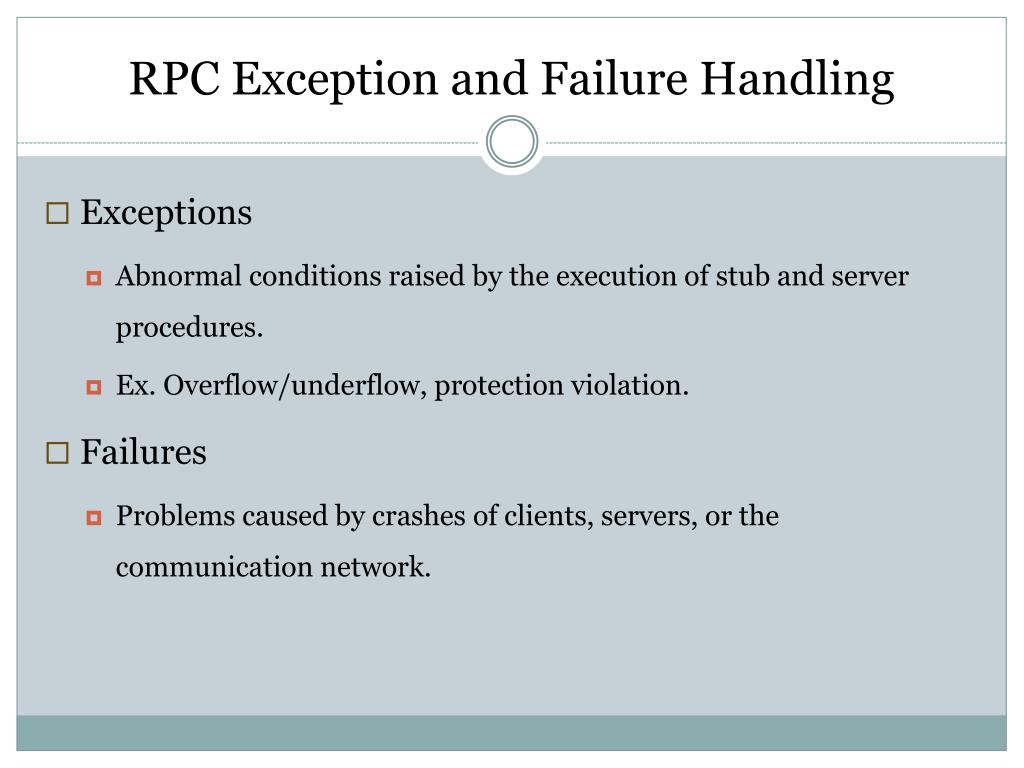

RPC Exception and Failure Handling • Exceptions • Abnormal conditions raised by the execution of stub and server procedures. • Ex. Overflow/underflow, protection violation. • Failures • Problems caused by crashes of clients, servers, or the communication network.

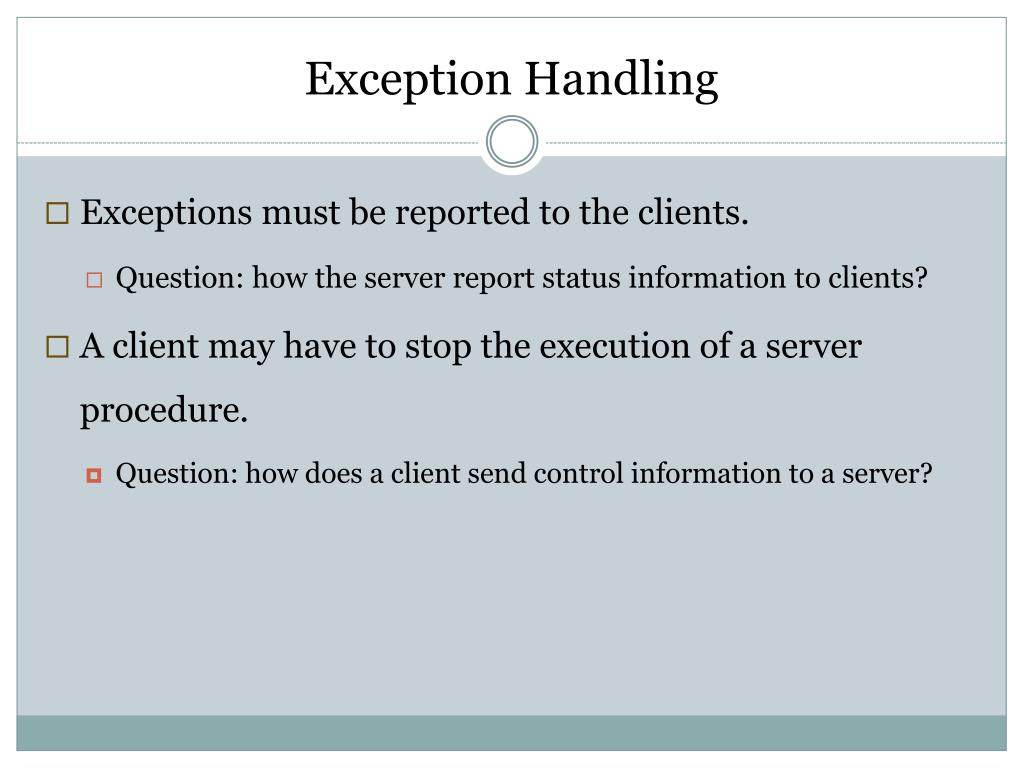

Exception Handling • Exceptions must be reported to the clients. • Question: how the server report status information to clients? • A client may have to stop the execution of a server procedure. • Question: how does a client send control information to a server?
Exception Handling – Cont’d • In local procedure call: global variables and signals. • In computer network, the exchange of control and status information must rely on a data channel. • In-band signaling, or out-band signaling (flag). • Separate channel (socket connection) – more flexible for RPC • It is implemented as part of the stub library support and should be transparent.

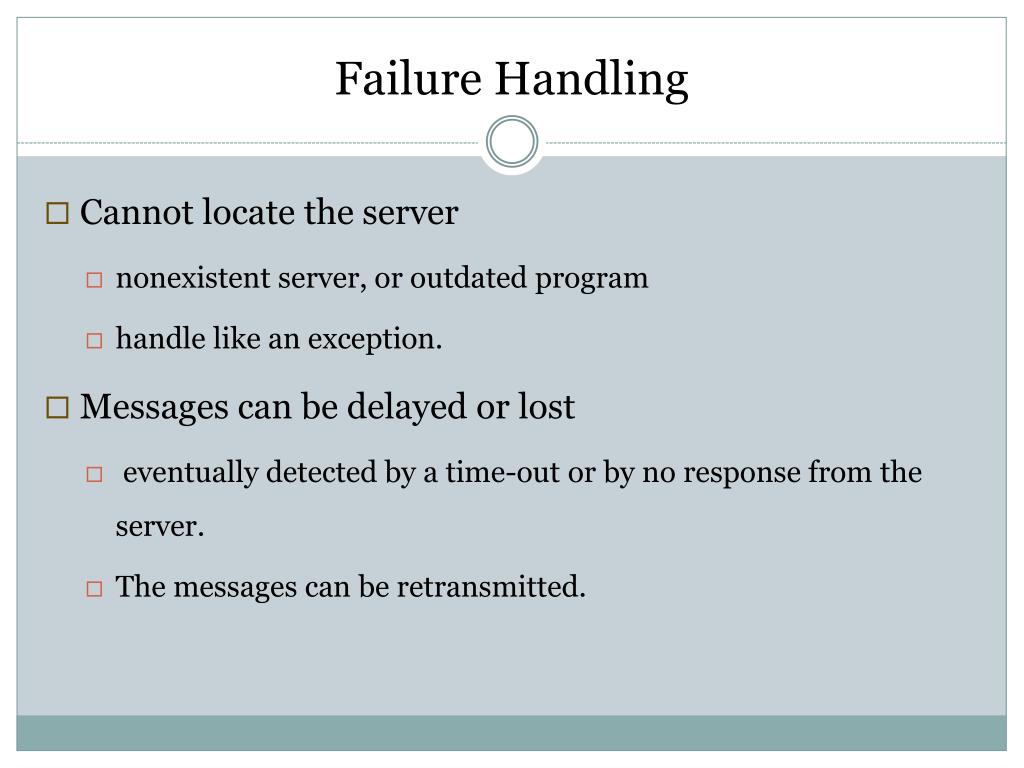

Failure Handling • Cannot locate the server • nonexistent server, or outdated program • handle like an exception. • Messages can be delayed or lost • eventually detected by a time-out or by no response from the server. • The messages can be retransmitted.
Failure Handling – Cont’d • Problem with Retransmission of requests. • In case of delay, server get multiple requests • -> make it idempotent (can be executed multiple times with the same effect) • In case of idempotent impossible (lock servers), each request has sequence number. • Typical RPC do not use sequence numbers – only requests-based.
Failure Handling – Cont’d • Crash of a server. • Client attempts to reestablish a connection, and retransmits its request. • If server not fail, but TCP connection fail: examine the cache table for duplicated message. • If server failed, then cache table lost. Then raise exception.
Failure Handling – Cont’d • Three assumptions for RPC semantics in failures. • Server raise exception, client retries. At least once • Server raise exception, client give up immediately At most once • No error report from server, client resubmits until it gets or give up Maybe
Failure Handling – Cont’d • Most desirable RPC semantics is exactly once. • But hard to implement. • Loss of cache table: at least once and log the cache table to storage. • Reload the cache table when server recovers. • Overhead since each service must be executed as a transaction at the server.

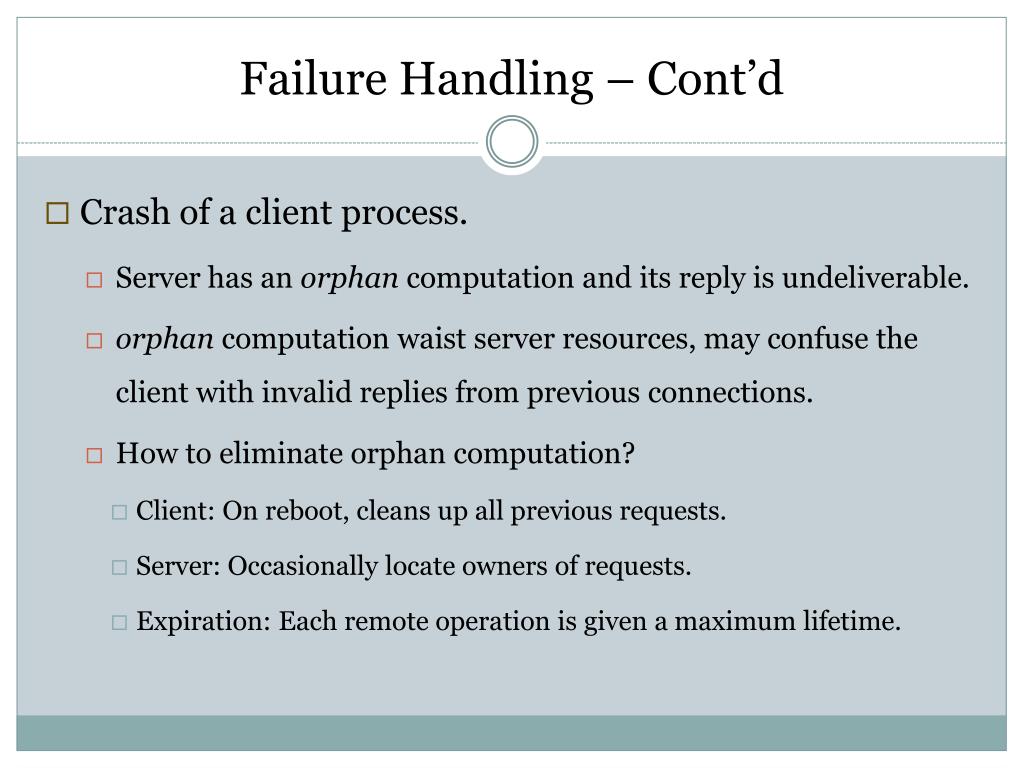

Failure Handling – Cont’d • Crash of a client process. • Server has an orphan computation and its reply is undeliverable. • orphan computation waist server resources, may confuse the client with invalid replies from previous connections. • How to eliminate orphan computation? • Client: On reboot, cleans up all previous requests. • Server: Occasionally locate owners of requests. • Expiration: Each remote operation is given a maximum lifetime.
Secure RPC • Security is important for RPC, since • RPC introduces vulnerability because it opens doors for attacks. • RPC became a cornerstone of client/server computation. All security features should be build on top of a secure RPC. • Primary security issues • Authentication of processes. • Confidentiality of messages. • Access control authorization from client to server.
Secure RPC – Cont’d • Authentication protocol for RPC should establish: • Mutual authentication. • Message integrity, confidentiality, and originality. • Design of a secure authentication protocol • How strong the security goals. • What possible attacks • Some inherent limitations of the system. • Short-term solution: additional security features.

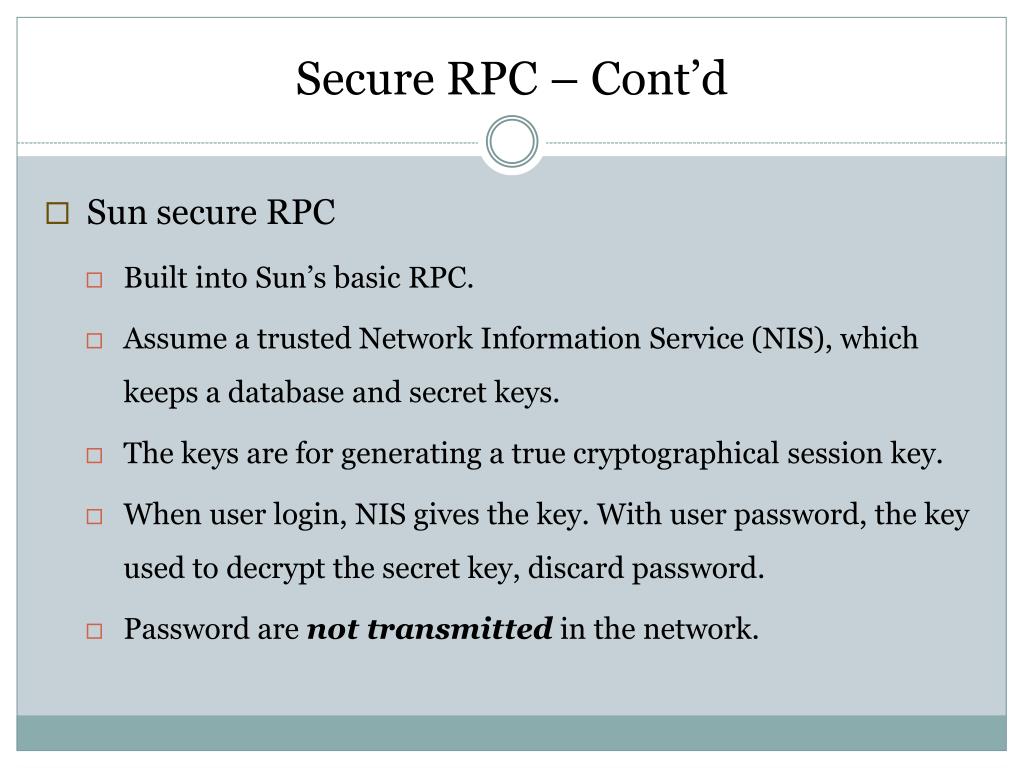

Secure RPC – Cont’d • Sun secure RPC • Built into Sun’s basic RPC. • Assume a trusted Network Information Service (NIS), which keeps a database and secret keys. • The keys are for generating a true cryptographical session key. • When user login, NIS gives the key. With user password, the key used to decrypt the secret key, discard password. • Password are not transmitted in the network.
Secure RPC – Cont’d • Sun secure RPC – example • Client login attempt • login program deposit the client’s key in the key server. • Key server generating a common session key, by exponential key exchange. • Secrete keys are erased after common session keys generated. • Each RPC message is authenticated by a conversation key. • Conversation key is kept in server, used for the entire session, as it is not from the secrete key.
Secure RPC – Cont’d • Sun secure RPC – RPC message may contain more • Timestamp : check message expiration • Nonce : protect against the replay of a message • Message digest: detect any tampering. • Sun secure RPC is simple, using existing NIS.
Other RPC Industry Implementations  Part II : Current Projects • 1984 - ONC RPC/NFS (Sun Microsystems Inc.) • Early 1990s - DCE RPC (Microsoft) • Late 1990’s – ORPC (Object Oriented Programming Community) • 1997 – DCOM (Microsoft) • 2002 - .NET Remoting (Microsoft) • Doors (Solaris) • 2003-ICE (Internet Communications Engine) • DCOP - Desktop Communication Protocol (KDE)
ICE (Internet Communications Engine) [3,4,5] • ICE is object-oriented middleware providing RPC, grid computing, and publish/subscribe functionality. • Influenced by CORBR (Common Object Request Broker Architecture) in its design, and developed by ZeroC, Inc. • Supports C++, Java, .NET-languages, Objective-C, Python, PHP, and Ruby on most major operating systems.

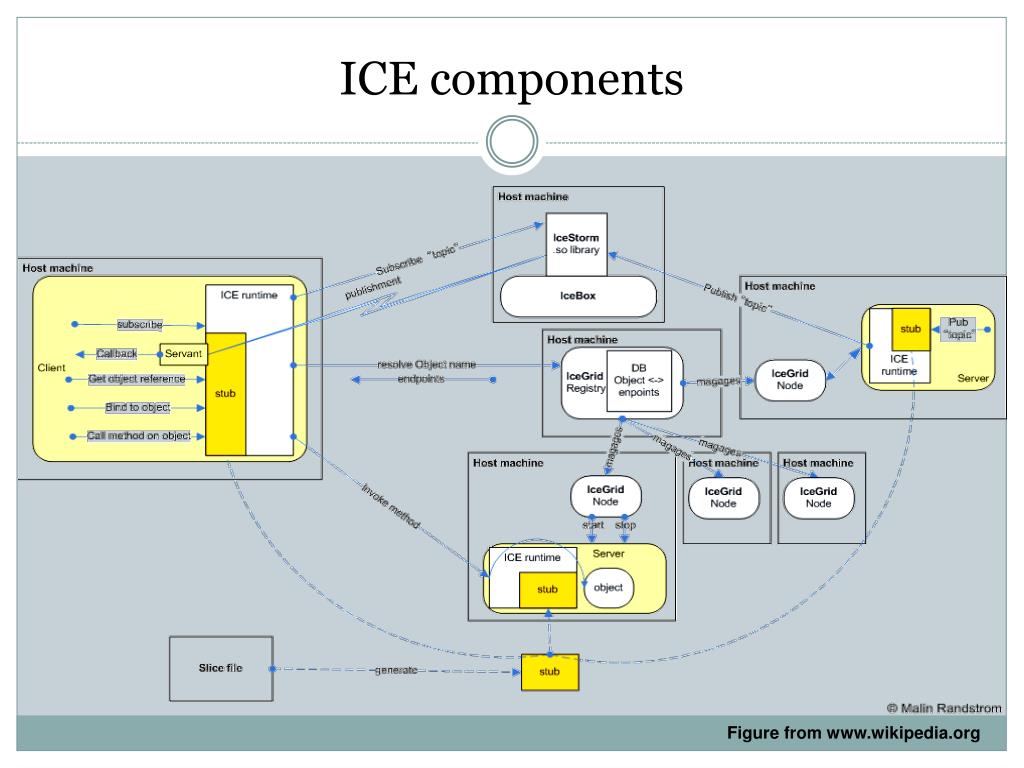

ICE components Figure from www.wikipedia.org
ICE components • IceStorm: object-oriented publish-and-subscribe framework • IceGrid: provide object-oriented load balancing, failover, object-discovery and registry services. • IcePatch :facilitates the deployment of ICE based software • Glacier: a proxy-based service to enable communication through firewalls • IceBox: a SOA-like container of executable services implemented with libraries • Slice: file format that programmers follow to edit. Servers should communicate based on interfaces and classes as declared by the slice definitions.
Current Project with ICE  • Ice middleware in the New Solar Telescope’s Telescope Control System, 2008 • NST (new solar telescope) is an off-axis solar telescope with the world largest aperture. • Develop TCS (telescope control system) to control all aspects of the telescope • Telescope Pointing • Tracking Subsystem • Active Optics Control Subsystem • Handheld Controller • Main GUI
Current Project with ICE-Cont’d  • Ice advantages • Provides fast and scalable communications. • Simple to use • Ice Embedded (Ice-E) supports Microsoft Windows Mobile operating system for handheld devices. • Source code of Ice is provided under the GNU (General Public License) • Continuously updated. • Ice problem • Frequent package updates cause changes of coding.
Current Project with ICE-Cont’d  • TCS Implementation • Star-like structure: all subsystems through HQ (headquarters). • Each subsystem acts as a server and a client. • Each subsystem use the same ICE interface. • Interface for every object includes seven operations; • Register, Unregister, SendError, SendCommand, RequestInformation, SendNotification, SendReply, Error • Subsystems can be started in any order, only need to register with HQ and IcePack registry.

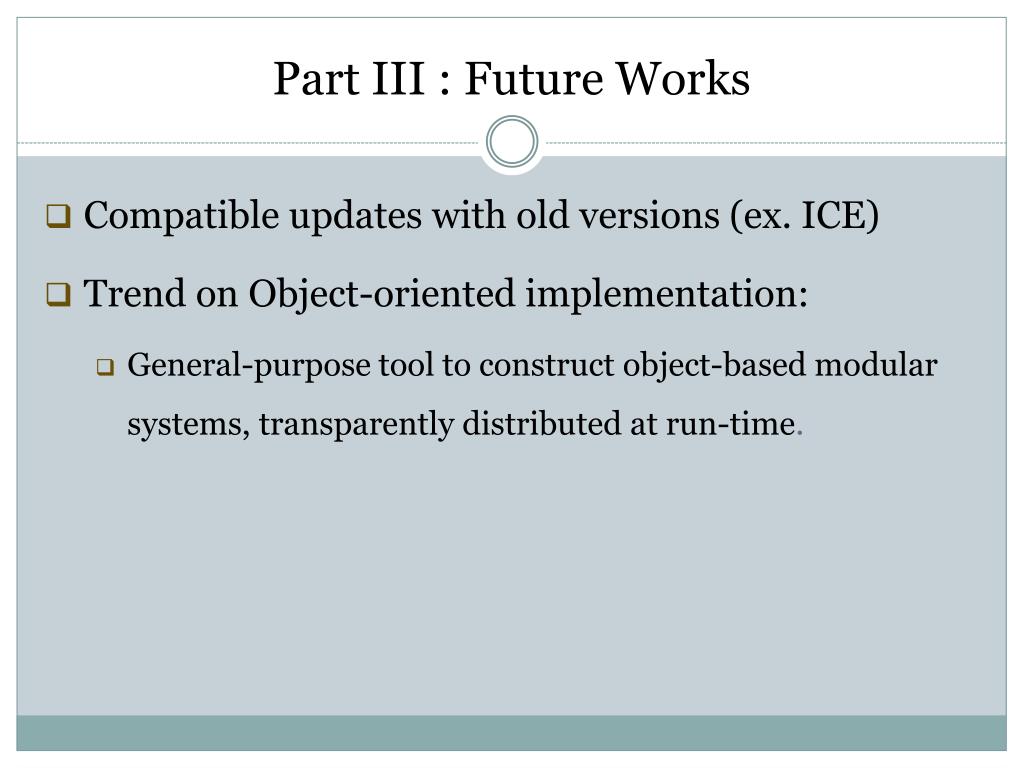

Part III : Future Works • Compatible updates with old versions (ex. ICE) • Trend on Object-oriented implementation: • General-purpose tool to construct object-based modular systems, transparently distributed at run-time.

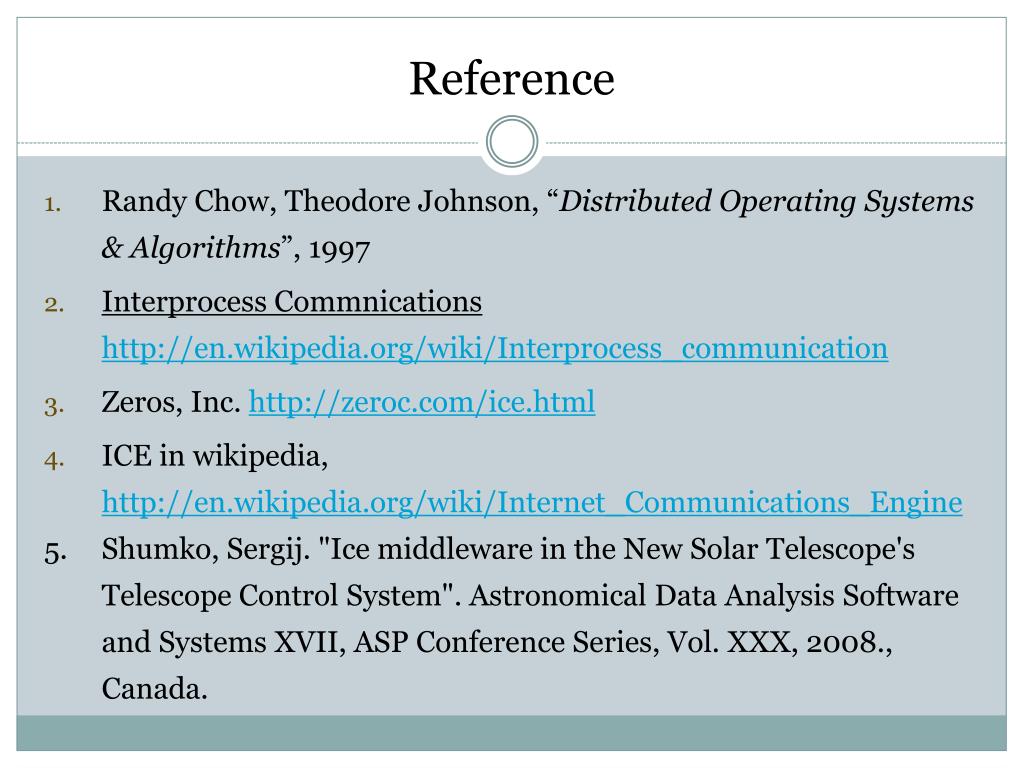

Reference • Randy Chow, Theodore Johnson, “Distributed Operating Systems & Algorithms”, 1997 • Interprocess Commnicationshttp://en.wikipedia.org/wiki/Interprocess_communication • Zeros, Inc. http://zeroc.com/ice.html • ICE in wikipedia, http://en.wikipedia.org/wiki/Internet_Communications_Engine • Shumko, Sergij. "Ice middleware in the New Solar Telescope's Telescope Control System". Astronomical Data Analysis Software and Systems XVII, ASP Conference Series, Vol. XXX, 2008., Canada.
