16. Rotating spring. Reporter: Reza M. Namin. The problem. A helical spring is rotated about one of its ends around a vertical axis. Investigate the expansion of the spring with and without an additional mass attached to it’s free end. Main approach. Theory Background Theory base

Télécharger la présentation
## Rotating spring

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

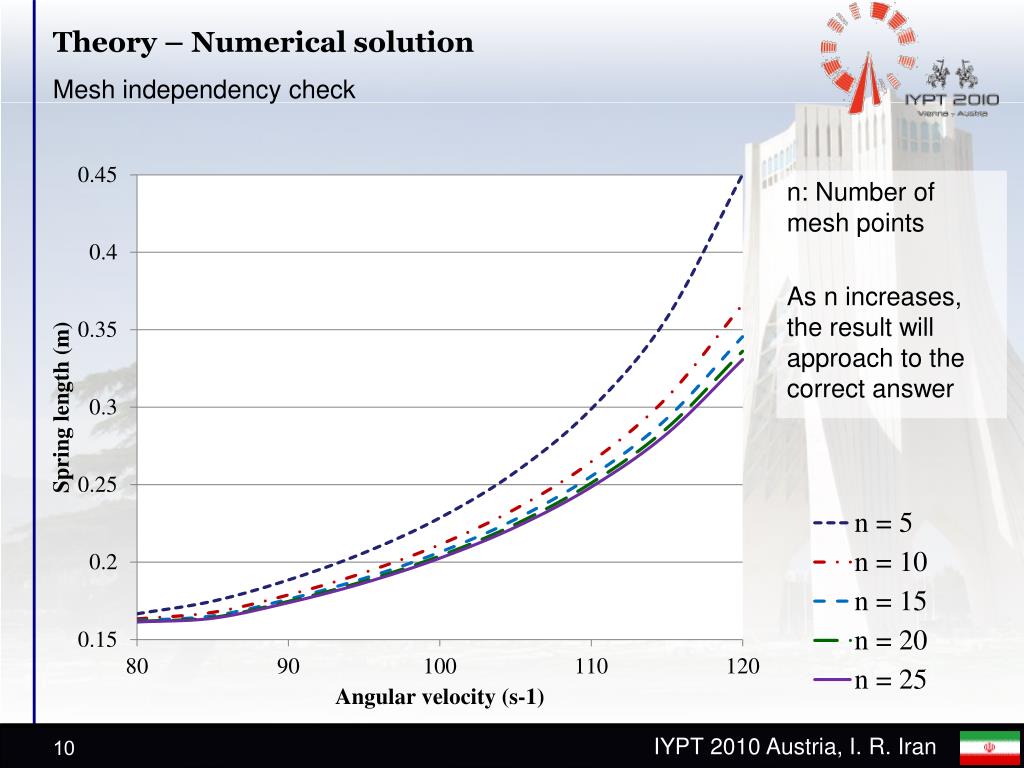

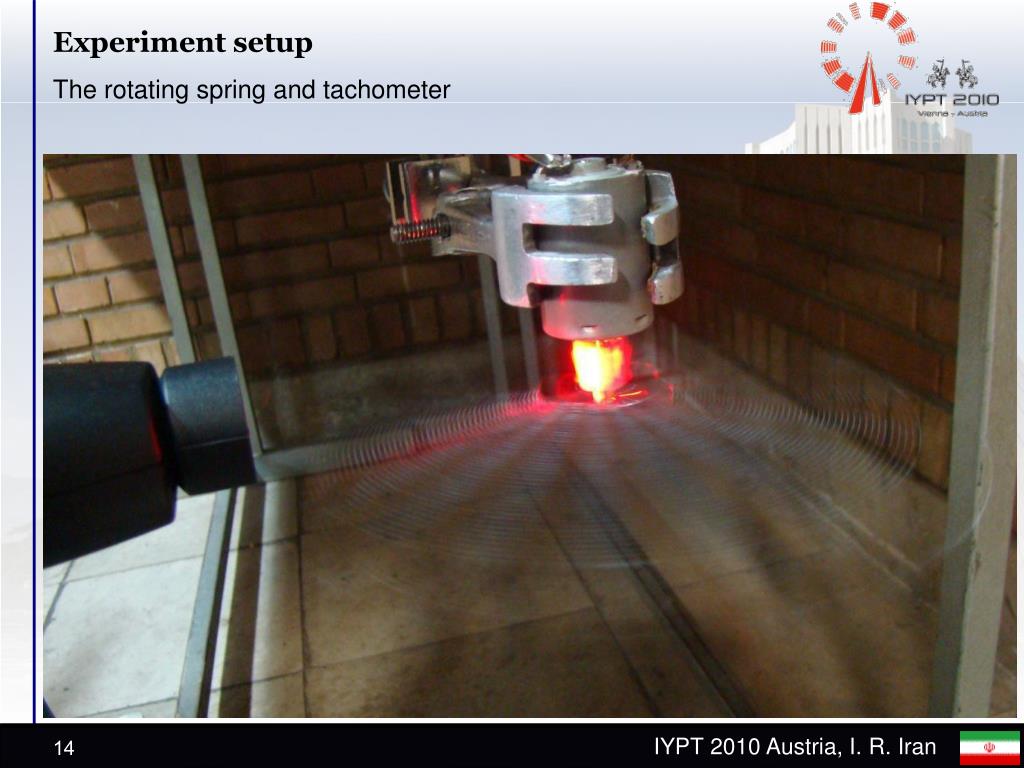

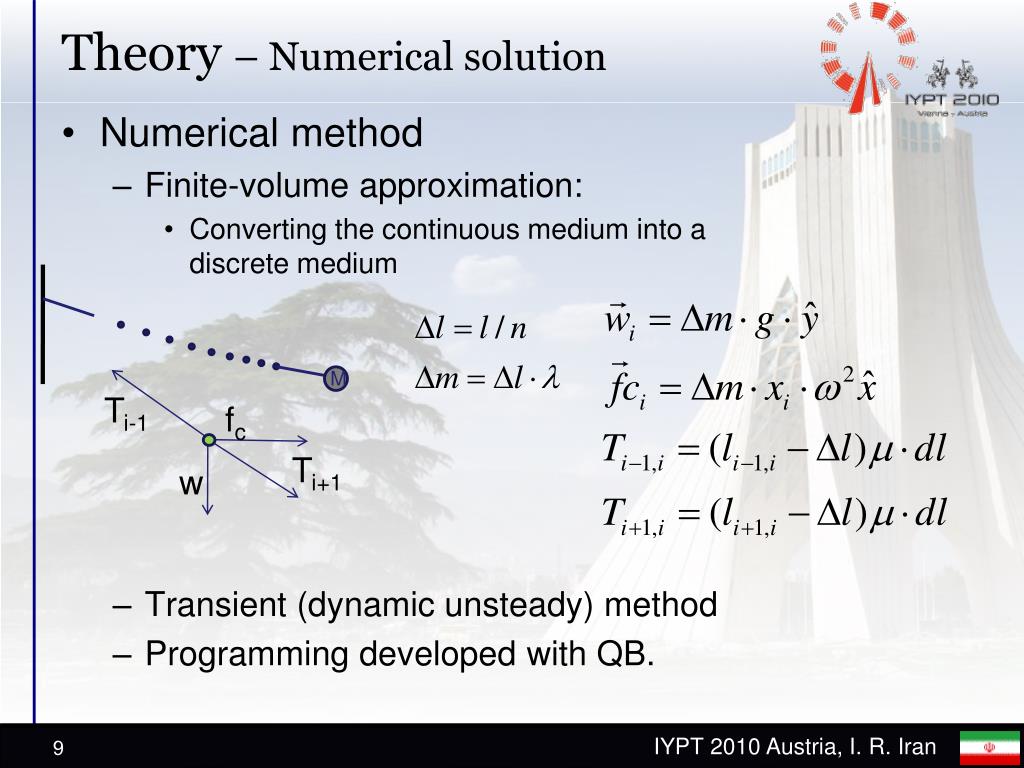

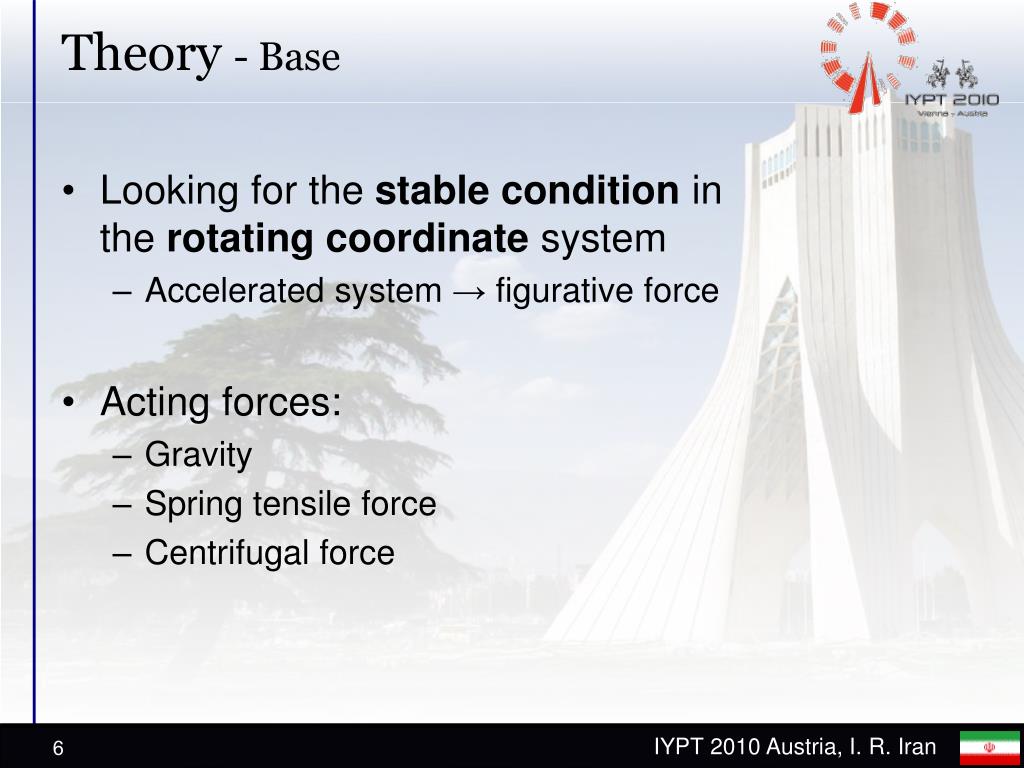

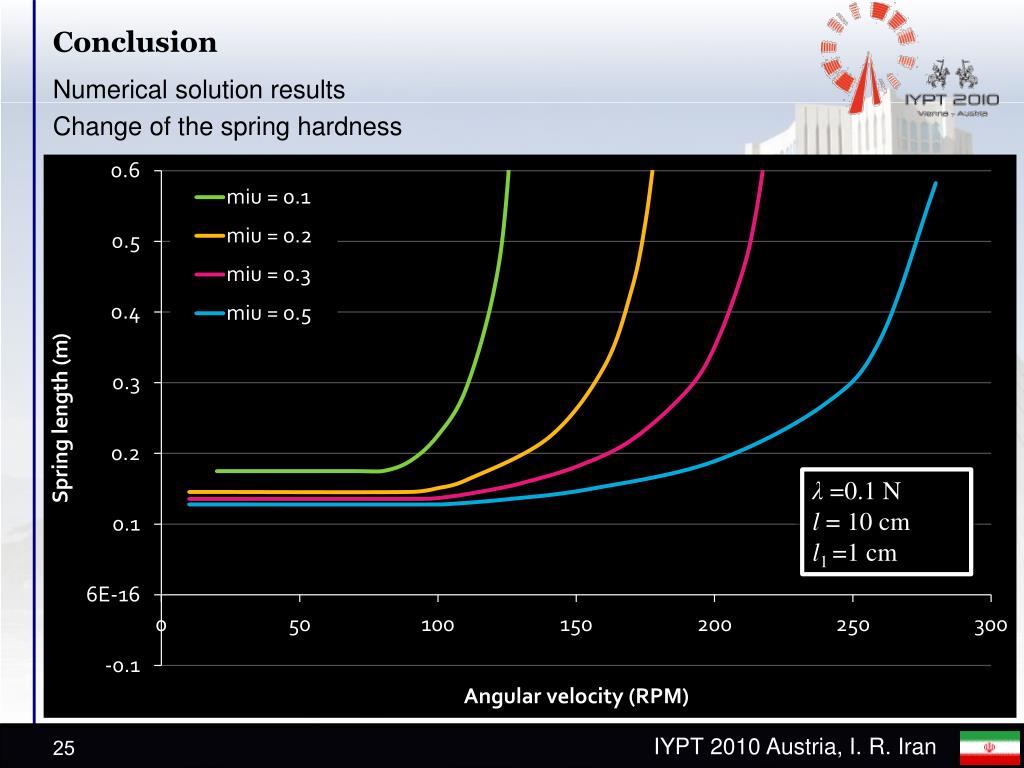

**16**Rotating spring Reporter: Reza M. Namin**The problem**• A helical spring is rotated about one of its ends around a vertical axis. • Investigate the expansion of the spring with and without an additional mass attached to it’s free end.**Main approach**• Theory • Background • Theory base • Developing the equations • Numerical solution • Experiment • Setup • Parameters, results and comparison • Conclusion**Theory - Background**• Act of a spring due to tensile force: • Hook's law: F = k ∆L • F: Force parallel to the spring • k: Spring constant • ∆L: Change of length • A spring divided to n parts: • F = n k ∆L • μ = kL remains constant • Circular motion • a = rω2 • a: Acceleration • r: Distance from the rotating axis • ω: Angular velocity**Theory - Base**• Effective parameters: • ω: Angular velocity • λ: Spring liner density = m / l • M: Additional mass • μ : Spring module = k l • l, l1, l2: Spring geometrical properties l1 l2 l M**Theory - Base**• Looking for the stable condition in the rotating coordinate system • Accelerated system → figurative force • Acting forces: • Gravity • Spring tensile force • Centrifugal force**Theory – Developing the equations**• Approximation in mass attached conditions: • Considering the spring to be weightless: Fs ω Fc Mg y l M x**Theory – Developing the equations**• Exact theoretical description: • Problem: The tension is not even all over the spring… • Solution: Considering the spring to be consisted of severalsmall springs. M**Theory – Numerical solution**• Numerical method • Finite-volume approximation: • Converting the continuous medium into a discrete medium • Transient (dynamic unsteady) method • Programming developed with QB. M Ti-1 fc Ti+1 w**Theory – Numerical solution**Mesh independency check n: Number of mesh points As n increases, the result will approach to the correct answer**Theory – Numerical solution**Tension in different points of the spring with different additional mass amounts:**Experiment**• Finding spring properties • Direct measurement: Mass & lengths • Suspending weights with the spring to measure k and μ • Changing the angular velocity, measuring the expansion • Change of the angular velocity with different voltages • Measuring the angular velocity with Tachometer • Measuring the length of the rotating spring using a high exposure time photo**Experiment setup**The motor, connection to the spring and the sensor sticker**Experiment setup**The rotating spring and tachometer**Experiment setup**Hold and base**Experiment setup**All we had on the table**Experiments**Suspending weights with the spring Finding k and using that to find μ →K = 33.78 N/m →μ = K l = 1.824 N**Experiments**Expansion increases with increasing angular velocity**Experiments**Measurement of length in different angular velocities Comparison with the numerical theory**Experiments**Comparing the shape of the rotating spring in theory and experiment λ=0.103 kg/m μ =0.369 N l = 16.3 cm l1 =1 cm ω = 120 RPM**Experiments**Investigation of the l-ω plot within different initial lengths**Experiments**Comparison between the physical experiments, numerical results and theoretical approximation within different additional masses**Conclusion**• According to the comparison between the theories and experiments we can conclude: • In case of weightless spring approximation:**Conclusion**• In general, the numerical method may be used to achieve precise description and evaluation. • Some of the results of the numerical method are as follows:**Conclusion**Numerical solution results Change of the spring hardness**Conclusion**Numerical solution results Change of spring density μ =0.3 N l = 10 cm l1 =1 cm**Conclusion**Numerical solution result Change of initial length λ=0.2 kg/m μ =0.3 N l1 =1 cm**Conclusion**Numerical solution results Change in additional mass
