  1. A Programmable Logic Device Lecture 4.3

  2. A Programmable Logic Device • Multiple-input Gates • A 2-Input, 1-Output PLD

  3. Multiple-input Gates Z Z 2 1 Z Z 4 3

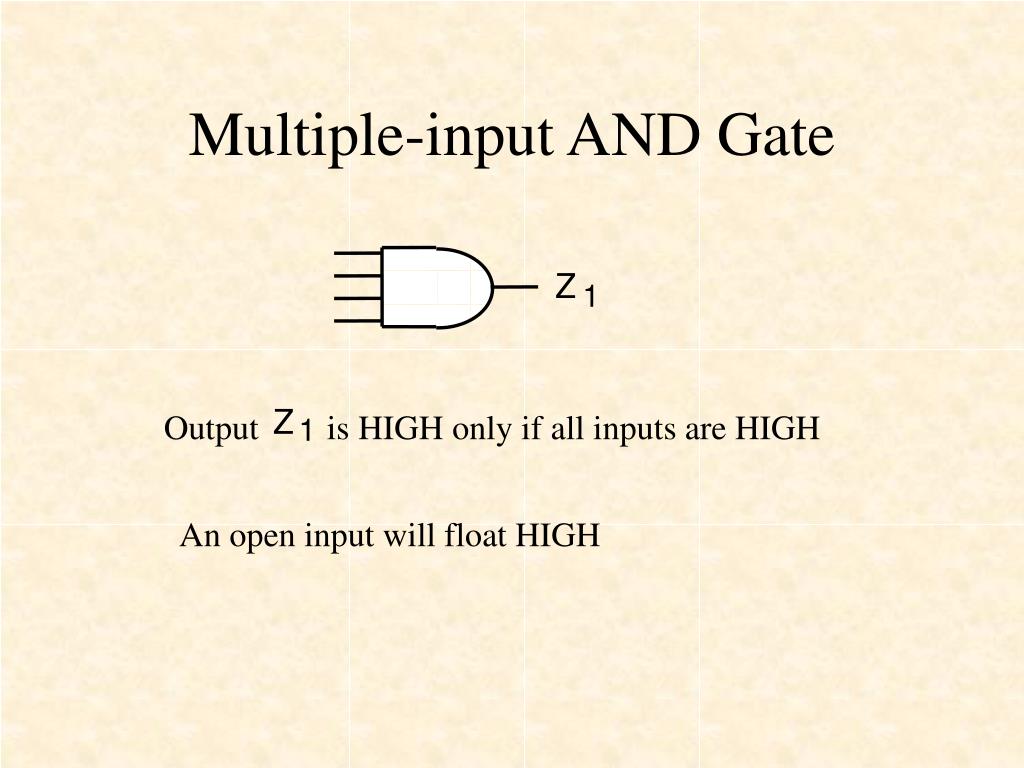

  4. Multiple-input AND Gate Z 1 Output is HIGH only if all inputs are HIGH Z 1 An open input will float HIGH

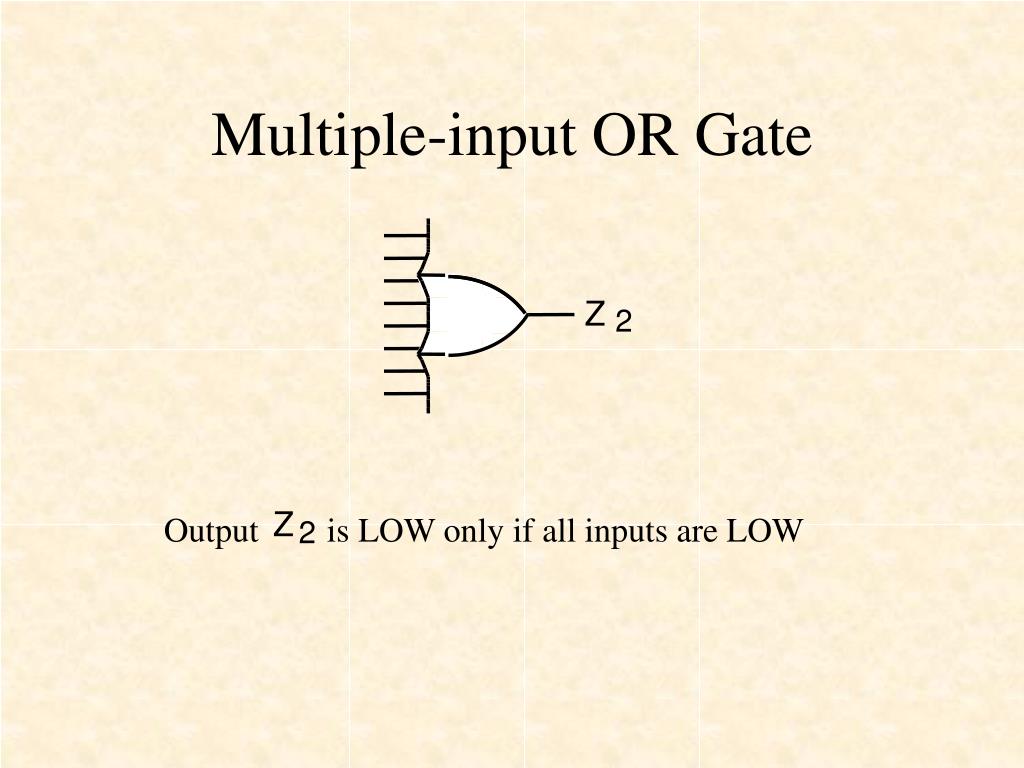

  5. Multiple-input OR Gate Z 2 Output is LOW only if all inputs are LOW Z 2

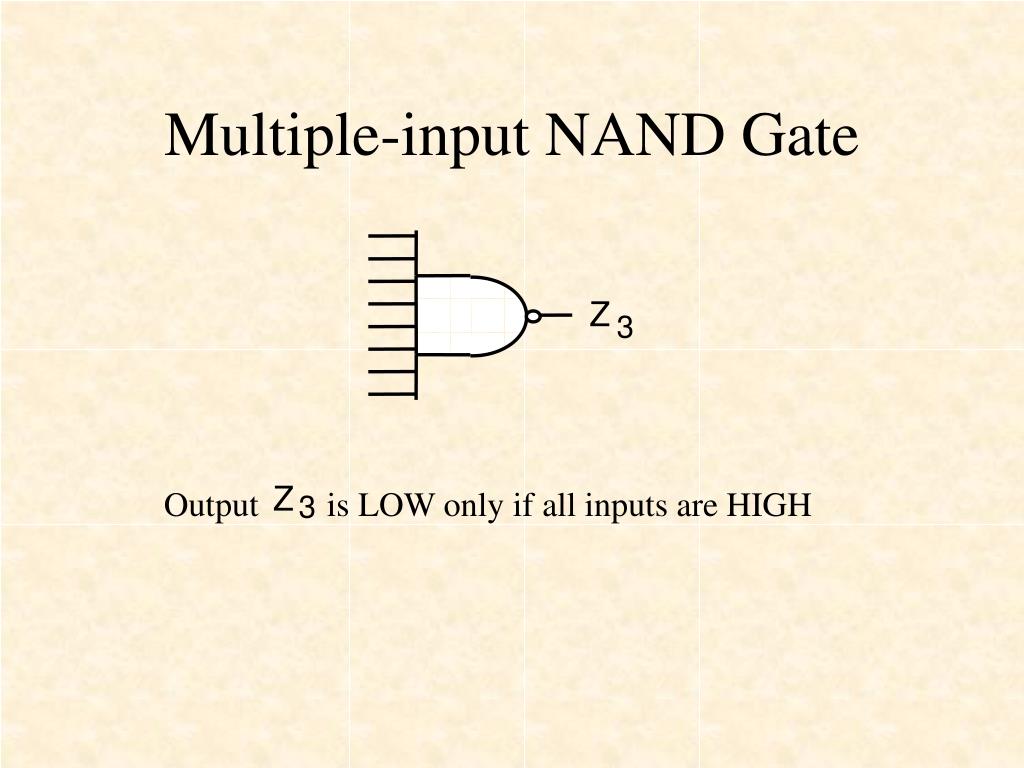

  6. Multiple-input NAND Gate Z 3 Output is LOW only if all inputs are HIGH Z 3

  7. Multiple-input NOR Gate Z 4 Output is HIGH only if all inputs are LOW Z 4

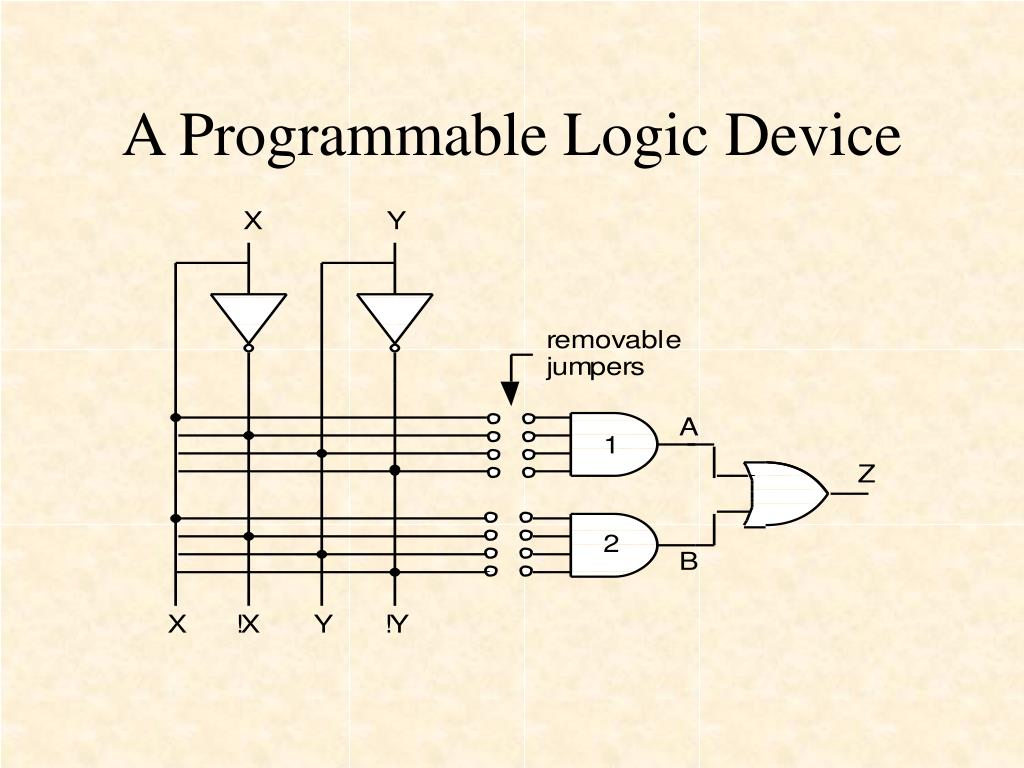

  8. A Programmable Logic Device

  9. A Programmable Logic Device A = X & !X & Y & !Y = 0 & 0 = 0

  10. A Programmable Logic Device A = X & !X & Y & !Y = 0 & 0 = 0 Z = A # B = 0 # B = B

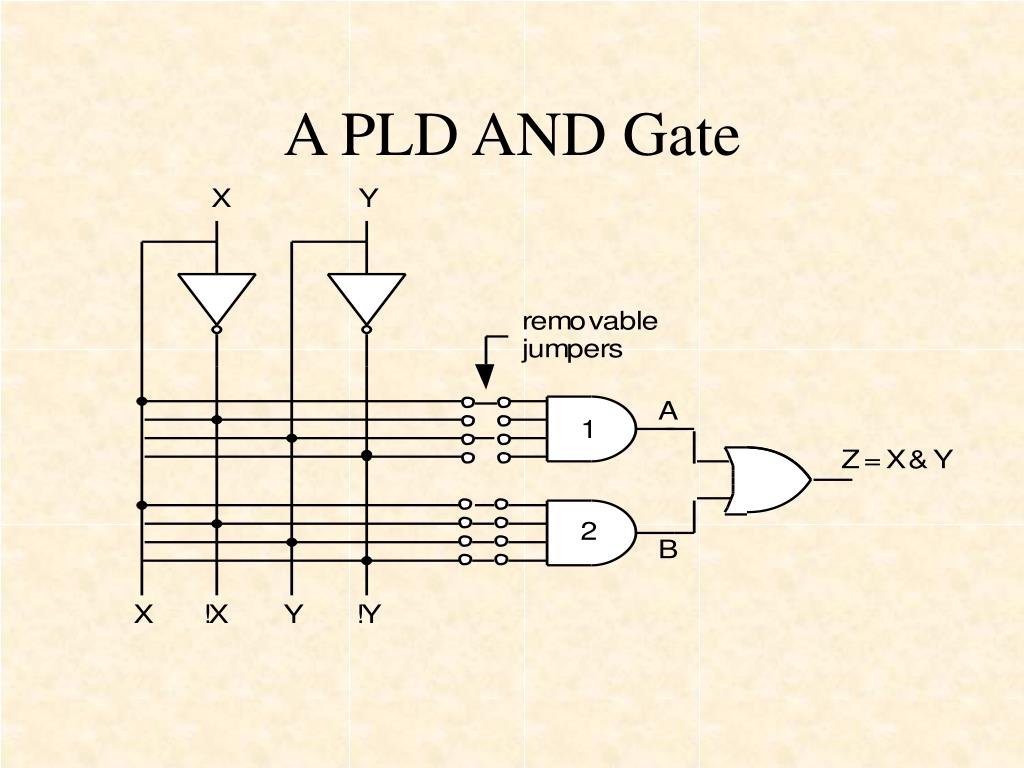

  11. A PLD AND Gate

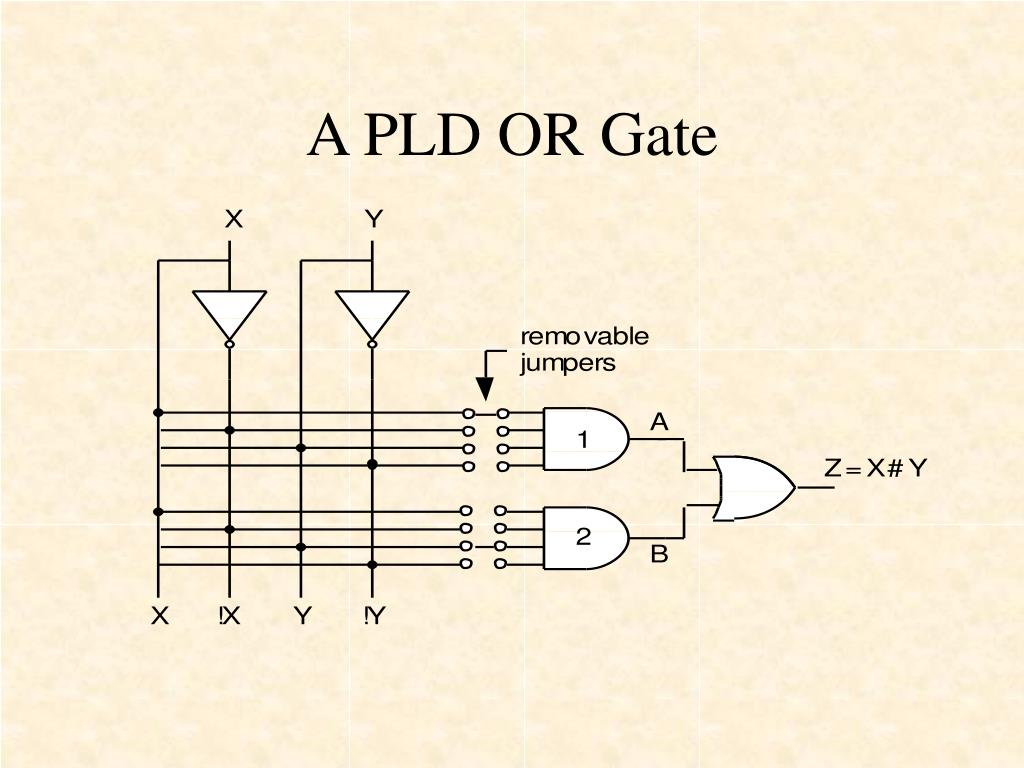

  12. A PLD OR Gate

  13. Sum of Products Design Design an XOR gate X Y Z 0 0 0 0 1 1 1 0 1 1 1 0 m1 = !X & Y m2 = X & !Y Z = m1 # m2 = (!X & Y) # (X & !Y)

  14. A PLD XOR Gate

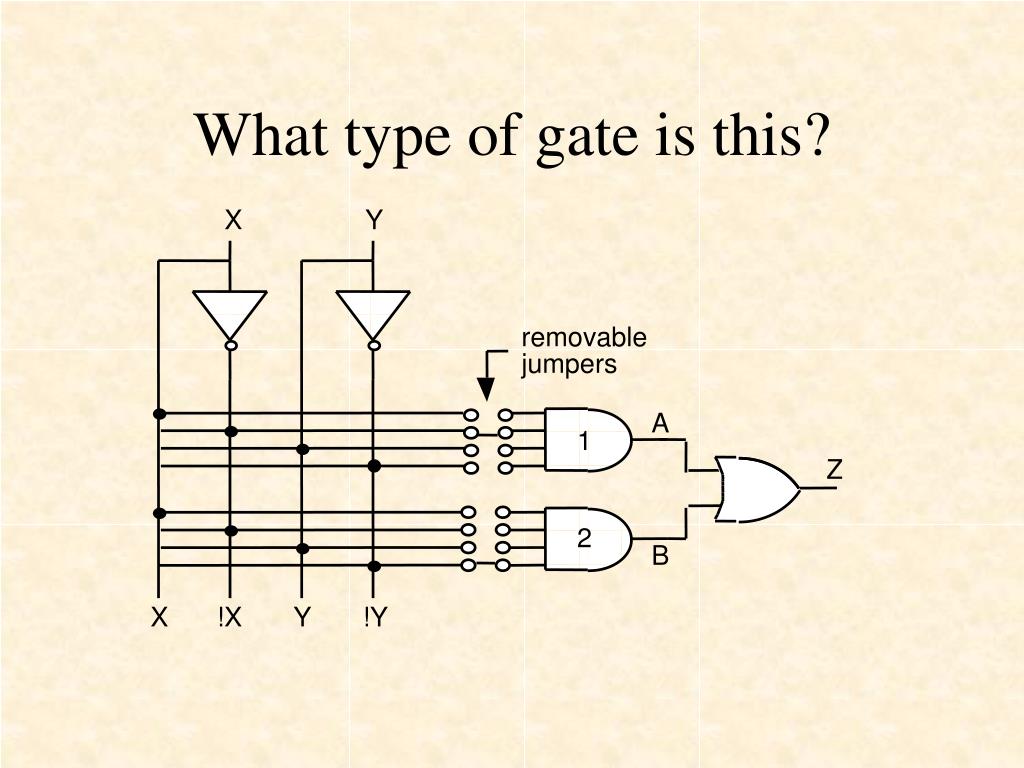

  15. What type of gate is this? X Y removable jumpers A 1 Z 2 B X !X Y !Y

  16. What type of gate is this? X Y removable jumpers A 1 Z 2 B X !X Y !Y

  17. Lab 2 – Structure of a PLD
