1 / 21

Questions of the day:

Questions of the day:. Which absorptions on an IR spectrum would show you that your unknown is probably a ketone or aldehyde? b) that your unknown is probably a carboxylic acid?. Today: Inert compounds IR; UV Next time: Mass spectrometry. “Inert Compounds”. Alkanes Aromatic Hydrocarbons

caia
Télécharger la présentation

Questions of the day:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

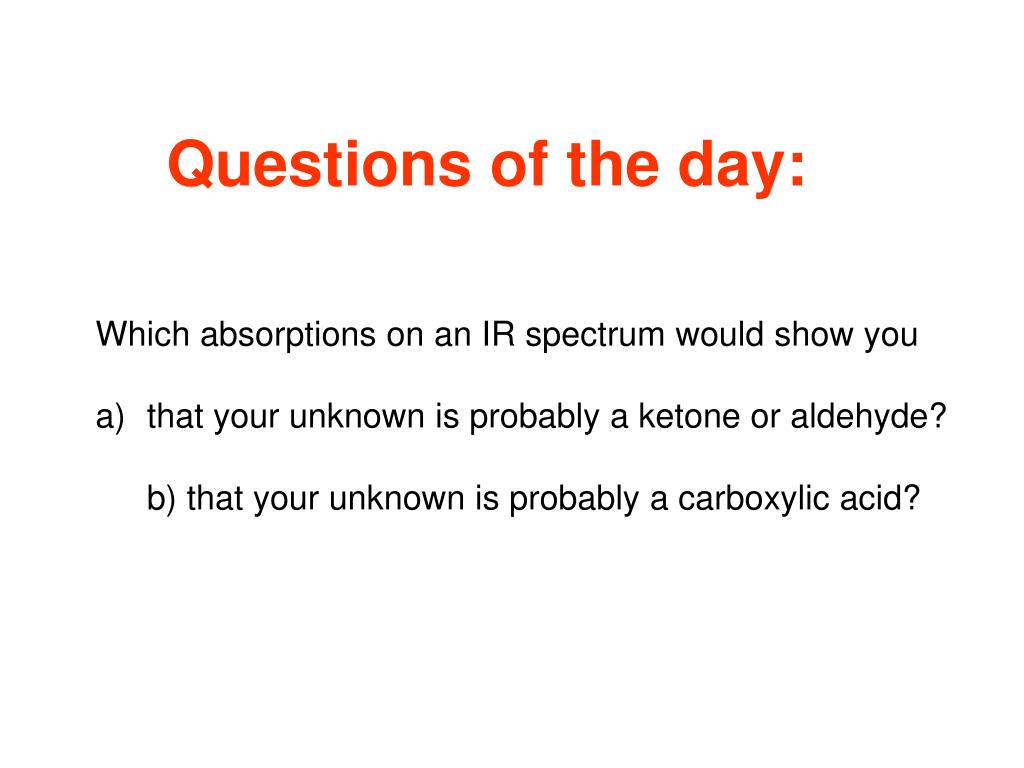

  1. Questions of the day: • Which absorptions on an IR spectrum would show you • that your unknown is probably a ketone or aldehyde? • b) that your unknown is probably a carboxylic acid?

  2. Today: • Inert compounds • IR; UV • Next time: • Mass spectrometry

  3. “Inert Compounds” Alkanes Aromatic Hydrocarbons (Alkyl halides. Aryl halides.)

  4. Spectroscopy http://www.chem.ucla.edu/~webspectra/index.html • Infrared Spectroscopy (IR) • IR region = 4000 - 400 cm-1(cm-1 unit is the wave number scale and is given by 1/wavelength in cm) E= h n • What information do we get from an IR spectrum? • What is the cause for the typical absorptions?

  5. Fingerprint region butyl acetate

  6. http://www.chem.ucla.edu/~webspectra/index.html

  7. http://www.chem.ucla.edu/~webspectra/index.html

  8. Aromatics aromatic overtones

  9. http://www.chem.ucla.edu/~webspectra/index.html

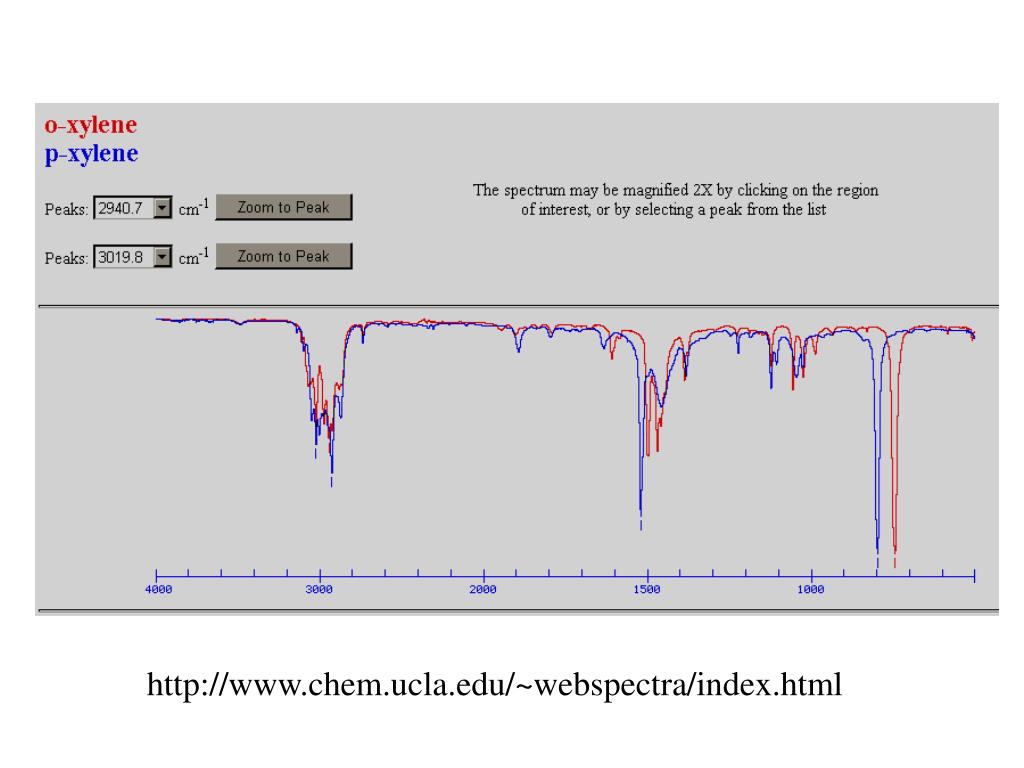

  10. http://www.chem.ucla.edu/~webspectra/index.html

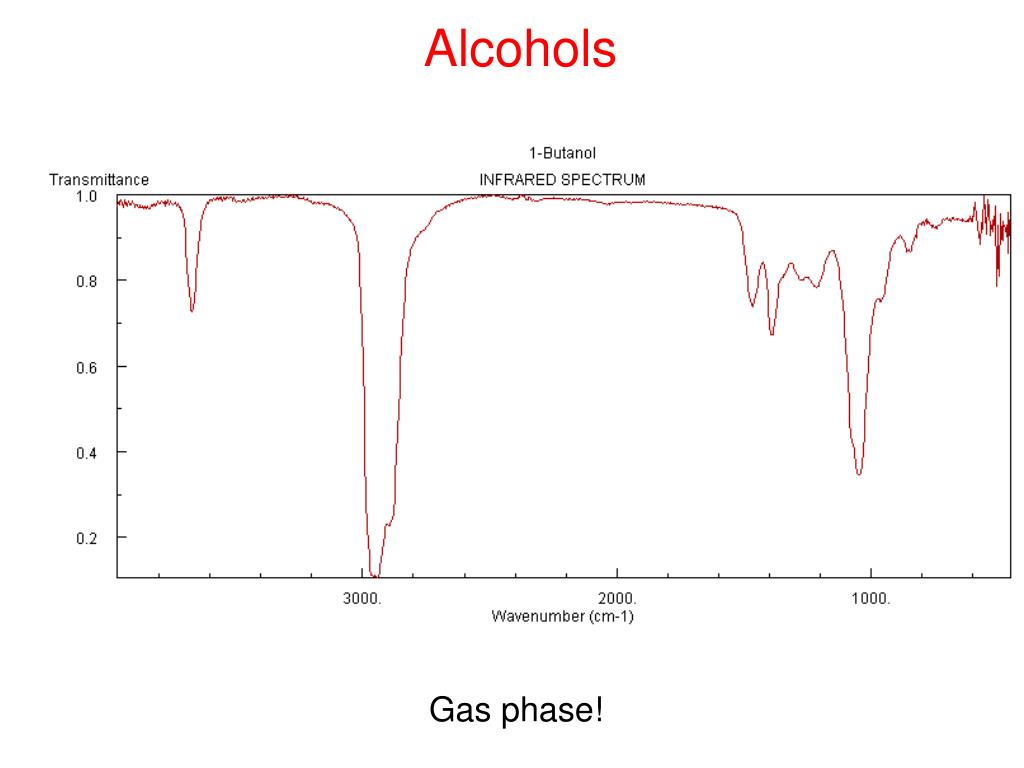

  11. Alcohols Gas phase!

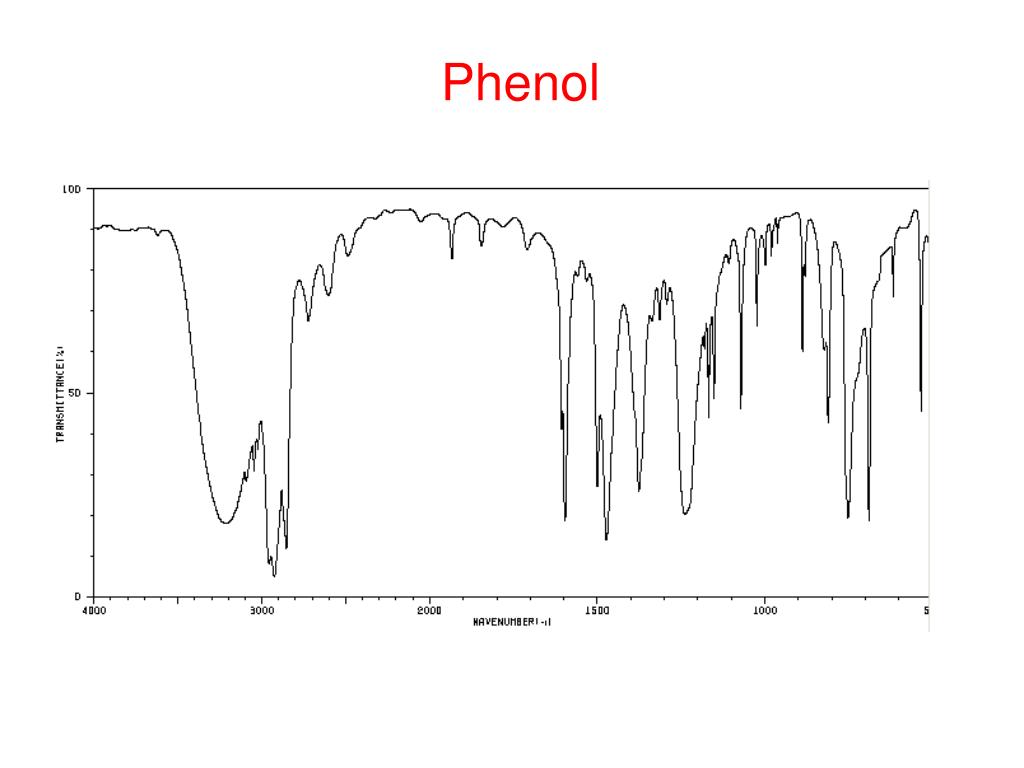

  12. Phenol

  13. Ketones

  14. Carboxylic Acids

  15. UV/Visible Spectrophotometry Which compounds generally absorb in the UV? CH4? CH3(CH2)10CH3? Ethanol? Benzene? Naphtalene? -Carotene? FeCl3? Which compounds absorb in the visible range? CH4? CH3(CH2)10CH3? Ethanol? Benzene? Naphtalene? -Carotene? FeCl3? • See Chapter in your Lecture text (conjugated systems) • to p* HOMO to LUMO A = e x C x l A = absorbance; e = molar absorptivity C = concentration in mol/L; l = sample pathlength in cm

  16. UV/Visible Spectrophotometry

  17. lmax

  18. Next time: • Mass Spectrometry • MiniQuiz on today’s class

  19. OH O N NO NH 2 2 2 + NO 2 MiniQuiz 8 Problem: Complete this reaction equation:
