Presentation Transcript

  1. FPGA Coprocessing in Multi-Core Architectures for DSP High Performance Embedded Computing Workshop 18-20 September 2007 J Ryan Kenny Bryce Mackin Altera Corporation 101 Innovation Drive San Jose, CA 95134

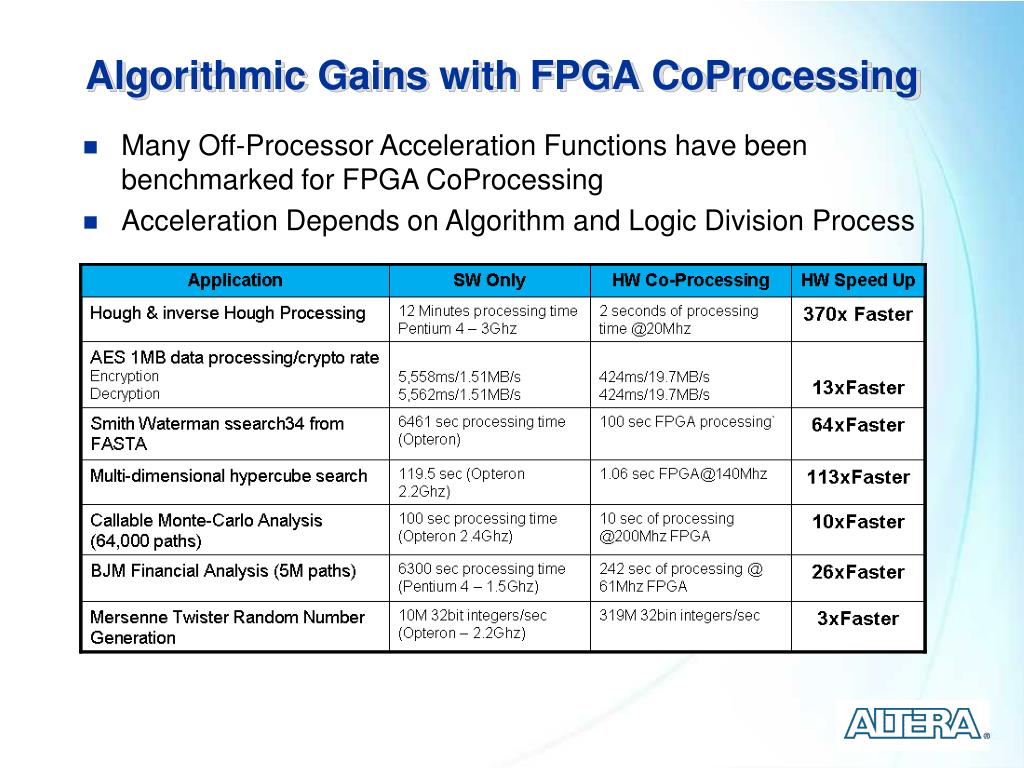

  2. Algorithmic Gains with FPGA CoProcessing • Many Off-Processor Acceleration Functions have been benchmarked for FPGA CoProcessing • Acceleration Depends on Algorithm and Logic Division Process

  3. Example—Financial Solution (50x +) ESL: first step:PSP for ImpulseC C source code • Main loop Single and double-precision IEEE 754 floating-point arithmetic supported in FPGA (XDI Library) and automatically inferred from code • Compile C to HDL All components connected via Avalon™ fabric Impulse C module • Main loop SOPC Builder XDI local memory interface HyperTransport interface • Make script-driven calls to Altera tools Intel Module All RTL for FPGA complete Altera project files Intel: FSB at 1066 Mhz, ~ 8.5 GB/s AMD:16-Lane HT, 400Mhz DDR, 3.2 GB/s AMD Module

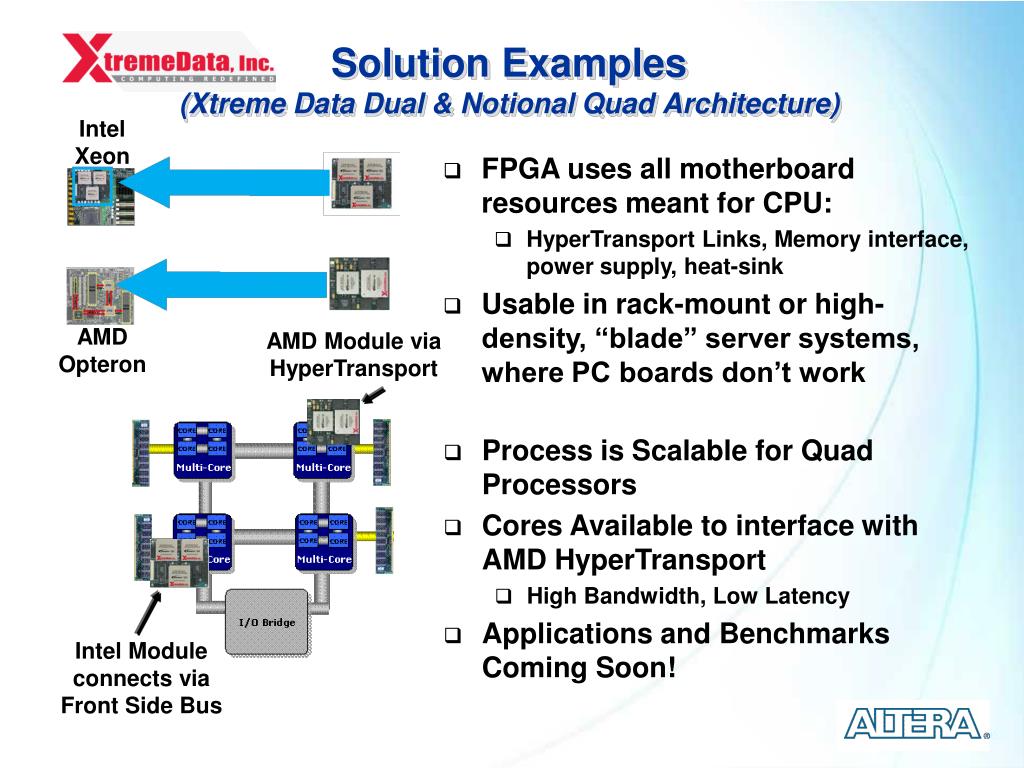

  4. Solution Examples (Xtreme Data Dual & Notional Quad Architecture) Intel Xeon • FPGA uses all motherboard resources meant for CPU: • HyperTransport Links, Memory interface, power supply, heat-sink • Usable in rack-mount or high-density, “blade” server systems, where PC boards don’t work AMD Opteron AMD Module via HyperTransport • Process is Scalable for Quad Processors • Cores Available to interface with AMD HyperTransport • High Bandwidth, Low Latency • Applications and Benchmarks Coming Soon! Intel Module connects via Front Side Bus
