  1. Paging Andrew Whitaker CSE451

  2. Review: Process (Virtual) Address Space • Each process has its own address space • The OS and the hardware translate virtual addresses to physical frames user space kernel space

  3. Multiple Processes • Each process has its own address space • And, its own set of page tables • Kernel mappings are the same for all user space kernel space proc1 proc2

  4. Linux Physical Memory Layout

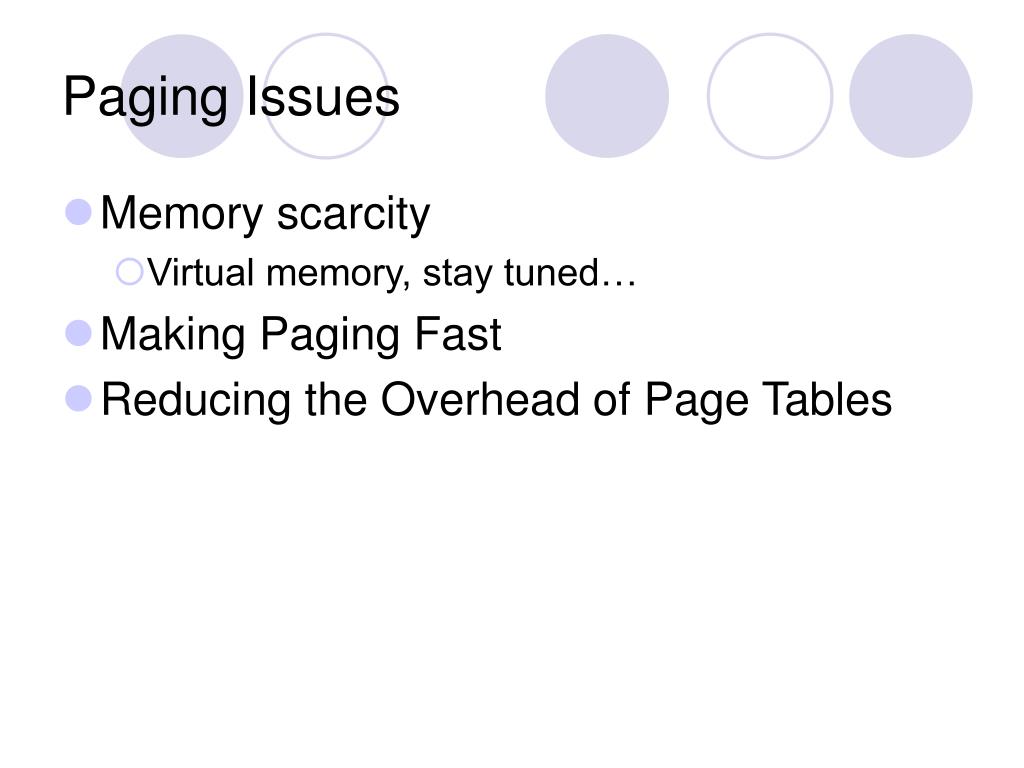

  5. Paging Issues • Memory scarcity • Virtual memory, stay tuned… • Making Paging Fast • Reducing the Overhead of Page Tables

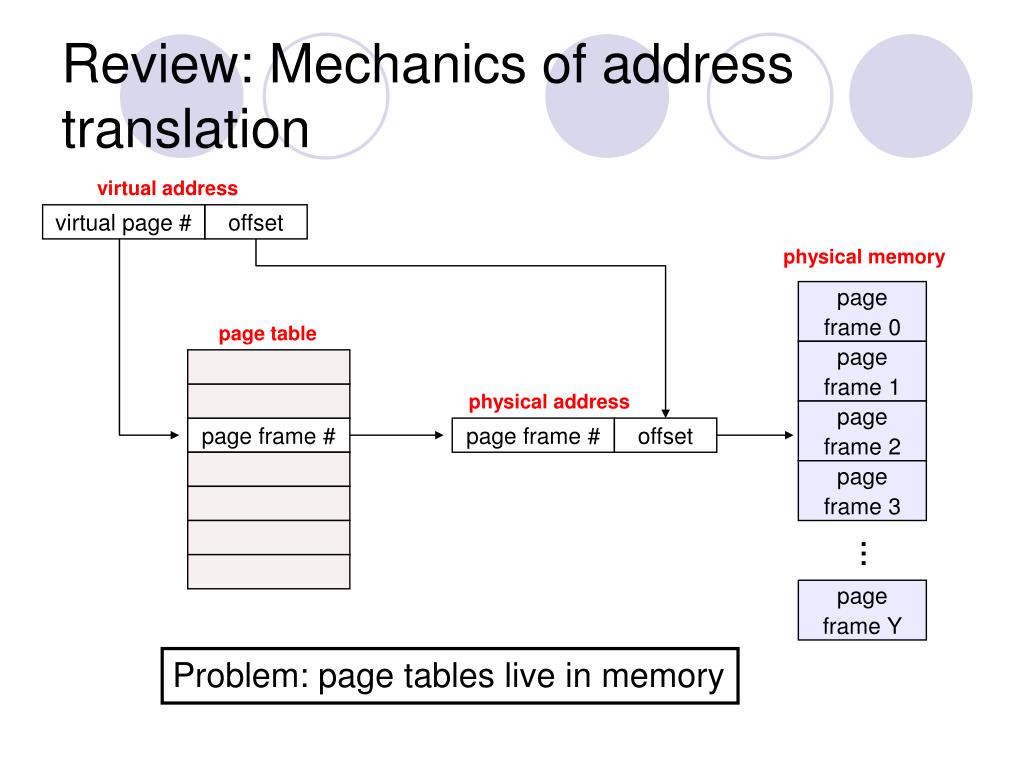

  6. Review: Mechanics of address translation virtual address virtual page # offset physical memory page frame 0 page table page frame 1 physical address page frame 2 page frame # page frame # offset page frame 3 … page frame Y Problem: page tables live in memory

  7. Making Paging Fast • We must avoid a page table lookup for every memory reference • This would double memory access time • Solution: Translation Lookaside Buffer • Fancy name for a cache • TLB stores a subset of PTEs (page table translation entries) • TLBs are small and fast (16-48 entries) • Can be accessed “for free”

  8. TLB Details • In practice, most (> 99%) of memory translations handled by the TLB • Each processor has its own TLB • TLB is fully associative • Any TLB slot can hold any PTE entry • Who fills the TLB? Two options: • Hardware (x86) walks the page table on a TLB miss • Software (MIPS, Alpha) routine fills the TLB on a miss • TLB itself needs a replacement policy • Usually implemented in hardware (LRU)

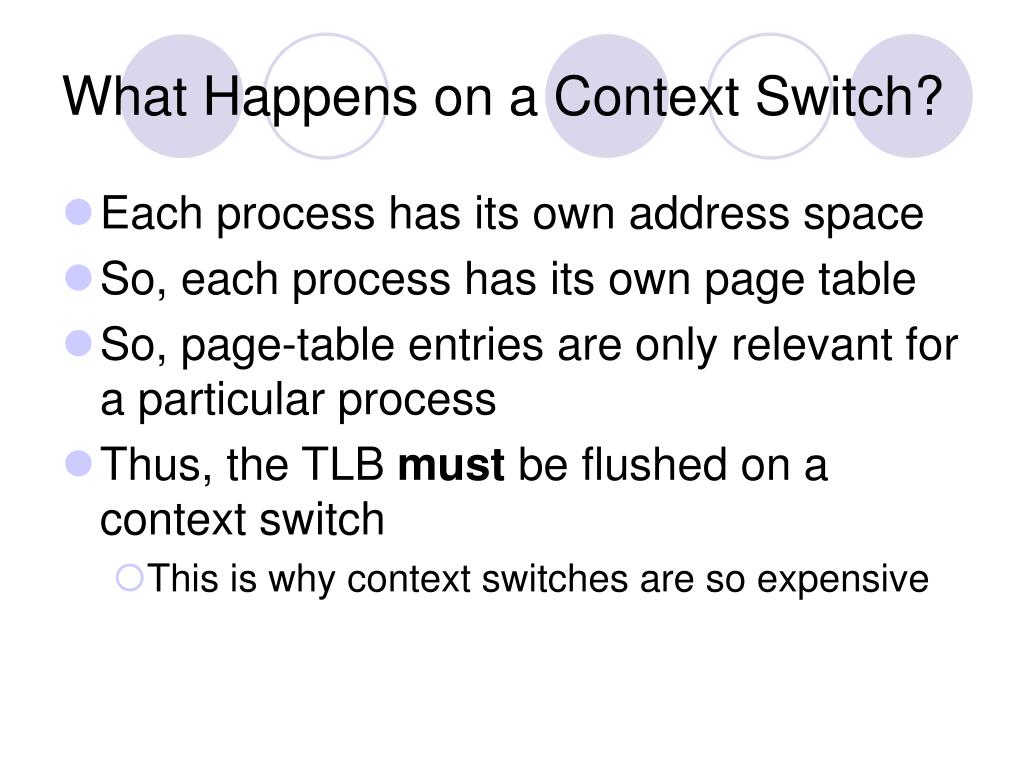

  9. What Happens on a Context Switch? • Each process has its own address space • So, each process has its own page table • So, page-table entries are only relevant for a particular process • Thus, the TLB must be flushed on a context switch • This is why context switches are so expensive

  10. Alternative to flushing: Address Space IDs • We can avoid flushing the TLB if entries are associated with an address space • When would this work well? • When would this not work well? 4 1 1 1 2 20 ASID V R M prot page frame number

  11. TLBs with Multiprocessors • Each TLB stores a subset of page table state • Must keep state consistent on a multiprocessor page table TLB 1 page frame # TLB 2

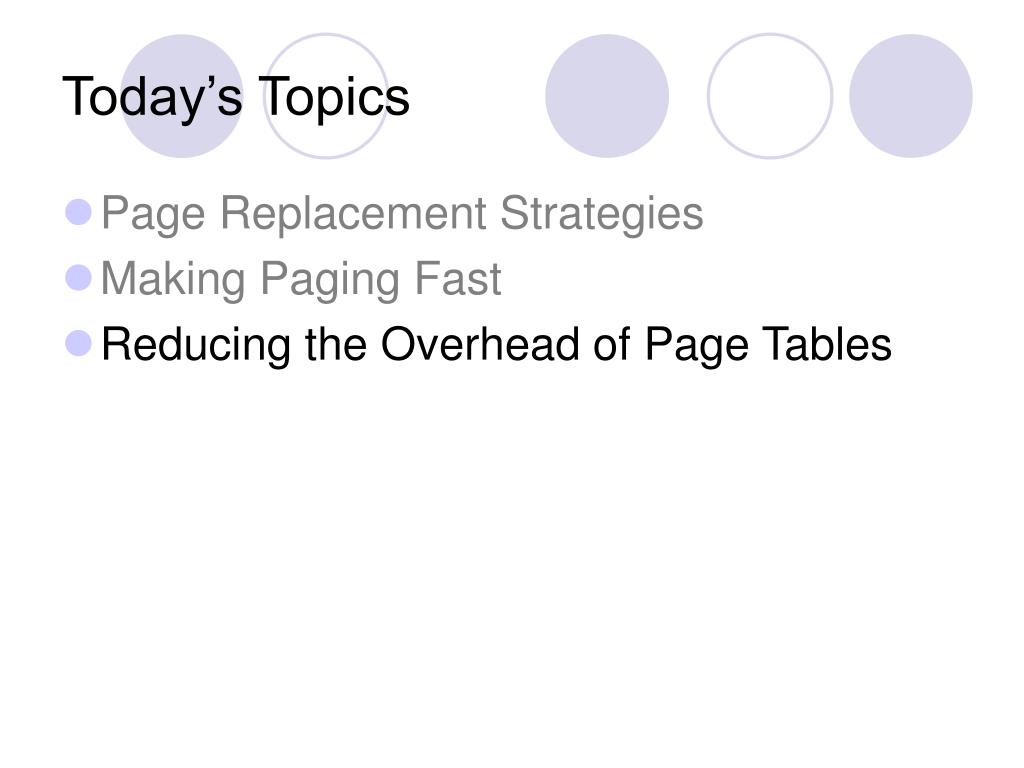

  12. Today’s Topics • Page Replacement Strategies • Making Paging Fast • Reducing the Overhead of Page Tables

  13. Page Table Overhead • For large address space, page table sizes can become enormous • Example: IA64 architecture 64 bit address space, 8KB pages Num PTEs = 2^64 / 2^13 = 2^51 Assuming 8 bytes per PTE: Num Bytes = 2^54 = 16 Petabytes And, this is per-process!

  14. Optimizing for Sparse Address Spaces • Observation: very little of the address space is in use at a given time • Basic idea: only allocate page tables where we need to • And, fill in new page tables lazily (on demand) virtual address space

  15. Implementing Sparse Address Spaces • We need a data structure to keep track of the page tables we have allocated • And, this structure must be small • Otherwise, we’ve defeated our original goal • Solution: multi-level page tables • Page tables of page tables • “Any problem in CS can be solved with a layer of indirection”

  16. Two level page tables virtual address master page # secondary page# offset physical memory page frame 0 master page table physical address page frame 1 page frame # offset secondary page table secondary page table page frame 2 page frame 3 empty page frame number … empty page frame Y Key point: not all secondary page tables must be allocated

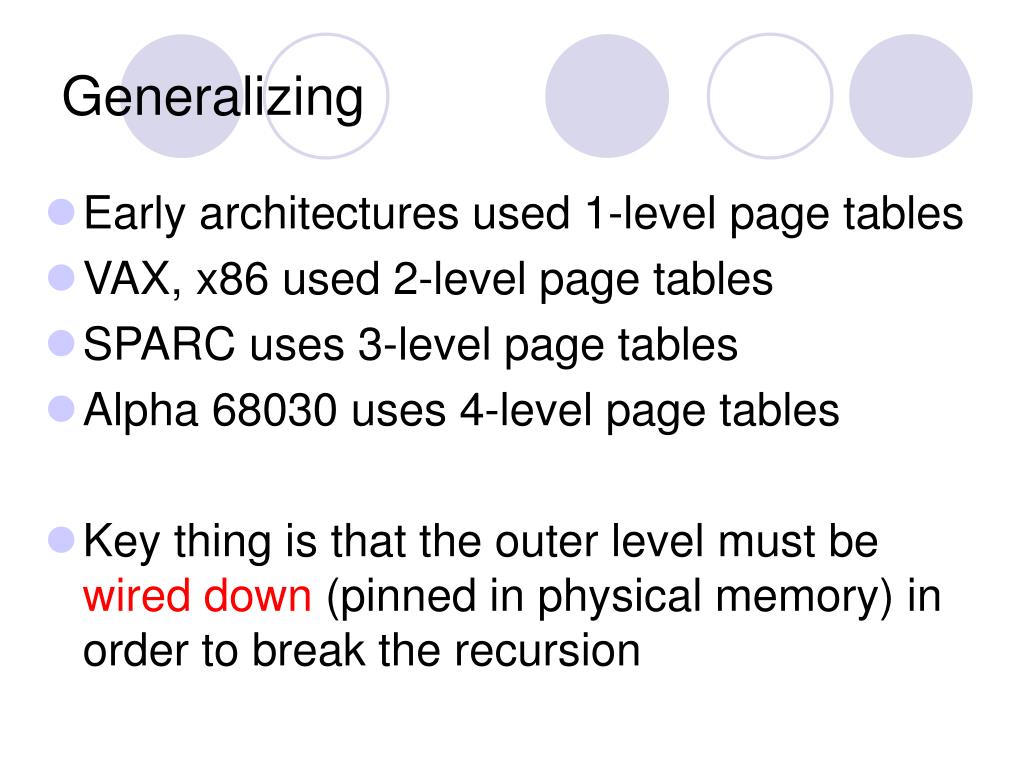

  17. Generalizing • Early architectures used 1-level page tables • VAX, x86 used 2-level page tables • SPARC uses 3-level page tables • Alpha 68030 uses 4-level page tables • Key thing is that the outer level must be wireddown (pinned in physical memory) in order to break the recursion

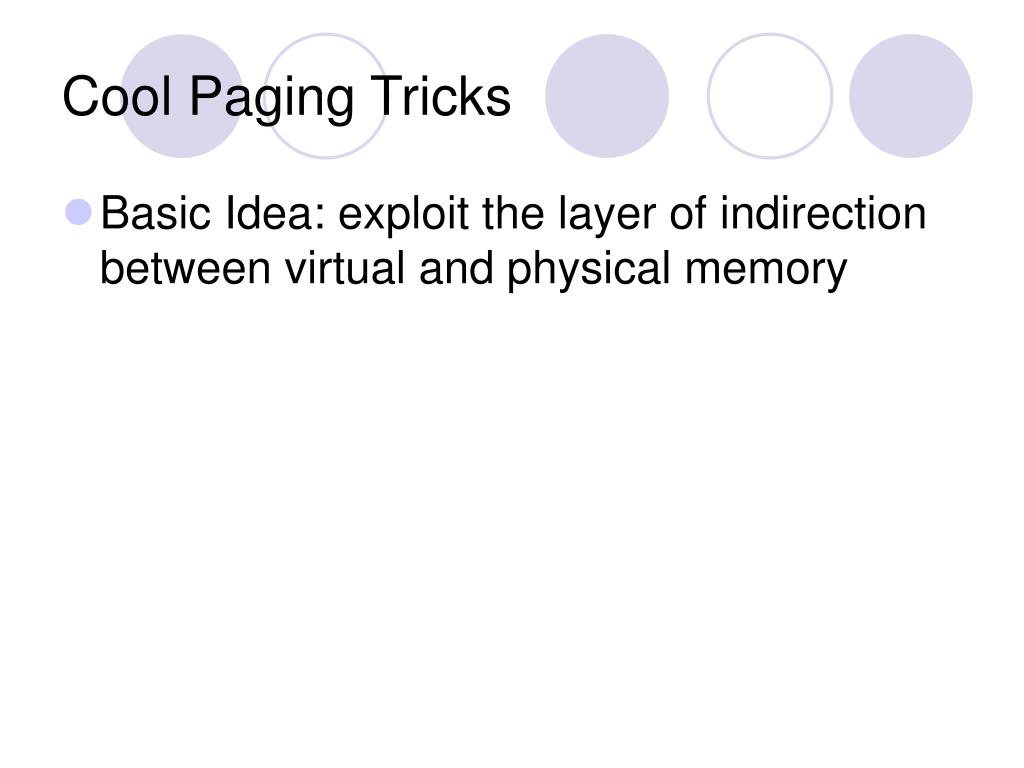

  18. Cool Paging Tricks • Basic Idea: exploit the layer of indirection between virtual and physical memory

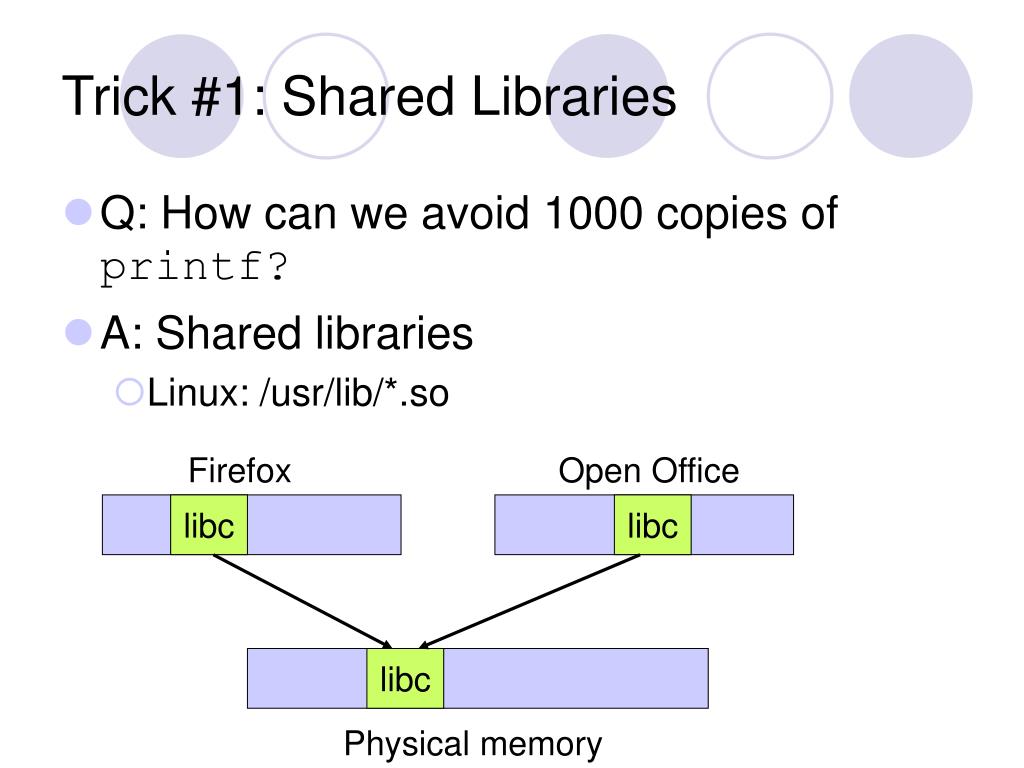

  19. Trick #1: Shared Libraries • Q: How can we avoid 1000 copies of printf? • A: Shared libraries • Linux: /usr/lib/*.so Firefox Open Office libc libc libc Physical memory

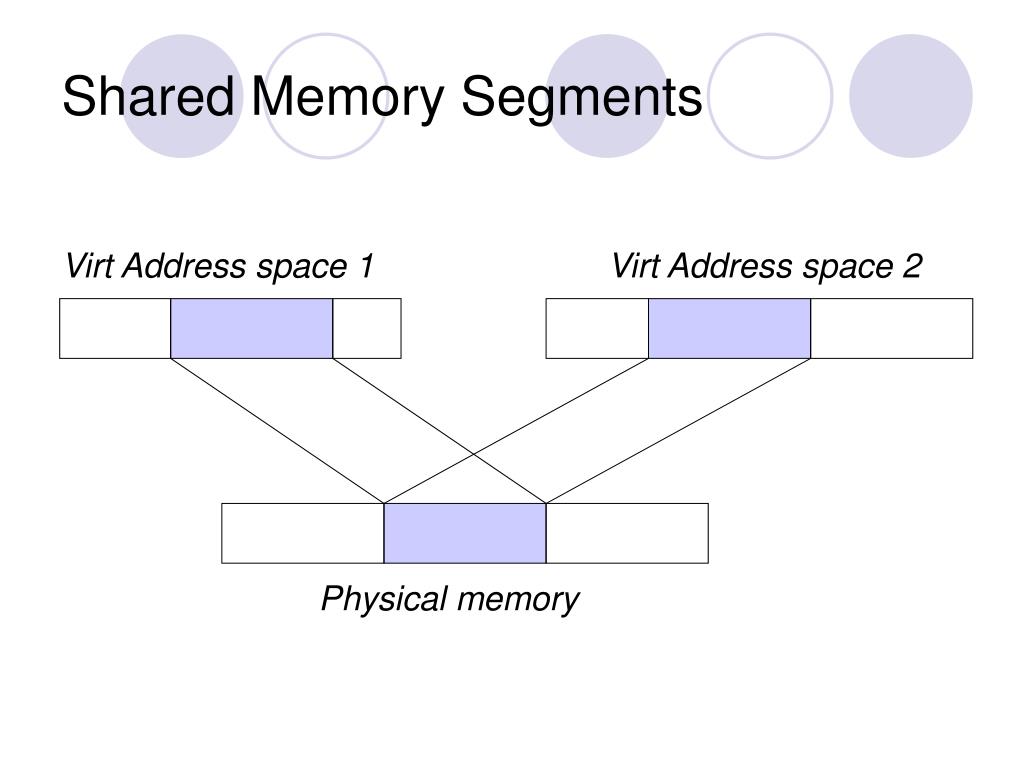

  20. Shared Memory Segments Virt Address space 1 Virt Address space 2 Physical memory

  21. Trick #2: Copy-on-write • Copy-on-write allows for a fast “copy” by using shared pages • Especially useful for “fork” operations • Implementation: pages are shared “read-only” • OS intercepts write operations, makes a real copy V R M prot page frame number

  22. Trick #3: Memory-mapped Files • Normally, files are accessed with system calls • Open, read, write, close • Memory mapping allows a program to access a file with load/store operations Virt Address space Foo.txt
