  1. Unit 3: Matrices

  2. Matrices • Matrix: A rectangular arrangement of data into rows and columns, identified by capital letters.

  3. Dimensions • Matrix Dimensions: Number of rows, m, by the number of columns, n. Read as “m by n” matrix. Also known as the order of a matrix. • RBC (ROWS BY COLUMNS)

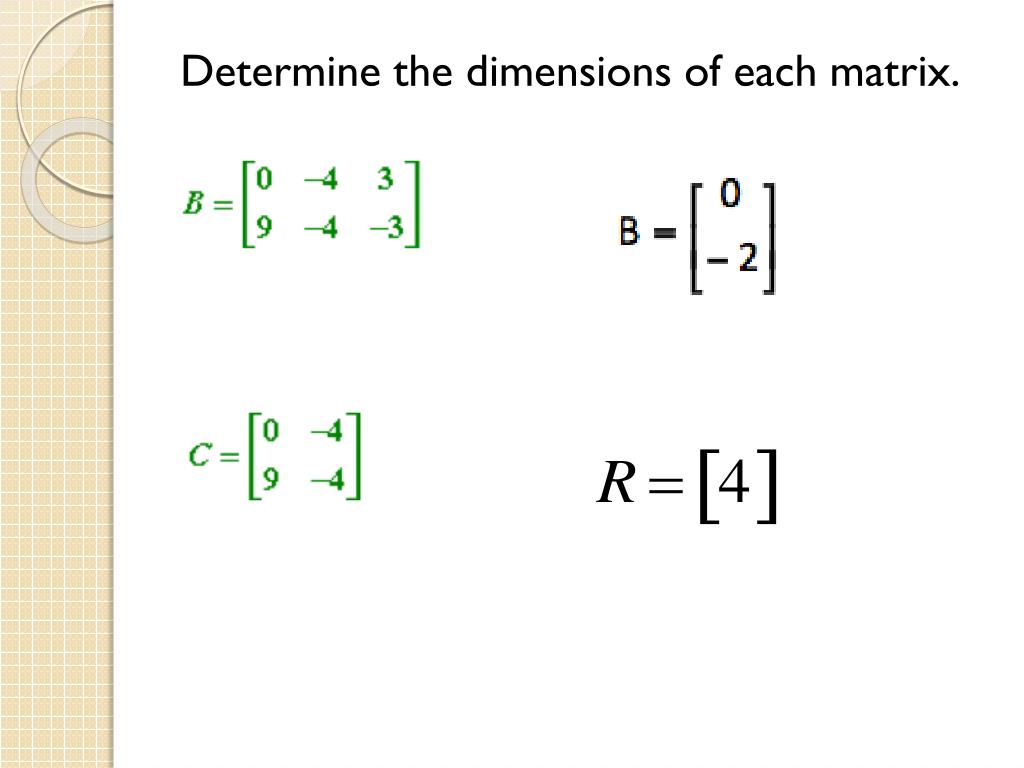

  4. Determine the dimensions of each matrix.

  5. Elements Matrix Element: Each number in a matrix, identified by its row and column. Example: amn Refers to the m-throw and n-thcolumn

  6. Example Identify each element. • a23 • a12 • a31 • a21

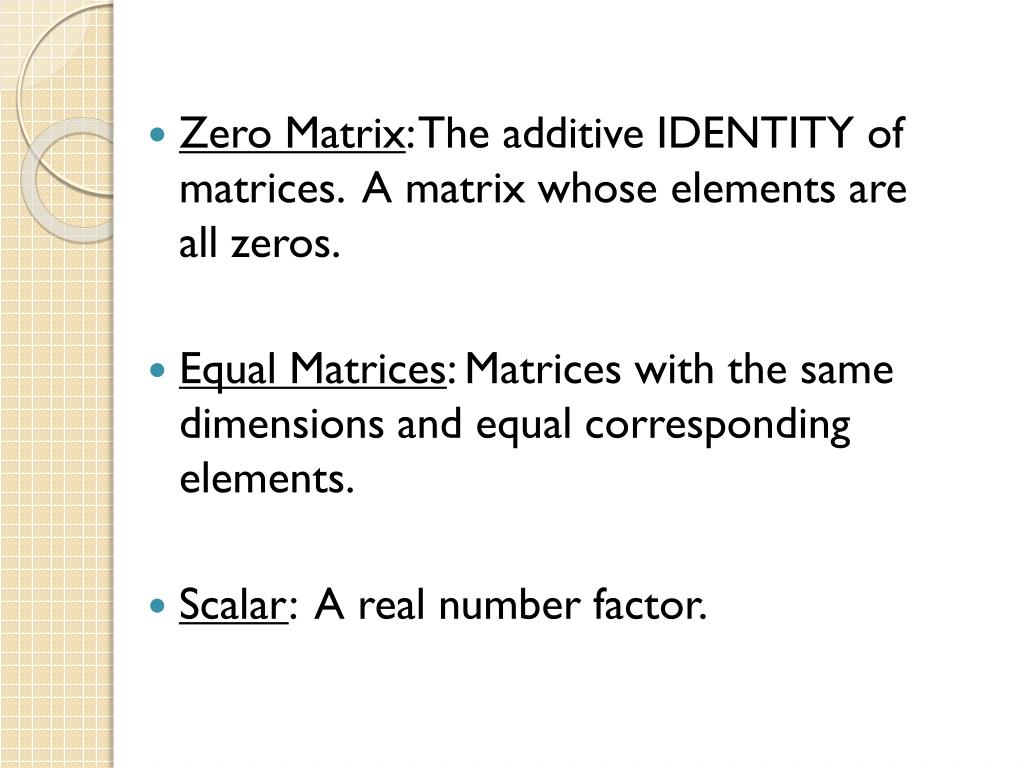

  7. Zero Matrix: The additive IDENTITY of matrices. A matrix whose elements are all zeros. • Equal Matrices: Matrices with the same dimensions and equal corresponding elements. • Scalar: A real number factor.

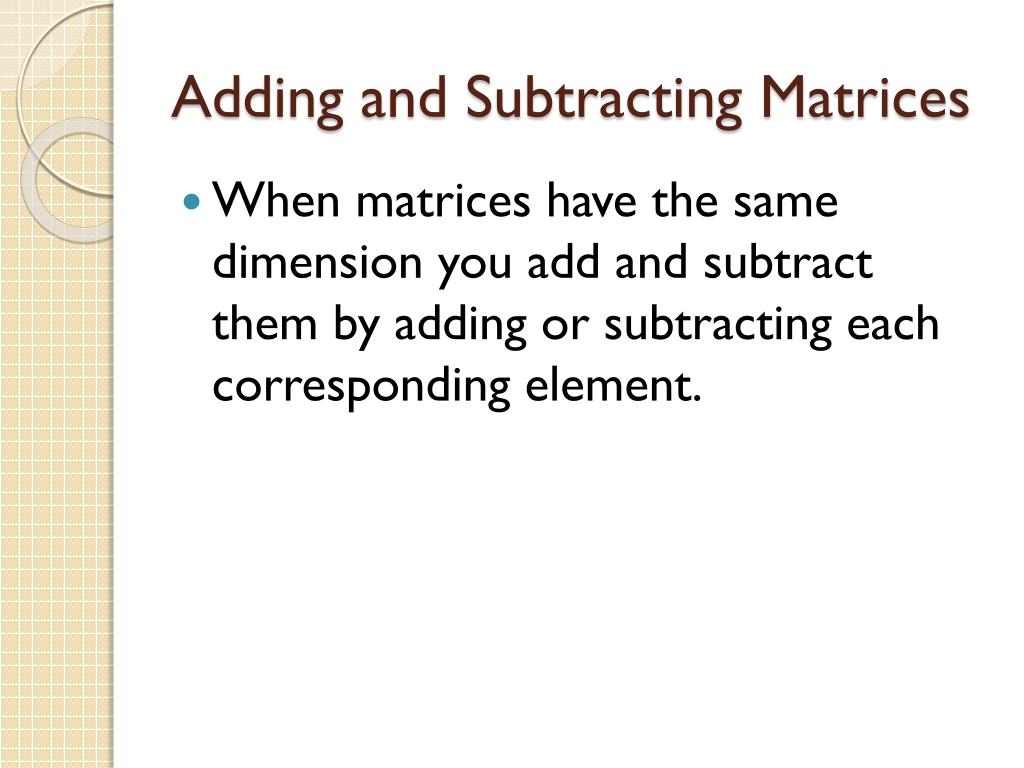

  8. Adding and Subtracting Matrices • When matrices have the same dimension you add and subtract them by adding or subtracting each corresponding element.

  9. Add or Subtract the following matrices:

  10. A + B • C – B • 2(B + C)

  11. A matrix equation is an equation in which the variable is a matrix. You can solve for the variable by adding or subtracting a matrix a matrix to both sides to an equation.

  12. Using Scalar Products

  13. Matrix Multiplication • When multiplying matrices A and B, the number of COLUMNS in matrix A MUST be equal to the ROWS in matrix B. The size of the product is: # rows in A x # columns in B.

  14. Multiplying Matrices Can the following Matrices be multiplied? If so, what dimensions will the product be?? 1. x

  15. Multiplying Matrices Can the following Matrices be multiplied? If so, what dimensions will the product be?? 1. x

  16. Can the following Matrices be multiplied? If so, what dimensions will the product be? 1. 2. 3. 4.

  17. How to multiply matrices • Multiply the elements of each row in the first matrix by the elements in each column of the second matrix • Add the products to get the new element.

  18. Matrix Multiplication

  19. You Try!

  20. You Try!

  21. Solutions:

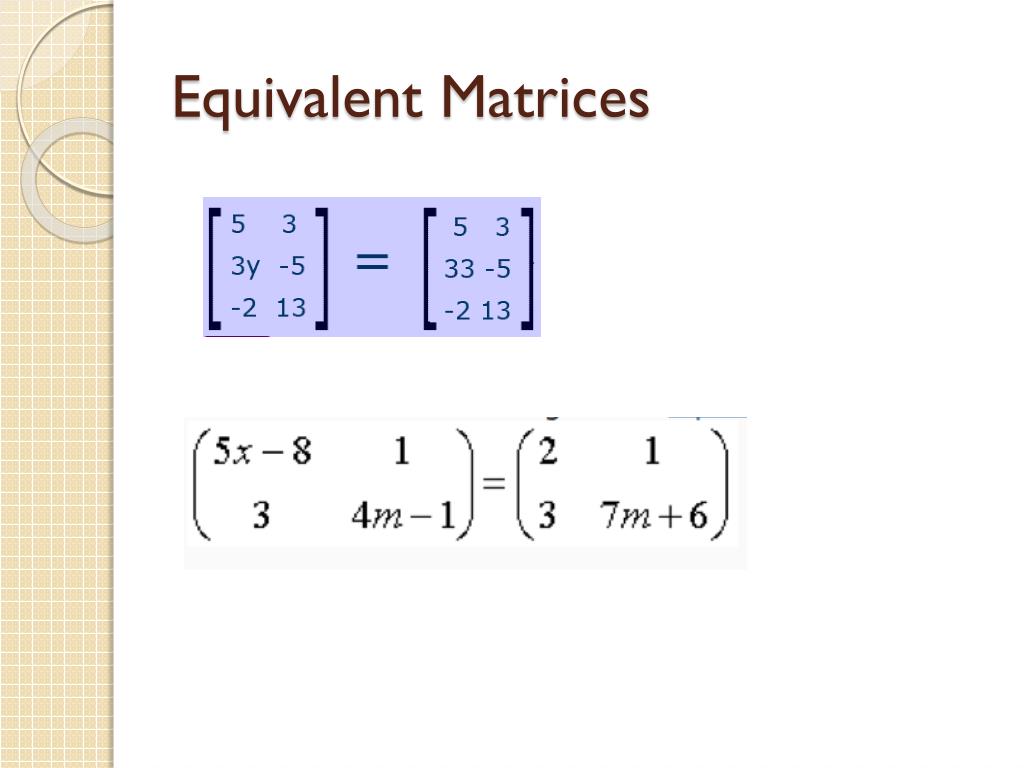

  22. Equivalent Matrices

  23. DETERMINANT of Matrices

  24. Determinant of 2 x 2

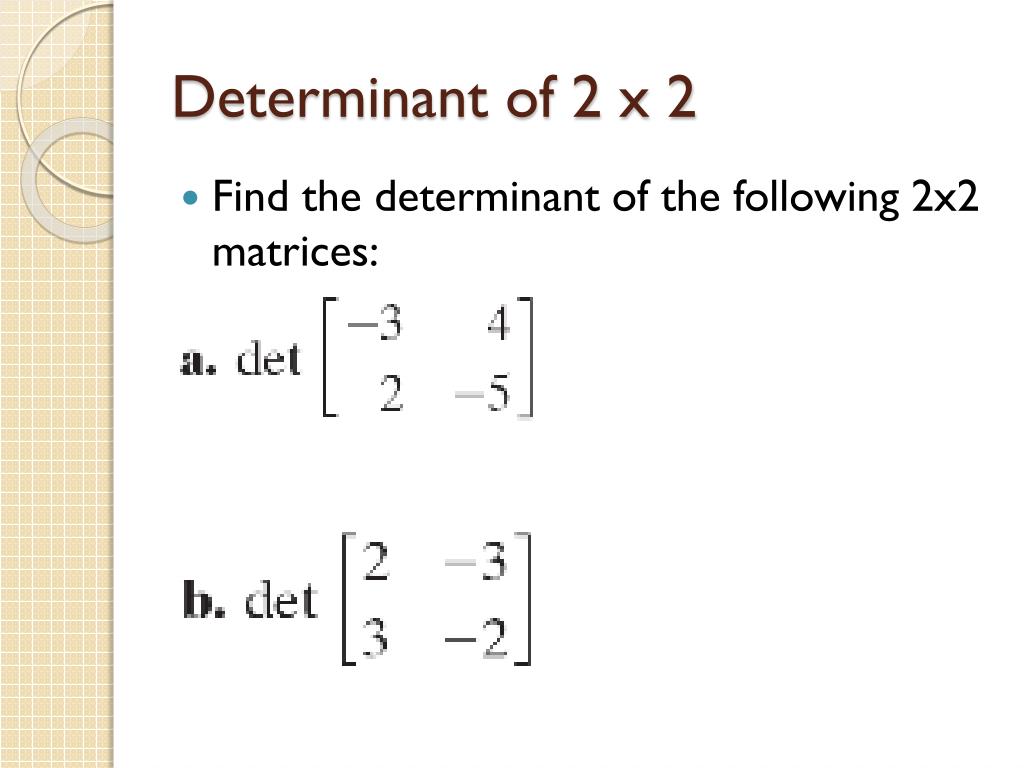

  25. Determinant of 2 x 2 • Find the determinant of the following 2x2 matrices:

  26. Determinant of 2 x 2 • Find the determinant of the following 2x2 matrices:

  27. Determinant of a 3x3 Matrix • Step 1: Re-write the first two columns on the right side of the determinant.

  28. STEP 2: Draw a diagonal from each element in the top row diagonally downward. Find the product of the numbers on each diagonal. aei bfg cdh

  29. STEP 3: Then draw a diagonal from each element in the bottom row diagonally upward. Find the product of the numbers on each . gec hfa idb

  30. Step 4: Add the products in the first set of diagonals, and then subtract the products from the second set of diagonals. The value is: • aei + bfg + cdh– (gec + hfa + idb) • or aei + bfg + cdh– gec – hfa – idb

  31. First, rewrite the first two columns along side the determinant. Ex. 2: Evaluate using diagonals.

  32. Next, find the values using the diagonals. -5 0 24 Ex. 2: Evaluate using diagonals. 0 4 60 Now add the bottom products and subtract the top products. 4 + 60 + 0– 0 – (-5) – 24 = 45. The value of the determinant is 45.

  33. Example • Find the determinant of the following.

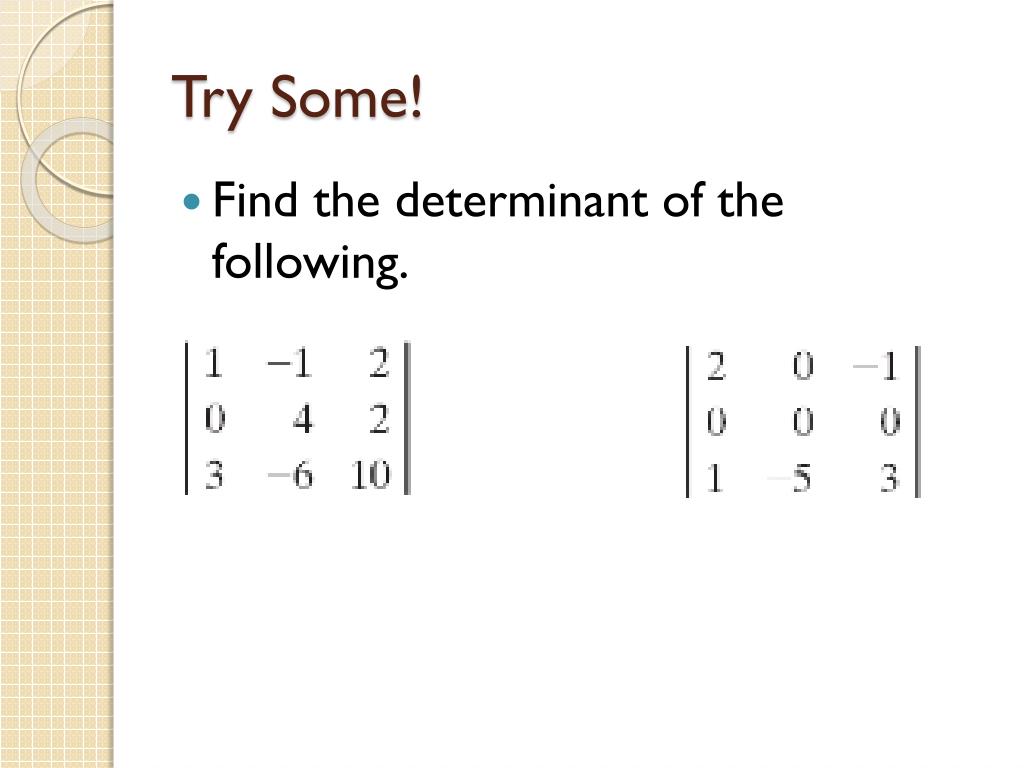

  34. Try Some! • Find the determinant of the following.

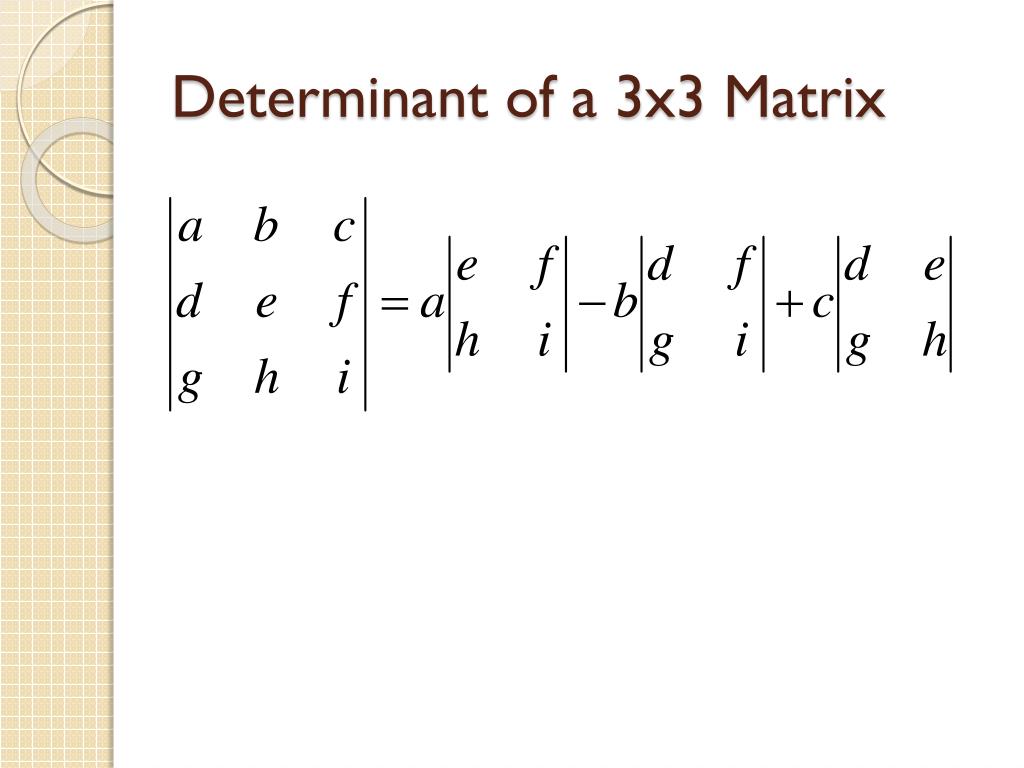

  35. Determinant of a 3x3 Matrix

  36. Determinant of a 3x3 Matrix

  37. Inverse of Matrices

  38. Inverse REMEMBER we denote inverse with a -1 power So the inverse of matrix A is A-1

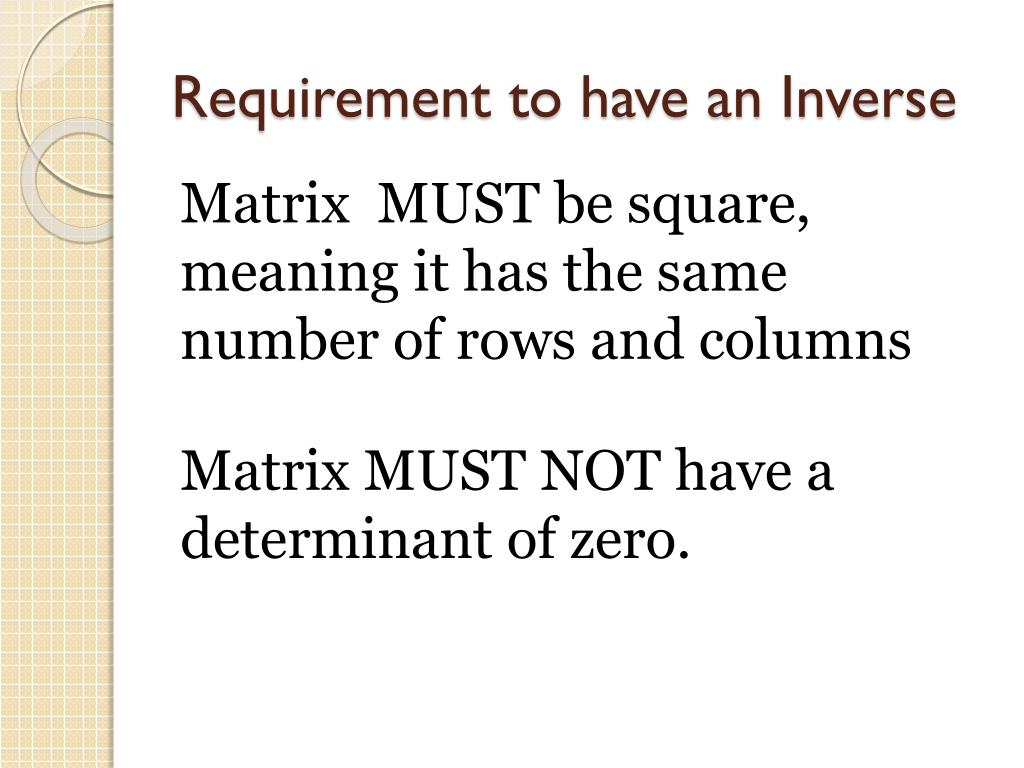

  39. Requirement to have an Inverse Matrix MUST be square, meaning it has the same number of rows and columns Matrix MUST NOT have a determinant of zero.

  40. Inverse exist?! Does the inverse exist?!?!

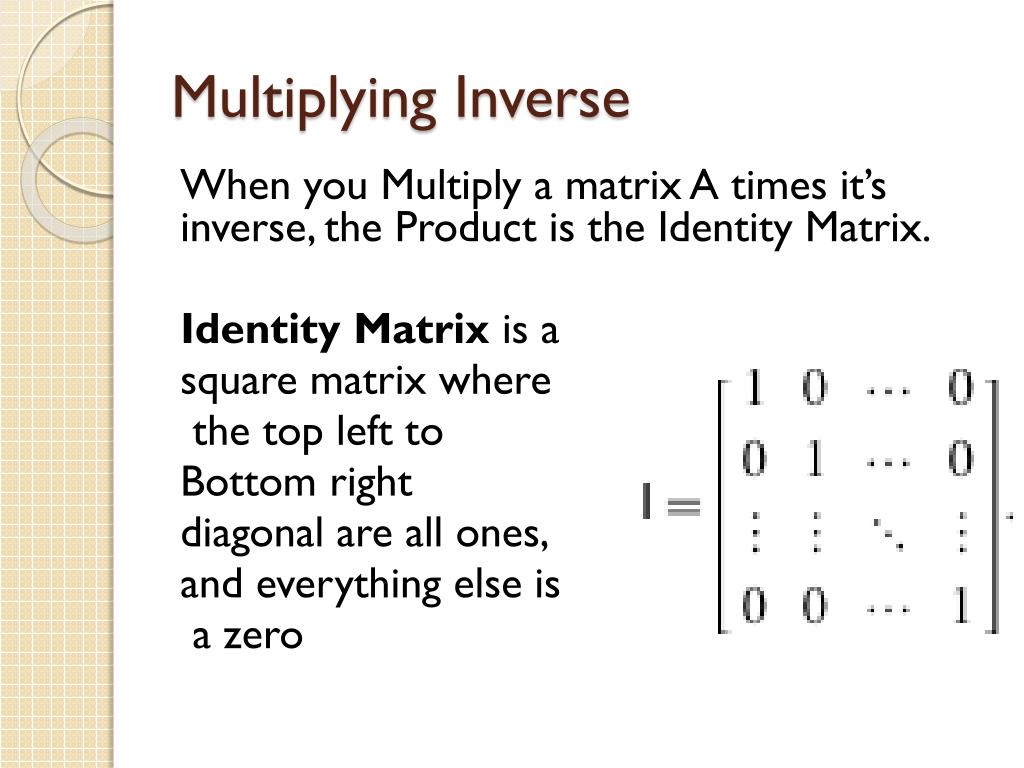

  41. Multiplying Inverse When you Multiply a matrix A times it’s inverse, the Product is the Identity Matrix. Identity Matrix is a square matrix where the top left to Bottomright diagonal are all ones, and everything else is a zero

  42. Determine if the following matrices are inverses. 1. 2.

  43. Finding the Inverse of a 2x2 IF THEN

  44. Find the inverse of the following matrix.

  45. Use your calculator! • 2nd Matrix  Edit • Put in your matrix • 2nd  Matrix  NAME • Get your matrix • X-1

  46. The inverse of a matrix can be usedwhen solving matrix equations. For Matrices A and B, we can find Matrix X: IF AX = B THEN X = A-1B
