MR Diffusion Tensor Imaging, Tractography Richard Watts, D.Phil. Citigroup Biomedical Imaging Center Weill Medical College of Cornell University Box 234, 1300 York Avenue, New York, NY 10021 Email riw2004@med.cornell.edu, Telephone 212 746-5781

Acknowledgements • Weill Medical College of Cornell University • Department of Radiology • Aziz Ulug, Linda Heier. • Citigroup Biomedical Imaging Center • Doug Ballon, Jon Dyke, Katherine Kolbert. • Sackler Institute • BJ Casey, Matt Davidson, Katie Thomas.

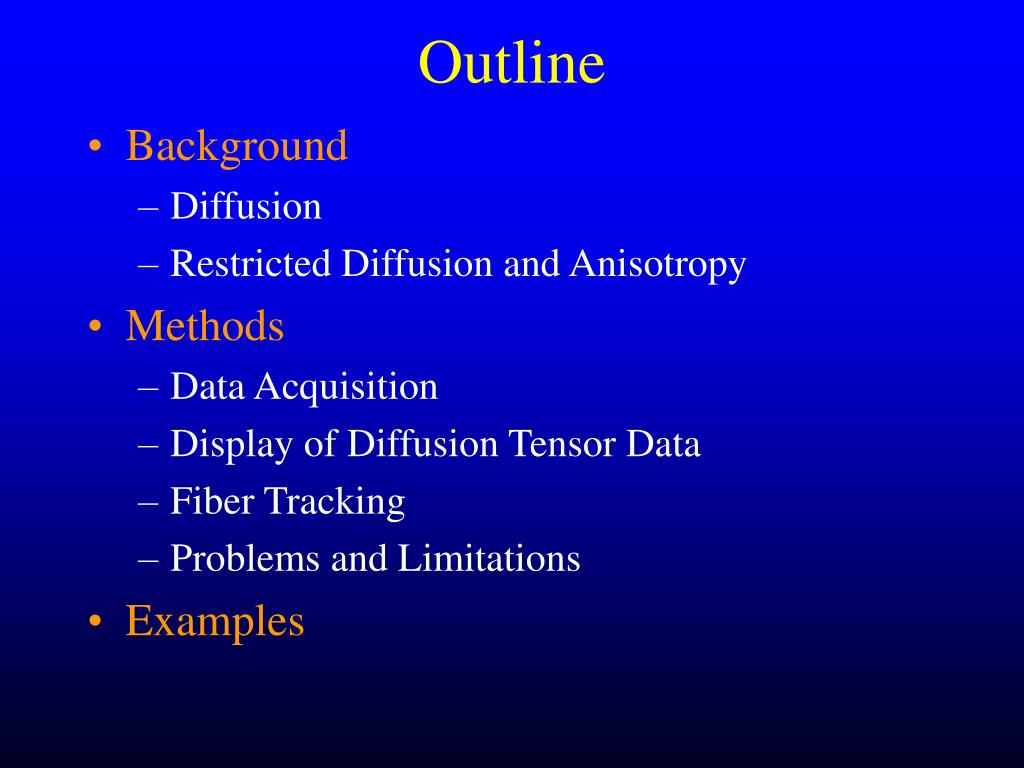

Outline • Background • Diffusion • Restricted Diffusion and Anisotropy • Methods • Data Acquisition • Display of Diffusion Tensor Data • Fiber Tracking • Problems and Limitations • Examples

Diffusion

Diffusion Equation r = Displacement (mm) D = Diffusion constant (mm2/s) t = Time (mm)

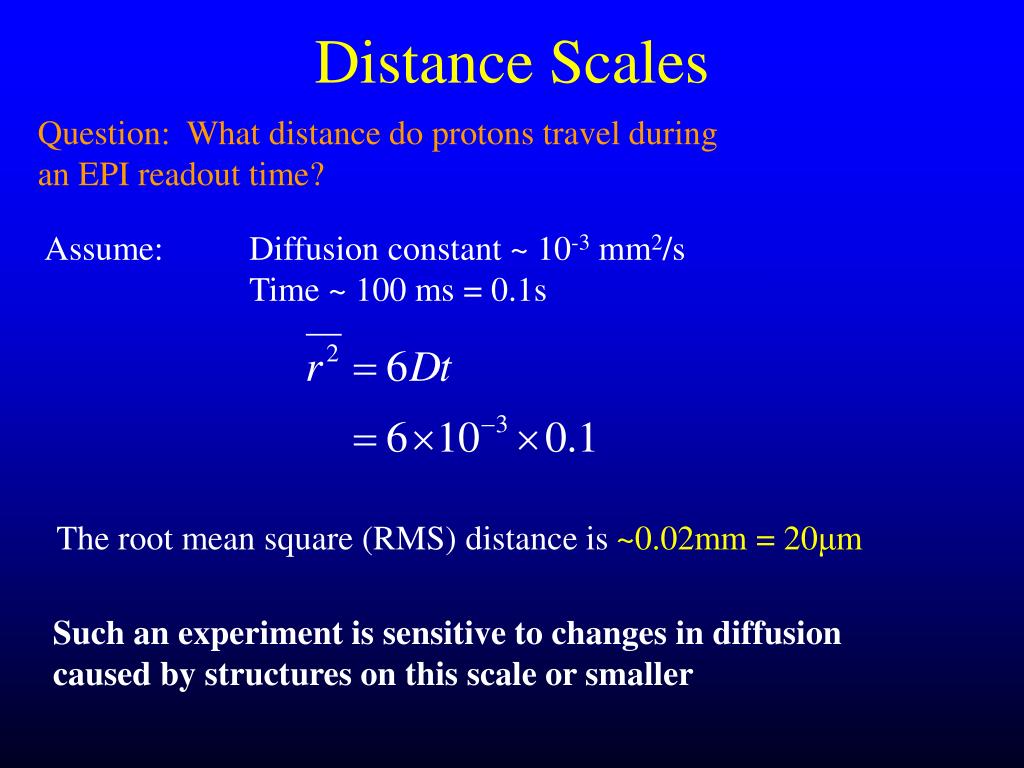

Distance Scales Question: What distance do protons travel during an EPI readout time? Assume: Diffusion constant ~ 10-3 mm2/s Time ~ 100 ms = 0.1s The root mean square (RMS) distance is ~0.02mm = 20μm Such an experiment is sensitive to changes in diffusion caused by structures on this scale or smaller

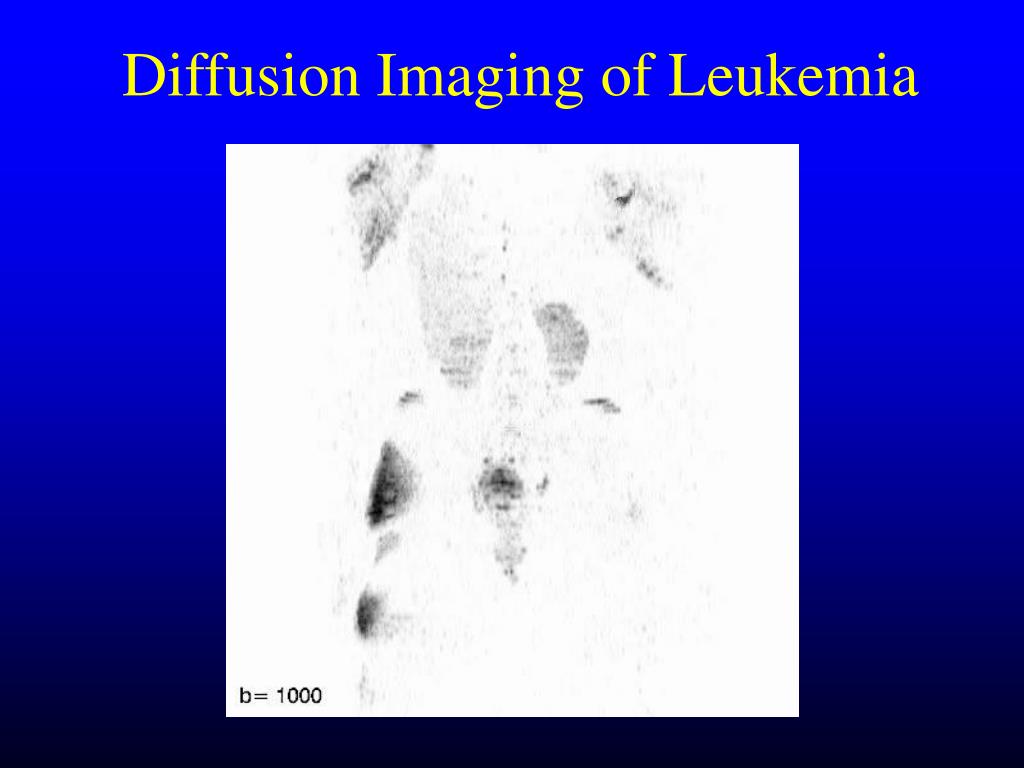

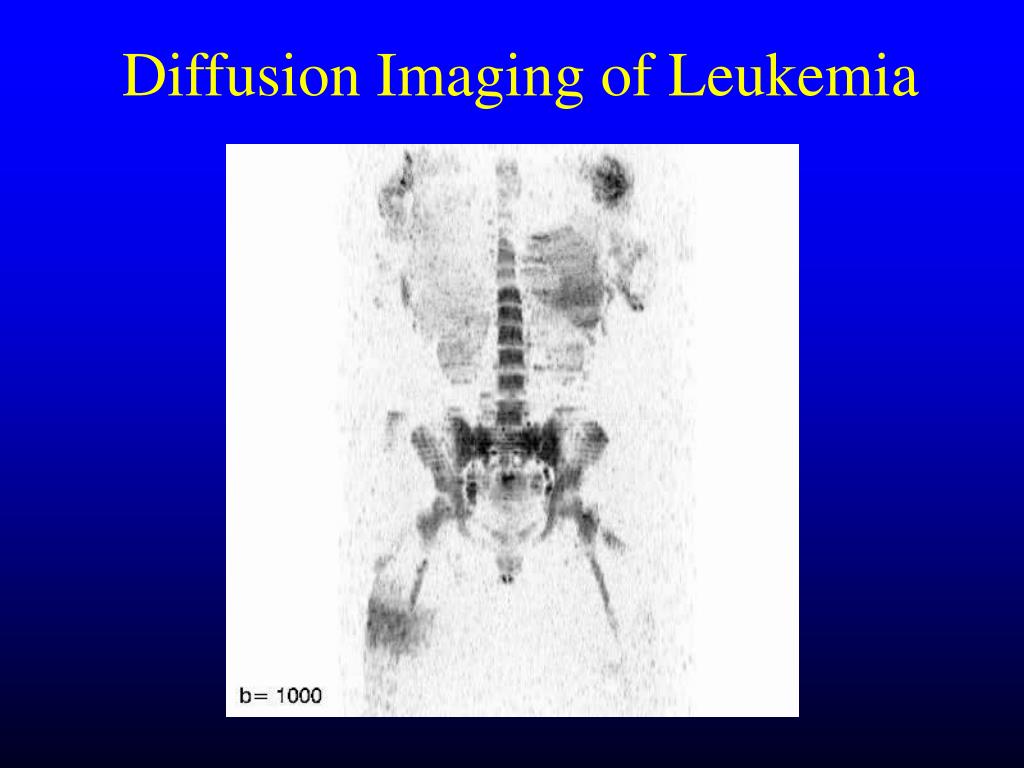

Diffusion Imaging of Leukemia

Spin Echo

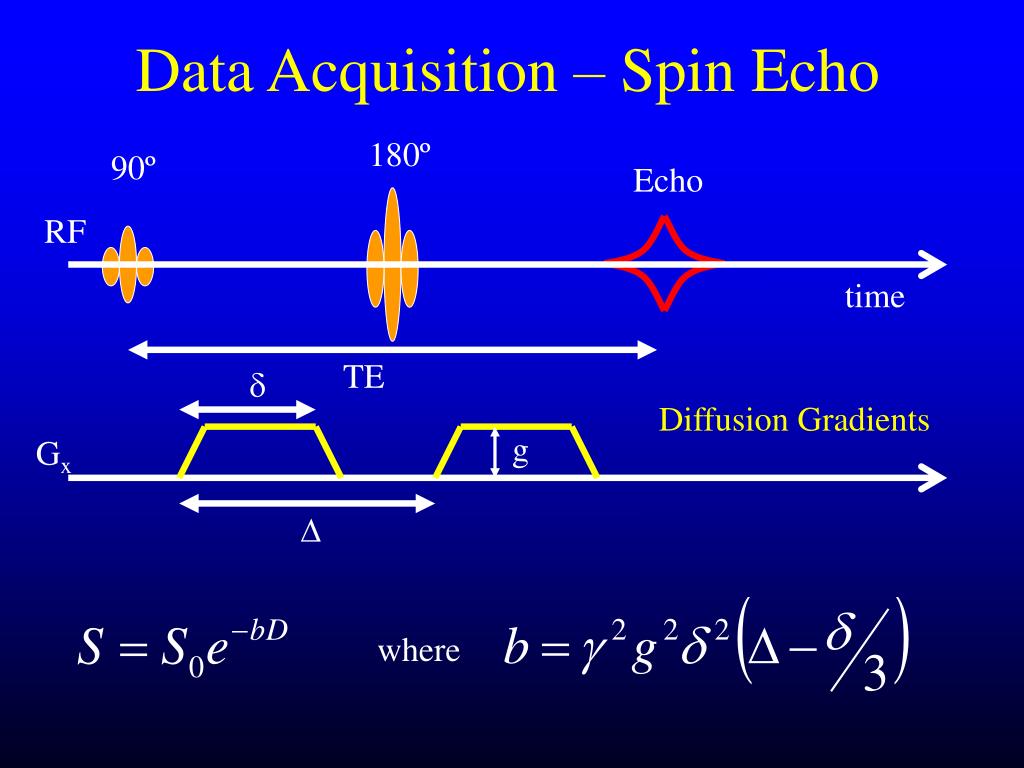

180º 90º RF time  TE Diffusion Gradients g Gx  where Data Acquisition – Spin Echo Echo

Restricted Diffusion

Diffusion Ellipsoid in White Matter

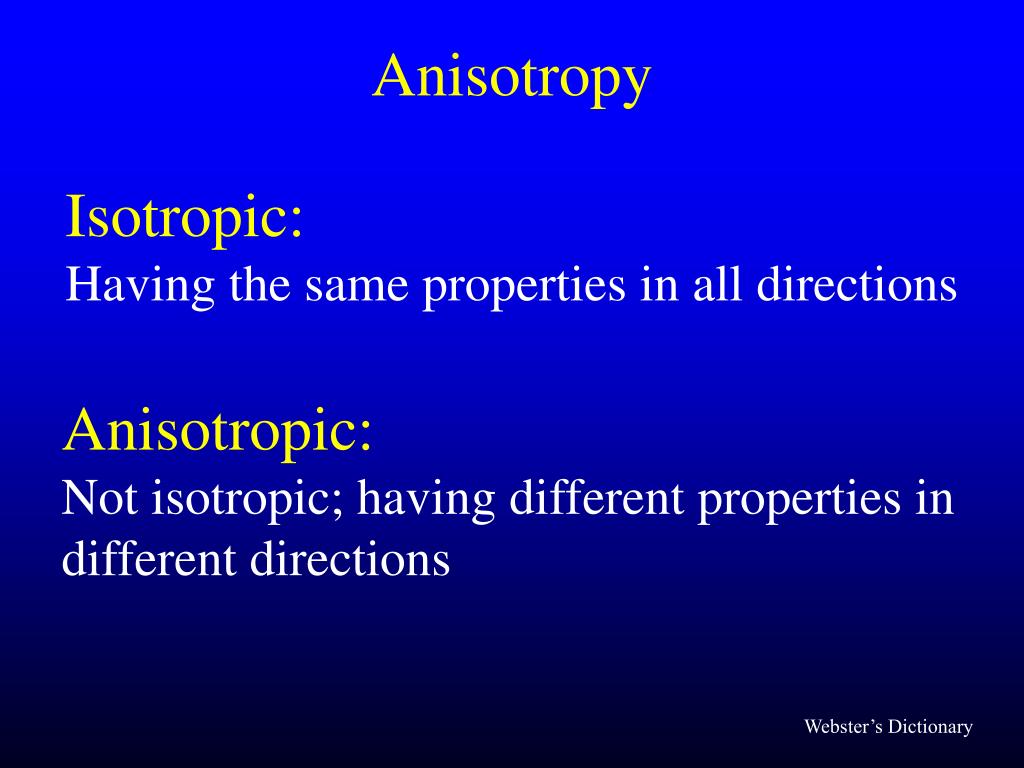

Anisotropy Isotropic: Having the same properties in all directions Anisotropic: Not isotropic; having different properties in different directions Webster’s Dictionary

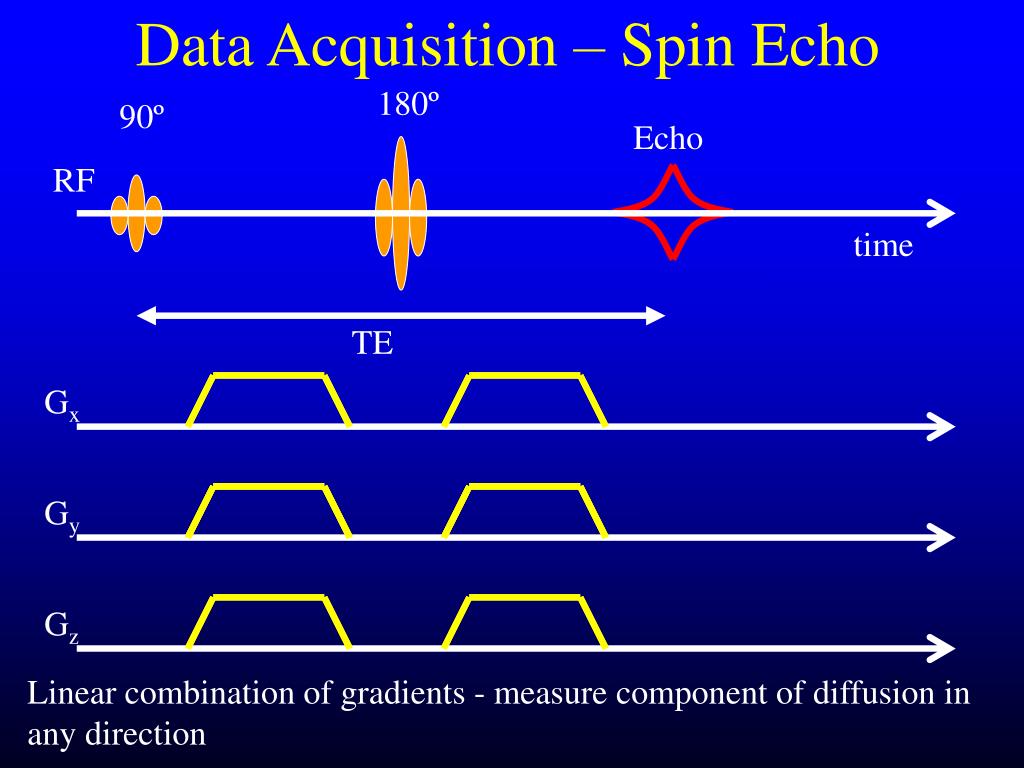

180º 90º RF time TE Gx Gy Gz Data Acquisition – Spin Echo Echo Linear combination of gradients - measure component of diffusion in any direction

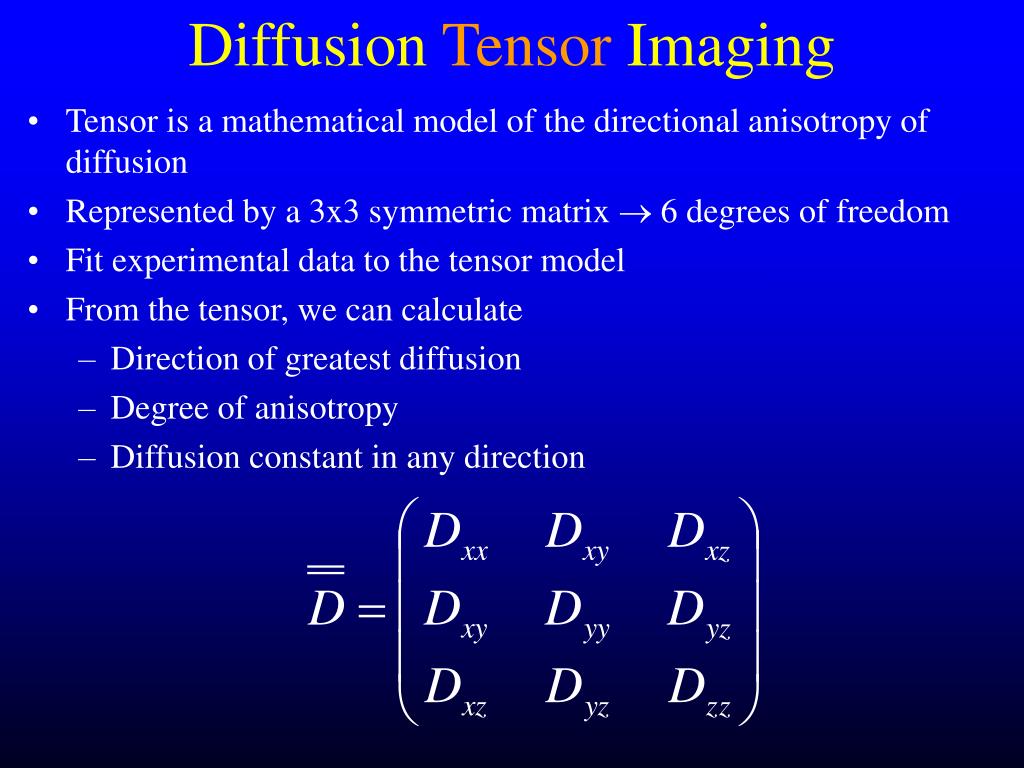

Diffusion Tensor Imaging • Tensor is a mathematical model of the directional anisotropy of diffusion • Represented by a 3x3 symmetric matrix  6 degrees of freedom • Fit experimental data to the tensor model • From the tensor, we can calculate • Direction of greatest diffusion • Degree of anisotropy • Diffusion constant in any direction

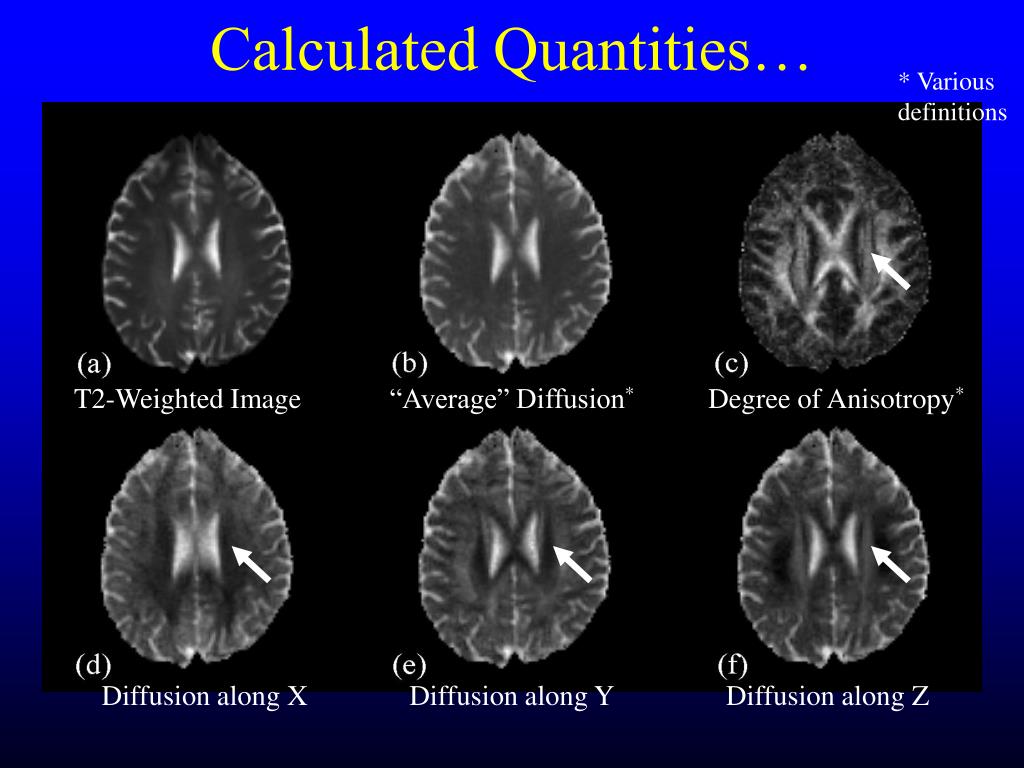

* Various definitions Calculated Quantities… T2-Weighted Image “Average” Diffusion* Degree of Anisotropy* Diffusion along X Diffusion along Y Diffusion along Z

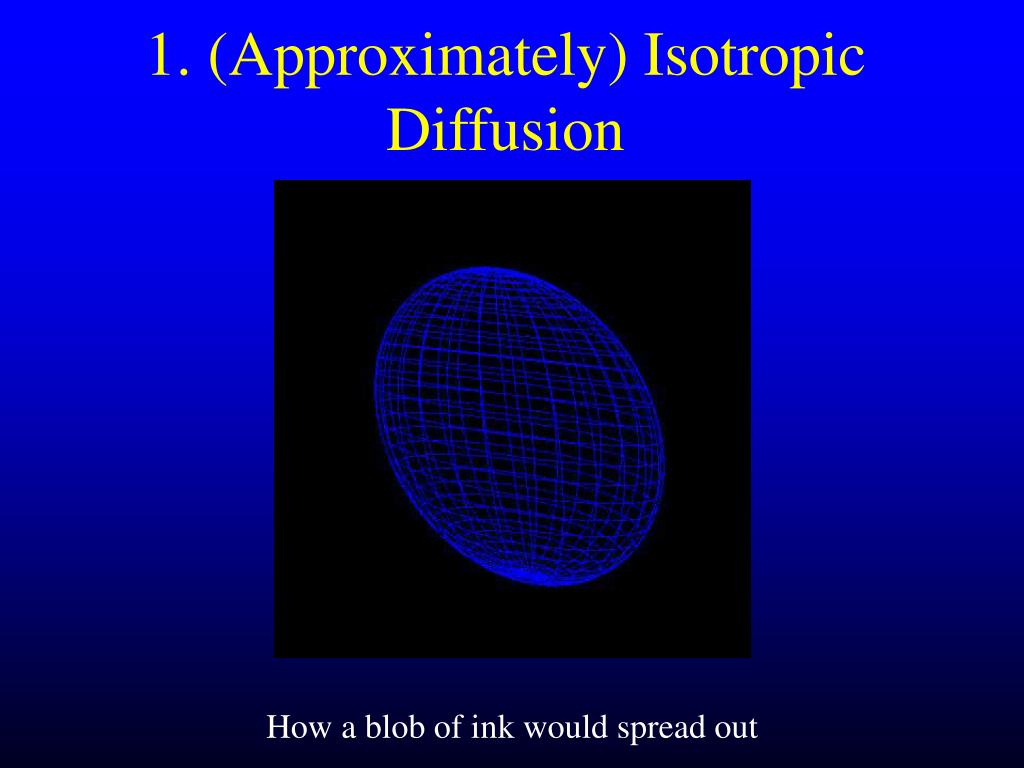

1. (Approximately) Isotropic Diffusion How a blob of ink would spread out

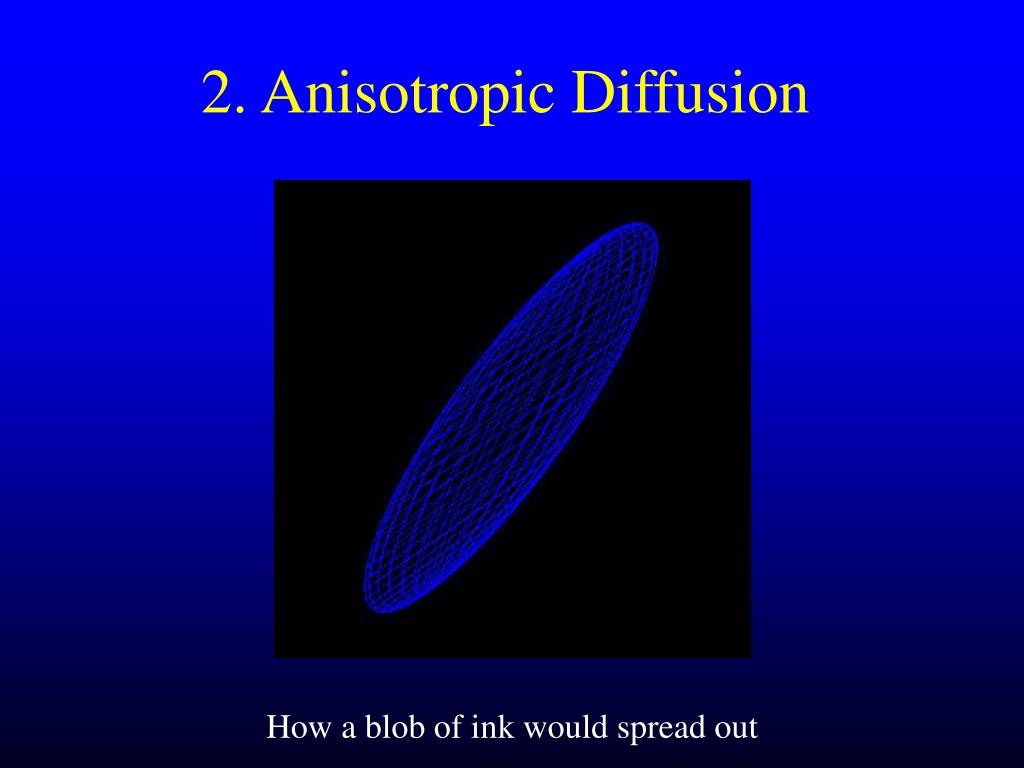

2. Anisotropic Diffusion How a blob of ink would spread out

Vector Plot In-plane Through-plane

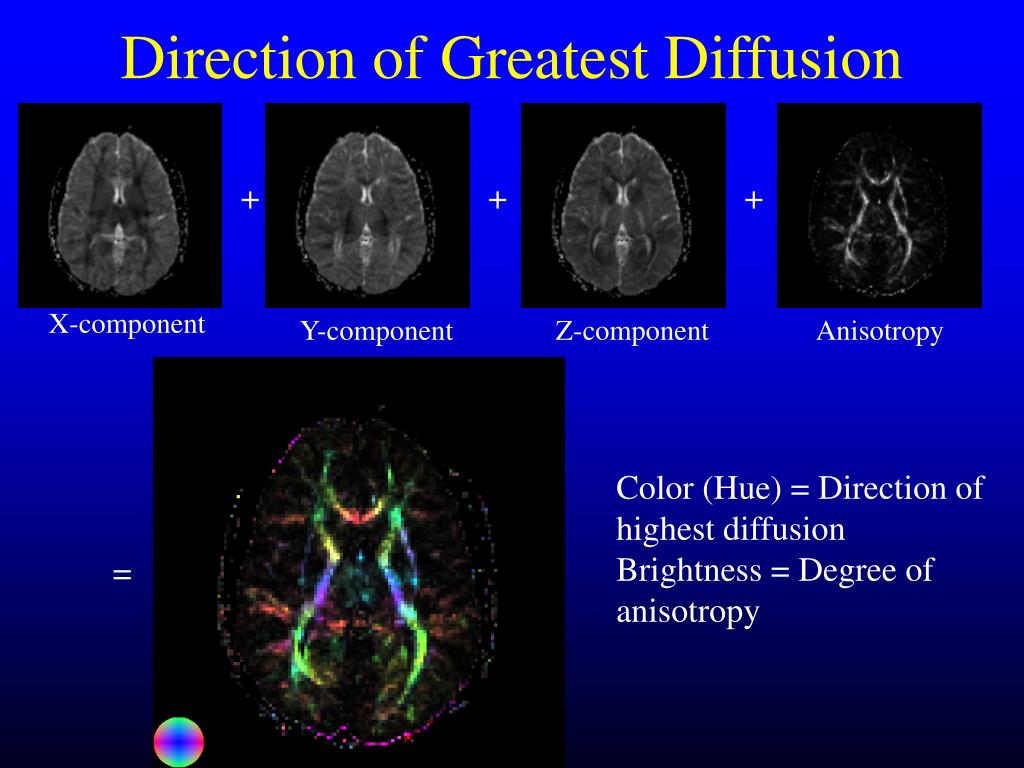

Direction of Greatest Diffusion + + + X-component Y-component Z-component Anisotropy Color (Hue) = Direction of highest diffusion Brightness = Degree of anisotropy =

Diffusion Tensor – Colour Map Left-Right Anterior-Posterior Superior-Inferior

DTI – Color Map

Diffusion Tensor – 3D Colour Map Left-Right Anterior-Posterior Superior-Inferior

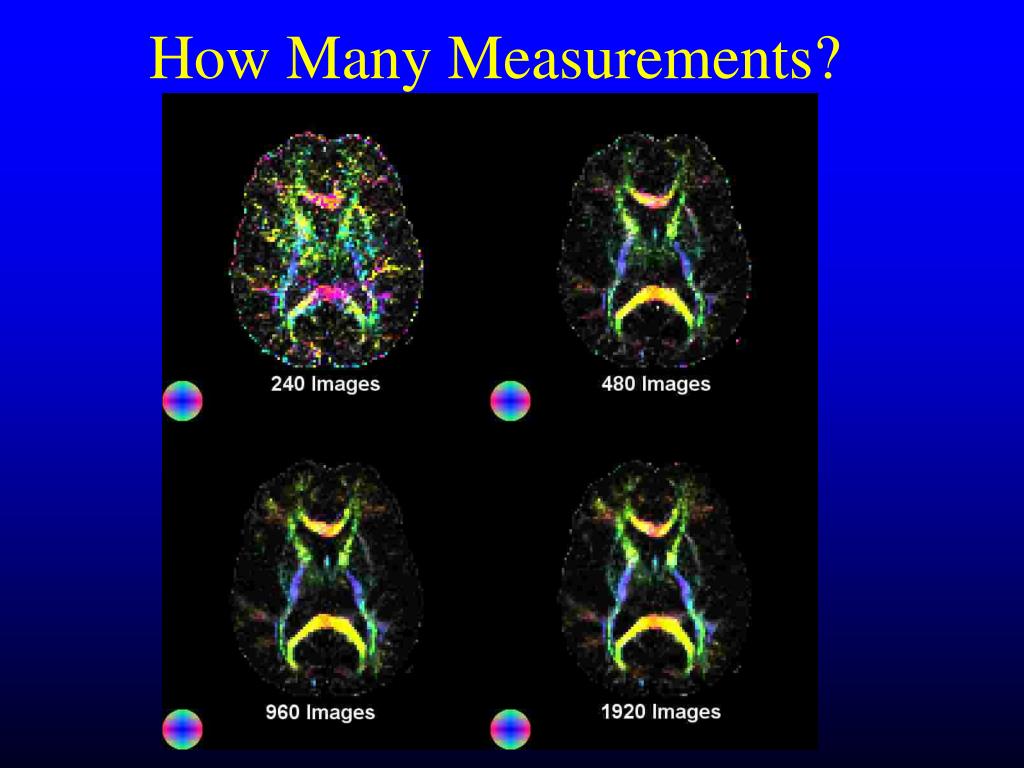

How Many Measurements?

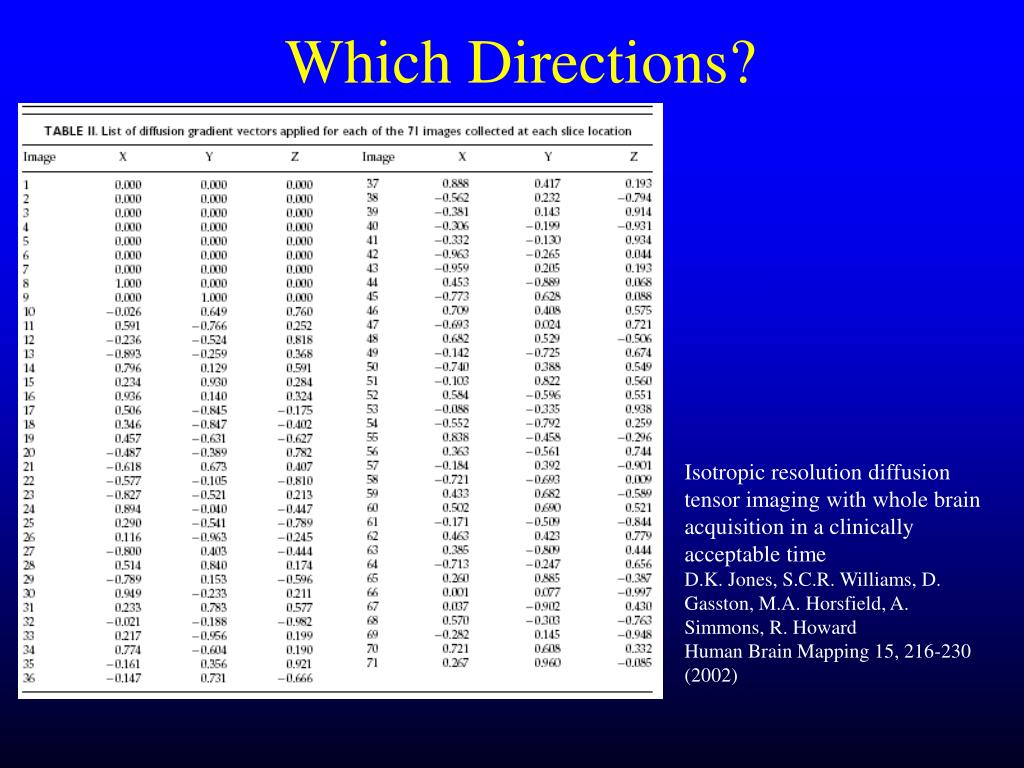

Which Directions? Isotropic resolution diffusion tensor imaging with whole brain acquisition in a clinically acceptable time D.K. Jones, S.C.R. Williams, D. Gasston, M.A. Horsfield, A. Simmons, R. Howard Human Brain Mapping 15, 216-230 (2002)

Fiber Tracking – Discrete Case Direction of Greatest diffusion

Fiber Tracking – Continuous Case Direction of Greatest diffusion Mori et al, 1999

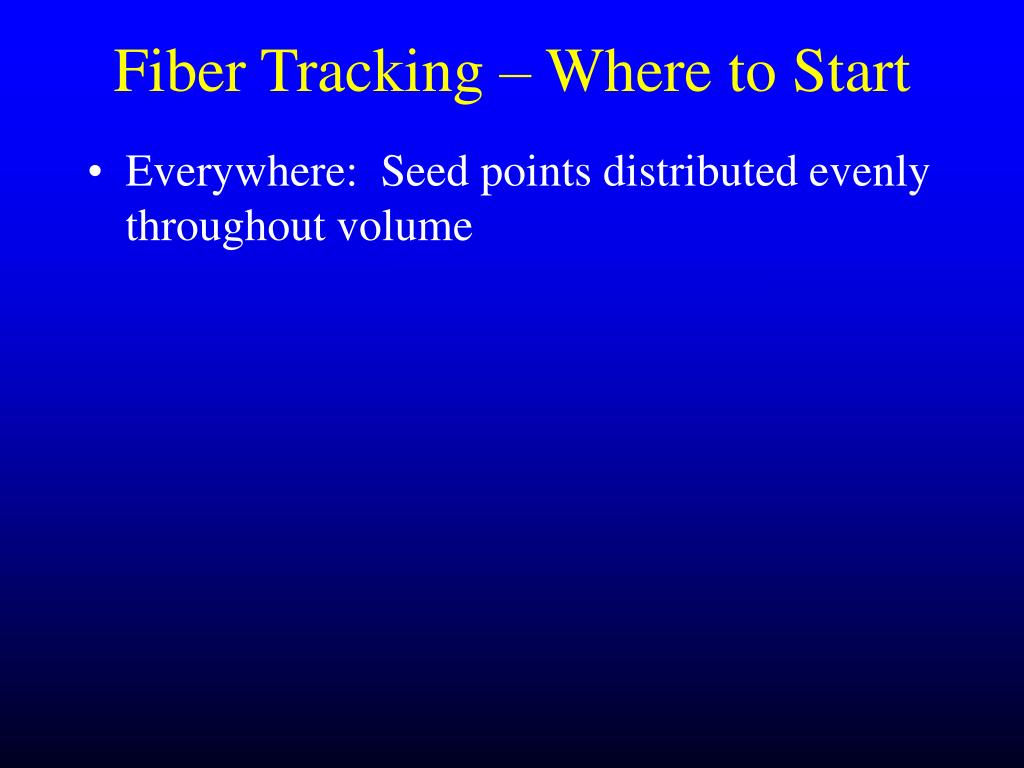

Fiber Tracking – Where to Start • Everywhere: Seed points distributed evenly throughout volume

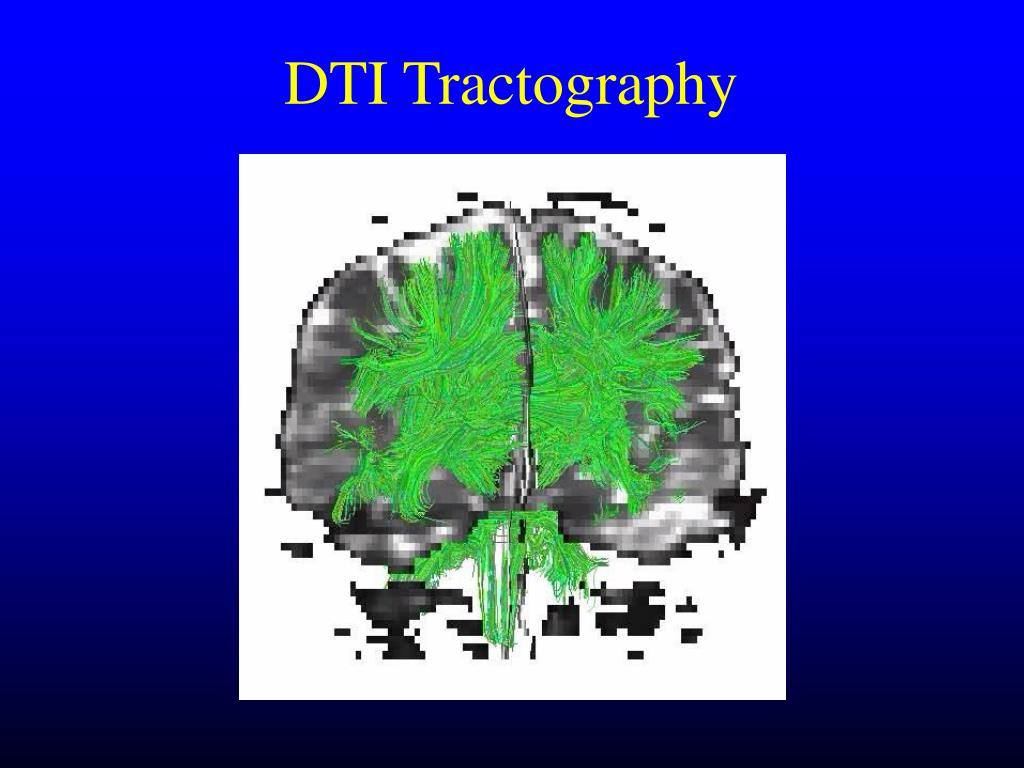

DTI Tractography

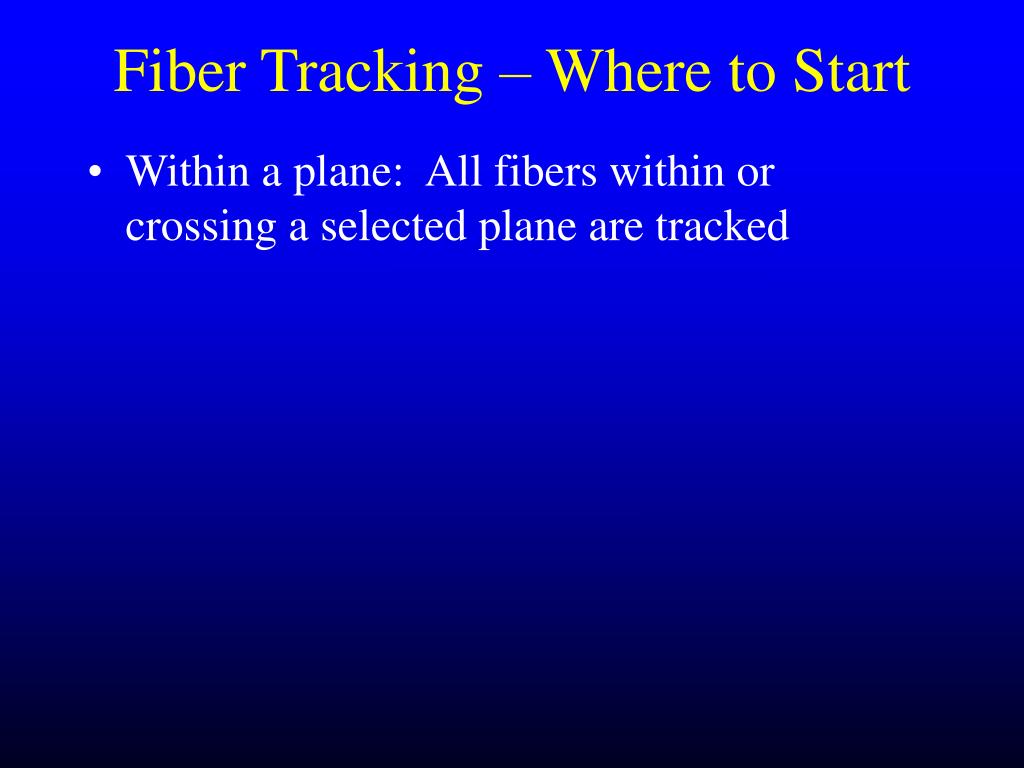

Fiber Tracking – Where to Start • Within a plane: All fibers within or crossing a selected plane are tracked

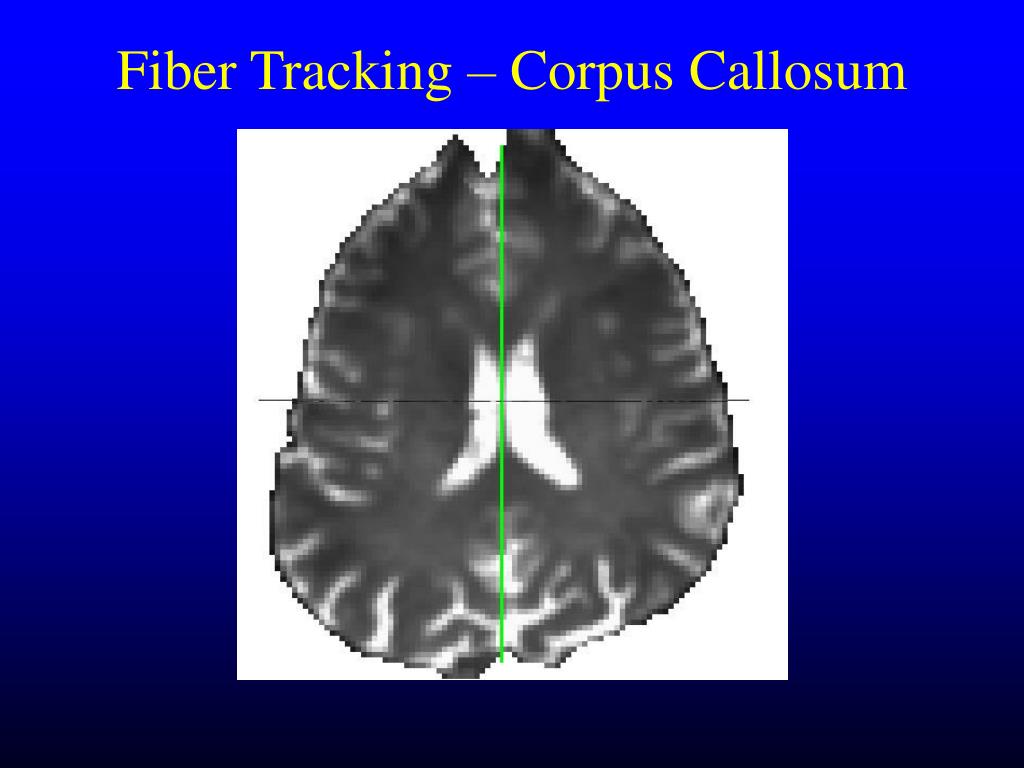

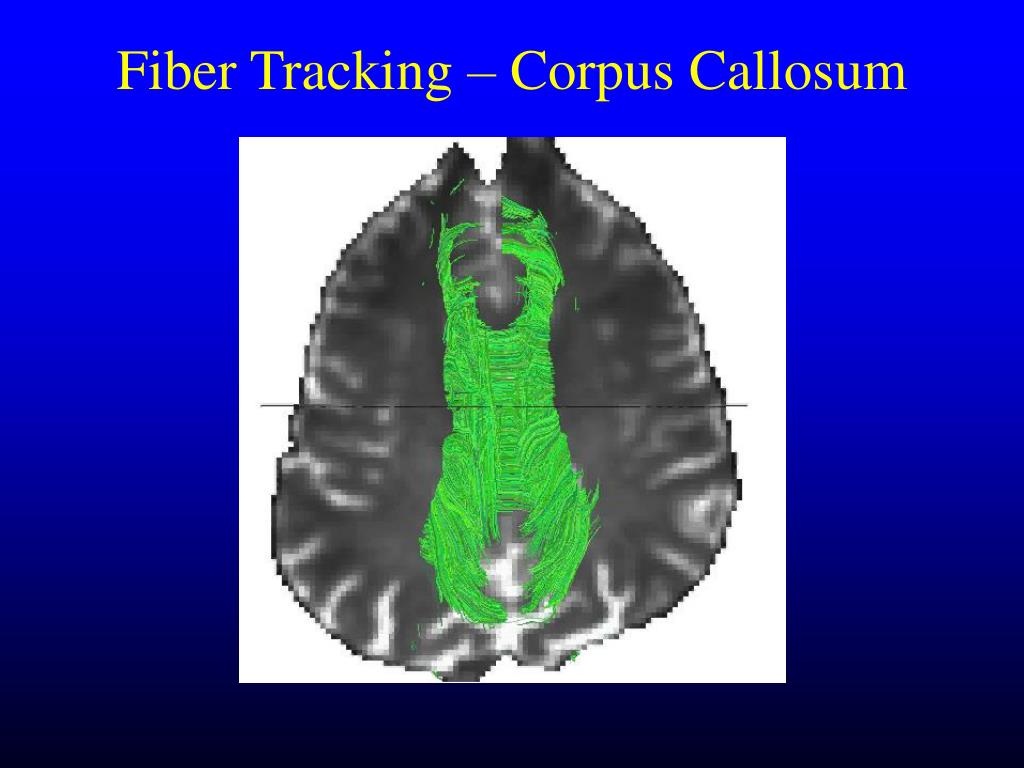

Fiber Tracking – Corpus Callosum

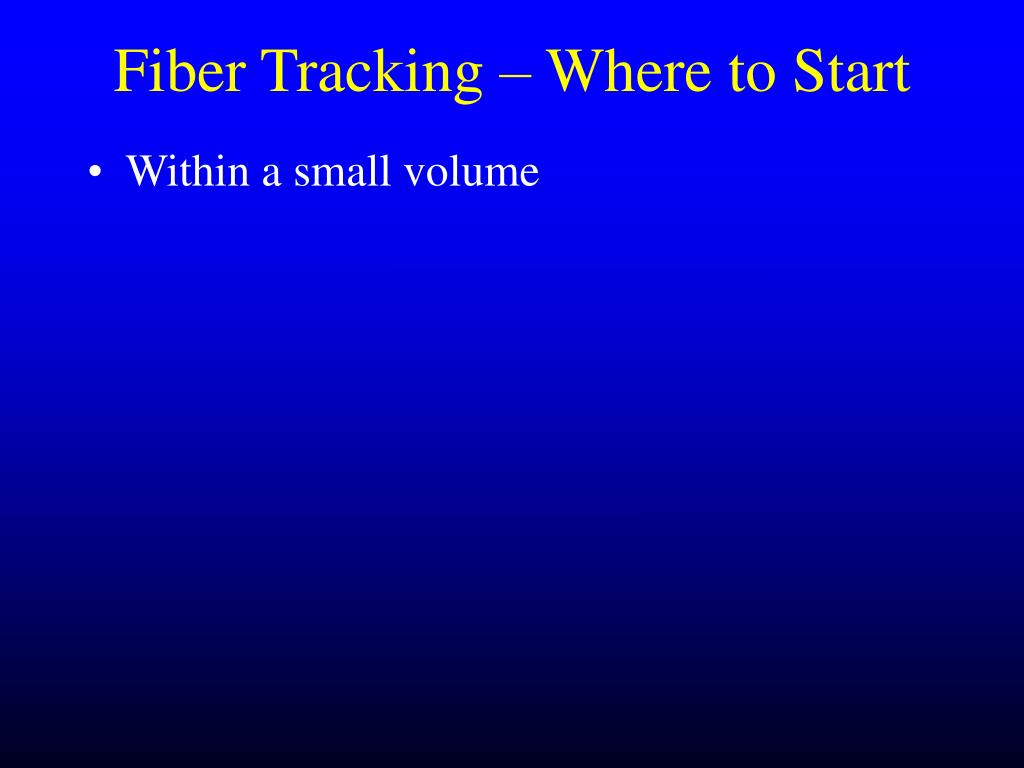

Fiber Tracking – Where to Start • Within a small volume

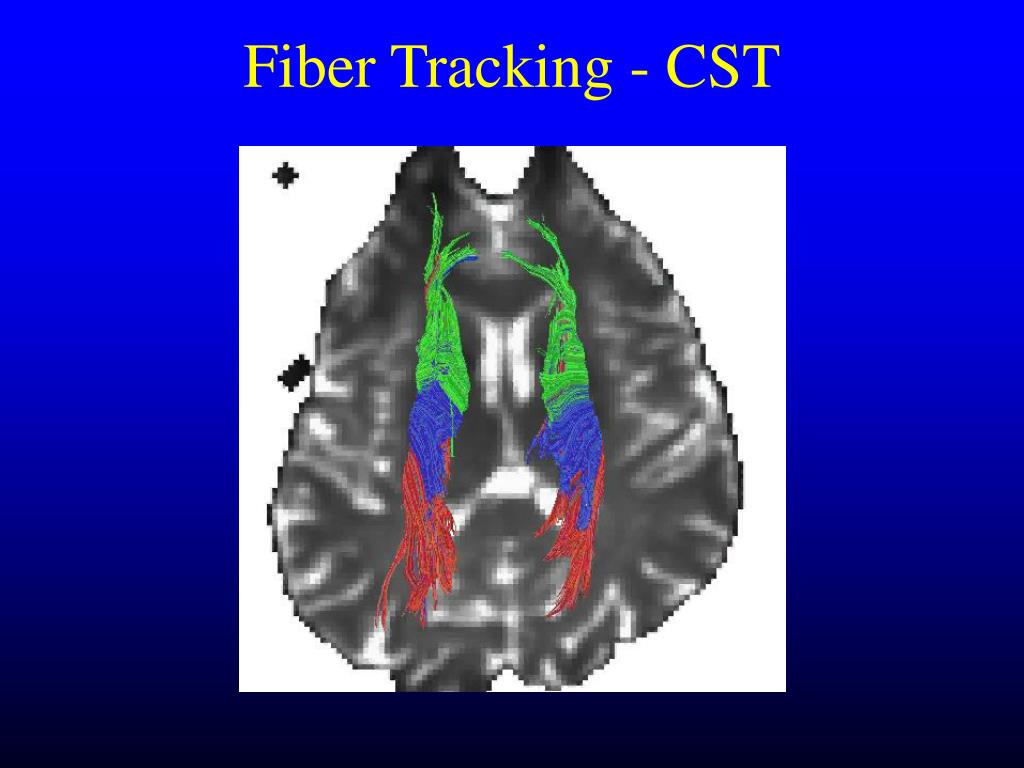

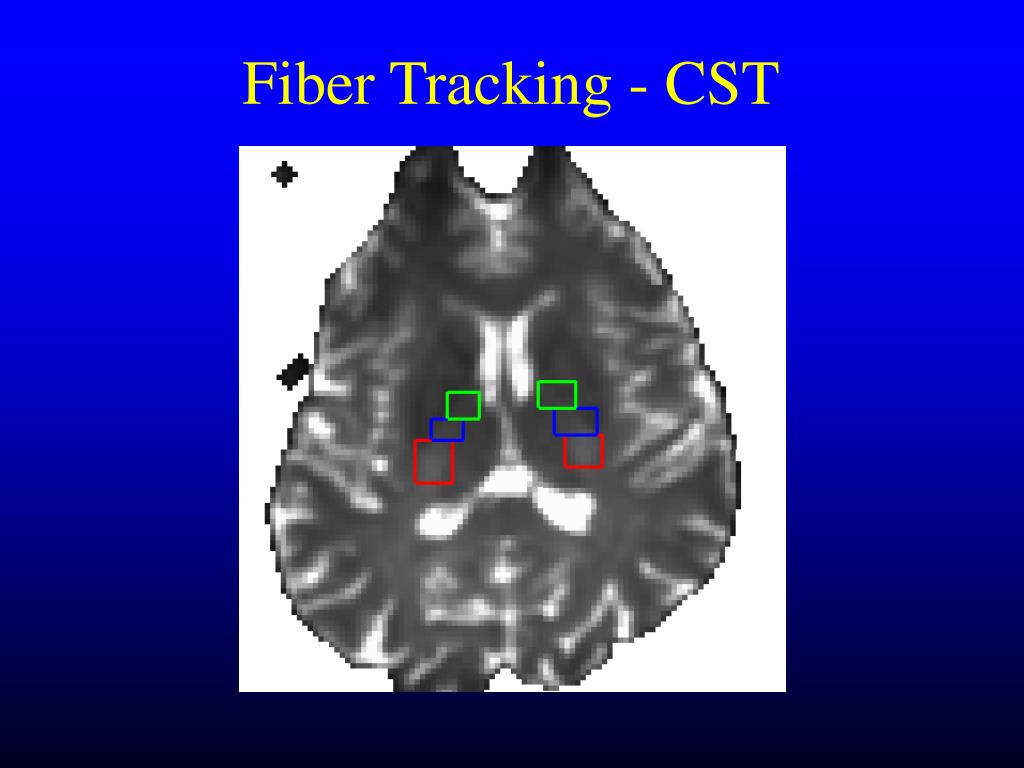

Fiber Tracking - CST

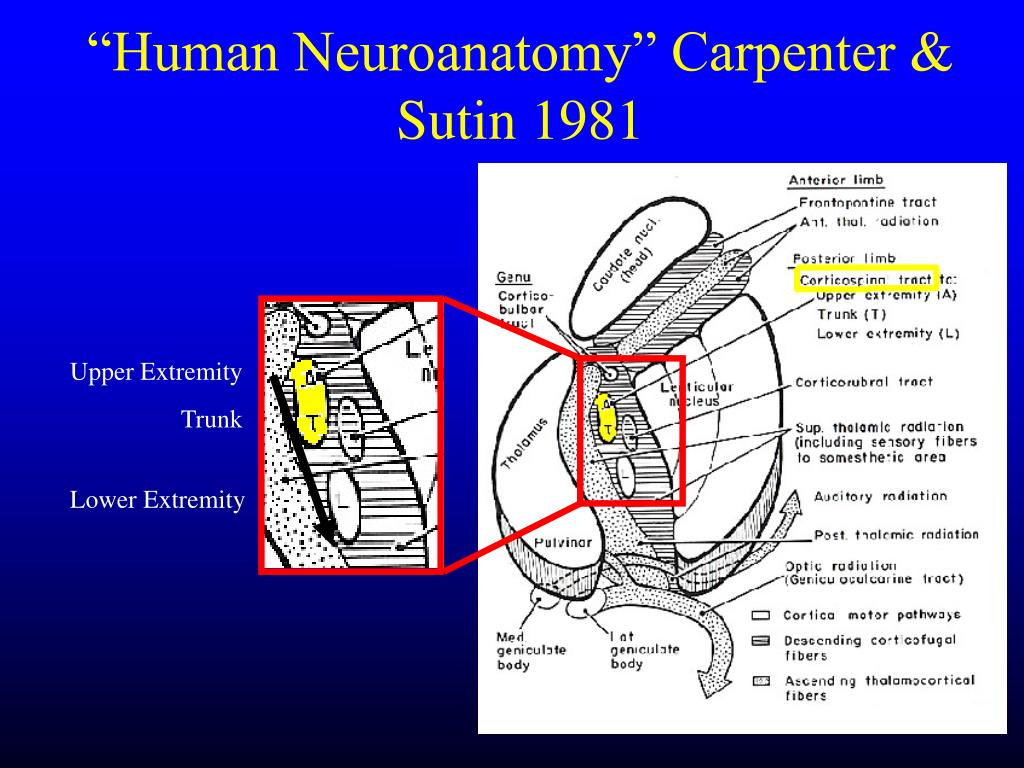

“Human Neuroanatomy” Carpenter & Sutin 1981 Upper Extremity Trunk Lower Extremity

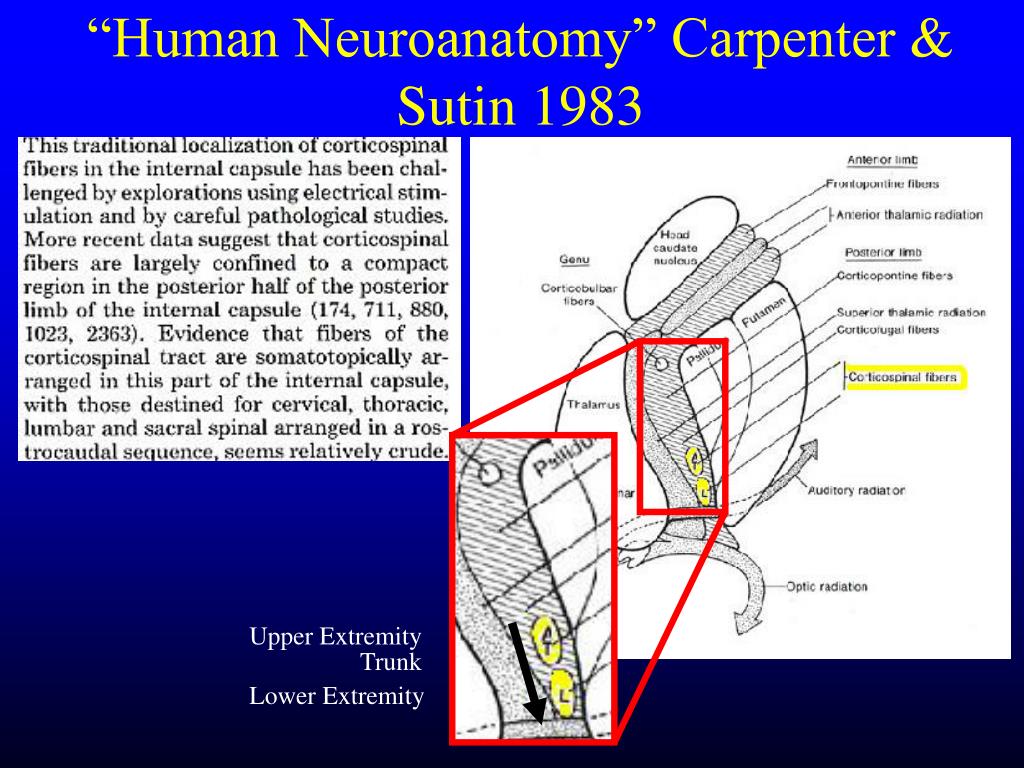

“Human Neuroanatomy” Carpenter & Sutin 1983 Upper Extremity Trunk Lower Extremity

Fiber Tracking - CST

Combining DTI and fMRI

fMRI – Feet Movement

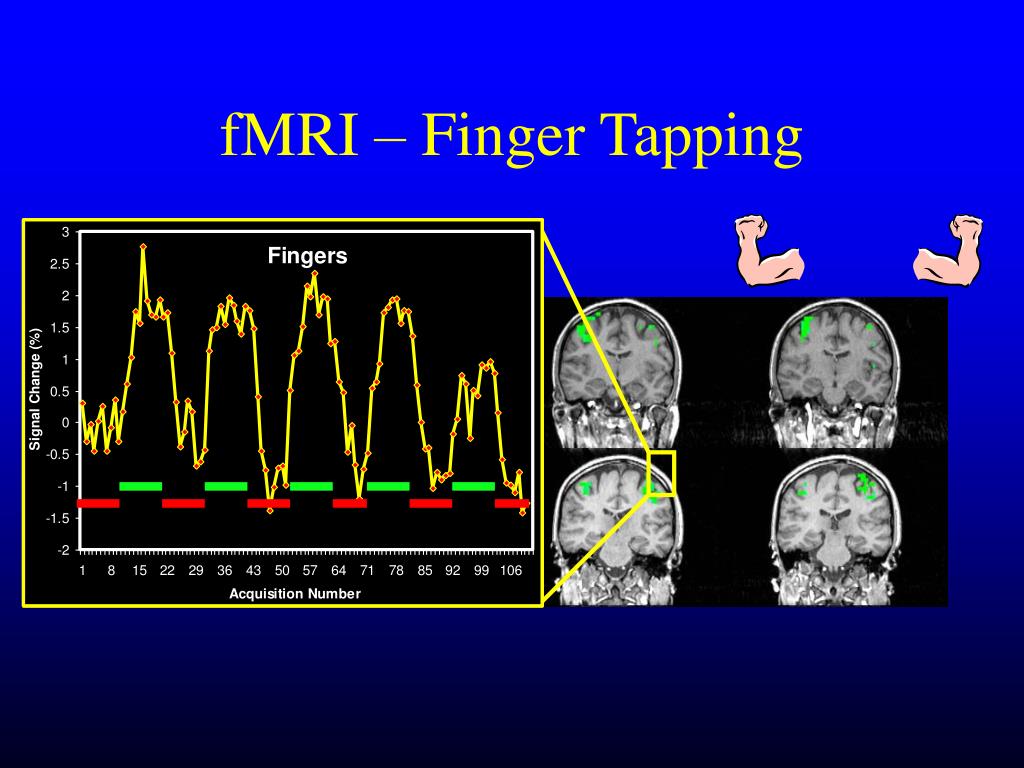

fMRI – Finger Tapping

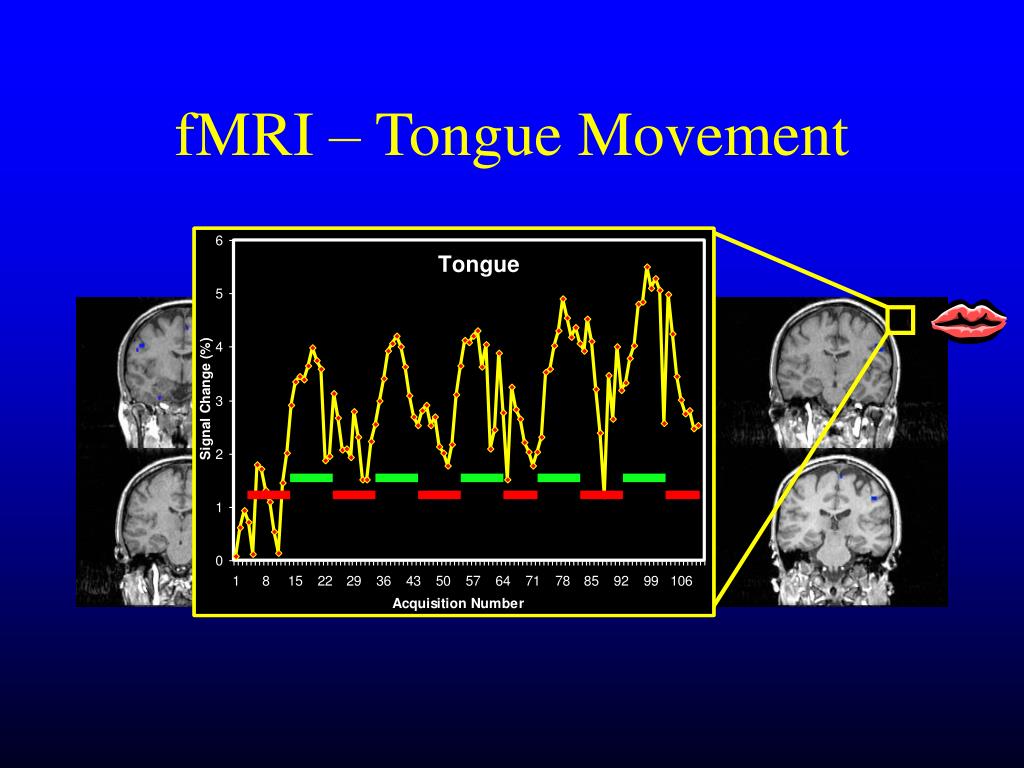

fMRI – Tongue Movement

Results – fMRI – Feet, Fingers, Tongue

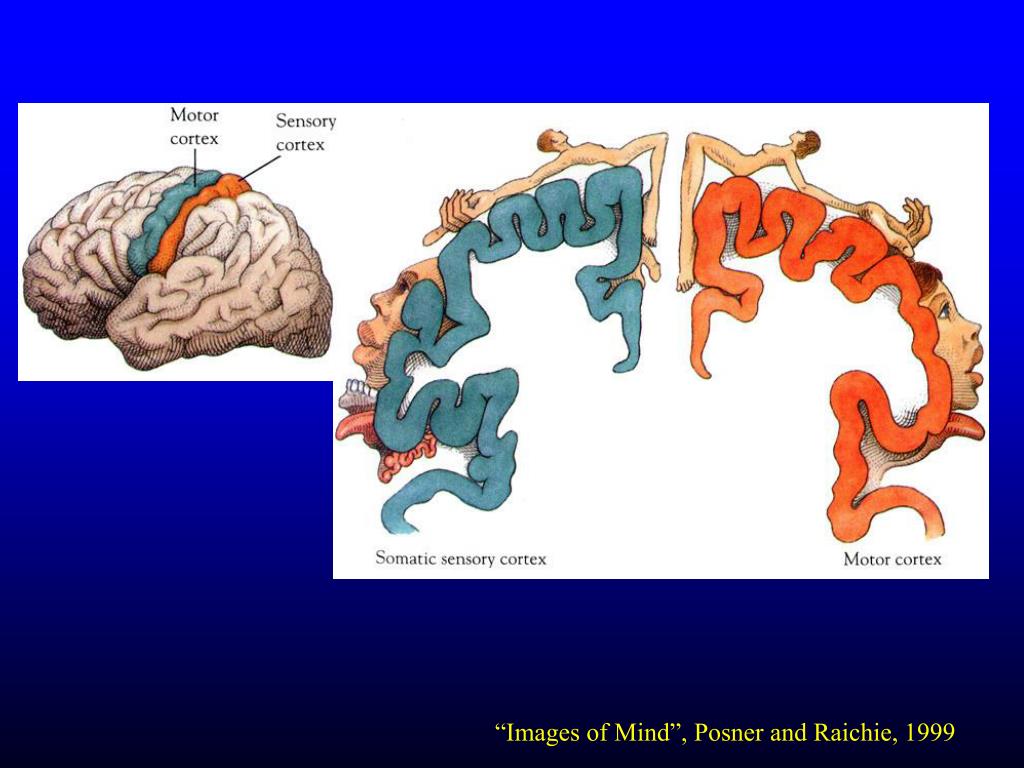

“Images of Mind”, Posner and Raichie, 1999

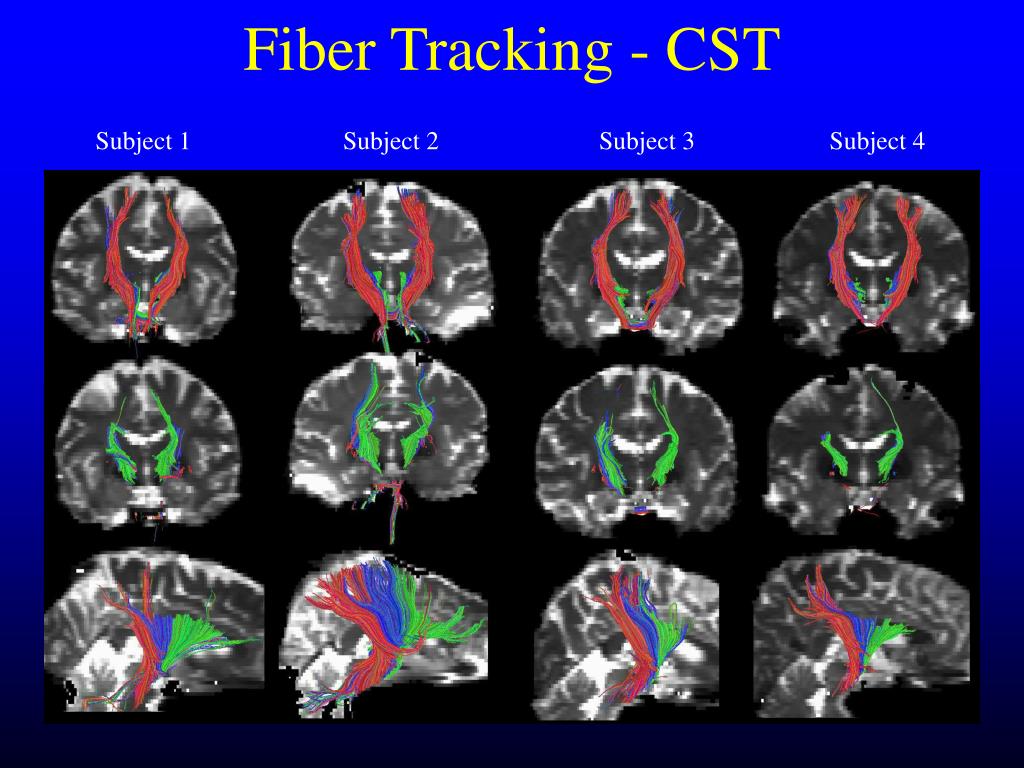

Fiber Tracking - CST Subject 1 Subject 2 Subject 3 Subject 4

Cingulum Feet movement Tongue movement Corpus Callosum Longitudinal Fasciculus Corticospinal Tract Crossing Fibers
