  1. Interval Arithmetic Requirements for Digital Signal Processor William Edmonson Hampton University Winser Alexander NC State University Esther Hughes Virginia Commonwealth University Clay Gloster Howard University

  2. Outline • Digital Signal Processing • Applications • Digital Signal Processors • Importance of Interval Method • Interval - Digital Signal Processors • Conclusion Workshop on Reliable Engineering

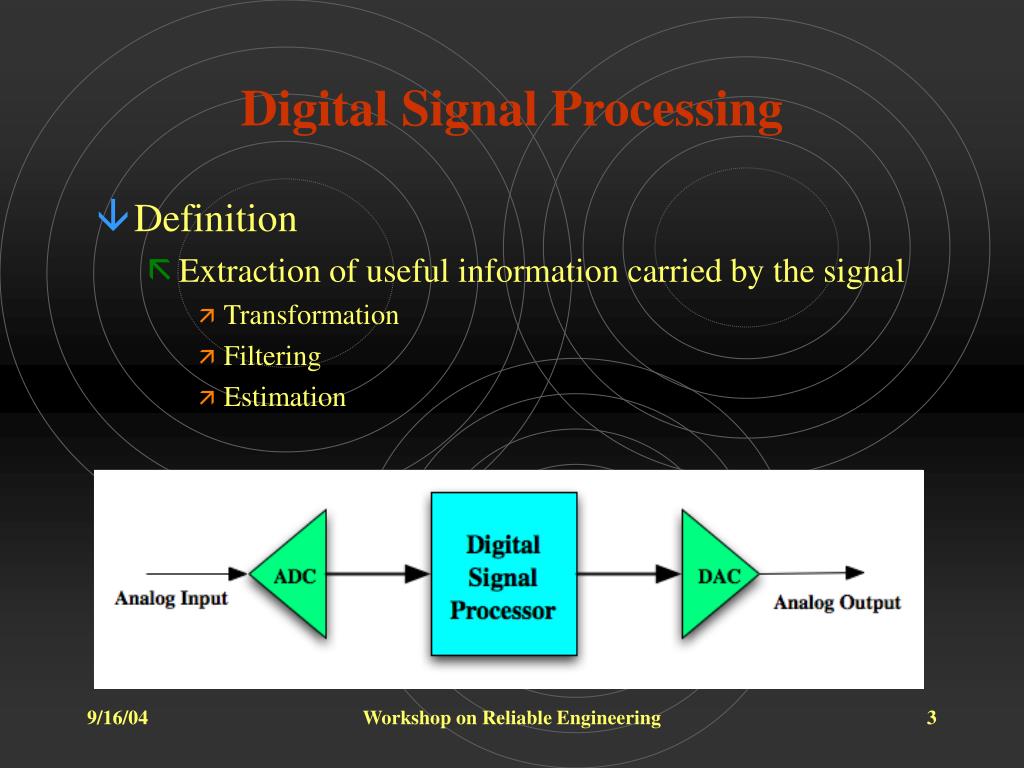

  3. Digital Signal Processing • Definition • Extraction of useful information carried by the signal • Transformation • Filtering • Estimation Workshop on Reliable Engineering

  4. Digital Signal Processing • Applications • Transformation • Time-Frequency Analysis • Music/Video Coding • Filtering • Active Noise Cancellation • Speech Synthesis • Estimation • Direction of Arrival • Medical Imaging Workshop on Reliable Engineering

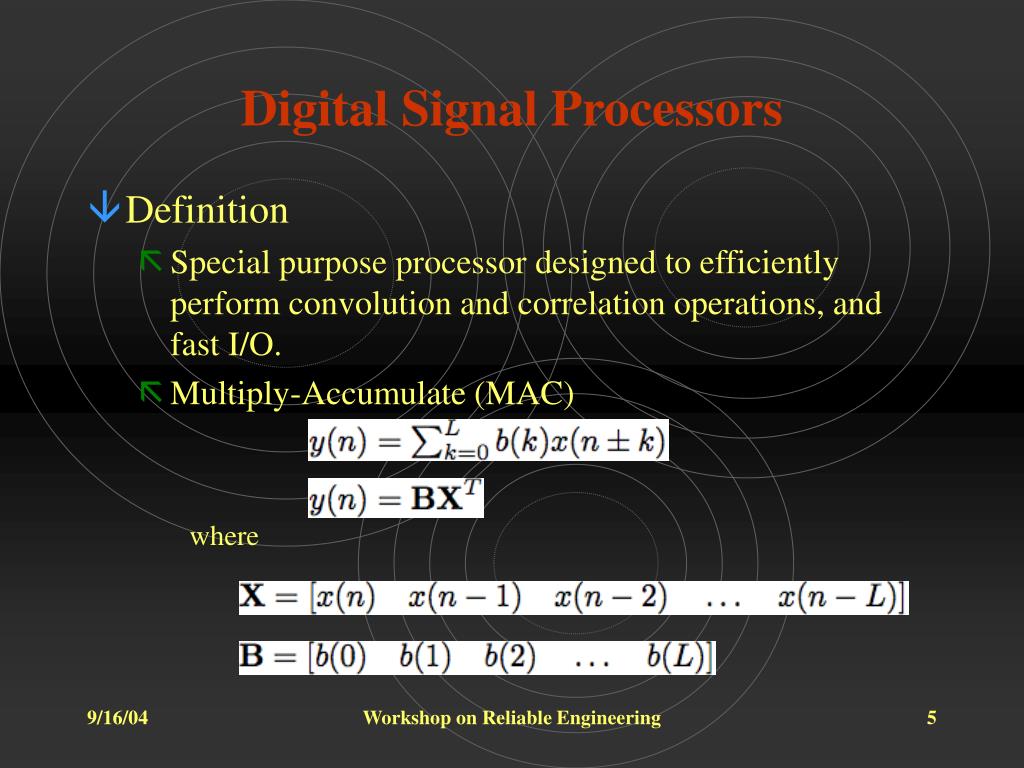

  5. Digital Signal Processors • Definition • Special purpose processor designed to efficiently perform convolution and correlation operations, and fast I/O. • Multiply-Accumulate (MAC) where Workshop on Reliable Engineering

  6. Digital Signal Processors • Important Features • Real-time operation of repetitive arithmetic operations • Reduced footprint • Reduced power • Examples • Cell phones • Audio equipment • Hearing aids Workshop on Reliable Engineering

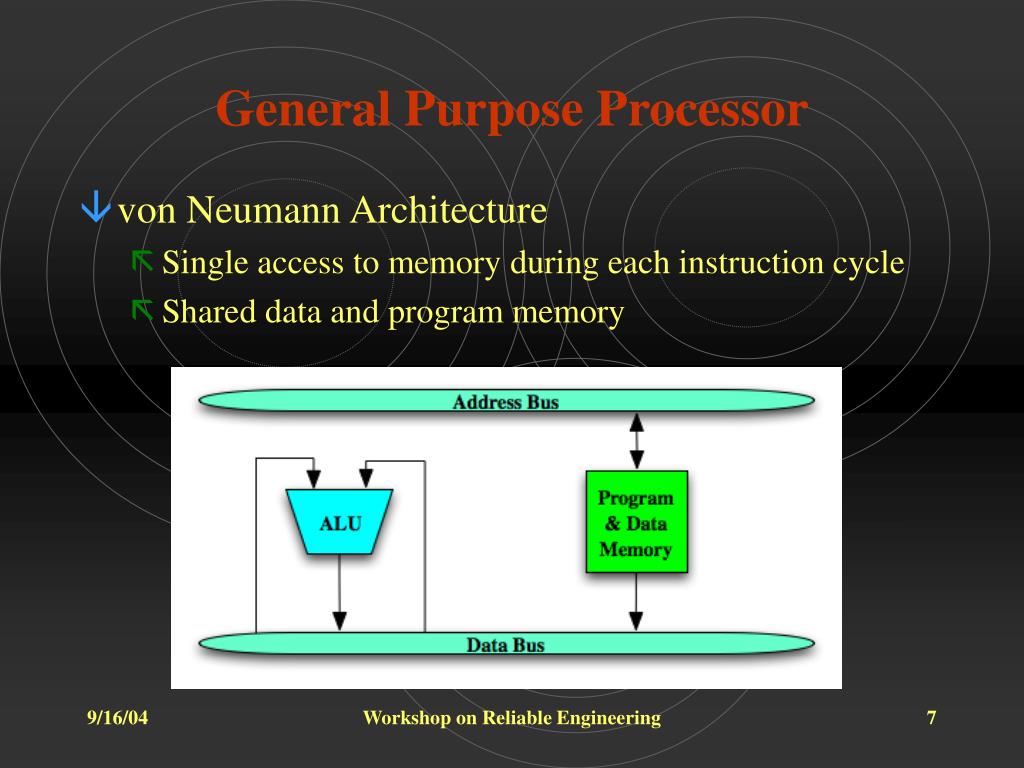

  7. General Purpose Processor • von Neumann Architecture • Single access to memory during each instruction cycle • Shared data and program memory Workshop on Reliable Engineering

  8. Digital Signal Processor • Harvard Architecture • Multiple bus structure • Separate memory for data and program • Reduced optimized instruction set • Addition, Subtraction, Logical • Multiply-accumulate operation Workshop on Reliable Engineering

  9. Digital Signal Processor • Modified Harvard Architecture Workshop on Reliable Engineering

  10. Importance of Interval Methods to DSP • The control and analysis of numerical errors • Filtering • Estimation • Implementation of optimization methods that produce guaranteed estimates. • Large problem set of nonlinear estimation • Direction of Arrival (Sonar, RADAR) • Spectral Estimation (Harmonic Retrieval) • Neural Networks • Medical Image Reconstruction (PET) Workshop on Reliable Engineering

  11. Importance of Interval Methods to DSP • Slow software implementation • General purpose processors • DSP’s • Lack of dedicated interval arithmetic based HW • Embedded computing • Wireless communication • Space exploration vehicles Workshop on Reliable Engineering

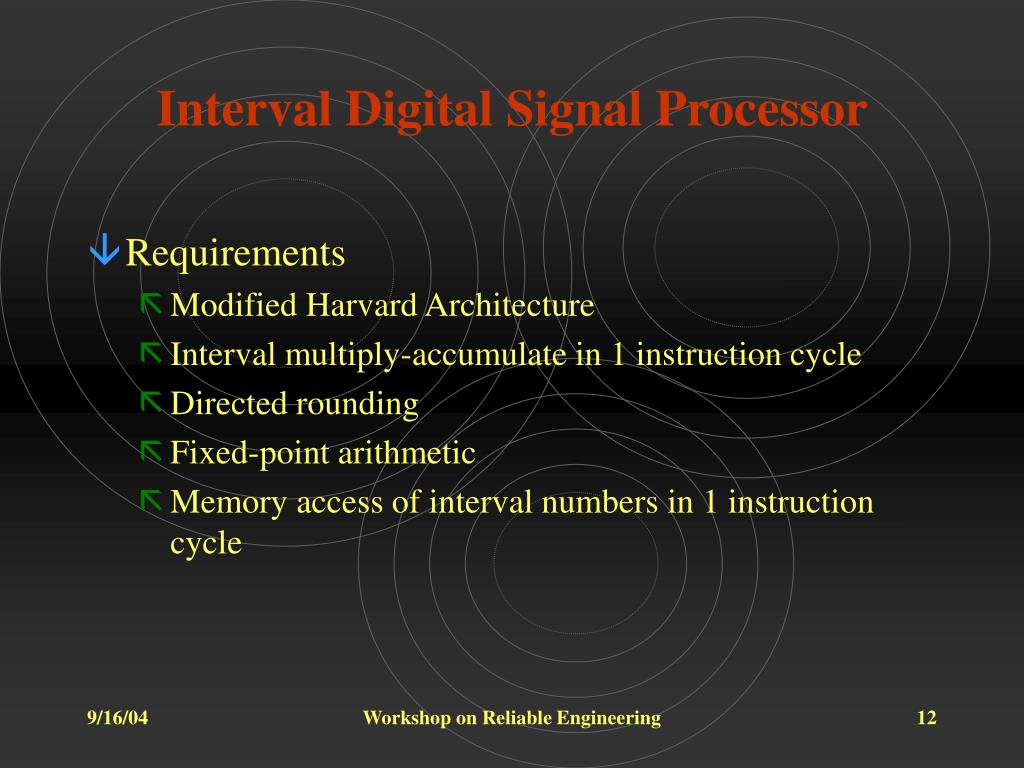

  12. Interval Digital Signal Processor • Requirements • Modified Harvard Architecture • Interval multiply-accumulate in 1 instruction cycle • Directed rounding • Fixed-point arithmetic • Memory access of interval numbers in 1 instruction cycle Workshop on Reliable Engineering

  13. Interval Digital Signal Processor • Arithmetic Logic Unit/Multiply Accumulator • 2 data busses • Simultaneous fetches of operands • B bits wide • 4 input data registers • X = [xlb,xub] Y = [ylb,yub] • 2 accumulators • Upper and lower interval results • 2 B bits wide Workshop on Reliable Engineering

  14. Interval Digital Signal Processor • Saturation arithmetic • Overflow conditions • Directed rounding • Round towards + ∞ • Interval instruction set • Addition, subtraction, multiplication, multiply-accumulate • Logical operations Workshop on Reliable Engineering

  15. Interval Digital Signal Processor • Interval Multiplication Workshop on Reliable Engineering

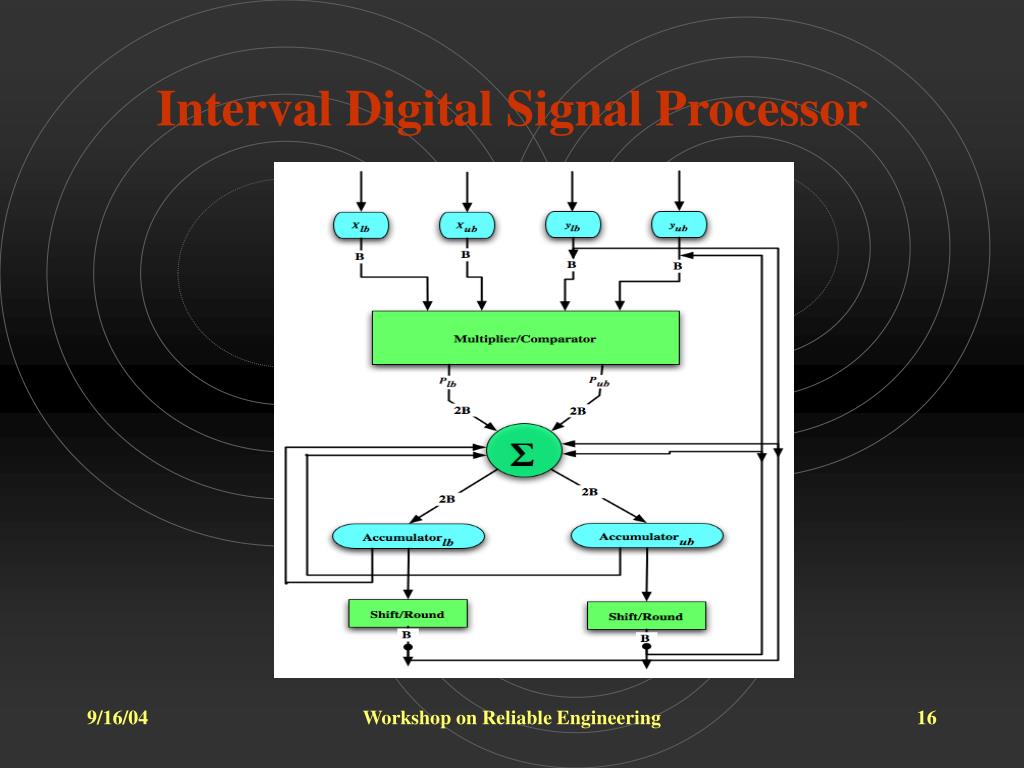

  16. Interval Digital Signal Processor Workshop on Reliable Engineering

  17. Conclusion • Outlined HW requirements for a fixed-point DSP • Future work is to implement on a FPGA • Initial work for full acceptance by signal processing community • Technology key across all areas of reliable engineering • Civil Engineering • Active Vibration Control • Mechanical/Aerospace Engineering • Robotic Vision and Guidance • Acknowledgements • Funding of this work is through a NASA-FAR grant. Workshop on Reliable Engineering
