  1. In-Stream Catalogued Procedures 1

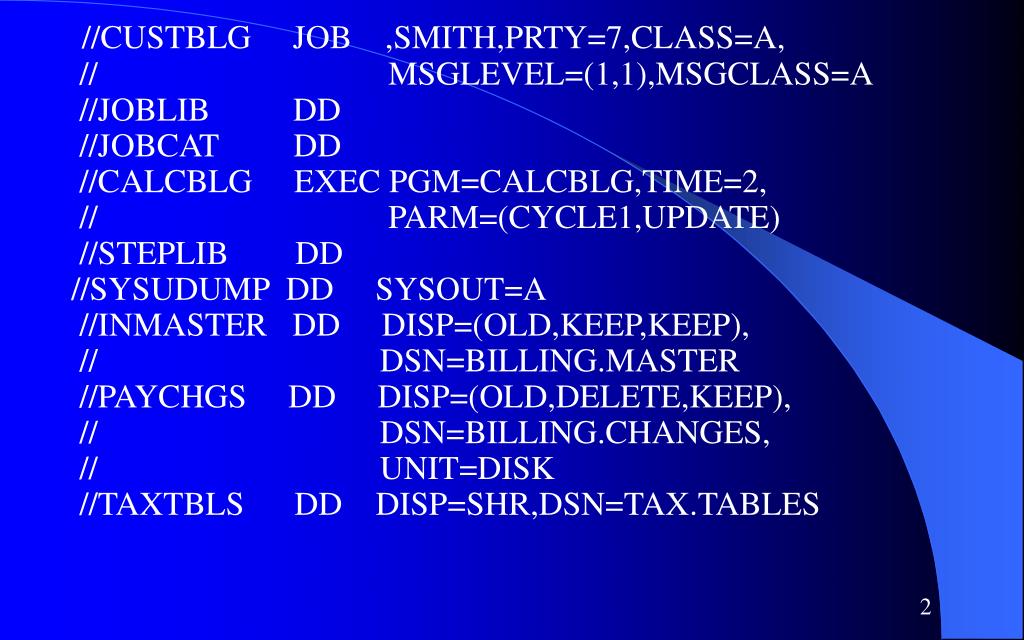

  2. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A //JOBLIB DD //JOBCAT DD //CALCBLG EXEC PGM=CALCBLG,TIME=2, // PARM=(CYCLE1,UPDATE) //STEPLIB DD //SYSUDUMP DD SYSOUT=A //INMASTER DD DISP=(OLD,KEEP,KEEP), // DSN=BILLING.MASTER //PAYCHGS DD DISP=(OLD,DELETE,KEEP), // DSN=BILLING.CHANGES, // UNIT=DISK //TAXTBLS DD DISP=SHR,DSN=TAX.TABLES2

  3. //UPDMSTER DD DISP=(NEW,CATLG,DELETE), // DSN=BILLING.MASTER, // UNIT=TAPE, // DCB=(LRECL=160,BLKSIZE=3200), // DCB=RECFM=FB) //BLGFILE DD DISP=(NEW,PASS,DELETE), // UNIT=SYSDA,DSN=BILLING.PRINT, // SPACE=(TRK,(20,5),RLSE), // DCB=(LRECL=100,BLKSIZE=4000) // DCB=(RECFM=VB) //ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) //SYSUDUMP DD SYSOUT=A3

  4. //BLGRPT DD SYSOUT=A //BILLS SYSOUT=(H,,DP12) //BLGFILE DD DISP=(OLD,DELETE,CATLG), // DSN=BILLING.PRINT // 4

  5. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A //CALCBLG EXEC PGM=CALCBLG,TIME=2, // PARM=(CYCLE1,UPDATE) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A //INMASTER DD DISP=(OLD,KEEP,KEEP), // DSN=BILLING.MASTER //PAYCHGS DD DISP=(OLD,DELETE,KEEP), // DSN=BILLING.CHANGES, // UNIT=DISK //TAXTBLS DD DISP=SHR,DSN=TAX.TABLES5

  6. //UPDMSTER DD DISP=(NEW,CATLG,DELETE), // DSN=BILLING.MASTER, // UNIT=TAPE, // DCB=(LRECL=160,BLKSIZE=3200), // DCB=RECFM=FB) //BLGFILE DD DISP=(NEW,PASS,DELETE), // UNIT=SYSDA,DSN=BILLING.PRINT, // SPACE=(TRK,(20,5),RLSE), // DCB=(LRECL=100,BLKSIZE=4000) // DCB=(RECFM=VB) //ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A6

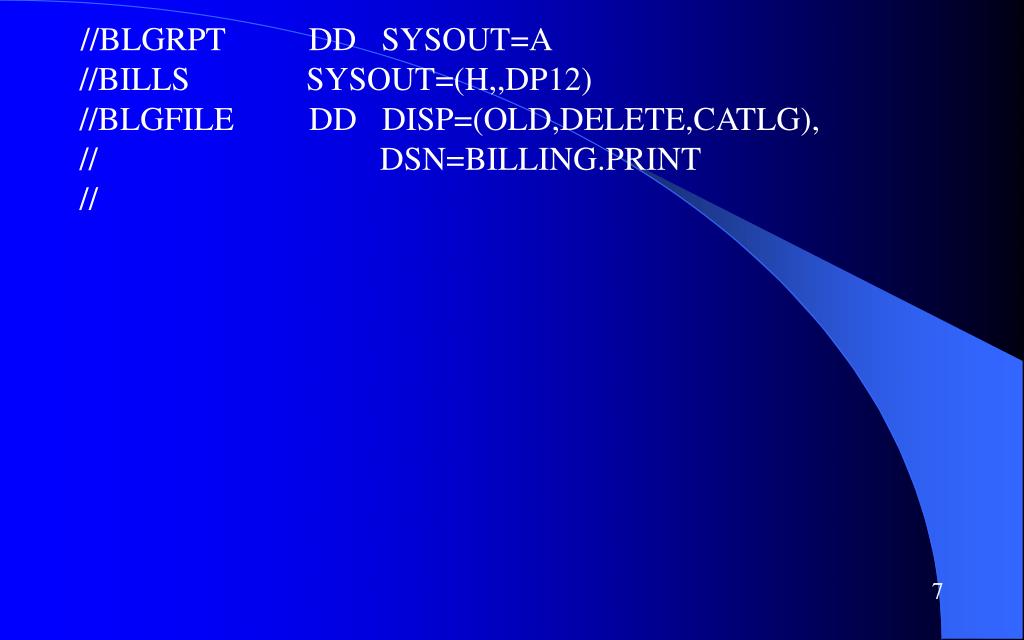

  7. //BLGRPT DD SYSOUT=A //BILLS SYSOUT=(H,,DP12) //BLGFILE DD DISP=(OLD,DELETE,CATLG), // DSN=BILLING.PRINT // 7

  8. Catalogued Procedures 8

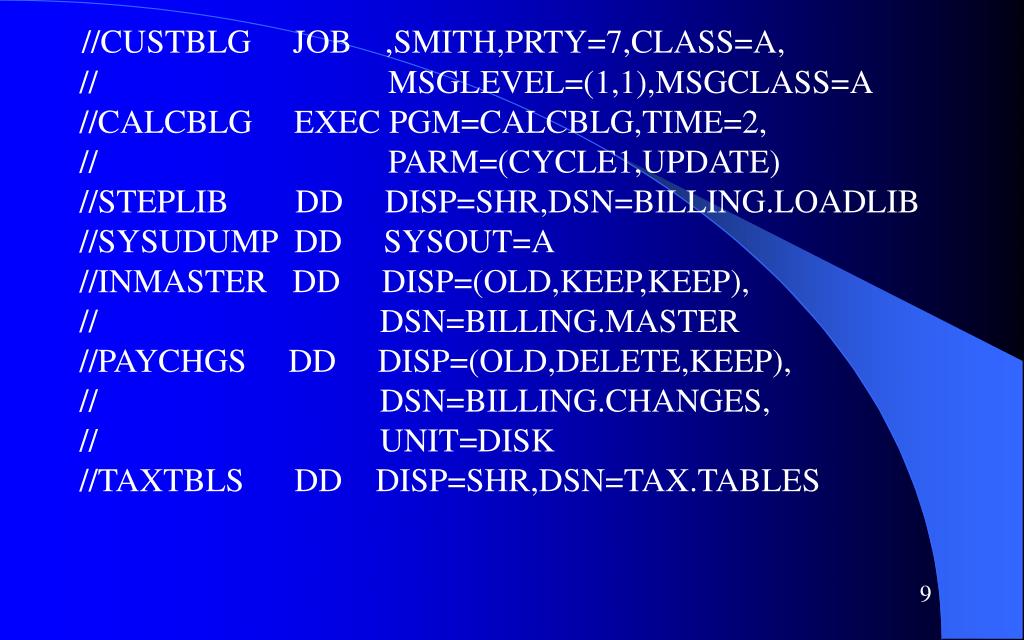

  9. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A //CALCBLG EXEC PGM=CALCBLG,TIME=2, // PARM=(CYCLE1,UPDATE) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A //INMASTER DD DISP=(OLD,KEEP,KEEP), // DSN=BILLING.MASTER //PAYCHGS DD DISP=(OLD,DELETE,KEEP), // DSN=BILLING.CHANGES, // UNIT=DISK //TAXTBLS DD DISP=SHR,DSN=TAX.TABLES9

  10. //UPDMSTER DD DISP=(NEW,CATLG,DELETE), // DSN=BILLING.MASTER, // UNIT=TAPE, // DCB=(LRECL=160,BLKSIZE=3200), // DCB=RECFM=FB) //BLGFILE DD DISP=(NEW,PASS,DELETE), // UNIT=SYSDA,DSN=BILLING.PRINT, // SPACE=(TRK,(20,5),RLSE), // DCB=(LRECL=100,BLKSIZE=4000) // DCB=(RECFM=VB) //ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A10

  11. //BLGRPT DD SYSOUT=A //BILLS SYSOUT=(H,,DP12) //BLGFILE DD DISP=(OLD,DELETE,CATLG), // DSN=BILLING.PRINT // 11

  12. JCL ListingMSGLEVEL=(1,1) 12

  13. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A //CALCBLG EXEC PGM=CALCBLG,TIME=2, // PARM=(CYCLE1,UPDATE) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A //INMASTER DD DISP=(OLD,KEEP,KEEP), // DSN=BILLING.MASTER //PAYCHGS DD DISP=(OLD,DELETE,KEEP), // DSN=BILLING.CHANGES, // UNIT=DISK //TAXTBLS DD DISP=SHR,DSN=TAX.TABLES13

  14. //UPDMSTER DD DISP=(NEW,CATLG,DELETE), // DSN=BILLING.MASTER, // UNIT=TAPE, // DCB=(LRECL=160,BLKSIZE=3200), // DCB=RECFM=FB) //BLGFILE DD DISP=(NEW,PASS,DELETE), // UNIT=SYSDA,DSN=BILLING.PRINT, // SPACE=(TRK,(20,5),RLSE), // DCB=(LRECL=100,BLKSIZE=4000) // DCB=(RECFM=VB) //ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A14

  15. //BLGRPT DD SYSOUT=A //BILLS SYSOUT=(H,,DP12) //BLGFILE DD DISP=(OLD,DELETE,CATLG), // DSN=BILLING.PRINT // 15

  16. Create AnIn-Stream PROC 16

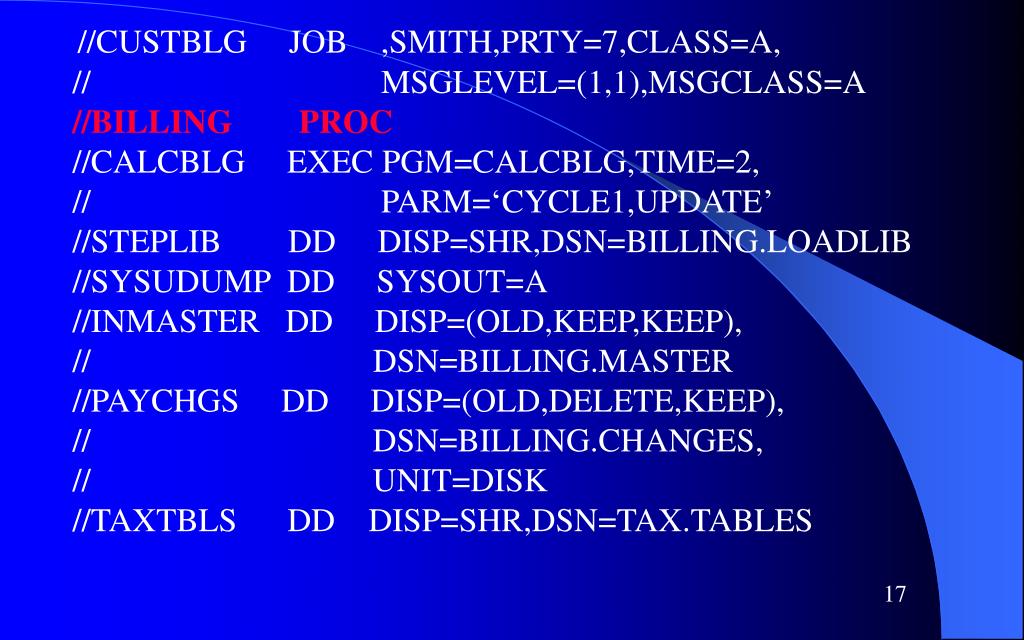

  17. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A//BILLING PROC //CALCBLG EXEC PGM=CALCBLG,TIME=2, // PARM=‘CYCLE1,UPDATE’ //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A //INMASTER DD DISP=(OLD,KEEP,KEEP), // DSN=BILLING.MASTER //PAYCHGS DD DISP=(OLD,DELETE,KEEP), // DSN=BILLING.CHANGES, // UNIT=DISK //TAXTBLS DD DISP=SHR,DSN=TAX.TABLES17

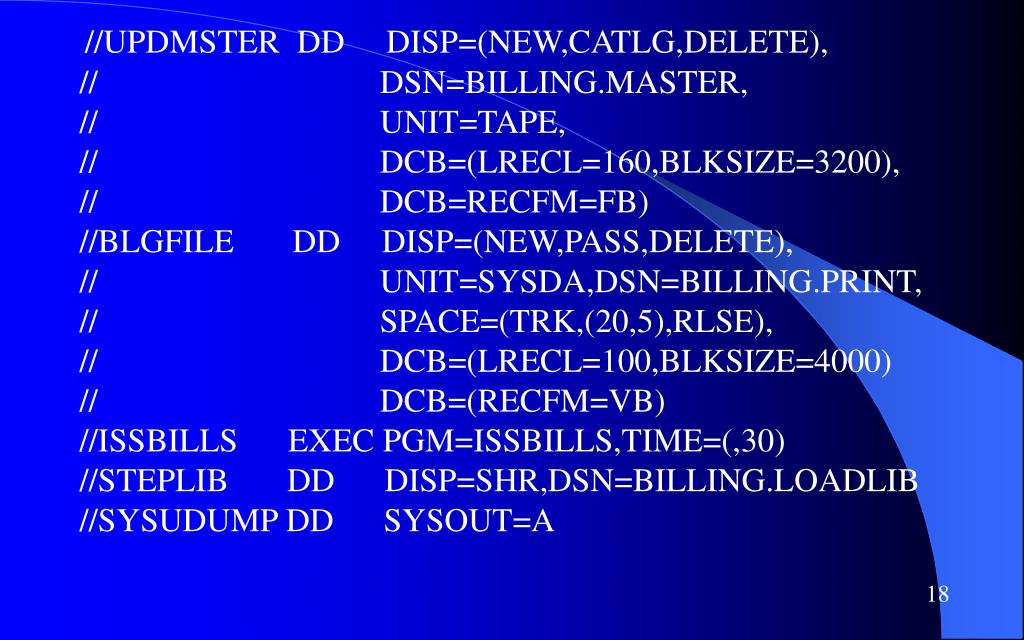

  18. //UPDMSTER DD DISP=(NEW,CATLG,DELETE), // DSN=BILLING.MASTER, // UNIT=TAPE, // DCB=(LRECL=160,BLKSIZE=3200), // DCB=RECFM=FB) //BLGFILE DD DISP=(NEW,PASS,DELETE), // UNIT=SYSDA,DSN=BILLING.PRINT, // SPACE=(TRK,(20,5),RLSE), // DCB=(LRECL=100,BLKSIZE=4000) // DCB=(RECFM=VB) //ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A18

  19. //BLGRPT DD SYSOUT=A //BILLS DD SYSOUT=(H,,DP12) //BLGFILE DD DISP=(OLD,DELETE,CATLG), // DSN=BILLING.PRINT// PEND//BILLING EXEC BILLING //19

  20. JCL ListingMSGLEVEL=(1,1) 20

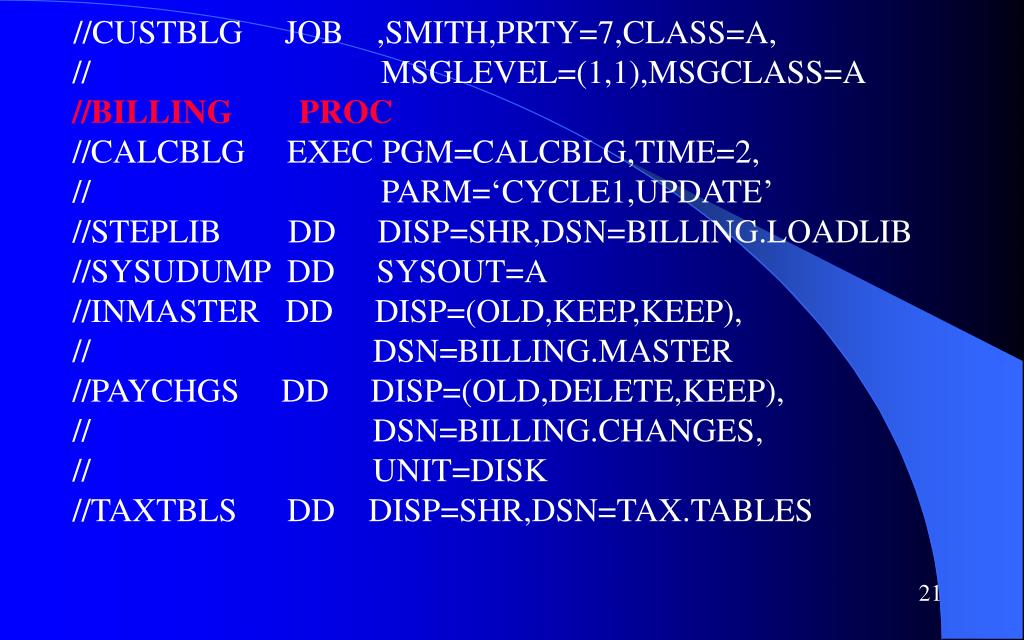

  21. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A//BILLING PROC //CALCBLG EXEC PGM=CALCBLG,TIME=2, // PARM=‘CYCLE1,UPDATE’ //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A //INMASTER DD DISP=(OLD,KEEP,KEEP), // DSN=BILLING.MASTER //PAYCHGS DD DISP=(OLD,DELETE,KEEP), // DSN=BILLING.CHANGES, // UNIT=DISK //TAXTBLS DD DISP=SHR,DSN=TAX.TABLES21

  22. //UPDMSTER DD DISP=(NEW,CATLG,DELETE), // DSN=BILLING.MASTER, // UNIT=TAPE, // DCB=(LRECL=160,BLKSIZE=3200), // DCB=RECFM=FB) //BLGFILE DD DISP=(NEW,PASS,DELETE), // UNIT=SYSDA,DSN=BILLING.PRINT, // SPACE=(TRK,(20,5),RLSE), // DCB=(LRECL=100,BLKSIZE=4000) // DCB=(RECFM=VB) //ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) //STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB //SYSUDUMP DD SYSOUT=A22

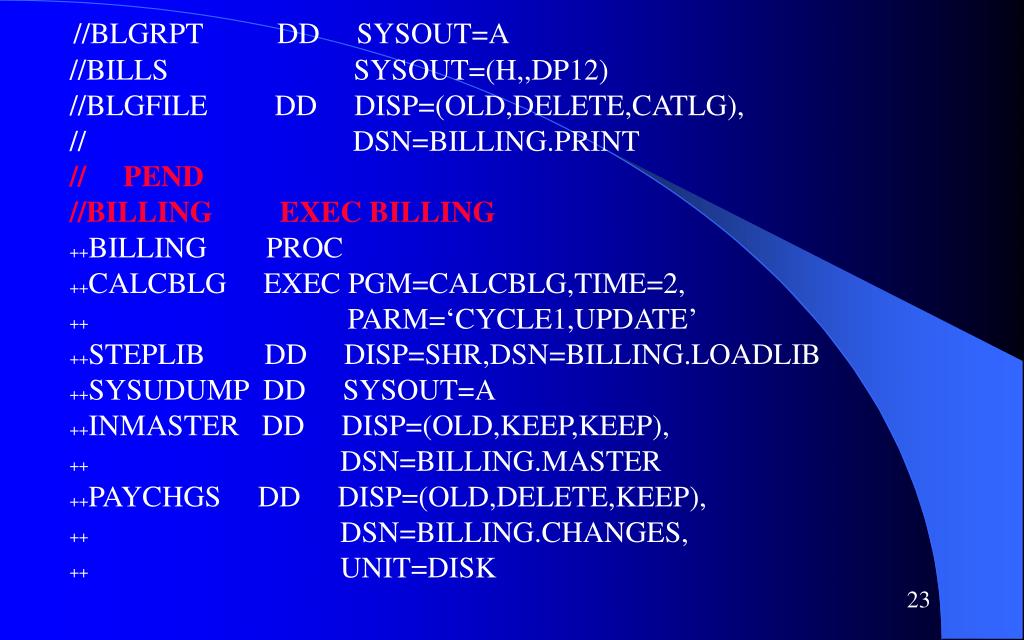

  23. //BLGRPT DD SYSOUT=A //BILLS SYSOUT=(H,,DP12) //BLGFILE DD DISP=(OLD,DELETE,CATLG), // DSN=BILLING.PRINT// PEND//BILLING EXEC BILLING++BILLINGPROC++CALCBLG EXEC PGM=CALCBLG,TIME=2,++ PARM=‘CYCLE1,UPDATE’++STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB++SYSUDUMP DD SYSOUT=A++INMASTER DD DISP=(OLD,KEEP,KEEP),++ DSN=BILLING.MASTER++PAYCHGS DD DISP=(OLD,DELETE,KEEP),++ DSN=BILLING.CHANGES,++ UNIT=DISK23

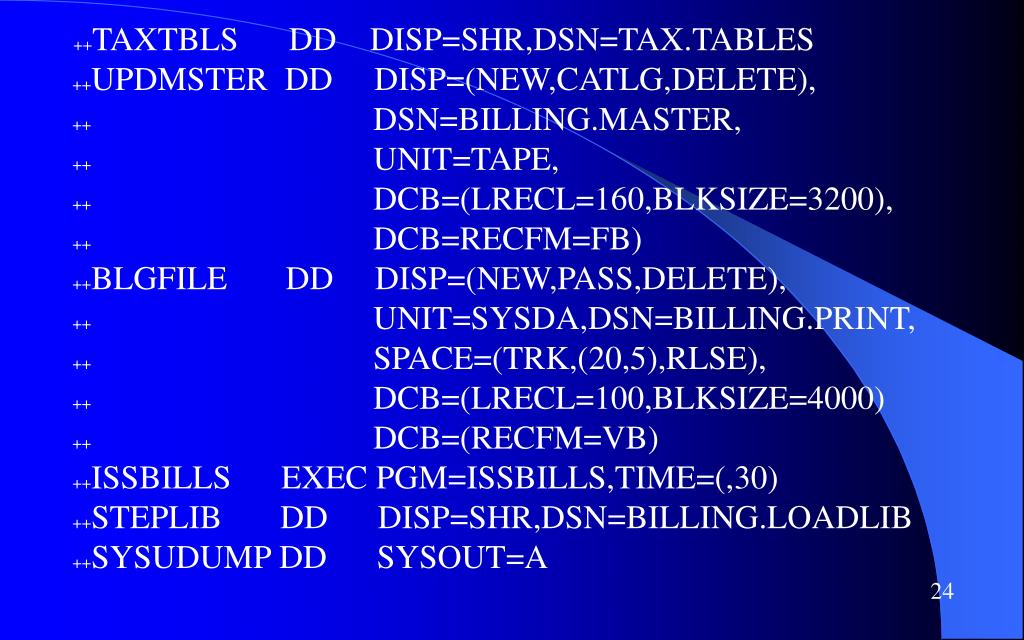

  24. ++TAXTBLS DD DISP=SHR,DSN=TAX.TABLES++UPDMSTER DD DISP=(NEW,CATLG,DELETE),++ DSN=BILLING.MASTER, ++ UNIT=TAPE,++ DCB=(LRECL=160,BLKSIZE=3200),++ DCB=RECFM=FB)++BLGFILE DD DISP=(NEW,PASS,DELETE),++ UNIT=SYSDA,DSN=BILLING.PRINT,++ SPACE=(TRK,(20,5),RLSE),++ DCB=(LRECL=100,BLKSIZE=4000)++ DCB=(RECFM=VB)++ISSBILLS EXEC PGM=ISSBILLS,TIME=(,30)++STEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB++SYSUDUMP DD SYSOUT=A24

  25. ++BLGRPT DD SYSOUT=A++BILLS SYSOUT=(H,,DP12)++BLGFILE DD DISP=(OLD,DELETE,CATLG),++ DSN=BILLING.PRINT25

  26. Create The Proc //CUSTBLG JOB ,SMITH,PRTY=7, // CLASS=A,MSGLEVEL=(1,1), // MSGCLASS=A //BILLING EXEC BILLING 26

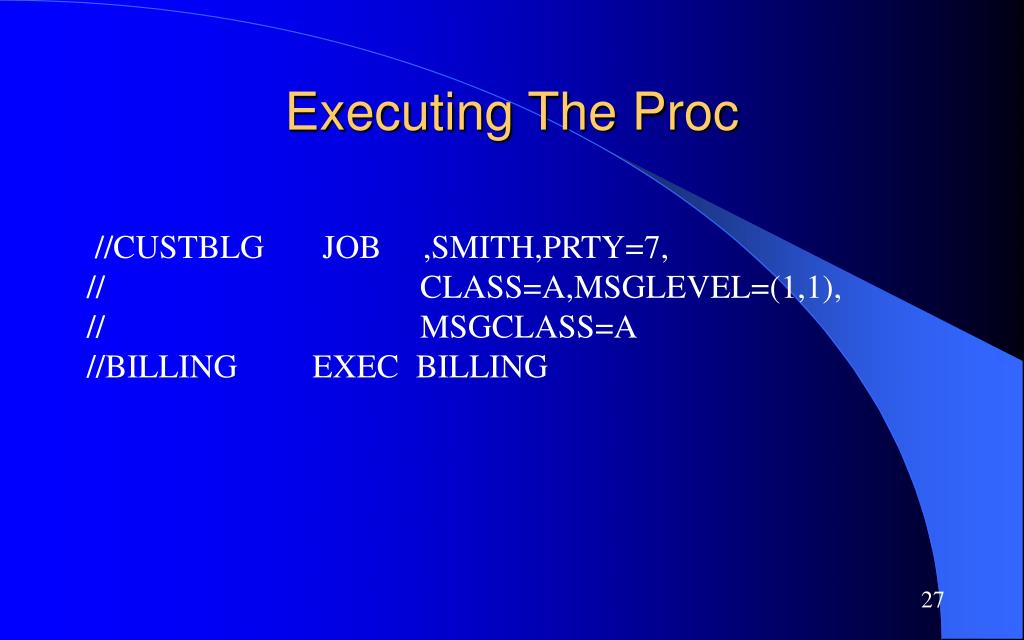

  27. Executing The Proc //CUSTBLG JOB ,SMITH,PRTY=7, // CLASS=A,MSGLEVEL=(1,1), // MSGCLASS=A //BILLING EXEC BILLING 27

  28. JCL On SYSOUT Listing 28

  29. //CUSTBLG JOB ,SMITH,PRTY=7,CLASS=A, // MSGLEVEL=(1,1),MSGCLASS=A //BILLING EXEC BILLING XXCALCBLG EXEC PGM=CALCBLG,TIME=2, XX PARM=‘CYCLE1,UPDATE’ XXSTEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB XXSYSUDUMP DD SYSOUT=A XXINMASTER DD DISP=(OLD,KEEP,KEEP), XX DSN=BILLING.MASTER XXPAYCHGS DD DISP=(OLD,DELETE,KEEP), XX DSN=BILLING.CHANGES, XX UNIT=DISK29

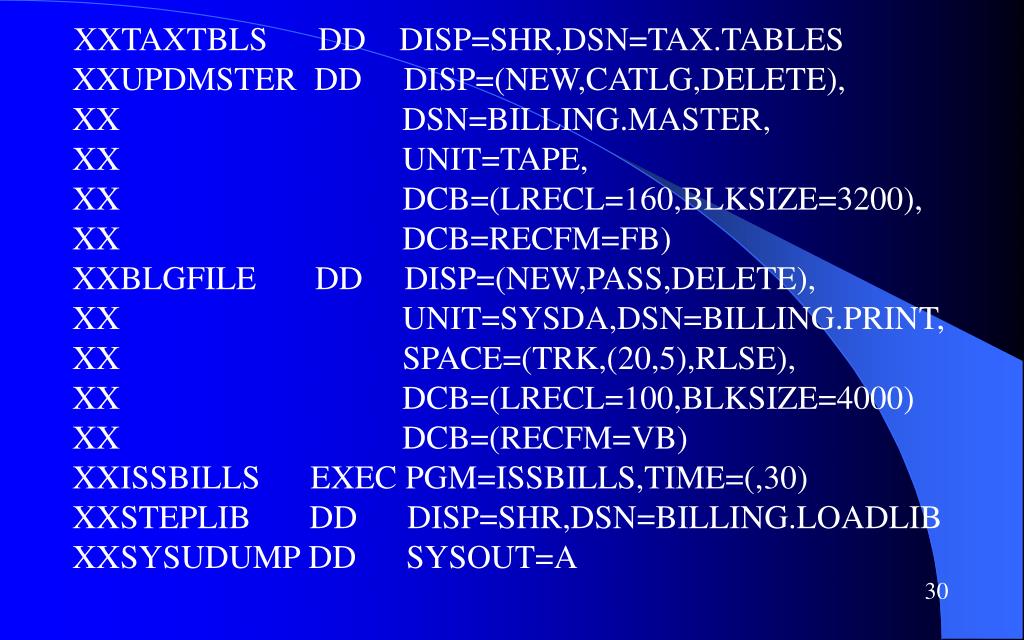

  30. XXTAXTBLS DD DISP=SHR,DSN=TAX.TABLES XXUPDMSTER DD DISP=(NEW,CATLG,DELETE), XX DSN=BILLING.MASTER, XX UNIT=TAPE, XX DCB=(LRECL=160,BLKSIZE=3200), XX DCB=RECFM=FB) XXBLGFILE DD DISP=(NEW,PASS,DELETE), XX UNIT=SYSDA,DSN=BILLING.PRINT, XX SPACE=(TRK,(20,5),RLSE), XX DCB=(LRECL=100,BLKSIZE=4000) XX DCB=(RECFM=VB) XXISSBILLS EXEC PGM=ISSBILLS,TIME=(,30) XXSTEPLIB DD DISP=SHR,DSN=BILLING.LOADLIB XXSYSUDUMP DD SYSOUT=A30
