  1. Reference: PRO/SPT/PPR/002-NP/SH Date: 01/12/00 Issue 1 Author: N.Pickering / S.Holland Progress Update Group members • Nick Pickering • Duncan McCaslin • Jonathon Brummitt • Mike Lee • Steve Holland • Phil Artley

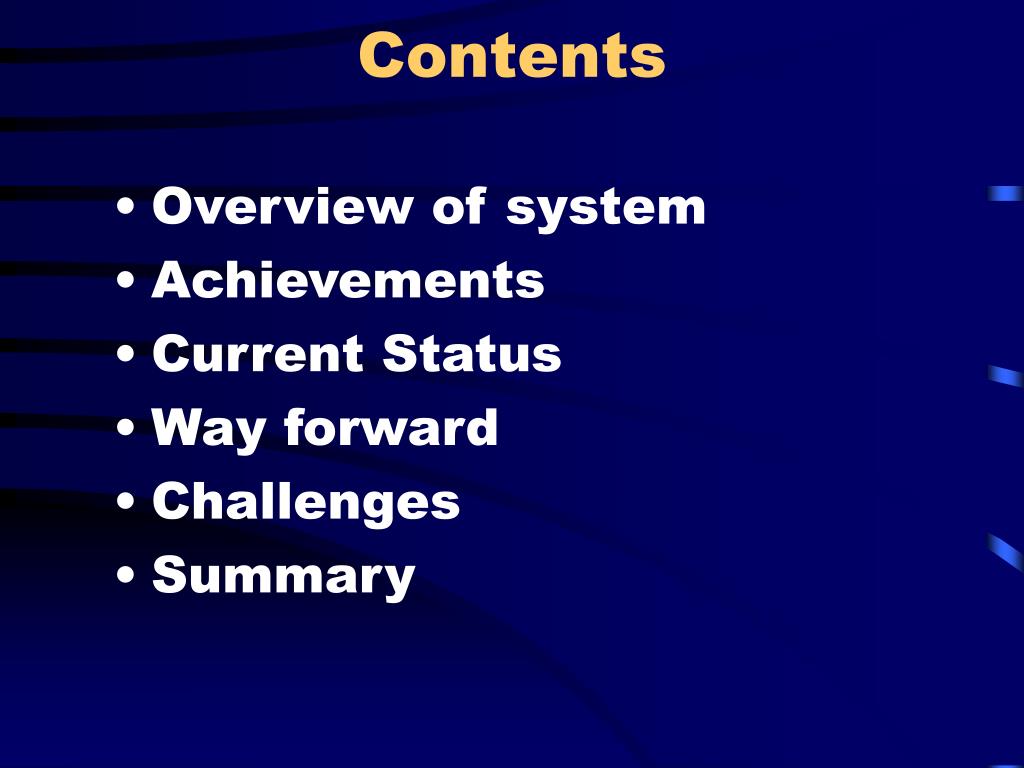

  2. Contents • Overview of system • Achievements • Current Status • Way forward • Challenges • Summary

  3. Overview of System

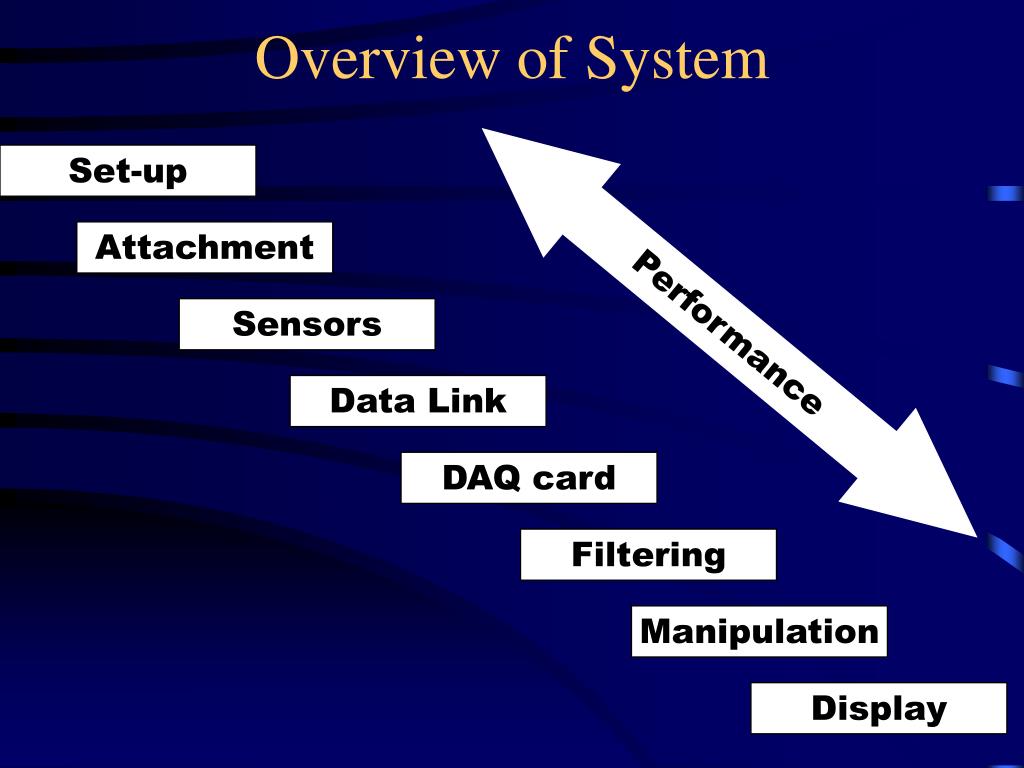

  4. Overview of System Set-up Attachment Performance Sensors Data Link DAQ card Filtering Manipulation Display

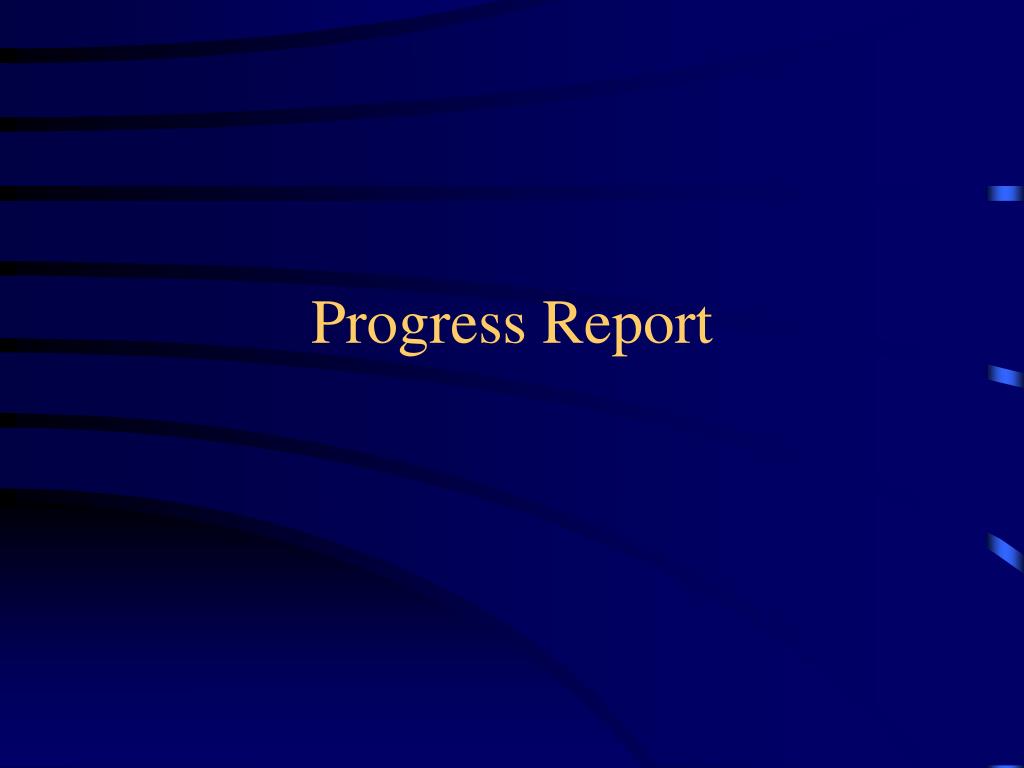

  5. Progress Report

  6. Achievements • Systems Process established • Support • webpage • Research into field of Human Science • Science Report • System Level Specifications • PC, DAQ Card, Use of Labview, sensors • Purchased equipment • 1st prototype of labview

  7. Current Status of WIP • Labview manipulating data from sensors and displaying wire frame. • Sensors • Decided on use of potentiometers • Specific potentiometer not chosen (prototyping between digital & analogue) • Attachment method not decided.

  8. Way forward • Attachment investigation (following on from science report). • Prototype of multiple sensors (Wk 5) • Labview • User interface • Set-up programme (BIT) • Connectors • Sensors to DAQ card interface

  9. Challenges • Attachment of sensors • Suitable user interface • Timescale - Outline design slip. • Animation • Labview not being good enough • Cost of animation packages • Unplanned effort required to utilise animation package

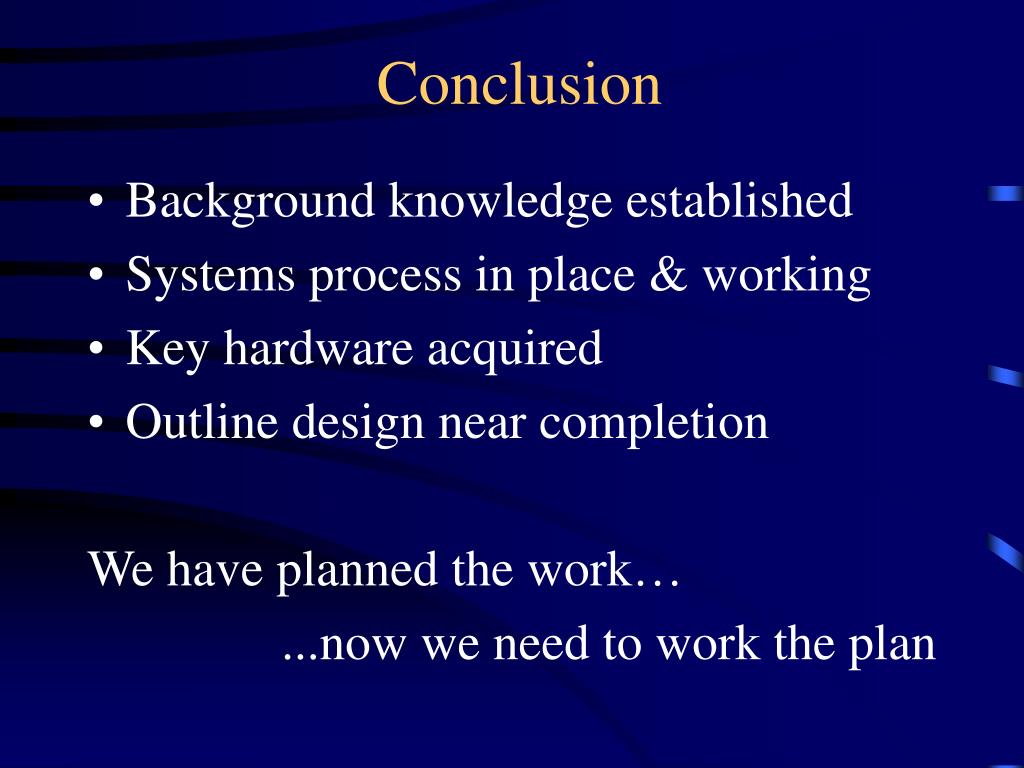

  10. Conclusion • Background knowledge established • Systems process in place & working • Key hardware acquired • Outline design near completion We have planned the work… ...now we need to work the plan

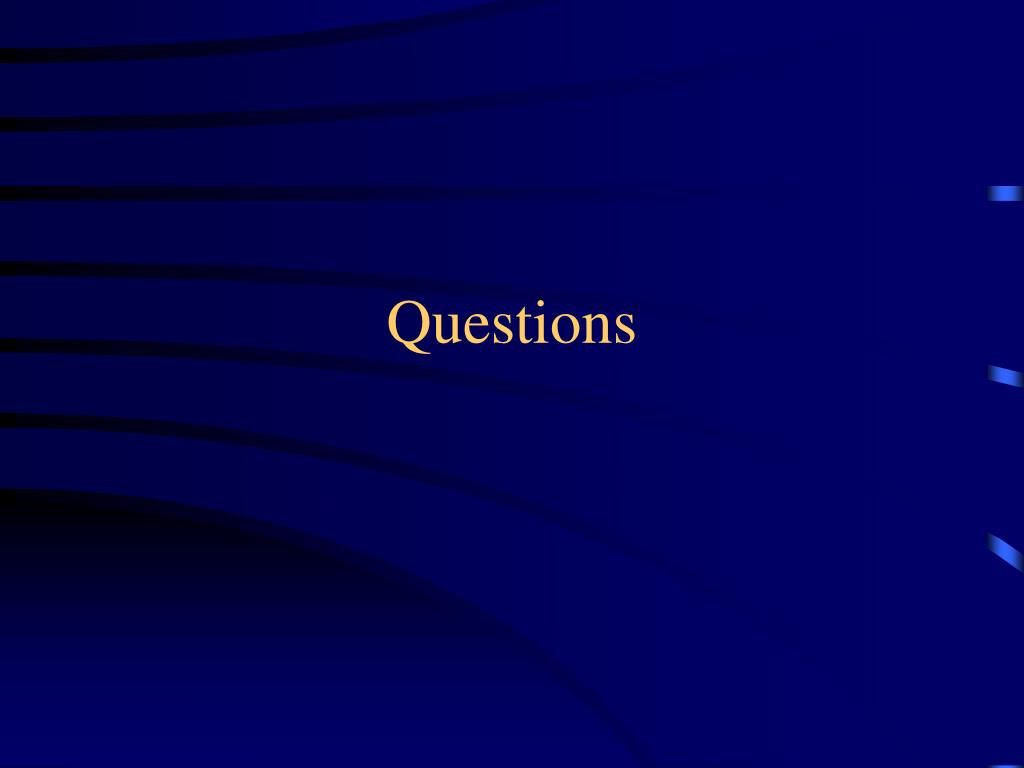

  11. Questions

  12. Outline Design • Built in test • Input limb lengths Set-up • Frame • Support Attachment • Wire wound rotary potentiometer • Support Sensors • Standard wiring • Junction box Data Link DAQ card • Possibly not required? Filtering Manipulation Display

  13. Systems Process Customer Req Customer Acceptance Customer Trials Systems Req Systems Testing Baseline SDR Outline Design Verification Design Decisions Syst. Integration Design Decisions Design Decision S/S Integration Design Decisions S/S Integration Syst. Integration Req. Capture Subsystems Req Subsystems Testing Detailed Design Baseline Verification PDR Req. Capture Building block Req Building block Testing Baseline Verification CDR Manufacture
