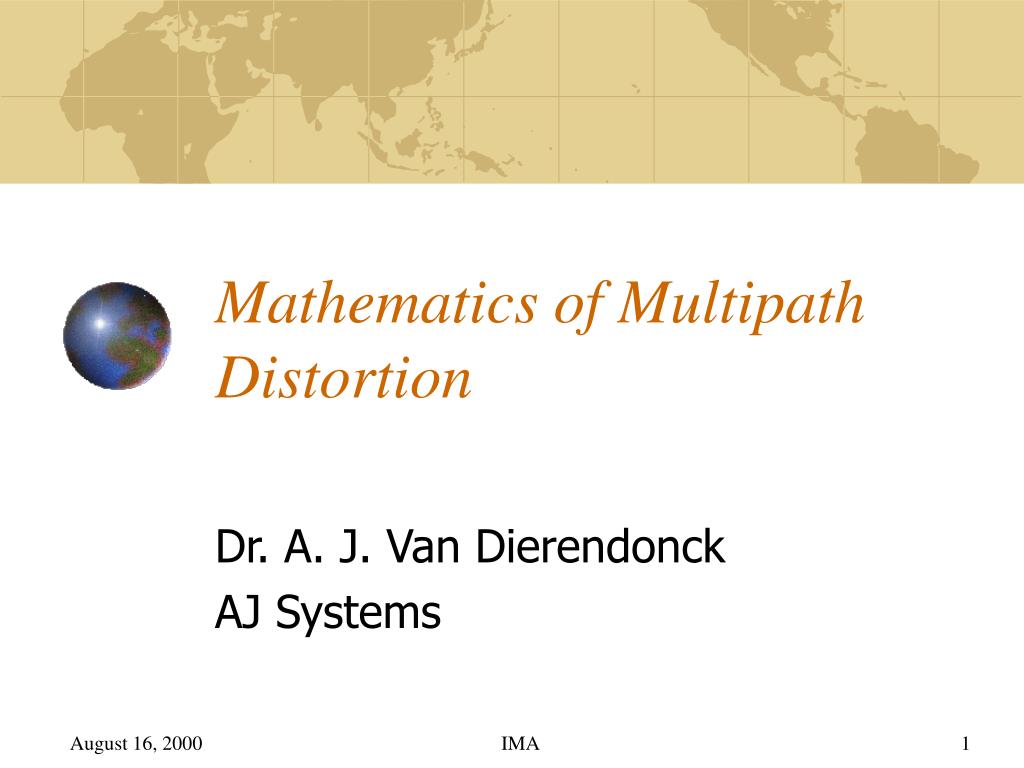

  1. Mathematics of Multipath Distortion Dr. A. J. Van Dierendonck AJ Systems IMA

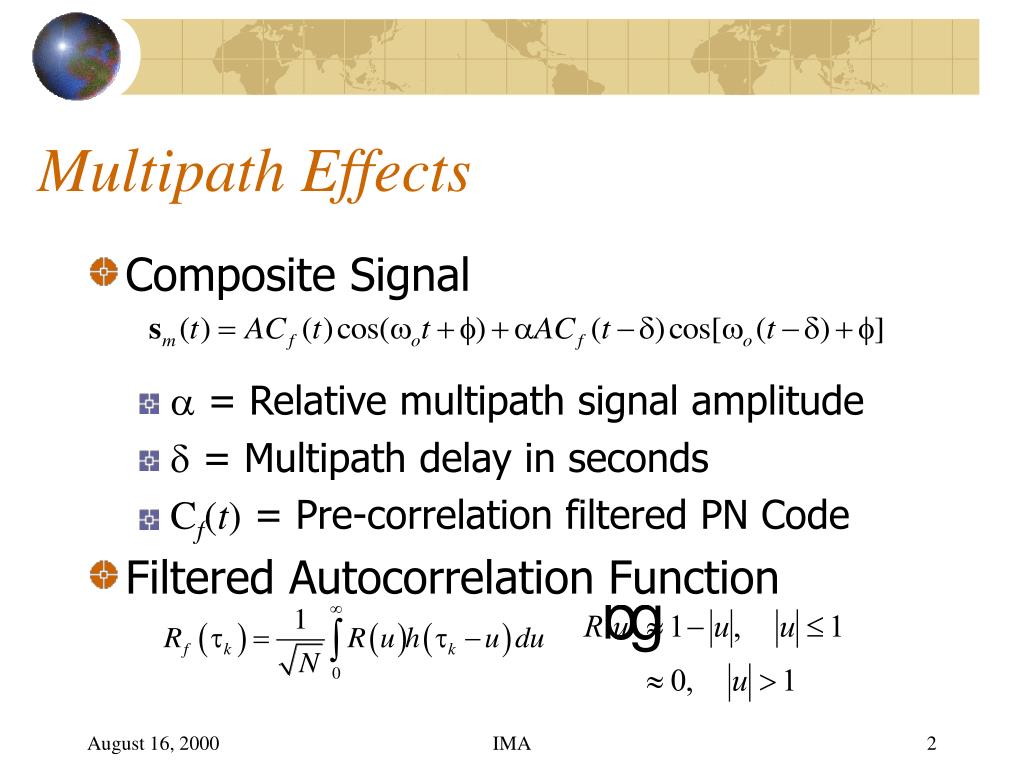

  2. Multipath Effects • Composite Signal • a = Relative multipath signal amplitude • d = Multipath delay in seconds • Cf(t) = Pre-correlation filtered PN Code • Filtered Autocorrelation Function IMA

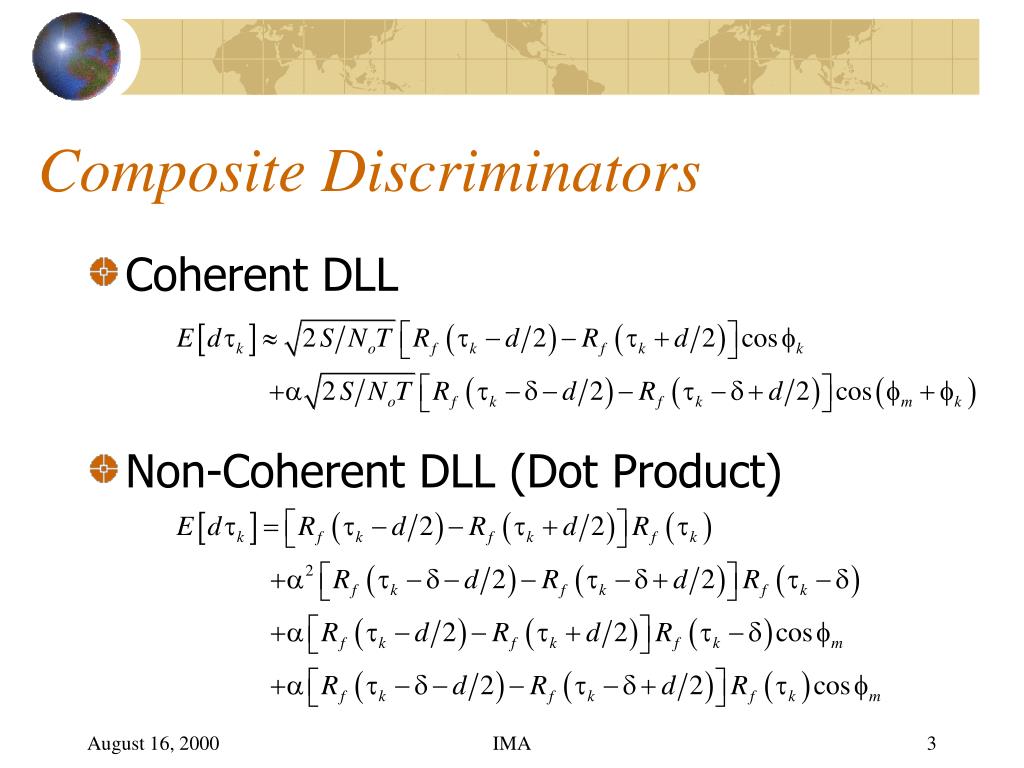

  3. Composite Discriminators • Coherent DLL • Non-Coherent DLL (Dot Product) IMA

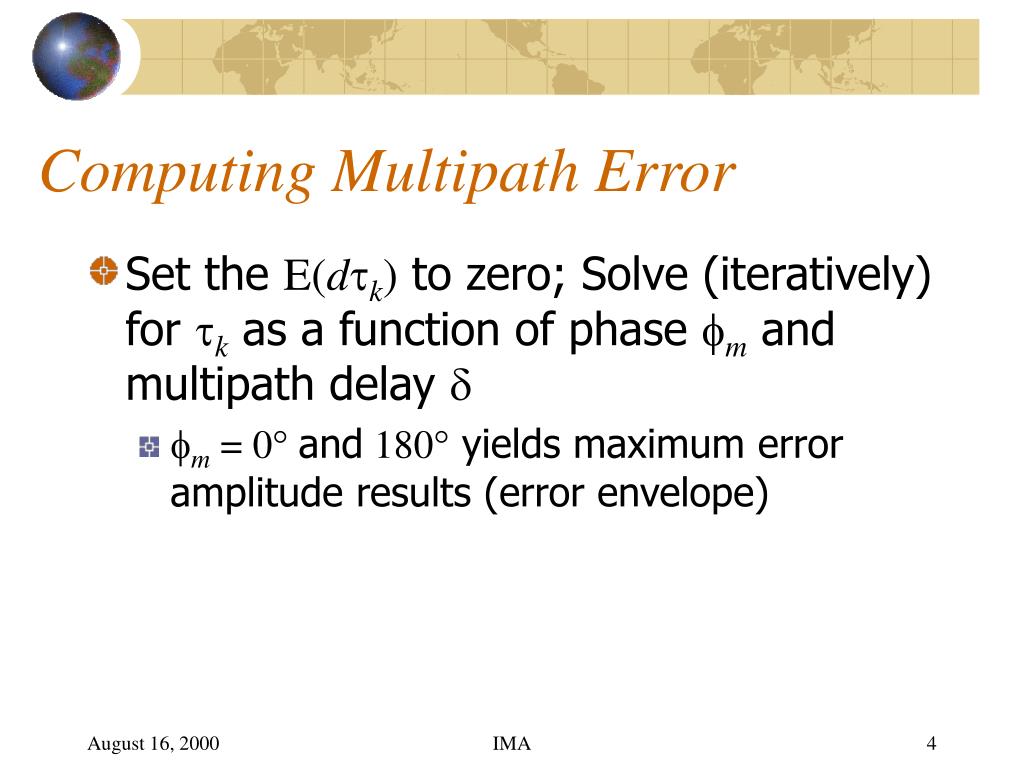

  4. Computing Multipath Error • Set the E(dtk) to zero; Solve (iteratively) for tk as a function of phase fm and multipath delay d • fm = 0°and 180° yields maximum error amplitude results (error envelope) IMA

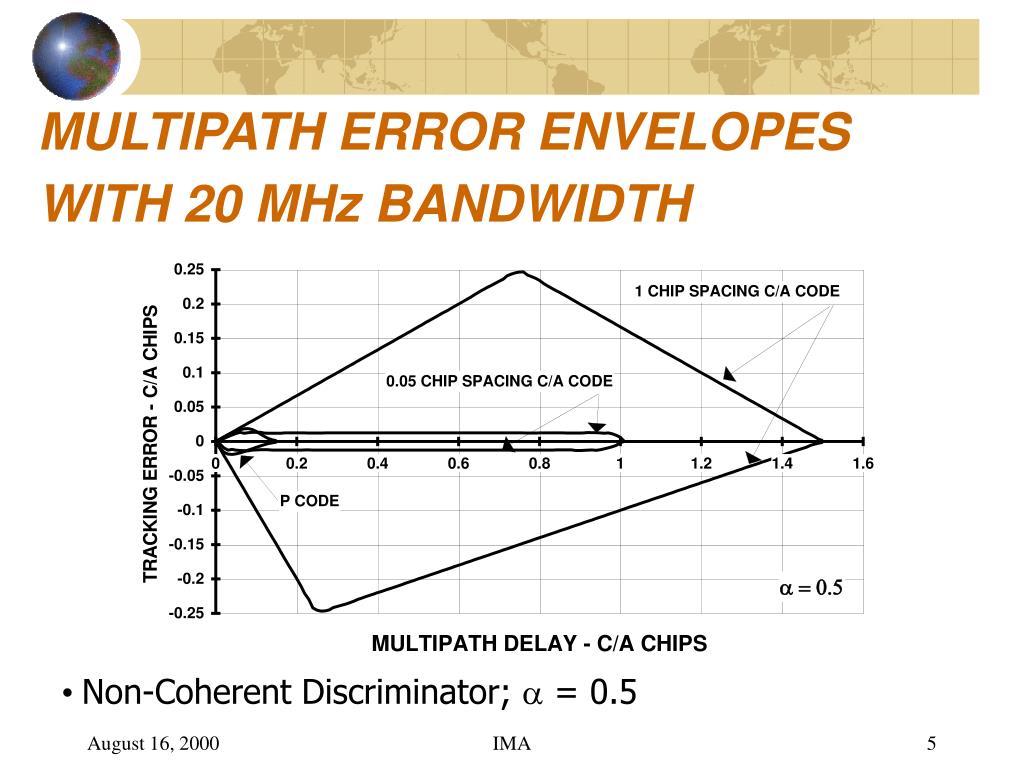

  5. MULTIPATH ERROR ENVELOPES WITH 20 MHz BANDWIDTH • Non-Coherent Discriminator; a = 0.5 IMA

  6. MULTIPATH ERROR ENVELOPES WITH NARROWER BANDWIDTHS • Non-Coherent Discriminator; a = 0.5 IMA
