  1. WCL301 The Case of the Unexplained… Mark Russinovich Technical Fellow Windows Azure

  2. Outline • Introduction • Sluggish Performance • Error Messages • Blue Screens

  3. Case of the Unexplained… • This is the 2012 version of the “case of the unexplained” talk series • Previous versions covered different cases • Can view webcast on Sysinternals->Mark’s webcasts • Based on real case studies • Some of these have been written up on my blog

  4. Troubleshooting • Most applications do a poor job of reporting unexpected errors • Locked, missing or corrupt files • Missing or corrupt registry data • Permissions problems • Errors manifest in several different ways • Misleading error messages • Crashes or hangs

  5. Purpose of Talk • Show you how to solve these classes of problems by peering beneath the surface • Interpreting process, file and registry activity • Interpreting call stacks • You’ll learn tools and techniques to help you solve seemingly unsolvable problems

  6. Tools We’ll Use • Sysinternals: www.microsoft.com/technet/sysinternals (\\redmond\files\SYSINTERNALS\LBI\Latest) • Process Explorer – process/thread viewer • Process Monitor – file/registry/process/thread tracing • Procdump – process memory dumper • Autoruns – displays all autostart locations • SigCheck – shows file version information • PsExec – execute processes remotely or in the system account • TcpView – shows TCP/IP endpoints • Strings – dumps printable strings in any file • Zoomit – presentation tool I’m using • Microsoft downloads: • Debugging Tools for Windows: Windbg application and kernel debugger: www.microsoft.com/whdc/devtools/debugging (//dbg)

  7. The Sysinternals Administrator’s Reference • The official guide to the Sysinternals tools • Covers every tool, every feature, with tips • Written by markruss and aaronmar • Available in June • Full chapters on the major tools: • Process Explorer • Process Monitor • Autoruns • Other chapters by tool group • Security, process, AD, desktop, …

  8. Outline • Application Hangs • Sluggish Performance • Error Messages • Blue Screens

  9. Process Monitor • Process Monitor is a real-time file, registry, process and thread monitor • Works on Windows XP and higher, including 64-bit Windows • It replaces Filemon and Regmon, but you can use Filemon and Regmon on older operating systems • Enhancements over Filemon/Regmon include: • More advanced filtering • Operation call stacks • Boot-time logging • Data mining views • Process tree to see short-lived processes • When in doubt, run Process Monitor! • It will often show you the cause for error messages • It many times tells you what is causing sluggish performance

  10. Process Monitor Enhancements: Bookmarks • Bookmarking enables you to save markers in the trace: • Use F6 to find the next one, Shift+F6 to search up

  11. Process Monitor Enhancements: Environment Variables and Current Directory • Process start event now captures new process environment variables and current directory:

  12. The Case of the Slow IE Download Bar • User experienced 40 second delay for IE’s download bar to appear after clicking on a download link • Ran IE with no addons: no change in behavior • Captured a Process Monitor trace of hang

  13. The Case of the Slow IE Download Bar(Cont) • Used Count Occurrences dialog to look for errors • Saw BAD NETWORK PATH: • Error were references to offline media center system:

  14. The Case of the Slow IE Download Bar: Solved • Saw references to media center in download manager because of previous downloads: • Deleted references in download manager: problem solved

  15. The Case of the Hanging Paypal Emails • User started getting Outlook hangs of up to a minute when clicking on Paypal payment notification emails • Captured a Process Monitor trace • Added Duration column: • One event stood out with 3 second duration • Query of file share via IP address

  16. The Case of the Hanging Paypal Emails (Cont) • Web search revealed IP address belongs to Web statistics company Omniture • But no IP address visible in email and image download disabled:

  17. The Case of the Hanging PaypalEmails: Solved • Looked at email source code and found domain name: • Outlook interprets reference as file server • Contacted Microsoft: not a security issue • Contacted Paypal: fixed email formats • In the meantime, added hosts file entry: problem solved

  18. Outline • Application Hangs • Sluggish Performance • Error Messages • Blue Screens

  19. Process Explorer • Process Explorer is a Task Manager replacement • You can literally replace Task Manager with Options->Replace Task Manager • Hide-when-minimized to always have it handy • Hover the mouse to see a tooltip showing the process consuming the most CPU • Open System Information graph to see CPU usage history • Graphs are time stamped with hover showing biggest consumer at point in time • Also includes other activity such as I/O, kernel memory limits

  20. Process Explorer v15: GPU Monitoring and Windows 8 • Captures GPU utilization and memory usage • System-wide • Per-Process

  21. Process Explorer v15.2 • Process timelines • Autostart locations

  22. The Case of the Runaway Website • For years, Jrun.exe process on web server would sporadically max out a core: • Administrator saw Case of the Unexplained and decided to investigate

  23. Processes and Threads • A process represents an instance of a running program • Address space • Resources (e.g., open handles) • Security profile (token) • A thread is an execution context within a process • Unit of scheduling (threads run, processes don’t run) • All threads in a process share the same per-process address space • The System process is the default home for kernel mode system threads • Functions in OS and some drivers that need to run as real threads • E.g., need to run concurrently with other system activity, wait on timers, perform background “housekeeping” work • Other host processes: svchost, Iexplore, mmc, dllhost

  24. Viewing Threads • Task Manager doesn’t show thread details within a process • Process Explorer does on “Threads” tab • Displays thread details such as ID, CPU usage, start time, state, priority • Start address is where the thread began running (not where it is now) • Click Module to get details on module containing thread start address

  25. Thread Start Functions and Symbol Information • Process Explorer can map the addresses within a module to the names of functions • This can help identify which component within a process is responsible for CPU usage • Configure Process Explorer’s symbol engine: • Download the latest Debugging Tools for Windows from Microsoft (free) • Use dbghelp.dll from the Debugging Tools • Point at the Microsoft public symbol server (or internal symbol server if you have access)

  26. The Case of the Runaway Website (Cont) • Thread start address didn’t reveal anything:

  27. Viewing Call Stacks • Click Stack on the Threads tab to view a thread’s call stack • Note that start address on Threads tab is different than first function shown in stack • This is because all threads created by Windows programs start in a library function in Kernel32.dll which calls the programmed start address

  28. The Case of the Runaway Website (Cont) • Looked at stack and saw Cold Fusion DLL, Cfxneo.dll • No obvious reason for CPU usage • Web search didn’t turn up anything

  29. The Case of the Runaway Website (Cont) • Ran Process Monitor and saw lots of enumeration of a particular key: • Opened key in Regedit: Regedit hung

  30. The Case of the Runaway Website: Solved • Expansion finished after 10 minutes: tens of thousands of subkeys • Searched in ColdFusion documentation and found that key stores browser client state • Option to use Cookies instead • Made configuration change: Problem solved

  31. Outline • Application Hangs • Sluggish Performance • Error Messages • Blue Screens

  32. The Case of the Locked Folder • Company’s users complained of locked folders on their common network share: • Retrying would usually work

  33. The Case of the Locked Folder: Solved • Admin used Process Explorer search and saw that thumbs.db file was in use by Explorer: • Did research and learned that if thumbs.db is present, Explorer would open it • Not clear why it was not closing it in a timely manner • Found group policy that disabled this behavior: • Applied policy: problem solved

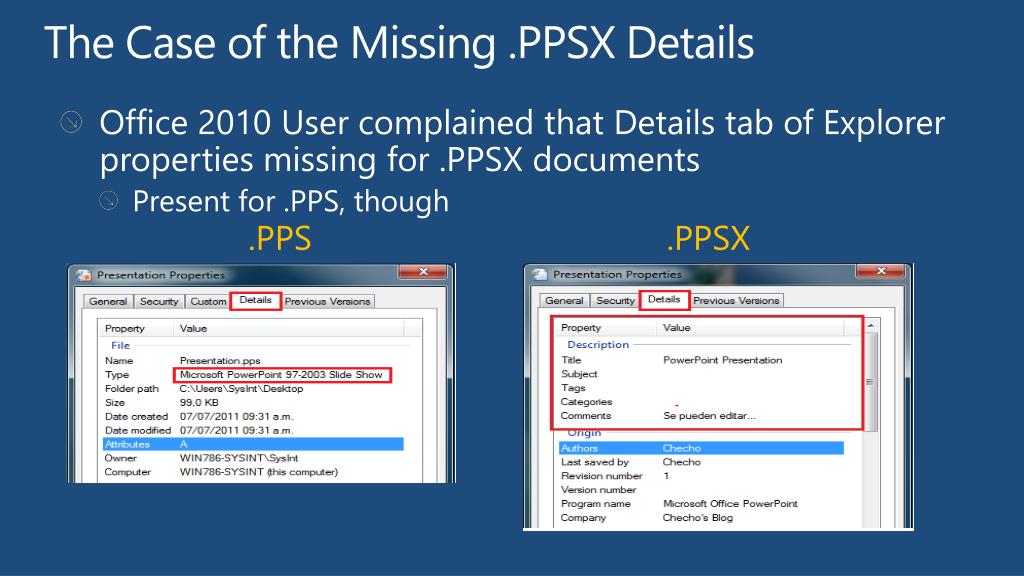

  34. The Case of the Missing .PPSX Details • Office 2010 User complained that Details tab of Explorer properties missing for .PPSX documents • Present for .PPS, though .PPS .PPSX

  35. The Case of the Missing .PPSX Details (Cont) • Captured Process Monitor trace opening Explorer properties of both file types • Compared side by side • .PPSX trace had references to SystemFileAssociations\.ppsx • Corresponding key in .PPS trace missing

  36. The Case of the Missing .PPSX Details: Solved • Created key and imported settings for .PPS key • Now could see details, but notedit them • Compared further and found reference to HKCR\.pps missing • Repeated export/import • Problem solved No Edit Fixed

  37. Outline • Application Hangs • Sluggish Performance • Error Messages • Blue Screens

  38. Blue Screen Crashes • Windows has various components that run in Kernel Mode, the highest privilege mode of the OS • OS components: Ntoskrnl.exe, Hal.dll • Drivers: Ntfs.sys, Tcpip.sys, device drivers • Kernel-mode components are privileged extensions to the OS have to adhere to various rules • Not accessing invalid memory • Accessing memory at the right “Interrupt Request Level” • Not causing resource deadlocks • When a kernel-mode component performs an illegal operation, Windows crashes (blue screens) • Crashing helps preserve the integrity of user data • A resource deadlock can hang the system

  39. Online Crash Analysis • When you reboot after a crash, Windows offers to upload it to Microsoft Online Crash Analysis (OCA) • Automated server generates a thumbprint of the crash and uses it as a key in a database • If the database has an entry, the user is told the cause and directed at a fix

  40. Basic Crash Dump Analysis • Many times OCA doesn’t know the cause: • Basic crash dump analysis is easy and it might tell you the cause • Requires Windbg and symbol configuration • Dump files are in either: • \Windows\Memory.dmp: Vista+ and servers • \Windows\Minidump: Windows 2000 Pro, Windows XP, Vista+

  41. The Case of the Crashing Hyper-V Systems • Hyper-v cluster started having random crashes • Saw Case of the Unexplained so opened minidump • Executed !analyze –v:

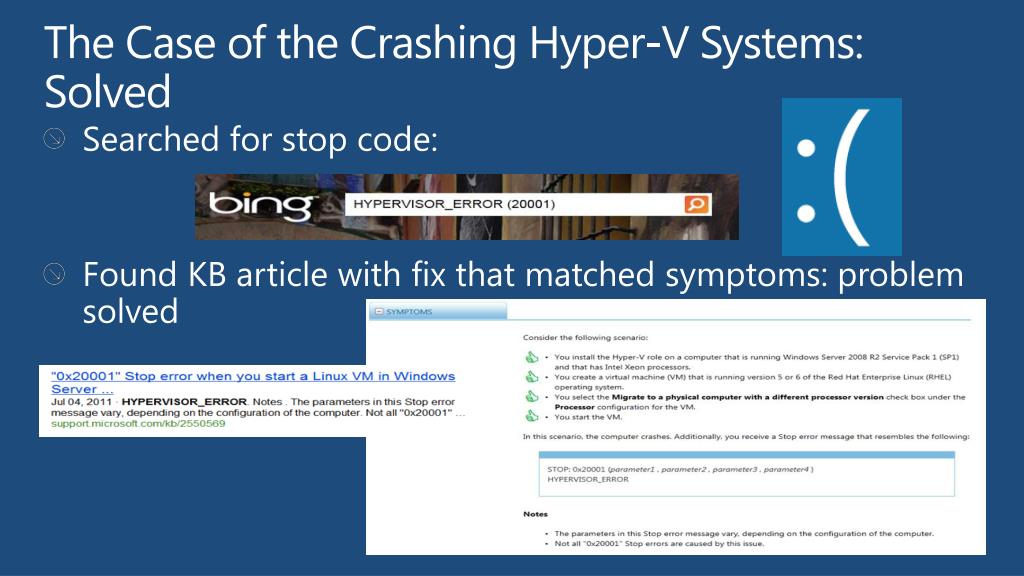

  42. The Case of the Crashing Hyper-V Systems: Solved • Searched for stop code: • Found KB article with fix that matched symptoms: problem solved

  43. The Case of the GFI Backup Crash • Admin updated GFI backup from 2009 to 2011 version • Reproducible system crash (BSOD) when backing up to a network location after ~1 minute • Analyzed crash dump with Windbg:

  44. The Case of the GFI Backup Crash (Cont) • Checked online information on ncfsd.sys • First hits with Googlelink to bogus websites, trying to convince you to run their code in order to “fix“ your “infection“:

  45. The Case of the GFI Backup Crash (Cont) • Second hit reported crash could be result of low disk space: • Freed up 20 Gb of disk space • Time to crash took longer (~3 minutes)

  46. The Case of the GFI Backup Crash: Solved • Another hit pointed at Novell Client driver as the problem: • Disabled Novell service • Problem persisted • Unistalled Novell client because it was not really needed: problem solved

  47. Summary and More Information • A few basic tools and techniques can solve seemingly impossible problems • I learn by always trying to determine the root cause • Resources: • Sysinternals Administrator’s Reference • Webcasts of two previous “Case of the Unexplained “ talked • Sysinternals->Mark’s Webcasts • My blog • Windows Internals: understand the way the OS works • If you’ve solved one, send me a description, screenshots and log files!

  48. Windows 8 Bluescreens
