  1. Optimization to solve Inverted Pendulum problem Zhili Chen

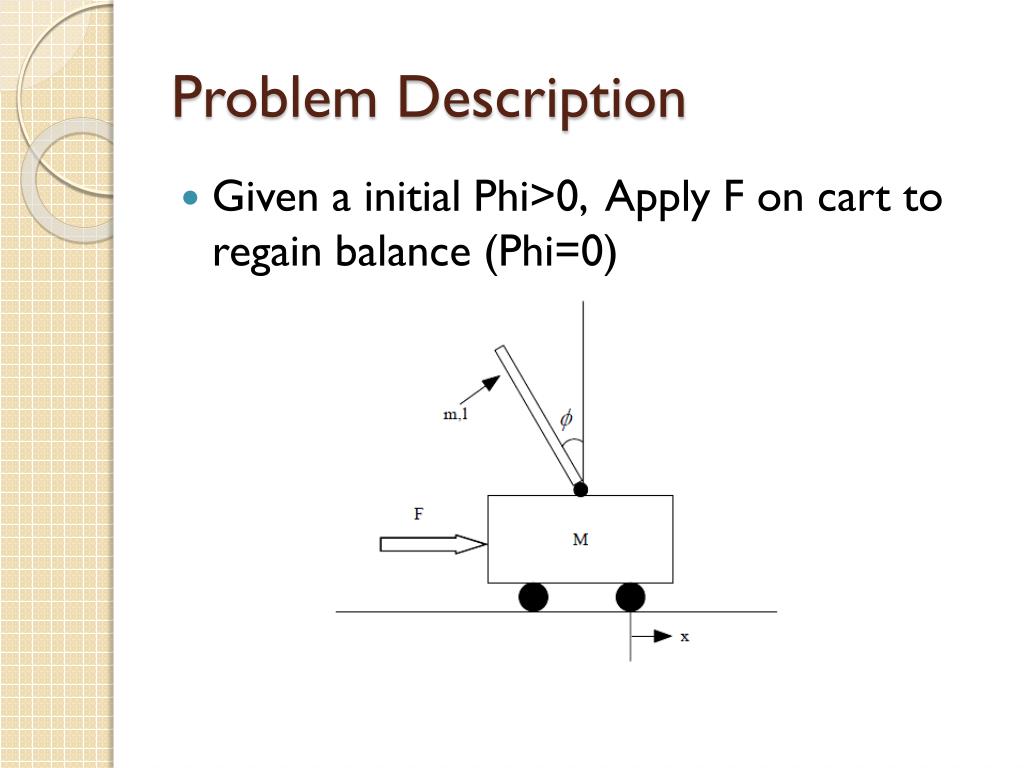

  2. Problem Description • Given a initial Phi>0, Apply F on cart to regain balance (Phi=0)

  3. Problem Description • Performance Evaluation • Minimum time period before balance, or • Minimum cart movement, or • Minimum energy used by force F

  4. Physical Equations Approximate and linearize =>

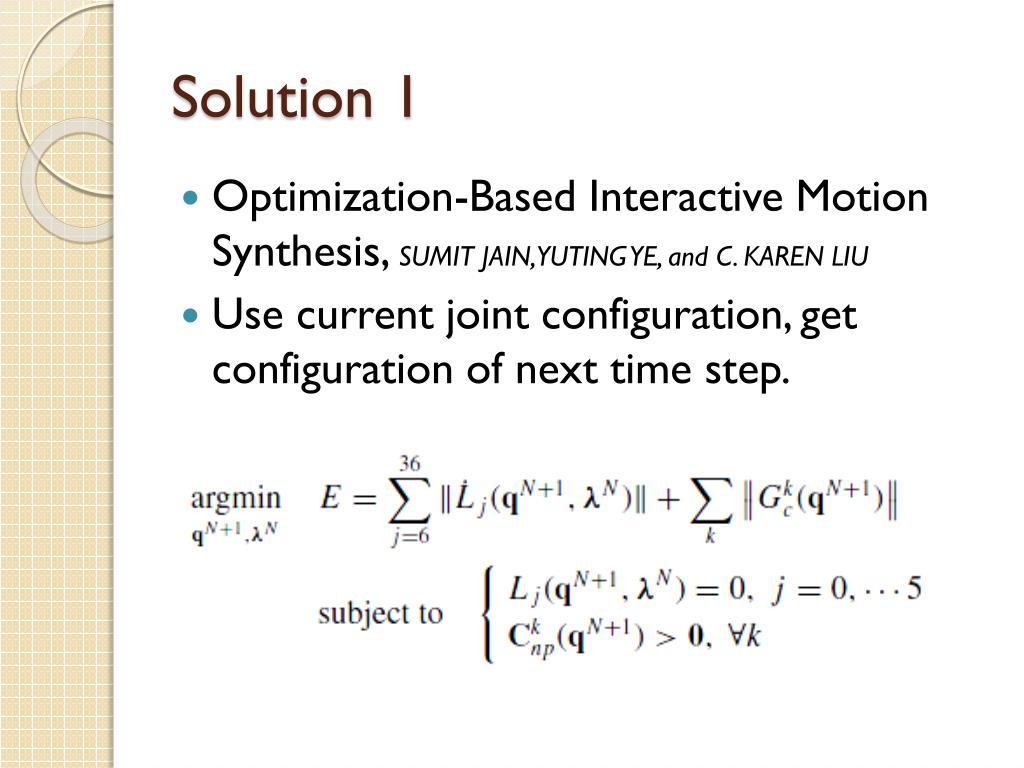

  5. Solution 1 • Optimization-Based Interactive Motion Synthesis, SUMIT JAIN, YUTING YE, and C. KAREN LIU • Use current joint configuration, get configuration of next time step.

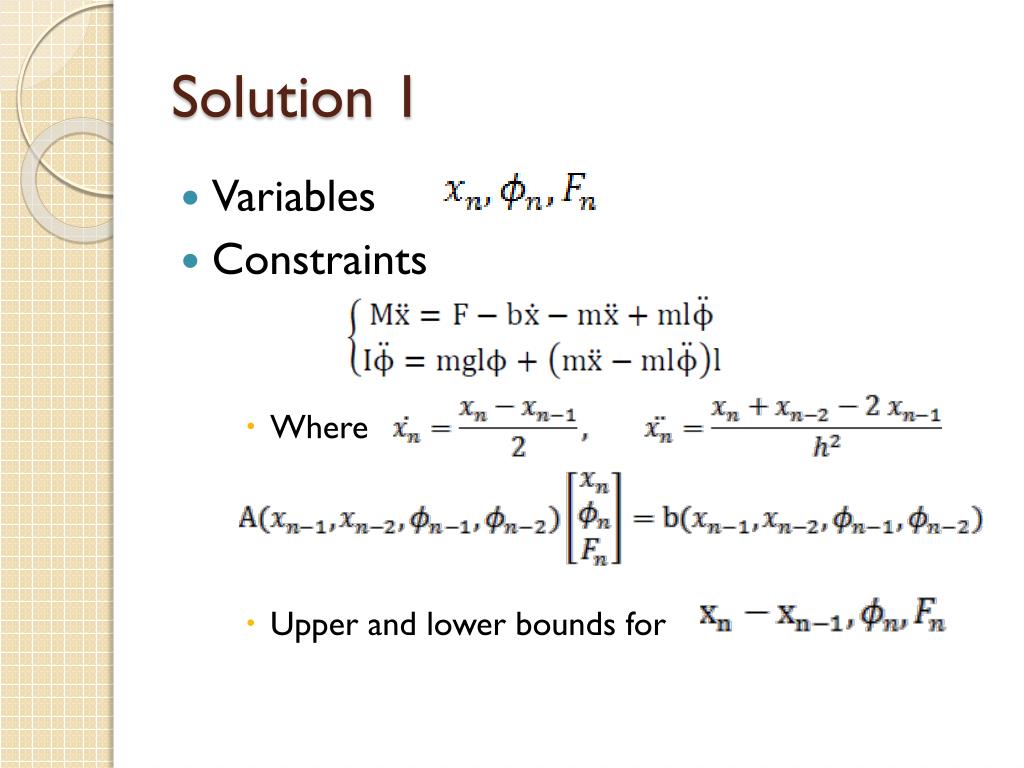

  6. Solution 1 • Variables • Constraints • Where • Upper and lower bounds for

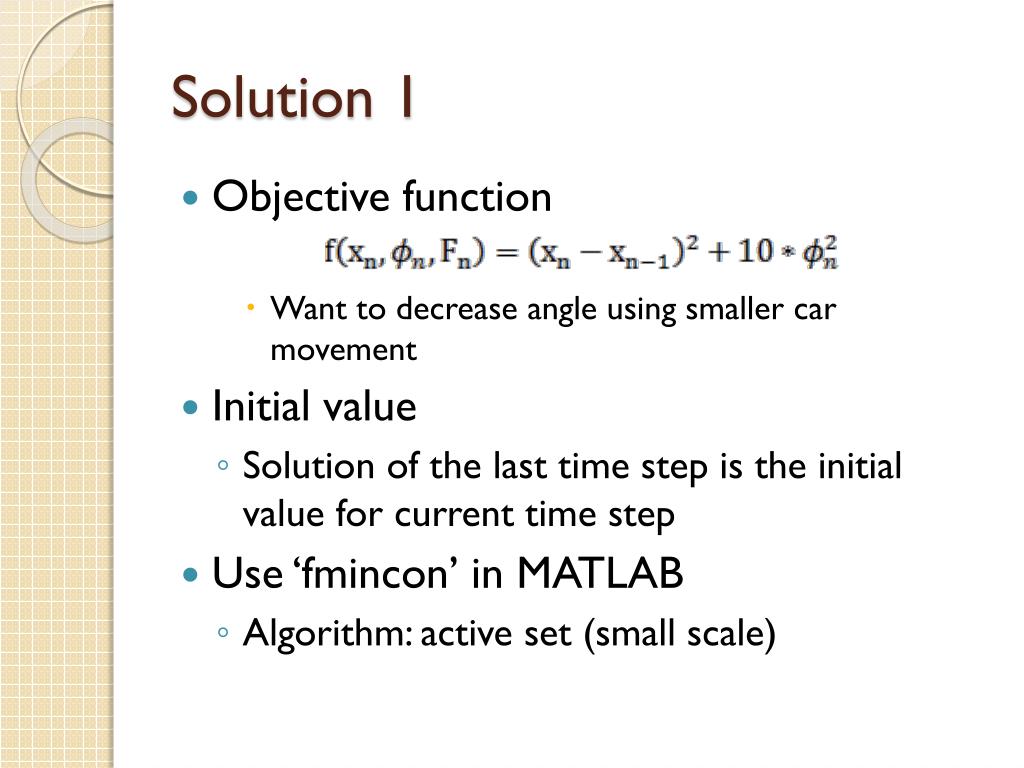

  7. Solution 1 • Objective function • Want to decrease angle using smaller car movement • Initial value • Solution of the last time step is the initial value for current time step • Use ‘fmincon’ in MATLAB • Algorithm: active set (small scale)

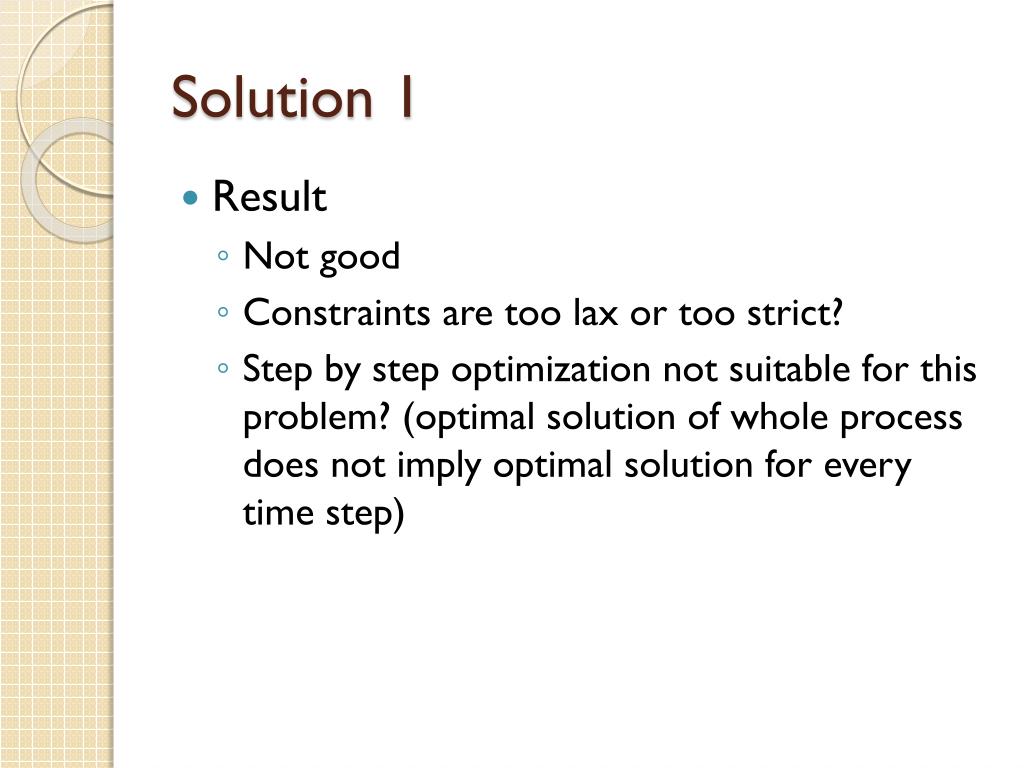

  8. Solution 1 • Result • Not good • Constraints are too lax or too strict? • Step by step optimization not suitable for this problem? (optimal solution of whole process does not imply optimal solution for every time step)

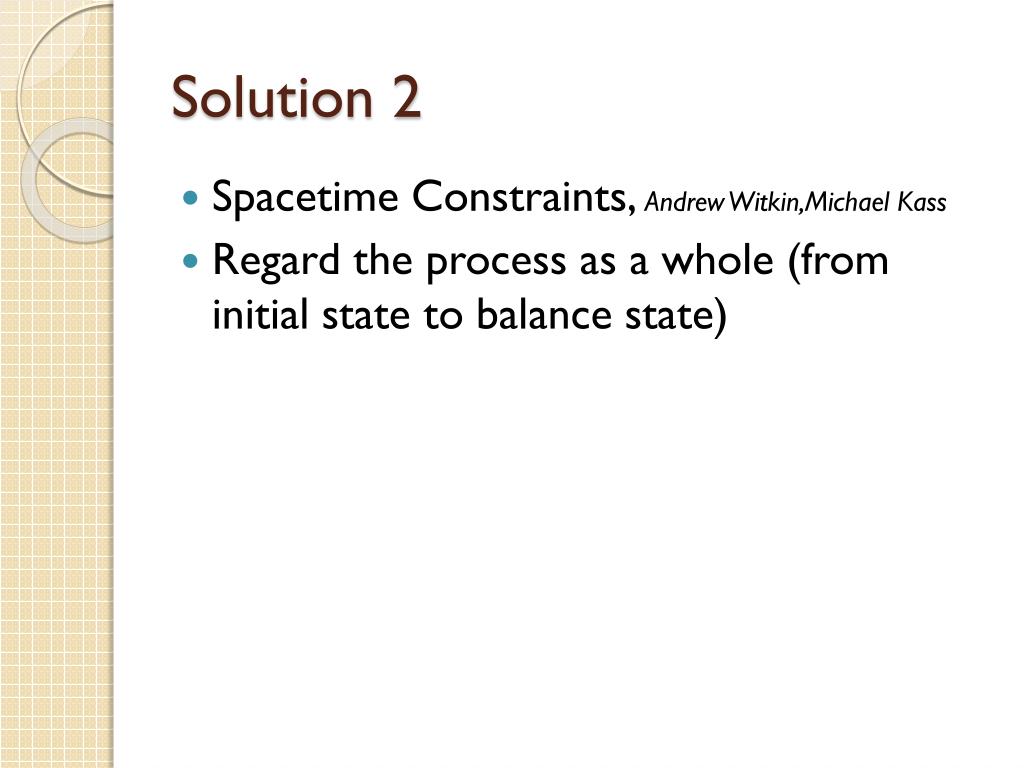

  9. Solution 2 • Spacetime Constraints, Andrew Witkin,MichaelKass • Regard the process as a whole (from initial state to balance state)

  10. Solution 2 • Optimization variable • n = T/h (h, length of timestep) • Constraints • => Ay=b • Upper and lower bounds for

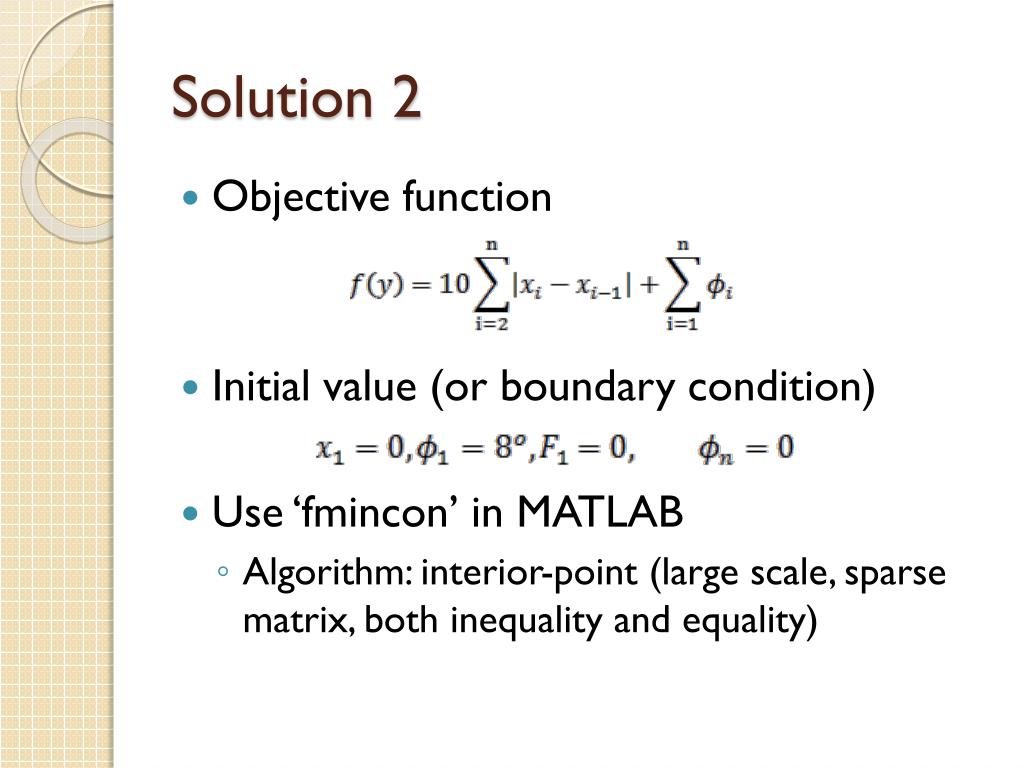

  11. Solution 2 • Objective function • Initial value (or boundary condition) • Use ‘fmincon’ in MATLAB • Algorithm: interior-point (large scale, sparse matrix, both inequality and equality)

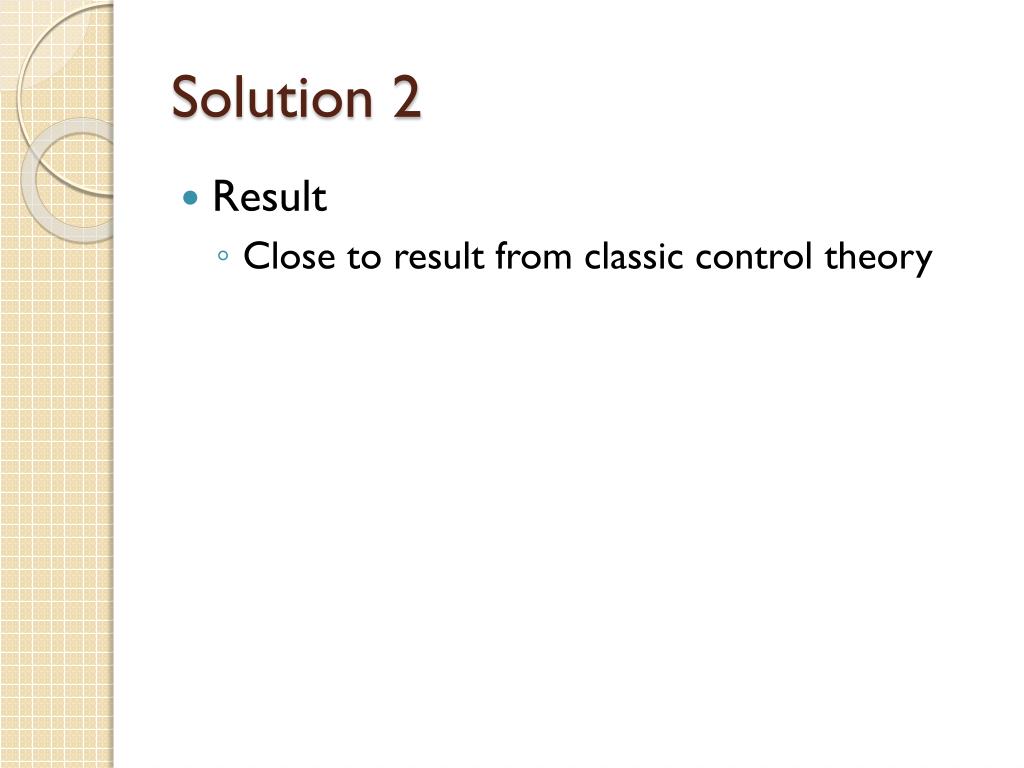

  12. Solution 2 • Result • Close to result from classic control theory

  13. Thanks
