AP Statistics Section 2.1 B

cecil avatar
18 diapositives · 385 Views · Aug 04, 2014

In statistics, analyzing data distributions requires a structured approach. First, plot your data with a graph, typically a histogram or a stemplot. Look for the overall pattern through the CUSS method: shape, center, spread, and outliers. Calculate a numerical summary to describe the center and spread, choosing between mean and standard deviation for symmetrical distributions, or median and IQR for skewed ones. Density curves can provide a smooth model for the distribution, representing observations and their probabilities. Understanding these tools is crucial for effective data analysis.

AP Statistics Section 2.1 B - slide 1
01 / 18AP Statistics Section 2.1 B
1 / 17

Télécharger la présentation

AP Statistics Section 2.1 B
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

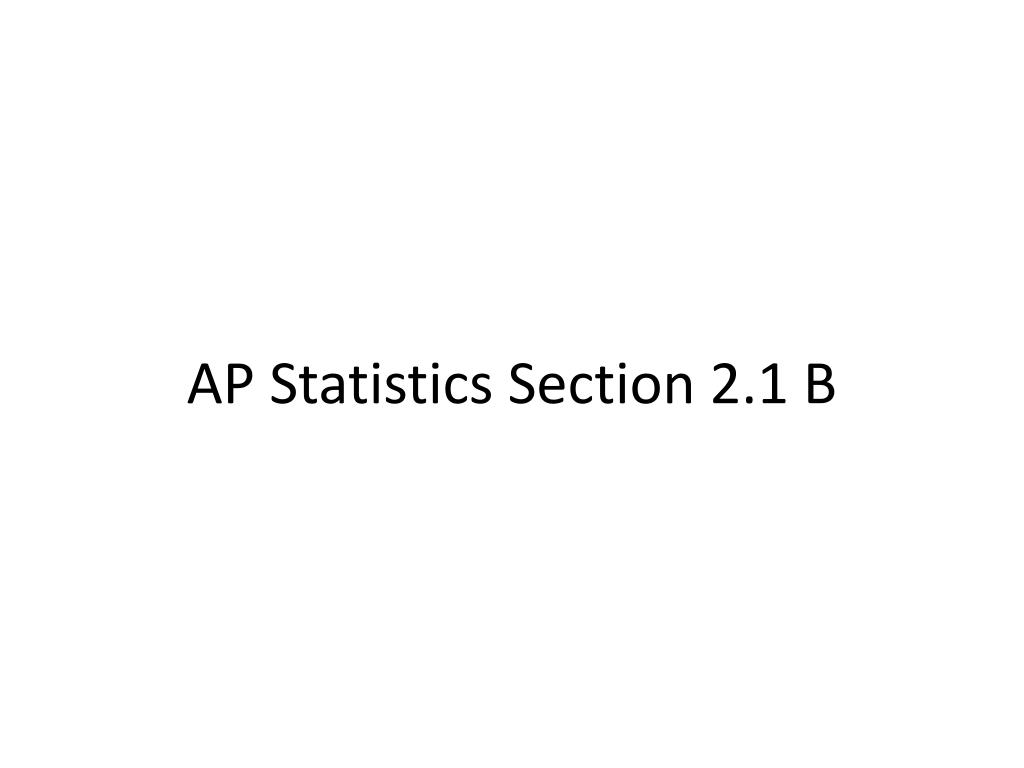

  1. AP Statistics Section 2.1 B

  2. Data Analysis ToolboxWhen describing distributions, always use the following strategies:1. Plot your data: make a graph, usually a __________ or a __________. histogram stemplot

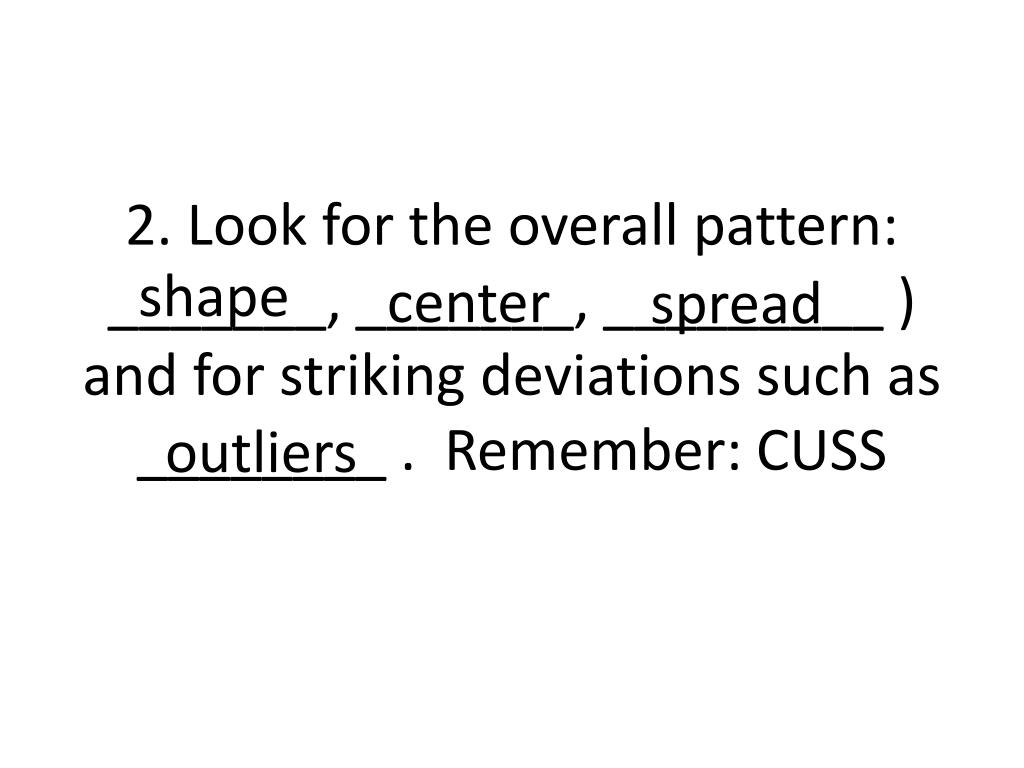

  3. 2. Look for the overall pattern: _______, _______, _________ ) and for striking deviations such as ________ . Remember: CUSS shape center spread outliers

  4. 3. Calculate a numerical summary to describe the _______ and ________.Note: If the distribution is roughly symmetrical use _________________________.If the distribution is skewed use _________________. center spread mean and standard deviation median and IQR

  5. Sometimes, the overall pattern of a large number of observations is so regular that we can describe it using a smooth curve.

  6. Density CurvesConsider the histogram below. We can sketch a smooth curve through the tops of the histogram for a good description of the overall pattern of the data.

  7. The curve is a mathematical model for the distribution. A mathematical model is an _________description. This smooth curve is called a ________ curve. idealized density

  8. A density curve has the following properties:*the curve is always ____ or _______ the horizontal axis, and*the area under curve represents allobservations and equals ___. on above 1

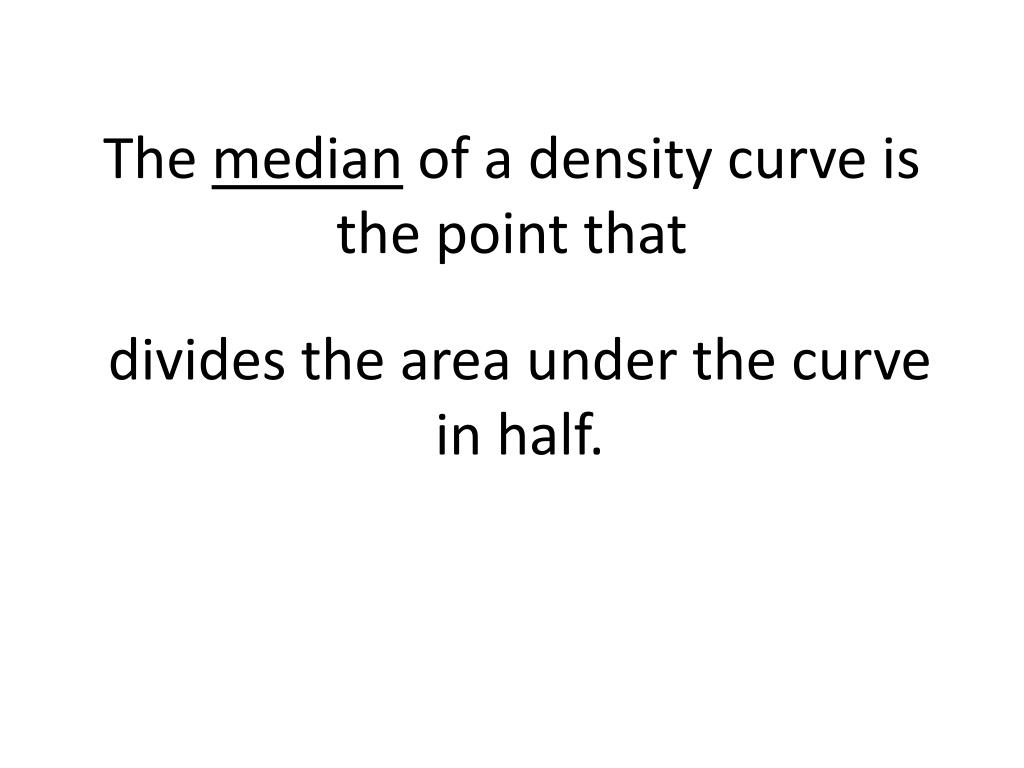

  9. The median of a density curve is the point that divides the area under the curve in half.

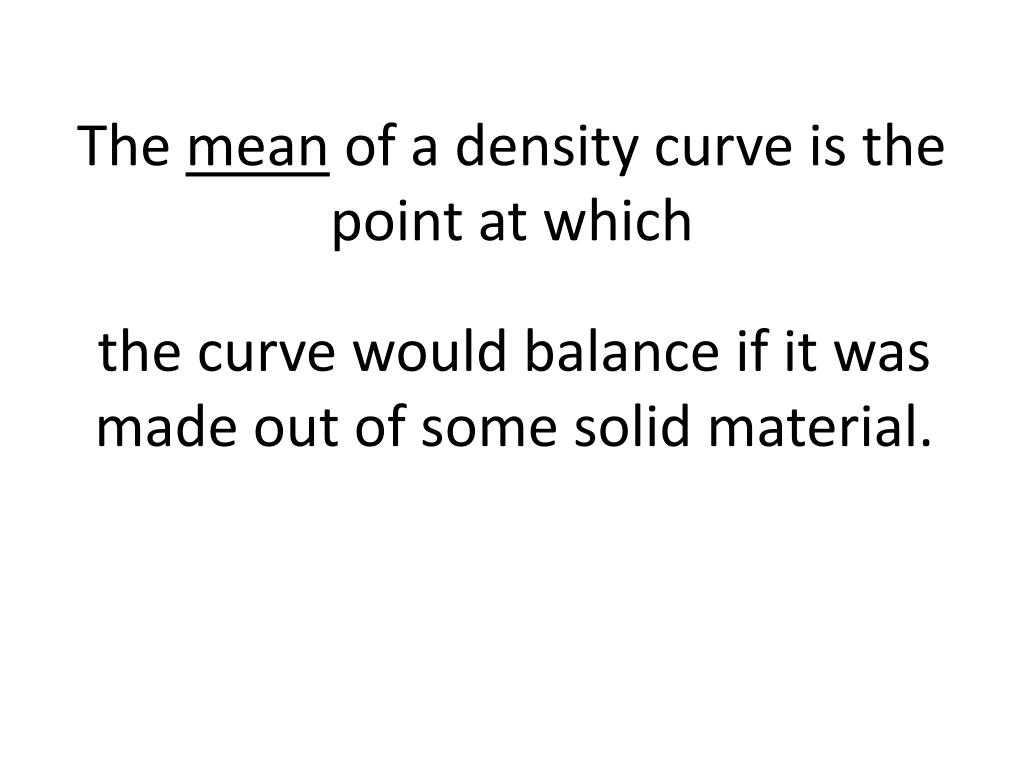

  10. The mean of a density curve is the point at which the curve would balance if it was made out of some solid material.

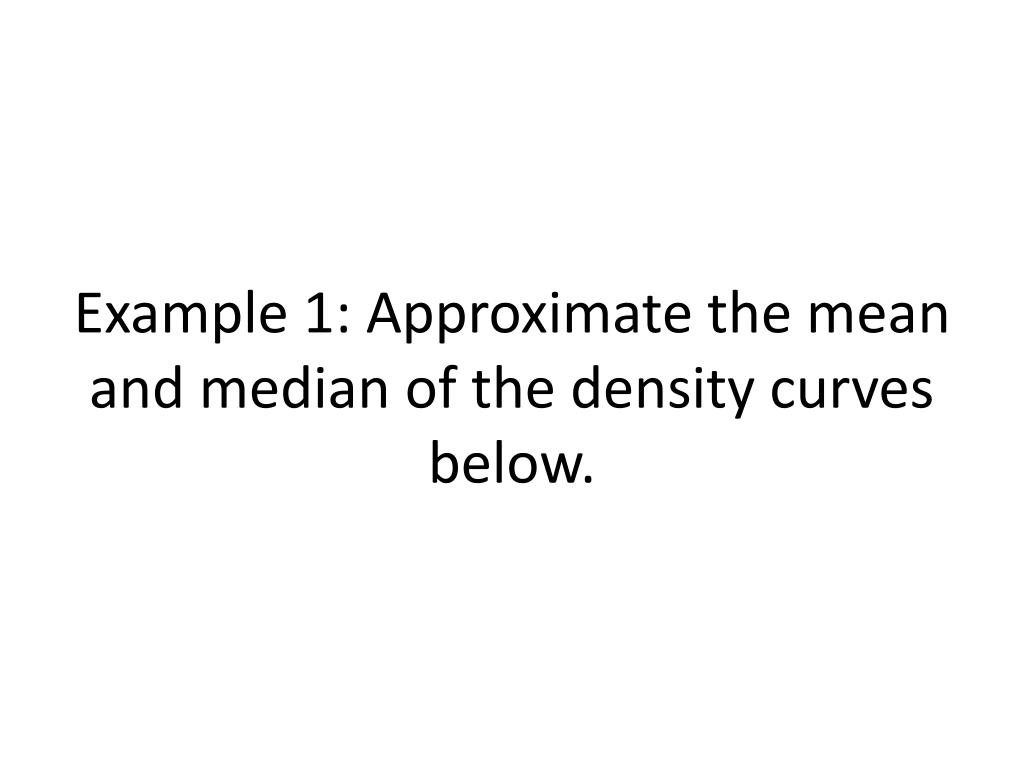

  11. Example 1: Approximate the mean and median of the density curves below.

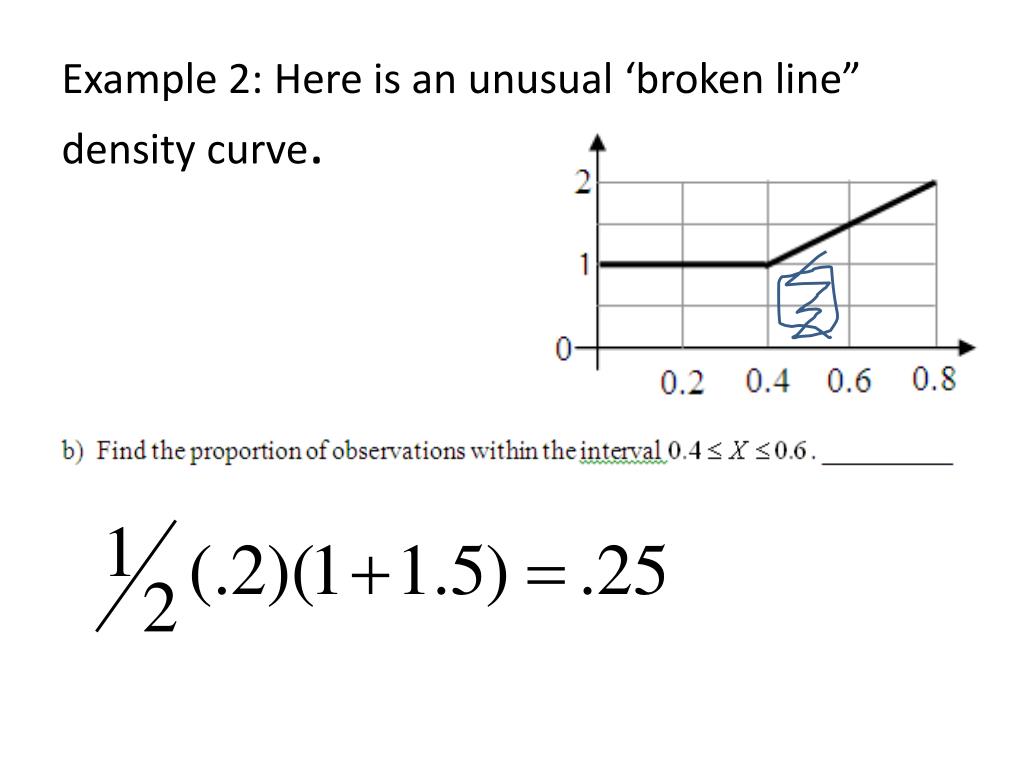

  12. Example 2: Here is an unusual ‘broken line” density curve.a) Verify that the graph is a valid density curve.

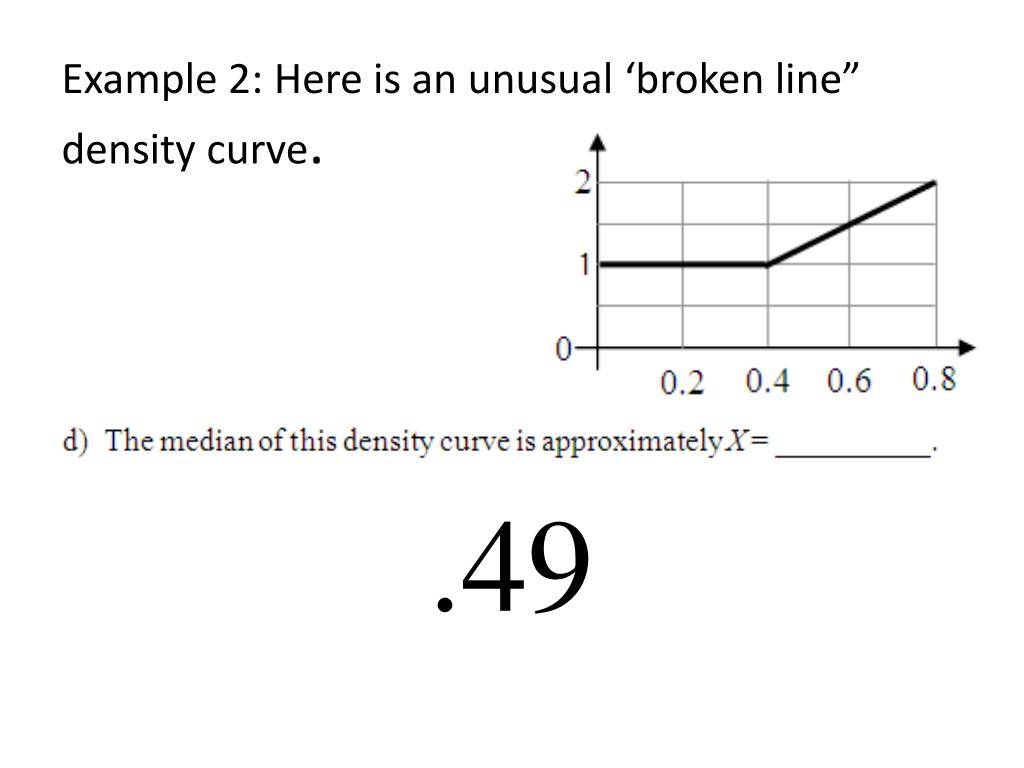

  13. Example 2: Here is an unusual ‘broken line” density curve.

  14. Example 2: Here is an unusual ‘broken line” density curve.

  15. Example 2: Here is an unusual ‘broken line” density curve.
