UTR

Intron. Exon. Exon. UTR. UTR. = start. = stop. CDS. Protein. Transcript. Genomic. exon. intron. exon. 5’ UTR. 3’ UTR. CDS: (coding sequence). Protein:. Transcript:. Genomic:. transcriptional start. ATG. stop codon. polyA. exon. intron. exon. 5’ UTR. 3’ UTR.

cera
Télécharger la présentation

UTR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

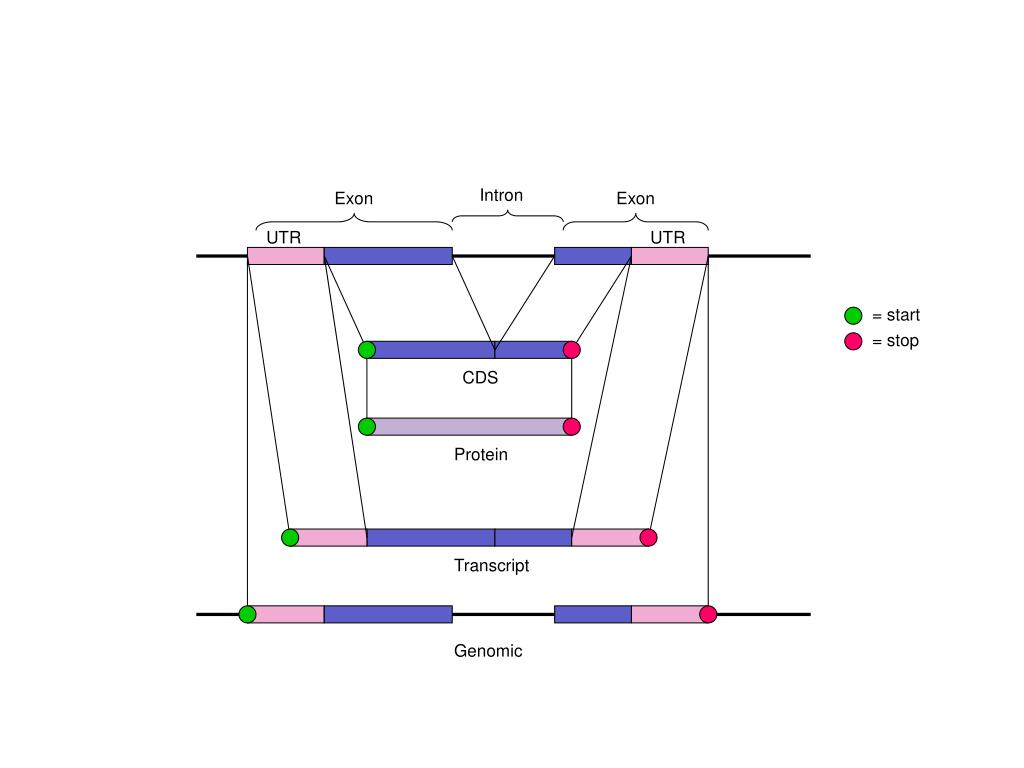

  1. Intron Exon Exon UTR UTR = start = stop CDS Protein Transcript Genomic

  2. exon intron exon 5’ UTR 3’ UTR CDS: (coding sequence) Protein: Transcript: Genomic:

  3. transcriptional start ATG stop codon polyA exon intron exon 5’ UTR 3’ UTR CDS: (coding sequence nts) Protein: (amino acid sequence) Transcript: (CDS+ UTRs, if available) Gene: (1st-last nt, including introns)

  4. transcriptional start ATG stop codon polyA exon intron exon 5’ UTR 3’ UTR CDS: (coding sequence nts) Protein: (amino acid sequence) Transcript: (CDS+ UTRs, if available) Gene: (1st-last nt, including introns)

  5. transcriptional start ATG stop codon polyA exon intron exon 5’ UTR 3’ UTR CDS: (coding sequence nt) protein: (aa) transcript: (CDS + UTRs, if avail.) genomic: (includes introns)
