  1. Evolving Visual and Analysis ToolsComprehensive Visual Data Integration Darren Dambly Sr. Manager Autodesk Government Solution Team

  2. Visual Data Integration – The Vision Mechanical, electrical, & plumbing detail Building structure & interior design Underground utility data GIS street and parcel information Realistic visualization filtered specifically, and visualized for my job function. Smart data, Water

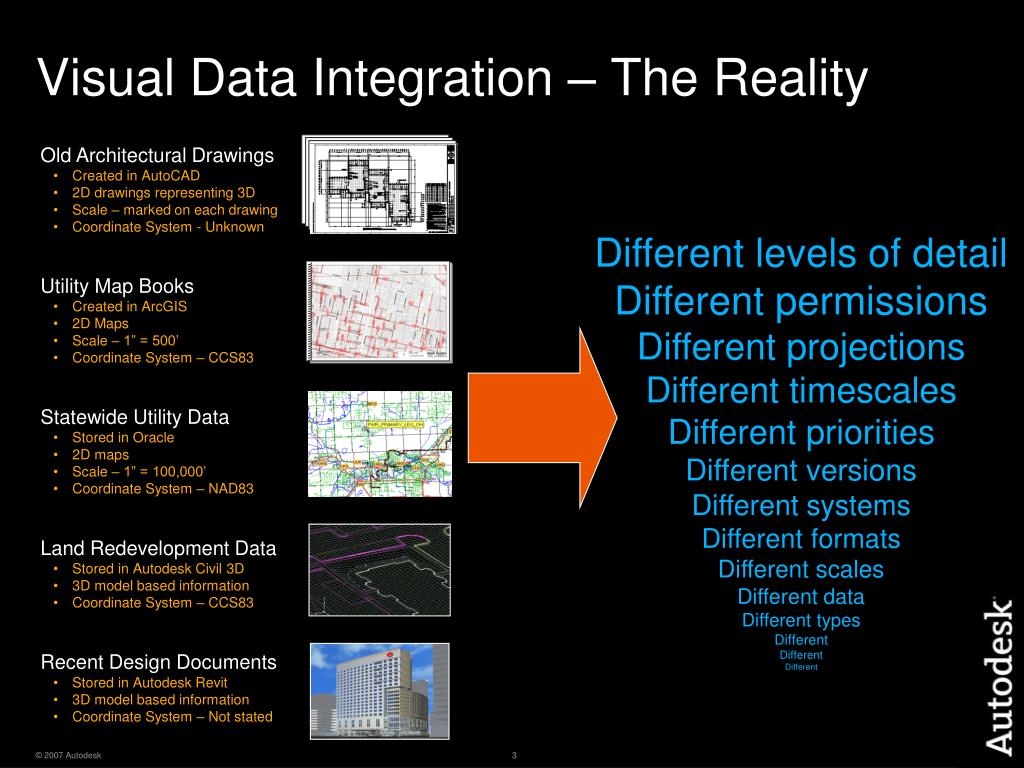

  3. Visual Data Integration – The Reality • Old Architectural Drawings • Created in AutoCAD • 2D drawings representing 3D • Scale – marked on each drawing • Coordinate System - Unknown • Utility Map Books • Created in ArcGIS • 2D Maps • Scale – 1” = 500’ • Coordinate System – CCS83 • Statewide Utility Data • Stored in Oracle • 2D maps • Scale – 1” = 100,000’ • Coordinate System – NAD83 • Land Redevelopment Data • Stored in Autodesk Civil 3D • 3D model based information • Coordinate System – CCS83 • Recent Design Documents • Stored in Autodesk Revit • 3D model based information • Coordinate System – Not stated Different levels of detail Different permissions Different projections Different timescales Different priorities Different versions Different systems Different formats Different scales Different data Different types Different Different Different

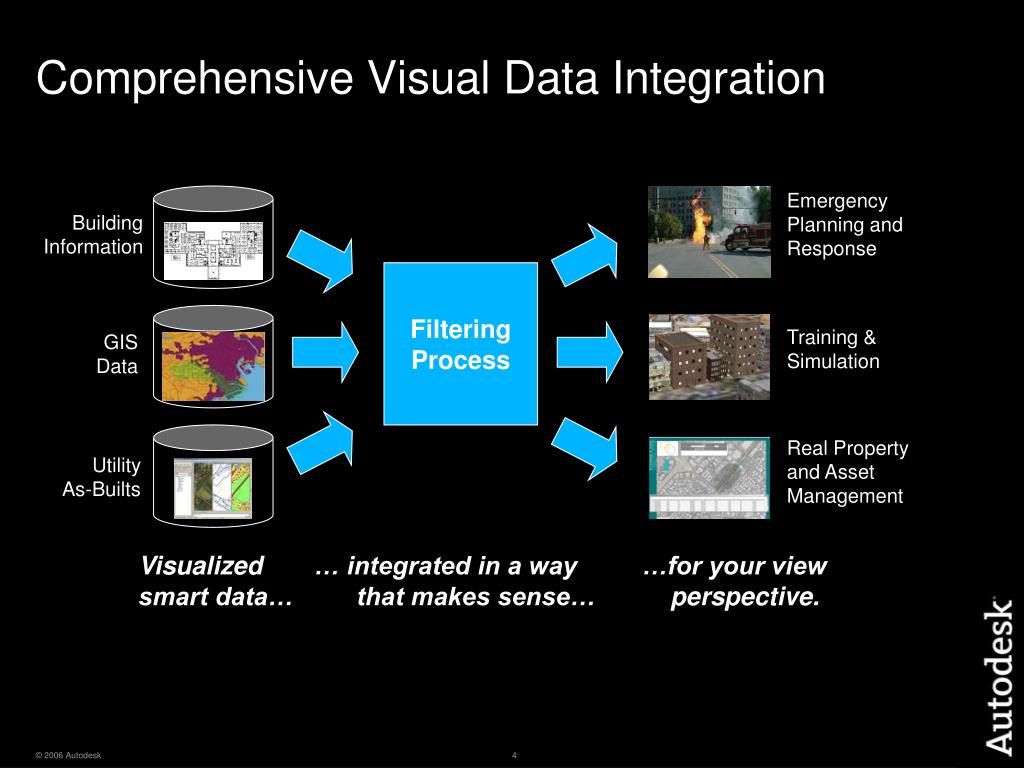

  4. Comprehensive Visual Data Integration EmergencyPlanning and Response Building Information Filtering Process Training & Simulation GIS Data Real Propertyand Asset Management UtilityAs-Builts Visualized smart data… … integrated in a way that makes sense… …for your view perspective.

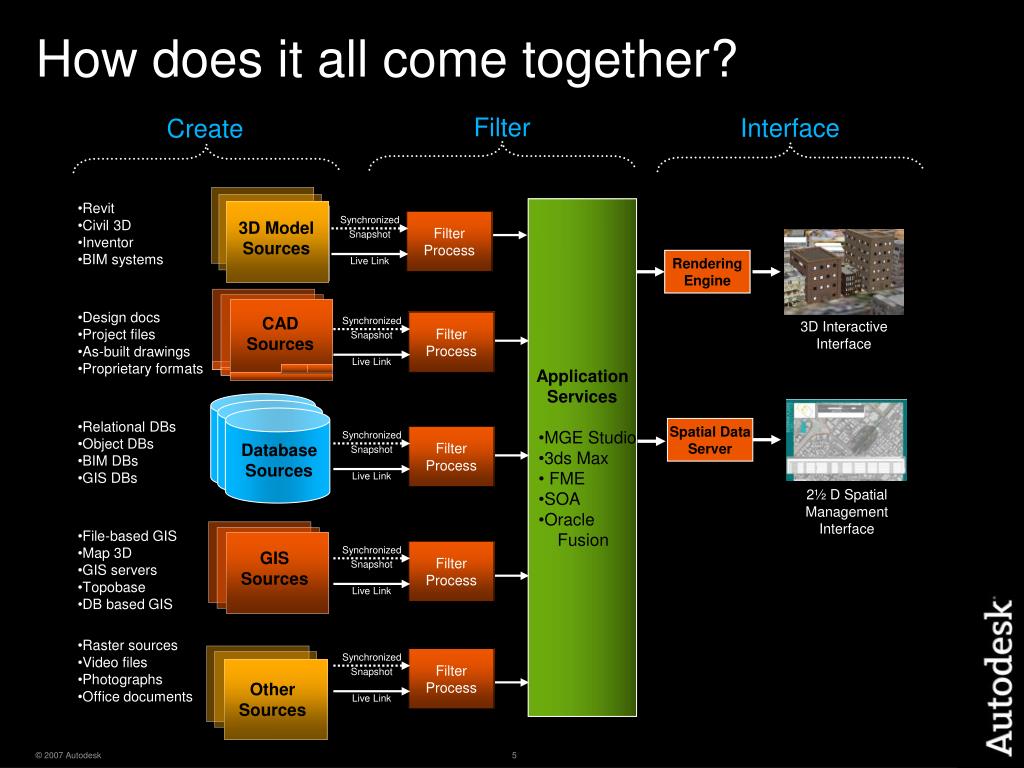

  5. How does it all come together? SynchronizedSnapshot Filter Process Live Link SynchronizedSnapshot Filter Process Live Link SynchronizedSnapshot Filter Process Live Link SynchronizedSnapshot Filter Process Live Link SynchronizedSnapshot Filter Process Live Link Filter Interface Create • Revit • Civil 3D • Inventor • BIM systems • ApplicationServices • MGE Studio • 3ds Max • FME • SOA • Oracle • Fusion 3D Model Sources Rendering Engine • Design docs • Project files • As-built drawings • Proprietary formats CAD Sources 3D Interactive Interface • Relational DBs • Object DBs • BIM DBs • GIS DBs Spatial Data Server Database Sources 2½ D SpatialManagement Interface • File-based GIS • Map 3D • GIS servers • Topobase • DB based GIS GIS Sources • Raster sources • Video files • Photographs • Office documents Other Sources

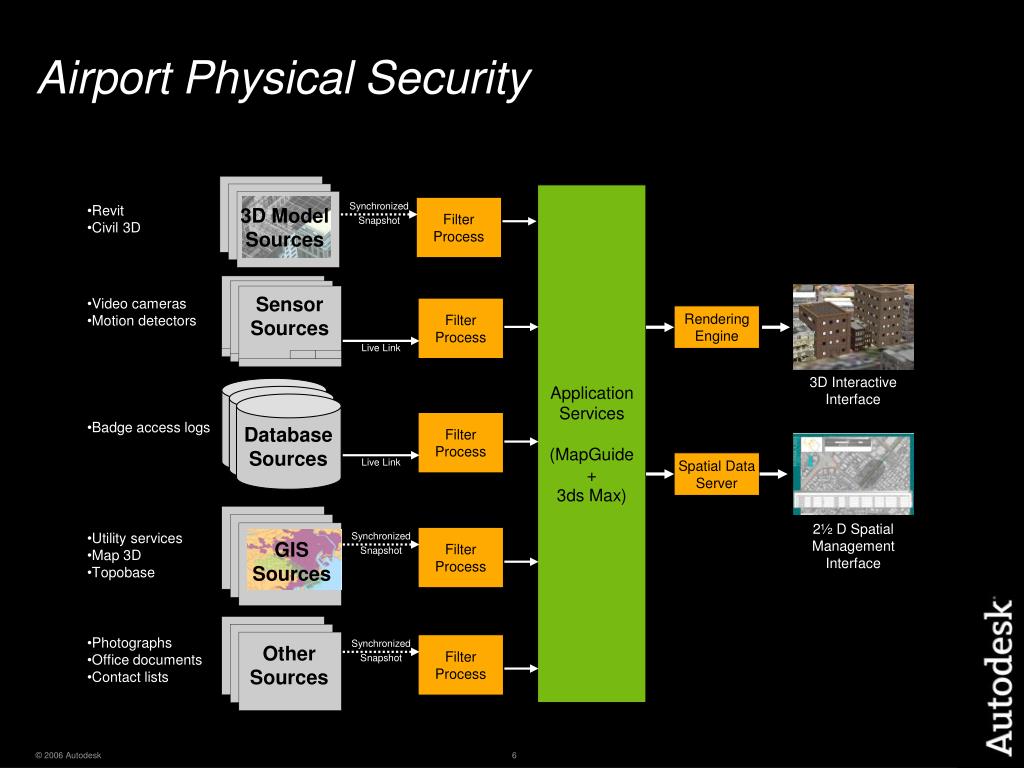

  6. SynchronizedSnapshot Filter Process Filter Process Live Link Filter Process Live Link SynchronizedSnapshot Filter Process SynchronizedSnapshot Filter Process Airport Physical Security ApplicationServices (MapGuide + 3ds Max) • Revit • Civil 3D 3D Model Sources Sensor Sources • Video cameras • Motion detectors Rendering Engine 3D Interactive Interface • Badge access logs Database Sources Spatial Data Server 2½ D SpatialManagement Interface • Utility services • Map 3D • Topobase GIS Sources • Photographs • Office documents • Contact lists Other Sources

  7. The Value of Engineering Models EmergencyPlanning and Response Training & Simulation Real Propertyand Asset Management

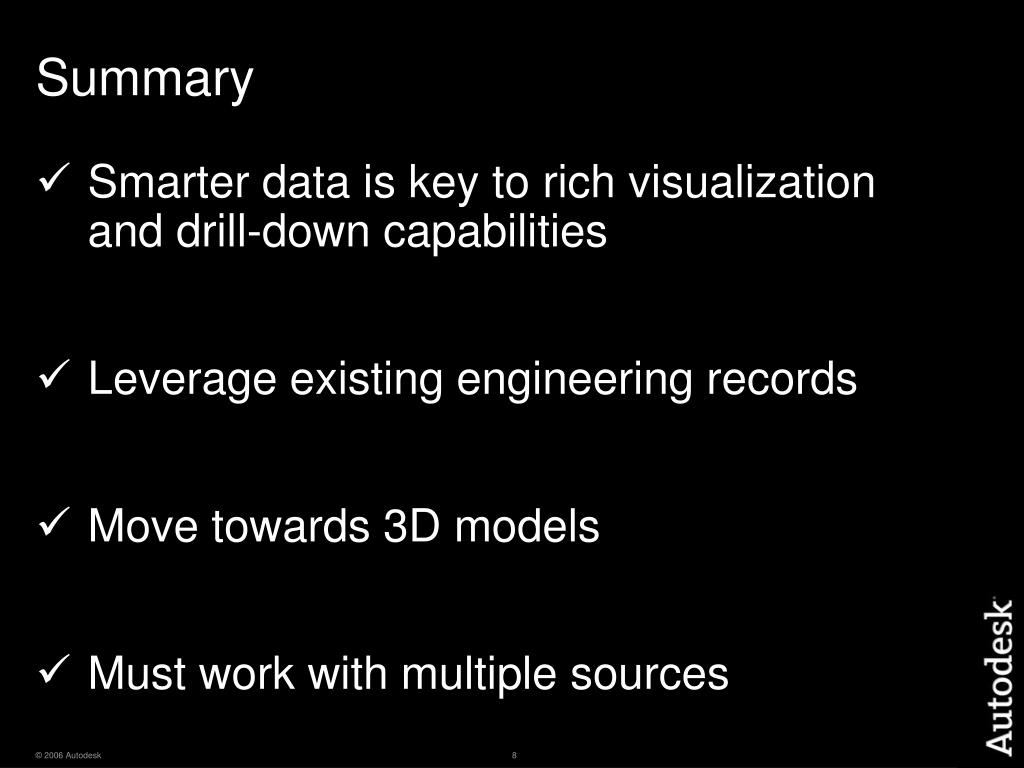

  8. Summary • Smarter data is key to rich visualization and drill-down capabilities • Leverage existing engineering records • Move towards 3D models • Must work with multiple sources
