Objectives: 1. Be able to graph a polynomial function using calculus.

chastity-battle avatar
chastity-battle
13 diapositives · 392 Views · Oct 31, 2014

Objectives: 1. Be able to graph a polynomial function using calculus. Critical Vocabulary: Polynomial Function, End Behavior, Intercepts, Multiplicity, Critical Numbers, Extrema, Inflection Points, Concavity, Domain, Range. Example 1. Graph f(x) = x 4 - 12x 3 + 48x 2 – 64x.

#objectives: 1. be able to graph a polynomial function using calculus. #objectives: 1. be able to graph a polynomial function using calculus. ppt #powerpoint #presentation
Objectives: 1. Be able to graph a polynomial function using calculus. - slide 1
01 / 13Objectives: 1. Be able to graph a polynomial function using calculus.
1 / 17

Télécharger la présentation

Objectives: 1. Be able to graph a polynomial function using calculus.
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

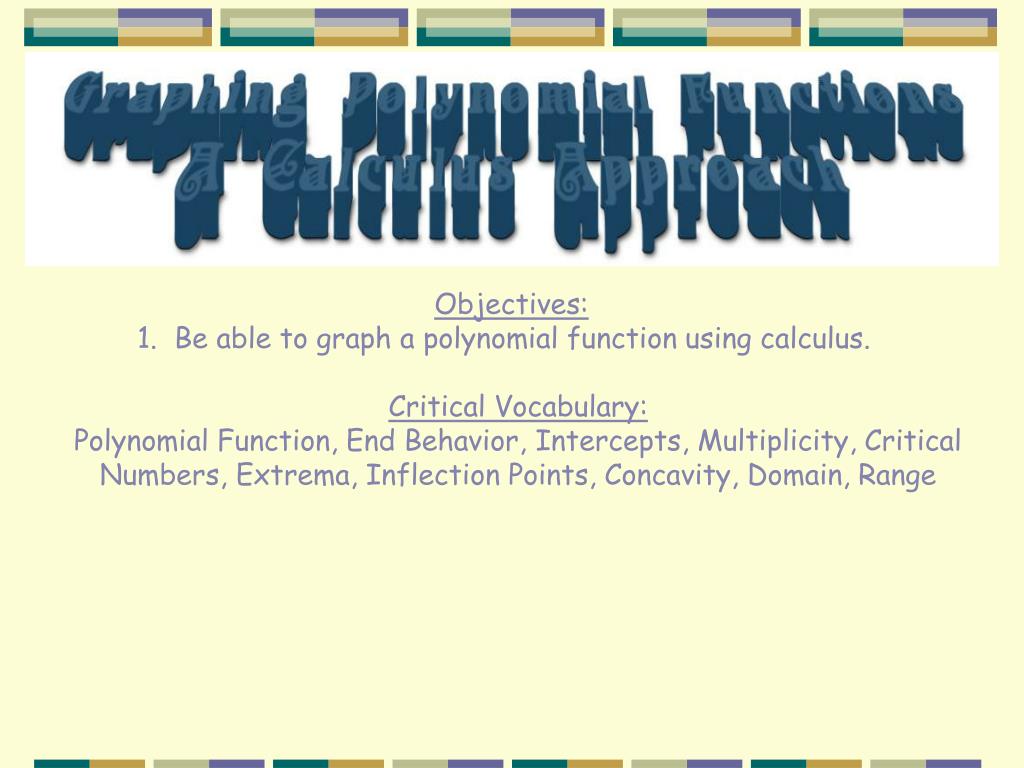

  1. Objectives: 1. Be able to graph a polynomial function using calculus. Critical Vocabulary: Polynomial Function, End Behavior, Intercepts, Multiplicity, Critical Numbers, Extrema, Inflection Points, Concavity, Domain, Range

  2. Example 1. Graph f(x) = x4 - 12x3 + 48x2 – 64x 1st: Find all your intercepts X-intercept: 0 = x4 - 12x3 + 48x2 – 64x Y-intercept: f(x)=0 0 = x(x - 4)3 (0, 0) x = 0 : (0, 0) Multiplicity 1 Crosses x = 4 : (4, 0) Multiplicity 3 Crosses 2nd: Find all your critical numbers Derivative: f’(x) = 4x3 - 36x2 + 96x - 64 0 = 4x3 - 36x2 + 96x - 64 Relative Min: (1, -27) 0 = 4(x - 1)(x - 4)2 Relative Max: None x = 1 : (1, -27) x = 4 : (4, 0) Interval (-∞, 1) (1,4) (4, ∞) Test Value x = 0 x = 2 x = 5 f’(0) = -64 f’(2) = 16 f’(5) = 16 Sign of f’(x) Conclusion Decreasing Increasing Increasing

  3. Example 1. Graph f(x) = x4 - 12x3 + 48x2 – 64x 3rd: Find all your inflection points Second Derivative: f’’(x) = 12x2 - 72x + 96 0 = 12x2 - 72x + 96 0 = 12(x - 2)(x - 4) x = 2 : (2, -16) x = 4 : (4, 0) Interval (-∞, 2) (2, 4) (4, ∞) Test Value x = 0 x = 3 x = 5 f’’(0) = 96 f’’(3) = -12 f’’(5) = 36 Sign of f’’(x) Conclusion Concave Up Concave Down Concave Up

  4. Example 1. Graph f(x) = x4 - 12x3 + 48x2 – 64x 4th: Draw your Graph Plot your points for your X-intercepts, Y-intercept, Relative Extrema, and Inflection Points Connect the points based on the End Behavior and your 2 tables (Increasing, decreasing and Concavity) 5th: State your Domain and Range of the graph Domain: Range:

  5. Example 2. Graph f(x) = x3 - 6x2 + 3x+ 10 1st: Find all your intercepts X-intercept: 0 = x3 - 6x2 + 3x+ 10 Y-intercept: f(x) = 10 0 = (x + 1)(x – 2)(x - 5) (0, 10) x = -1 : (-1, 0) Multiplicity 1 Crosses x = 2 : (2, 0) Multiplicity 1 Crosses x = 5 : (5, 0) Multiplicity 1 Crosses 2nd: Find all your critical numbers Derivative: f’(x) = 3x2 - 12x+ 3 Relative Min: (3.73, -10.39) 0 = 3(x2 - 4x+ 1) x = 1 : (3.73, -10.39) Relative Max: (.27, 10.39) x = 4 : (.27, 10.39) Interval (-∞, .27) (.27, 3.73) (3.73, ∞) Test Value x = 0 x = 2 x = 5 f’(0) = 3 f’(2) = -9 f’(5) = 18 Sign of f’(x) Conclusion Increasing Decreasing Increasing

  6. Example 2. Graph f(x) = x3 - 6x2 + 3x+ 10 3rd: Find all your inflection points Second Derivative: f’’(x) = 6x - 12 0 = 6x - 12 x = 2 : (2, 0) Interval (-∞, 2) (2, ∞) Test Value x = 0 x = 3 f’’(0) = -12 f’’(3) = 6 Sign of f’’(x) Conclusion Concave Down Concave Up

  7. Example 2. Graph f(x) = x3 - 6x2 + 3x+ 10 4th: Draw your Graph Plot your points for your X-intercepts, Y-intercept, Relative Extrema, and Inflection Points Connect the points based on the End Behavior and your 2 tables (Increasing, decreasing and Concavity) 5th: State your Domain and Range of the graph Domain: Range:

  8. Directions: Graph the following polynomial function. Use your notes as a template as to what is expected 1. f(x) = x4 - 4x3 - 13x2 + 28x + 60
