IgGs: Somatic recombination and combinatorial diversity

IgGs: Somatic recombination and combinatorial diversity. Immune system - recognition of “self” vs. “non-self” Hallmarks of immune response specificity memory Ig class switching. Human IgG structure. 2 heavy chains + 2 light chains Constant, variable and hypervariable regions

chesna
Télécharger la présentation

IgGs: Somatic recombination and combinatorial diversity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

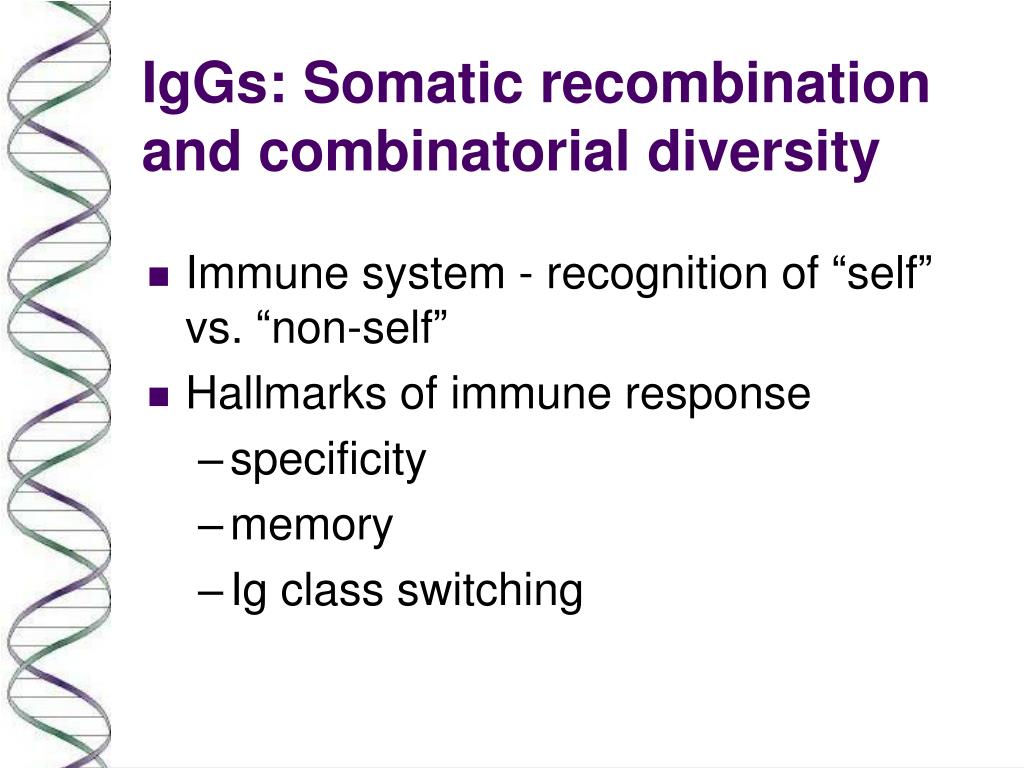

  1. IgGs: Somatic recombination and combinatorial diversity • Immune system - recognition of “self” vs. “non-self” • Hallmarks of immune response • specificity • memory • Ig class switching

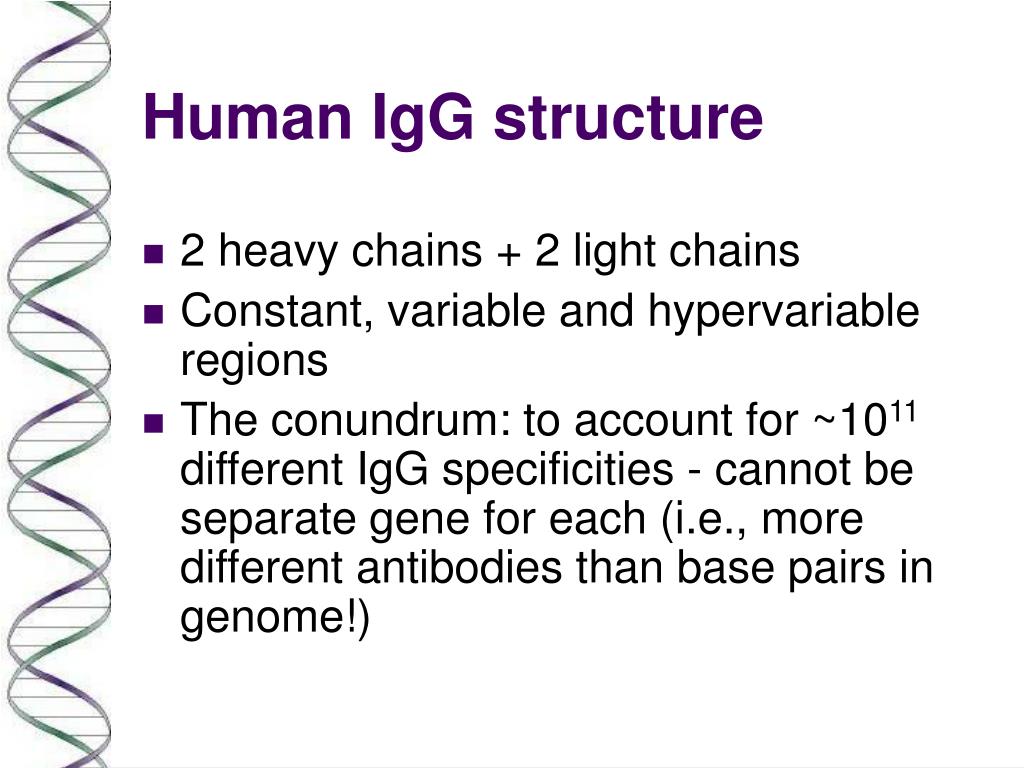

  2. Human IgG structure • 2 heavy chains + 2 light chains • Constant, variable and hypervariable regions • The conundrum: to account for ~1011 different IgG specificities - cannot be separate gene for each (i.e., more different antibodies than base pairs in genome!)

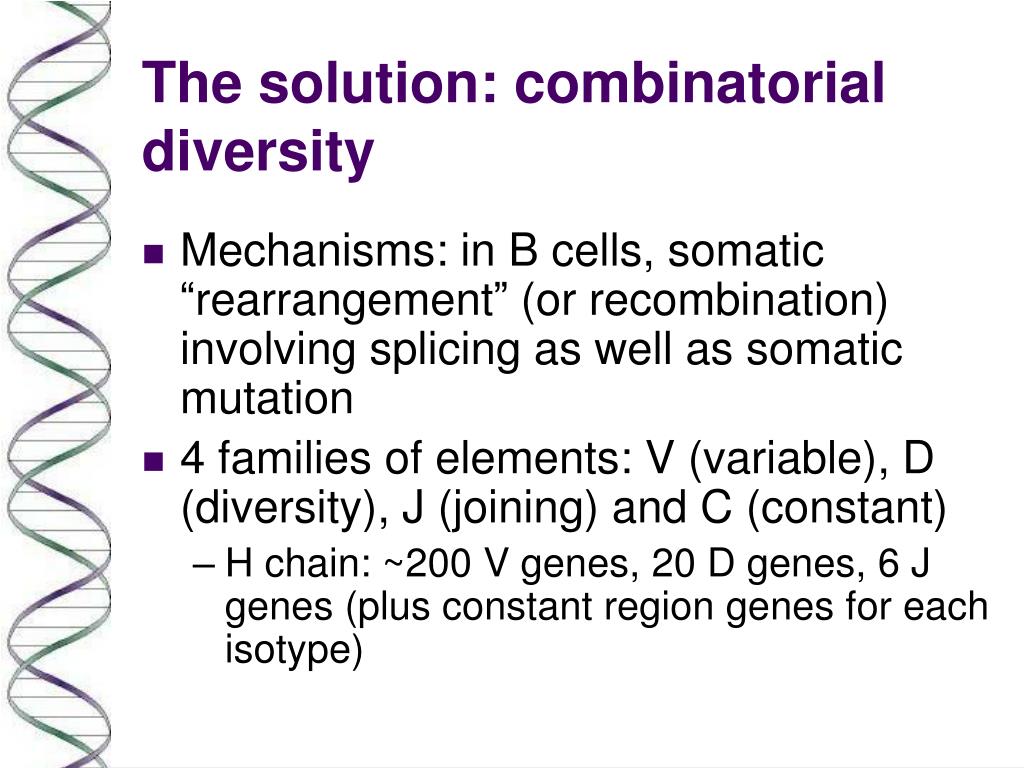

  3. The solution: combinatorial diversity • Mechanisms: in B cells, somatic “rearrangement” (or recombination) involving splicing as well as somatic mutation • 4 families of elements: V (variable), D (diversity), J (joining) and C (constant) • H chain: ~200 V genes, 20 D genes, 6 J genes (plus constant region genes for each isotype)

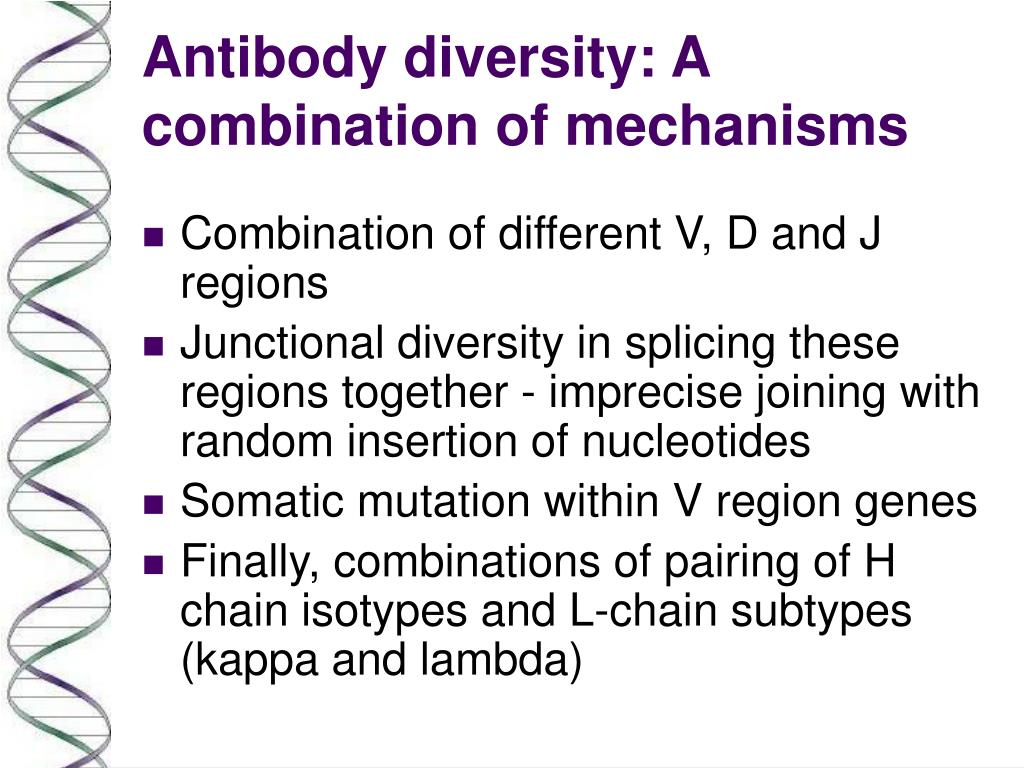

  4. Antibody diversity: A combination of mechanisms • Combination of different V, D and J regions • Junctional diversity in splicing these regions together - imprecise joining with random insertion of nucleotides • Somatic mutation within V region genes • Finally, combinations of pairing of H chain isotypes and L-chain subtypes (kappa and lambda)

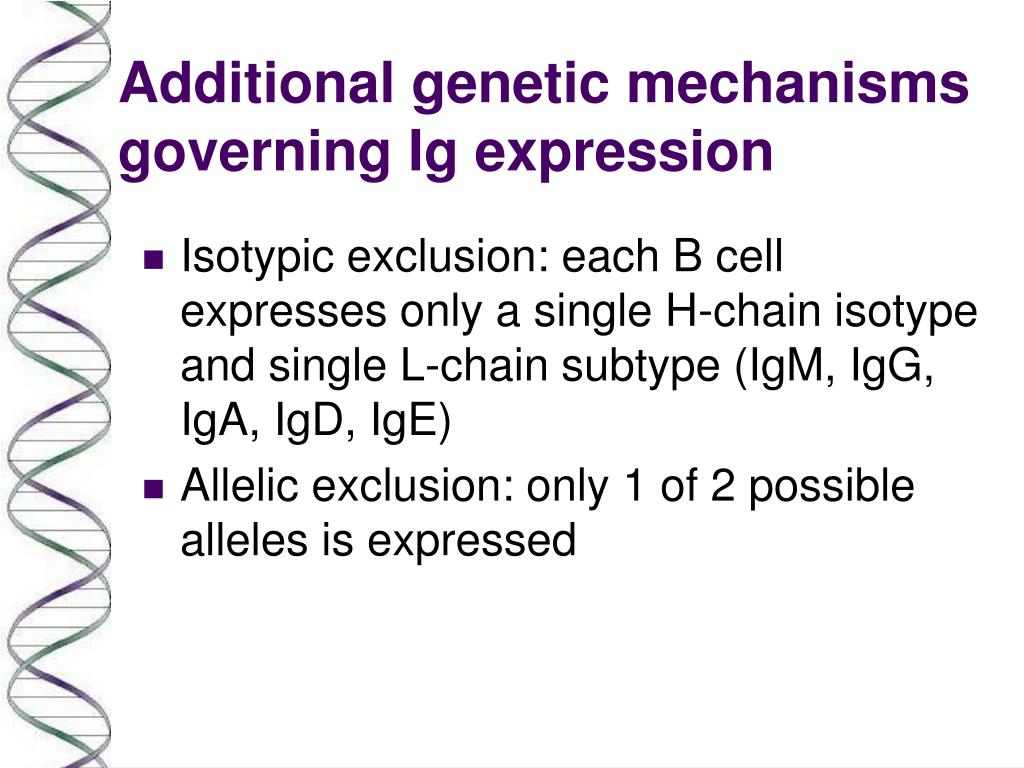

  5. Additional genetic mechanisms governing Ig expression • Isotypic exclusion: each B cell expresses only a single H-chain isotype and single L-chain subtype (IgM, IgG, IgA, IgD, IgE) • Allelic exclusion: only 1 of 2 possible alleles is expressed

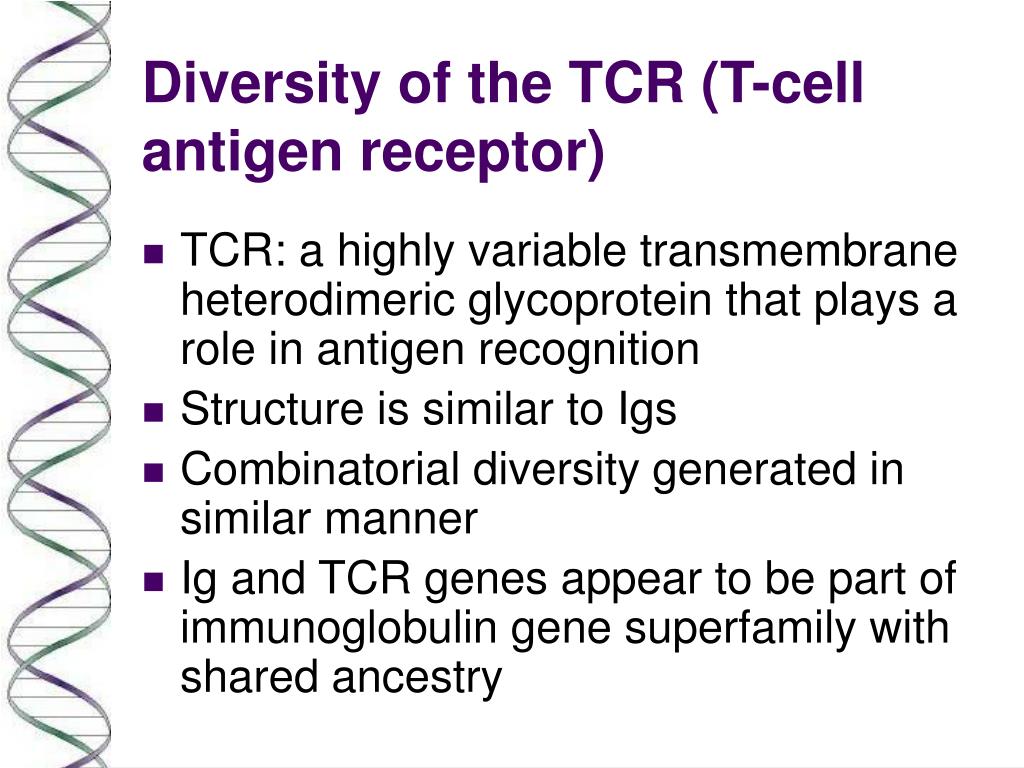

  6. Diversity of the TCR (T-cell antigen receptor) • TCR: a highly variable transmembrane heterodimeric glycoprotein that plays a role in antigen recognition • Structure is similar to Igs • Combinatorial diversity generated in similar manner • Ig and TCR genes appear to be part of immunoglobulin gene superfamily with shared ancestry
