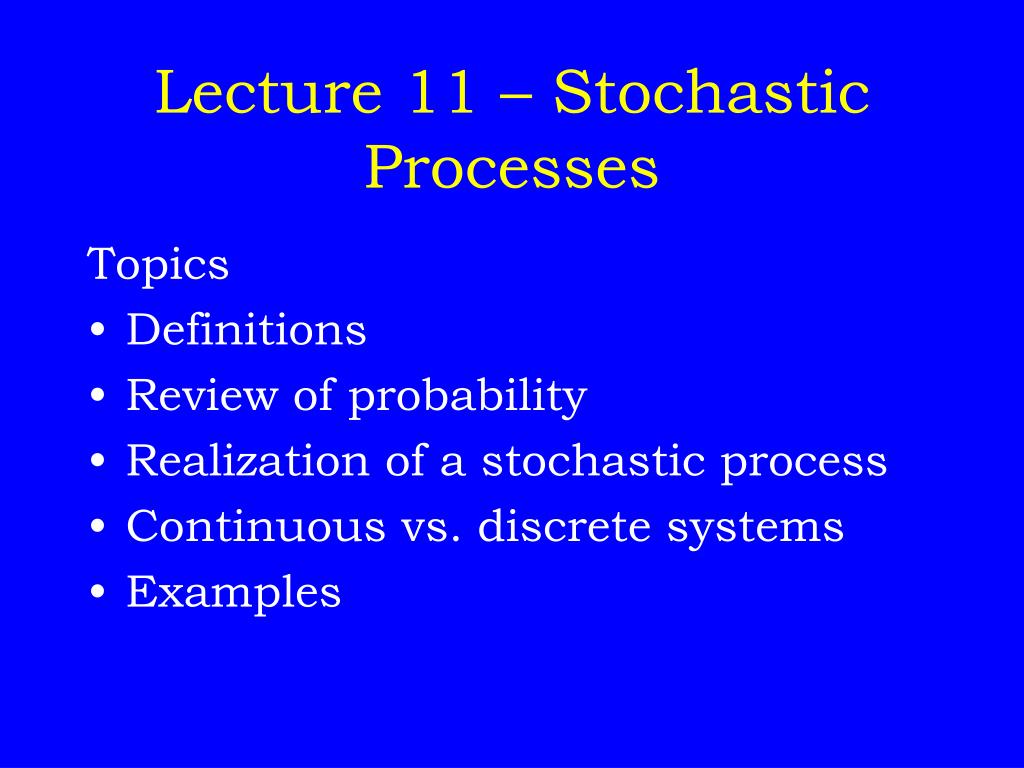

  1. Lecture 11 – Stochastic Processes • Topics • Definitions • Review of probability • Realization of a stochastic process • Continuous vs. discrete systems • Examples

  2. Basic Definitions • Stochastic process: System that changes over time in an uncertain manner • Examples • Automated teller machine (ATM) • Printed circuit board assembly operation • Runway activity at airport • State: Snapshot of the system at some fixed point in time • Transition: Movement from one state to another

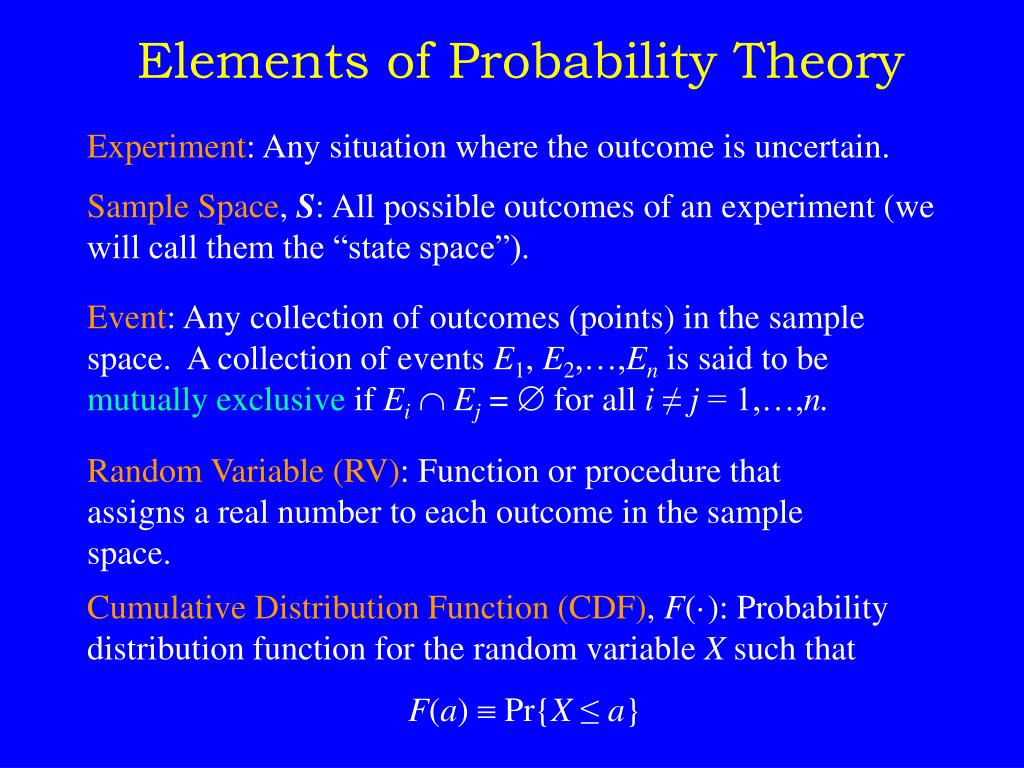

  3. Elements of Probability Theory Experiment: Any situation where the outcome is uncertain. Sample Space,S:All possible outcomes of an experiment (we will call them the “state space”). Event:Any collection of outcomes (points) in the sample space. A collection of events E1, E2,…,En is said to be mutually exclusiveif EiEj =for all i ≠ j = 1,…,n. Random Variable (RV): Function or procedure that assigns a real number to each outcome in the sample space. Cumulative Distribution Function (CDF),F(·): Probability distribution function for the random variable X such that F(a)  Pr{X ≤ a}

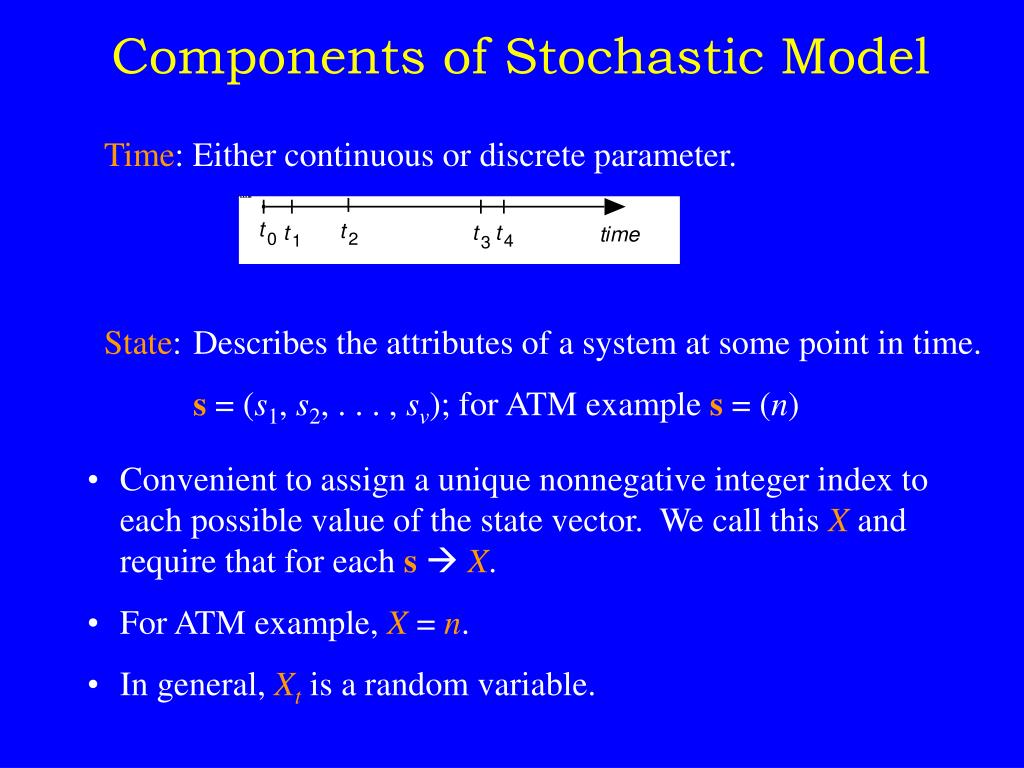

  4. Time: Either continuous or discrete parameter. Components of Stochastic Model State: Describes the attributes of a system at some point in time. s = (s1, s2, . . . , sv); for ATM example s = (n) • Convenient to assign a unique nonnegative integer index to each possible value of the state vector. We call this X and require that for each sX. • For ATM example, X = n. • In general, Xt is a random variable.

  5. Transition: Caused by an event and results in movement from one state to another. For ATM example, # = state, a = arrival, d = departure Model Components (continued) Activity: Takes some amount of time – duration. Culminates in an event. For ATM example  service completion. Stochastic Process: A collection of random variables {Xt}, where t T = {0, 1, 2, . . .}.

  6. Number in system, n (no transient response) Realization of the Process Deterministic Process

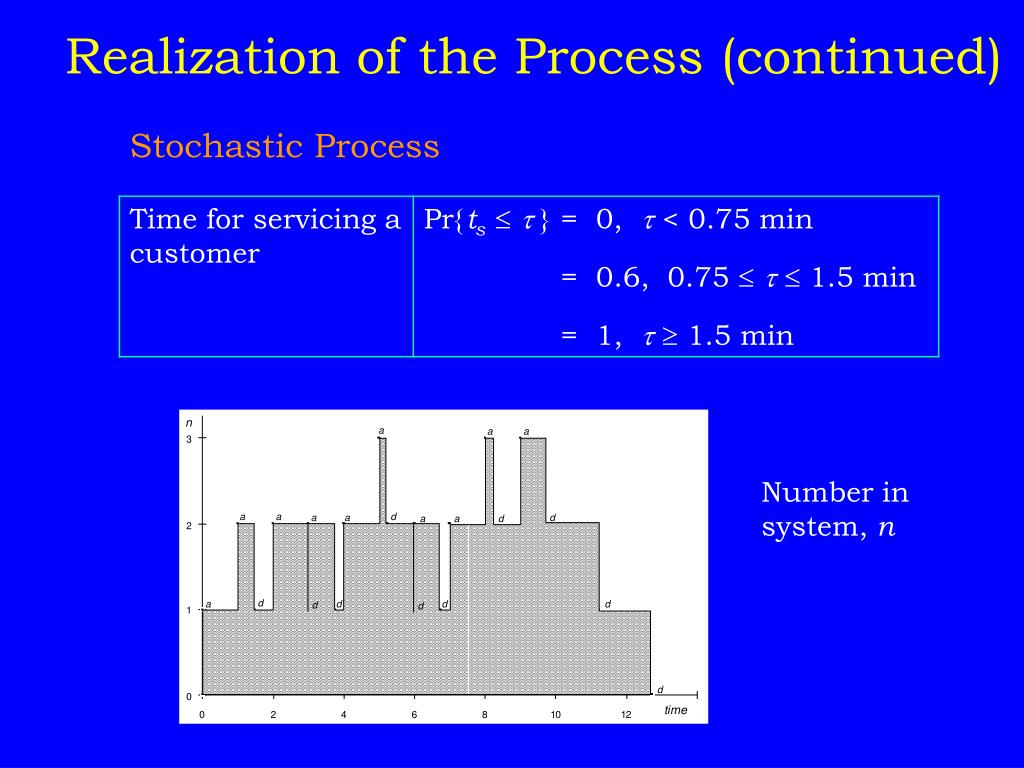

  7. Number in system, n Realization of the Process (continued) Stochastic Process

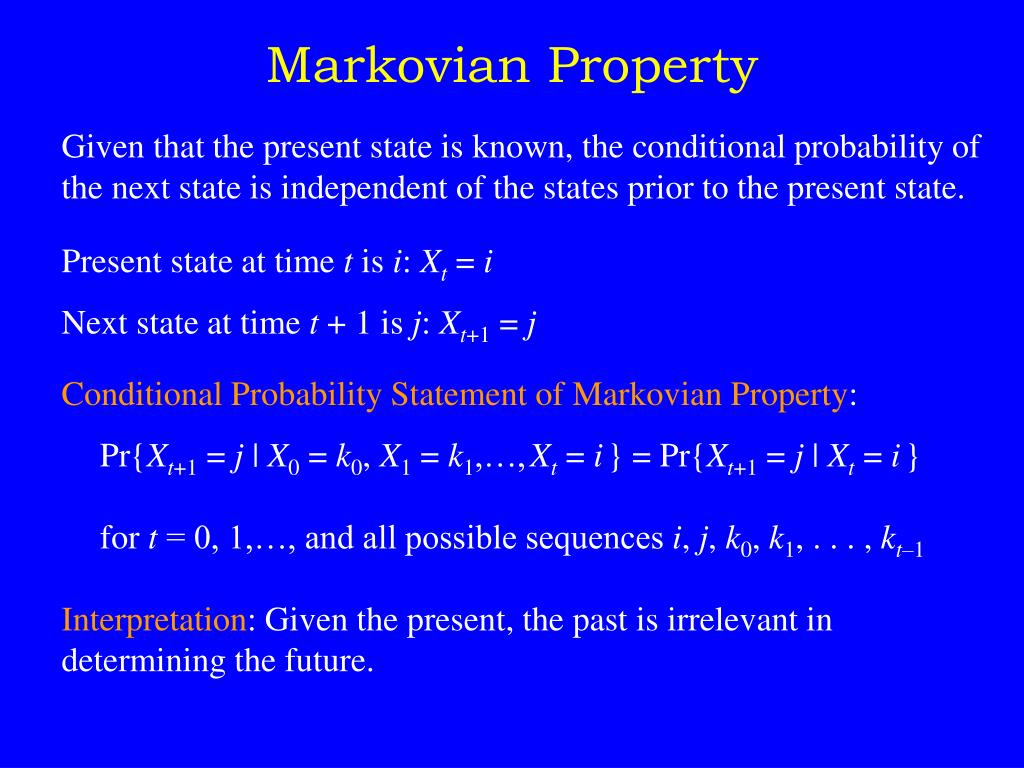

  8. Markovian Property Given that the present state is known, the conditional probability of the next state is independent of the states prior to the present state. Present state at time t is i: Xt = i Next state at time t + 1 is j: Xt+1 = j Conditional Probability Statement of Markovian Property: Pr{Xt+1= j | X0 = k0, X1 = k1,…,Xt = i} = Pr{Xt+1= j | Xt = i}   for t = 0, 1,…, and all possible sequences i, j, k0, k1, . . . , kt–1 Interpretation: Given the present, the past is irrelevant in determining the future.

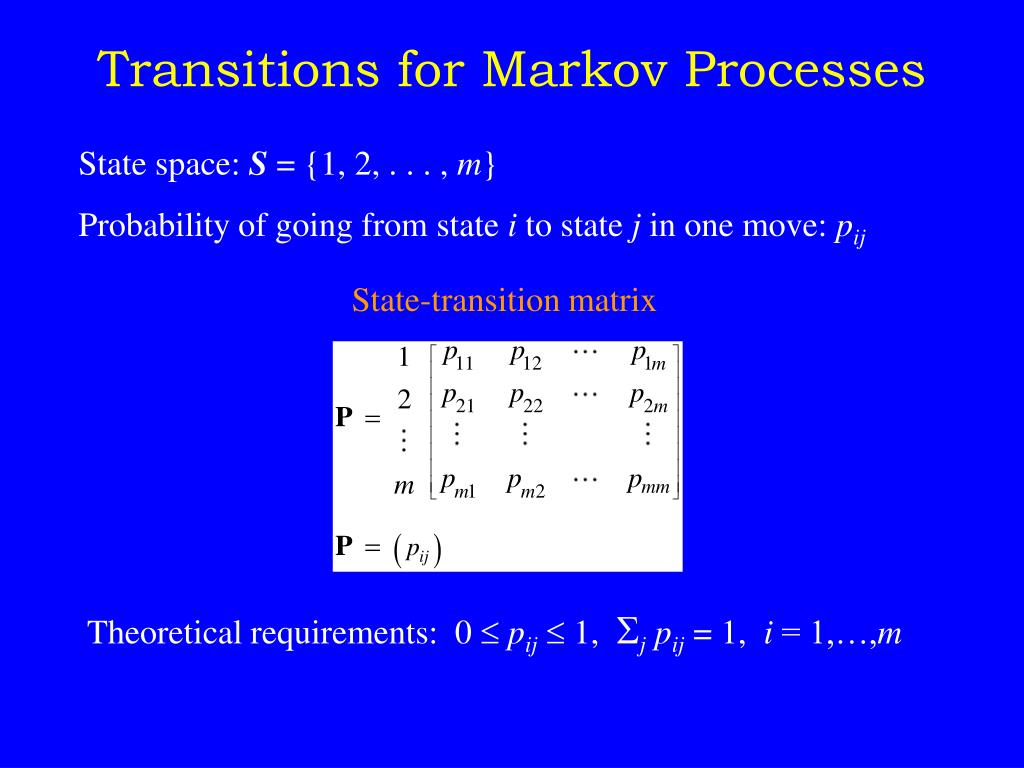

  9. Transitions for Markov Processes State space: S = {1, 2, . . . , m} Probability of going from state i to state j in one move: pij State-transition matrix Theoretical requirements: 0 pij 1, jpij = 1, i = 1,…,m

  10. 0 1 2 0 0.6 0.3 0.1 1 0.8 0.2 0 P = 2 1 0 0 Discrete-Time Markov Chain • A discrete state space • Markovian property for transitions • One-step transition probabilities, pij, remain constant over time (stationary) Simple Example State-transition matrix State-transition diagram

  11. Game of Craps • Roll 2 dice • Outcomes • Win = 7 or 11 • Loose = 2, 3, 12 • Point = 4, 5, 6, 8, 9, 10 • If point, then roll again. • Win if point • Loose if 7 • Otherwise roll again, and so on • (There are other possible bets not included here.)

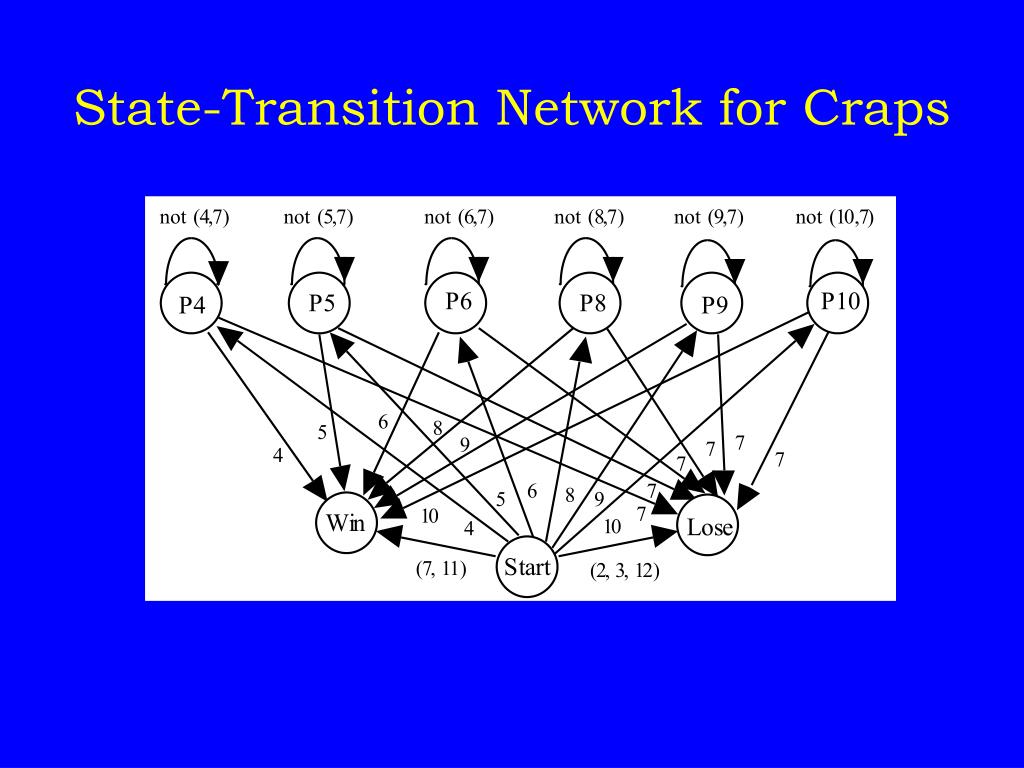

  12. State-Transition Network for Craps

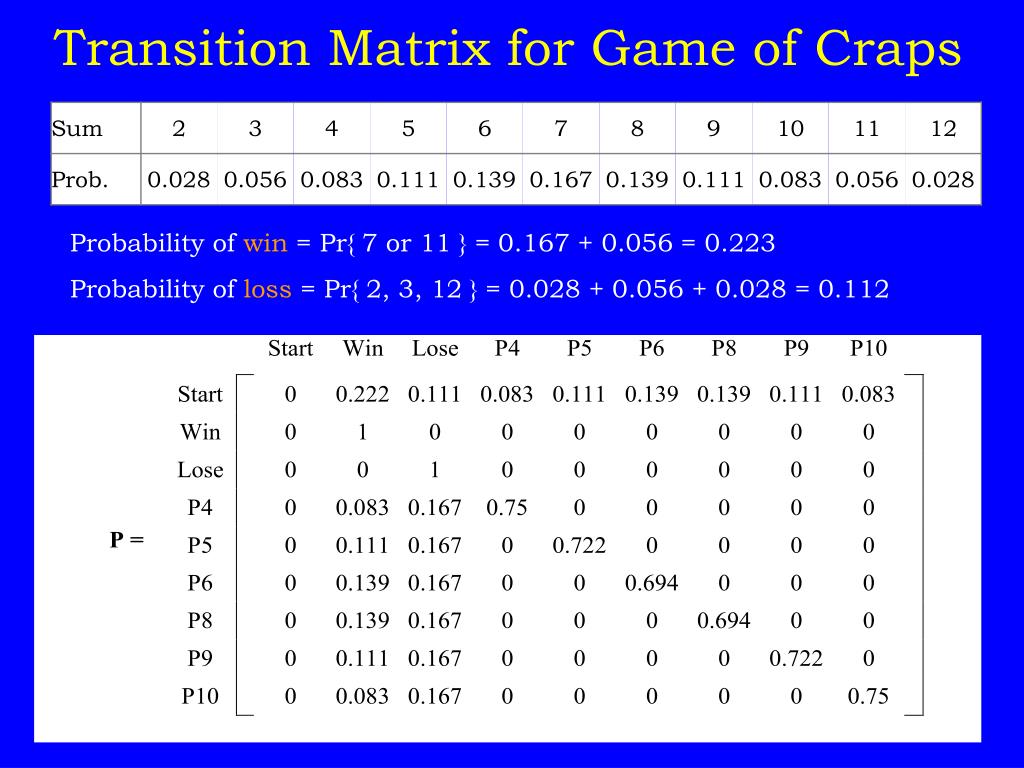

  13. Transition Matrix for Game of Craps Probability of win = Pr{ 7 or 11 } = 0.167 + 0.056 = 0.223 Probability of loss = Pr{ 2, 3, 12 } = 0.028 + 0.056 + 0.028 = 0.112

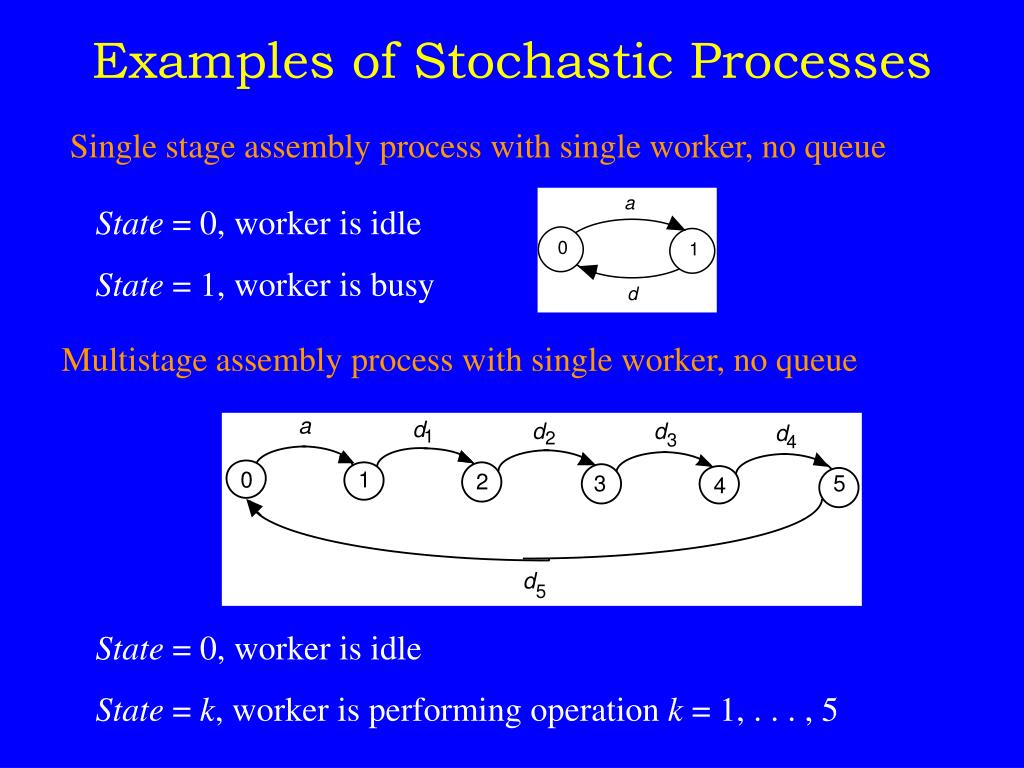

  14. Multistage assembly process with single worker, no queue State = 0, worker is idle State = k, worker is performing operation k = 1, . . . , 5 Examples of Stochastic Processes Single stage assembly process with single worker, no queue State = 0, worker is idle State = 1, worker is busy

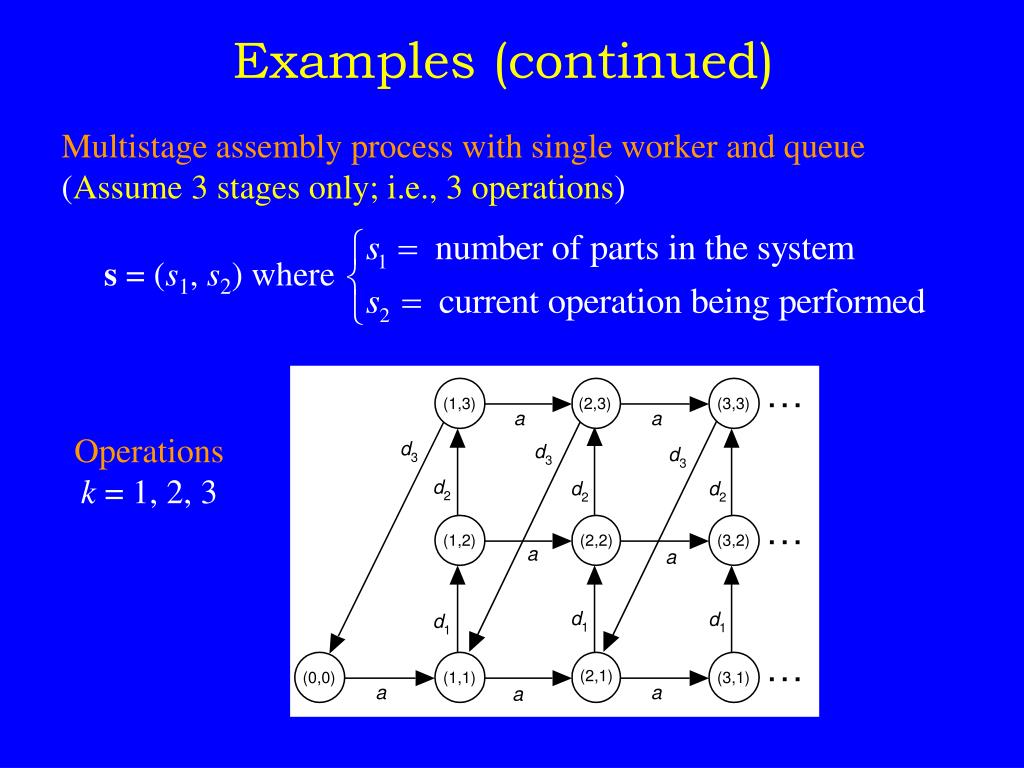

  15. Examples (continued) Multistage assembly process with single worker and queue (Assume 3 stages only; i.e., 3 operations) s = (s1, s2) where Operations k = 1, 2, 3

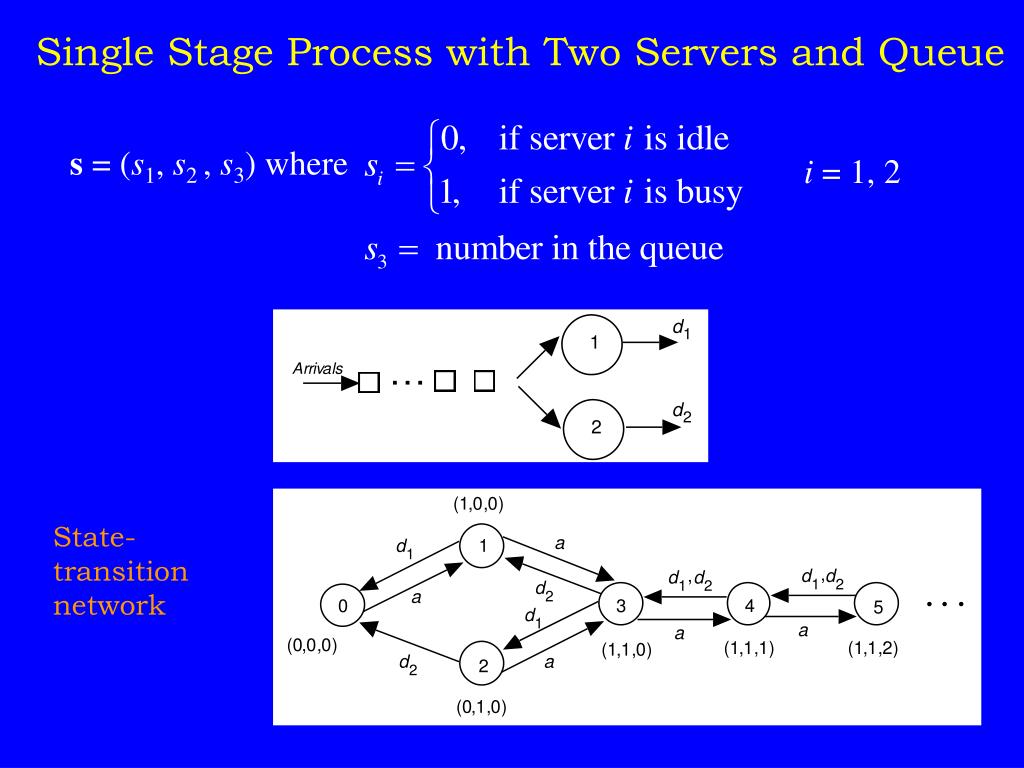

  16. State-transition network Single Stage Process with Two Servers and Queue s = (s1, s2 , s3) where i = 1, 2

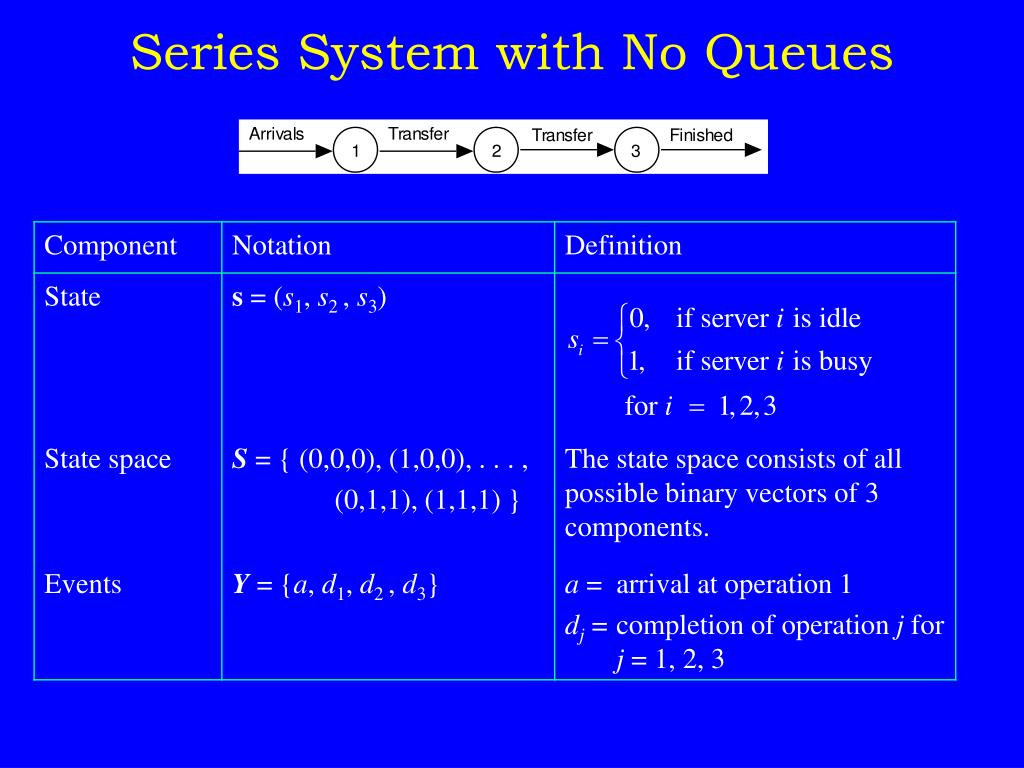

  17. Series System with No Queues

  18. What You Should Know About Stochastic Processes • Definition of a state and an event. • Meaning of realization of a system (stationary vs. transient). • Definition of the state-transition matrix. • How to draw a state-transition network. • Difference between a continuous and discrete-time system. • Common applications with multiple stages and servers.
