  1. Earthquake NYC Department of Health and Mental Hygiene Office of Emergency Preparedness and Response

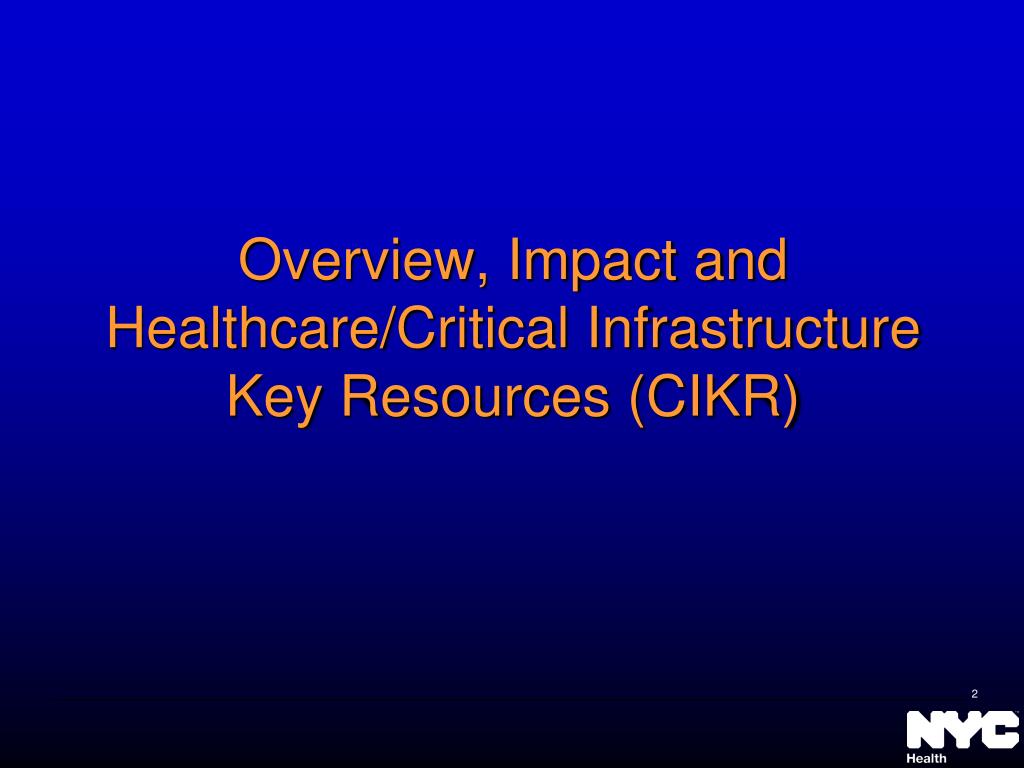

  2. Overview, Impact and Healthcare/Critical Infrastructure Key Resources (CIKR) 2

  3. Background Information • An earthquake is a sudden, rapid shaking of the earth caused by the breaking and shifting of plates beneath the earth’s surface. • As the rocks move past each other, they occasionally stick along the faults, causing a gradual buildup of energy or strain. • This energy is abruptly released in the form of seismic waves, which travel away from the earthquake’s source. 3

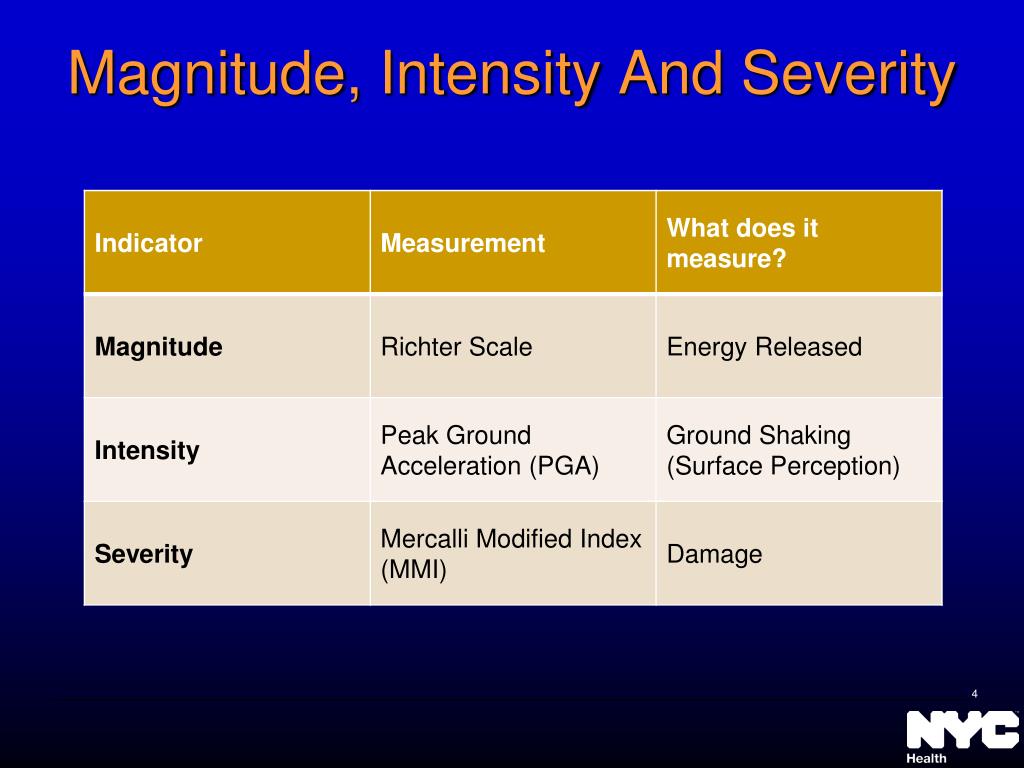

  4. Magnitude, Intensity And Severity 4

  5. Richter and Mercalli 5

  6. Peak Ground Acceleration • Most damage and loss caused by an earthquake is directly or indirectly the result of ground shaking. • We can identify the areas, structures, and systems with highest risk and ultimately help reduce those risks. 6 Mapping of geographic distribution of ground shaking (PGA) in New York. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

  7. Seismic History - Northeast Ramapo Fault 7 Earthquakes in the USA Northeast and Canada border area. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

  8. NYC Faults • Mosholu Parkway fault • Dyckman Street fault • Manhattan's 125th Street fault • What does this mean to us? 8 • NYC Faults and Disaster Relevant Facilities. Source: http://nymag.com/news/articles/08/06/GeographyofDisaster/map.html

  9. NYC Soil Geologic Composition 9 Types of soils in New York. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

  10. Manhattan Soil Composition 10 NEHRP Soil classifications in Manhattan. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

  11. Impact 11

  12. Impact – Building Composition 12 Types of buildings in Manhattan. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

  13. Impact – Building Damage 13 Expected Structural Damage in Manhattan. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

  14. Impact – Injuries and Casualties • Why do people get injured? • How are injuries and casualties estimated? • How many injuries and casualties are likely to be recorded? 14 Injuries (Left) and Casualties (Right) Estimates for Different Earthquake Scenarios. Source: http://www.nycem.org/techdocs/FinalReport/03-SP02p.pdf

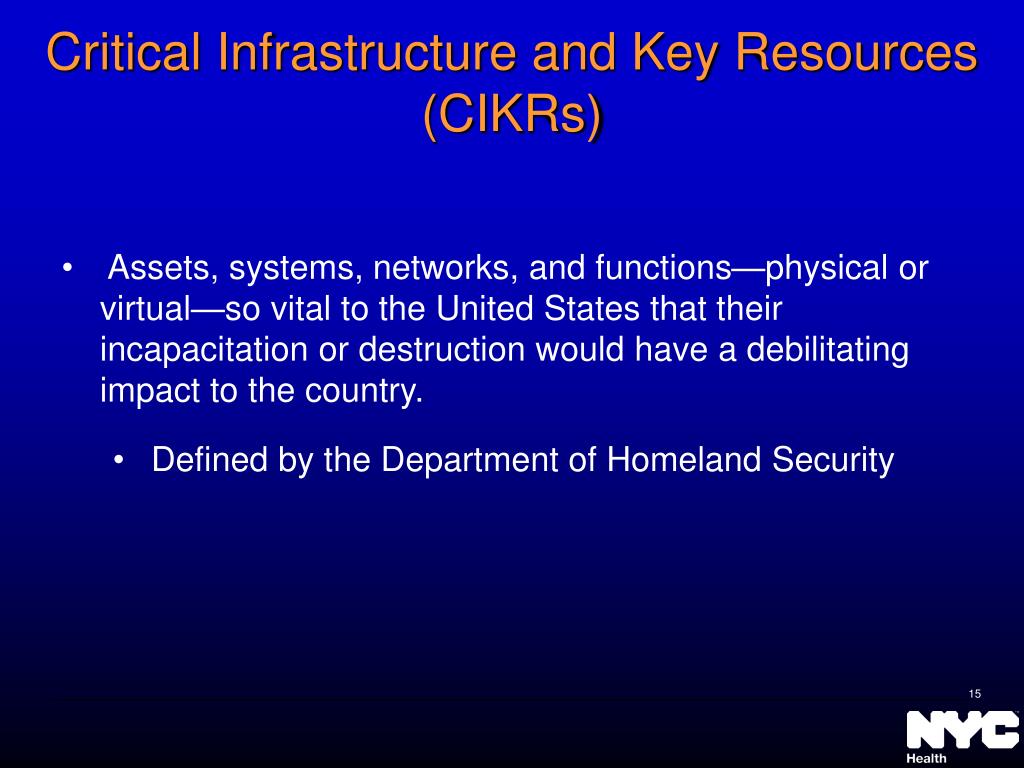

  15. Critical Infrastructure and Key Resources(CIKRs) • Assets, systems, networks, and functions—physical or virtual—so vital to the United States that their incapacitation or destruction would have a debilitating impact to the country. • Defined by the Department of Homeland Security 15
