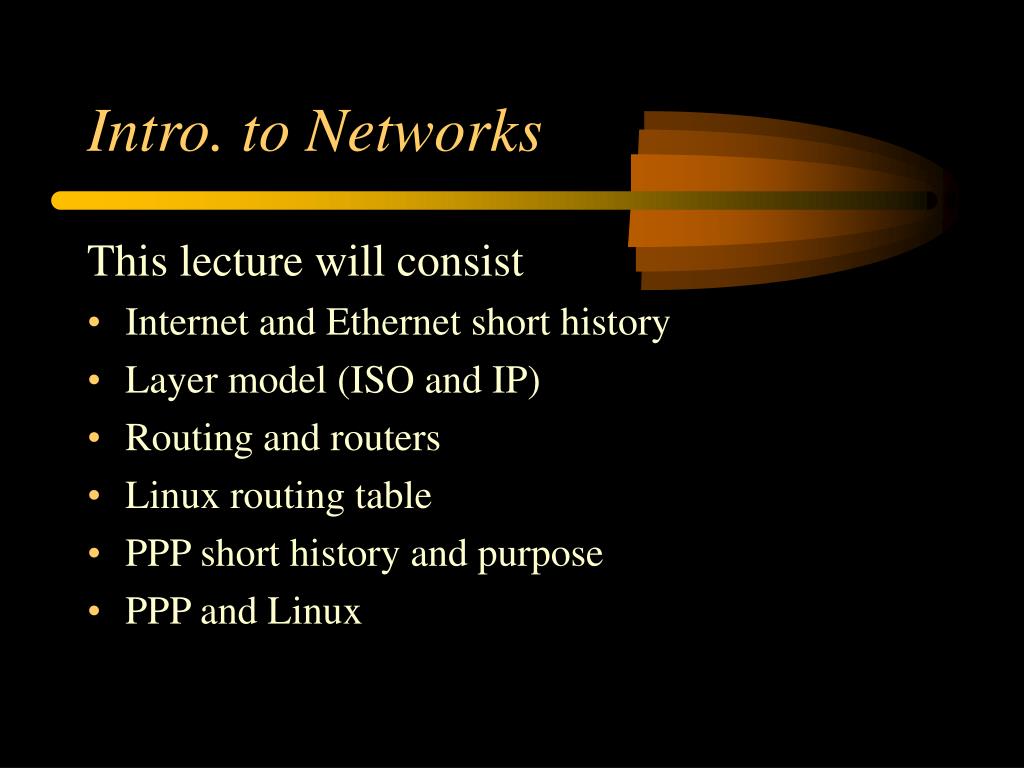

  1. Intro. to Networks This lecture will consist • Internet and Ethernet short history • Layer model (ISO and IP) • Routing and routers • Linux routing table • PPP short history and purpose • PPP and Linux

  2. Internet & Ethernet Brief history Internet (http://www.isoc.org/internet/history/) • 1969 – ARPANET (The Internet origin) • 1969 – UNIX • 1972 – Ethernet • 1989 – WWW • 1991 – Linux • 1992 –Mosaic

  3. Internet organization • ISOC – http://www.isoc.org • IETF – http://www.ietf.org • IETF RFCs – http://www.ietf.org/rfc • IANA – http://www.iana.org • IAB – http://www.iab.org • W3C – http://www.w3c.org

  4. Other org. involve in Networks • ISO – http://www.iso.ch • ITU – http://www.itu.int • IEEE – http://www.ieee.org

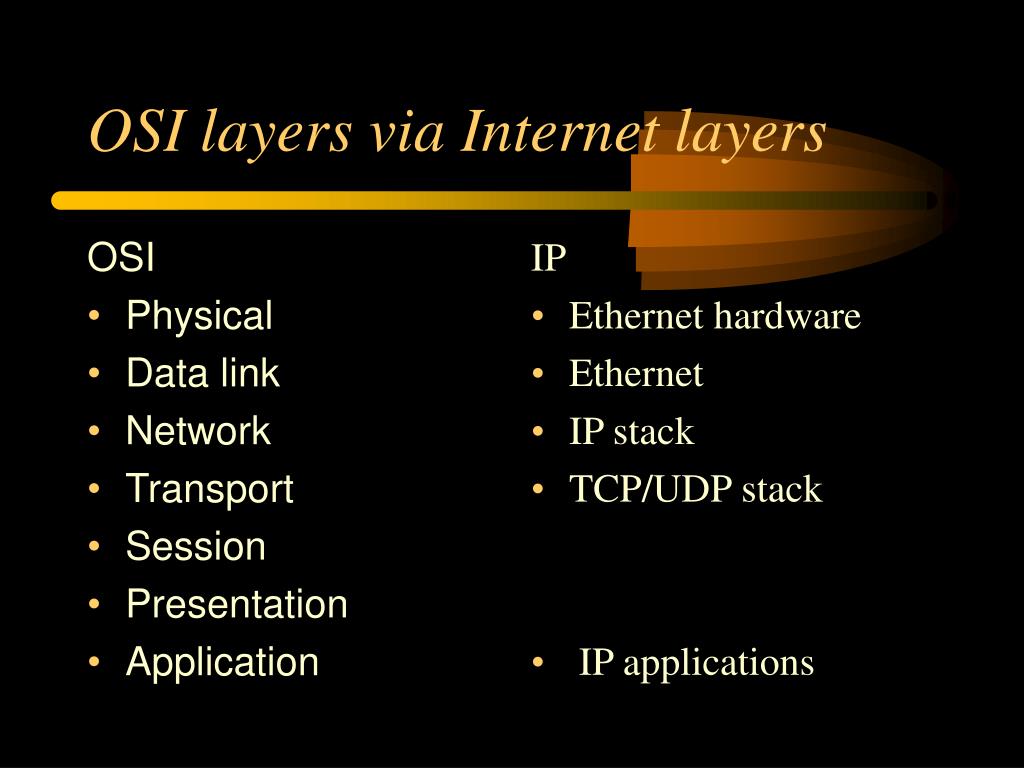

  5. IP Ethernet hardware Ethernet IP stack TCP/UDP stack IP applications OSI layers via Internet layers OSI • Physical • Data link • Network • Transport • Session • Presentation • Application

  6. LAN MAC Addresses • Registration through the IEEE. • XX-XX-XX-XX-XX-XX • Vendor register leading XX-XX-XX. • Example: 3Com register 00-05-1A • Example: a NIC made by 3Com • 00-05-1A-0C-01-93

  7. Making LAN We need 4 component to make LAN • Cables • NICs in the PCs or other (e.g. Printers) • Hubs (Repeaters) • Switches

  8. Configure NIC • Use hotplug. • lspci , lspci -n • PCI Vendor ID. (on the Internet) • /lib/modules/<kid>/kernel/drivers/net/ • USB Cable, USB ADSL => USB NIC. • lsmod • ifconfig -a

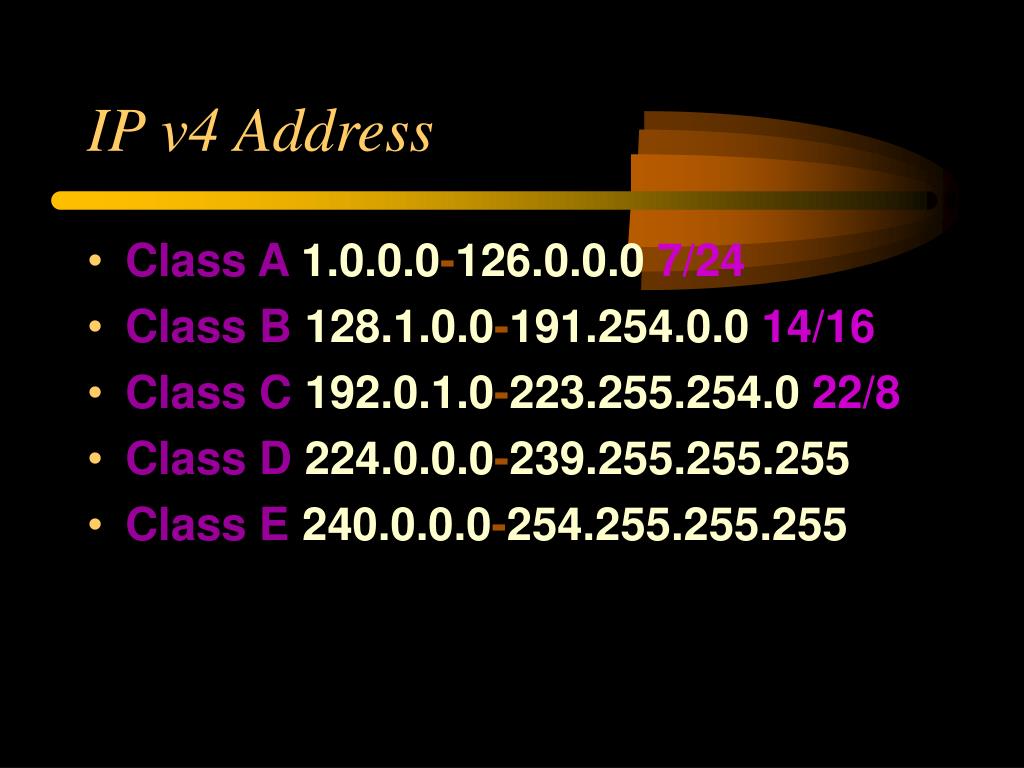

  9. IP v4 Address • Class A 1.0.0.0-126.0.0.0 7/24 • Class B 128.1.0.0-191.254.0.0 14/16 • Class C 192.0.1.0-223.255.254.0 22/8 • Class D 224.0.0.0-239.255.255.255 • Class E 240.0.0.0-254.255.255.255

  10. IP Network and subnets • A name for IP based LAN. • IP Network – mask according to class. • IP sub network have a smaller mask. • Example: • 10.1.0.0, 255.255.0.0 is subnet class A.

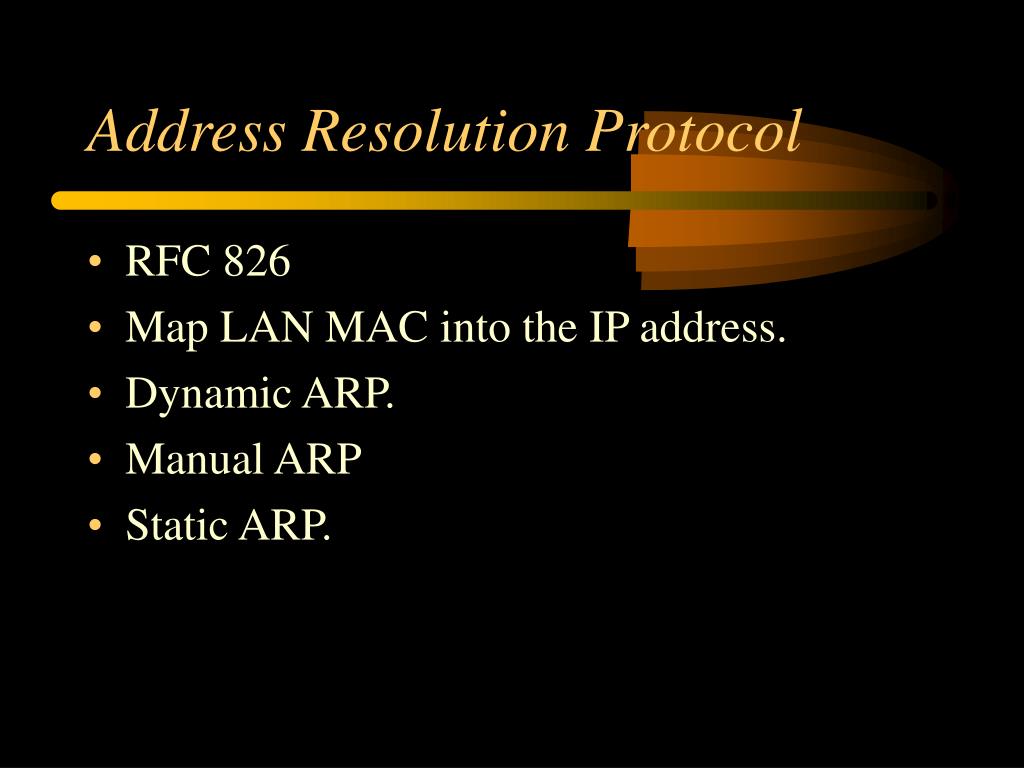

  11. Address Resolution Protocol • RFC 826 • Map LAN MAC into the IP address. • Dynamic ARP. • Manual ARP • Static ARP.

  12. Linux LAN • ifconfig -a – See your interfaces • arp -n – See the ARP table • arp -s ip mac – Set ARP • route -n • ip - iproute2 tool

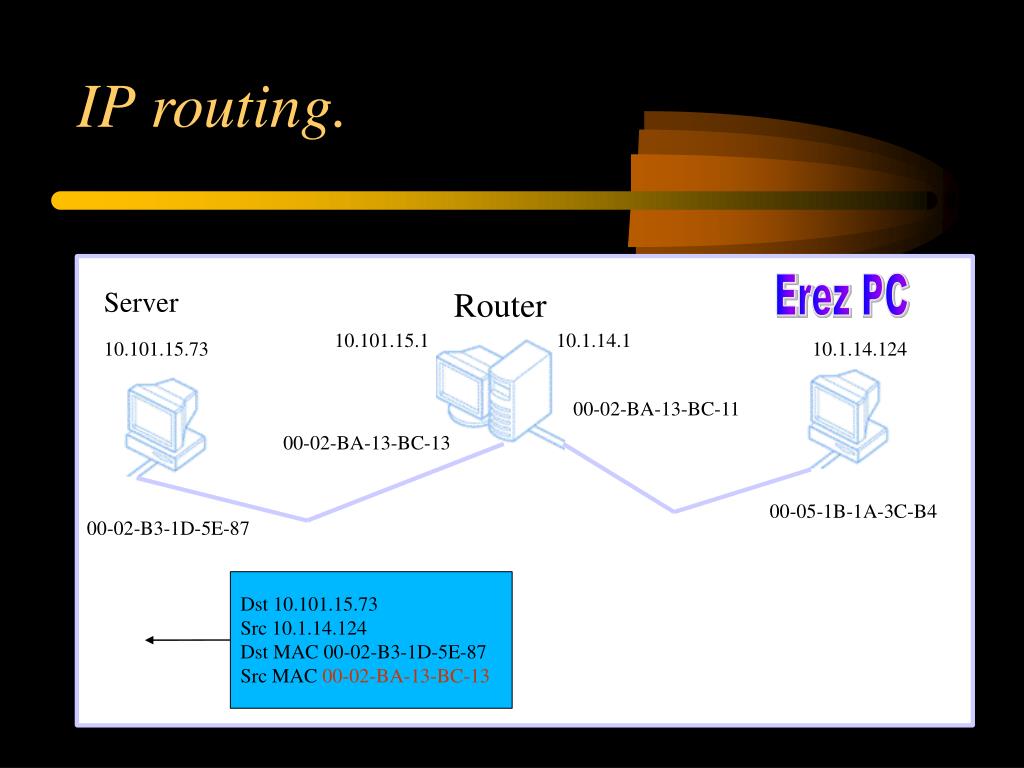

  13. Dst 10.101.15.73 Src 10.1.14.124 Dst MAC 00-02-BA-13-BC-11 Src MAC 00-05-1B-1A-3C-B4 IP routing. Server Router 10.101.15.1 10.1.14.1 10.101.15.73 10.1.14.124 00-02-BA-13-BC-11 00-02-BA-13-BC-13 00-05-1B-1A-3C-B4 00-02-B3-1D-5E-87

  14. Dst 10.101.15.73 Src 10.1.14.124 Dst MAC 00-02-B3-1D-5E-87 Src MAC 00-02-BA-13-BC-13 IP routing. Server Router 10.101.15.1 10.1.14.1 10.101.15.73 10.1.14.124 00-02-BA-13-BC-11 00-02-BA-13-BC-13 00-05-1B-1A-3C-B4 00-02-B3-1D-5E-87

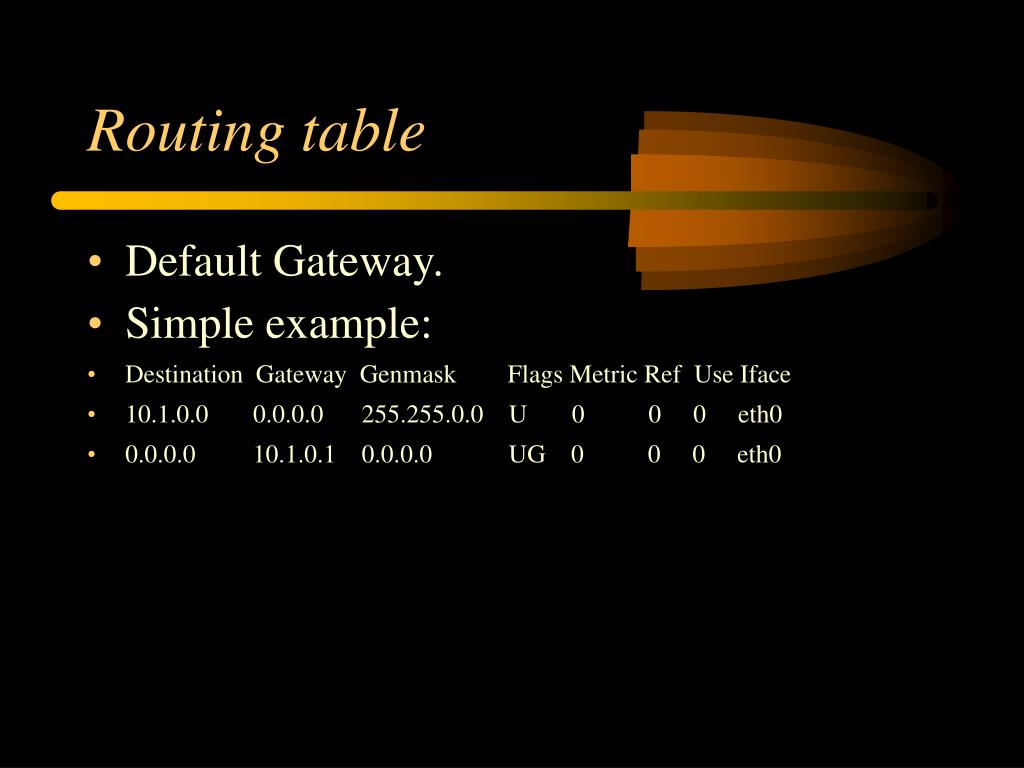

  15. Routing table • Default Gateway. • Simple example: • Destination Gateway Genmask Flags Metric Ref Use Iface • 10.1.0.0 0.0.0.0 255.255.0.0 U 0 0 0 eth0 • 0.0.0.0 10.1.0.1 0.0.0.0 UG 0 0 0 eth0

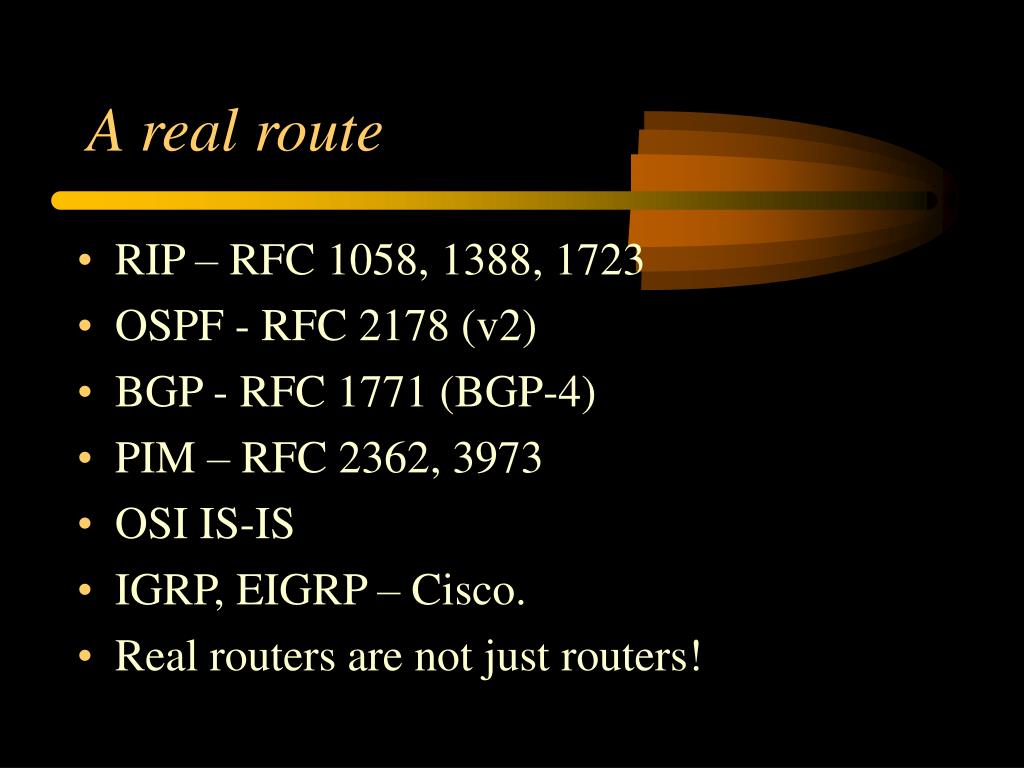

  16. A real route • RIP – RFC 1058, 1388, 1723 • OSPF - RFC 2178 (v2) • BGP - RFC 1771 (BGP-4) • PIM – RFC 2362, 3973 • OSI IS-IS • IGRP, EIGRP – Cisco. • Real routers are not just routers!

  17. PPP • Point to Point Protocol • IP protocol for connecting PC over phone line. • Use tty char device for transferring IP packets. • RFC 1661, RFC 1662 (STD 51) • HDLC ISO 3309

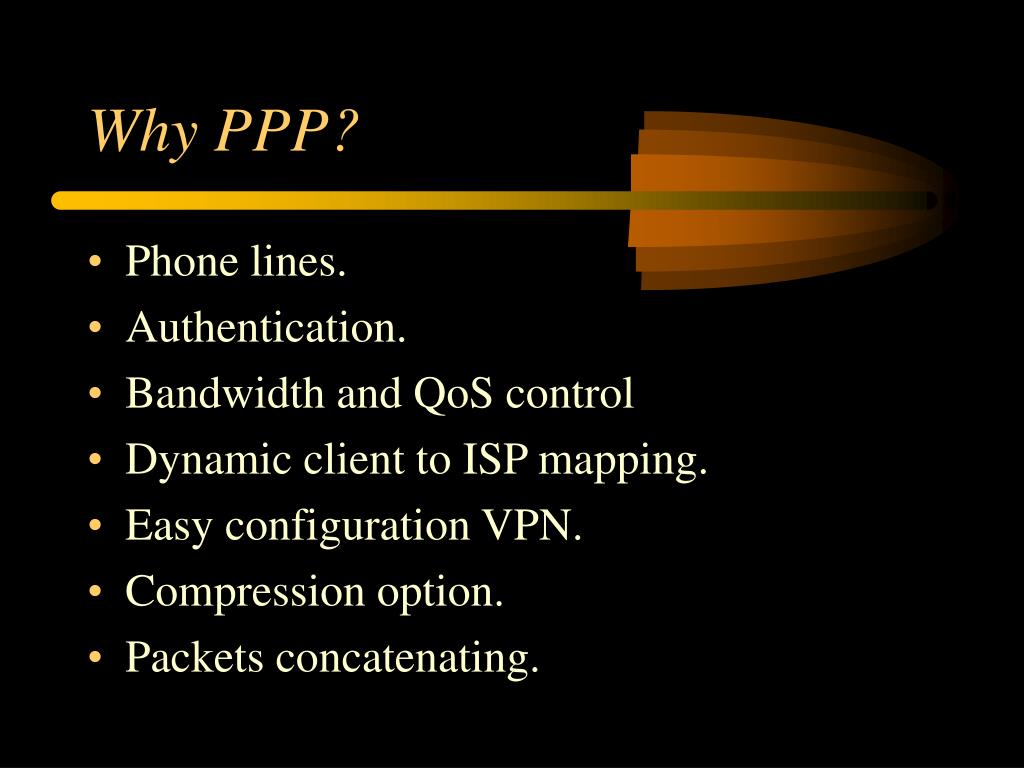

  18. Why PPP? • Phone lines. • Authentication. • Bandwidth and QoS control • Dynamic client to ISP mapping. • Easy configuration VPN. • Compression option. • Packets concatenating.

  19. PPP structure • LCP – Create the PPP link. • PAP or CHAPauthentication. • HDLC – Octet/Bit stuffed framing

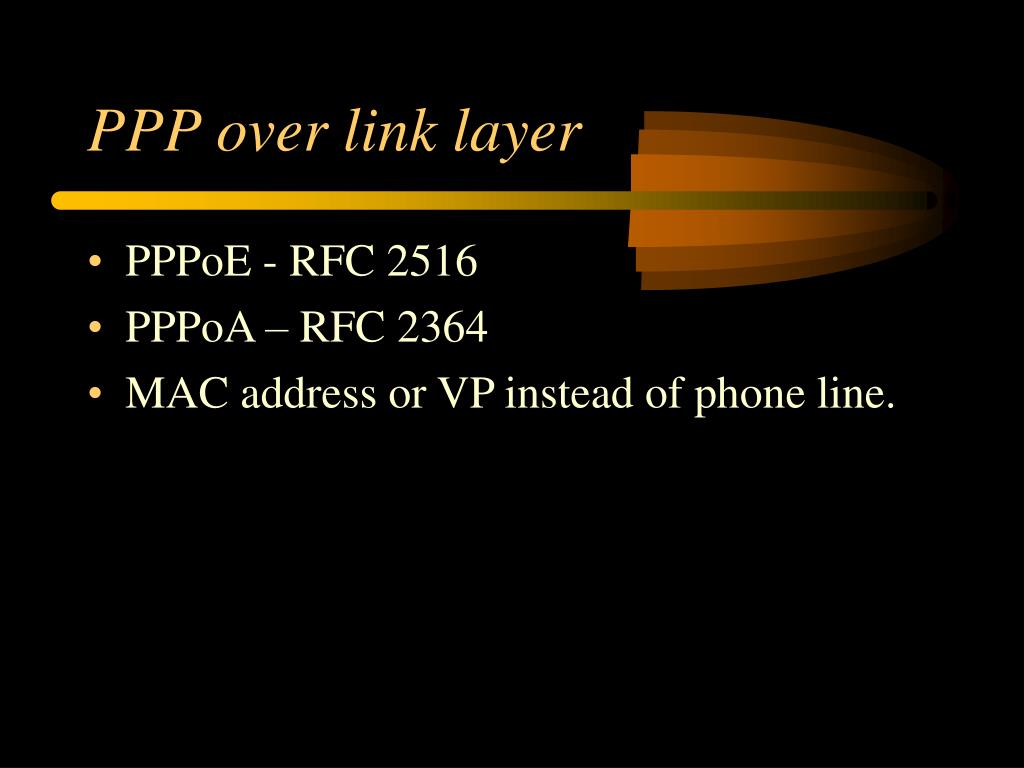

  20. PPP over link layer • PPPoE - RFC 2516 • PPPoA – RFC 2364 • MAC address or VP instead of phone line.

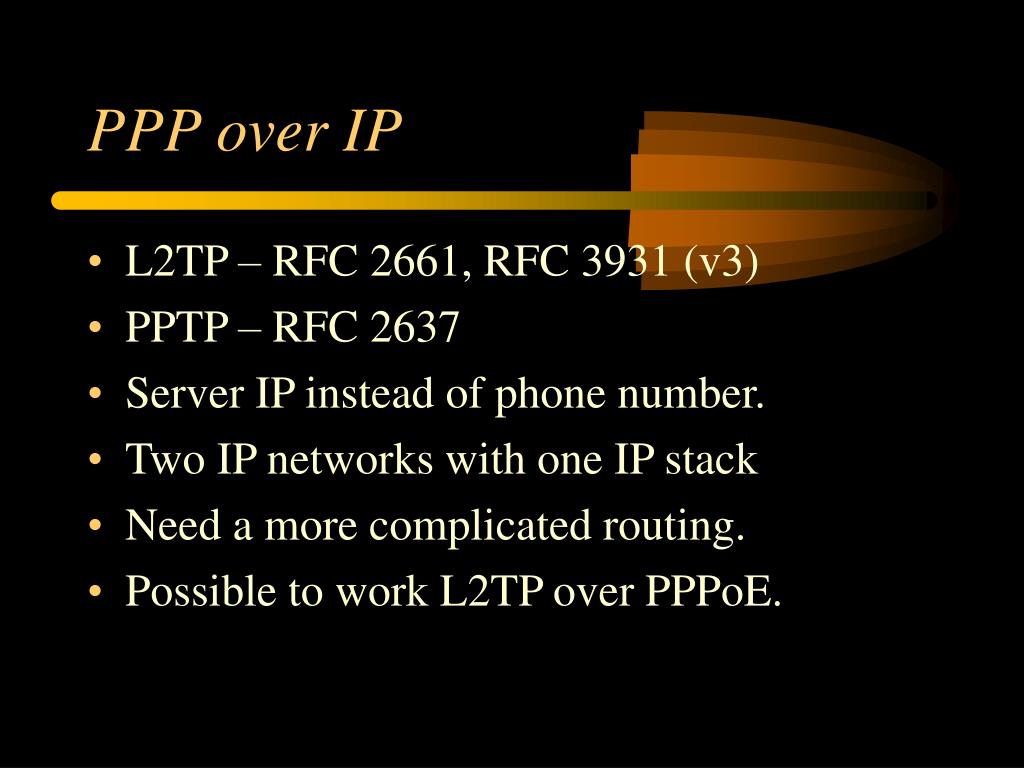

  21. PPP over IP • L2TP – RFC 2661, RFC 3931 (v3) • PPTP – RFC 2637 • Server IP instead of phone number. • Two IP networks with one IP stack • Need a more complicated routing. • Possible to work L2TP over PPPoE.

  22. PPP over IP routing • Simple example: • Destination Gateway Genmask Flags Metric Ref Use Iface • 132.64.140.2 0.0.0.0 255.255.255.255 UH 0 0 0 ppp0 • 10.1.0.0 0.0.0.0 255.255.0.0 U 0 0 0 eth0 • 0.0.0.0 132.64.140.2 0.0.0.0 UG 0 0 0 ppp0

  23. Linux PPP tools • The PPP daemon • PPTP client – works with the pppd. • L2TP – status unknown. • PPPoE • PPPoA – kernel patch with ATM driver. • Kernel 2.6 - PPP, PPPoE, PPPoA
