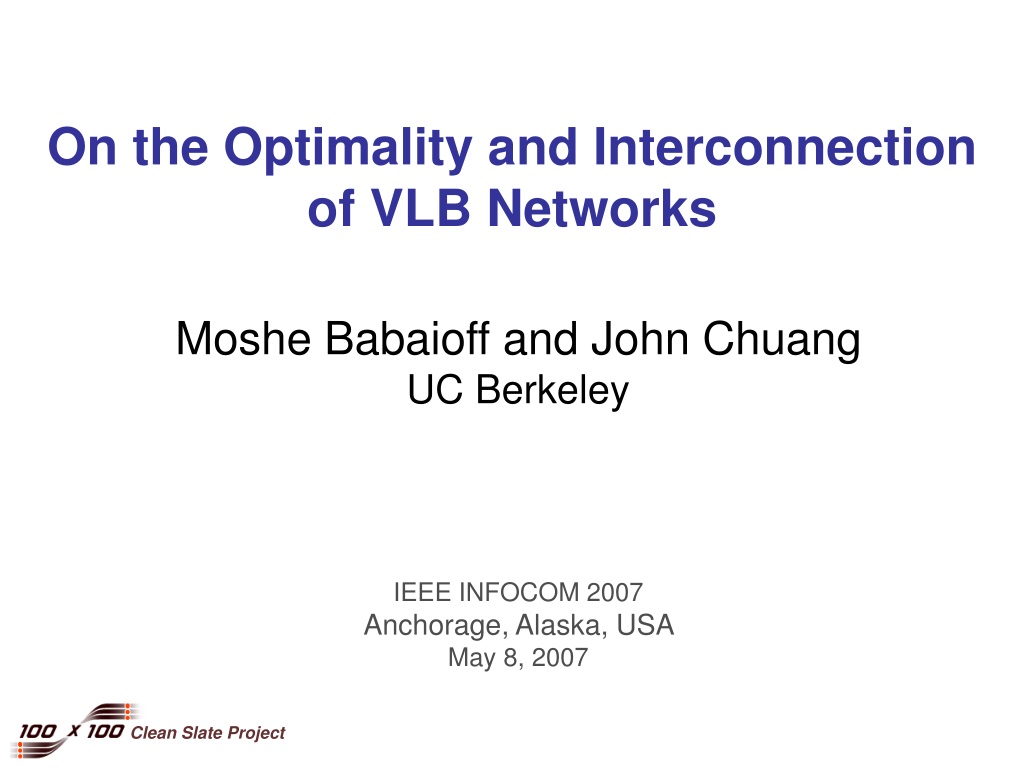

  1. On the Optimality and Interconnection of VLB Networks Moshe Babaioff and John Chuang UC Berkeley IEEE INFOCOM 2007 Anchorage, Alaska, USA May 8, 2007

  2. Main Points • Universal optimality of Valiant Load Balancing (VLB) network under node failures (in paper) • Interconnection of multiple VLB networks • Interconnection challenges • Generalization: m-hubs VLB • Support peering and transit relationships Babaioff & Chuang 2007

  3. Backbone Network Design r 1 2 r • Many challenges: • Traffic matrix can change over short and long timescales • Customers expect high availability and low congestion • Network operator must design for low congestion and high fault tolerance over the lifetime of the network r r n 3 Network? r 4 … r Babaioff & Chuang 2007

  4. Valiant Load-Balancing (VLB)[Zhang-Shen & McKeown; Kodialam et. al.] • Clean-slate approach to backbone design: • Design a network that supports any legal traffic matrix (fij)i,j • Input: • n : the number of nodes • r : bound on each node’s ingress and egress rates (hose model) • Output: A network that supports any legal traffic matrix on the n nodes: • Capacity cij on each edge (i,j) • A routing scheme that respects the edge capacities Babaioff & Chuang 2007

  5. Valiant Load-Balancing (VLB)[Zhang-Shen & McKeown] 1 2 • fij : rate from i to j • Σj fij ≤r , Σi fij ≤r • Two-stage routing of fij : • i sends fij/n to each node k • k forwards to j • For any legal traffic matrix, flow of at most: Σj fij/n ≤r/n per stage per edge • Total capacity: 2r(n-1) is optimal • Additional results for heterogeneous nodes, fault tolerance 2r/n n 3 r 1 … 4 r r Babaioff & Chuang 2007

  6. ? ? ? VLB Interconnection 1 2 • How should multiple VLB networks interconnect with one another? • How to generalize the load-balancing routing algorithm • How to support different interconnection relationships, e.g., transit and peering • Are the efficiency and robustness properties of a single VLB network retained? 6 3 5 4 B C A E D Babaioff & Chuang 2007

  7. VLB Generalization: m-hubs VLB • Each stream is equally load-balanced on m nodes(the hubs) • n-hubs = VLB • 1-hub = star • Fact: any m-hubs network can support any legal traffic matrix, and it has optimal network capacity of 2r(n-1). Capacity: 2(n-m)m (r/m) + m(m-1) (2r/m) = 2r(n-1) r/m r/m r/m 2r/m Babaioff & Chuang 2007

  8. Peering of Two Networks 1 2 • Two networks connect at a set of mshared locations • Network x has nx nodes, each with homogeneous rate of rx (possibly n1≠n2 and r1≠r2) • There is a bound of Rp on the total interconnection rate to/from a network 6 3 5 4 B C A E D Babaioff & Chuang 2007

  9. “Two m-hubs VLB Peering Network” 1 2 • Two m-hubsVLB networks peering at the hubs • 3-stage routing scheme: • traffic load balanced on the mhubs • traffic sent across peering edges • traffic delivered to destination • Each network x has optimal capacity: 2rx(nx -1) • Capacity of Rp/m on each of the 2m directed peering edges • Total interconnection capacity of 2Rp(optimal) 6 3 5 4 B C A E D Babaioff & Chuang 2007

  10. Peering of 2 Networks: Results Theorem: The “two m-hubs VLB peering network” can support any legal traffic matrix and has minimal capacity in each network and minimal interconnection capacity. • Result extends to q>2 networks in the case of universally shared locations: all networks share m>0 locations • Extension to node failures Babaioff & Chuang 2007

  11. Interconnection without Universally Shared Locations • With three or more VLB networks, it may be infeasible to require a set of interconnection points universally shared by all networks • Networks have different coverage areas • Raises entry barrier for new networks; reduces evolvability • Consider alternate VLB interconnection schemes • Transit vs. peering schemes • Note: routing stages will have to increase Babaioff & Chuang 2007

  12. q: # of networks : hubs : data : destination VLB Bilateral Peering x1 • Traffic load-balanced on local hubs • Traffic forwarded to peering nodes for destination network • Traffic sent across peering edges • Traffic load-balanced on destination network’s hubs • Traffic delivered to destination node x2 x3 xq • Traffic load-balanced on local hubs • Traffic forwarded to peering nodes for destination network • Traffic sent across peering edges • Traffic load-balanced on destination network’s hubs • Traffic delivered to destination node Babaioff & Chuang 2007

  13. q: # of networks : hubs : data : destination VLB Bilateral Peering x1 Rp • Capacity for each networkx: Cx=2rx(nx-1)+2Rp(q-2)(within constant factor of optimal) • Interconnection capacity: Rp (q-1)q(optimal for peering) Rp Rp Rp x2 x3 xq Rp Babaioff & Chuang 2007

  14. q: # of networks : hubs : data : destination VLB Transit (“VLB over VLBs”) z (transit) • Traffic load-balanced on local hubs • Traffic forwarded to transit network Z • Traffic load-balanced on transit hubs • Traffic forwarded to peering nodes • Traffic forwarded to destination network (destination hubs) • Traffic delivered to destination node x1 x2 xq-1 • Traffic load-balanced on local hubs • Traffic forwarded to transit network Z • Traffic load-balanced on transit hubs • Traffic forwarded to peering nodes • Traffic forwarded to destination network (destination hubs) • Traffic delivered to destination node Babaioff & Chuang 2007

  15. q: # of networks : hubs : data : destination VLB Transit (“VLB over VLBs”) z(transit) • Capacity of stub network x: 2rx(nx -1) • Capacity of transit network z: 2rz(nz-1)+2Rp(q-2) • Interconnection capacity: 2Rp (q-1) Theorem: Any interconnection network by a transit network must have at least these capacities in each network and at least as much interconnection capacity. • Proves the optimality of VLB as the transit scheme. Rp Rp Rp Rp Rp x1 x2 xq-1 Babaioff & Chuang 2007

  16. VLB Peering vs. Transit S= Σy 2ry(ny -1)  Transit scheme more scalable in number of networks (q) Babaioff & Chuang 2007

  17. Summary • Established universal optimality of VLB under node failures (not presented today) • Generalized m-hubs VLB network serves as building block for VLB interconnection • m-hubs VLB design retains desirable properties of VLB while allowing diverse VLB networks to interconnect • Can support both peering and transit relationships • Established optimality for VLB transit, and within constant factor of optimality for VLB peering • Open questions: • Support simultaneous transit and peering • Fault tolerance: failure of nodes, edges, transit networks • Strategic interaction between VLB networks Babaioff & Chuang 2007
