  1. Benchmarking Anomaly-based Detection Systems Ashish Gupta Network Security May 2004

  2. Overview • The Motivation for this paper • Waldo example • The approach • Structure in data • Generating the data and anomalies • Injecting anomalies • Results • Training and Testing: the method • Scoring • Presentation • The ROC curves: somewhat obvious

  3. Motivation Does anomaly detection depend on regularity/randomness of data ?

  4. Where’s Waldo !

  5. Where’s Waldo !

  6. Where’s Waldo !

  7. The aim • Hypothesis: • Differences in data regularity affect anomaly detection • Different environments  different regularity • Regularity • Highly redundant or random ? • Example of environment’s affect 010101010101010101010101 Or 0100011000101000100100101

  8. Consequences One IDS : Different False Alarm Rates Need custom system/training for each environment ? Temporal affects: Regularity may vary over time ?

  9. Structure in data Measuring randomness

  10. 010101010101010101010101 Or 0100011000101000100100101 Measuring Randomness + Relative Entropy Sequential Dependence Conditional Relative Entropy

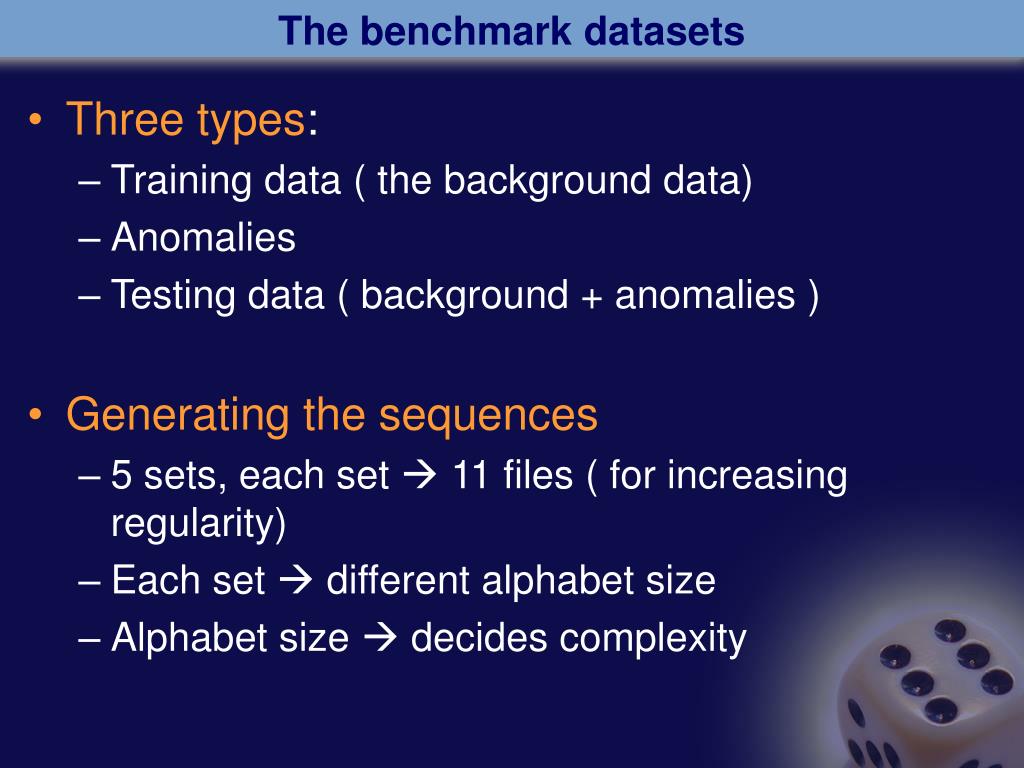

  11. The benchmark datasets • Three types: • Training data ( the background data) • Anomalies • Testing data ( background + anomalies ) • Generating the sequences • 5 sets, each set  11 files ( for increasing regularity) • Each set  different alphabet size • Alphabet size  decides complexity

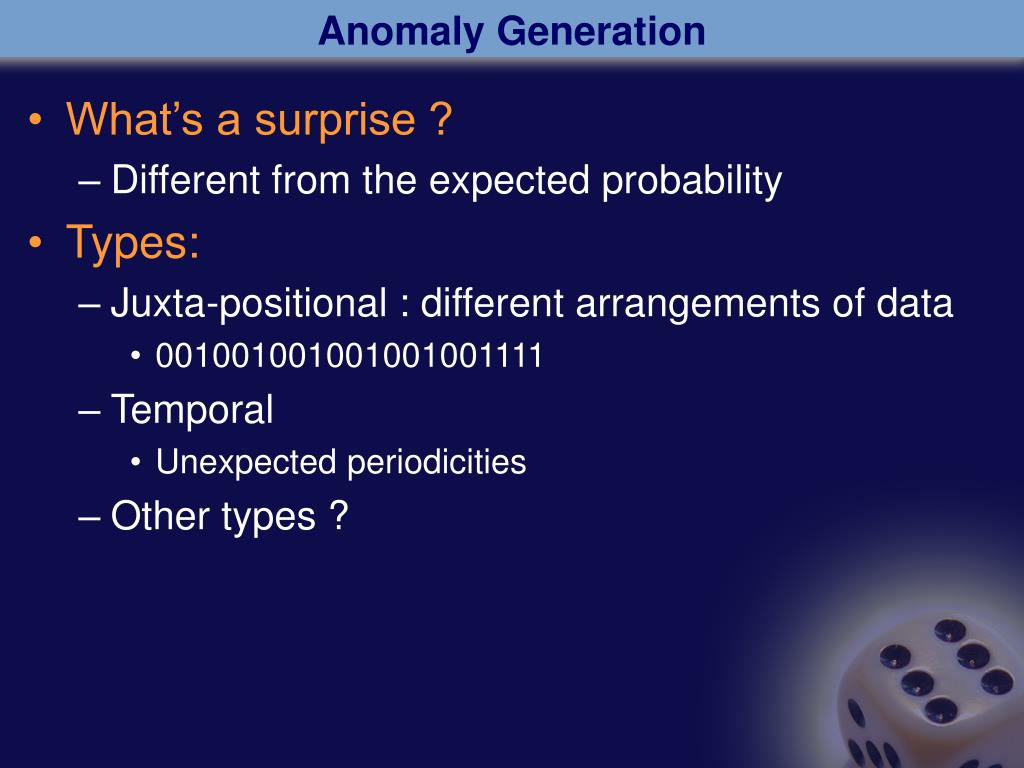

  12. Anomaly Generation • What’s a surprise ? • Different from the expected probability • Types: • Juxta-positional : different arrangements of data • 001001001001001001111 • Temporal • Unexpected periodicities • Other types ?

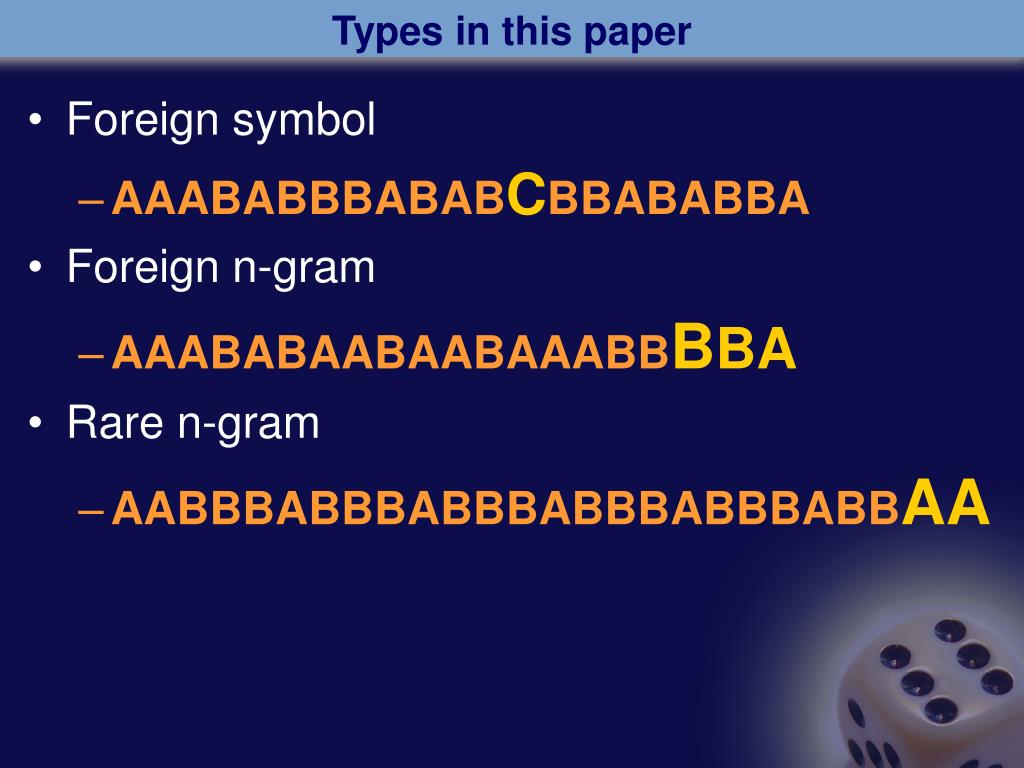

  13. Types in this paper • Foreign symbol • AAABABBBABABCBBABABBA • Foreign n-gram • AAABABAABAABAAABBBBA • Rare n-gram • AABBBABBBABBBABBBABBBABBAA

  14. Injecting anomalies • Make sure not more than 0.24 %

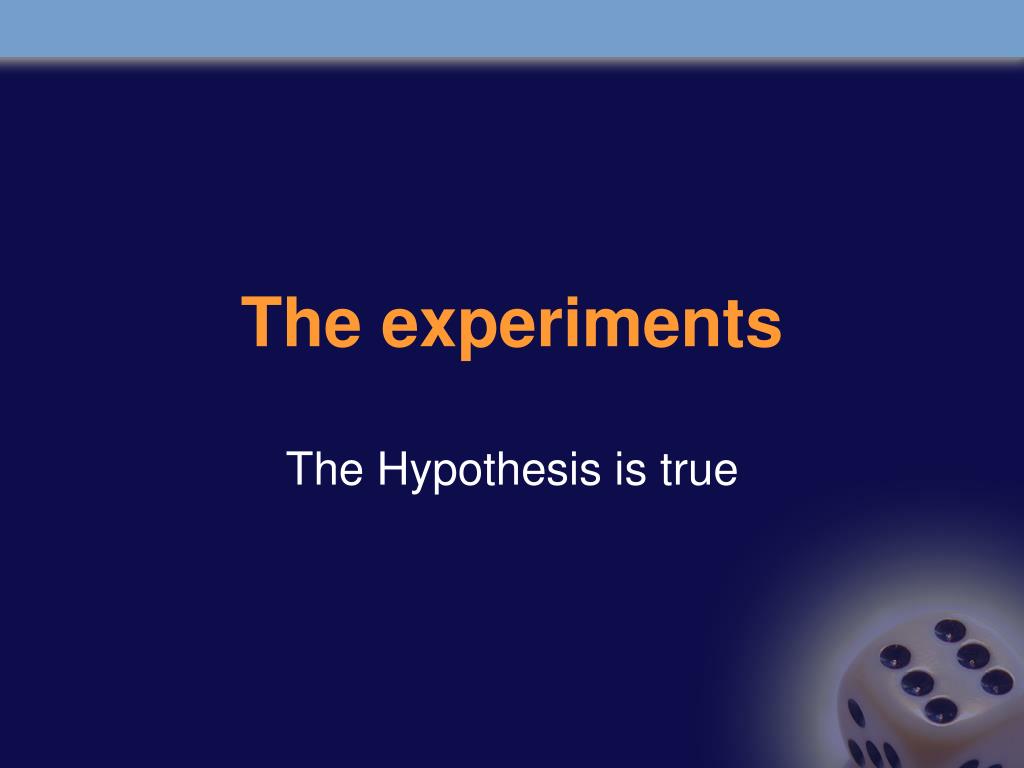

  15. The experiments The Hypothesis is true

  16. The hypothesis: • Nature of “normal” background noise affects signal detection • The anomaly detector • To detect anomalous subsequences • Learning phase  n-gram probability table • Unexpected event  anomaly ! • Anomaly threshold decides level of surprise

  17. Example of anomaly detection AAC  ANOMALY !

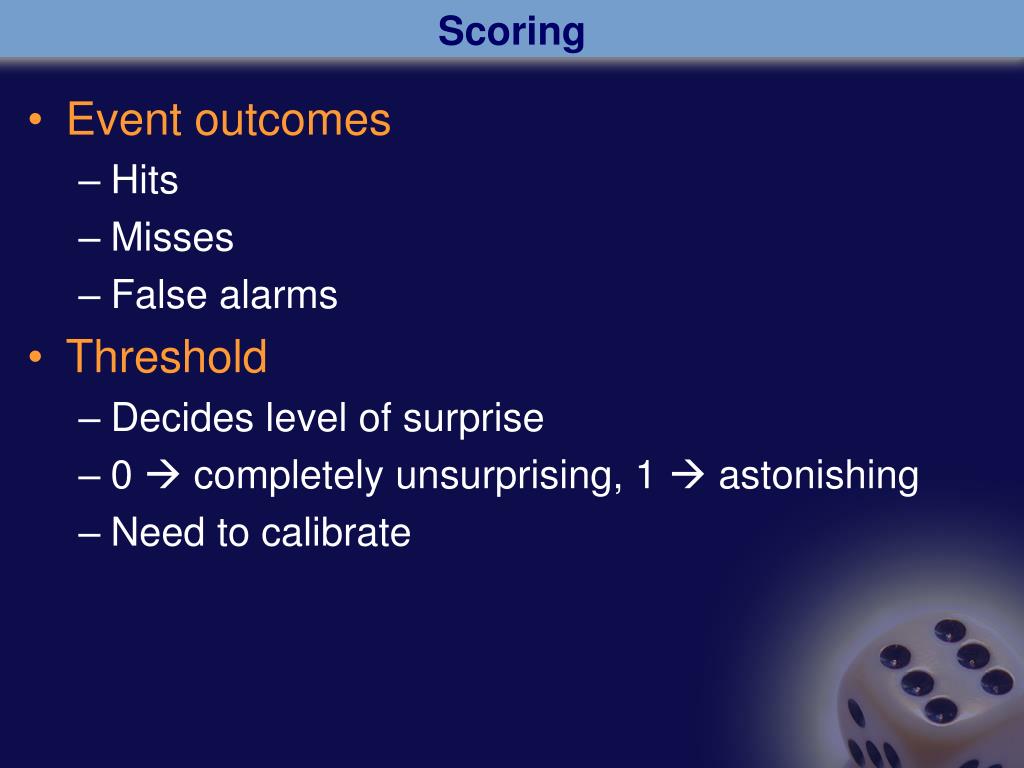

  18. Scoring • Event outcomes • Hits • Misses • False alarms • Threshold • Decides level of surprise • 0  completely unsurprising, 1  astonishing • Need to calibrate

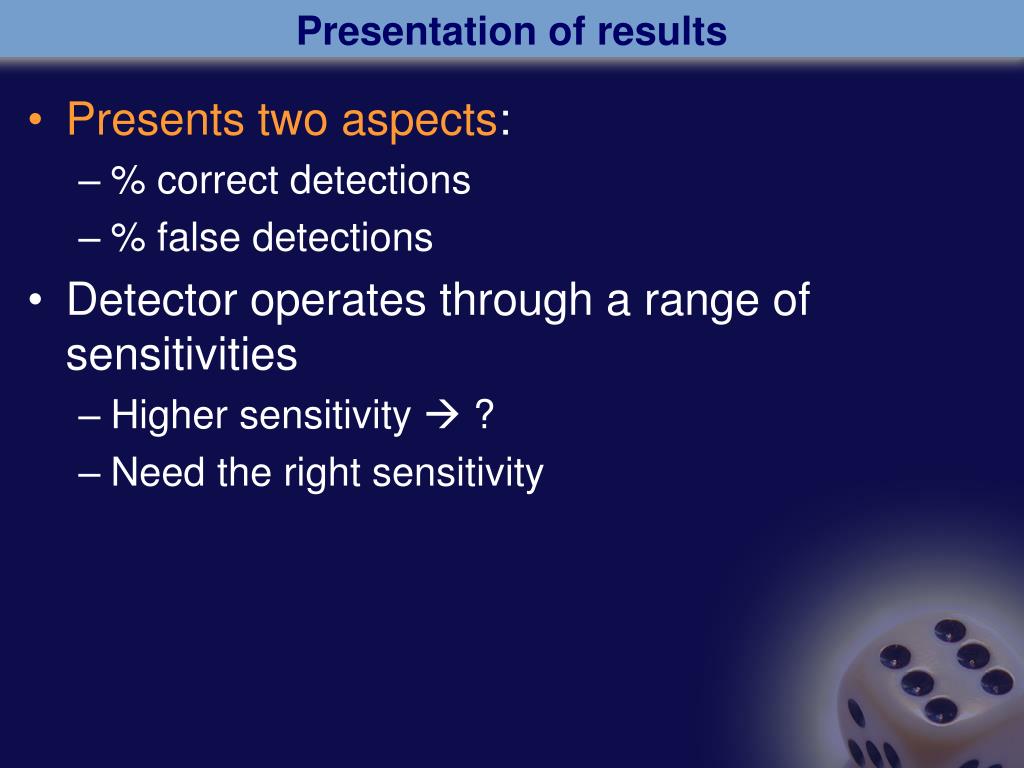

  19. Presentation of results • Presents two aspects: • % correct detections • % false detections • Detector operates through a range of sensitivities • Higher sensitivity  ? • Need the right sensitivity

  20. Interpretation • Nothing overlaps  regularity affects detection !

  21. What does this mean ? • Detection metrics are data dependent • Cannot say: • My XYZ product will flag down 75% percent anomalies with 10% false hit rate ! • Sir, are you sure ?

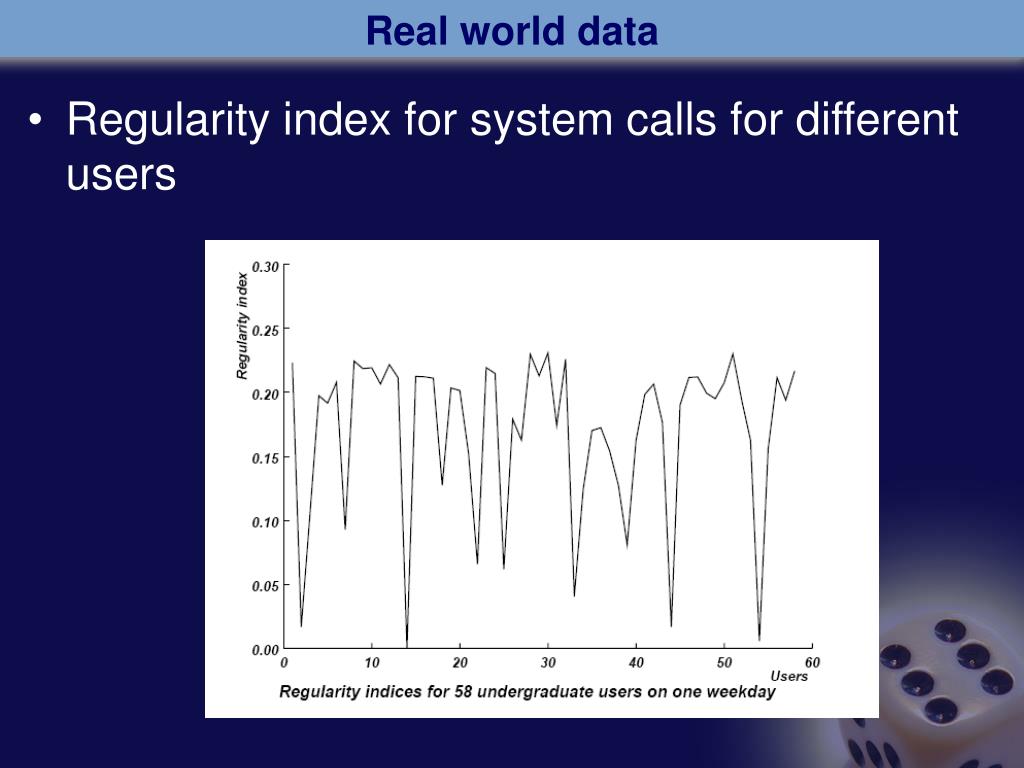

  22. Real world data • Regularity index for system calls for different users

  23. Is this surprising ? • What about network traffic ?

  24. Conclusions Anomaly Detection Effectiveness Data Structure Evaluation is data dependent

  25. Conclusions Different system Or Change the parameters Change in regularity

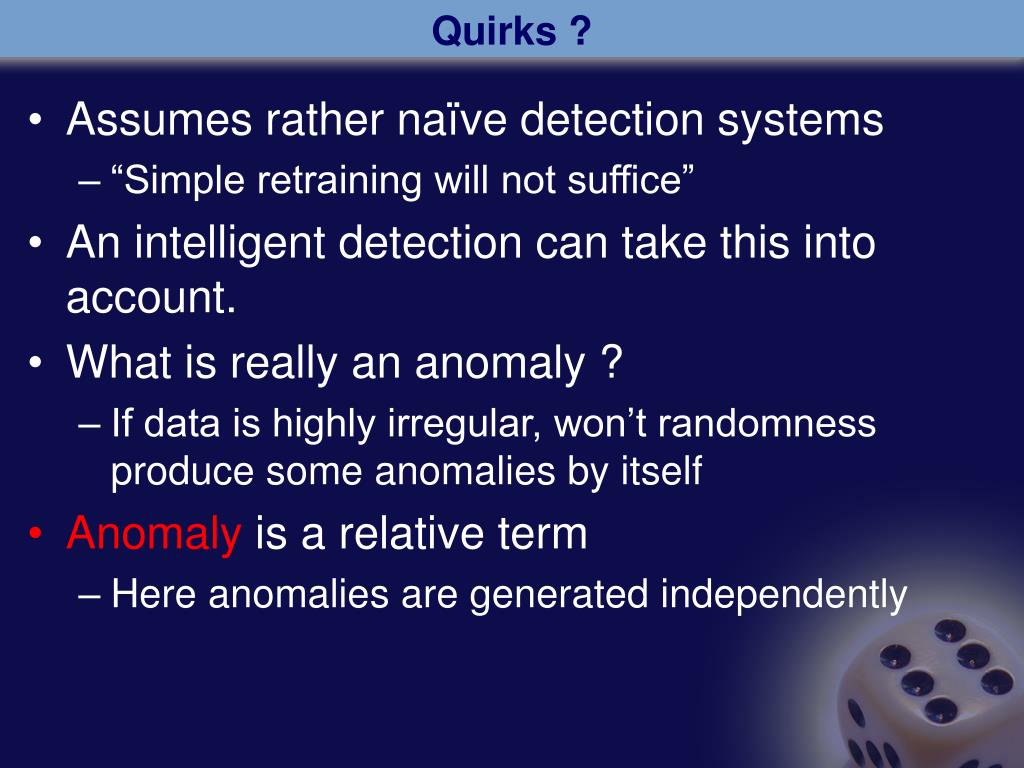

  26. Quirks ? • Assumes rather naïve detection systems • “Simple retraining will not suffice” • An intelligent detection can take this into account. • What is really an anomaly ? • If data is highly irregular, won’t randomness produce some anomalies by itself • Anomaly is a relative term • Here anomalies are generated independently
