  1. Curves Chiew-Lan Tai

  2. Reading Required • Hearn & Baker, 8-8 – 8-10, 8-12 • Foley, 11.2

  3. Curves Before Computers • The loftsman’s or carpenter’s spline: • long, narrow strip of wood or metal • shaped by lead weights called “ducks” • Usually gives curves with second-order continuity • Used for designing cars, ships, airplanes etc. • But curves based on physical artefacts cannot be replicated well, since there is no exact definition of what the curve is. • Around 1960, a lot of industrial designers were working on this problem. • Today, curves are easy to manipulate on a computer and are used for CAD, art, animation, …

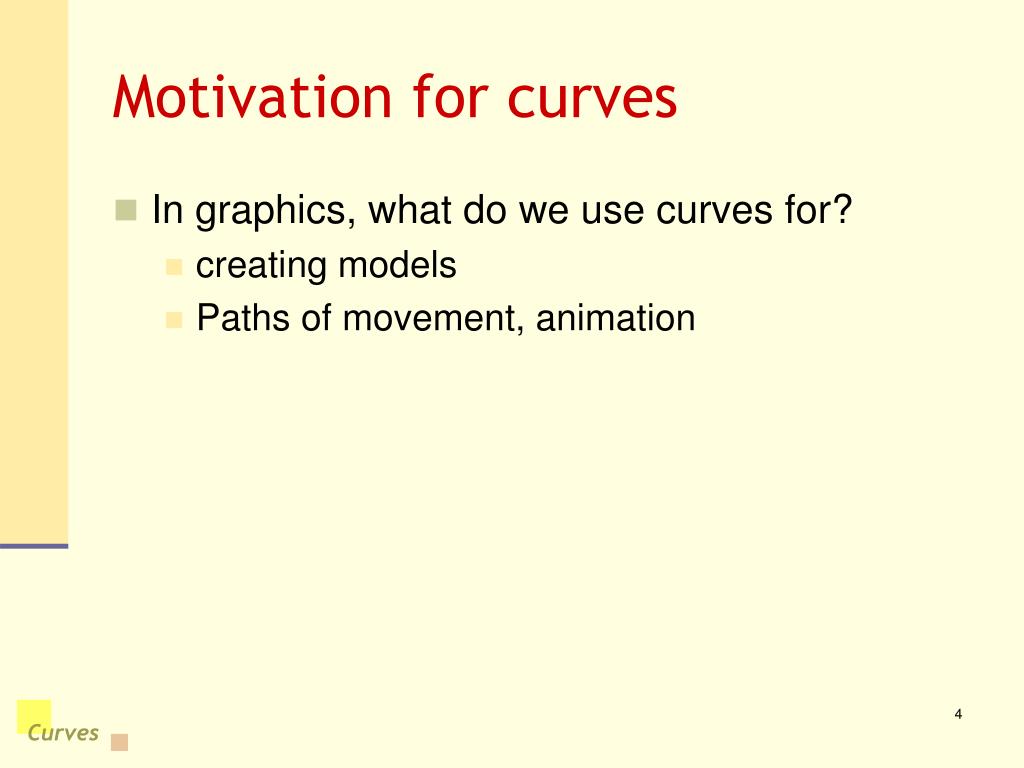

  4. Motivation for curves • In graphics, what do we use curves for? • creating models • Paths of movement, animation

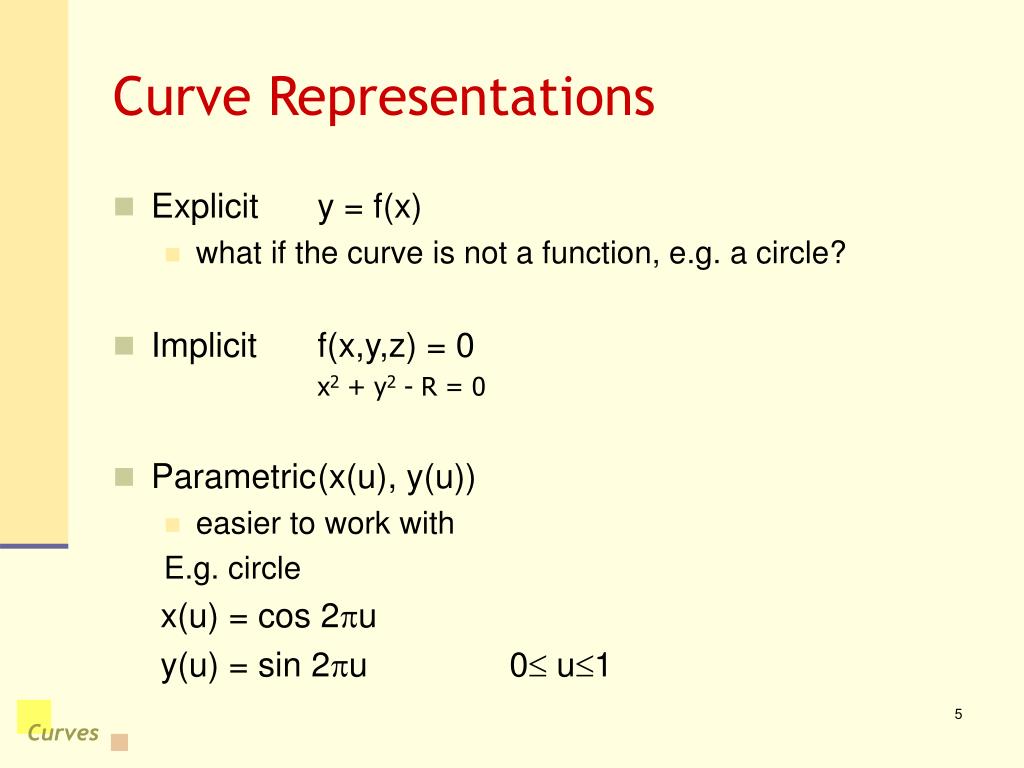

  5. Curve Representations • Explicit y = f(x) • what if the curve is not a function, e.g. a circle? • Implicit f(x,y,z) = 0 x2 + y2 - R = 0 • Parametric (x(u), y(u)) • easier to work with E.g. circle x(u) = cos 2u y(u) = sin 2u 0 u1

  6. Parametric Polynomial Curves • We’ll use polynomial parametric curves, where the functions are all polynomials in the parameter. • Advantages • easy (and efficient) to compute • infinitely differentiable • We’ll also assume that u varies from 0 to 1

  7. Bezier Curves

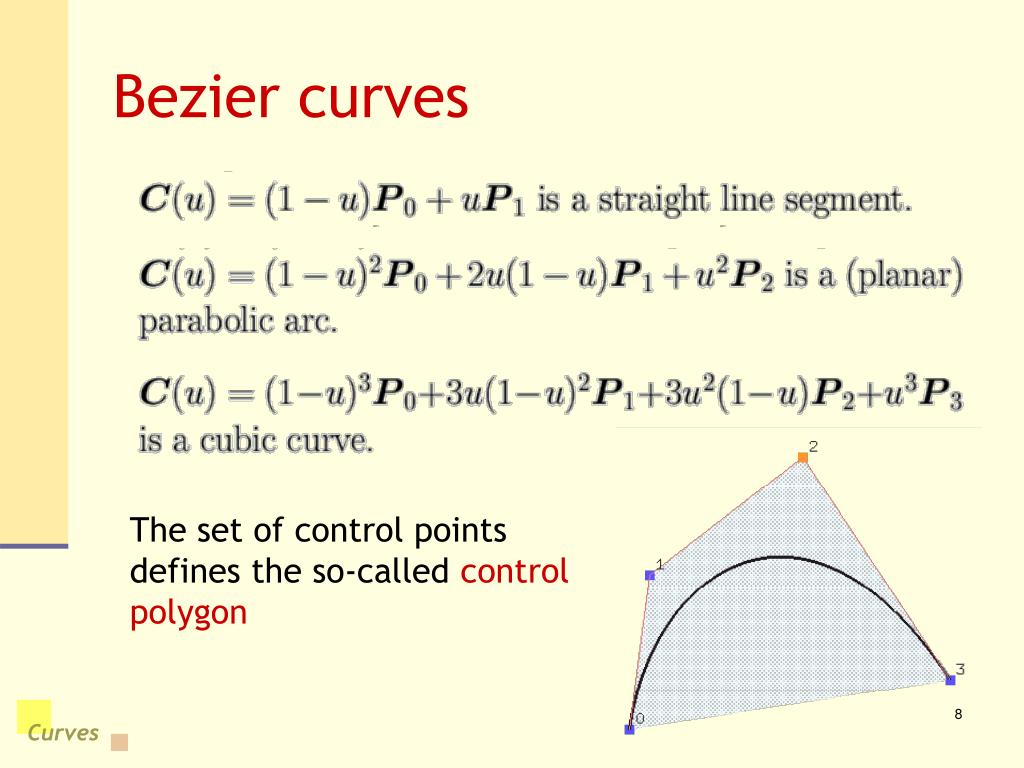

  8. Bezier curves The set of control points defines the so-called control polygon

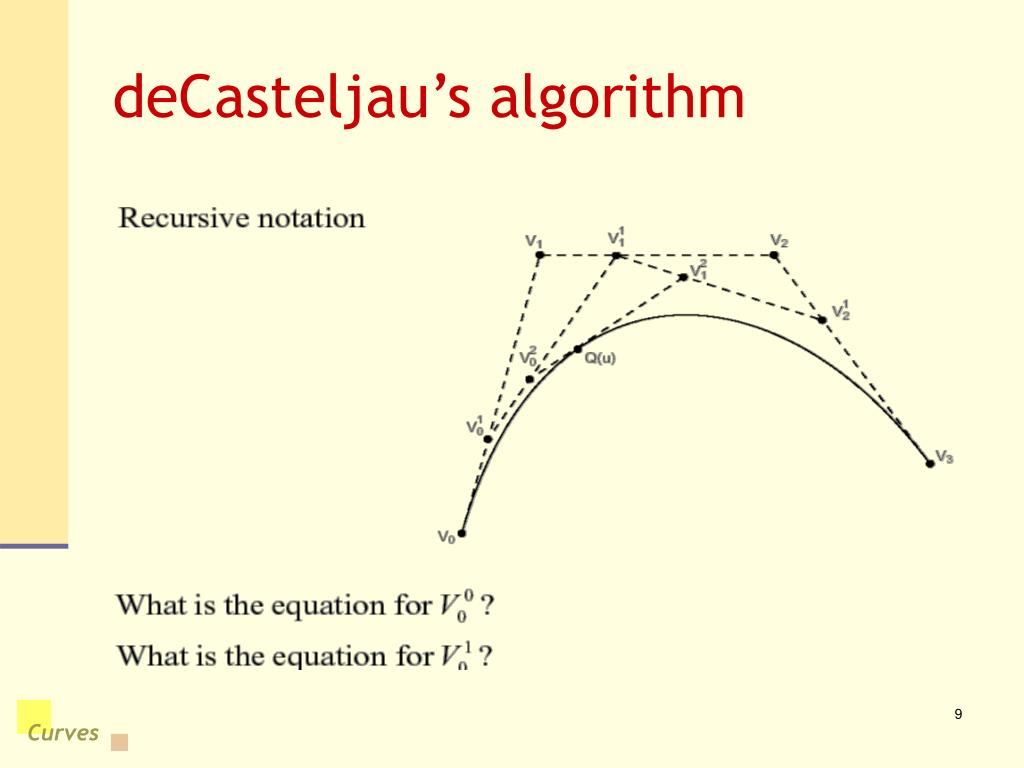

  9. deCasteljau’s algorithm

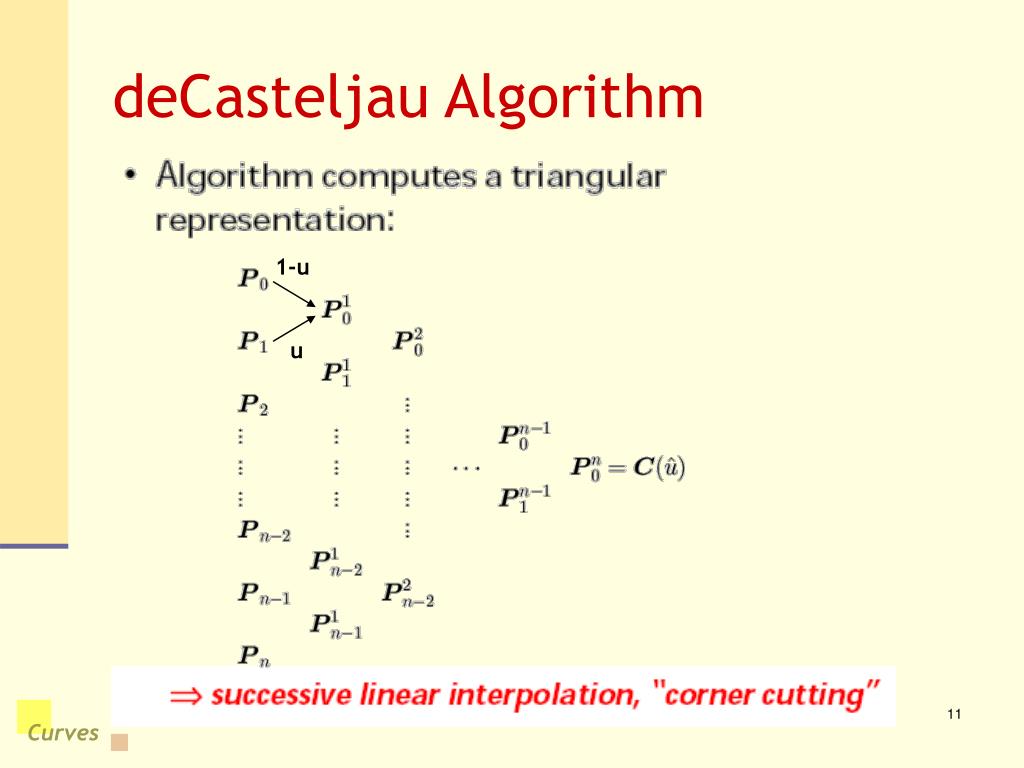

  10. deCasteljau Algorithm 1-u u

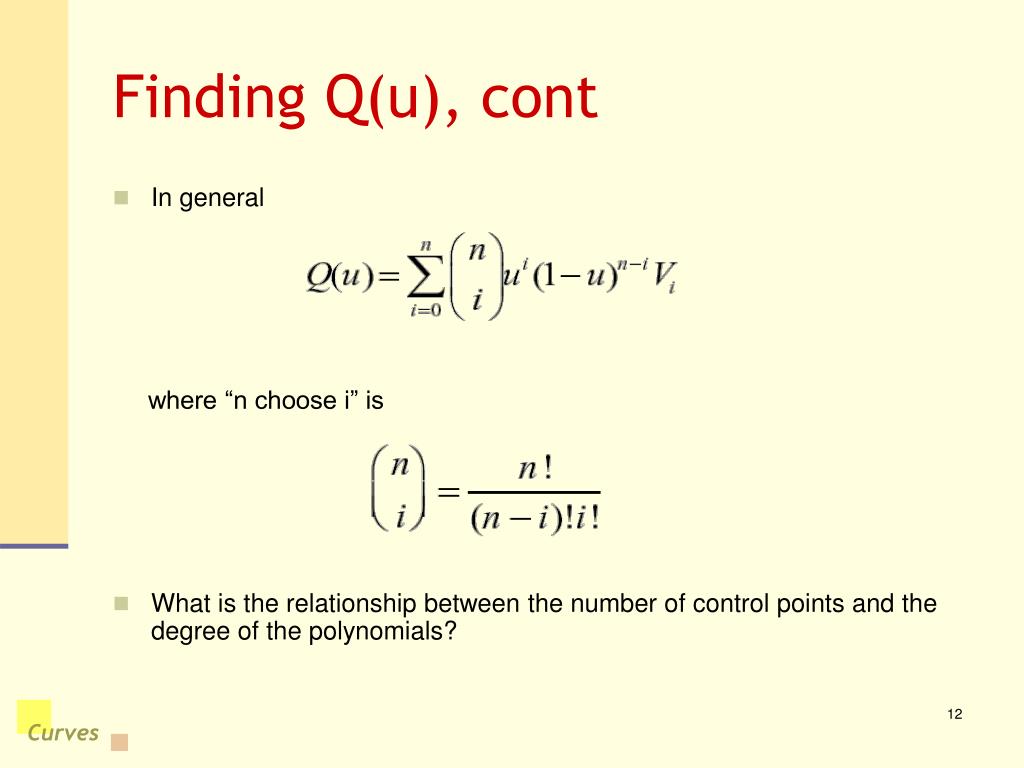

  11. Finding Q(u), cont • In general where “n choose i” is • What is the relationship between the number of control points and the degree of the polynomials?

  12. Bernstein polynomials • The coefficients of the control points are a set of functions called the Bernstein polynomials. • For degree 3, we have:

  13. Useful properties • Bernstein polynomials has some useful properties in [0,1]: • each Bernstein coefficient is positive • sum of all four coefficients is always exactly 1 (a.k.a. , a “partition of unity”) • These properties together imply that the curve lies within the convex hull of its control points. (convex hull is the smallest convex polygon that contains the control points)

  14. Properties of Bezier curves • Variation diminishing property: The number of intersections of a line/plane with the curve is less or equal to the number of intersections with its control polygon. • Design property: control polygon gives a rough sketch of the curve

  15. Displaying Bezier Curves • Recall that most graphics hardware can only display lines and polygons. • How can we display Bezier curves? • It would be nice to have an adaptive algorithm that takes flatness into account. DisplayBezier (vo,v1,v2,v3) if (FlatEnough(v0,v1,v2,v3)) Line(v0,v3) else do something smart

  16. Subdivide and Conquer

  17. Testing for Flatness • Compare the total length of control polygon to the length connecting the endpoints:

  18. More Complex Curves • Suppose we want to draw a more complex curve. • We connect together individual curve segments that are cubic Bezier to form a longer curve, called splines. • Why cubic? • Smallest degree curves that can represent curves in 3D space • There are three properties that we’d like to have in our constructed splines … • Local control • Interpolation • continuity

  19. Local Control • One problem with Bezier curves is that every control point affects every point on the curve (except the endpoints) • Moving a single control point affects the whole curve! • We’d like our spline to have local control, that is, each control point affects a certain well-defined neighborhood around that point.

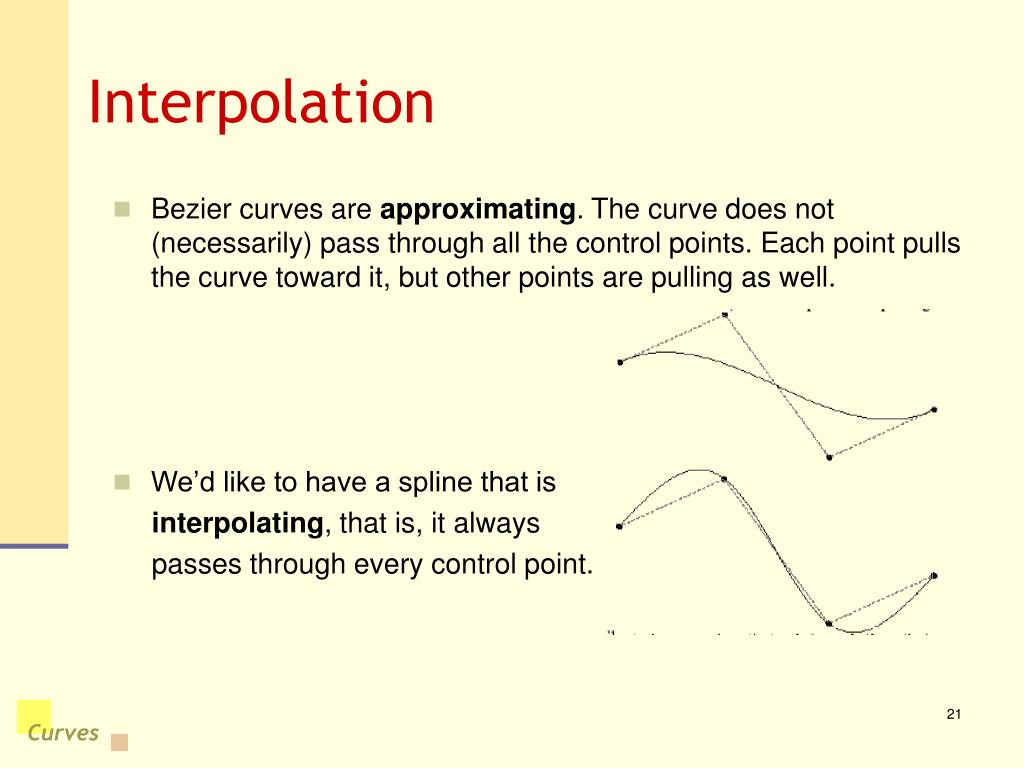

  20. Interpolation • Bezier curves are approximating. The curve does not (necessarily) pass through all the control points. Each point pulls the curve toward it, but other points are pulling as well. • We’d like to have a spline that is interpolating, that is, it always passes through every control point.

  21. Continuity • We want our curve to have continuity. There shouldn’t be an abrupt change when we move from one segment to the next.

  22. Ensuring Continuity • Let’s look at continuity first. • Since the functions defining a Bezier curve are polynomials, all their derivatives exist and are continuous on the interior of the curve. • Therefore, we only need to worry about the continuity at the endpoints of each curve segment (i.e., the joints).

  23. Ensuring C0 continuity • First cubic Bezier segment: control points (V0,V1,V2,V3) • Second cubic Bezier segment: control points (W0,W1,W2,W3) • Joint is C0 continuous. • What constraint does this place on W0,W1,W2,W3 ?

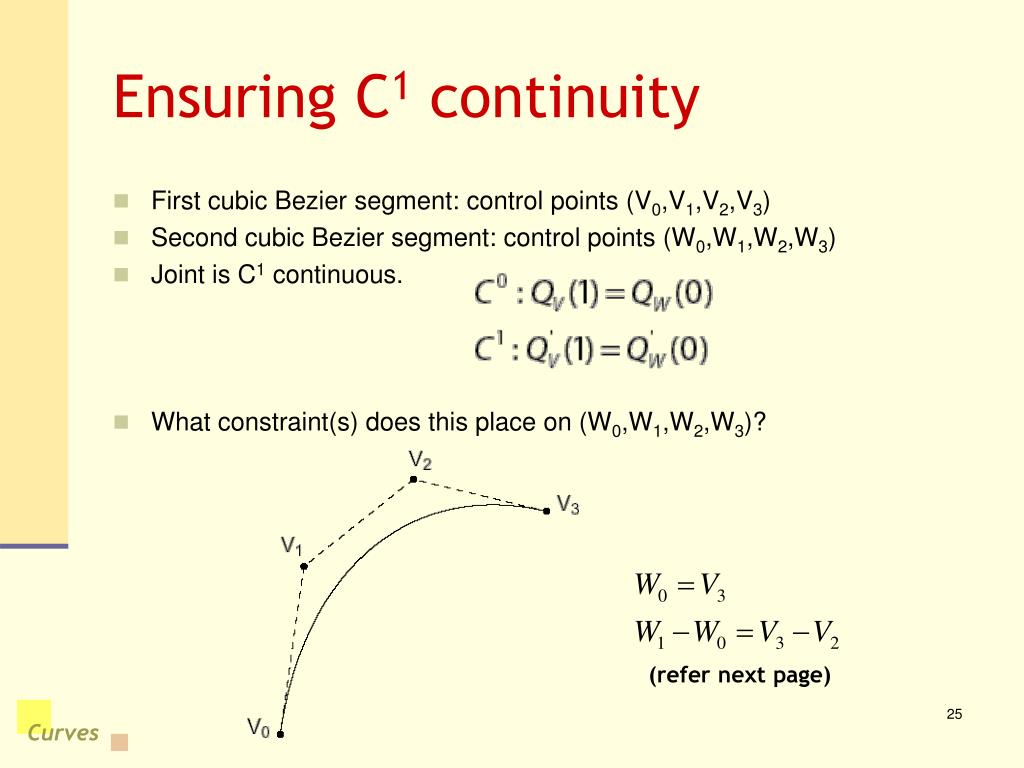

  24. Ensuring C1 continuity • First cubic Bezier segment: control points (V0,V1,V2,V3) • Second cubic Bezier segment: control points (W0,W1,W2,W3) • Joint is C1 continuous. • What constraint(s) does this place on (W0,W1,W2,W3)? (refer next page)

  25. 1st derivatives at the endpoints

  26. 2nd derivatives at the endpoints • Finally, we will want to develop C2 splines. To do that, we will need second derivatives of Bezier curves

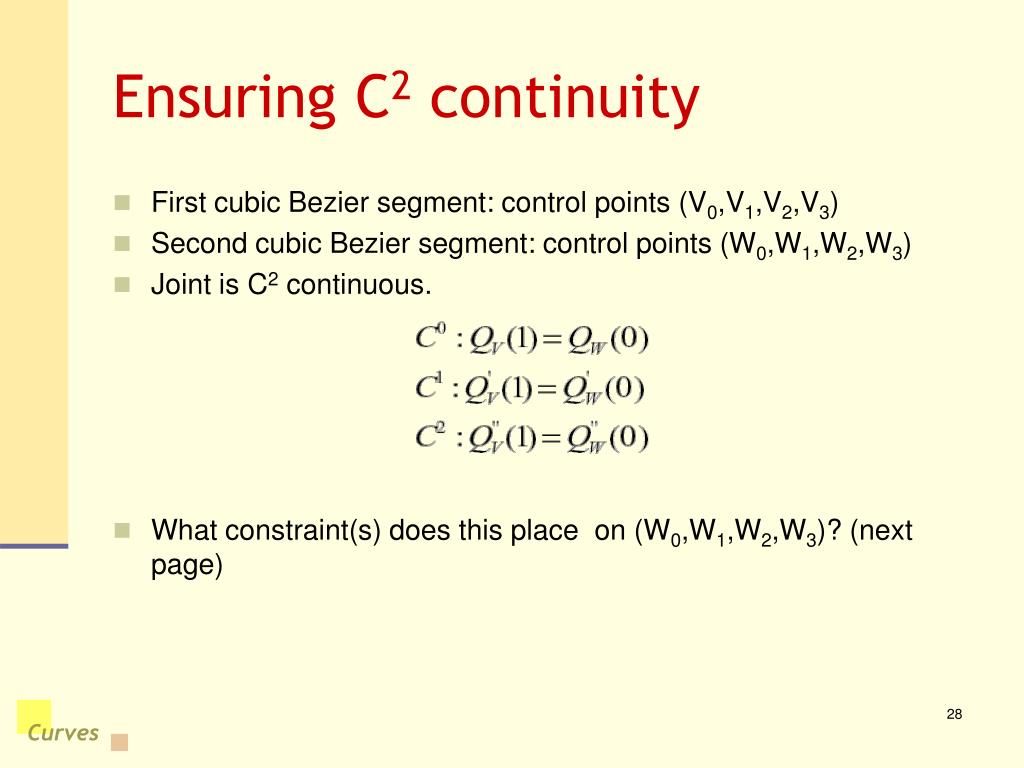

  27. Ensuring C2 continuity • First cubic Bezier segment: control points (V0,V1,V2,V3) • Second cubic Bezier segment: control points (W0,W1,W2,W3) • Joint is C2 continuous. • What constraint(s) does this place on (W0,W1,W2,W3)? (next page)

  28. Ensuring C2 Continuity • Suppose we want to join two cubic Bezier curves (V0,V1,V2,V3) and (W0,W1,W2,W3) so that there is C2 continuity at the joint.

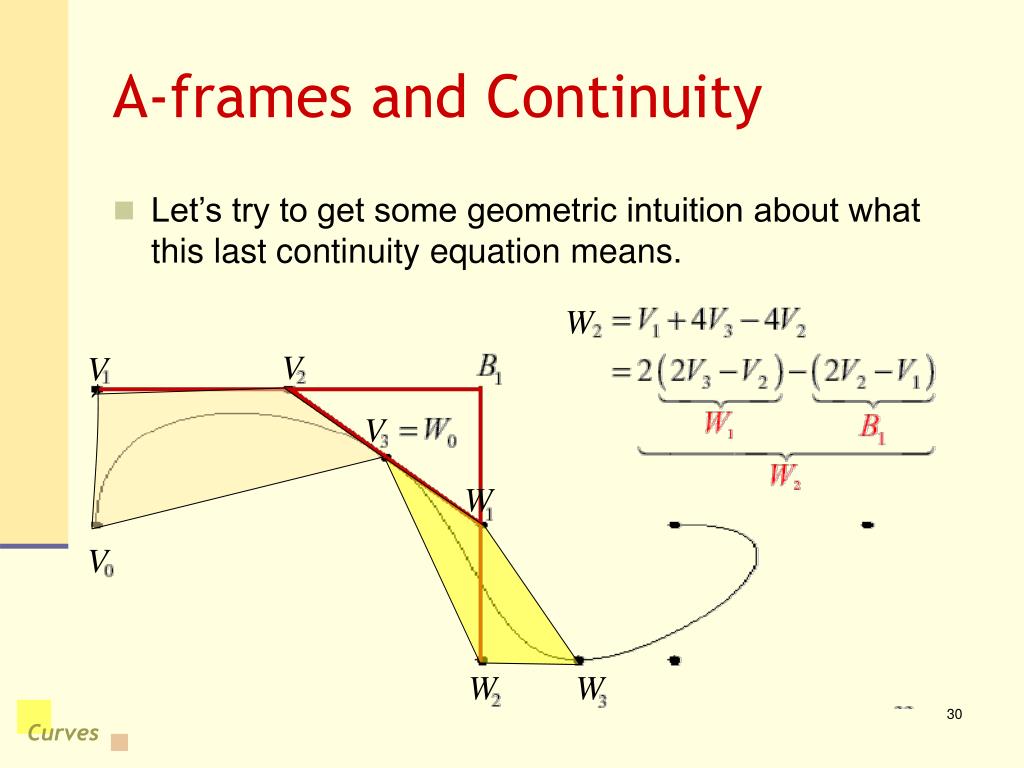

  29. A-frames and Continuity • Let’s try to get some geometric intuition about what this last continuity equation means. W V V V W V W W

  30. V1 V2 V3 V0 Building a complex spline • Instead of specifying the Bezier control points themselves, let’s specify the corners of the A-frame in order to build a C2 continuous spline. • These are called B-splines. The Bi points are called de Boor points.

  31. V1 V2 V3 V0 Constructing B-splines • Here is the completed B-spline: • What are the Bezier control (V) points, in terms of the de Boor points (B)? 2/3 1/3 1/3 2/3 1/2 1/3 2/3 1/2 2/3 1/3 4/6 1/6 1/6 4/6 1/6 1/6

  32. Constructing B-splines • The construction of Bezier points from de Boor points can be expressed as

  33. B-spline Properties • C2 continuity • Approximating • Does not interpolate de Boor points • Locality • For cubics, each segment are determined by 4 de Boor points. • Each de Boor point determines 4 segments. • Convex hull • The curve lies inside the convex hull of de Boor points

  34. Endpoints of B-splines • We can see that B-splines don’t interpolate the de Boor points. • It would be nice if we could at least interpolate the endpoints • There is a trick to make the spline begin and end at control points, by repeating them (multiplicity = 3 for cubics)

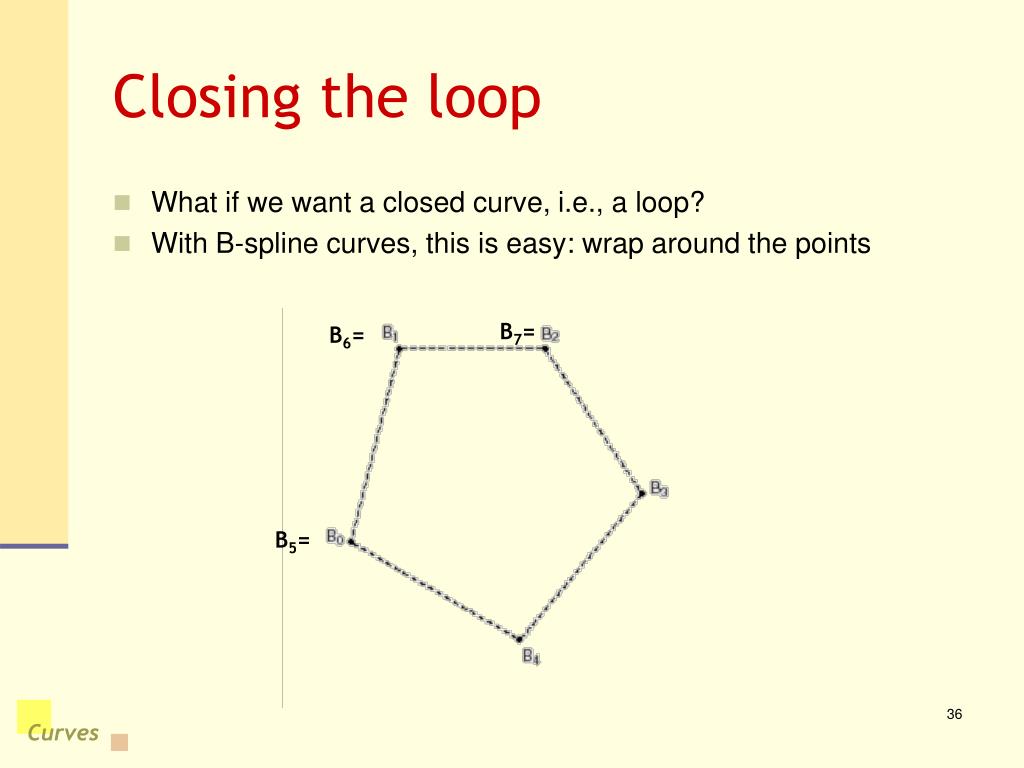

  35. Closing the loop • What if we want a closed curve, i.e., a loop? • With B-spline curves, this is easy: wrap around the points B7= B6= B5=

  36. Displaying B-splines • Drawing B-splines is very simple: DisplayBSpline (B0,B1,…,Bn) for i = 0 to n-3 Convert Bi,…,Bi+3 into Bezier control points V0, …, V3 DisplayBezier(V0,V1,V2,V3) endfor

  37. Conversion between different representations • Bezier, Bspline are different representations of the same parametric polynomial curves • They have different design control properties • For example, all cubic curves can be written as

  38. Compact Representation • Place all coefficients into a matrix:

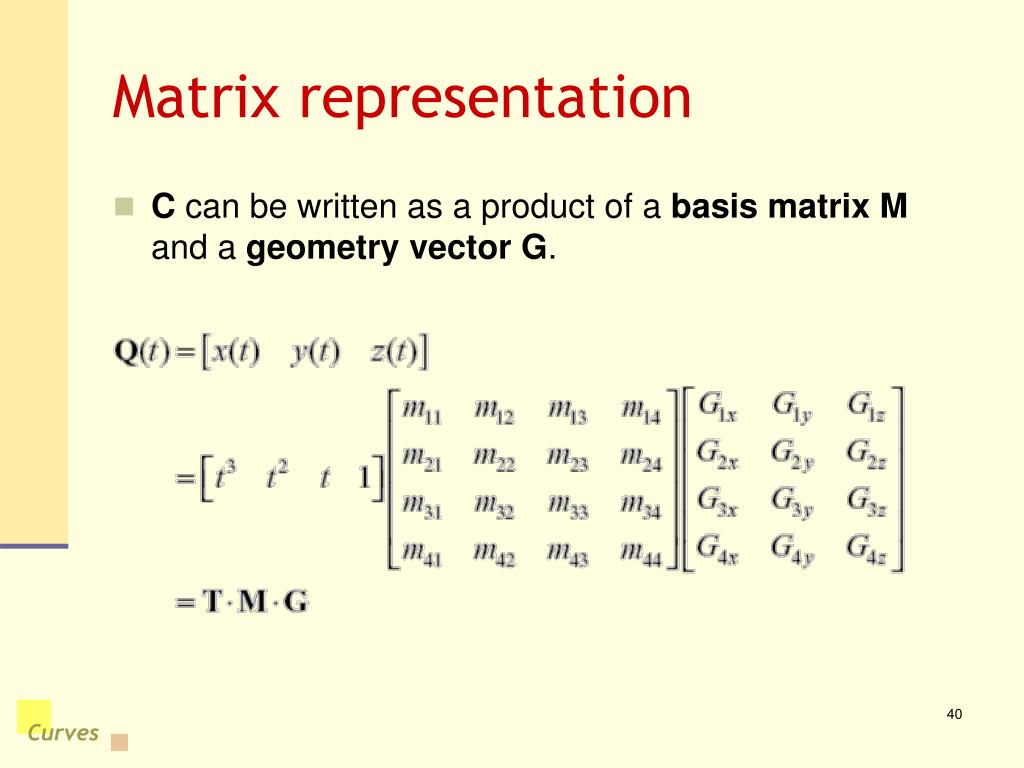

  39. Matrix representation • C can be written as a product of a basis matrix M and a geometry vector G.

  40. Bezier cubic curves MBezier G

  41. B-splines • Recall: the Bspline to Bezier transformation can be expressed as: • Bezier representation is • Substituting (1) into (2), we obtain Bspline representation: (1) (2) B0 B1 B2 B3

  42. Summary What to take home from the lectures on curves: • The meaning of all the bold face terms • Definition and properties of Bezier curves • How to display Bézier curves with line segments. • Meanings of Ck continuities. • Conditions for continuity of cubic splines. • Construction of Bezier splines • Definition, construction and properties of B-splines • Matrix representation of curves • Conversion between different representations

  43. C2 Interpolating Splines • Interpolation is a really handy property to have. • How can we keep the C2 continuity we get with B-splines but get the interpolation property too? • Idea behind C2 interpolating splines: Suppose we want cubic Beziers connecting our data points C0, C1, C2, …Cm, we can set up C2 continuity constraints and solve for the first derivative (tangent vector) Di at each Ci. • Once we find Di, we can compute the Bezier control points from Di (next slide). Points Ci’s are known Vectors Di’s are unknown

  44. Bezier curves from derivatives D’s • If we know the first derivatives Di, we can compute the Bezier control points: We know: Therefore:

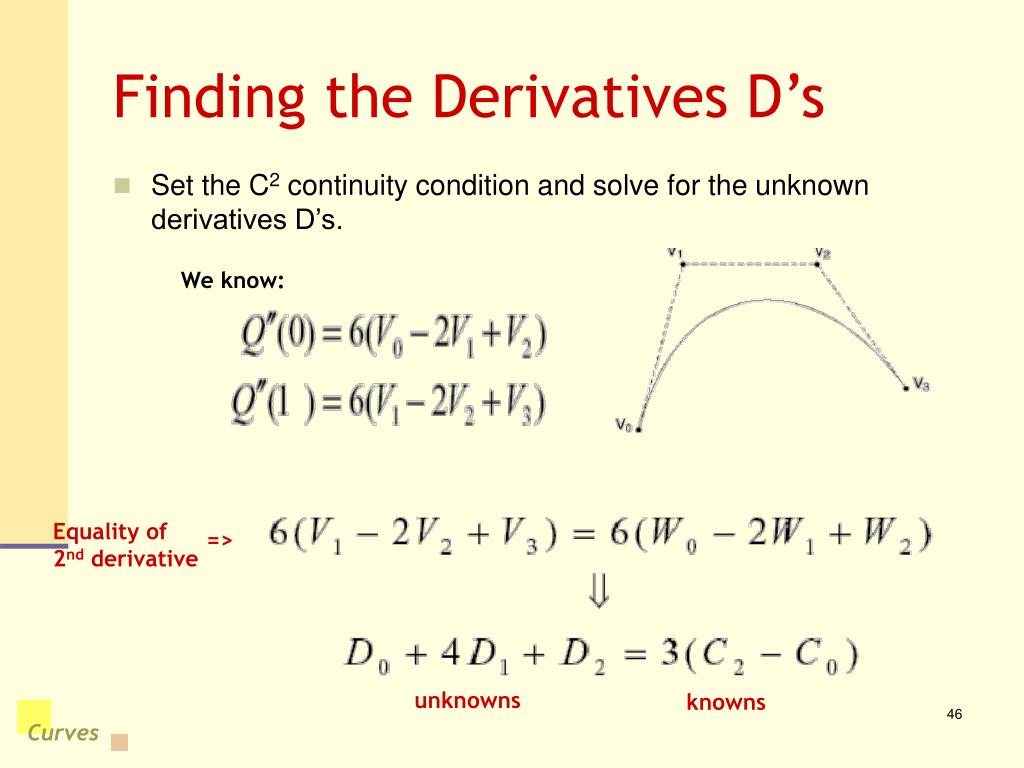

  45. Finding the Derivatives D’s • Set the C2 continuity condition and solve for the unknown derivatives D’s. We know: Equality of 2nd derivative => unknowns knowns

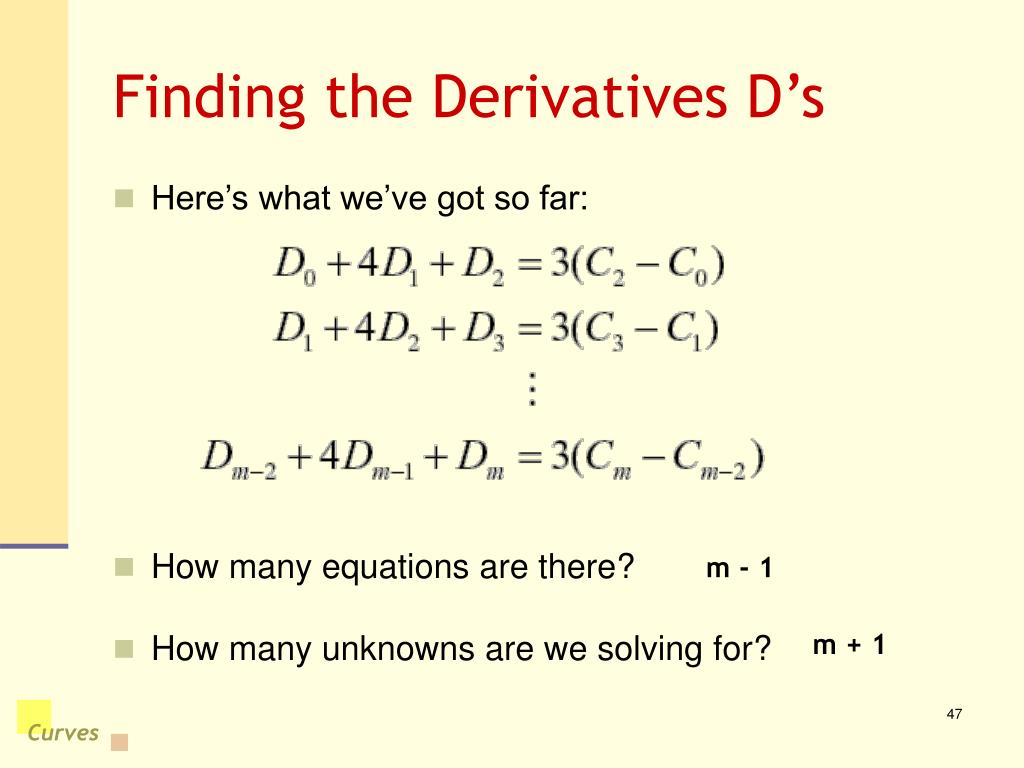

  46. Finding the Derivatives D’s • Here’s what we’ve got so far: • How many equations are there? • How many unknowns are we solving for? m - 1 m + 1

  47. Not quite done yet! • We have two additional degrees of freedom, which we can nail down by imposing 2 more conditions on the curve. • There are various ways to do this. We’ll use a variant called natural C2 interpolating splines, which requires that the second derivative to be zero at the two endpoints. • This condition gives us the two additional equations we need. At the endpoint C0, it is:

  48. Solving for the Derivatives • Let’s collect our m+1 equations into a single linear system: • It’s easier to solve than it looks. • We can use forward elimination to zero out everything below the diagonal, then back substitution to compute each D value.

  49. Forward Elimination • First, we eliminate the elements below the diagonal.
