  1. RanD Model Designer Product presentation

  2. RanDModelDesigner • A high-performance visual environment for the modeling and simulation of multi-domain component models • Based on resolution of differential and algebraic equations • Can be used for labor intensive numerical computational experiments or development of new applications based on mathematical models Rand Model Designer can be used on Intel® - compatible computers running MS Windows XP, VISTA and Windows-7 operating systems

  3. RanD Model Designer Applications • Scientific computational experiments that require high performance computing, including hardware-in-loop and real-time simulation • Equation-based modeling of physical, technical, chemical, biological and macro-economic systems and processes • Model-based design of technical systems, multidomain and physical modeling • Design of model-based computer simulators and visual models

  4. Type of Modelled Systems • Multicomponent continuous • Discrete • Hybrid (continuous discrete) • Typical system examples: • Mechanical systems • Electric circuits • Simulation • Liquid hydraulic systems • Gas systems • Control systems • Macroeconomics

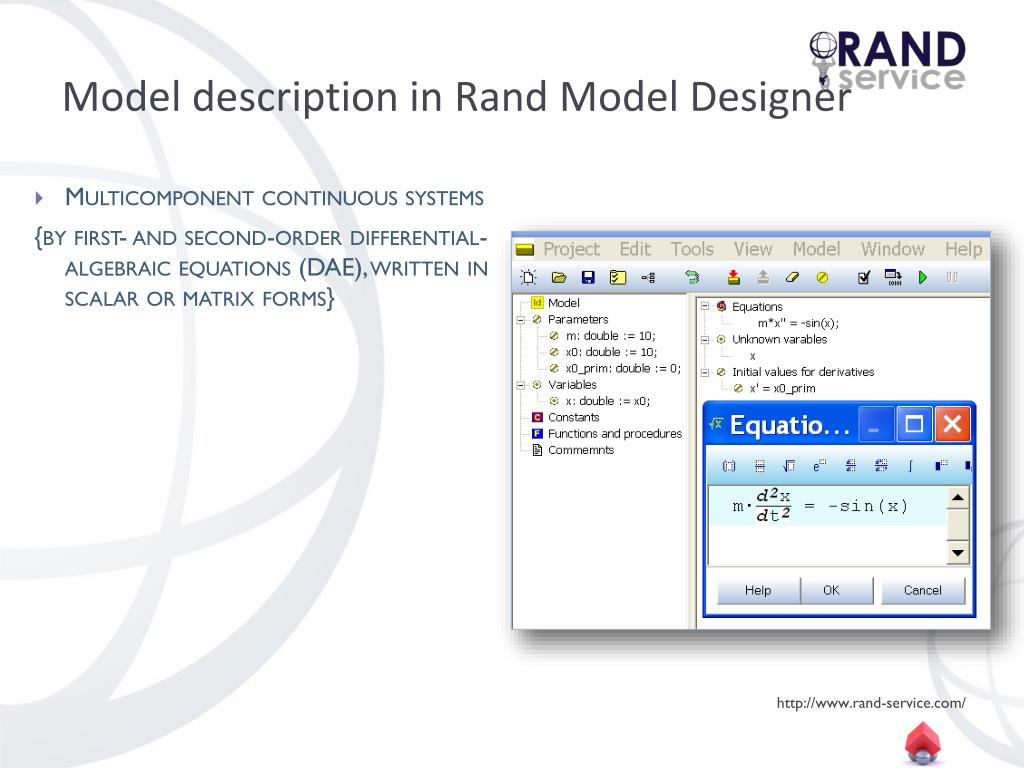

  5. Model description in Rand Model Designer • Multicomponent continuous systems {by first- and second-order differential-algebraic equations (DAE), written in scalar or matrix forms}

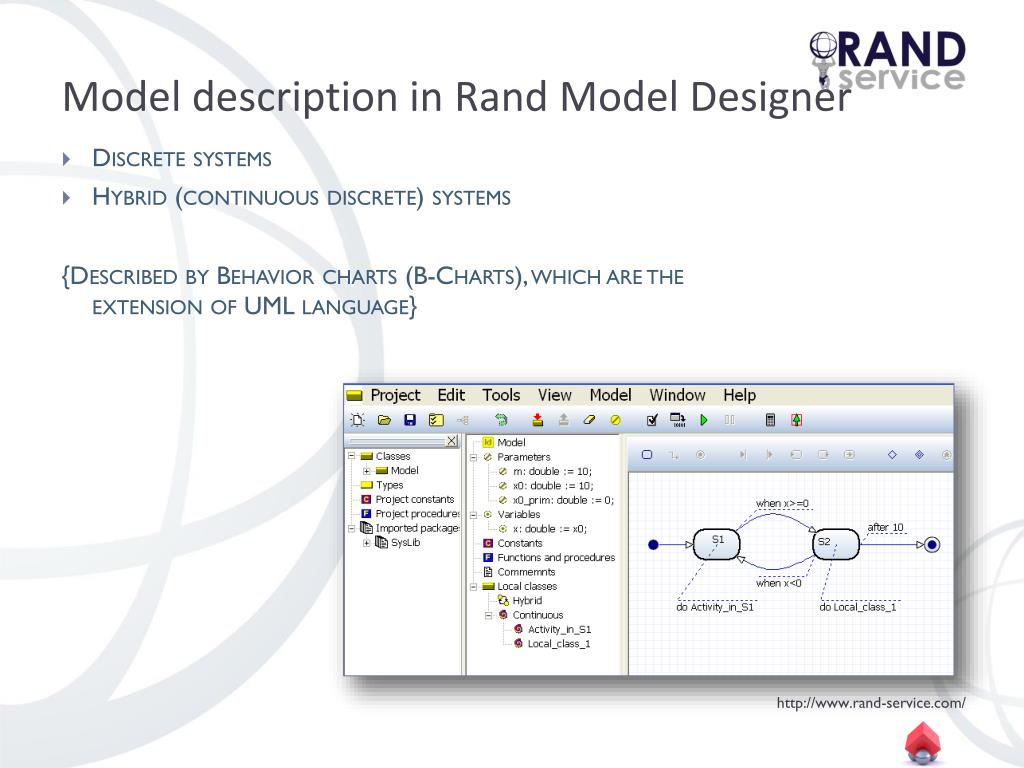

  6. Model description in Rand Model Designer • Discrete systems • Hybrid (continuous discrete) systems {Described by Behavior charts (B-Charts), which are the extension of UML language}

  7. Advantages of RanD Model Designer • No requirements for programming skills

  8. Advantages of RanD Model Designer • The product supports visual debugging, the visualization of simulation data, 2-dimensional and 3-dimensional animation

  9. Advantages of RanD Model Designer • Object-oriented modeling approach

  10. Advantages of RanD Model Designer • Build in optimizer for model calculation Example: Inert gas system model – more than 100 differentialand 7500 algebraic equations in real time

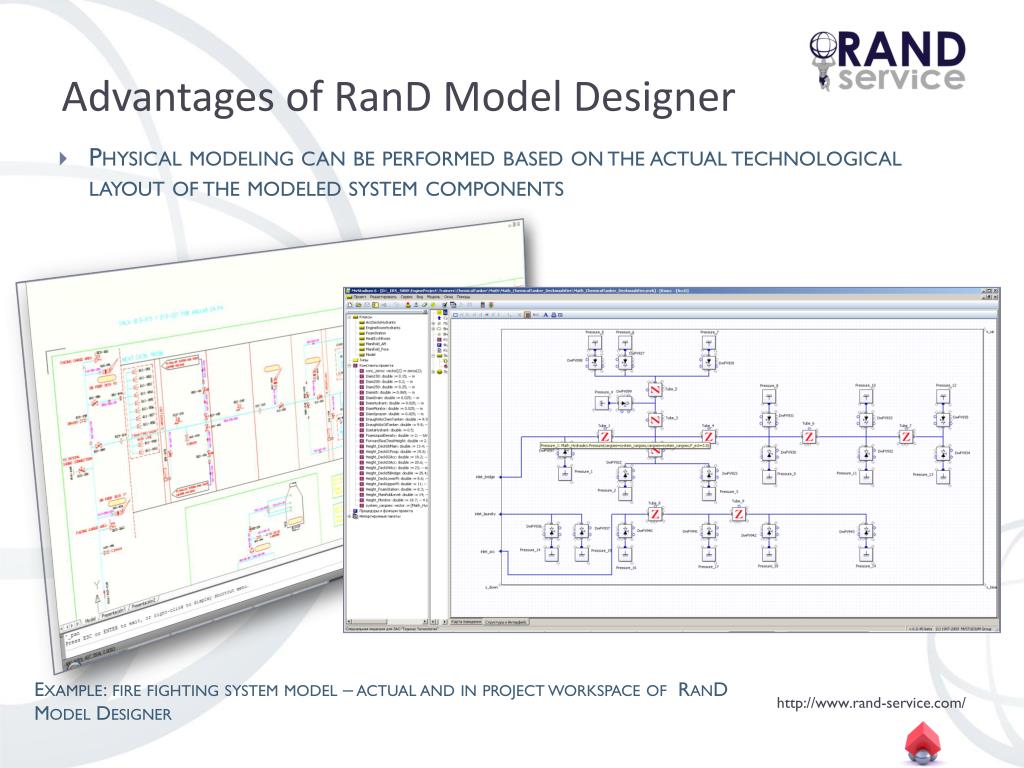

  11. Advantages of RanD Model Designer • Physical modeling can be performed based on the actual technological layout of the modeled system components Example: fire fighting system model – actual and in project workspace of RanD Model Designer

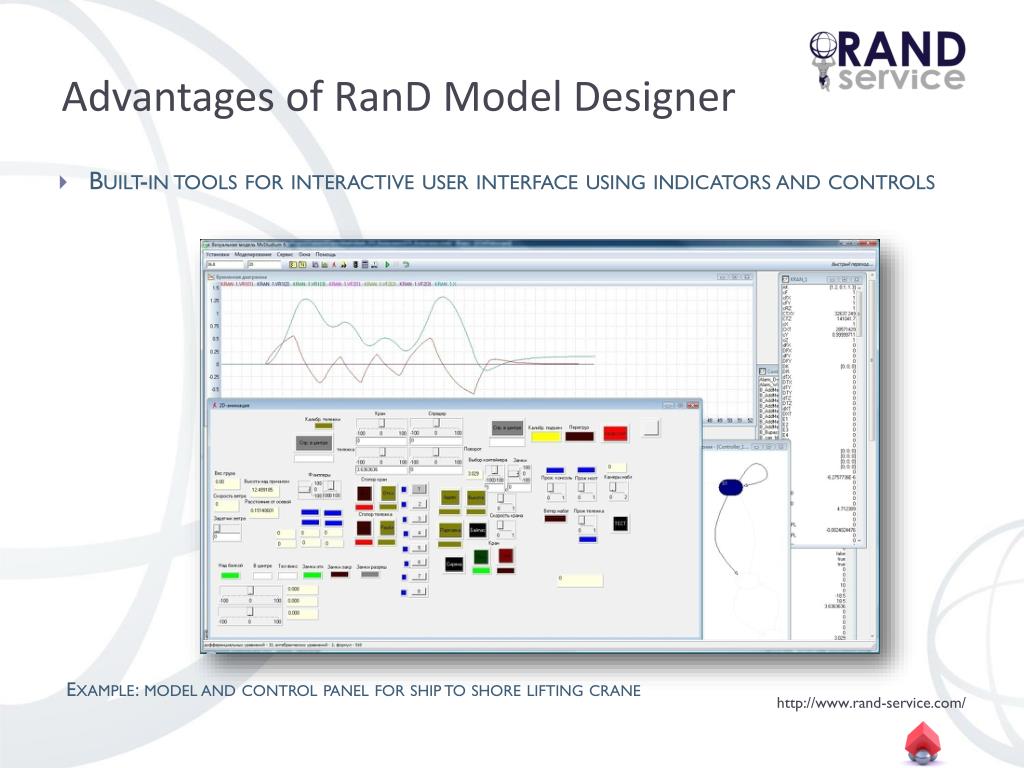

  12. Advantages of RanD Model Designer • Built-in tools for interactive user interface using indicators and controls Example: model and control panel for ship to shore lifting crane

  13. Advantages of RanD Model Designer • Possibility to create executable code for building in independent external applications, using API

  14. Licensing of RanD – Designer New versions of the product are provided to users free of charge* *Additional options in new versions of the product are acquired by the user on standard commercial terms.

  15. Options for RanD Model Designer

  16. Additional Services • Development of objects and model libraries for RanD Model Designerby request • Development of mathematical model and computational experiments • Customization of Rand Model Designer functionality to match with a specific customer project needs • GUI Localization

  17. Training • Detailed user manuals • Build in interactive Help system • Users and Experts forum onhttp://www.rand-service.com/ • Conferences and Seminars

  18. Users of RanD Model Designer • St. Petersburg State Polytechnics University • Bauman Moscow State Technical University • Novosibirsk State Technical University • South Ural State University • St. Petersburg State Technological University As well as number of commercial organizations and private users

  19. RanD Service • RanD Service was established in 2009 in St. Petersburg by the group of professional managers with unique experience in R&D, project management and service of complex solutions for transportation industry world wide • Our Mission: «Development of complex solutions for increase of processes effectiveness on Industrial Objects and in Transportation» • Main asset of RanD Service is the team of leading R&D and Management professionals • RanD Service has established representative offices in EU (London) and South-East Asia (Singapore)
