DAC348x + TRF3705 Filter Design and Gain Flatness

DAC348x + TRF3705 Filter Design and Gain Flatness. Prepared by Kang Hsia 09/23/2013. Gain Flatness Summary. Gain flatness tested on DAC34H84 + TRF3705 with 350MHz LPF in between the DAC and modulator. Gain flatness of less than 1dB gain variation is observed.

cleta
Télécharger la présentation

DAC348x + TRF3705 Filter Design and Gain Flatness

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. DAC348x + TRF3705 Filter Design and Gain Flatness Prepared by Kang Hsia 09/23/2013

  2. Gain Flatness Summary • Gain flatness tested on DAC34H84 + TRF3705 with 350MHz LPF in between the DAC and modulator. • Gain flatness of less than 1dB gain variation is observed. • Gain flatness of the DAC and modulator is primarily due to the matching of the impedance between the DAC and modulator

  3. TI DAC348x + TRF3705 Interface + BB Filter

  4. Frequency Response

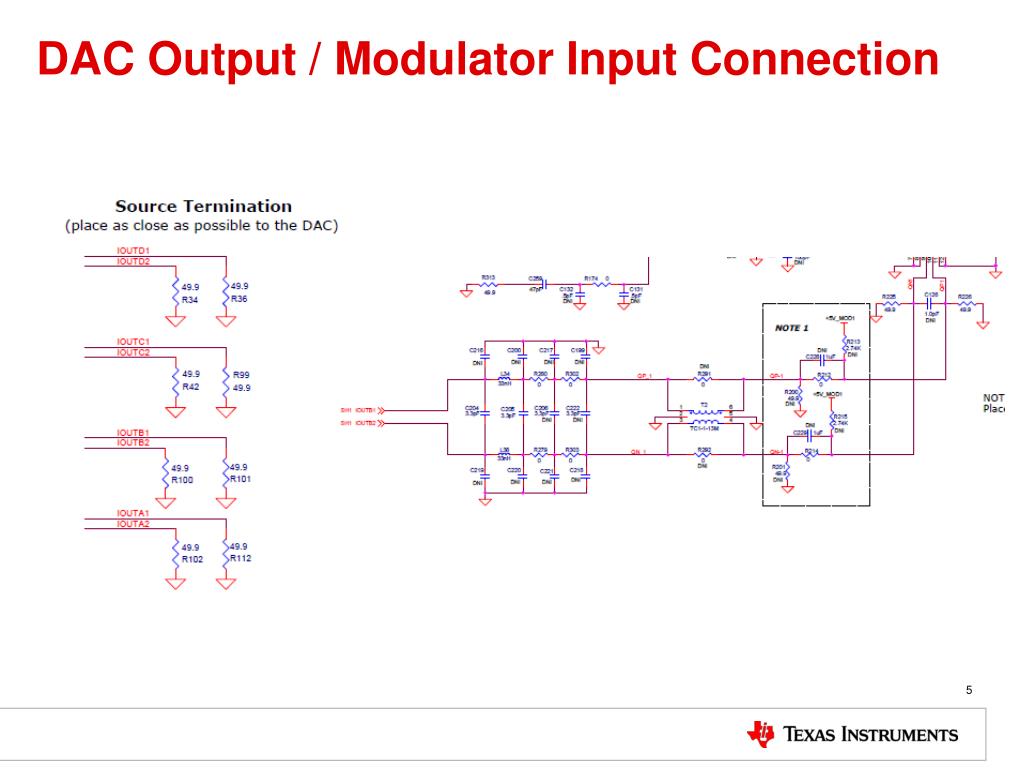

  5. DAC Output / Modulator Input Connection

  6. Gain Flatness Test Setup • TSW3100 + TSW30H84 EVM • 1228.8MSPS, 2x int • Inv sinc enabled • 2.7pF, 33nH, 8.7pF, 33nH, 2.7pF 5th order Butterworth 350MHz filter

  7. TSW3100 GUI Setup

  8. NCO Off (200MHz BW)

  9. NCO at 200MHz (200MHz BW)Filter roll-off = 350MHz (2150MHz RF)

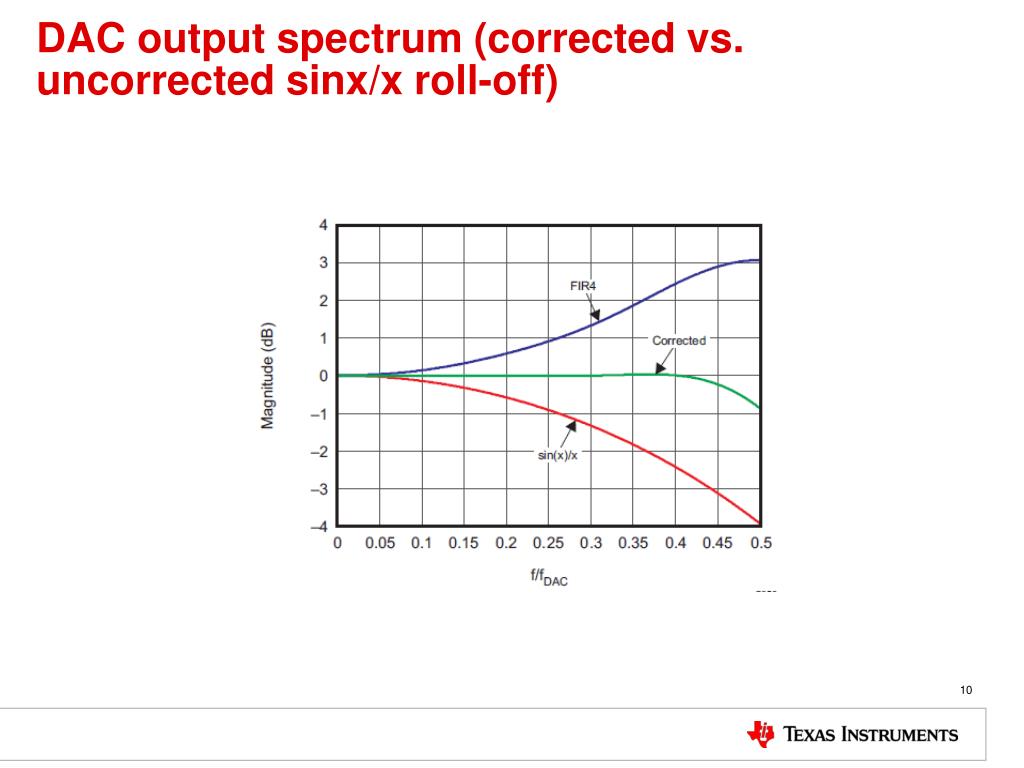

  10. DAC output spectrum (corrected vs. uncorrected sinx/x roll-off)
