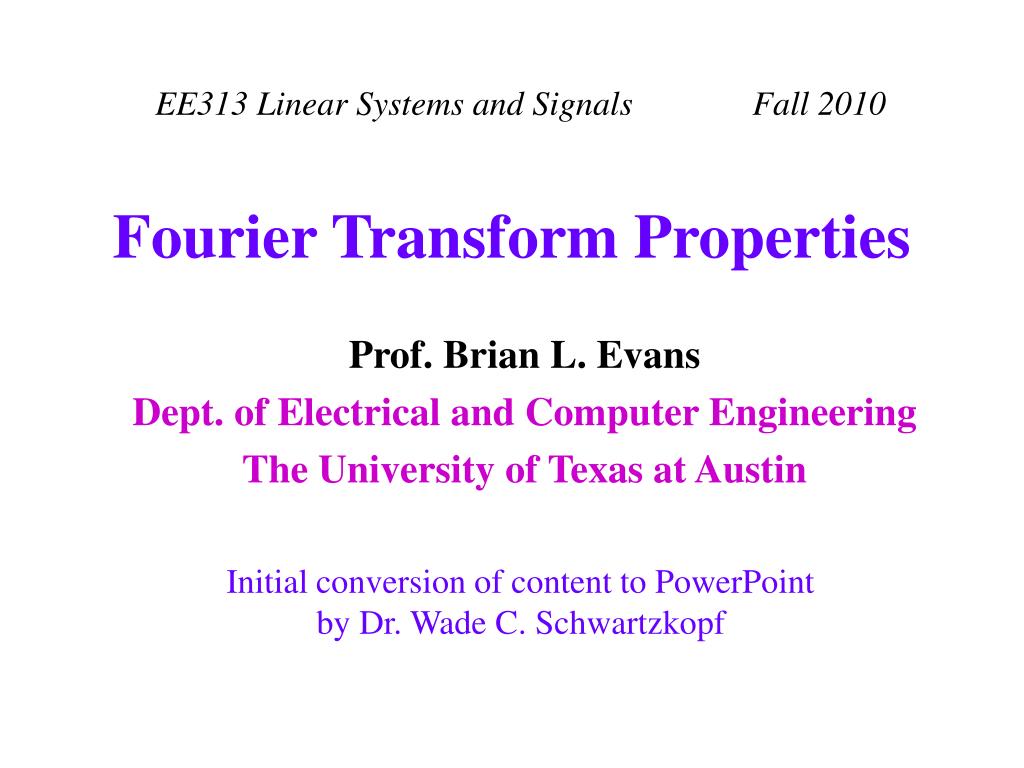

Fourier Transform Properties

Fourier Transform Properties. t. F ( w ). w. - 6 p. - 4 p. - 2 p. 2 p. 4 p. 6 p. t. t. t. t. t. t. 0. Duality. Forward/inverse transforms are similar Example: rect(t/ t )  t sinc( w t / 2) Apply duality t sinc(t t /2)  2 p rect(- w / t )

coby
Télécharger la présentation

Fourier Transform Properties

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fourier Transform Properties

  2. t F(w) w -6p -4p -2p 2p 4p 6p t t t t t t 0 Duality • Forward/inverse transforms are similar • Example: rect(t/t)  t sinc(wt / 2) Apply duality t sinc(t t/2)  2 p rect(-w/t) rect(·) is even t sinc(t t /2)  2 p rect(w/t) f(t) 1 t -t/2 0 t/2

  3. Scaling • Given and that a 0 |a| > 1: compress time axis, expand frequency axis |a| < 1: expand time axis, compress frequency axis • Extent in time domain is inversely proportional to extent in frequency domain (a.k.a bandwidth) f(t) is wider  spectrum is narrower f(t) is narrower  spectrum is wider

  4. Shifting in Time • Shift in time Does not change magnitude of the Fourier transform Shifts phase of Fourier transform by -wt0(so t0 is the slope of the linear phase) • Derivation Let u = t – t0, so du = dt and integration limits stay same

  5. Sinusoidal Amplitude Modulation

  6. F(w) 1 w -w1 w1 0 Y(w) 1/2 F(w+w0) 1/2 F(w-w0) 1/2 w -w0 - w1 -w0 + w1 w0 - w1 w0 + w1 0 -w0 w0 Sinusoidal Amplitude Modulation • Example: y(t) = f(t) cos(w0 t) f(t) is an ideal lowpass signal Assume w1 << w0 • Demodulation (i.e. recovery of f(t) from y(t)) is modulation followed by lowpass filtering • Similar derivation for modulation with sin(w0 t)

  7. Frequency-shifting Property

  8. Conditions f(t)  0 when |t|  f(t) is differentiable Derivation of property:Given f(t) F(w) Time Differentiation Property

  9. Time Integration Property • Example:

  10. Summary • Definition of Fourier Transform • Two ways to find Fourier Transform Use definition Use transform pairs and properties
