  1. Light Scattering Rayleigh Scattering & Mie Scattering

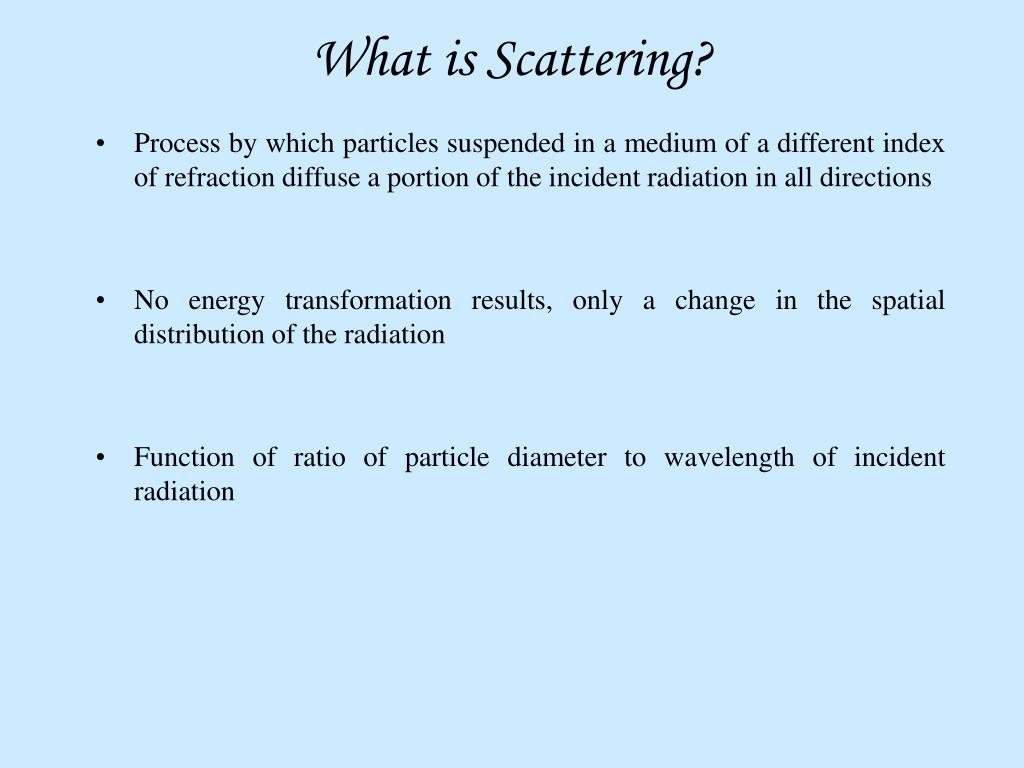

  2. What is Scattering? • Process by which particles suspended in a medium of a different index of refraction diffuse a portion of the incident radiation in all directions • No energy transformation results, only a change in the spatial distribution of the radiation • Function of ratio of particle diameter to wavelength of incident radiation

  3. Scattering Plane • Defined by the two rays involved, the source-particle ray and the particle-observer ray • Determined by observation, not fixed in space. For example, if the observer moves, the scattering plane will move with the observer.

  4. Rayleigh Scattering • Particles much smaller than wavelength of radiation • Proportional to 1/ λ4 • Shorter wavelengths scattered much more than longer wavelengths • Air molecules (N2 and O2) just the right size to very effectively scatter the shorter wavelengths (blue light) of incident solar radiation => blue sky

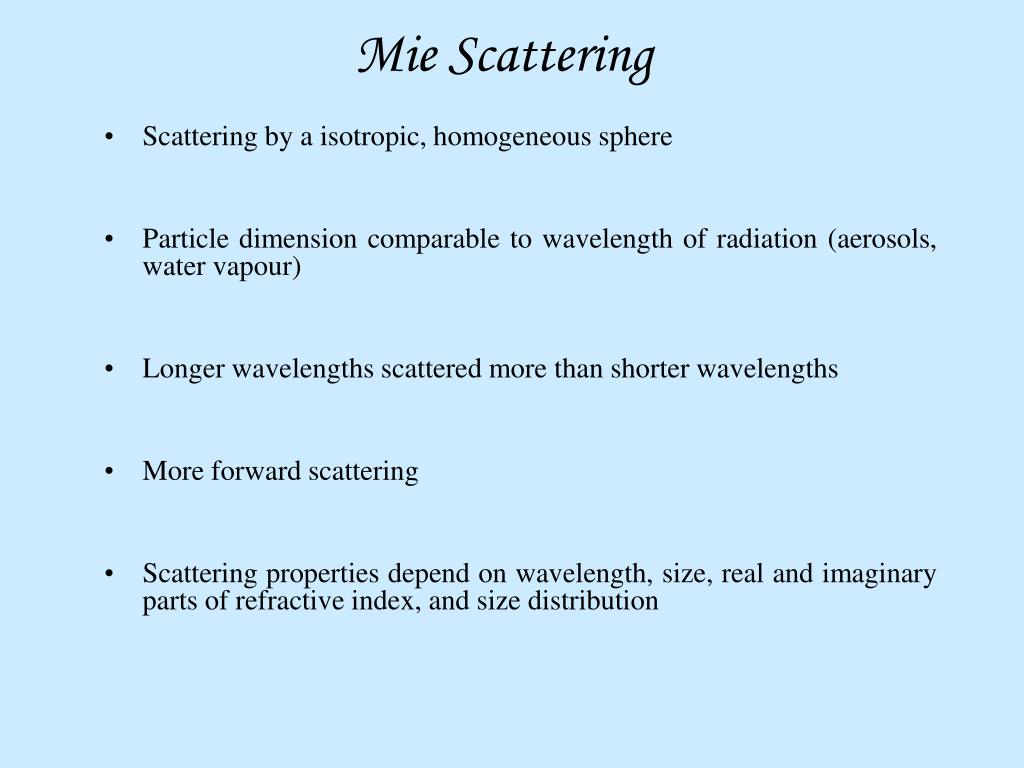

  5. Mie Scattering • Scattering by a isotropic, homogeneous sphere • Particle dimension comparable to wavelength of radiation (aerosols, water vapour) • Longer wavelengths scattered more than shorter wavelengths • More forward scattering • Scattering properties depend on wavelength, size, real and imaginary parts of refractive index, and size distribution

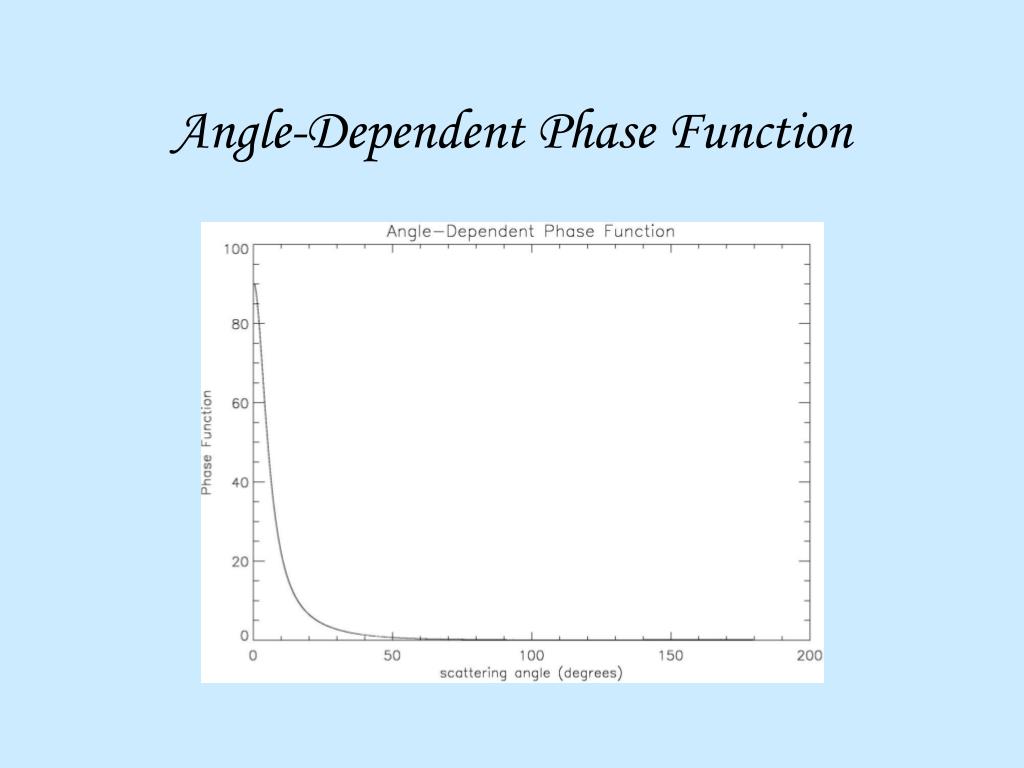

  6. Angle-Dependent Phase Function

  7. Phase Function Moments

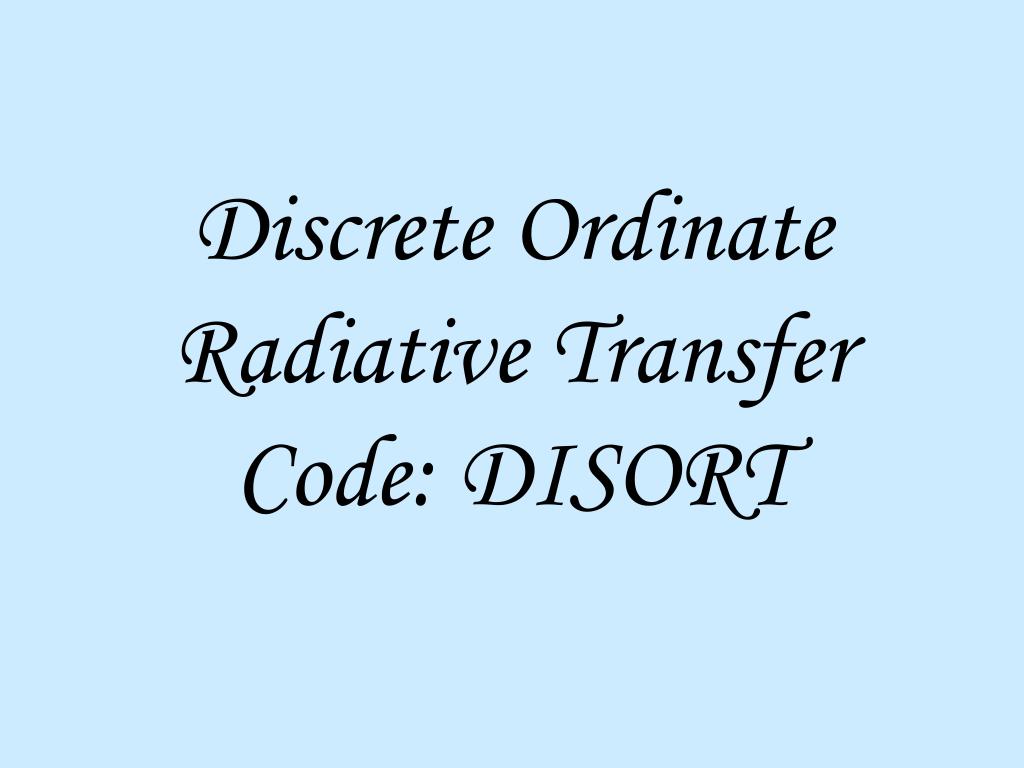

  8. Discrete Ordinate Radiative Transfer Code: DISORT

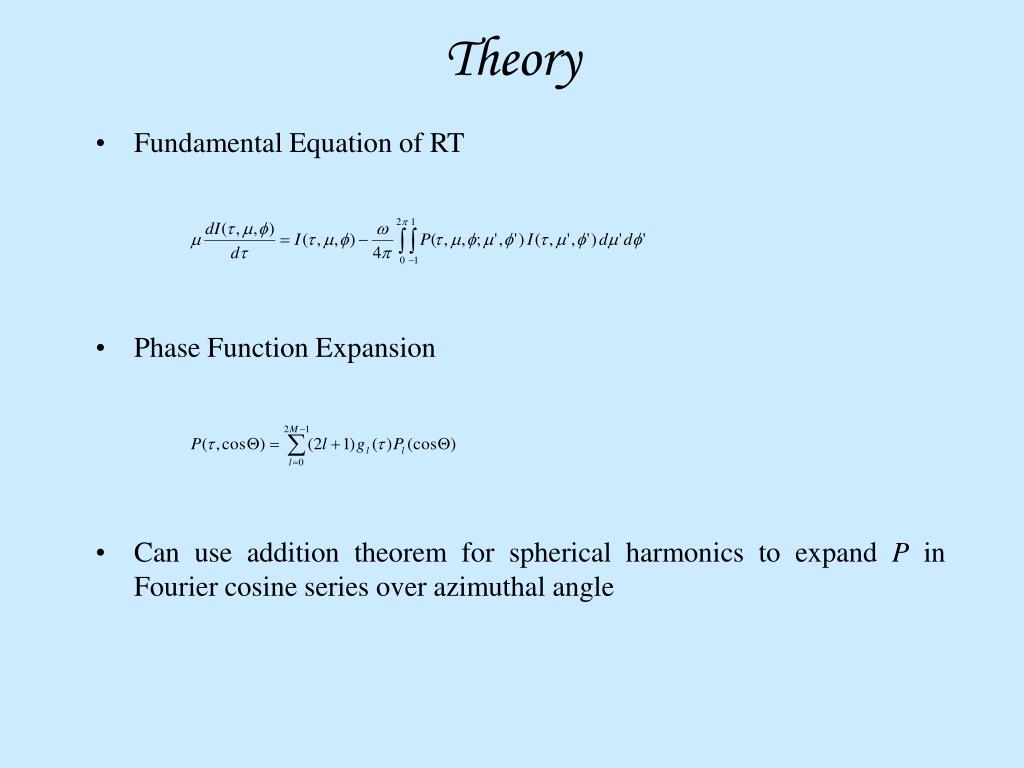

  9. Theory • Fundamental Equation of RT • Phase Function Expansion • Can use addition theorem for spherical harmonics to expand P in Fourier cosine series over azimuthal angle

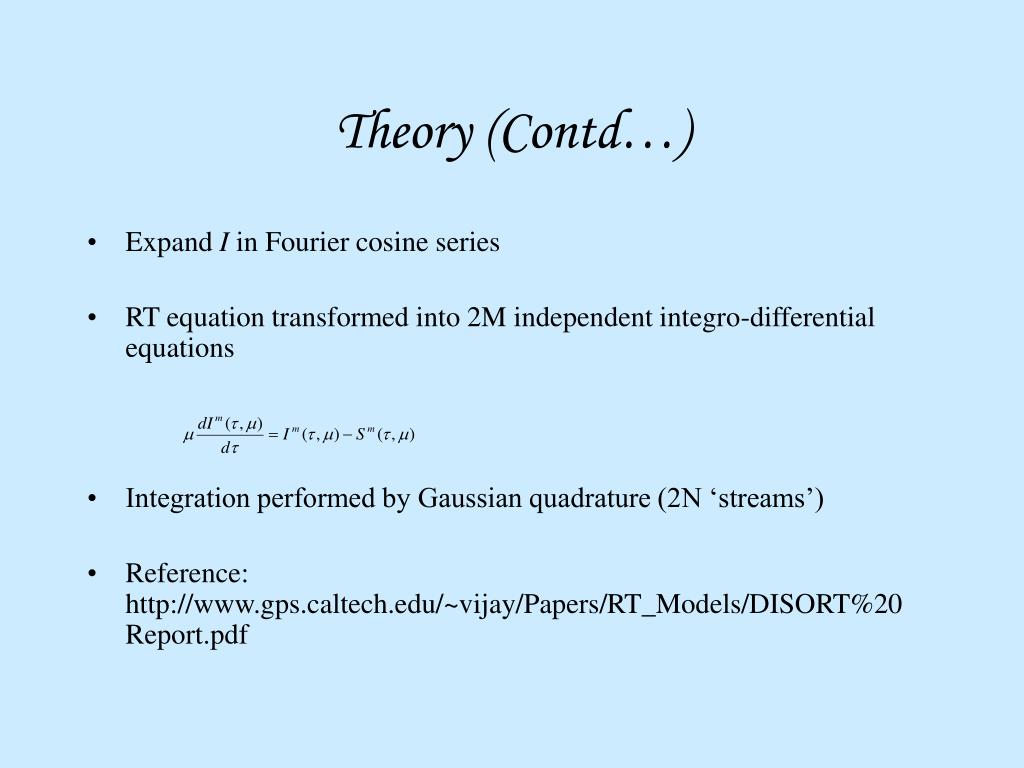

  10. Theory (Contd…) • Expand I in Fourier cosine series • RT equation transformed into 2M independent integro-differential equations • Integration performed by Gaussian quadrature (2N ‘streams’) • Reference: http://www.gps.caltech.edu/~vijay/Papers/RT_Models/DISORT%20Report.pdf
