  1. National Center for Biotechnology Information A Field Guidepart 2 UT-Health Science Center February 14, 2006

  2. Header Feature Table Sequence GenBank Records The Flatfile Format

  3. LOCUS NM_019570 4279 bp mRNA linear INV 28-OCT-2004 DEFINITION Mus musculus REV1-like(S. cerevisiae)(Rev1l),mRNA ACCESSION NM_019570 VERSION NM_019570.3 GI:50811869 KEYWORDS . = Title A Typical GenBank Record

  4. GenBank Record: Feature Table

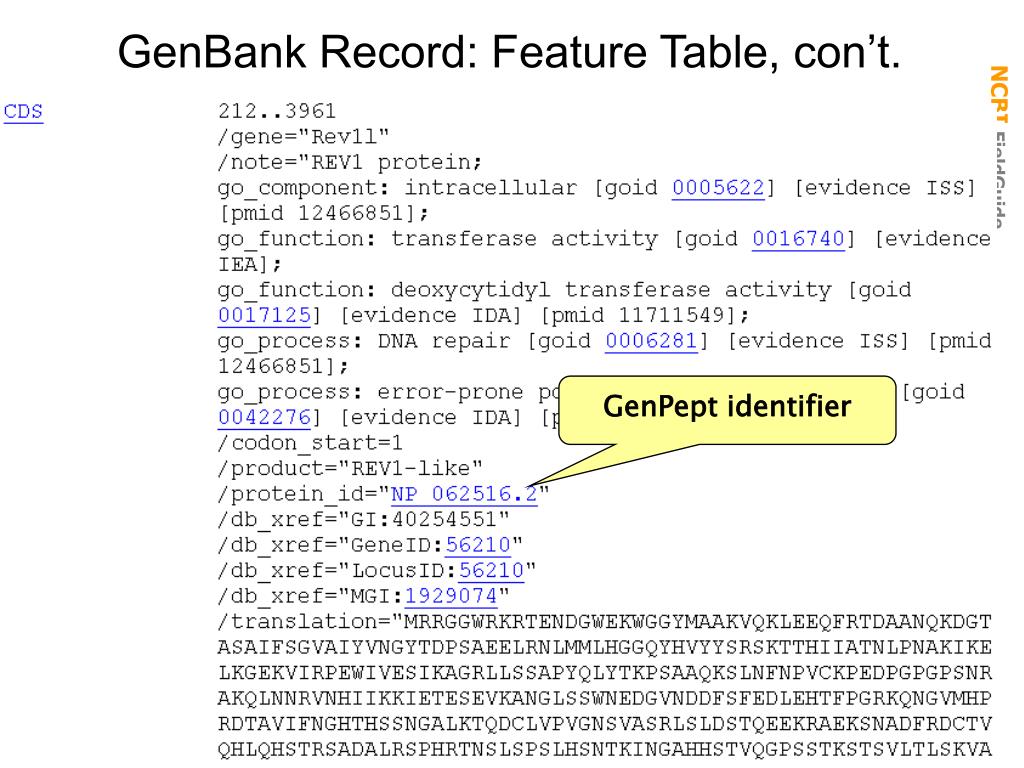

  5. GenBank Record: Feature Table, con’t. GenPept identifier

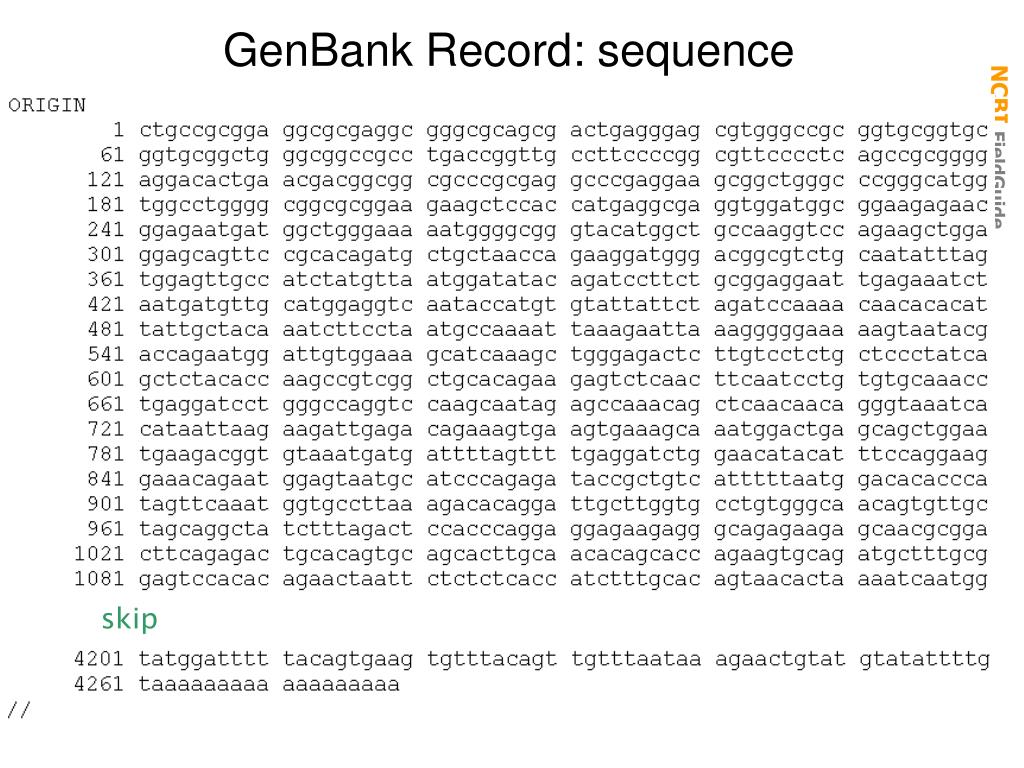

  6. skip GenBank Record: sequence

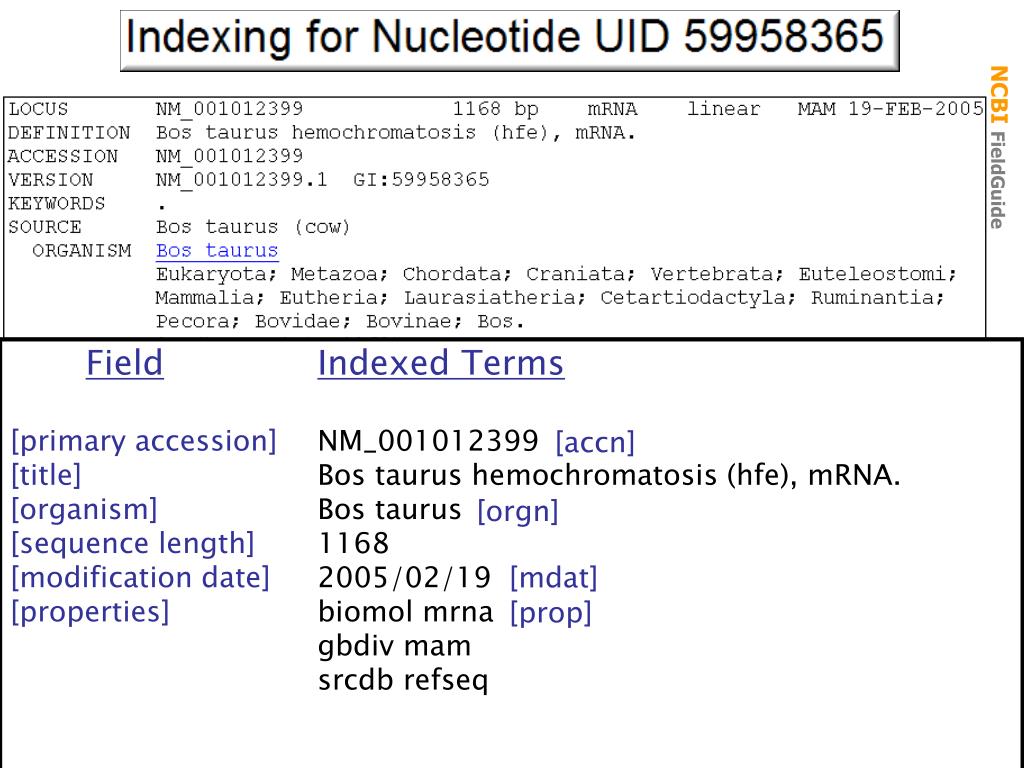

  7. [accn] [orgn] [mdat] [prop] Indexing for Nucleotide UID 59958365 FieldIndexed Terms [primary accession] NM_001012399 [title] Bos taurus hemochromatosis (hfe), mRNA. [organism] Bos taurus [sequence length] 1168 [modification date] 2005/02/19 [properties] biomol mrna gbdiv mam srcdb refseq

  8. Global Entrez Search: HFE HFE

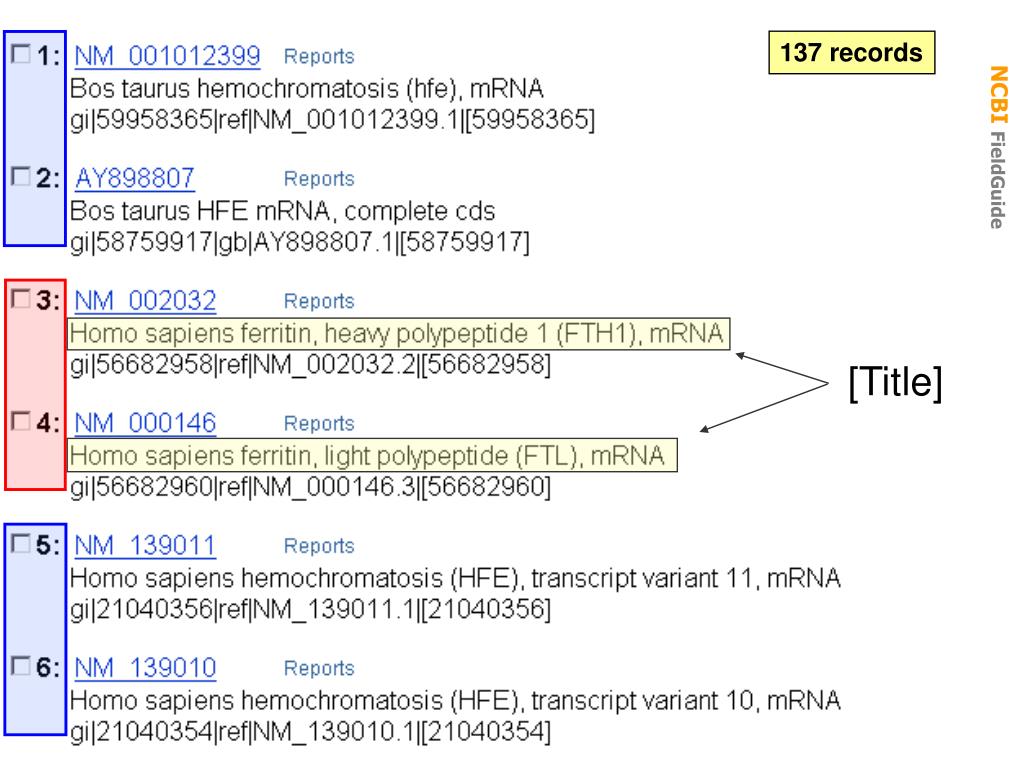

  9. [Title] Entrez Nucleotide: HFE 137 records Not HFE

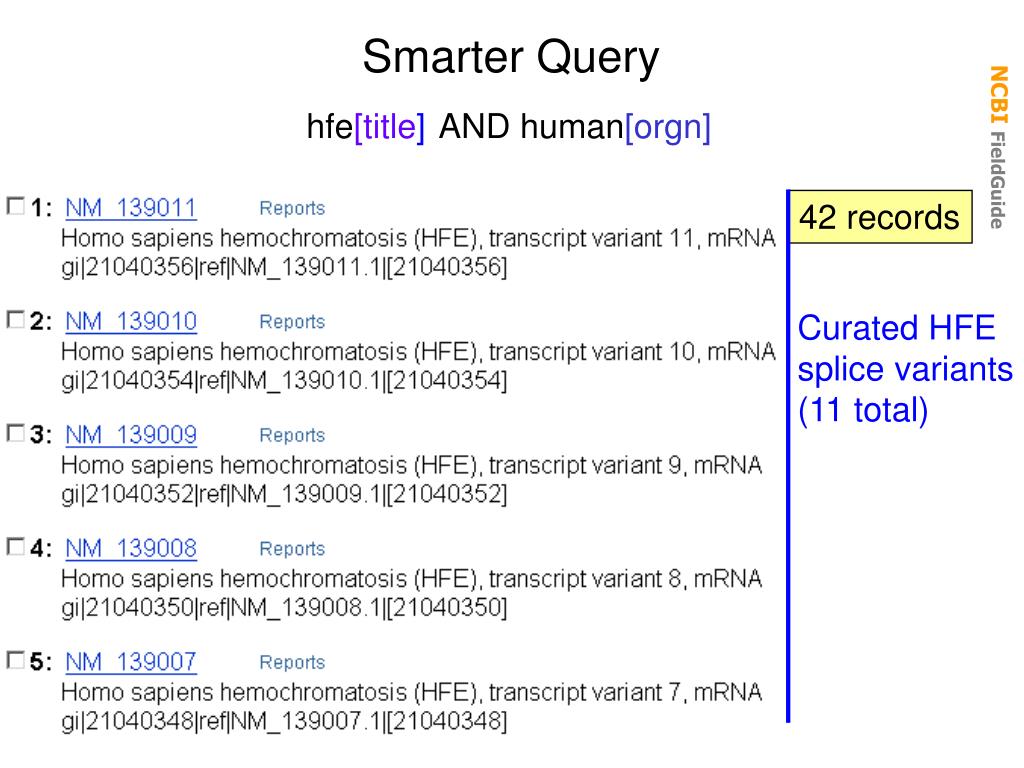

  10. 42 records Curated HFE splice variants (11 total) Smarter Query hfe[title] AND human[orgn]

  11. hfe[title]ANDhuman[orgn] (con’t) Primary data

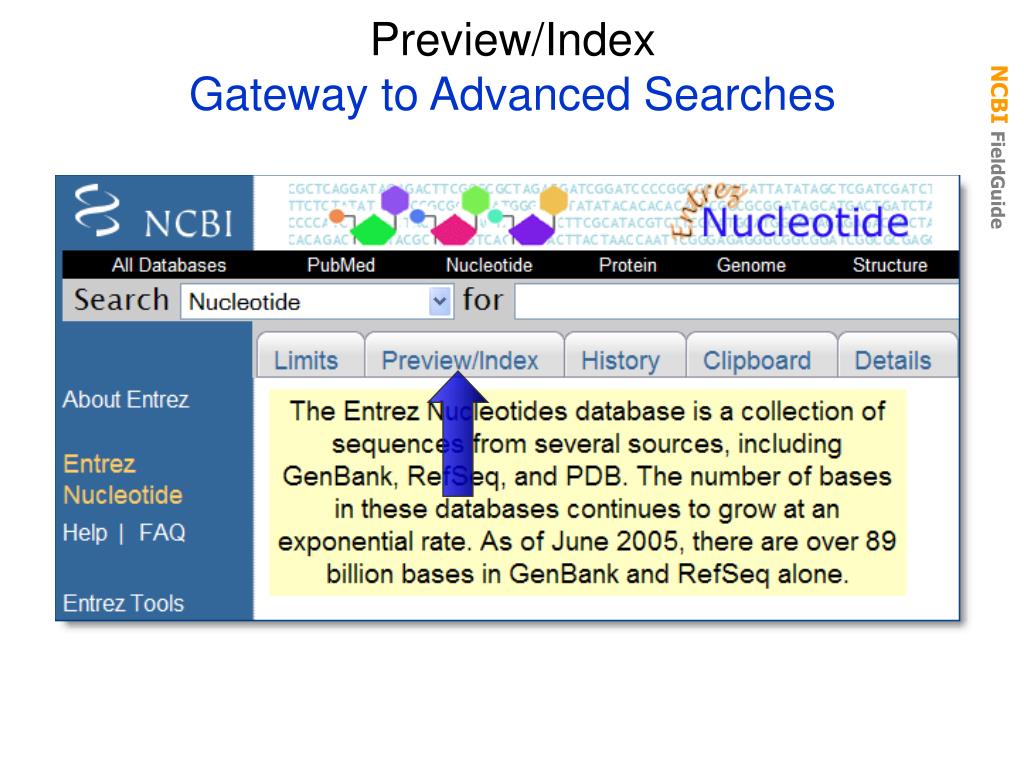

  12. Preview/IndexGateway to Advanced Searches

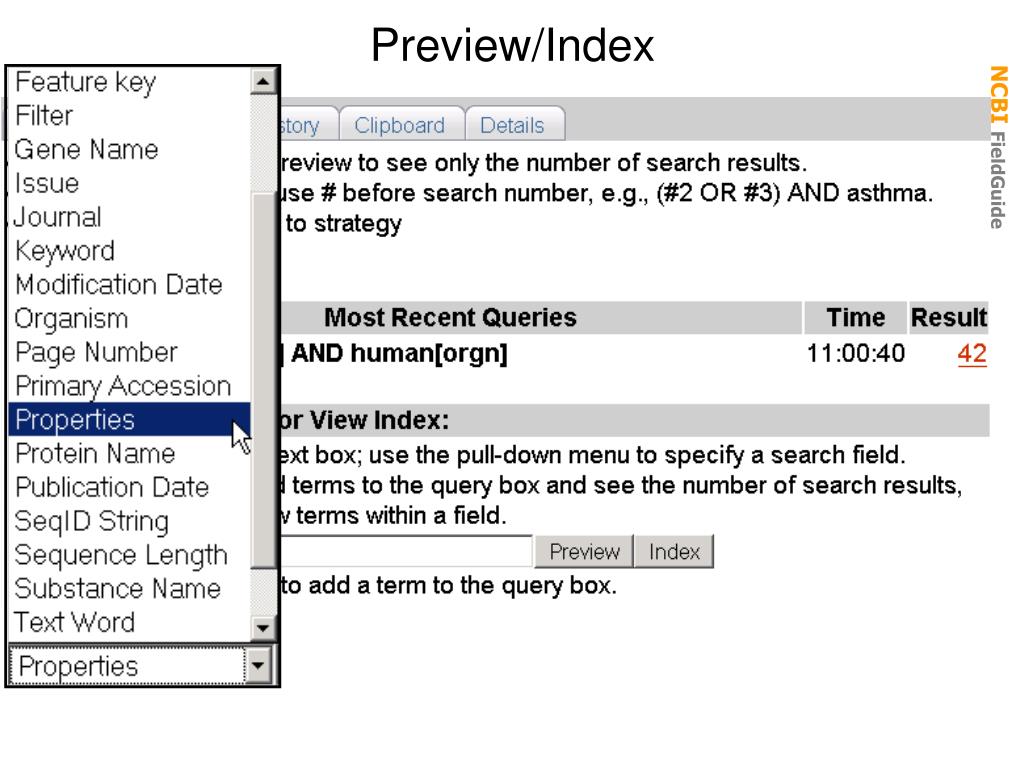

  13. Preview/Index

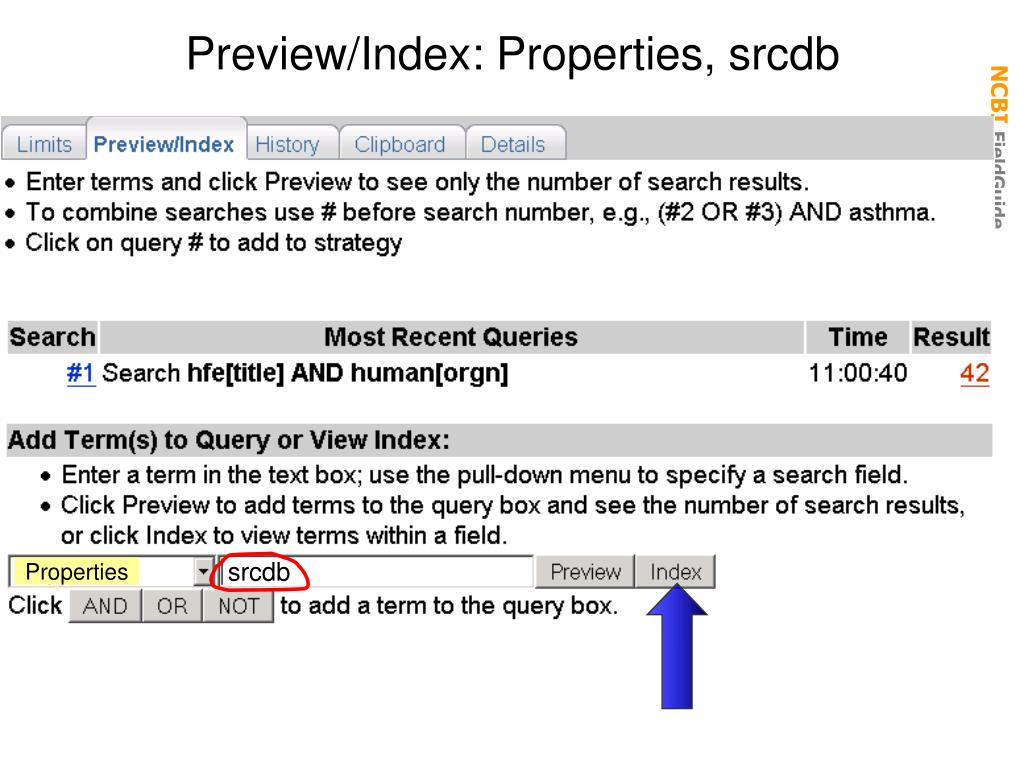

  14. srcdb Preview/Index: Properties, srcdb Properties

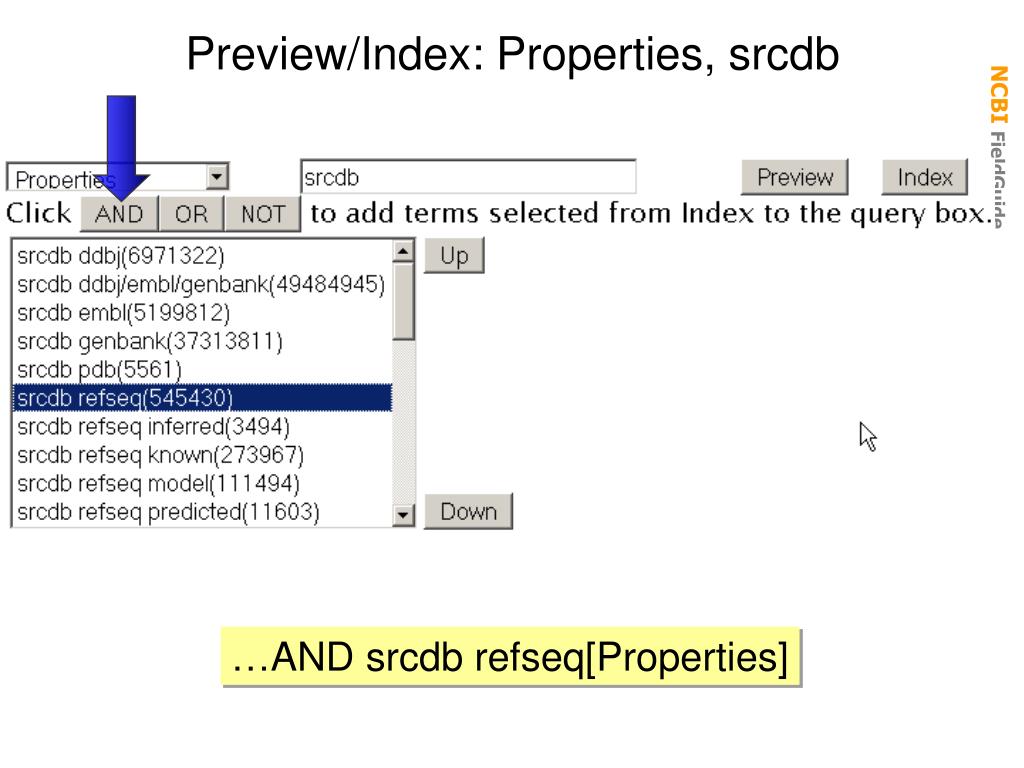

  15. Preview/Index: Properties, srcdb …AND srcdb refseq[Properties]

  16. Preview/Index: Properties, srcdb …AND srcdb ddbj/embl/genbank[Properties]

  17. Primate division gbdiv pri[prop] EST division gbdiv est[prop] Database Queries #1hfe 137 #2 hfe[title]AND human[orgn] 42 #3 #2 AND srcdb refseq[prop] 11 #4 #2 AND srcdb ddbj/embl/genbank[prop] 31 #5 #4 AND gbdiv pri[prop] 29 #4 #4 AND gbdiv est[prop] 2

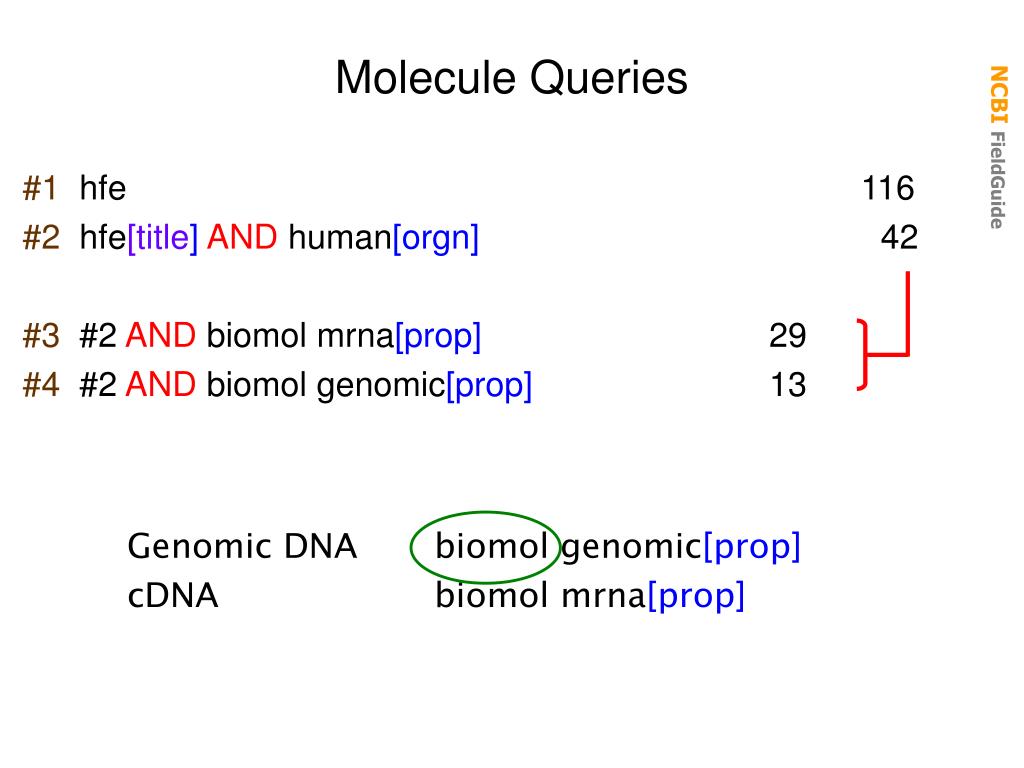

  18. Genomic DNA biomol genomic[prop] cDNA biomol mrna[prop] Molecule Queries #1hfe 116 #2 hfe[title]AND human[orgn] 42 #3 #2 AND biomol mrna[prop] 29 #4 #2 AND biomol genomic[prop] 13

  19. Entrez Nucleotide Reviewed RefSeqs with transcript variants: srcdb refseq reviewed[prop]ANDtranscript[title] AND variant[title] More Queries… Fields are database-specific

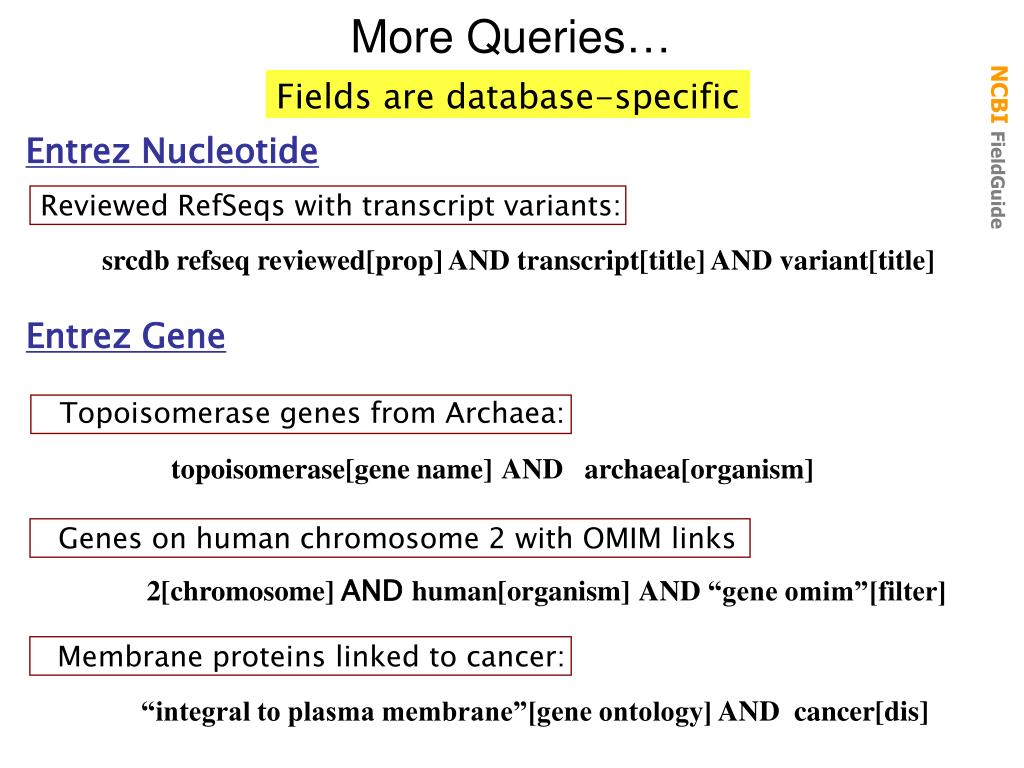

  20. Entrez Nucleotide Reviewed RefSeqs with transcript variants: srcdb refseq reviewed[prop]ANDtranscript[title] AND variant[title] Entrez Gene Topoisomerase genes from Archaea: topoisomerase[gene name]ANDarchaea[organism] Genes on human chromosome 2 with OMIM links 2[chromosome] ANDhuman[organism]AND“gene omim”[filter] Membrane proteins linked to cancer: “integral to plasma membrane”[gene ontology]ANDcancer[dis] More Queries… Fields are database-specific

  21. Genomic Biology UniGene E-PCR Map Viewer Trace Archive Genome Resources Genomic Biology

  22. Genomic Biology

  23. Gen Biol: Gen Resources

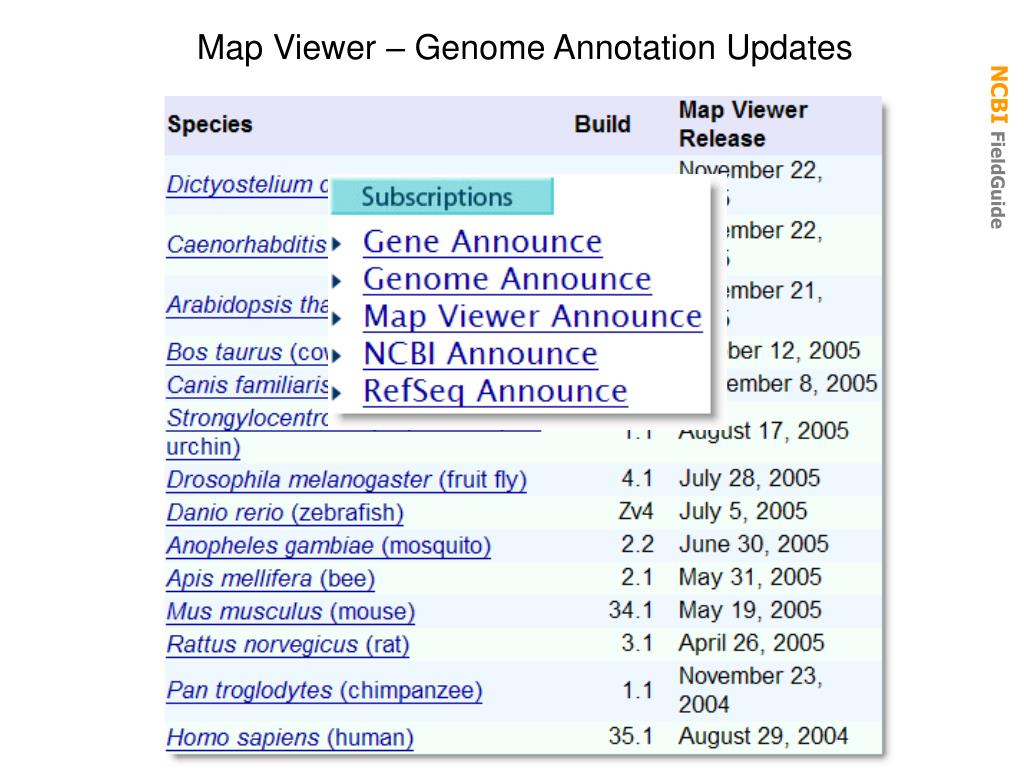

  24. Map Viewer – Genome Annotation Updates

  25. Gen Biol: Gen Resources

  26. Genome Projects: microb

  27. Genome Projects: microb 13 Eukaryotic Genome Sequencing Projects Selected: Complete – 0, Assembly – 2, In Progress - 11

  28. Gen Biol: Gen Resources

  29. Gen Biol: Gen Resources

  30. Gen Biol: Gen Resources

  31. Gen Biol: Gen Resources

  32. Gen Biol: Gen Resources

  33. E-PCR Map Viewer Trace Archive Genome Resources Genomic Biology UniGene

  34. UniGene Gene-oriented clusters of expressed sequences • Automatic clustering using MegaBlast • Each cluster represents a unique gene • Informed by genome hits • Information on tissue types and map locations • Useful for gene discovery and selection of mapping reagents

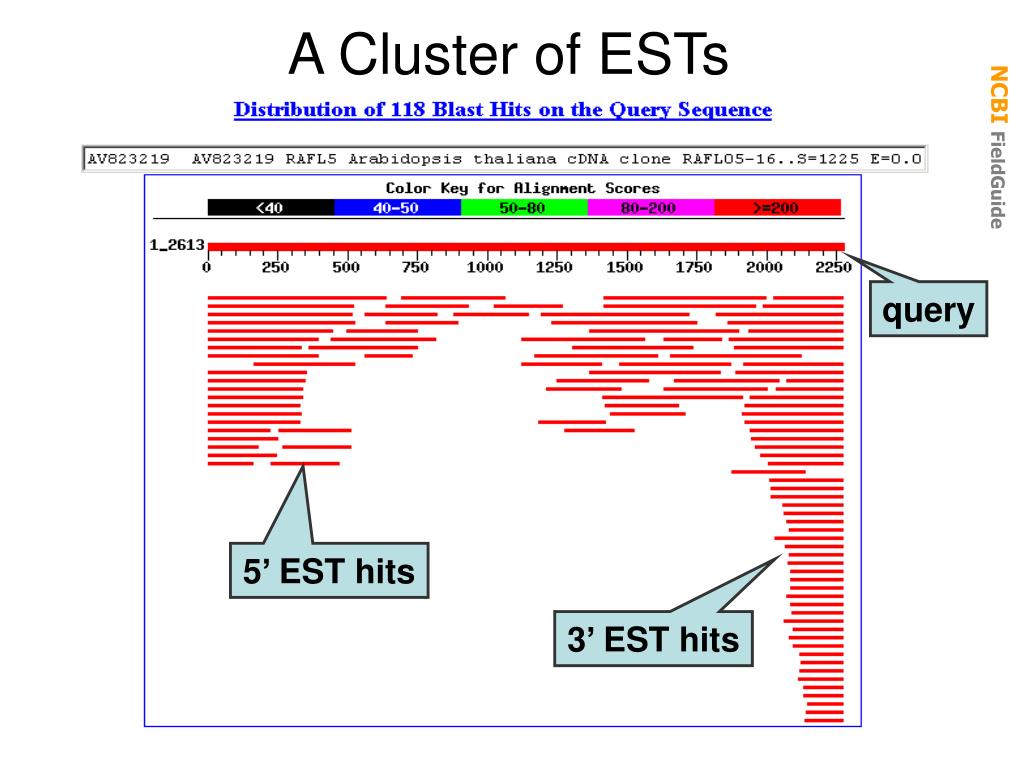

  35. A Cluster of ESTs query 5’ EST hits 3’ EST hits

  36. UniGene Collections

  37. UniGene Collections Species UniGene

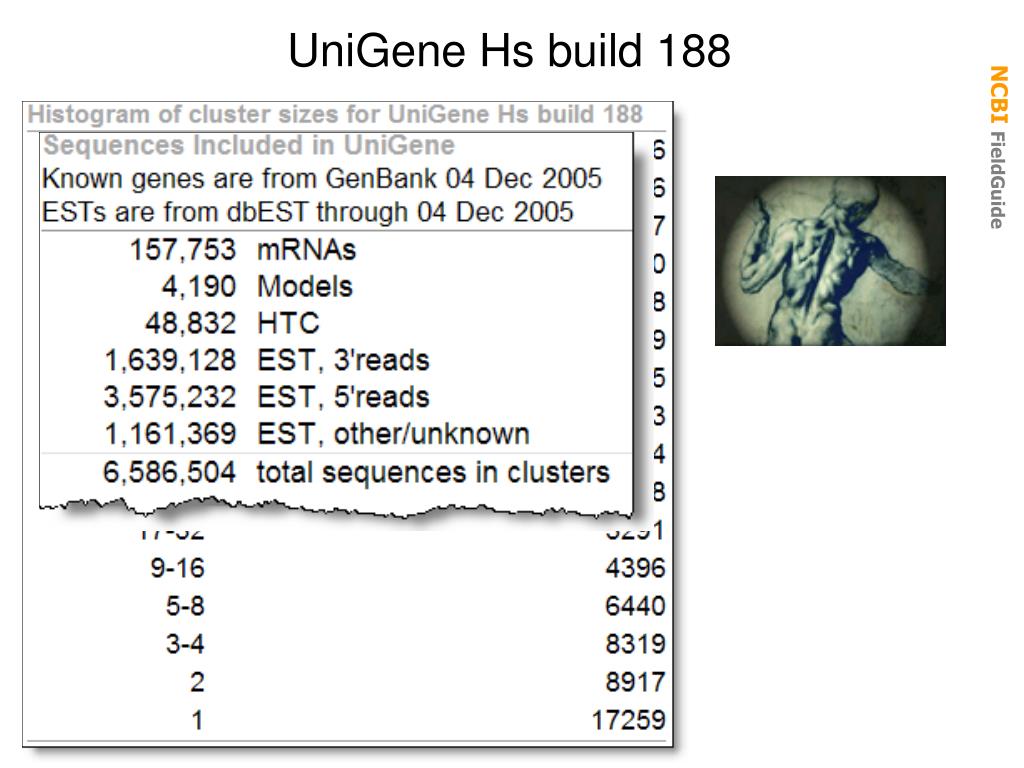

  38. UniGene Hs build 188

  39. UniGene Cluster Hs.95351Lipase, hormone-sensitive (LIPE)

  40. UniGene Cluster Hs.95351

  41. UniGene Cluster Hs.95351: expression

  42. UniGene Cluster Hs.95351: seqs

  43. ftp://ftp.ncbi.nih.gov/repository/UniGene/Homo_sapiens/ Get Sequences web page

  44. UniGene Map Viewer E-PCR Trace Archive Genome Resources Genomic Biology

  45. E-PCR Genomic sequence here

  46. Options

  47. Results

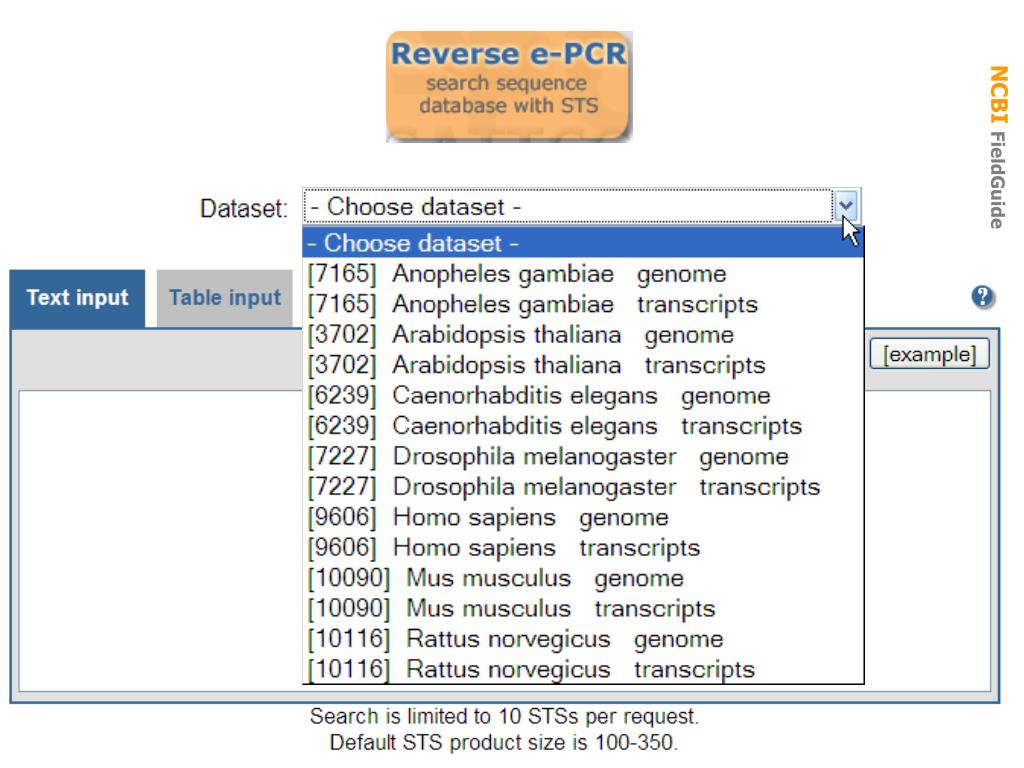

  48. reverse e-pcr

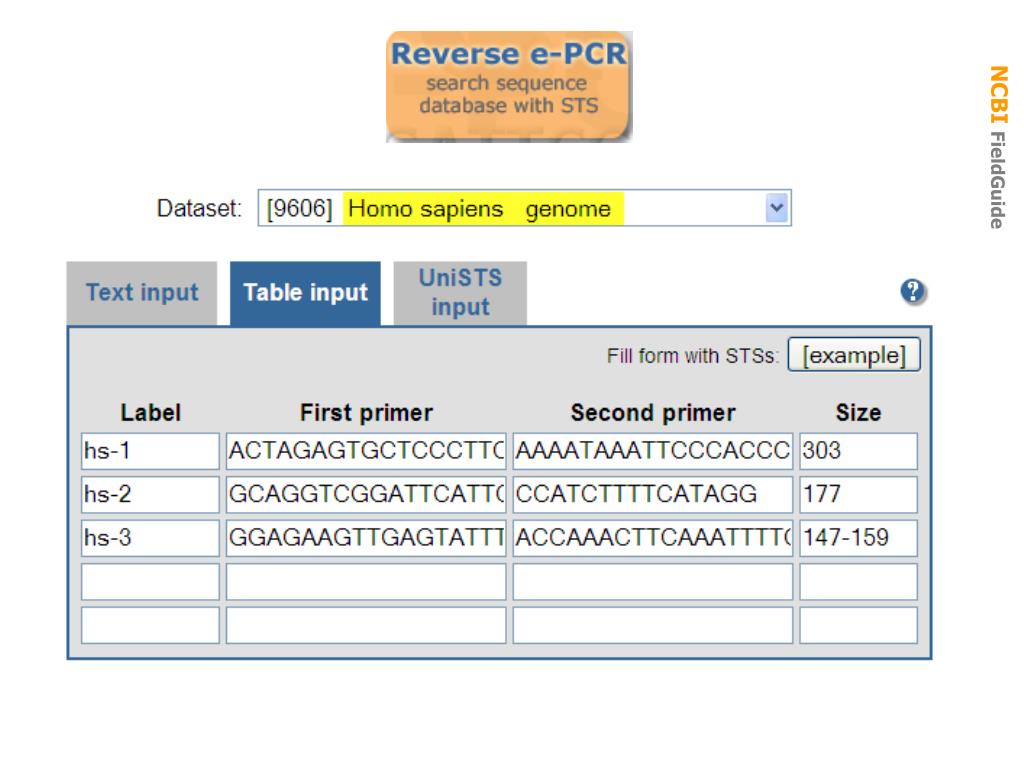

  49. reverse e-pcr

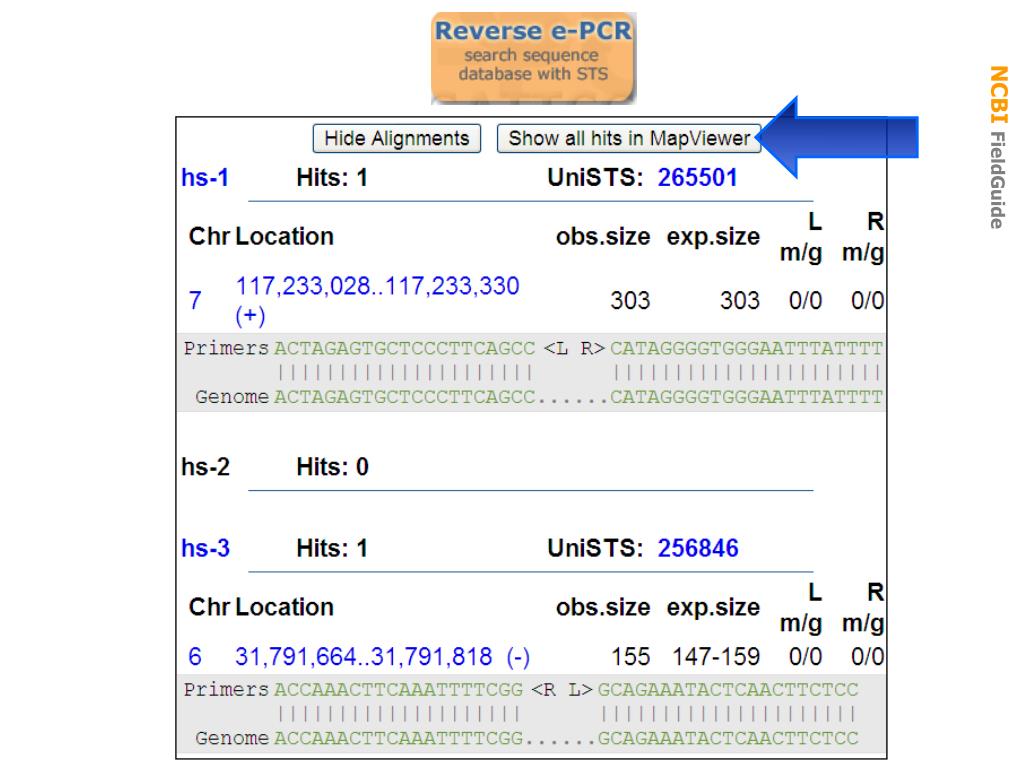

  50. reverse e-pcr
