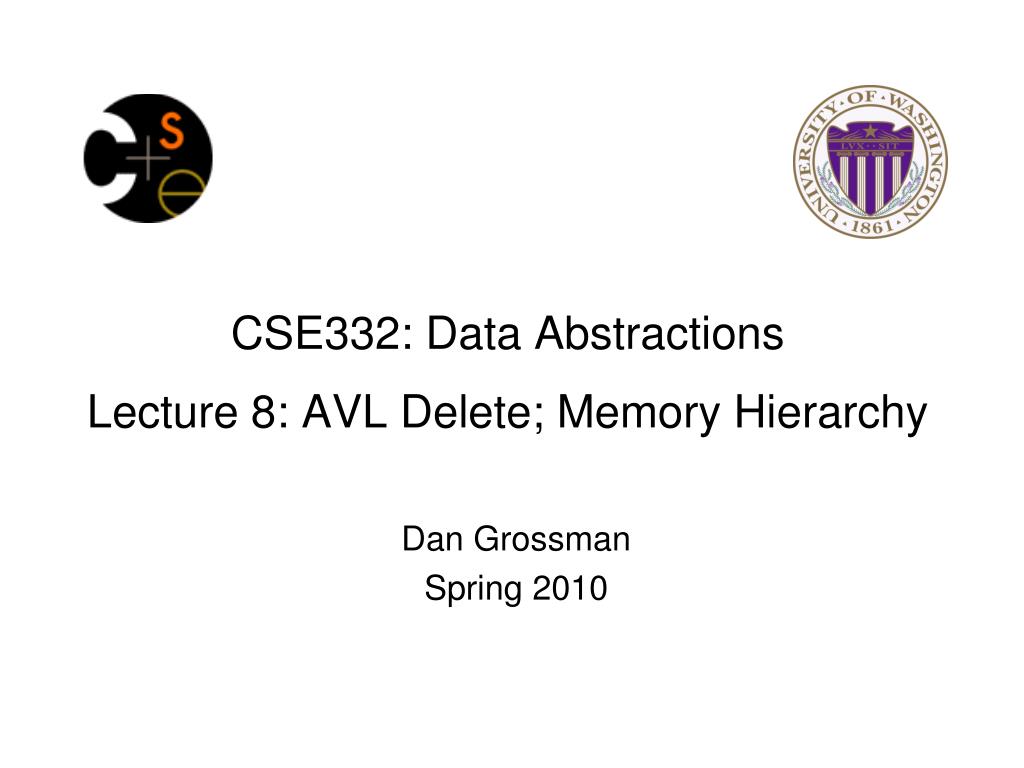

  1. CSE332: Data AbstractionsLecture 8: AVL Delete; Memory Hierarchy Dan Grossman Spring 2010

  2. Structural properties Binary tree property Balance property:balance of every node isbetween -1 and 1 Result: Worst-casedepth isO(logn) Ordering property Same as for BST The AVL Tree Data Structure 8 5 11 2 6 10 12 4 7 9 13 14 15 CSE332: Data Abstractions

  3. AVL Tree Deletion • Similar to insertion: do the delete and then rebalance • Rotations and double rotations • Imbalance may propagate upward so rotations at multiple nodes along path to root may be needed (unlike with insert) • Simple example: a deletion on the right causes the left-left grandchild to be too tall • Call this the left-left case, despite deletion on the right • insert(6) insert(3) insert(7) insert(1)delete(7) 1 2 6 3 1 7 1 3 0 0 1 6 1 0 CSE332: Data Abstractions

  4. Properties of BST delete We first do the normal BST deletion: • 0 children: just delete it • 1 child: delete it, connect child to parent • 2 children: put successor in your place, delete successor leaf Which nodes’ heights may have changed: • 0 children: path from deleted node to root • 1 child: path from deleted node to root • 2 children: path from deleted successor leaf to root Will rebalance as we return along the “path in question” to the root 12 5 15 2 9 20 7 10 CSE332: Data Abstractions

  5. Case #1 Left-left due to right deletion • Start with some subtree where if right child becomes shorter we are unbalanced due to height of left-left grandchild h+3 a h+2 h h+1 b Z h+1 h X Y • A delete in the right child could cause this right-side shortening CSE332: Data Abstractions

  6. Case #1: Left-left due to right deletion h+3 h+2 a b h+2 h h+1 h+1 a b h+1 Z h+1 h X h h h+1 X Y Y Z • Same single rotation as when an insert in the left-left grandchild caused imbalance due to X becoming taller • But here the “height” at the top decreases, so more rebalancing farther up the tree might still be necessary CSE332: Data Abstractions

  7. Case #2: Left-right due to right deletion h+3 h+2 c a h+2 h h+1 h+1 b a b h+1 h+1 Z h h h c h+1 U h-1 X V h Z X h U h-1 V • Same double rotation when an insert in the left-right grandchild caused imbalance due to c becoming taller • But here the “height” at the top decreases, so more rebalancing farther up the tree might still be necessary

  8. No third right-deletion case needed So far we have handled these two cases: left-left left-right h+3 h+3 a a h+2 h+2 h h h+1 b b h+1 h+1 Z Z h+1 h c X Y h X h U h-1 V But what if the two left grandchildren are now both too tall (h+1)? • Then it turns out left-left solution still works • The children of the “new top node” will have heights differing by 1 instead of 0, but that’s fine CSE332: Data Abstractions

  9. And the other half • Naturally there are two mirror-image cases not shown here • Deletion in left causes right-right grandchild to be too tall • Deletion in left causes right-left grandchild to be too tall • (Deletion in left causes both right grandchildren to be too tall, in which case the right-right solution still works) • And, remember, “lazy deletion” is a lot simpler and often sufficient in practice CSE332: Data Abstractions

  10. Pros and Cons of AVL Trees • Arguments for AVL trees: • All operations logarithmic worst-case because trees are alwaysbalanced. • The height balancing adds no more than a constant factor to the speed of insert and delete. • Arguments against AVL trees: • Difficult to program & debug • More space for height field • Asymptotically faster but rebalancing takes a little time • Most large searches are done in database-like systems on disk and use other structures (e.g., B-trees, our next data structure) • If amortized (later, I promise) logarithmic time is enough, use splay trees (skipping, see text) CSE332: Data Abstractions

  11. Now what? • We have a data structure for the dictionary ADT that has worst-case O(logn) behavior • One of several interesting/fantastic balanced-tree approaches • We are about to learn another balanced-tree approach: B Trees • First, to motivate why B trees are better for really large dictionaries (say, over 1GB = 230 bytes), need to understand some memory-hierarchy basics • Don’t always assume “every memory access has an unimportant O(1) cost” • Learn more in CSE351/333/471 (and CSE378), focus here on relevance to data structures and efficiency CSE332: Data Abstractions

  12. A typical hierarchy CPU • instructions (e.g., addition): 230/sec • get data in L1: 229/sec = 2 insns • get data in L2: 225/sec = 30 insns • get data in main memory: • 222/sec = 250 insns • get data from “new place” on disk: • 27/sec =8,000,000 insns • “streamed”: 218/sec “Every desktop/laptop/server is different” but here is a plausible configuration these days L1 Cache: 128KB = 217 L2 Cache: 2MB = 221 Main memory: 2GB = 231 Disk: 1TB = 240 CSE332: Data Abstractions

  13. Morals It is much faster to do: Than: 5 million arithmetic ops 1 disk access 2500 L2 cache accesses 1 disk access 400 main memory accesses 1 disk access Why are computers built this way? • Physical realities (speed of light, closeness to CPU) • Cost (price per byte of different technologies) • Disks get much bigger not much faster • Spinning at 7200 RPM accounts for much of the slowness and unlikely to spin faster in the future • Speedup at higher levels makes lower levels relativelyslower • Later in the course: more than 1 CPU! CSE332: Data Abstractions

  14. “Fuggedaboutit”, usually The hardware automatically moves data into the caches from main memory for you • Replacing items already there • So algorithms much faster if “data fits in cache” (often does) Disk accesses are done by software (e.g., ask operating system to open a file or database to access some data) So most code “just runs” but sometimes it’s worth designing algorithms / data structures with knowledge of memory hierarchy • And when you do, you often need to know one more thing… CSE332: Data Abstractions

  15. Block/line size • Moving data up the memory hierarchy is slow because of latency (think distance-to-travel) • May as well send more than just the one int/reference asked for (think “giving friends a car ride doesn’t slow you down”) • Sends nearby memory because: • It’s easy • And likely to be asked for soon (think fields/arrays) • The amount of data moved from disk into memory is called the “block” size or the “(disk) page” size • Not under program control • The amount of data moved from memory into cache is called the “line” size • Not under program control CSE332: Data Abstractions

  16. Connection to data structures • An array benefits more than a linked list from block moves • Language (e.g., Java) implementation can put the list nodes anywhere, whereas array is typically contiguous memory • Suppose you have a queue to process with 223 items of 27 bytes each on disk and the block size is 210 bytes • An array implementation needs 220 disk accesses • If “perfectly streamed”, > 16 seconds • If “random places on disk”, 8000 seconds (> 2 hours) • A list implementation in the worst case needs 223 “random” disk accesses (> 16 hours) – probably not that bad • Note: “array” doesn’t mean “good” • Binary heaps “make big jumps” to percolate (different block) CSE332: Data Abstractions

  17. BSTs? • Since looking things up in balanced binary search trees is O(logn), even for n = 239 (512GB) we don’t have to worry about minutes or hours • Still, number of disk accesses matters • AVL tree could have height of 55 (see lecture7.xlsx) • So each find could take about 0.5 seconds or about 100 finds a minute • Most of the nodes will be on disk: the tree is shallow, but it is still many gigabytes big so the tree cannot fit in memory • Even if memory holds the first 25 nodes on our path, we still need 30 disk accesses CSE332: Data Abstractions

  18. Note about numbers; moral • All the numbers in this lecture are “ballpark” “back of the envelope” figures • Even if they are off by, say, a factor of 5, the moral is the same: If your data structure is mostly on disk, you want to minimize disk accesses • A better data structure in this setting would exploit the block size and relatively fast memory access to avoid disk accesses… CSE332: Data Abstractions
