  1. This is Turbofluid Projects Please enjoy the presentation...

  2. Established in 1997 • The current ownership structure been in place since 2002 • The existing company incorporates the collective knowledge of 3 companies that have been involved in pumps and related equipment since 1985

  3. Our Head Office in Durban • 1700m² of Workshop • 560m² of Office • 75 staff members • 10 Company Vehicles

  4. Our Branches • We have a sales, workshop and repair centre in Secunda • We have a sales office and workshop in Johannesburg • We have sales offices in Port Elizabeth and George

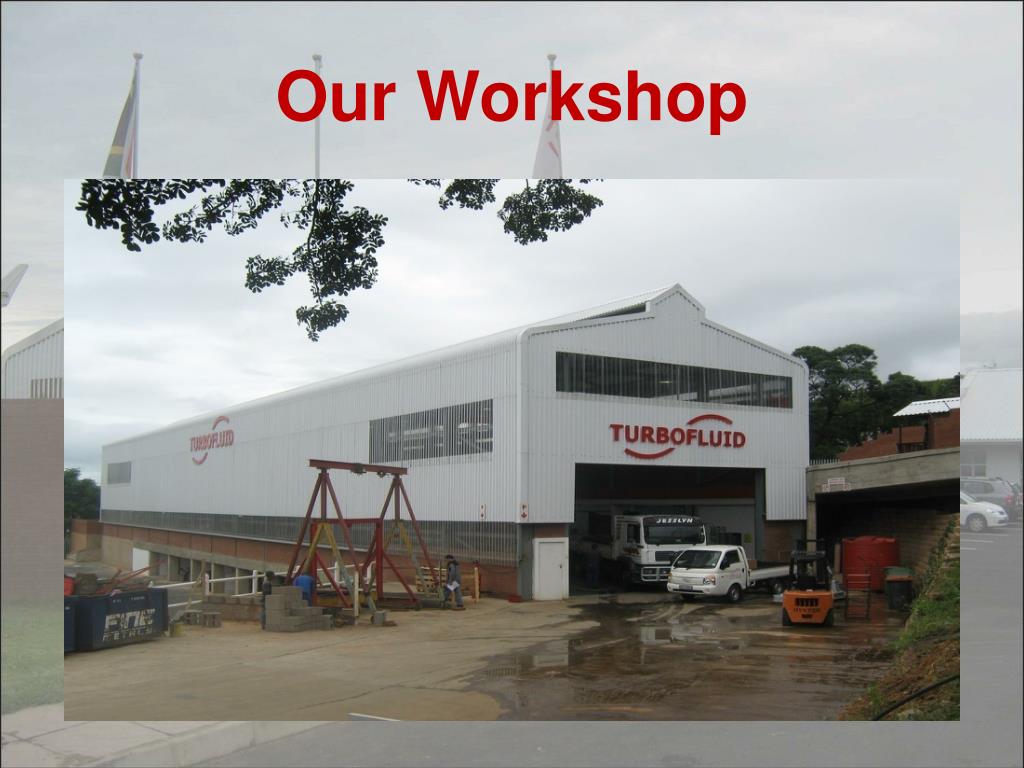

  5. Our Workshop

  6. Receiving and Despatch

  7. Quality Control

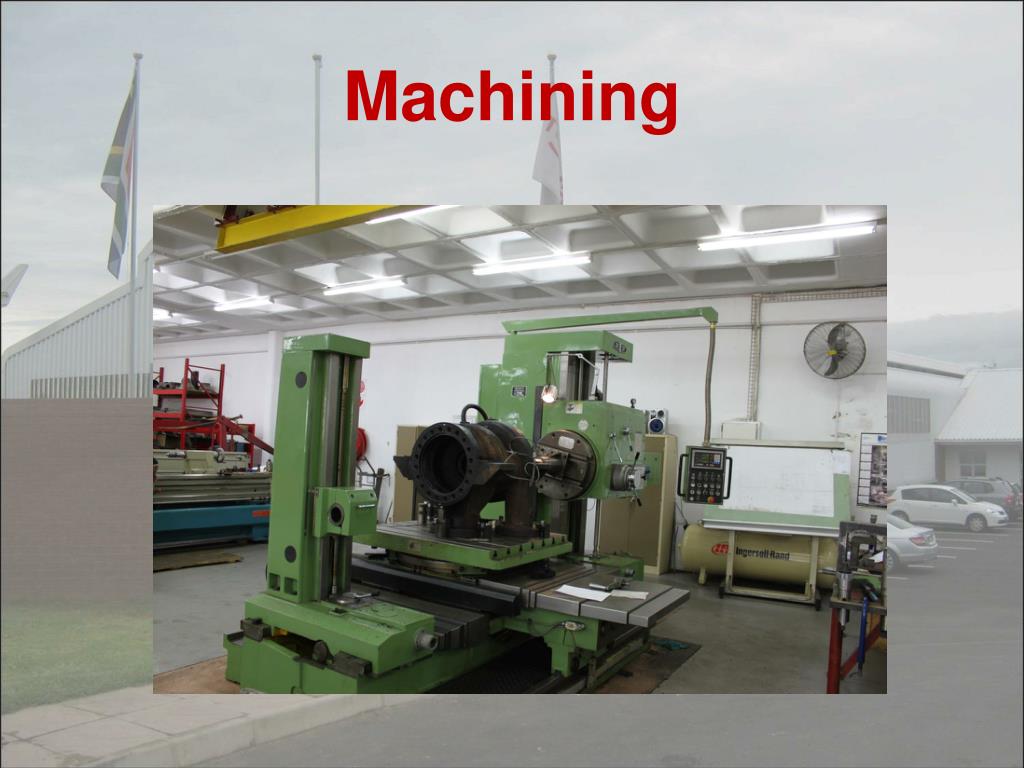

  8. Machining

  9. Fabrication and Finishing

  10. Stripping and Repairs

  11. As well as... • 60 000ltr test tank • Performance testing up to 200kw • Balancing equipment • 10ton overhead cranage • 250ton bending machine • 3 lathes and 2 milling machine • Arc, MIG & TIG welding • 2 BSc Mechanical engineers • Over 20 qualified mechanical artisans

  12. Our stock holding • 316SS & CD4MCu Durco ANSI/ASME B73.1 • CI & 316SS Eagle DIN 24255

  13. And... attention to detail

  14. Our major brands include • Eagle DIN spec 24255 Cast Iron and 316SS • Eagle Horizontal Split case water pumps up to 3200m³/hr @ 200m head

  15. Our Trade Marked pumps • Eagle EJC Slurry Pumps – up to 1500m³/hr • Eagle EHS Solids Handling Pumps –up to 900m³/hr

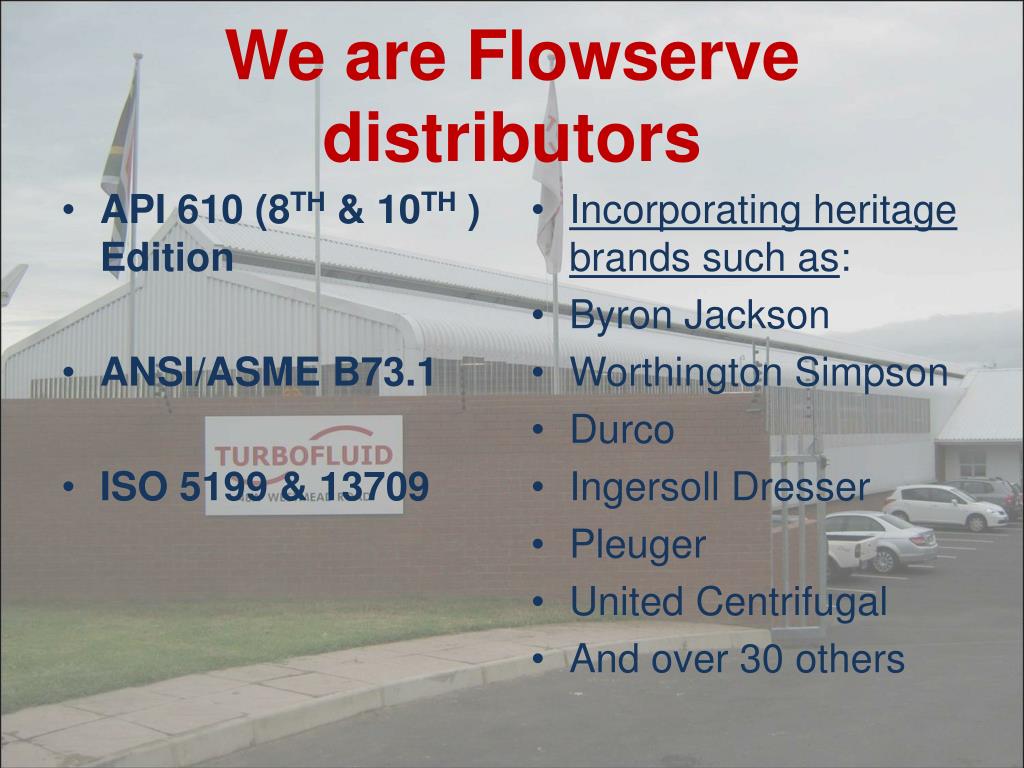

  16. We are Flowserve distributors • API 610 (8TH & 10TH ) Edition • ANSI/ASME B73.1 • ISO 5199 & 13709 • Incorporating heritage brands such as: • Byron Jackson • Worthington Simpson • Durco • Ingersoll Dresser • Pleuger • United Centrifugal • And over 30 others

  17. Involving Turbofluid in: • Desalination development in Africa • Bio-fuels plants • Co-generation projects • Energy efficiency awareness • International market trends and product enhancements

  18. The Oil & Gas Industry

  19. Chemical Process pumps

  20. Turbofluid & Flowserve • Turbofluid have recently been appointed as the only Southern African approved Flowserve repair facility • This will introduce us to International Pump Industry Standards such as: ASTM; ESA; FSA; HI & ISO • We have also completed our application for our ISO 9001 certification

  21. We also represent... • Broquet Molasses transfer pumps • And last but not least...

  22. HIVAC VACUUM PUMPS

  23. About HIVAC • Founded in 1966 in Johannesburg • Moved to their current 3800m² premises in 1980 • They are currently operated and managed by the son of the founder

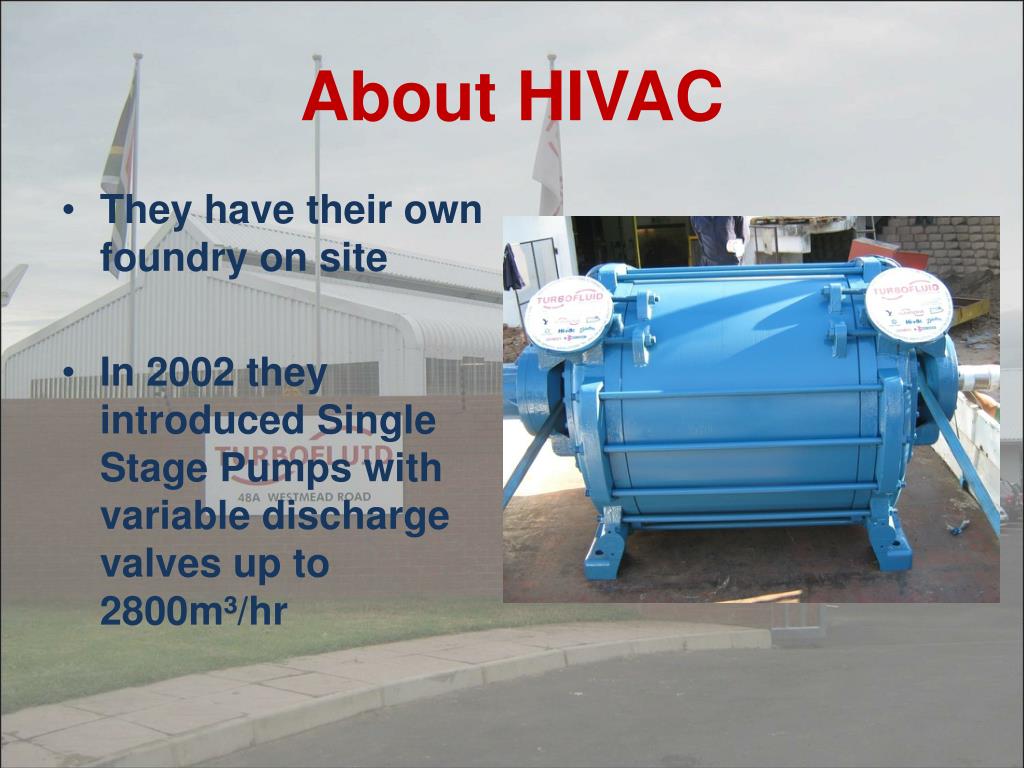

  24. About HIVAC • They have their own foundry on site • In 2002 they introduced Single Stage Pumps with variable discharge valves up to 2800m³/hr

  25. The HIVAC Facilities • Foundry castings up to 750kg • Machine shop Boring Mill 1200mm diameter • Machining centres 1000x550x650

  26. The HIVAC Range • Single stage pumps from 18 to 3800m³/hr @ 200mbar • Two stage pumps from 18 to 3800m³/hr @ 33mbar • Single stage pumps from 18 to 22000m³/hr @ 33mbar

  27. Additional information • In 2006 the holding company of HIVAC purchased Flotech, which included the local manufacturing rights to Siemens designed vacuum pumps • All rotors manufactured by HIVAC are balance to ISO G 6.3 standards • Their in-house test facility can accommodate up to 260kws of power

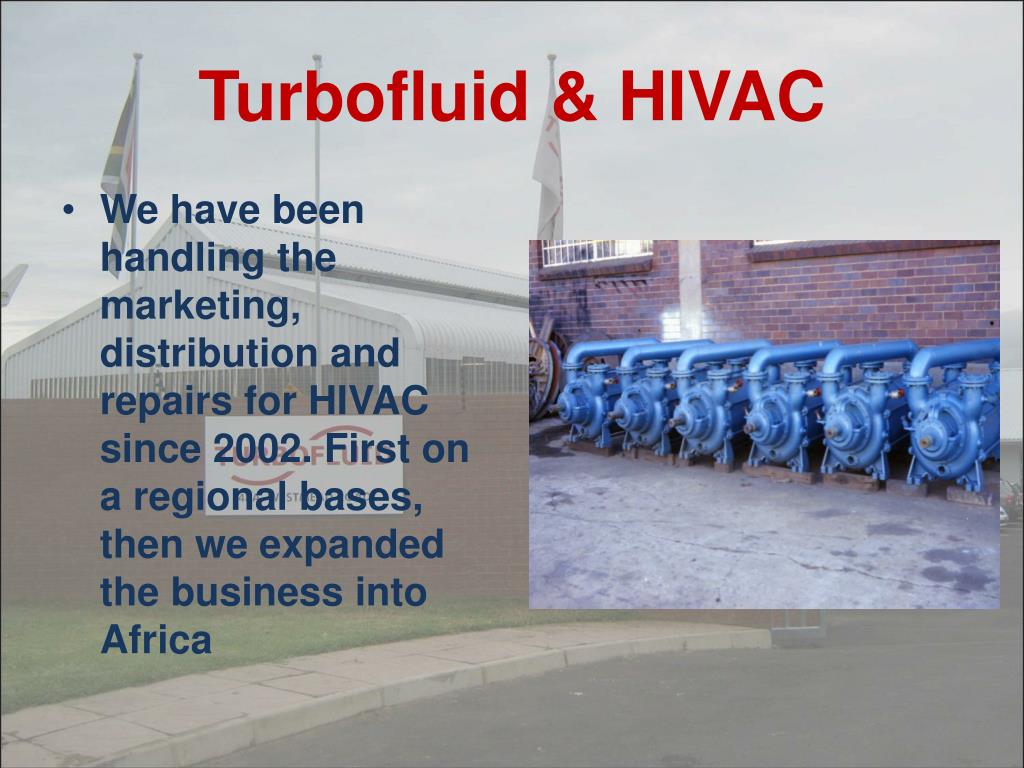

  28. Turbofluid & HIVAC • We have been handling the marketing, distribution and repairs for HIVAC since 2002. First on a regional bases, then we expanded the business into Africa

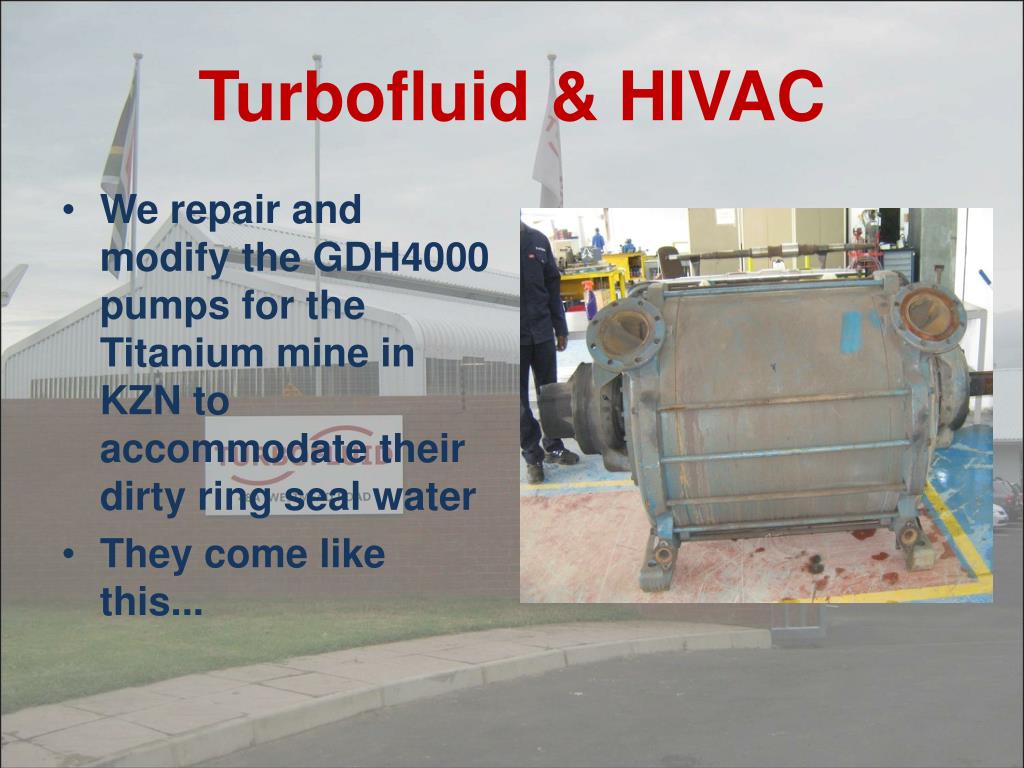

  29. Turbofluid & HIVAC • We repair and modify the GDH4000 pumps for the Titanium mine in KZN to accommodate their dirty ring seal water • They come like this...

  30. And we fit VRN500 parts...

  31. And the pumps leave like this...

  32. And the result to the end user... • We have doubled their MTBF • They have reduced their stock holdings • We have assisted them in improving their start up and shut down procedures by introducing instrumentation features

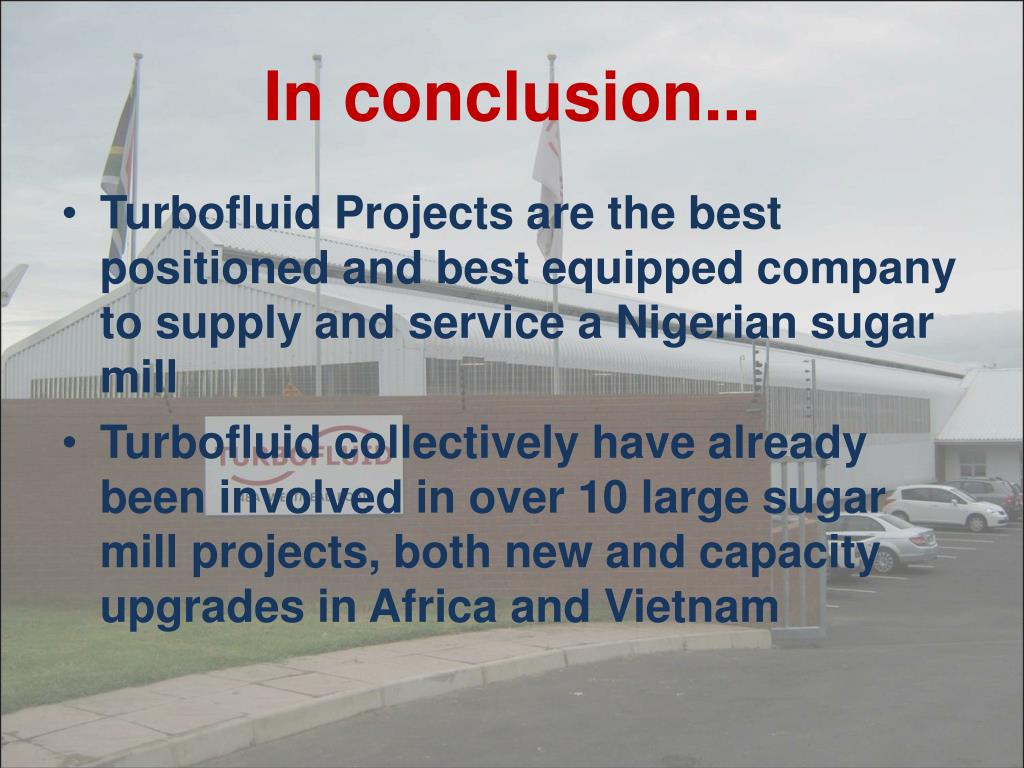

  33. In conclusion... • Turbofluid Projects are the best positioned and best equipped company to supply and service a Nigerian sugar mill • Turbofluid collectively have already been involved in over 10 large sugar mill projects, both new and capacity upgrades in Africa and Vietnam

  34. Thank you for your attention! • Does anyone have questions?

  35. THE END.
