Exploring Altera’s Cyclone II Device: Logic Element Architecture and Interconnects

This lecture examines Altera’s Cyclone II device, focusing on its two-dimensional array of Logic Array Blocks (LABs) and Logic Elements (LEs). With 33216 LEs, 105 M4K memory blocks, and 35 embedded multipliers, this architecture supports both normal and arithmetic operations. The discussion highlights the flexible clock signal generation through PLLs, local interconnects, and efficient signal management between LEs within LABs. Applications in Digital Signal Processing (DSP) with performance capabilities up to 250 MHz are also explored, illustrating the versatility of the Cyclone II in various logic implementations.

connie
Télécharger la présentation

Exploring Altera’s Cyclone II Device: Logic Element Architecture and Interconnects

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

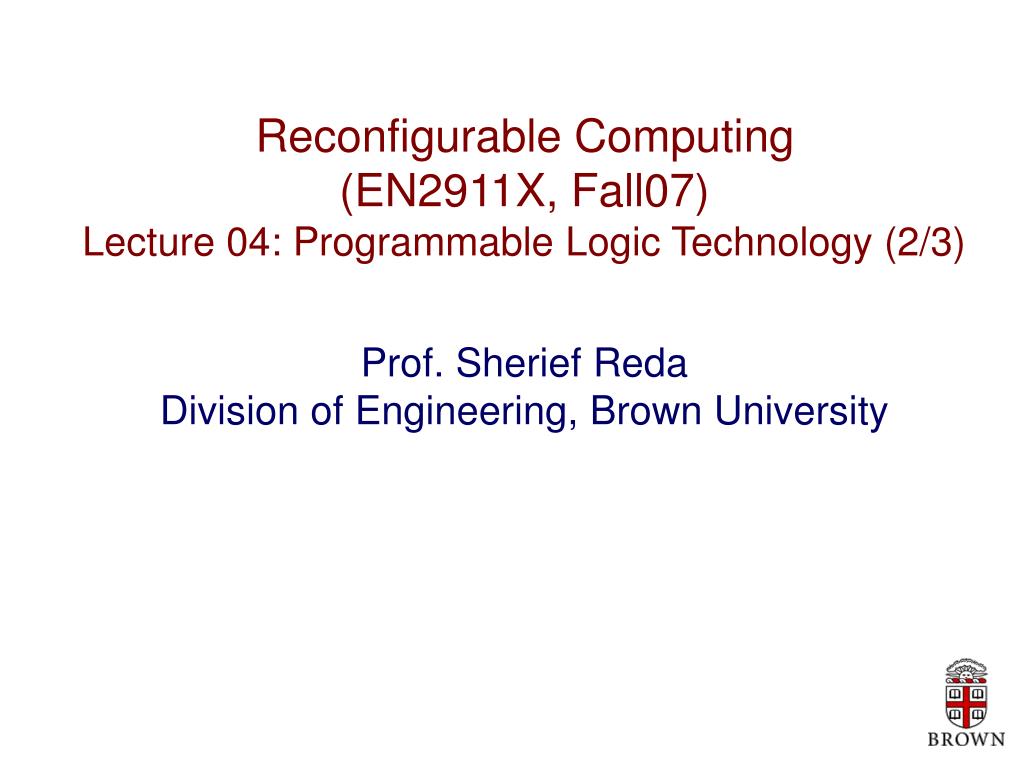

  1. Reconfigurable Computing (EN2911X, Fall07) Lecture 04: Programmable Logic Technology (2/3) Prof. Sherief Reda Division of Engineering, Brown University

  2. Case study: Altera’s Cyclone II device • Two dimensional array of Logic Array Blocks (LABs), with 16 Logic Elements (LEs) in each LAB. • Embedded memory blocks (M4K) and multipliers (18x18) • PLL (Phased Locked Loops) are used to generate clock signal for a range of frequencies • EP2C35 (in DE2 board) has 60 columns and 45 rows for a total of 33216 LEs. 105 M4K blocks and 35 embedded multipliers.

  3. Logic element organization (normal mode) • The LE has two operating modes: normal and arithmetic • Normal mode is suitable for general logic implementation • 4-input LUT • 6 input connections • 3 output connections • LAB-wide synchronous/asynchronous clear and load signals. Clock signal

  4. Logic element organization (arithmetic mode) • Arithmetic mode is suitable for implementing adders, counters, accumulators and comparators • The LUT is split into two 3-input LUTs (ideal for implementing 2-bit full adders) and basic carry chain

  5. Logic array block organization • Each LAB consists of the following: 16 LEs, LAB control signals, LE carry chains, register chains and local interconnects • Local interconnects transfer signals between LEs in the same LAB and is driven by column and row interconnects and LE outputs within the same LAB • Neighboring LABs, PLLs, M4K RAM and multipliers from the left and right can also drive an LAB’s local interconnect • Each LE can drive 48 Les through fast local and direct interconnects

  6. Register/carry chain connections with a LAB

  7. Multi-track interconnects • Multitrack interconnect consists of row (directlink, R4, R24) and column (register chain, C4, C16) • R4/C4 interconnects spans 4 blocks (right, left / top, down) • R24/C16 spans 24/16 blocks and connects to R4/C4 interconnects • R4/C4 can drive each other to extend their range

  8. C4 interconnections • C4 interconnects drive local and R4 interconnect up to 4 rows • C16 column interconnects span 16 LABs and provide long column connections • C16 column interconnects indirectly drive LAB local interconnects via C4 and R4 and interconnects

  9. Embedded RAMs and multipliers • ideal for DSP applications • 250 Mhz performance • Either configured as one 18 bit multiplier or two independent 9 bit multipliers • 4608 RAM bits (w or w/o parity) • 250 MHz performance • Either single or dual port memory • Can also be configured as FIFO

  10. IO Element (IOE) structure • IO Element (IOE) structure (allows bidirectional signals) • 5 IOE per row I/O block • Row I/O blocks drive C4, R4, R24 or direct link interconnects. • Column I/O blocks drive C4, C16 interconnects
