  1. Infected Host Isolation via Packeteer PacketShaper Ben Freitag Grand Valley State University freitagb@gvsu.edu

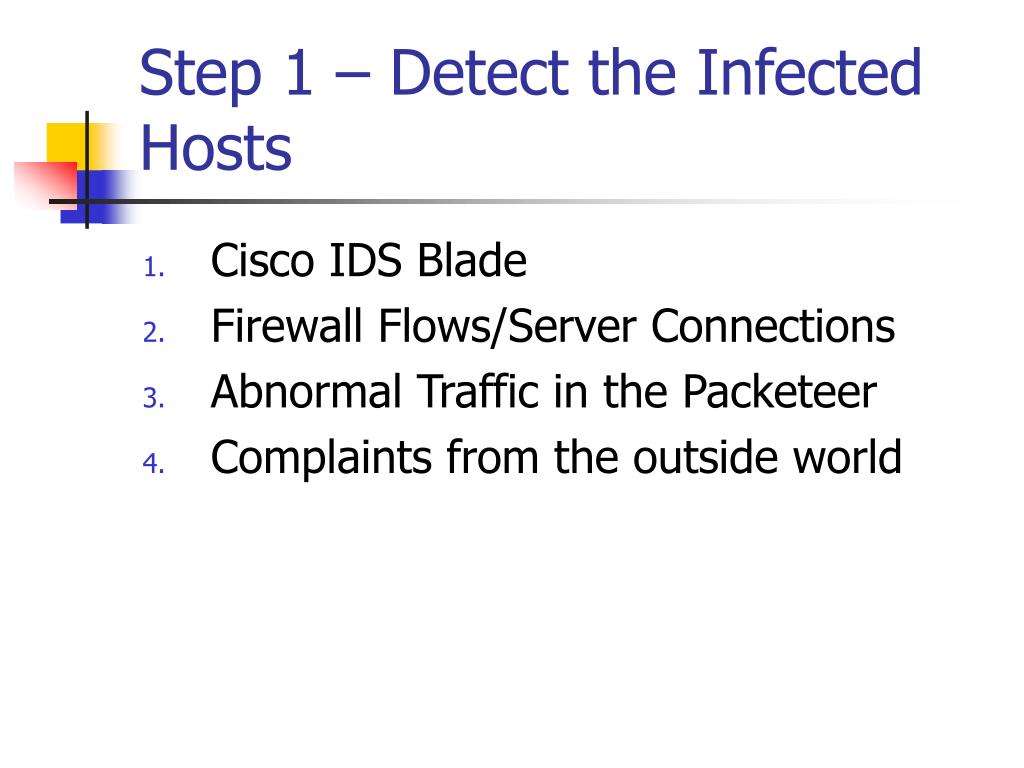

  2. Step 1 – Detect the Infected Hosts • Cisco IDS Blade • Firewall Flows/Server Connections • Abnormal Traffic in the Packeteer • Complaints from the outside world

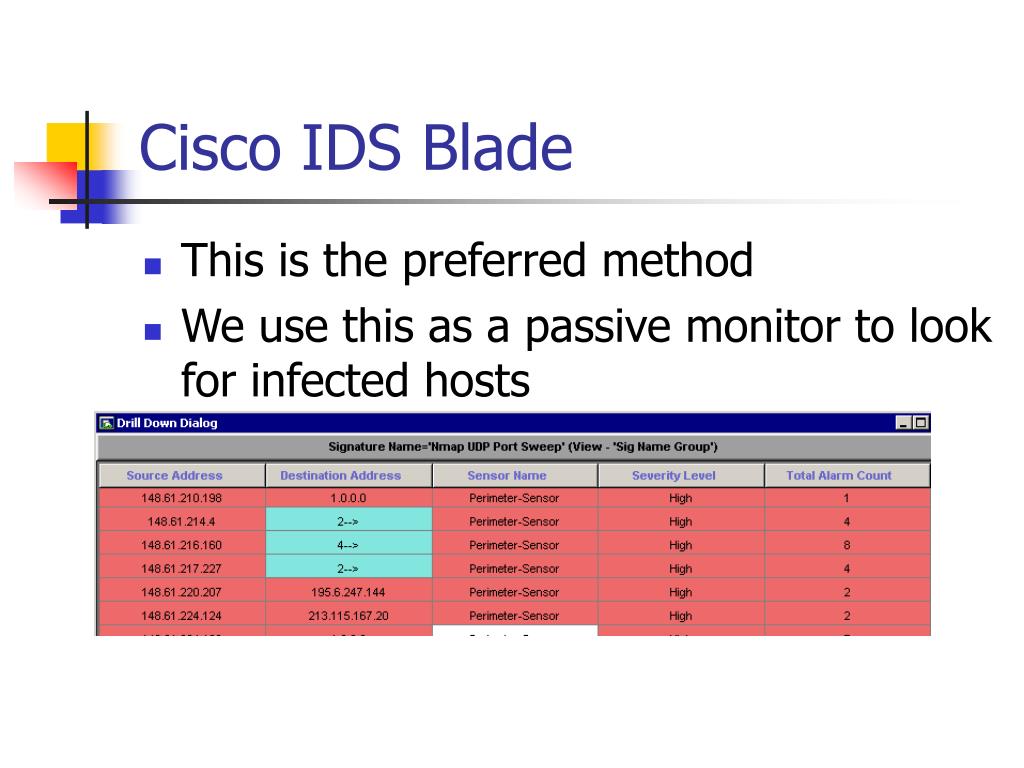

  3. Cisco IDS Blade • This is the preferred method • We use this as a passive monitor to look for infected hosts

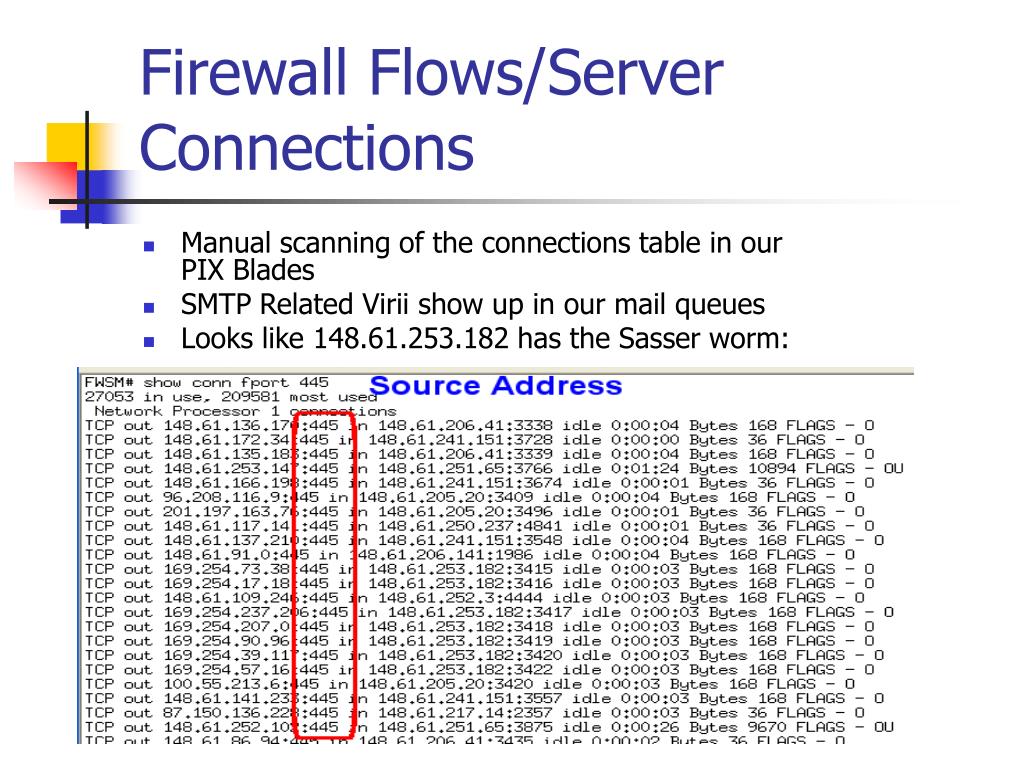

  4. Firewall Flows/Server Connections • Manual scanning of the connections table in our PIX Blades • SMTP Related Virii show up in our mail queues • Looks like 148.61.253.182 has the Sasser worm:

  5. Abnormal Traffic in the Packeteer &Complaints from the outside world • These are ‘lucky catches’ – would prefer these were caught earlier • Packeteer Aspect usually only works with Auto Discovery

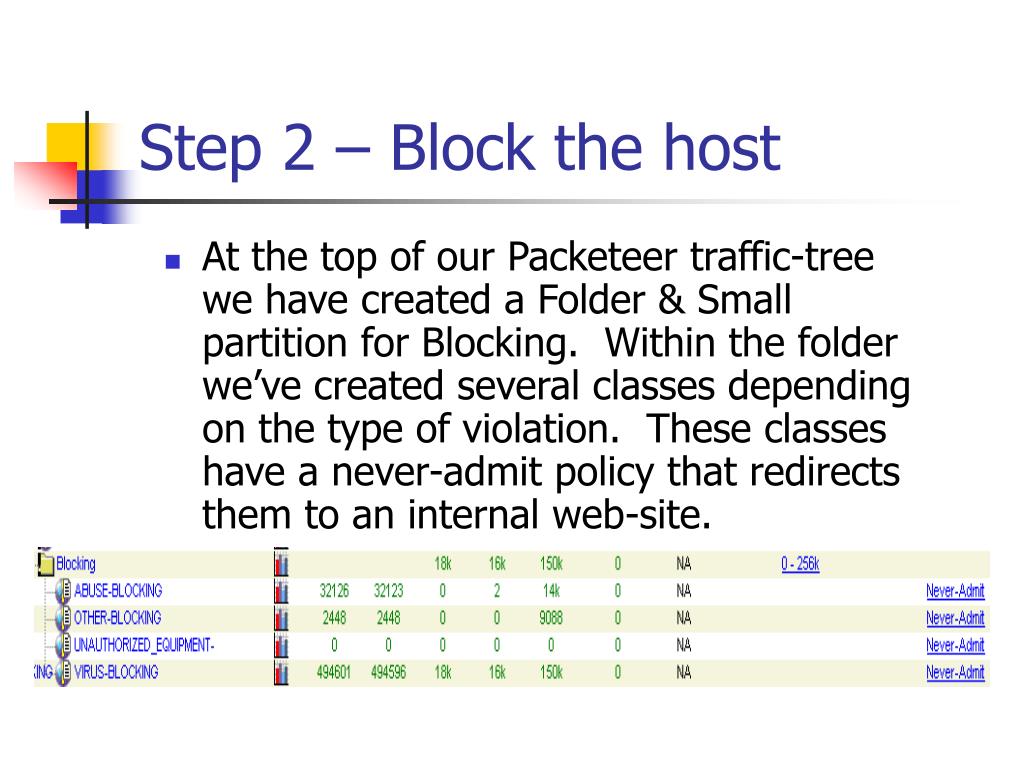

  6. Step 2 – Block the host • At the top of our Packeteer traffic-tree we have created a Folder & Small partition for Blocking. Within the folder we’ve created several classes depending on the type of violation. These classes have a never-admit policy that redirects them to an internal web-site.

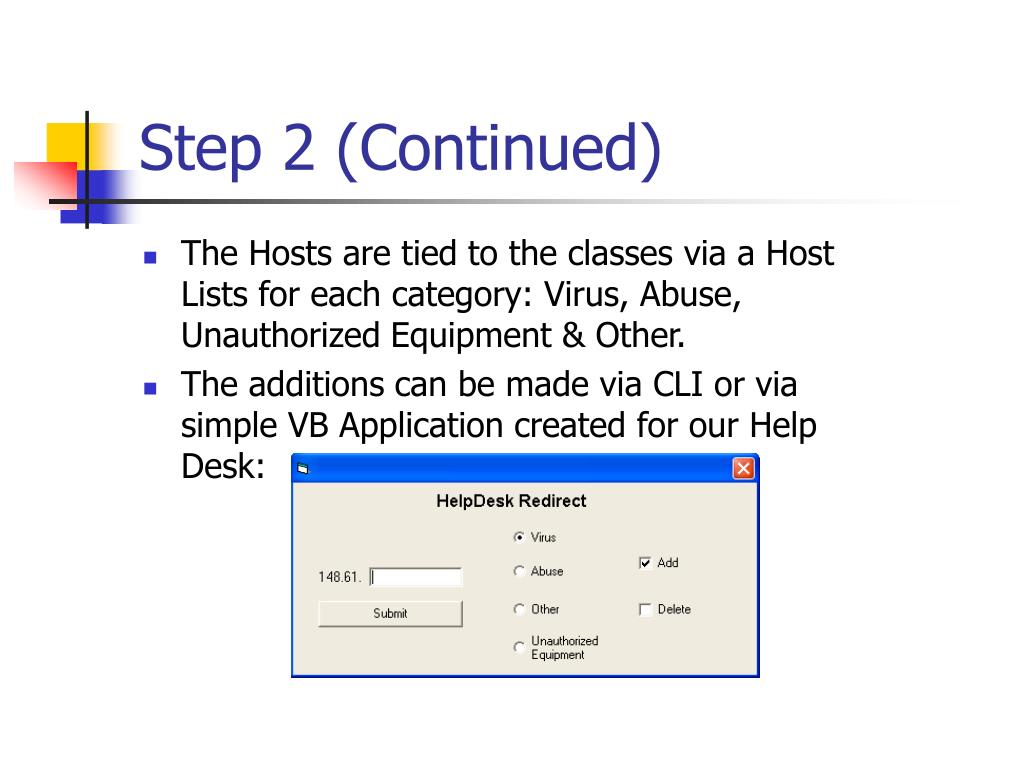

  7. Step 2 (Continued) • The Hosts are tied to the classes via a Host Lists for each category: Virus, Abuse, Unauthorized Equipment & Other. • The additions can be made via CLI or via simple VB Application created for our Help Desk:

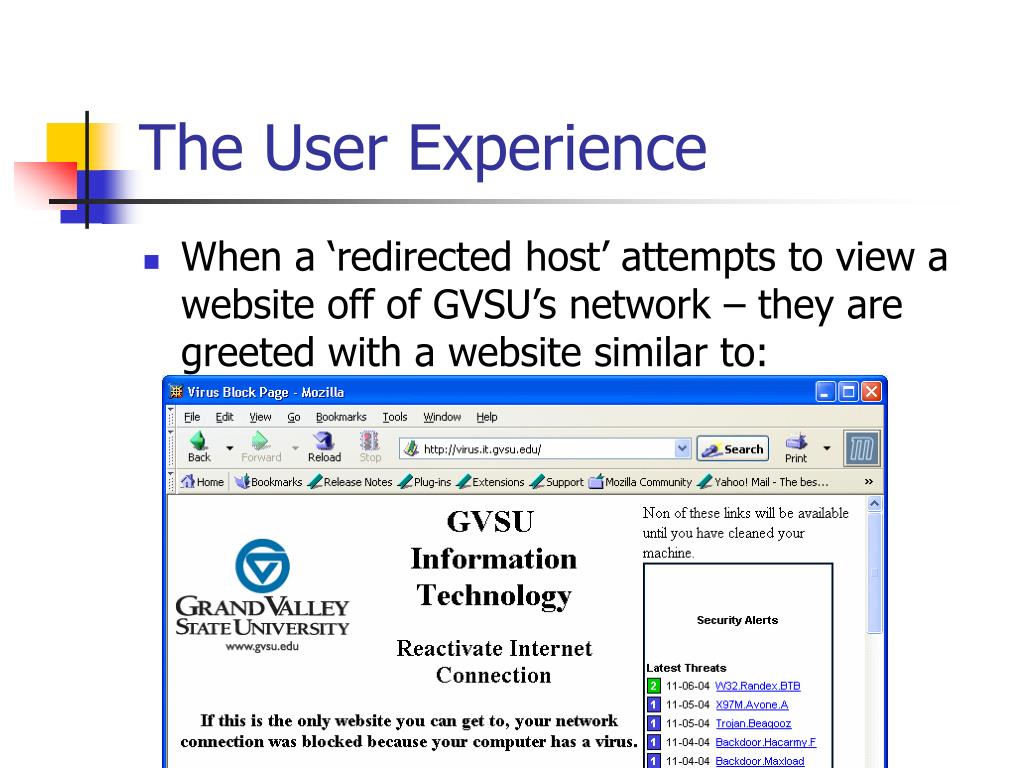

  8. The User Experience • When a ‘redirected host’ attempts to view a website off of GVSU’s network – they are greeted with a website similar to:

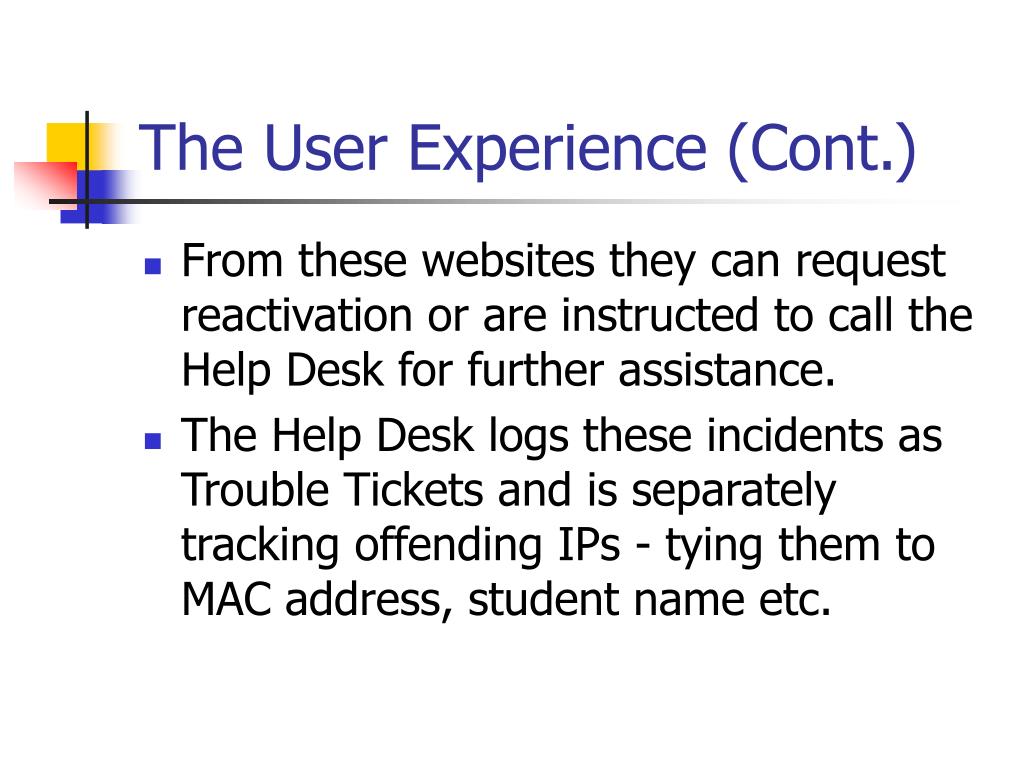

  9. The User Experience (Cont.) • From these websites they can request reactivation or are instructed to call the Help Desk for further assistance. • The Help Desk logs these incidents as Trouble Tickets and is separately tracking offending IPs - tying them to MAC address, student name etc.

  10. Problems • Can require an enormous amount of time – especially at the beginning of the school year. • Does not scale well • Not proactive – no real-time way to tie users to IPs.

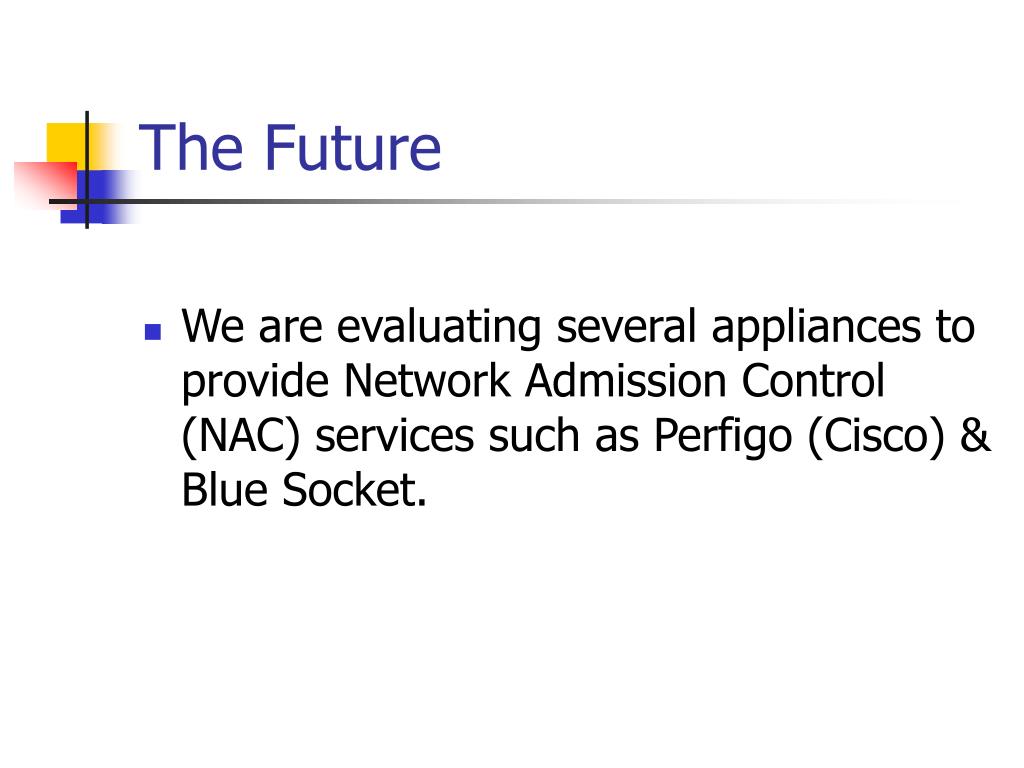

  11. The Future • We are evaluating several appliances to provide Network Admission Control (NAC) services such as Perfigo (Cisco) & Blue Socket.
