  1. Support Vector Machines Presented By Sherwin Shaidaee

  2. Papers • Vladimir N. Vapnik, “The Statistical Learning Theory”. Springer, 1998 • Yunqiang Chen, Xiang Zhou, and Thomas S. Huang, University of Illinois, “ONE-CLASS SVM FOR LEARNING IN IMAGE RETRIEVAL”, 2001 • A. Ganapathiraju, Member, IEEE, J. Hamaker, Member, IEEE and J. Picone, Senior Member, IEEE, ”Applications of Support Vector Machines To Speech Recognition” , 2003

  3. Introduction to Support Vector Machines • SVMs are based on statistical learning theory; the aim being to solve only the problem of interest without solving a more difficult problem as an intermediate step • SVMs are based on the structural risk minimisation principle, which incorporates capacity control to prevent over-fitting

  4. Introduction to Support Vector Machines

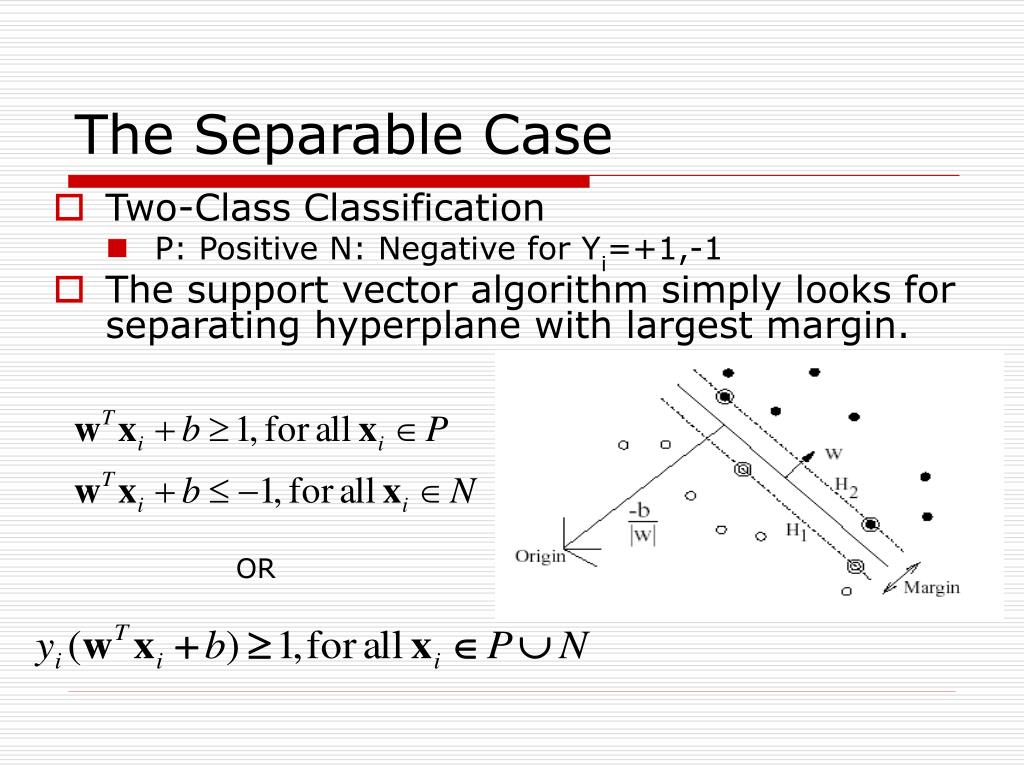

  5. The Separable Case • Two-Class Classification • P: Positive N: Negative for Yi=+1,-1 • The support vector algorithm simply looks for separating hyperplane with largest margin. OR

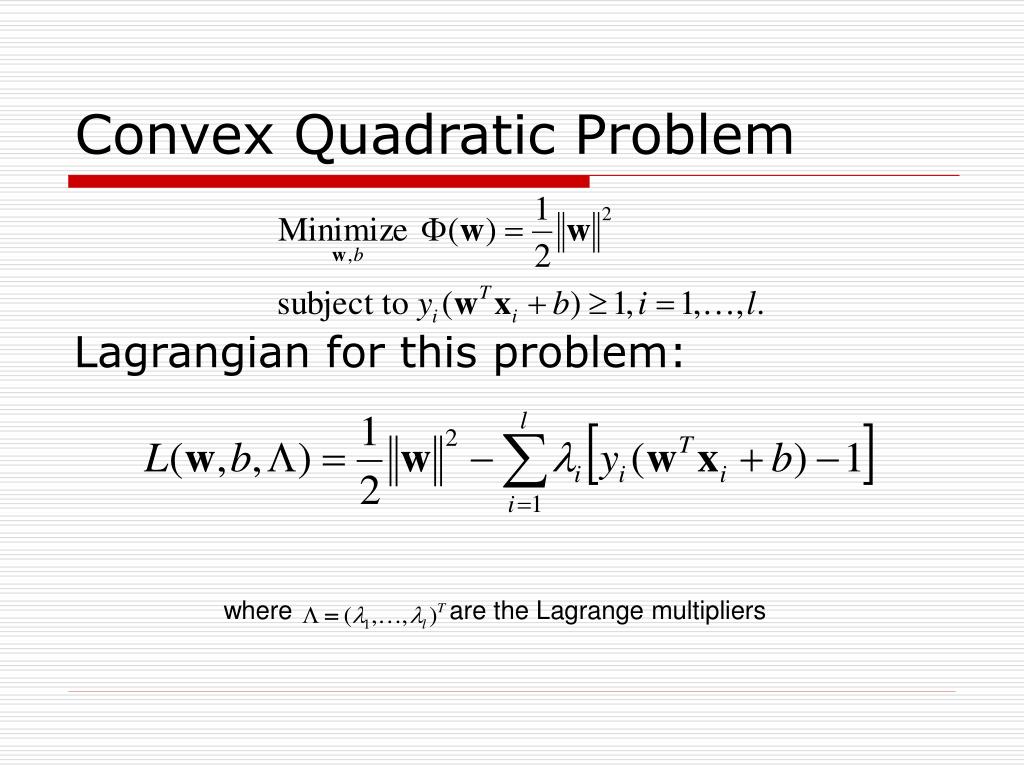

  6. Convex Quadratic Problem Lagrangian for this problem: where are the Lagrange multipliers

  7. Convex Quadratic Problem Differentiation with respect to w & b:

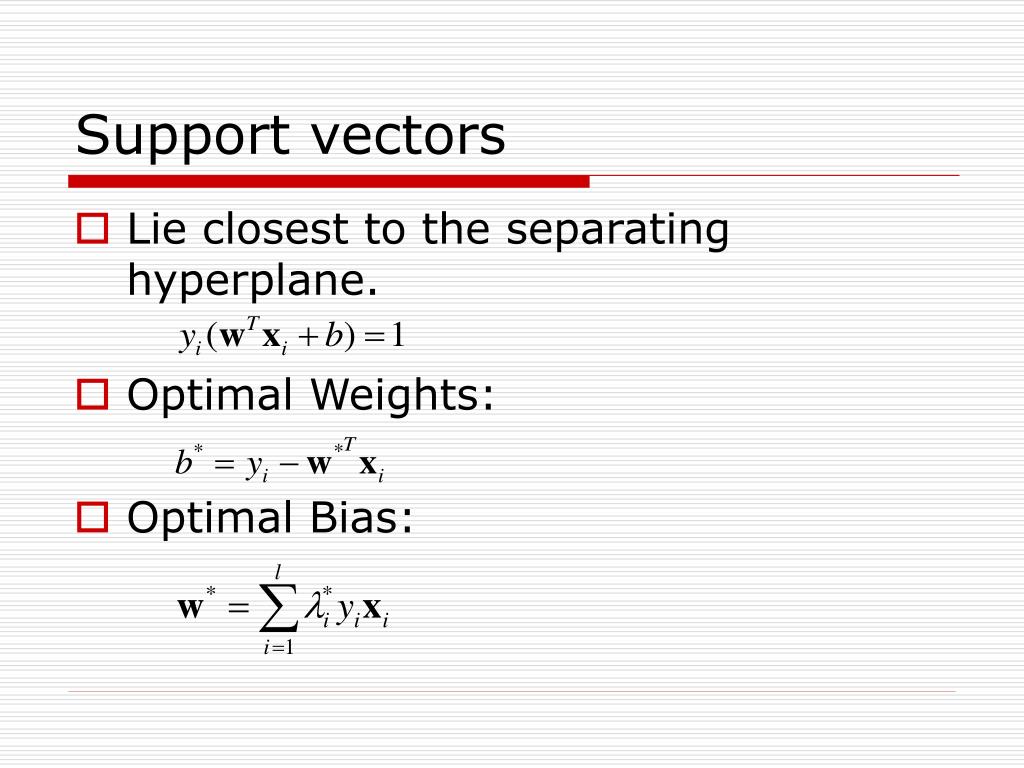

  8. Support vectors • Lie closest to the separating hyperplane. • Optimal Weights: • Optimal Bias:

  9. Types of Support vectors (a) two-class linear (b) One-class (c) Non-linear Decision Function:

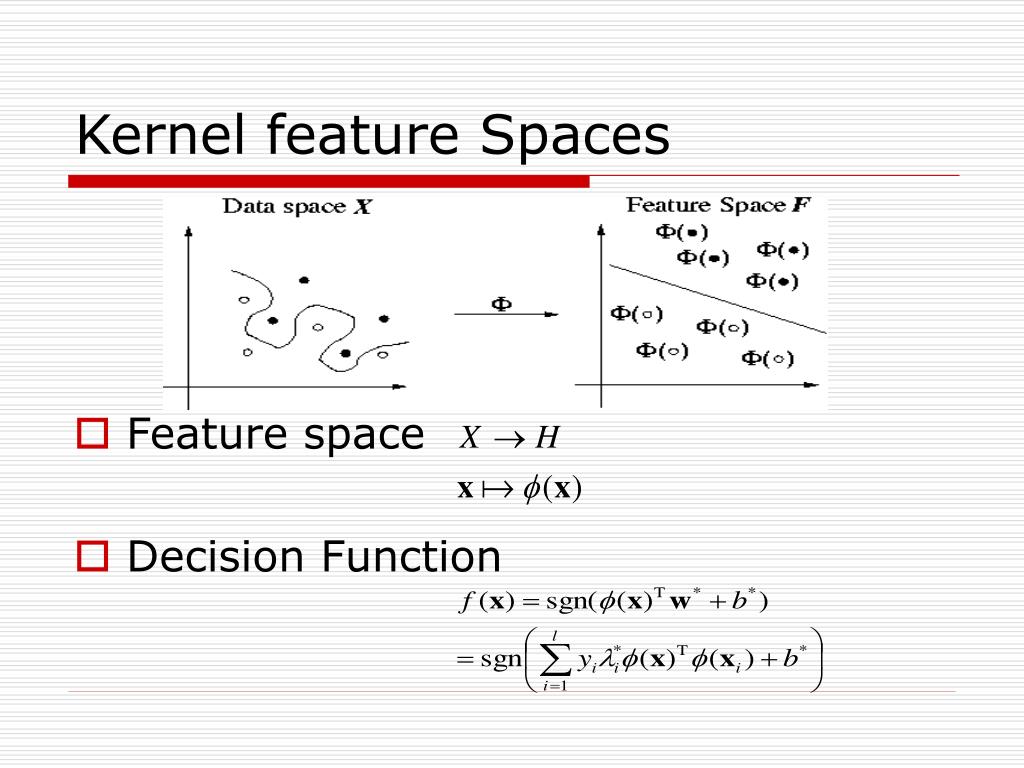

  10. Kernel feature Spaces • Feature space • Decision Function

  11. Kernel Function .

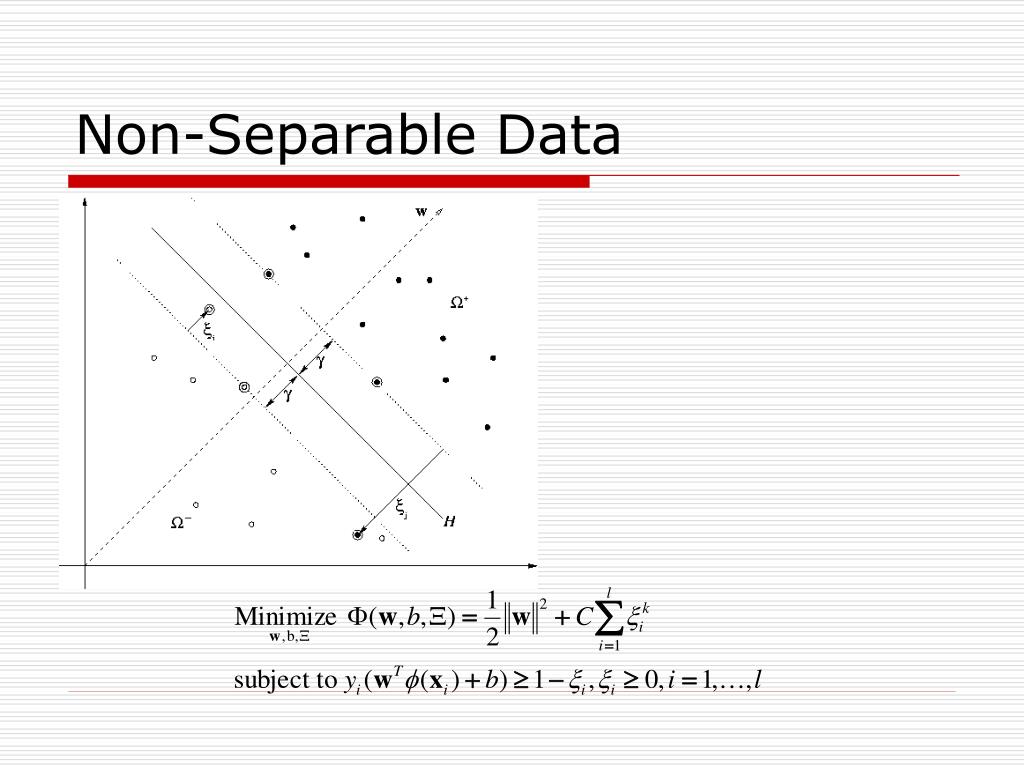

  12. Non-Separable Data

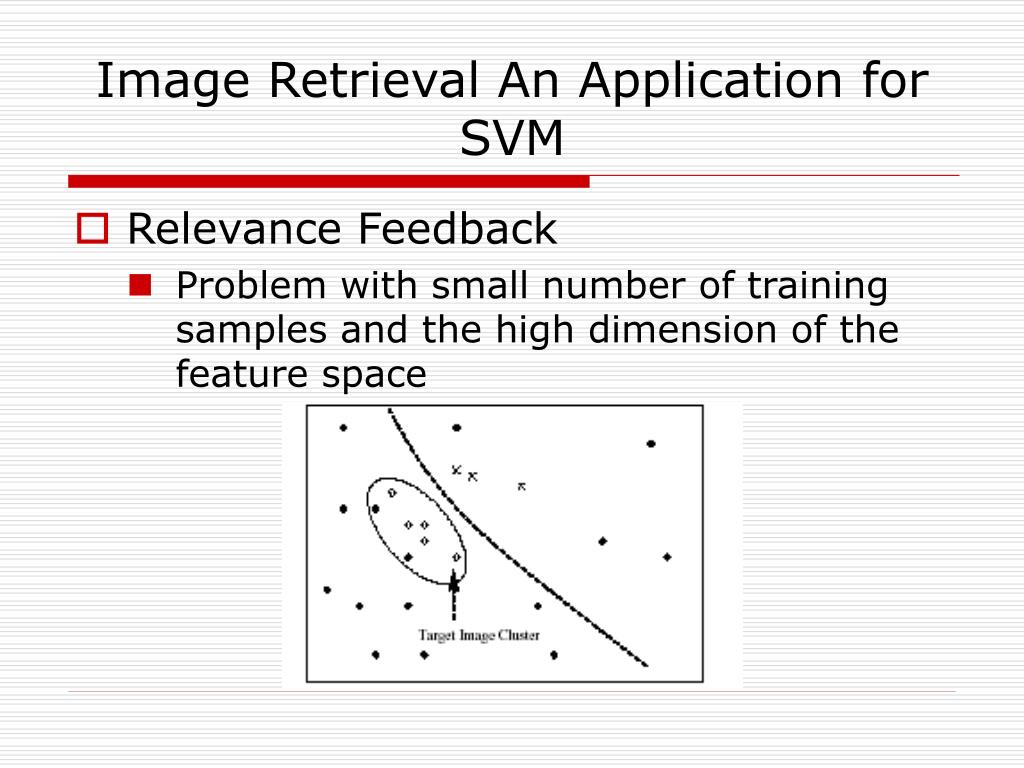

  13. Image Retrieval An Application for SVM • Relevance Feedback • Problem with small number of training samples and the high dimension of the feature space

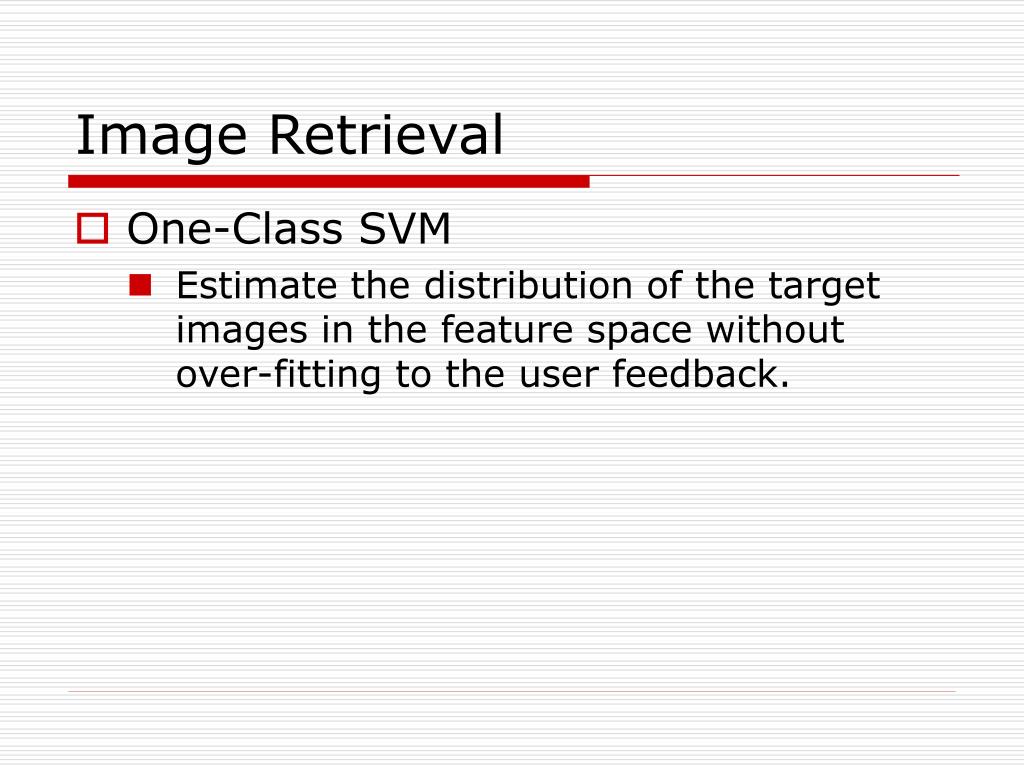

  14. Image Retrieval • One-Class SVM • Estimate the distribution of the target images in the feature space without over-fitting to the user feedback.

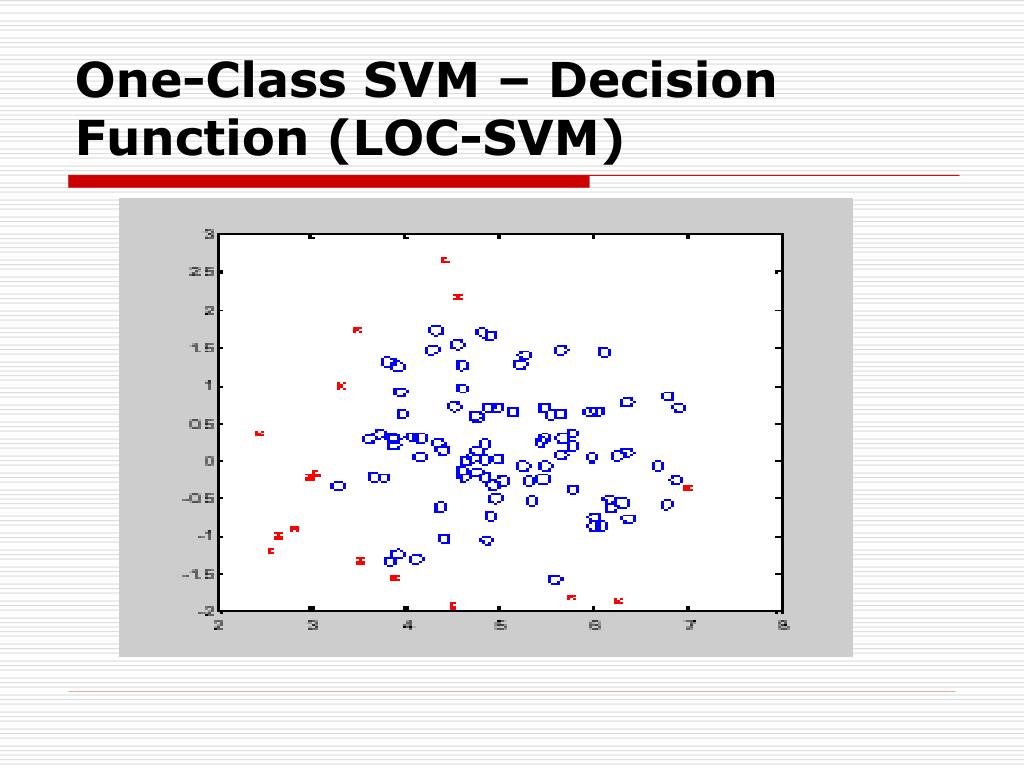

  15. One-Class SVM – Decision Function (LOC-SVM)

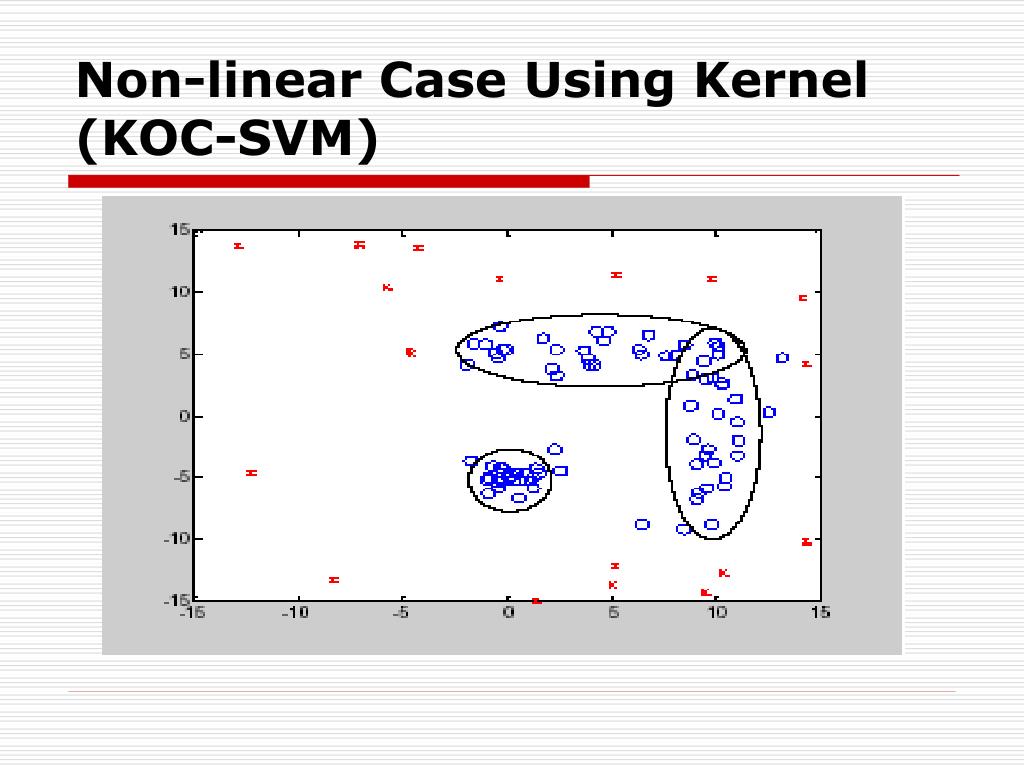

  16. Non-linear Case Using Kernel (KOC-SVM)

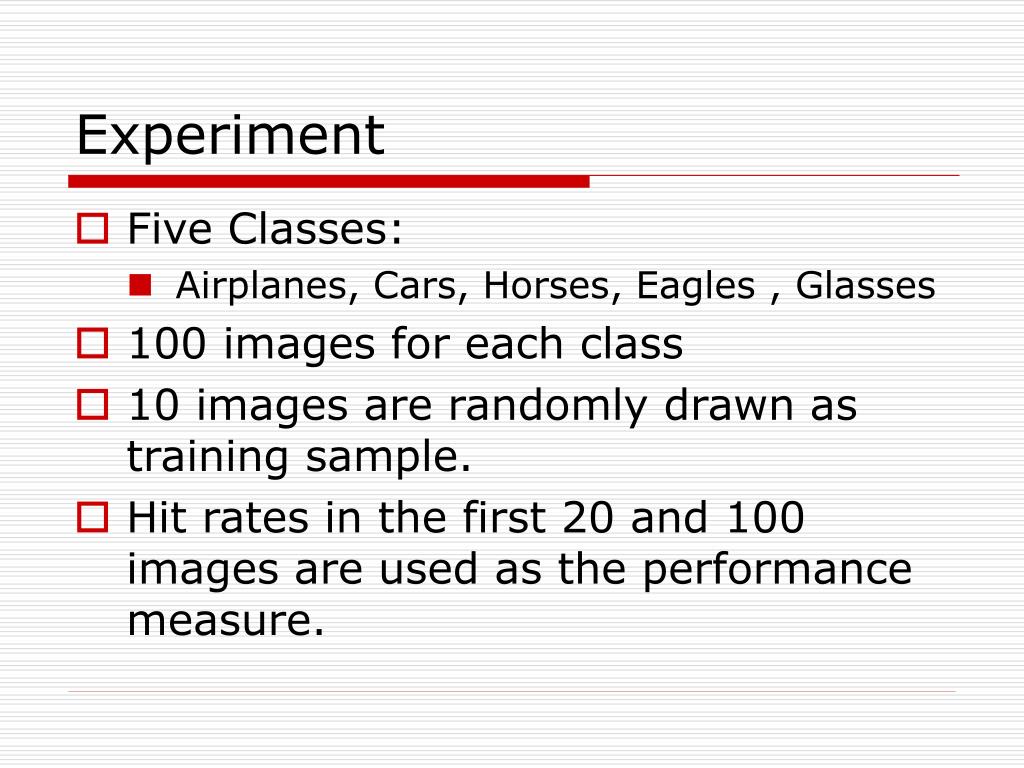

  17. Experiment • Five Classes: • Airplanes, Cars, Horses, Eagles , Glasses • 100 images for each class • 10 images are randomly drawn as training sample. • Hit rates in the first 20 and 100 images are used as the performance measure.

  18. Results
