  1. Performance Management Framework ROC Retreat 6/17/2004 USBancorp

  2. Topics • Overview – What is it, Why have it & Where has it been, Where does it fit? • Fundamentals – What are the underlying principles and metrics? • Architecture – Data collection (Observation, Analysis, Action) • Instrumentation – How are performance measurements collected? • Analysis and Reporting – How are events analyzed & What are the reporting patterns? • Alerts, Leveraging ROC Concepts and Next Steps - USBancorp

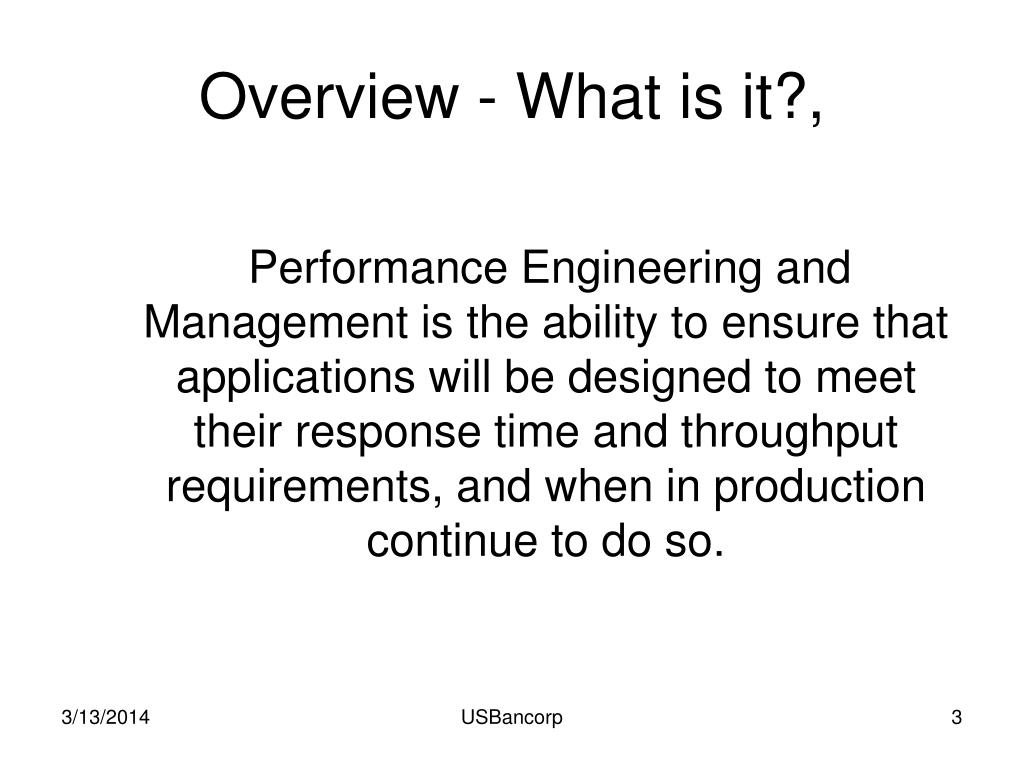

  3. Overview - What is it?, Performance Engineering and Management is the ability to ensure that applications will be designed to meet their response time and throughput requirements, and when in production continue to do so. USBancorp

  4. Fundamentals Concepts and Metrics Infrastructure Net. Facilities Resource Application Load/Usage Users Performance OS DB Methods Quality Response Time Stability Net.Components USBancorp

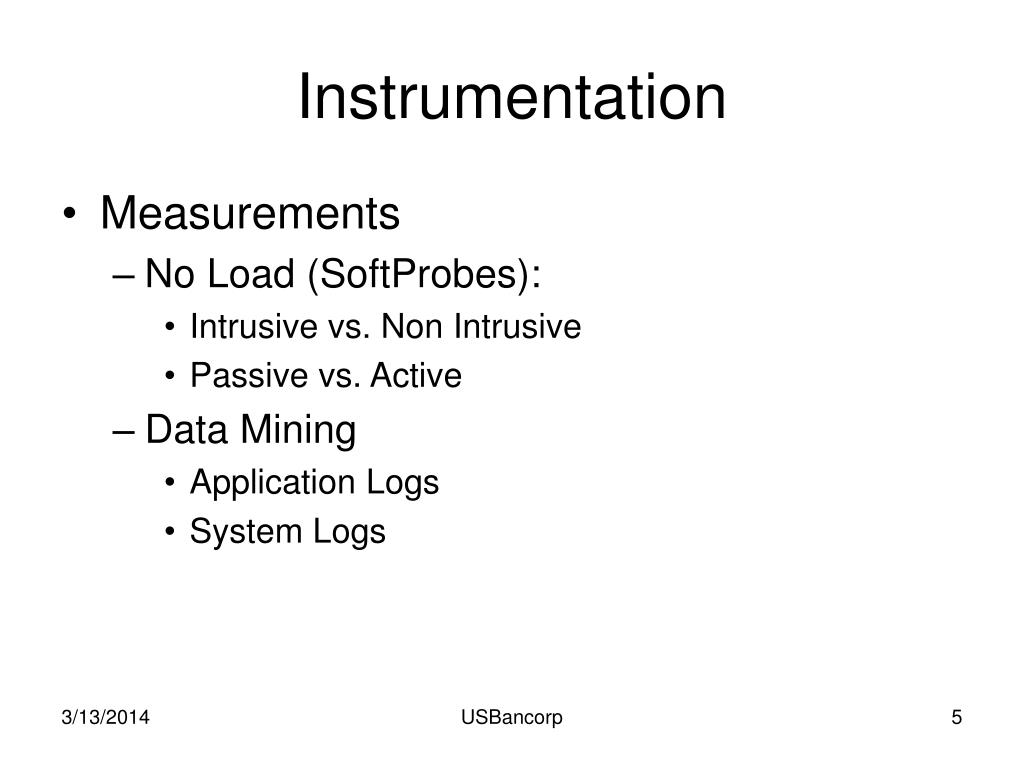

  5. Instrumentation • Measurements • No Load (SoftProbes): • Intrusive vs. Non Intrusive • Passive vs. Active • Data Mining • Application Logs • System Logs USBancorp

  6. Charts Alarms Security/Audit Analysis Real-time Reporter Application GUI Methods Appl. Server Methods ORB Interface & Methods Performance Analysis Repository Perf Framework Application Methods Database Methods Architecture • Throughout the development lifecycle, performance statistics are asynchronously collected, analyzed and used to influence design and implementation decisions. Training (Alert Rules) USBancorp

  7. Instrumentation Intrusive Application Instrumentation (Performance Framework) • GUI • Business context, user, workstation, method, class • Application rules • Specific method invocations • 3rd party/calls to external modules and/or systems • Data base access • Selects, inserts, update, deletes, stored procedures, DDL commands USBancorp

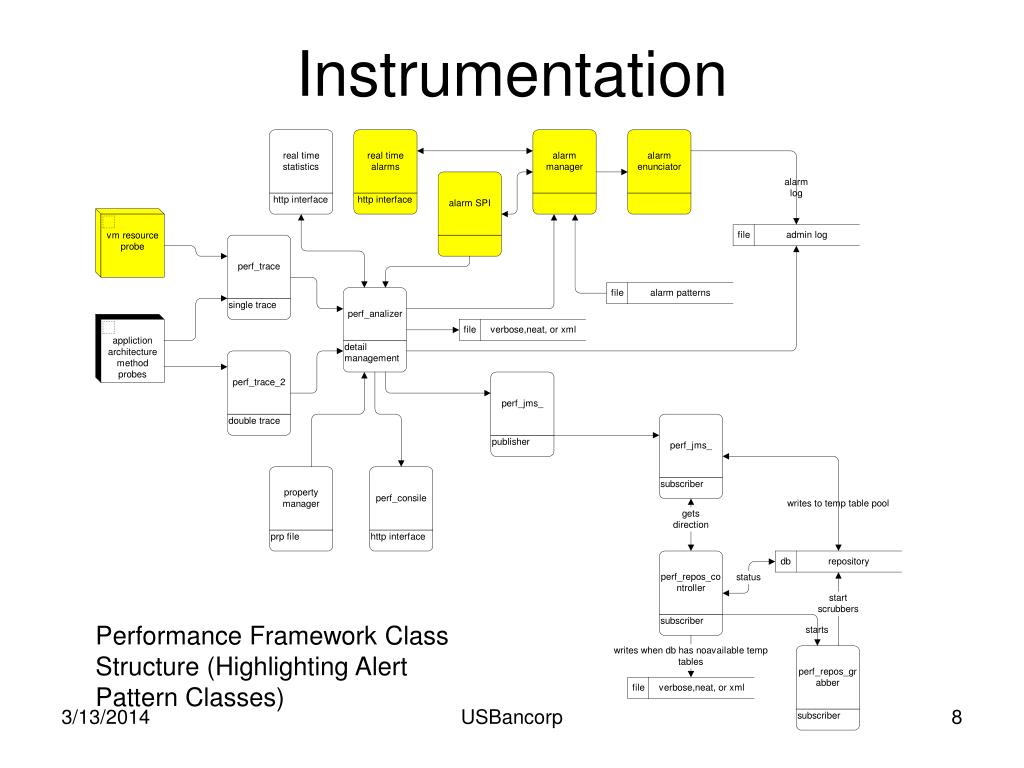

  8. Instrumentation Performance Framework Class Structure (Highlighting Alert Pattern Classes) USBancorp

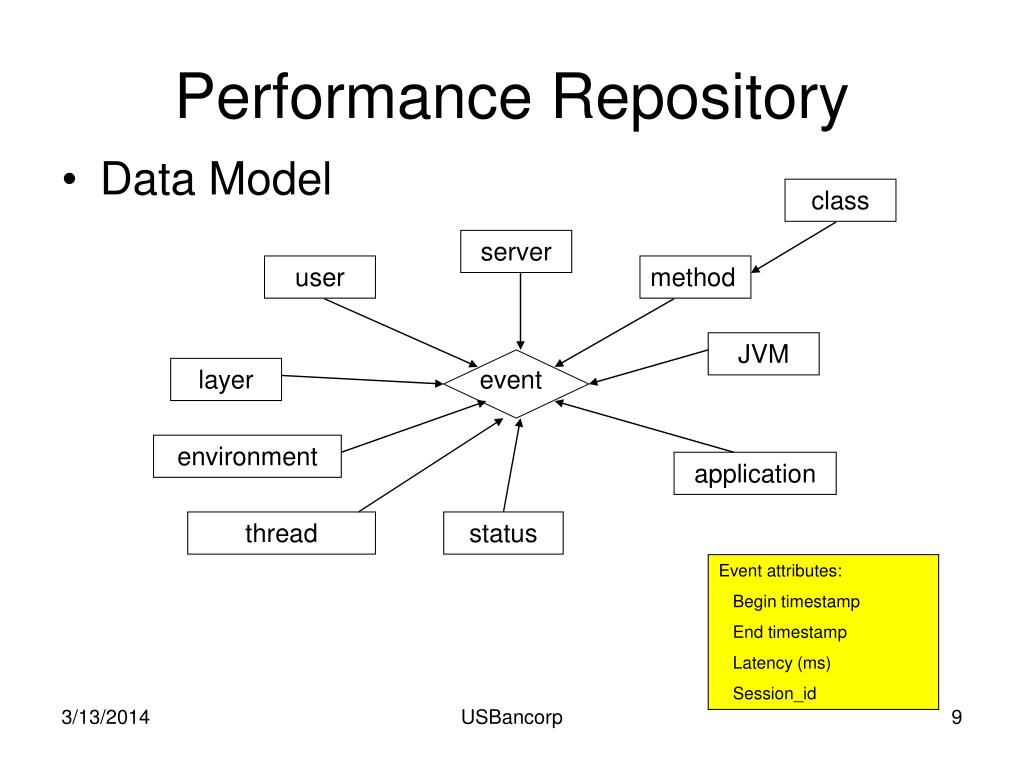

  9. class server user method JVM layer event environment application thread status Performance Repository • Data Model Event attributes: Begin timestamp End timestamp Latency (ms) Session_id USBancorp

  10. Performance Framework Benchmark Stats • Response time: • Rt_1 felt by application • Rt_2 internal posting USBancorp

  11. Analysis and Reports USBancorp

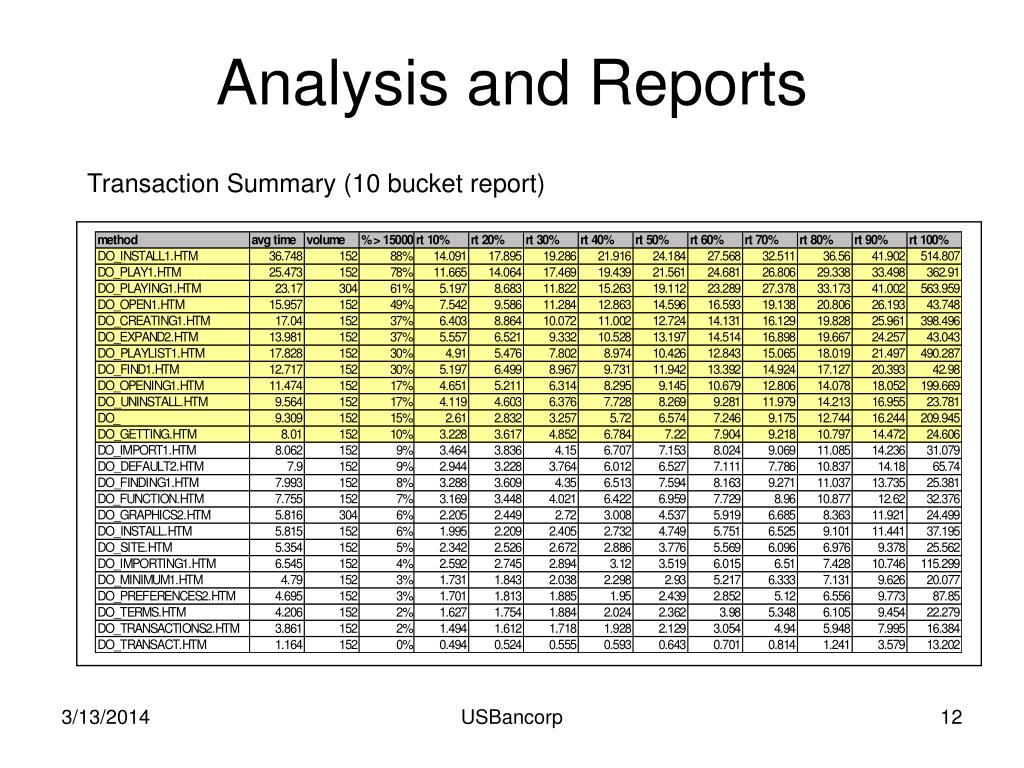

  12. Analysis and Reports Transaction Summary (10 bucket report) USBancorp

  13. Analysis and Reports If you cannot see the problem…you cannot fix it! Arrival Rates and Response Times Arrival Rate and Concurrency USBancorp

  14. Analysis and Reports Denial of Service Attack (Day 1) USBancorp

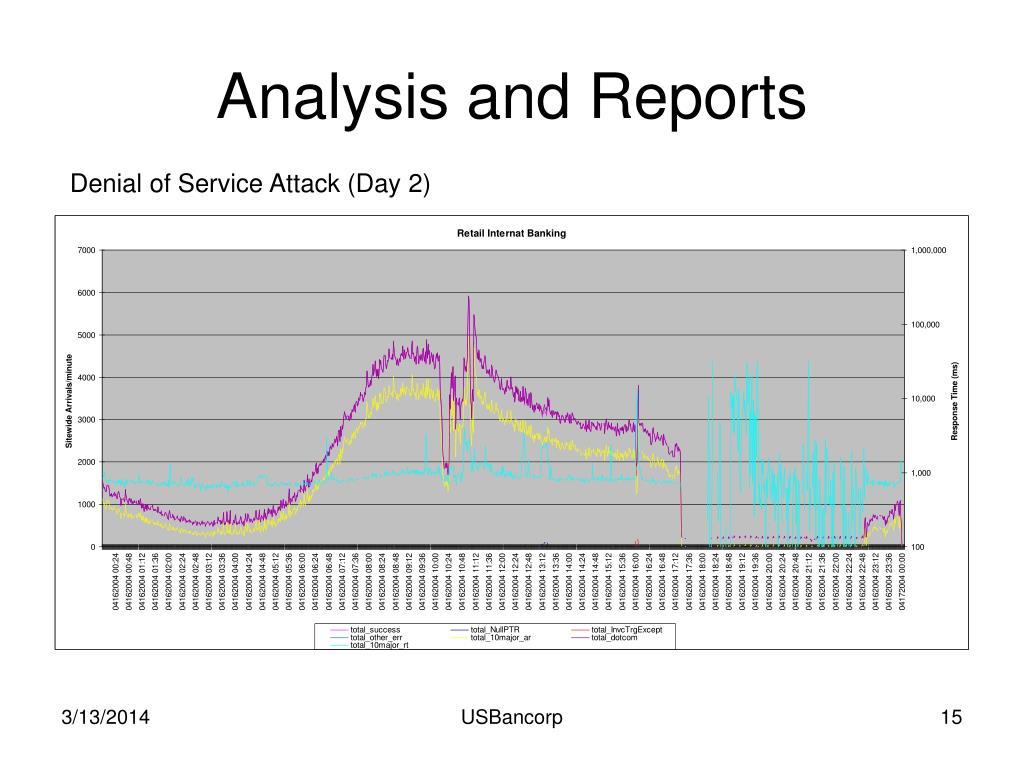

  15. Analysis and Reports Denial of Service Attack (Day 2) USBancorp

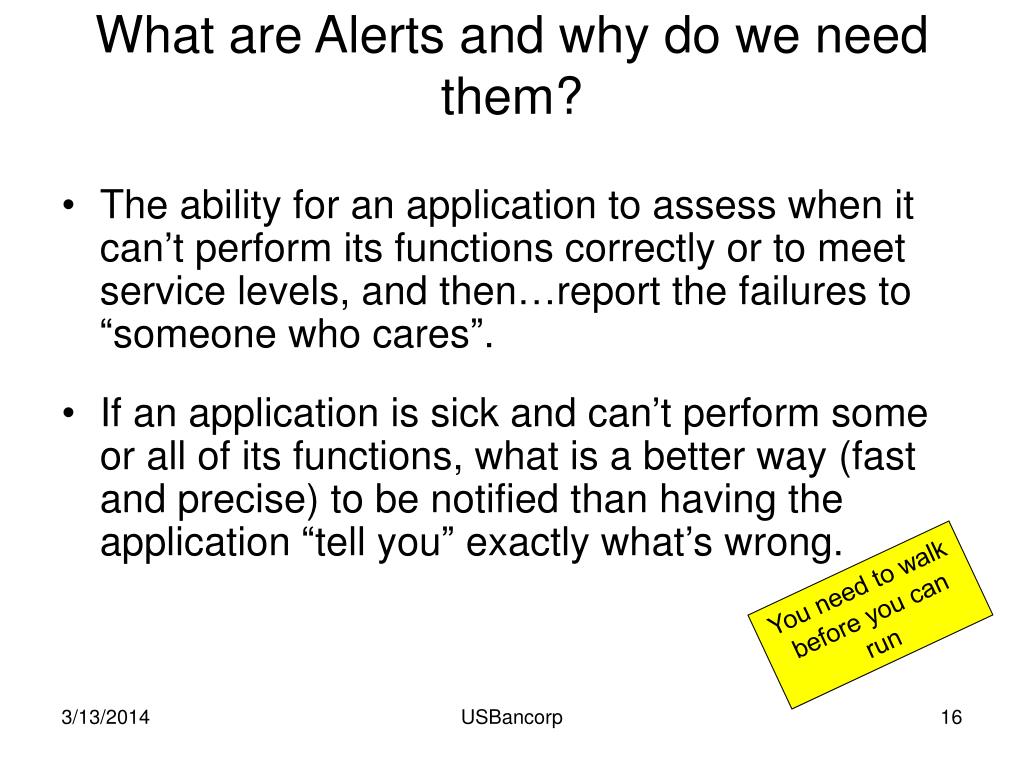

  16. What are Alerts and why do we need them? • The ability for an application to assess when it can’t perform its functions correctly or to meet service levels, and then…report the failures to “someone who cares”. • If an application is sick and can’t perform some or all of its functions, what is a better way (fast and precise) to be notified than having the application “tell you” exactly what’s wrong. You need to walk before you can run USBancorp

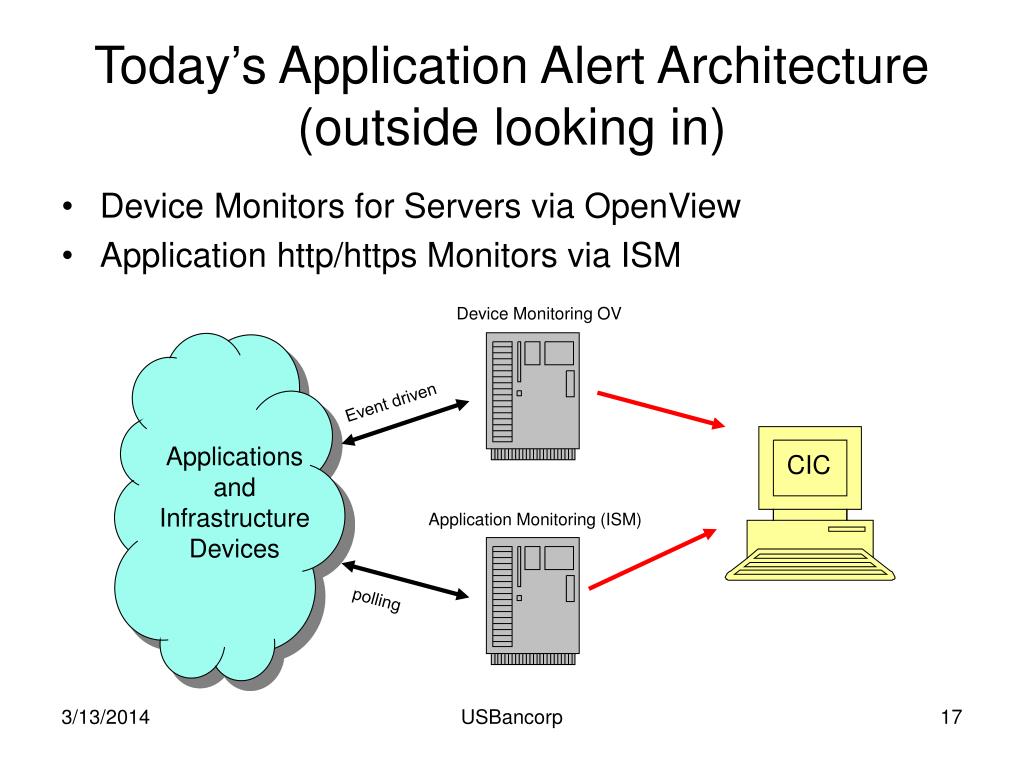

  17. Today’s Application Alert Architecture (outside looking in) • Device Monitors for Servers via OpenView • Application http/https Monitors via ISM Device Monitoring OV Event driven Applications and Infrastructure Devices CIC Application Monitoring (ISM) polling USBancorp

  18. PANIC Tomorrow’s Alert Architecture (inside looking out) • Application Problem Determination as Presented in 2002/2003 Device Monitoring OV Event driven Application Alerts via OV using SNMP traps Applications and Infrastructure Devices CIC Application Monitoring (ISM) polling USBancorp

  19. Tomorrow’s Alert Architecture (inside looking out) • Application Problem Determination as suggested using what’s in place today! Device Monitoring OV Event driven Root Cause Analysis Application Alerts via OV Applications and Infrastructure Devices CIC Corrective action Application Monitoring (ISM) polling USBancorp

  20. Charts Alarms Security/Audit Analysis Real-time Reporter Application GUI Methods Appl. Server Methods ORB Interface & Methods Performance Analysis Repository Perf Framework Application Methods Database Methods Architecture • Throughout the development lifecycle, performance statistics are asynchronously collected, analyzed and used to influence design and implementation decisions. Training (alert Rules) USBancorp

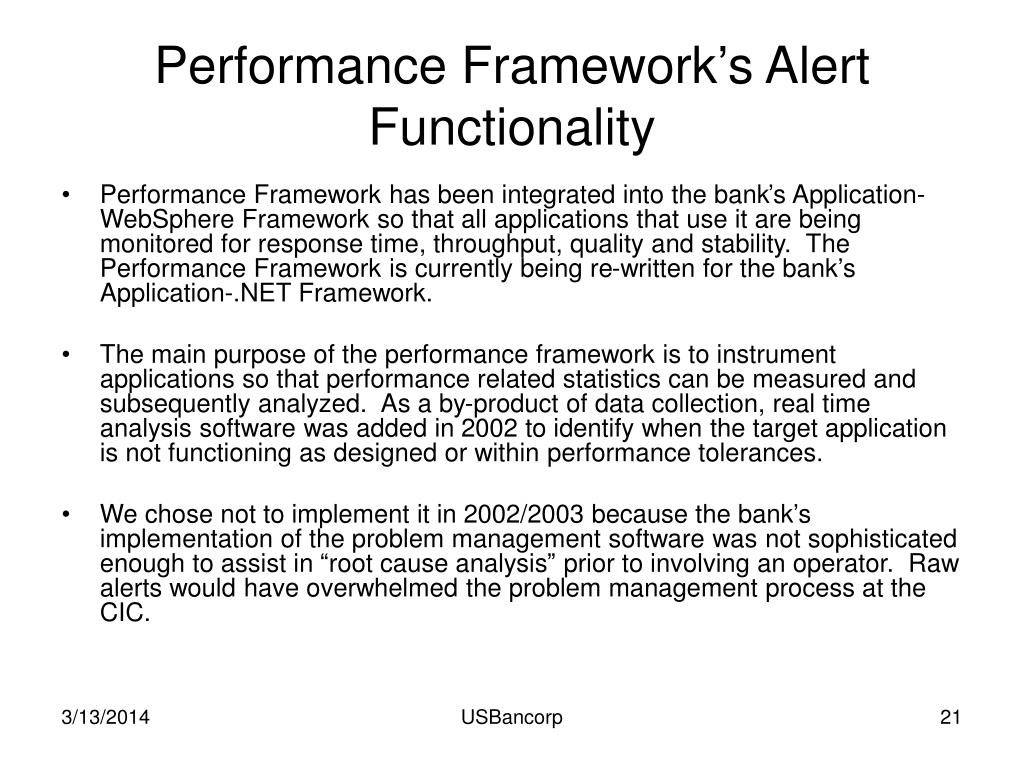

  21. Performance Framework’s Alert Functionality • Performance Framework has been integrated into the bank’s Application-WebSphere Framework so that all applications that use it are being monitored for response time, throughput, quality and stability. The Performance Framework is currently being re-written for the bank’s Application-.NET Framework. • The main purpose of the performance framework is to instrument applications so that performance related statistics can be measured and subsequently analyzed. As a by-product of data collection, real time analysis software was added in 2002 to identify when the target application is not functioning as designed or within performance tolerances. • We chose not to implement it in 2002/2003 because the bank’s implementation of the problem management software was not sophisticated enough to assist in “root cause analysis” prior to involving an operator. Raw alerts would have overwhelmed the problem management process at the CIC. USBancorp

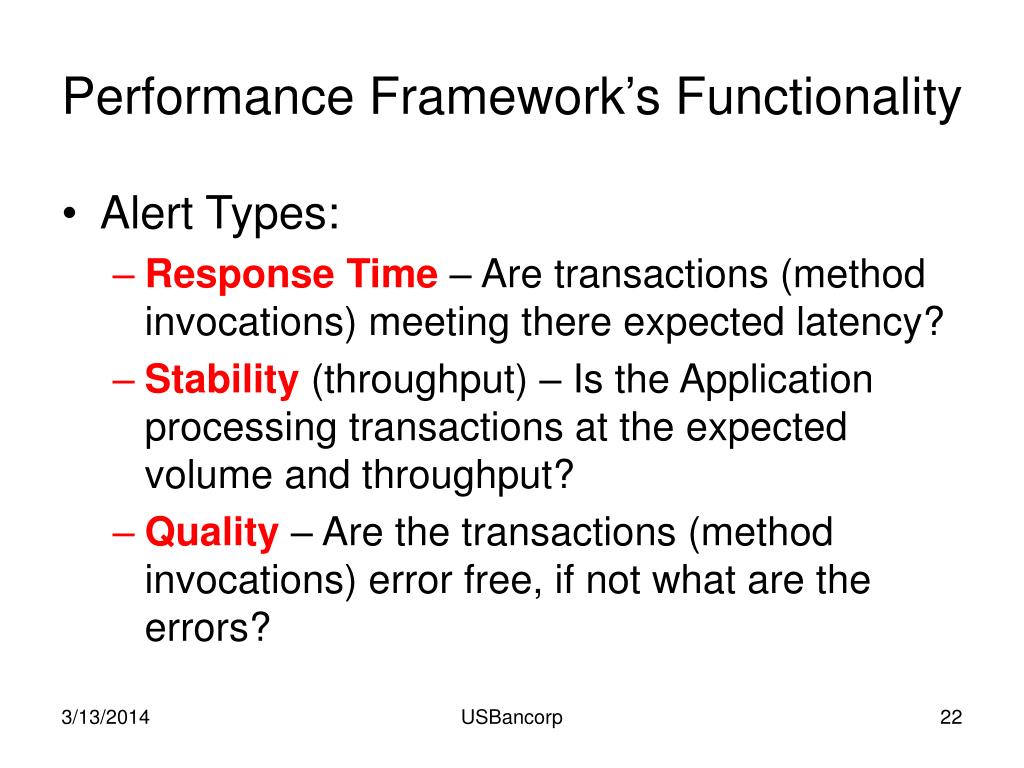

  22. Performance Framework’s Functionality • Alert Types: • Response Time – Are transactions (method invocations) meeting there expected latency? • Stability (throughput) – Is the Application processing transactions at the expected volume and throughput? • Quality – Are the transactions (method invocations) error free, if not what are the errors? USBancorp

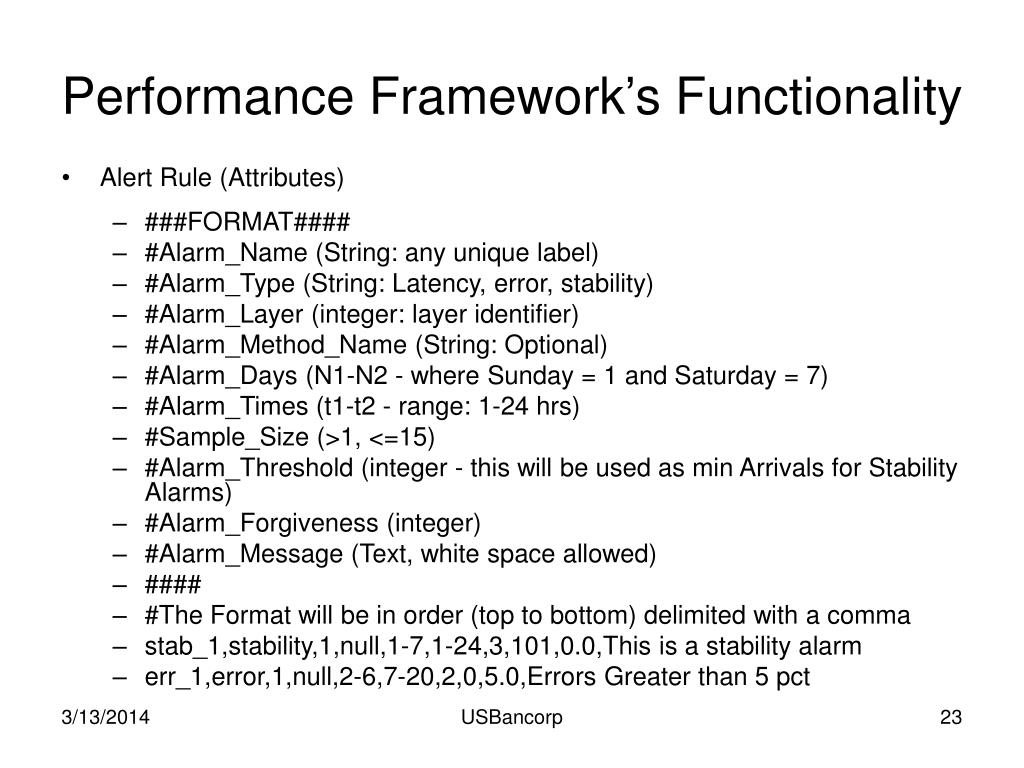

  23. Performance Framework’s Functionality • Alert Rule (Attributes) • ###FORMAT#### • #Alarm_Name (String: any unique label) • #Alarm_Type (String: Latency, error, stability) • #Alarm_Layer (integer: layer identifier) • #Alarm_Method_Name (String: Optional) • #Alarm_Days (N1-N2 - where Sunday = 1 and Saturday = 7) • #Alarm_Times (t1-t2 - range: 1-24 hrs) • #Sample_Size (>1, <=15) • #Alarm_Threshold (integer - this will be used as min Arrivals for Stability Alarms) • #Alarm_Forgiveness (integer) • #Alarm_Message (Text, white space allowed) • #### • #The Format will be in order (top to bottom) delimited with a comma • stab_1,stability,1,null,1-7,1-24,3,101,0.0,This is a stability alarm • err_1,error,1,null,2-6,7-20,2,0,5.0,Errors Greater than 5 pct USBancorp

  24. Performance Framework’s Alert Functionality • Alert Types Architecture Layers USBancorp

  25. Components • Likely Black Box Mapping USBancorp

  26. JVM JVM Application Application Layer Layer EJB EJB Class Class Method Method Analysis Needs to Collaborate Between Components USBancorp

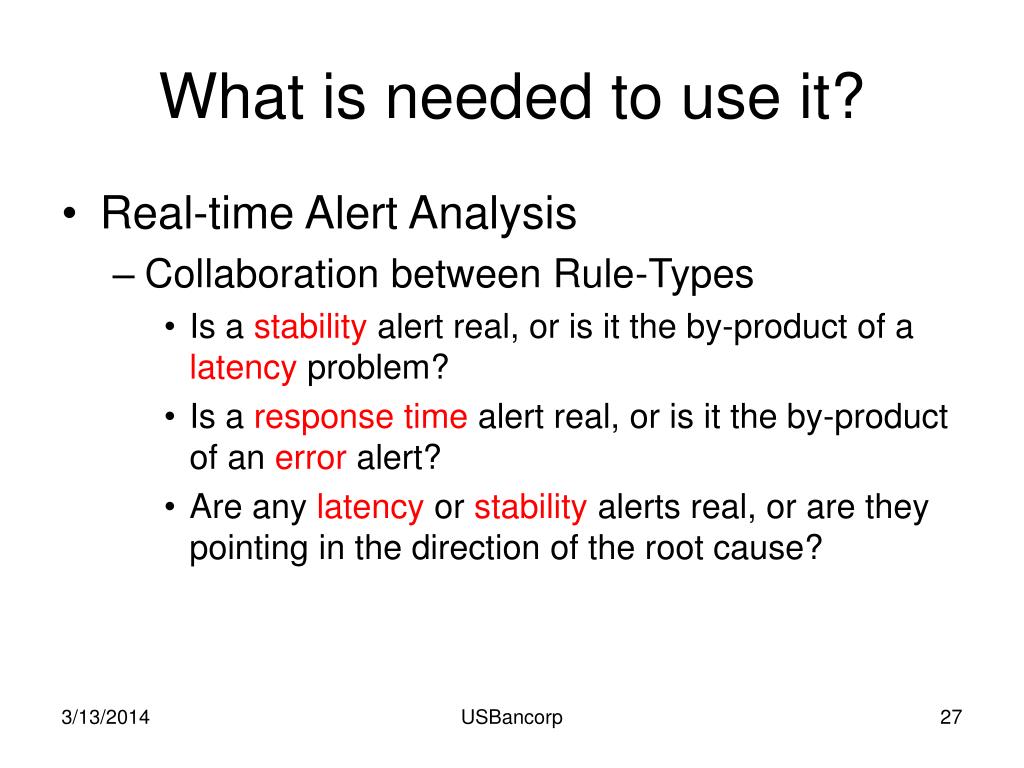

  27. What is needed to use it? • Real-time Alert Analysis • Collaboration between Rule-Types • Is a stability alert real, or is it the by-product of a latency problem? • Is a response time alert real, or is it the by-product of an error alert? • Are any latency or stability alerts real, or are they pointing in the direction of the root cause? USBancorp

  28. What is needed to use it? • Real-time Alert Analysis (continued) • Collaboration between components • Multi column applications need to isolate underlying infrastructure failures. When a subset of app columns deliver slow response time is the mutual failure in the network or the mainframe? • When a group of applications deliver slow response time while others are OK, is the mutual failure in the network or the mainframe, or …? USBancorp

  29. USBank Framework USBank Framework CIC Other Services Other Services Alert Communication Alert Communication Application 1 Application 2 What is needed to use it? • USBank Application Framework services that supports Alert Analysis and Communication Root Cause Analysis USBancorp

  30. Next Steps • Determine whether or not the Performance Framework’s approach is directional for problem determination. • Determine the requirements for a robust Alert Analysis and Recovery process. • Determine the role that the bank’s application framework should provide support services. • Determine whether to buy or build a strategic Analysis solution. USBancorp
