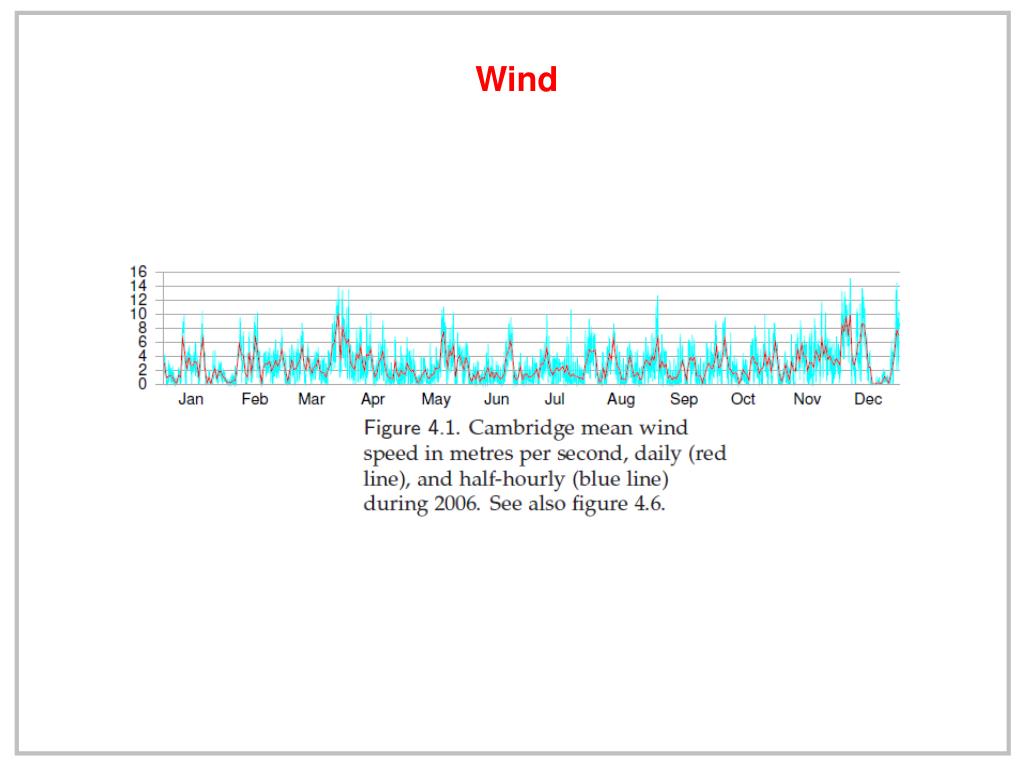

1. Wind

2. Wind

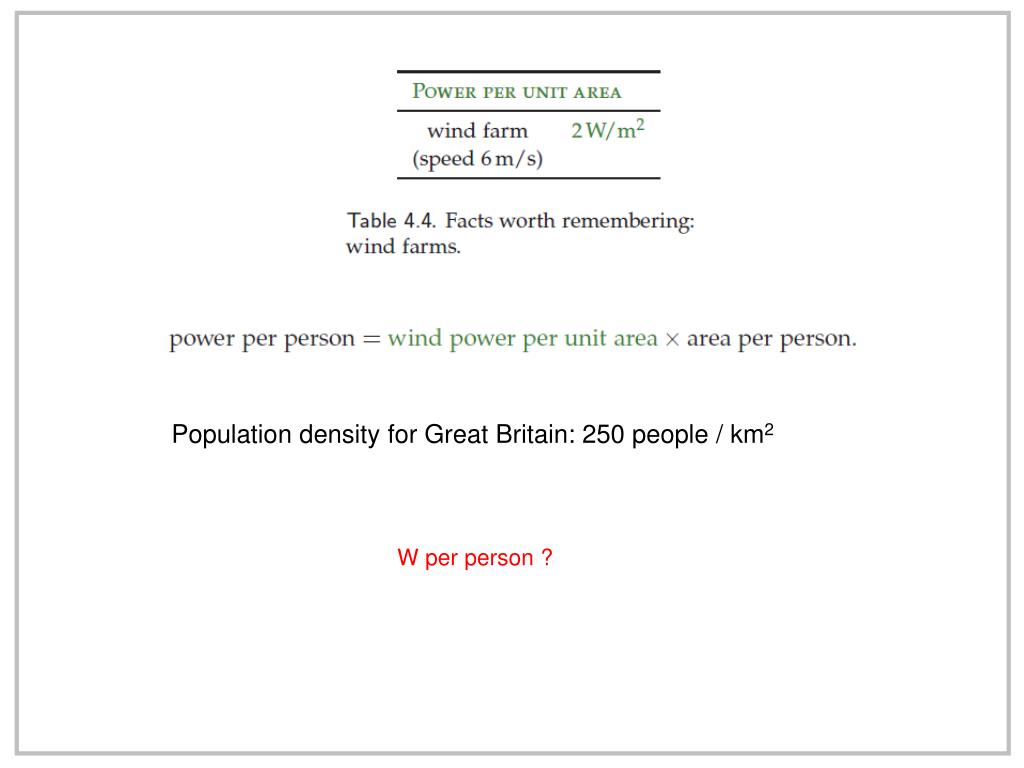

3. Population density for Great Britain: 250 people / km2 W per person ?

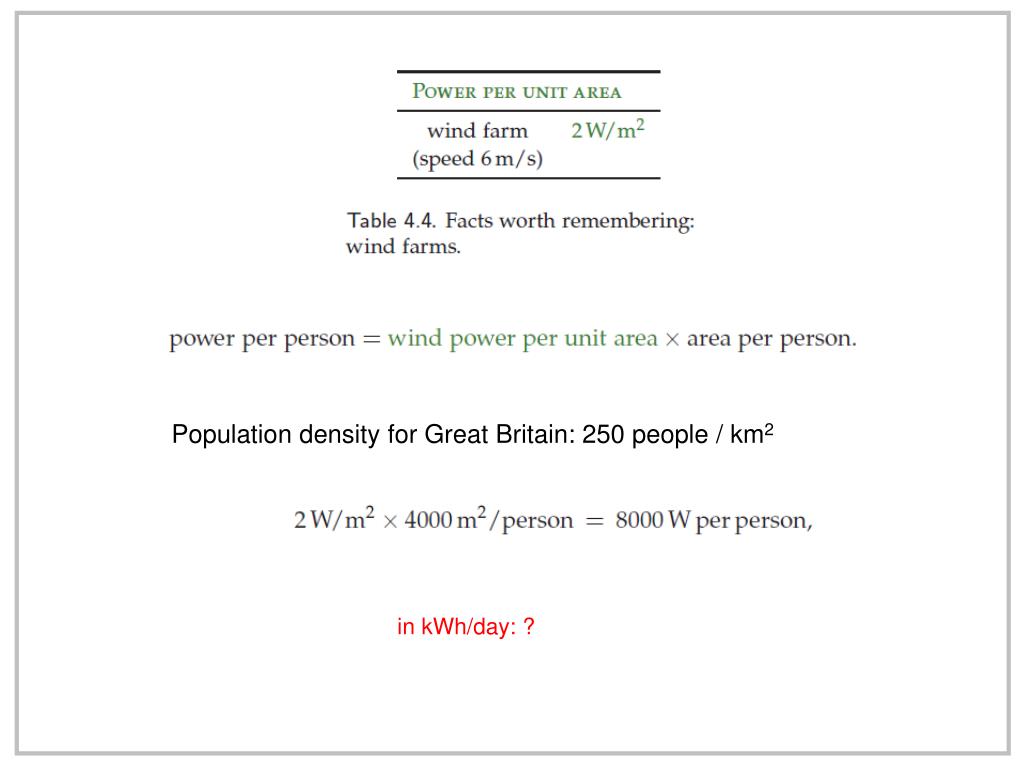

4. Population density for Great Britain: 250 people / km2 in kWh/day: ?

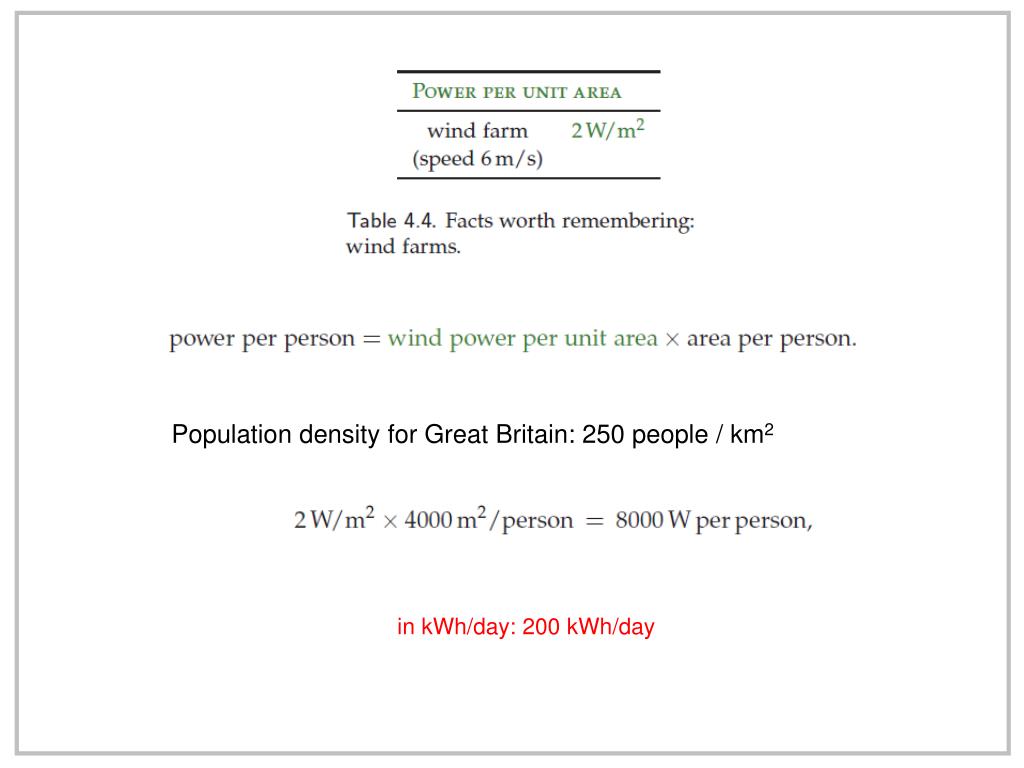

5. Population density for Great Britain: 250 people / km2 in kWh/day: 200 kWh/day

6. Be realistic and assume that only 10% of the land in Great Britain

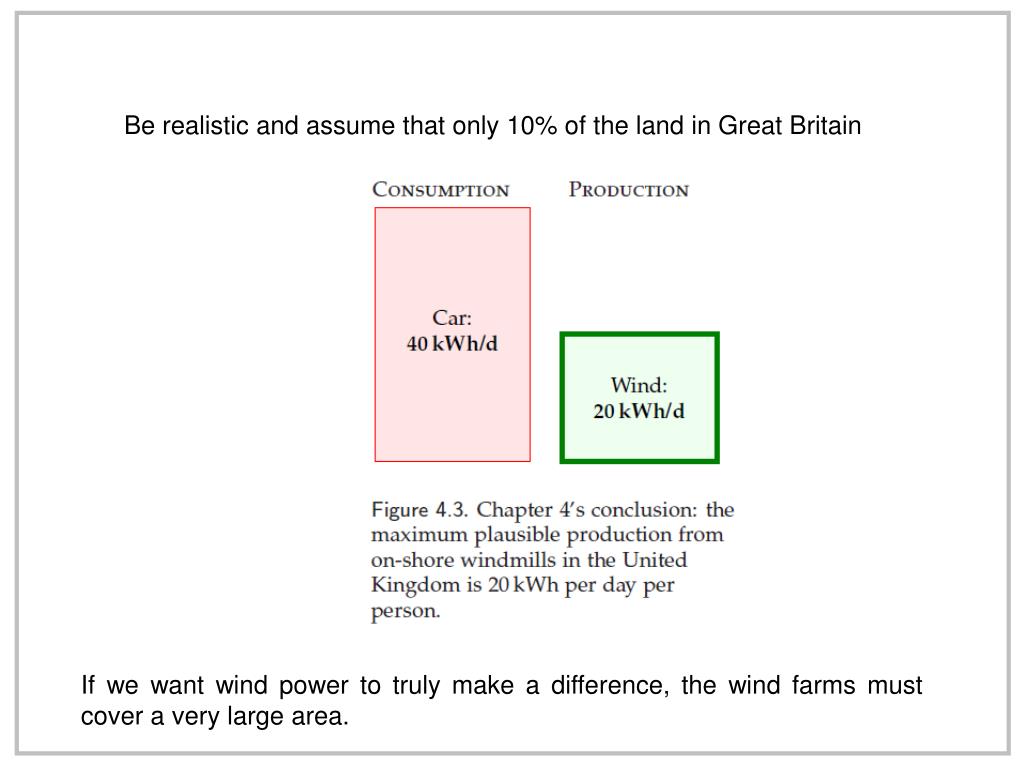

7. Be realistic and assume that only 10% of the land in Great Britain If we want wind power to truly make a difference, thewind farms must cover a very large area.

8. Importance of Averaging

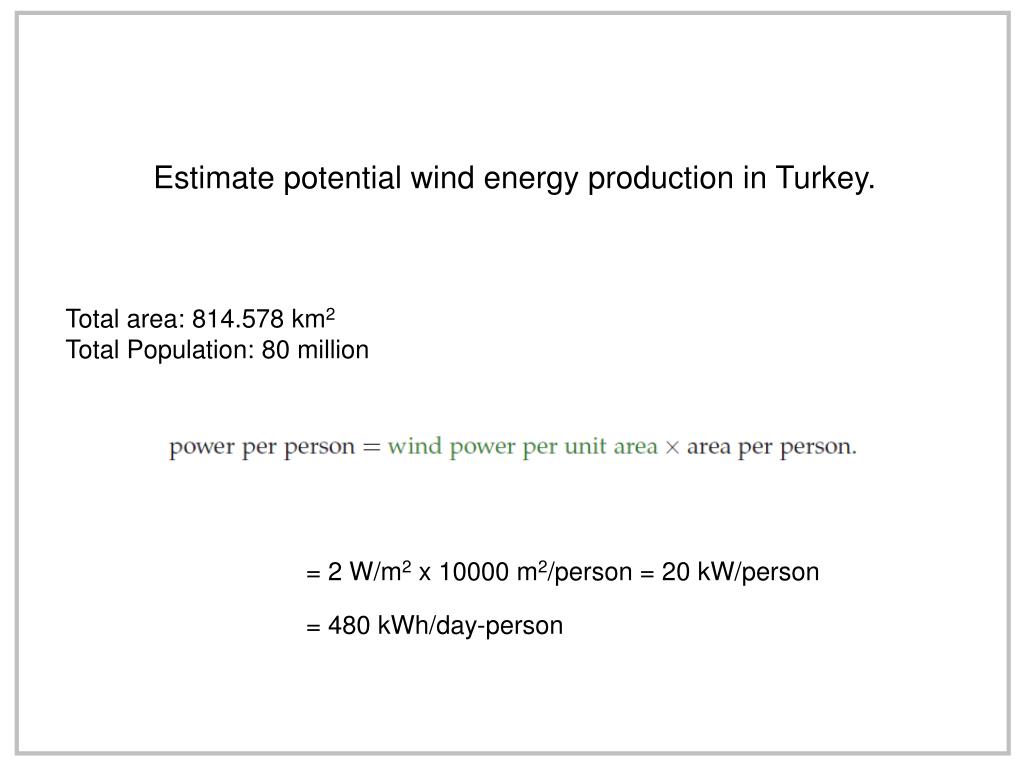

9. Estimate potential wind energy production in Turkey.

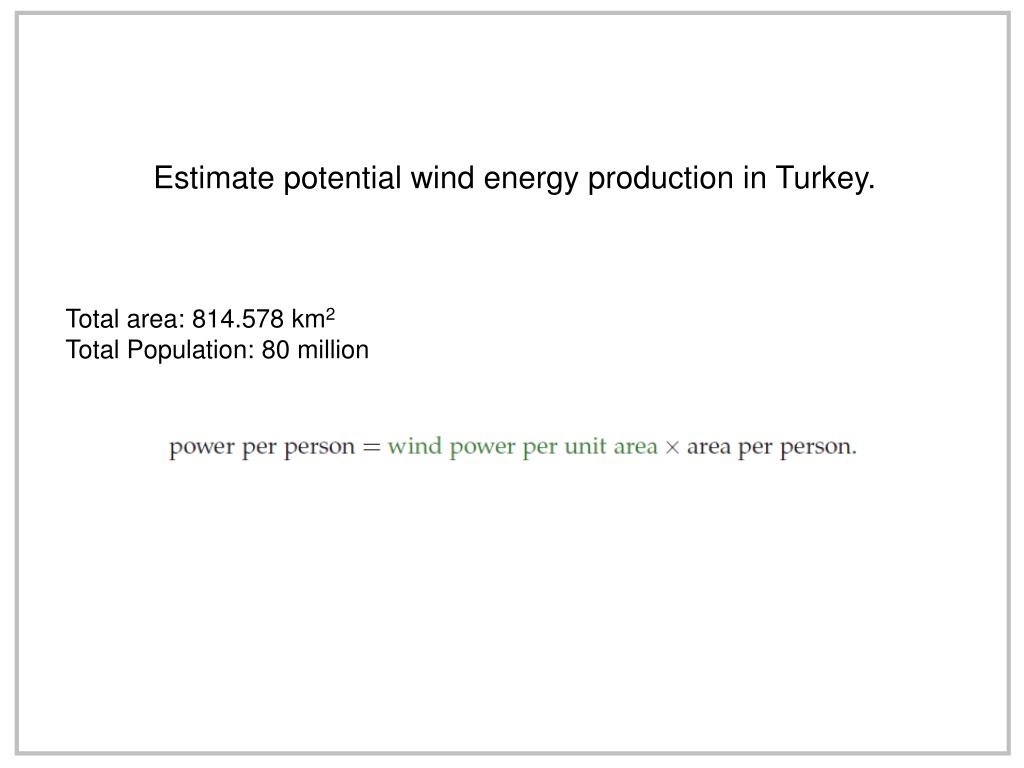

10. Estimate potential wind energy production in Turkey. Total area: 814.578 km2 Total Population: 80 million

11. Estimate potential wind energy production in Turkey. Total area: 814.578 km2 Total Population: 80 million = 2 W/m2 x 10000 m2/person = 20 kW/person = 480 kWh/day-person

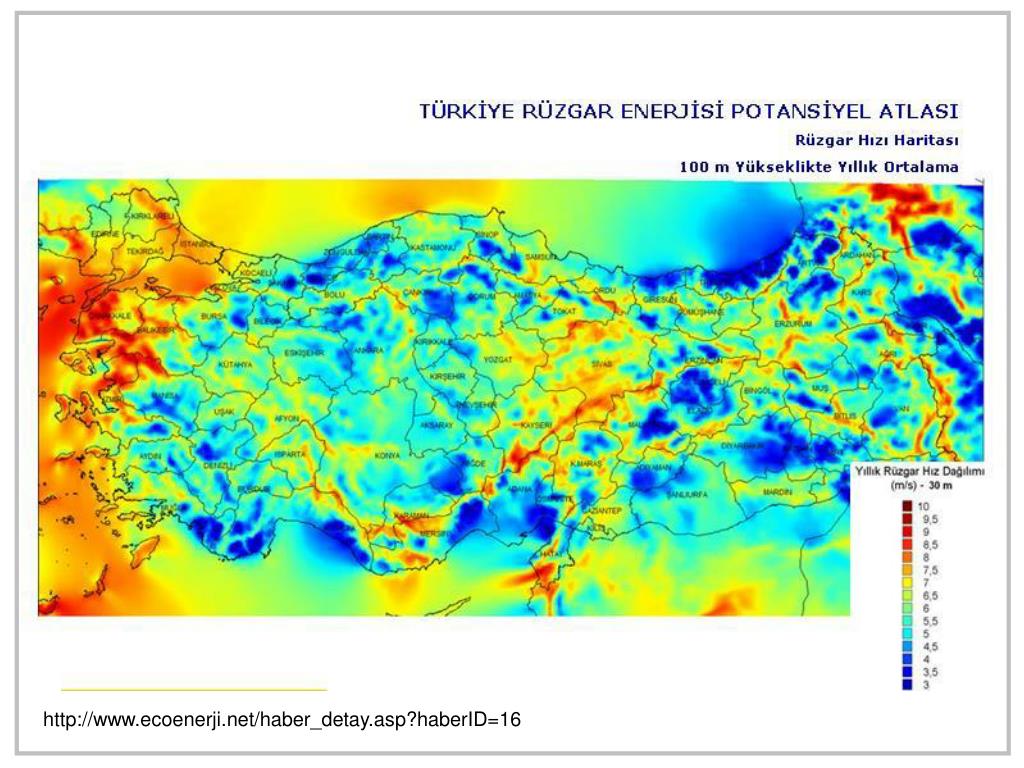

12. http://www.ecoenerji.net/haber_detay.asp?haberID=16

13. http://www.alternatifenerji.de/ruzgar.htm

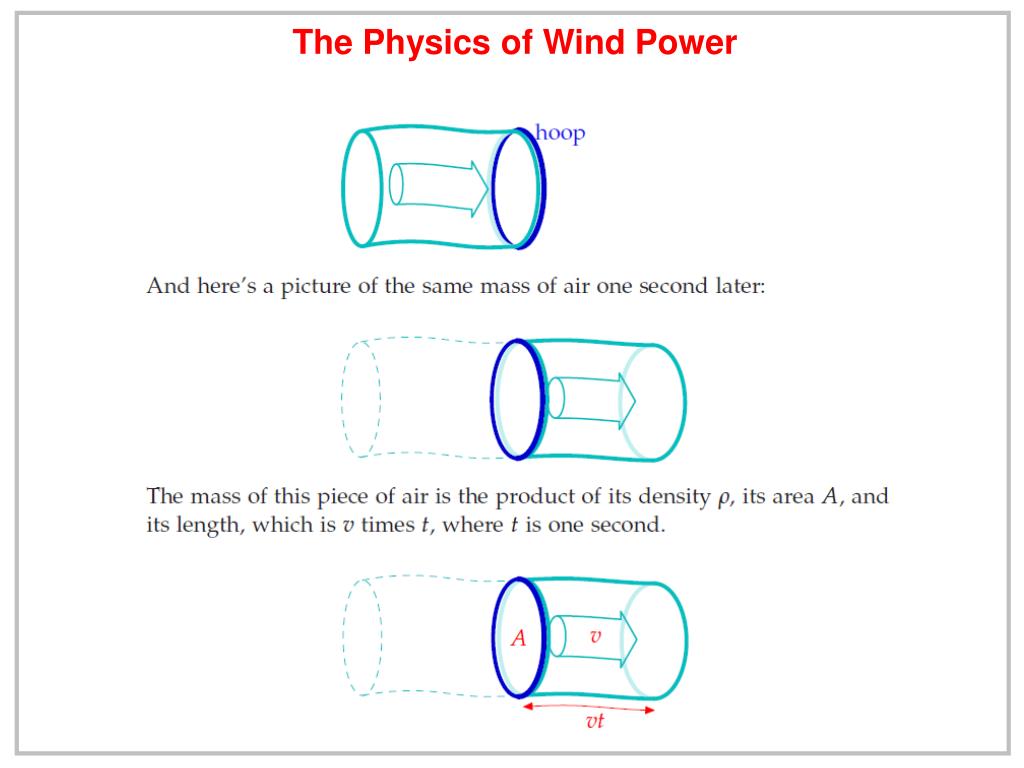

14. The Physics of Wind Power

15. The Physics of Wind Power

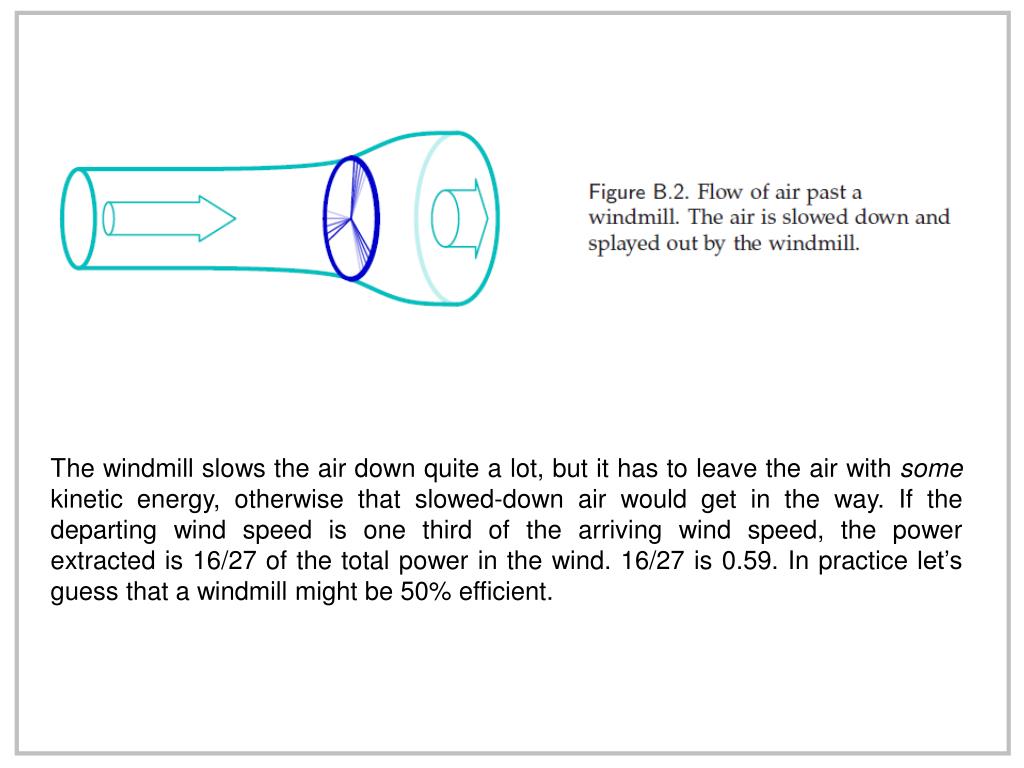

16. The windmill slows the air down quite a lot, but it has to leave the air with some kinetic energy,otherwise that slowed-down air would get in the way. If the departing windspeed is one third of the arriving wind speed, the power extracted is 16/27of the total power in the wind. 16/27 is 0.59.In practice let’s guess that awindmill might be 50% efficient.

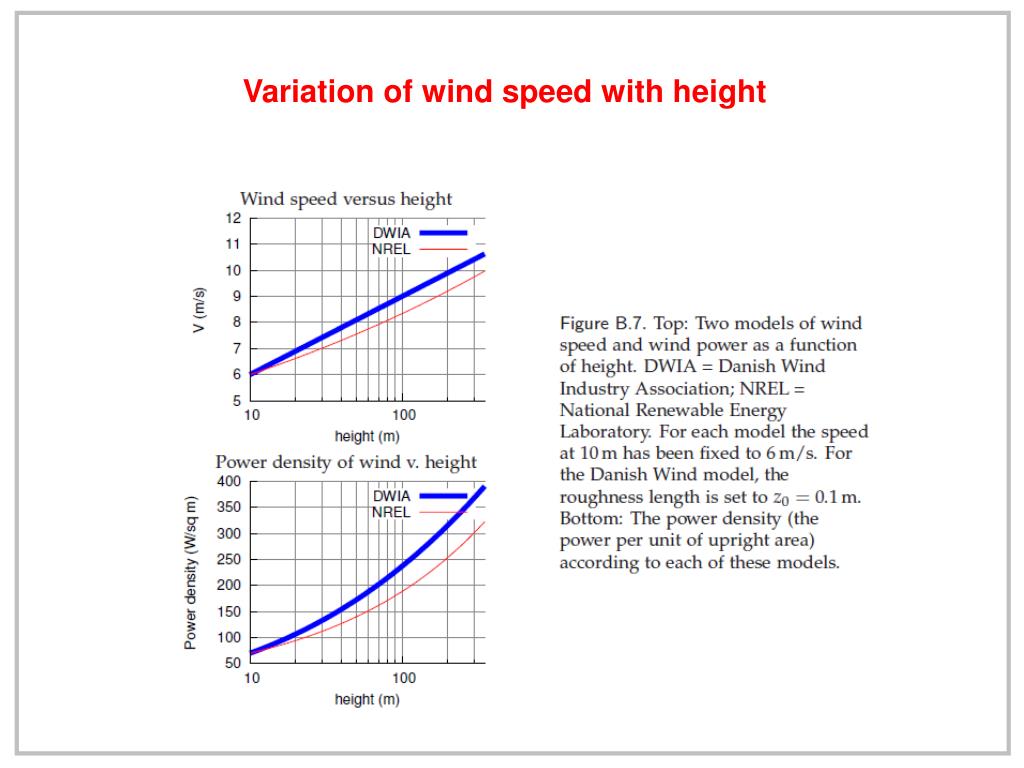

19. Variation of wind speed with height

20. AC Generator http://www.youtube.com/watch?v=nRMZ3K2pzcE Components of a wind Turbine http://www.youtube.com/watch?v=LNXTm7aHvWc&feature=fvwrel Winds of Change https://ieeetv.ieee.org/player/html/viewer?dl=#winds-of-change-full-documentary
