  1. FPGA BASED REAL TIME VIDEO PROCESSING Characterization presentation Presented by: Roman Kofman Sergey Kleyman Supervisor: Mike Sumszyk

  2. AGENDA

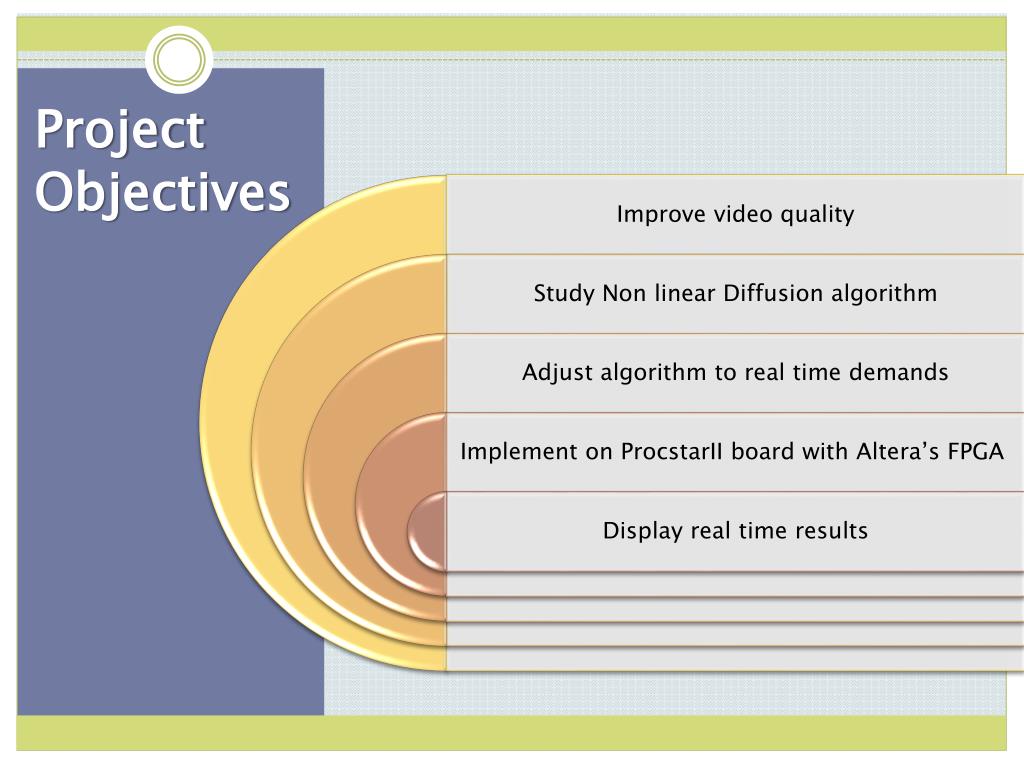

  3. Project Objectives

  4. Algorithm • Based on the 2D non-linear Diffusion equation • Iterative solution. • Good Filtering – smoothes noises. • Keeps borders intact.

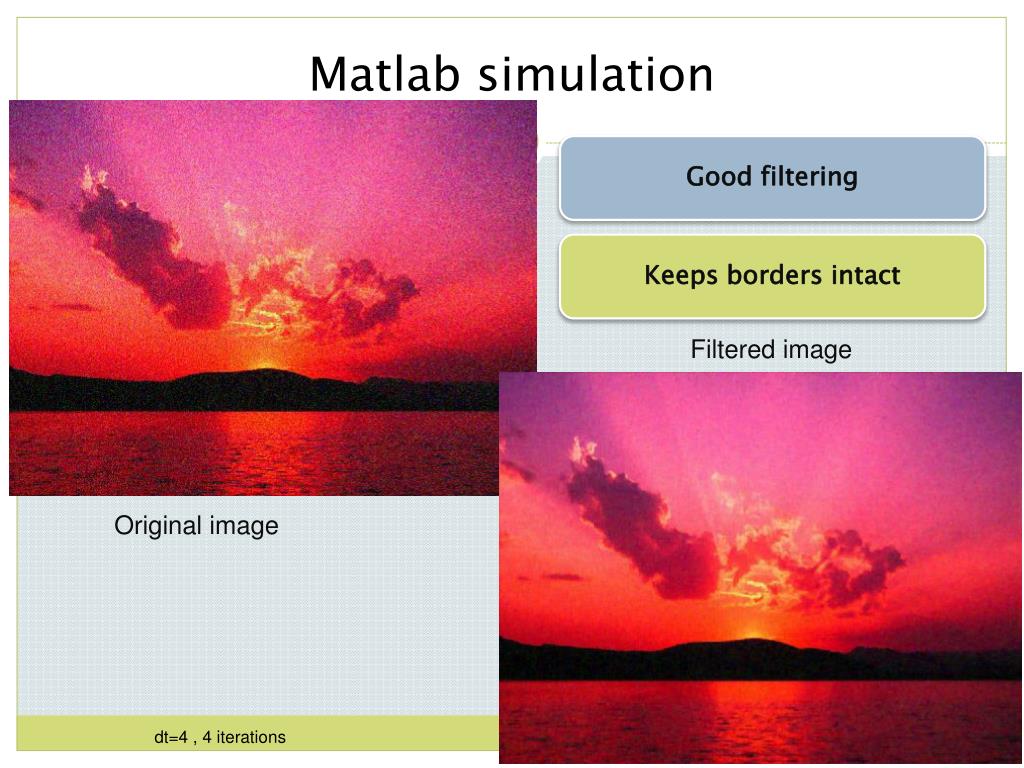

  5. Matlab simulation Filtered image Original image dt=4 , 4 iterations

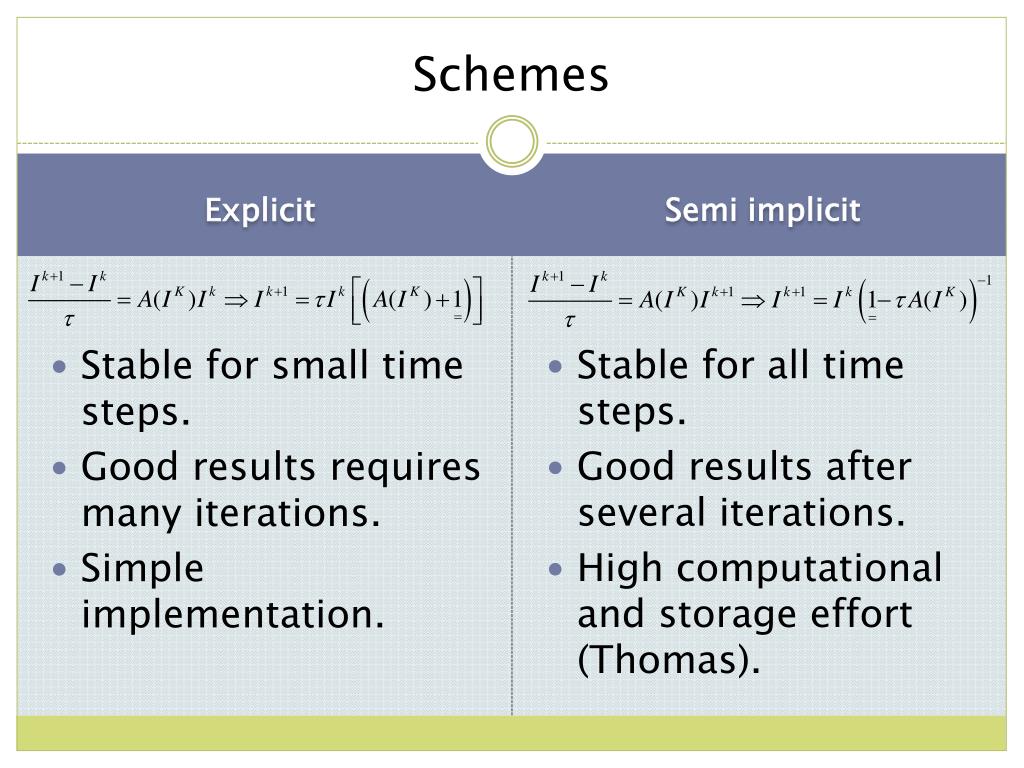

  6. Schemes Explicit Semi implicit • Stable for small time steps. • Good results requires many iterations. • Simple implementation. • Stable for all time steps. • Good results after several iterations. • High computational and storage effort (Thomas).

  7. Thomas

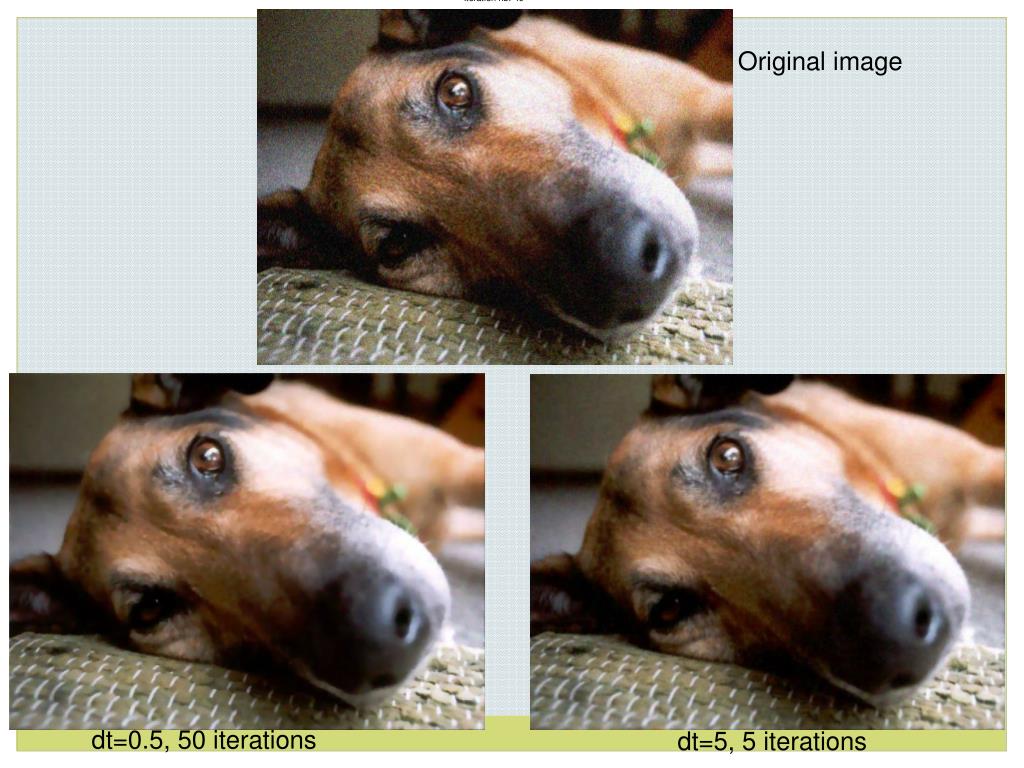

  8. Original image dt=0.5, 50 iterations dt=5, 5 iterations

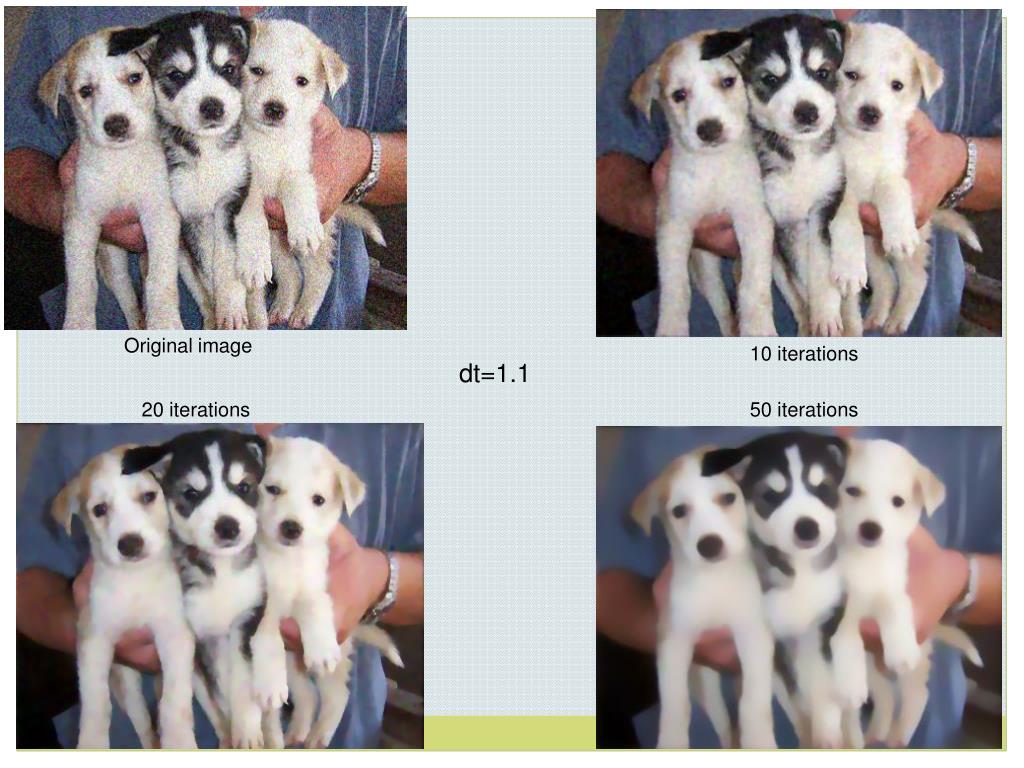

  9. Original image 10 iterations dt=1.1 20 iterations 50 iterations

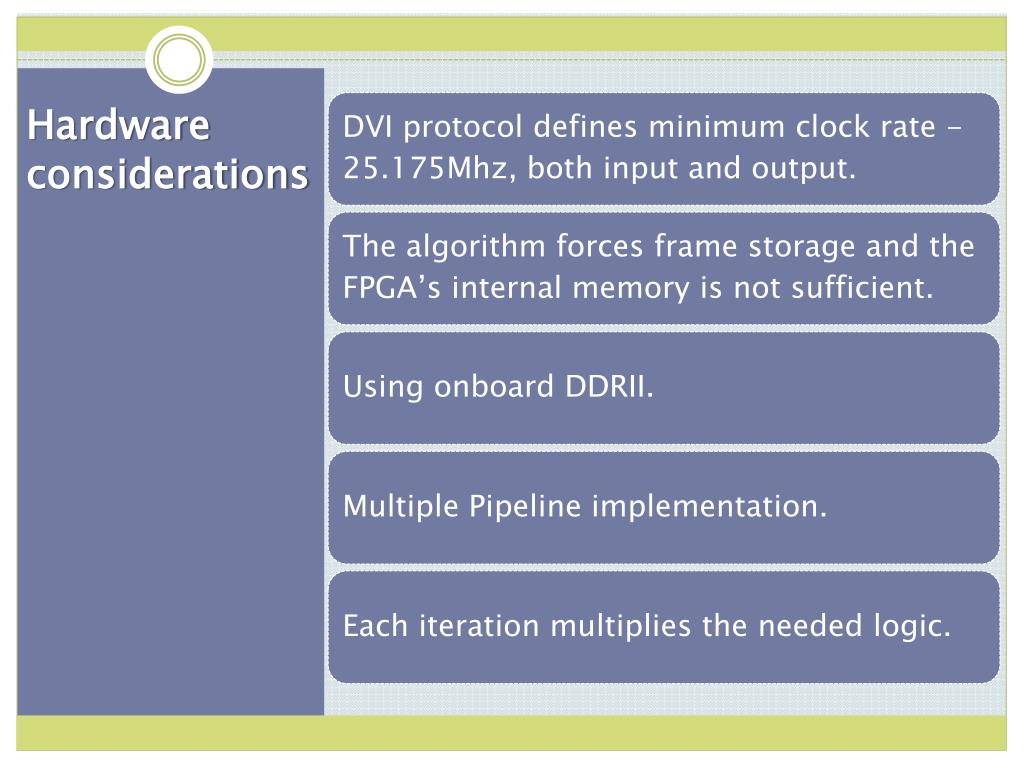

  10. Hardware considerations

  11. Basic Block Diagram DVI IN DVI OUT Implementation with internal pipeline PROC MultiPORT On-board memory blocks Daughter board Daughter board ProcStarII board

  12. Design Flow

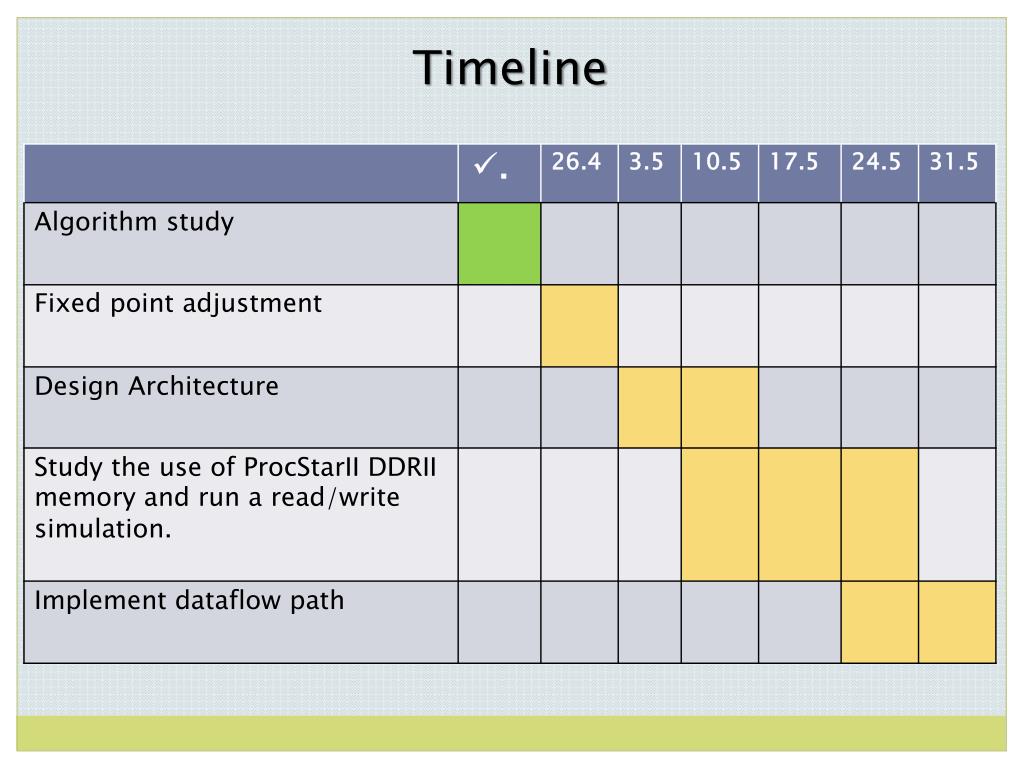

  13. Timeline
