  1. Fast network recovery Amund Kvalbein Post Doc

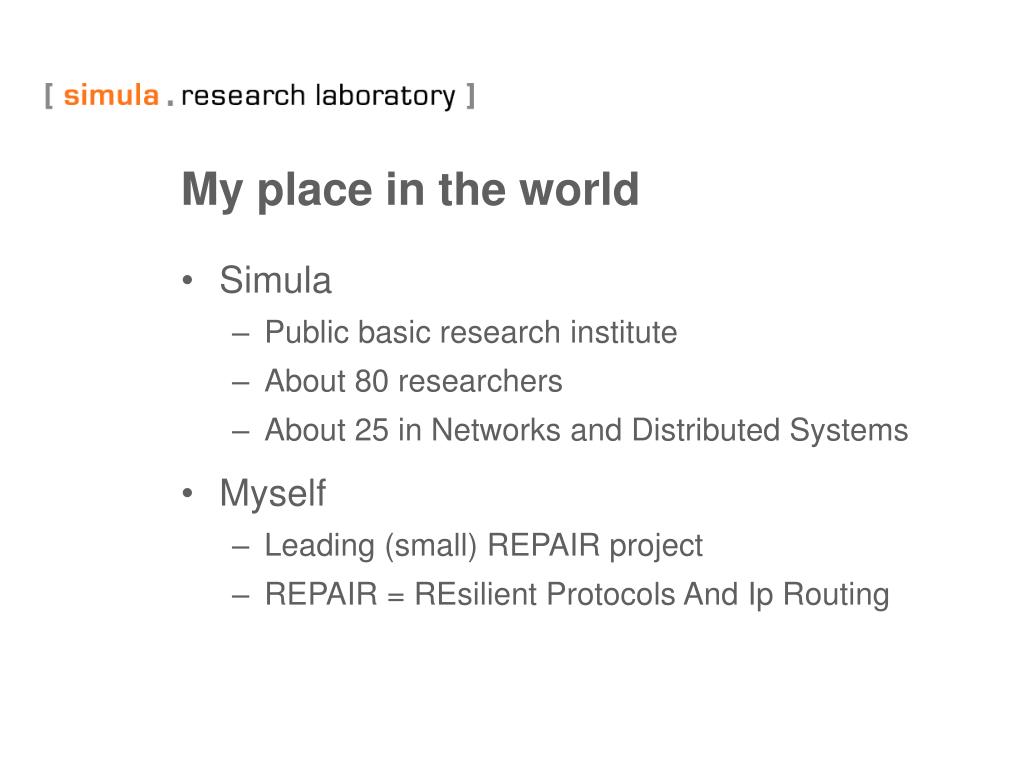

  2. My place in the world • Simula • Public basic research institute • About 80 researchers • About 25 in Networks and Distributed Systems • Myself • Leading (small) REPAIR project • REPAIR = REsilient Protocols And Ip Routing

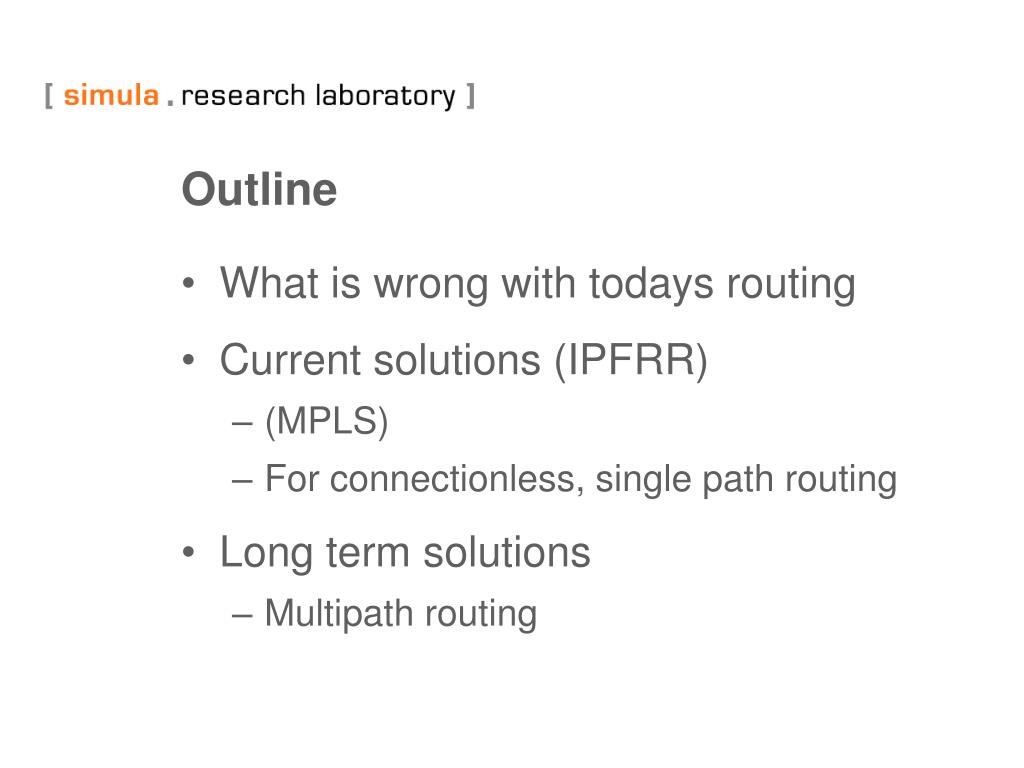

  3. Outline • What is wrong with todays routing • Current solutions (IPFRR) • (MPLS) • For connectionless, single path routing • Long term solutions • Multipath routing

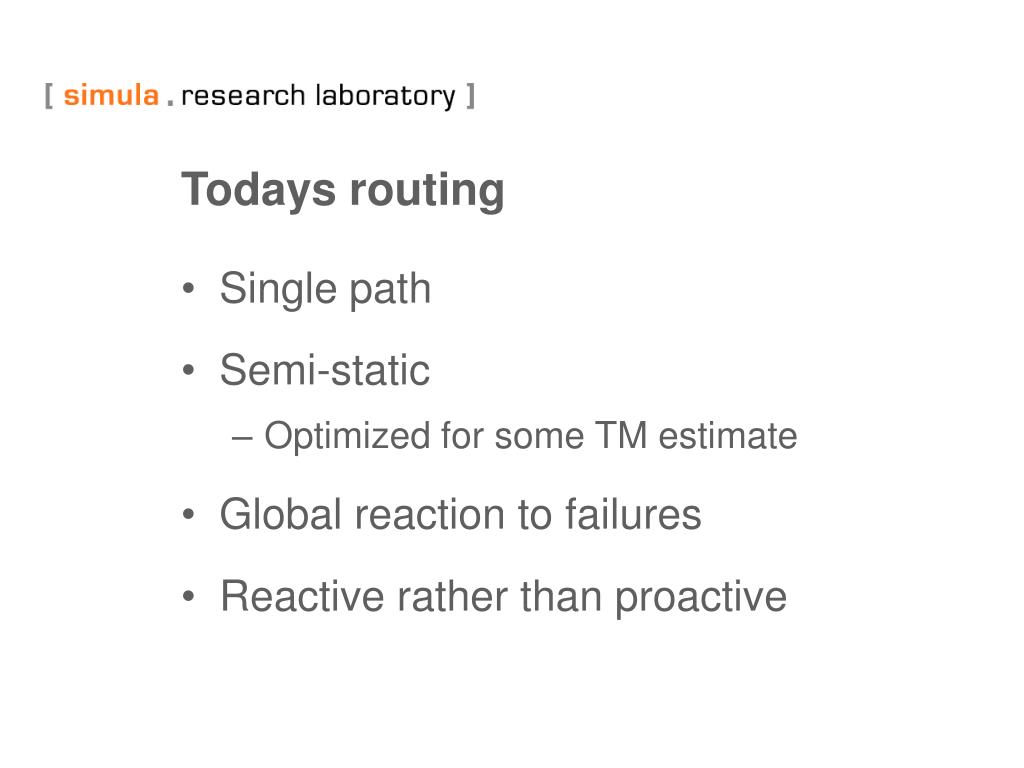

  4. Todays routing • Single path • Semi-static • Optimized for some TM estimate • Global reaction to failures • Reactive rather than proactive

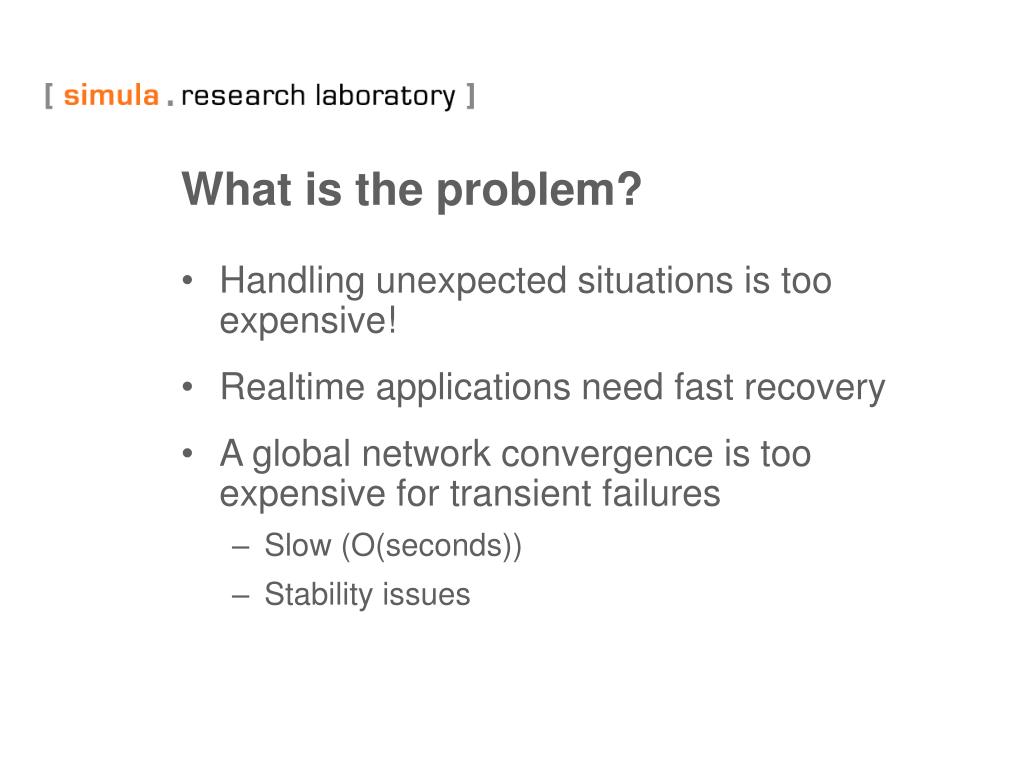

  5. What is the problem? • Handling unexpected situations is too expensive! • Realtime applications need fast recovery • A global network convergence is too expensive for transient failures • Slow (O(seconds)) • Stability issues

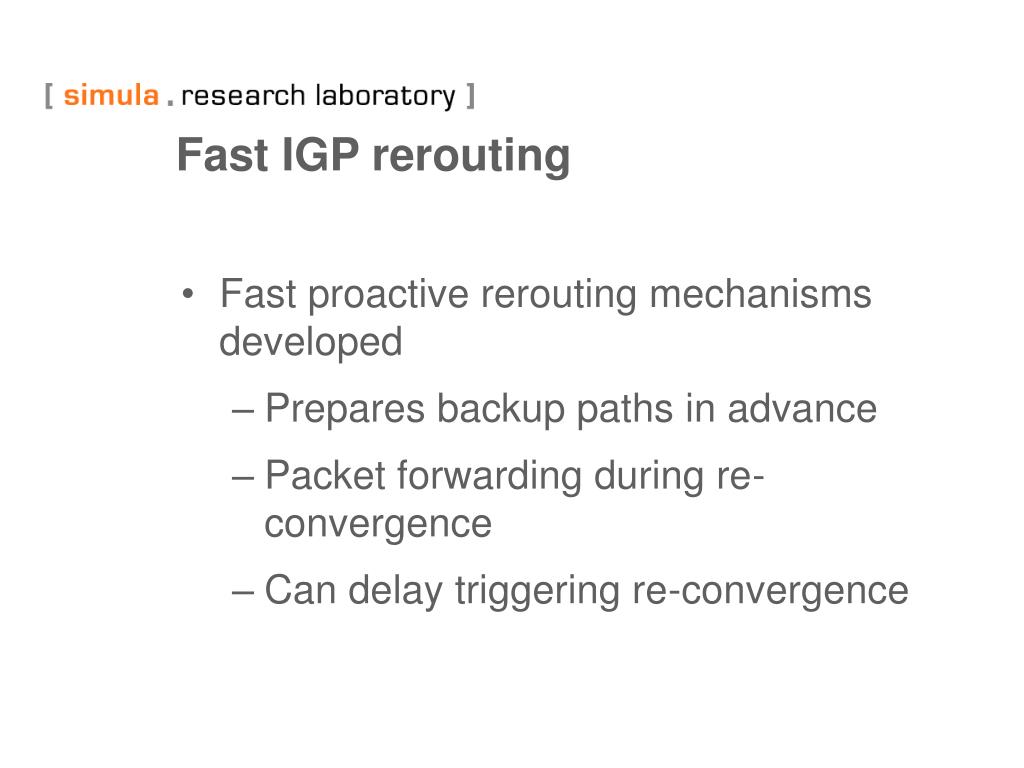

  6. Fast IGP rerouting • Fast proactive rerouting mechanisms developed • Prepares backup paths in advance • Packet forwarding during re-convergence • Can delay triggering re-convergence

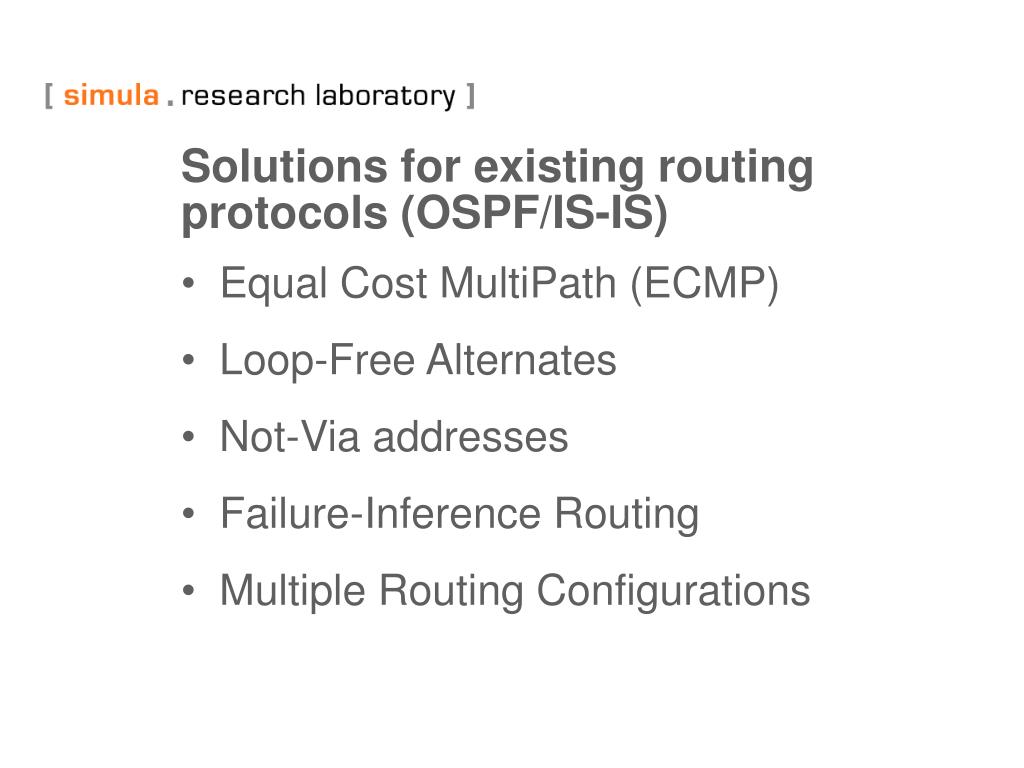

  7. Solutions for existing routing protocols (OSPF/IS-IS) • Equal Cost MultiPath (ECMP) • Loop-Free Alternates • Not-Via addresses • Failure-Inference Routing • Multiple Routing Configurations

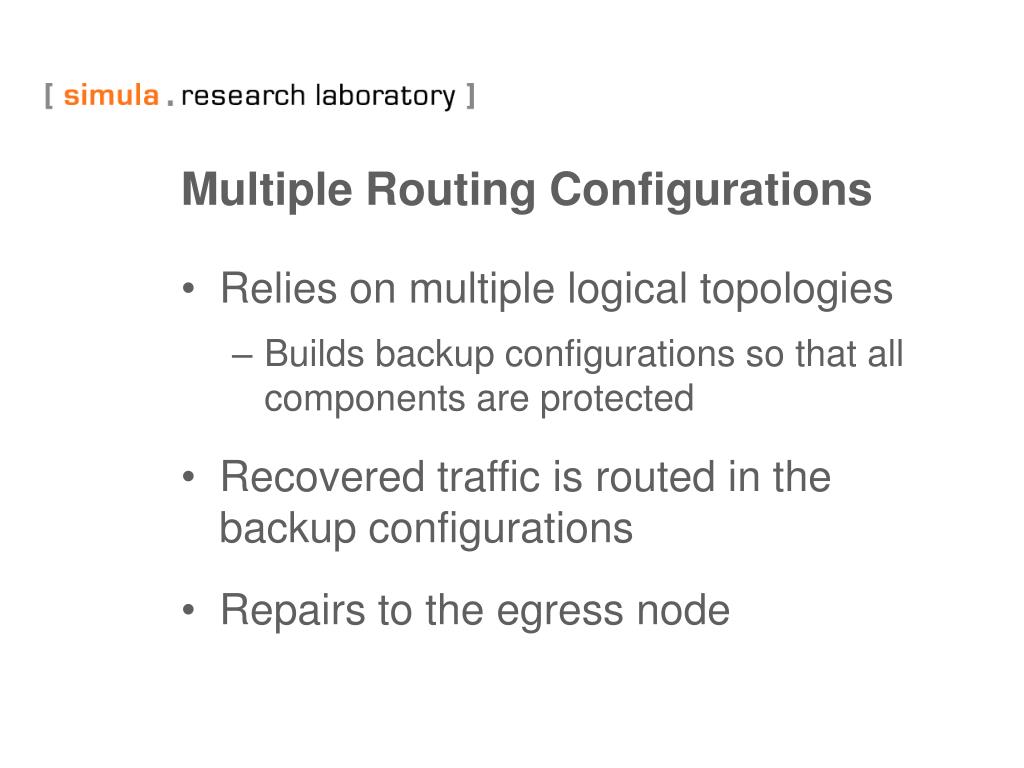

  8. Multiple Routing Configurations • Relies on multiple logical topologies • Builds backup configurations so that all components are protected • Recovered traffic is routed in the backup configurations • Repairs to the egress node

  9. Multiple Routing Configurations C0

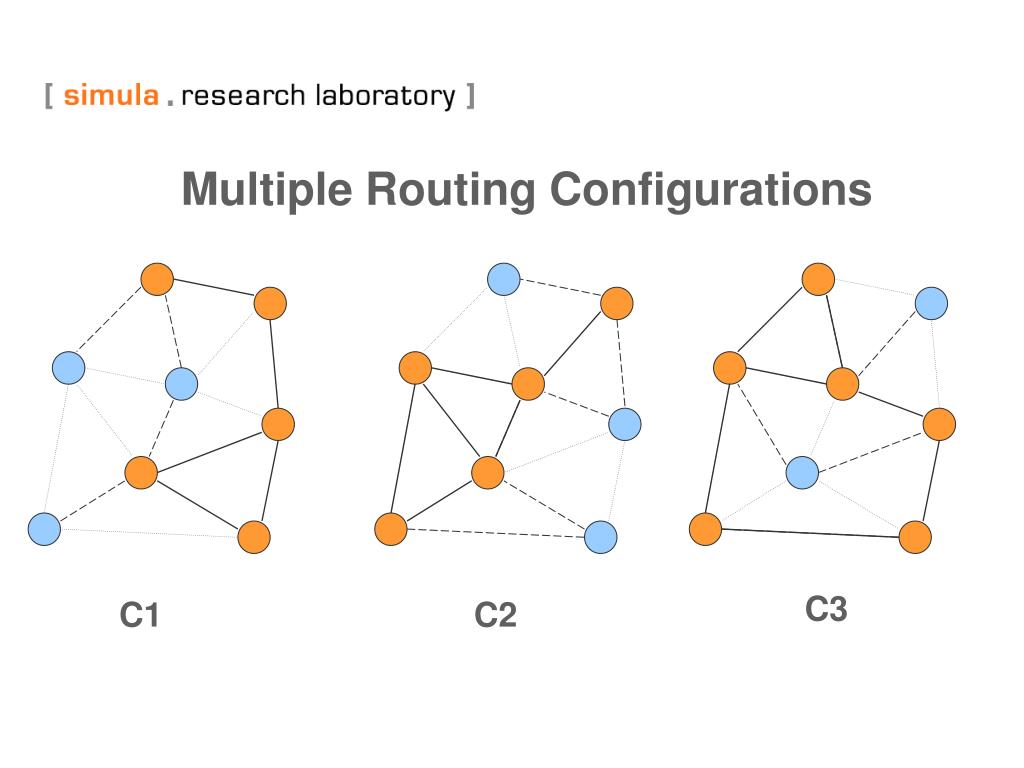

  10. Multiple Routing Configurations C3 C1 C2

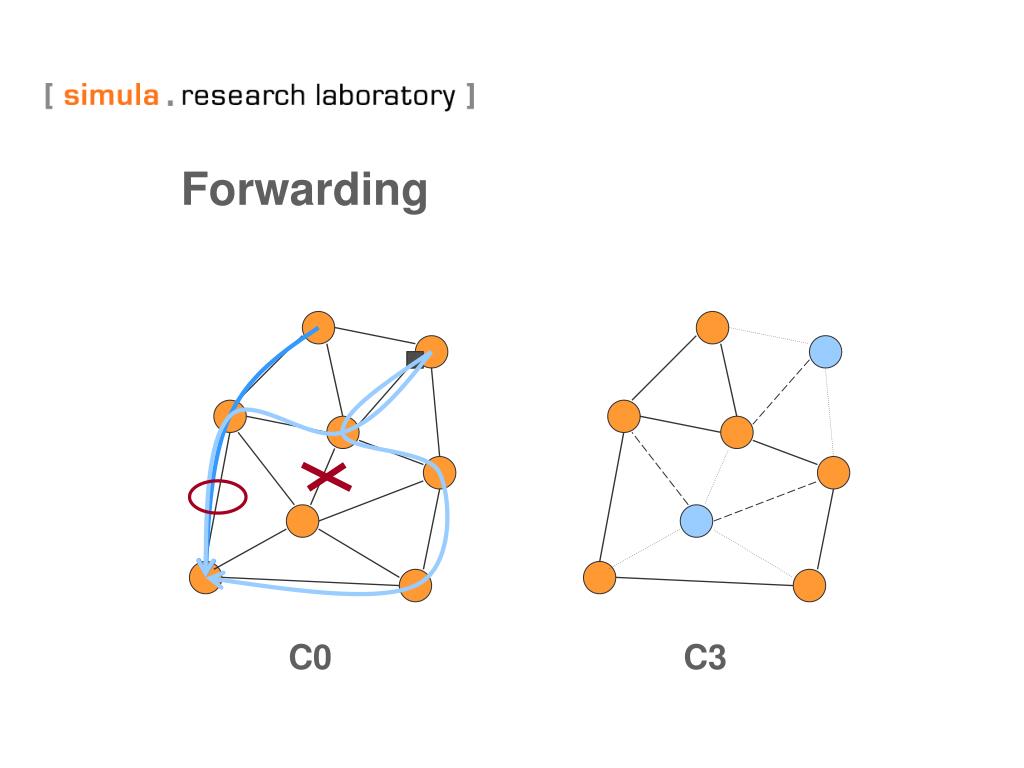

  11. Forwarding C0 C3

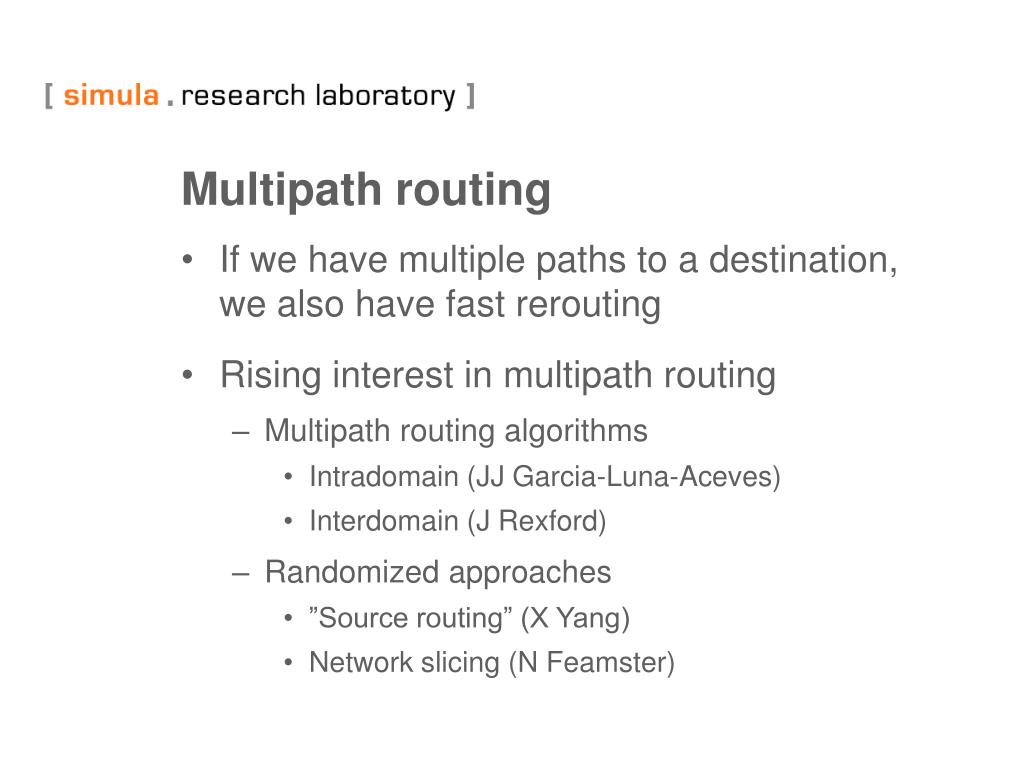

  12. Multipath routing • If we have multiple paths to a destination, we also have fast rerouting • Rising interest in multipath routing • Multipath routing algorithms • Intradomain (JJ Garcia-Luna-Aceves) • Interdomain (J Rexford) • Randomized approaches • ”Source routing” (X Yang) • Network slicing (N Feamster)

  13. Adaptive routing • This is an old idea • ARPANET did adaptive routing • Wang/Crowcroft 1992: Adaptive routing gives oscillations • Is this always true?

  14. Summary • Fast recovery needed • Should be local and proactive • Solutions proposed for current routing protocols • Multipath routing could be long-time solution
