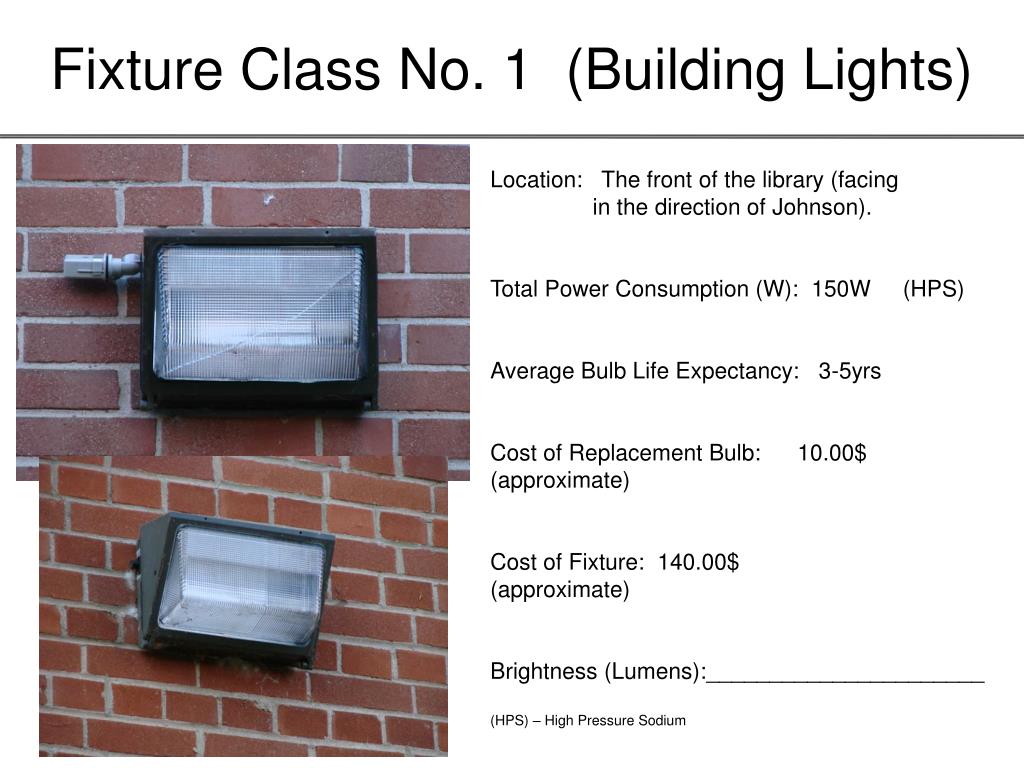

  1. Fixture Class No. 1 (Building Lights) Location: The front of the library (facing in the direction of Johnson). Total Power Consumption (W): 150W (HPS) Average Bulb Life Expectancy: 3-5yrs Cost of Replacement Bulb: 10.00$ (approximate) Cost of Fixture: 140.00$ (approximate) Brightness (Lumens):______________________ (HPS) – High Pressure Sodium

  2. Fixture Class No. 2 (Building Lights) Location: The side of the St. Mark’s Chapel facing the bus stop (or behind Norton) Total Power Consumption (W): 175W (HPS) Average Bulb Life Expectancy: 5 - 7yrs Cost of Replacement Bulb: 14.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  3. Fixture Class No. 3 (Building Lights) Location: On the edge of BWH as seen from the entranceway of Bishop’s (Arches) Total Power Consumption (W): 150W (HPS) Average Bulb Life Expectancy: 3-6yrs Cost of Replacement Bulb: 14.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  4. Fixture Class No. 4 (Building Lights) Location: The front of the library (facing Bandeen Hall). Total Power Consumption (W): 50-70W (HPS) Average Bulb Life Expectancy: 3 – 5 yrs Cost of Replacement Bulb: 12.00$ (approximate) Cost of Fixture: 85.00$ (approximate) Brightness (Lumens):______________________

  5. Fixture Class No. 5 (Building Lights) Location: In front of the Mac-Greer Building, facing the bridge. Total Power Consumption (W): 150W (incandescent) Average Bulb Life Expectancy: 1 – 2 yrs Cost of Replacement Bulb: 3.29$ (approximate) Cost of Fixture: 380.00$ (approximate) Brightness (Lumens):______________________

  6. Fixture Class No. 6 (Building Lights) Location: Side of the library, facing the arena. Total Power Consumption (W): 250W (mercury) Average Bulb Life Expectancy: 5 – 7 yrs Cost of Replacement Bulb: 16.00 – 18.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  7. Fixture Class No. 7 (Building Lights) Location: On the side of the Johnson Building facing Morris House, same as those installed on white building opposite Clarke and Sons. Total Power Consumption (W): 150W (HPS) Average Bulb Life Expectancy: 3 – 5 yrs Cost of Replacement Bulb: 10.00 – 12.00$ (approximate) Cost of Fixture Installation: 140.00 (approximate) Brightness (Lumens):______________________

  8. Fixture Class No. 8 (Building Lights) Location: In front of the Farm management building (hangar). Total Power Consumption (W): 400W (HPS) Average Bulb Life Expectancy: 3 – 6 yrs Cost of Replacement Bulb: 12.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  9. Fixture Class No. 9 (Building Lights) Location: On the wall of Bandeen hall (high), facing the McGreer building. Total Power Consumption (W): 250W (HPS) Average Bulb Life Expectancy: 3 – 6 yrs Cost of Replacement Bulb: 14.00 – 16.00 (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  10. Fixture Class No. 10 (Building Lights) Location: The archway between the Chapel and the Johnson building, from courtyard. Total Power Consumption (W): 150W (Quartz) Average Bulb Life Expectancy: 2 – 4 yrs Cost of Replacement Bulb: 6.00 – 8.00$ (approximate) Cost of Fixture: 26.00$ (approximate) Brightness (Lumens):______________________

  11. Fixture Class No. 11 (Building Lights) Location: Above the side entrances to the Paterson Building. Total Power Consumption (W): 100W (70W) (MHU) Average Bulb Life Expectancy: 3 – 6 yrs Cost of Replacement Bulb: 35.00 – 40.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  12. Fixture Class No. 12 (Building Lights) Location: Behind the library (roof), facing the upper parking lots. Total Power Consumption (W): 250-400W (HPS) Average Bulb Life Expectancy: 4 – 6 yrs Cost of Replacement Bulb: 14.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  13. Fixture Class No. 13 (Building Lights) Location: Underneath Entranceway to Hamilton and Nicholls facing the bus stop. Total Power Consumption (W): 150W (mercury) Average Bulb Life Expectancy: 4 – 6 yrs Cost of Replacement Bulb: 16.00 – 18.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  14. Fixture Class No. 14 (Building Lights) Location: Upward-facing lights in front of the Paterson Building Total Power Consumption (W): 100W (MHU) metal halide Average Bulb Life Expectancy: 3 – 6 yrs Cost of Replacement Bulb: 35.00 – 40.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  15. Fixture Class No. 15 (Building Lights) Location: The inner Quad. (regular light bulb, assumed to be 100W). Total Power Consumption (W): 60or150W (incandescent) Average Bulb Life Expectancy: 2000 hrs Cost of Replacement Bulb: 2.95$ (60W) (approximate) 3.29$ (150W) Cost of Fixture Installation: n/a (approximate) Brightness (Lumens):

  16. Fixture Class No. 16 (Building Lights) Location: Entrance to MacKinnon (facing the Molson Building). Total Power Consumption (W): 70W (HPS) Average Bulb Life Expectancy: 3 – 6 yrs Cost of Replacement Bulb: 12.00 – 14.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  17. Fixture Class No. 17 (Building Lights) Location: The Mountain House (side facing the Molson Building). Total Power Consumption (W): 50W (HPS) Average Bulb Life Expectancy: 3 – 6 yrs Cost of Replacement Bulb: 12.00 – 14.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  18. Fixture Class No. 18 (Building Lights) Location: Entrance of the Price Sports Center (each bulb is an individual source). Total Power Consumption (W): 75W (incandescent) Average Bulb Life Expectancy: ½ - 2 yrs Cost of Replacement Bulb: 4.75$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  19. Fixture Class No. 19 (Building Lights) Location: MacKinnon (over doorways facing the Abbott Residence). Total Power Consumption (W): 60W (incandescent) Average Bulb Life Expectancy: 2 – 3 yrs Cost of Replacement Bulb: 2.95$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  20. Fixture Class No. 20 (Building Lights) Location: Underneath entrances to Abbott, Munster, and Kuehner. Total Power Consumption (W): 60W (incandescent) Average Bulb Life Expectancy: 1 – 2 yrs Cost of Replacement Bulb: 2.95$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________

  21. Fixture Class No. 21 (Building Lights) Location: Underneath main entrance to the Paterson Building. Total Power Consumption (W): 50W (MHU) Average Bulb Life Expectancy: 4 – 6 yrs Cost of Replacement Bulb: 35.00 – 40.00$ (approximate) Cost of Fixture Installation:_________________ (approximate) Brightness (Lumens):______________________
