  1. The Expanded UW SREF System and Statistical InferenceSTAT 592 PresentationEric Grimit OUTLINE 1. Description of the Expanded UW SREF System (How is this thing created?) 2. Spread-error Correlation Theory, Results, and Future Work 3. Forecast Verification Issues

  2. Core Members of the Expanded UW SREF System Multiple Analyses / Forecasts ICs LBCs MM5 M = 7 + CENT-MM5 Is this enough???

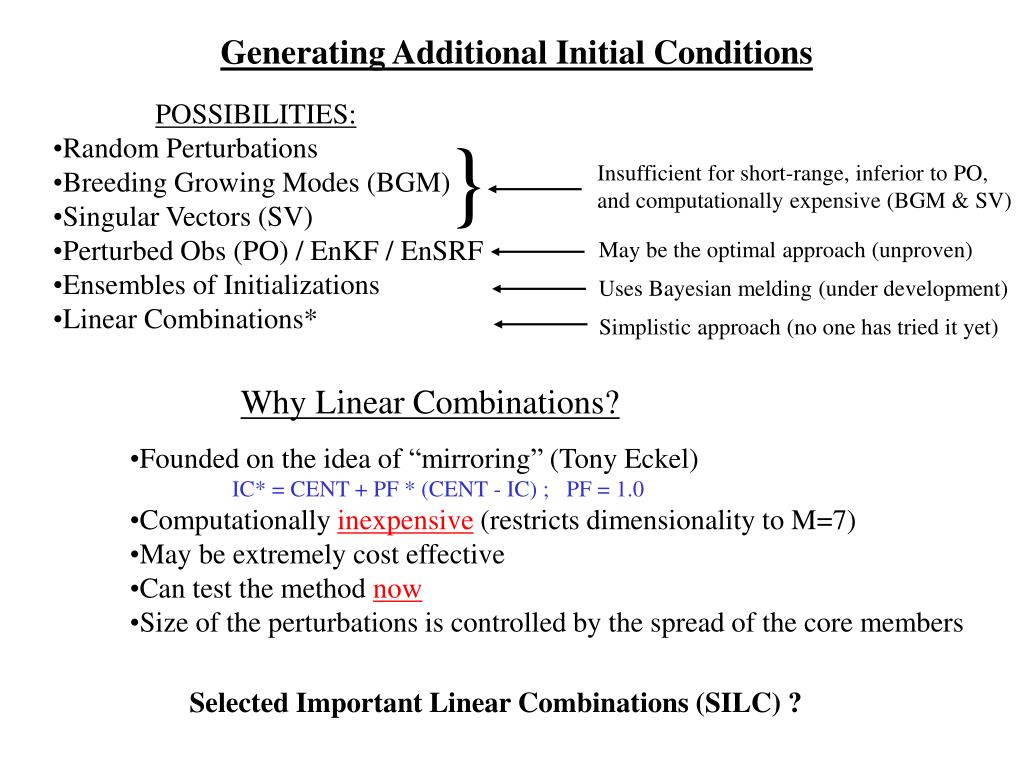

  3. Generating Additional Initial Conditions • POSSIBILITIES: • Random Perturbations • Breeding Growing Modes (BGM) • Singular Vectors (SV) • Perturbed Obs (PO) / EnKF / EnSRF • Ensembles of Initializations • Linear Combinations* } Insufficient for short-range, inferior to PO, and computationally expensive (BGM & SV) May be the optimal approach (unproven) Uses Bayesian melding (under development) Simplistic approach (no one has tried it yet) Why Linear Combinations? • Founded on the idea of “mirroring” (Tony Eckel) • IC* = CENT + PF * (CENT - IC) ; PF = 1.0 • Computationally inexpensive (restricts dimensionality to M=7) • May be extremely cost effective • Can test the method now • Size of the perturbations is controlled by the spread of the core members Selected Important Linear Combinations (SILC) ?

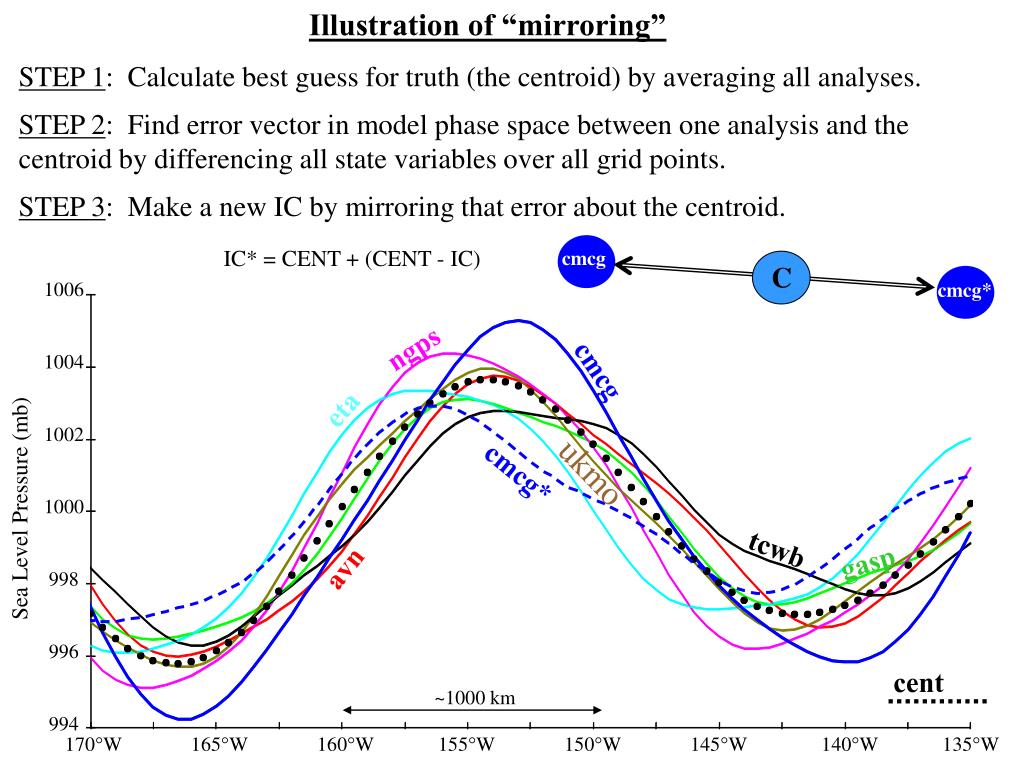

  4. Illustration of “mirroring” 1006 1004 1002 1000 998 996 994 cmcg C cmcg* ngps cmcg eta ukmo cmcg* Sea Level Pressure (mb) tcwb gasp avn cent ~1000 km 170°W 165°W 160°W 155°W 150°W 145°W 140°W 135°W STEP 1: Calculate best guess for truth (the centroid) by averaging all analyses. STEP 2: Find error vector in model phase space between one analysis and the centroid by differencing all state variables over all grid points. STEP 3: Make a new IC by mirroring that error about the centroid. IC* = CENT + (CENT - IC)

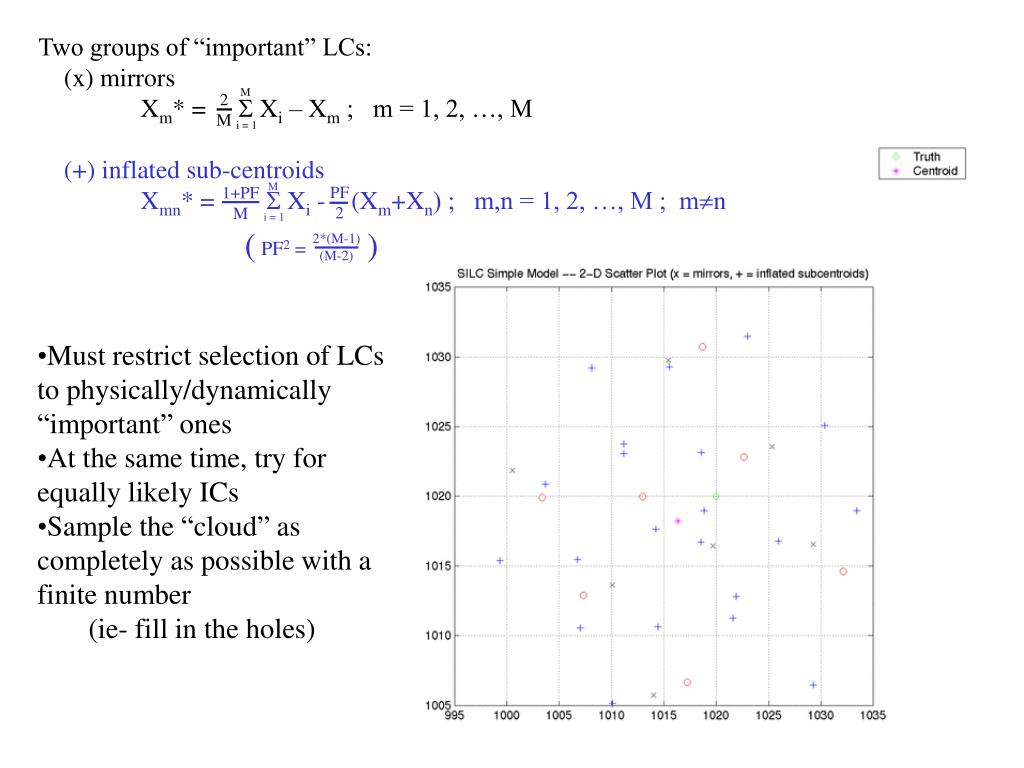

  5. Two groups of “important” LCs: (x) mirrors Xm* =  Xi – Xm ; m = 1, 2, …, M (+) inflated sub-centroids Xmn* =  Xi - (Xm+Xn) ; m,n = 1, 2, …, M ; mn M 2 M i = 1 M PF 2 1+PF M i = 1 ( ) 2*(M-1) (M-2) PF2 = • Must restrict selection of LCs to physically/dynamically “important” ones • At the same time, try for equally likely ICs • Sample the “cloud” as completely as possible with a finite number • (ie- fill in the holes)

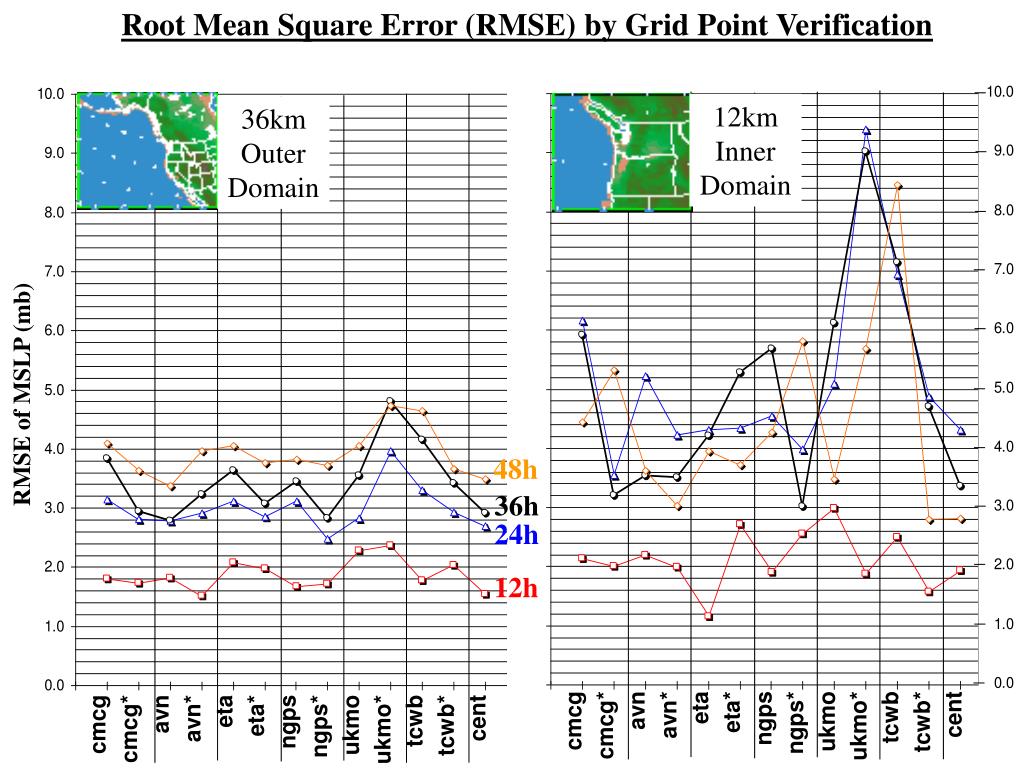

  6. Root Mean Square Error (RMSE) by Grid Point Verification 12km Inner Domain 36km Outer Domain RMSE of MSLP (mb) 48h 36h 24h cmcg cmcg* avn avn* eta eta* ngps ngps* ukmo ukmo* tcwb tcwb* cent cmcg cmcg* avn avn* eta eta* ngps ngps* ukmo ukmo* tcwb tcwb* cent 12h

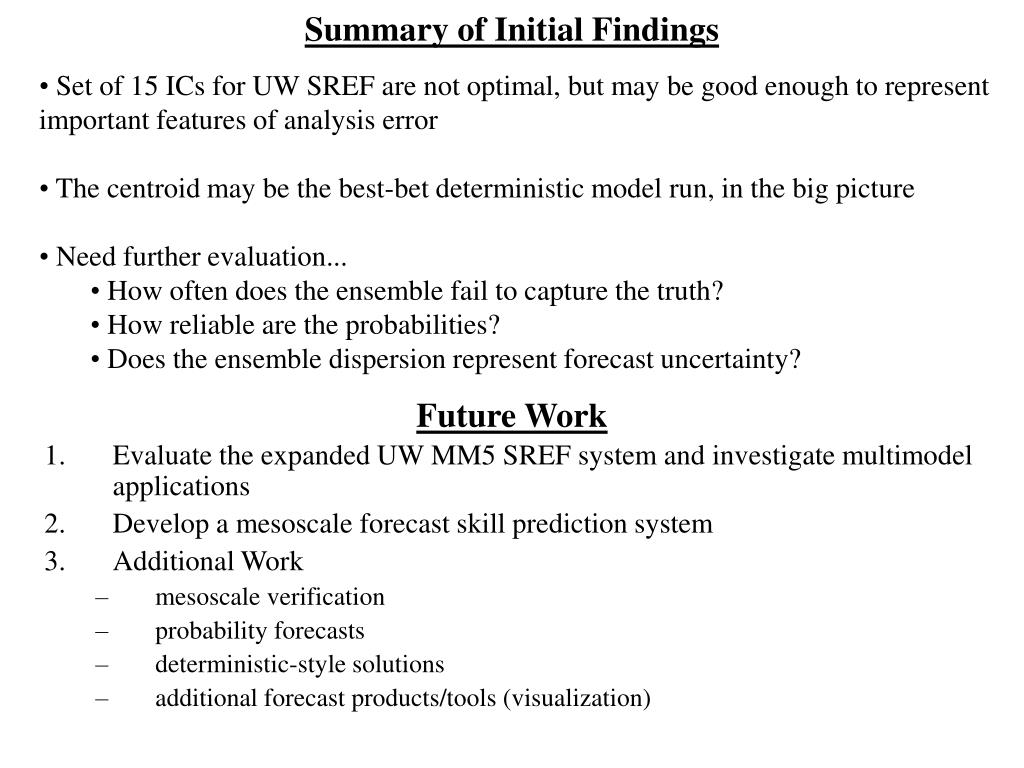

  7. Summary of Initial Findings • Set of 15 ICs for UW SREF are not optimal, but may be good enough to represent important features of analysis error • The centroid may be the best-bet deterministic model run, in the big picture • Need further evaluation... • How often does the ensemble fail to capture the truth? • How reliable are the probabilities? • Does the ensemble dispersion represent forecast uncertainty? Future Work • Evaluate the expanded UW MM5 SREF system and investigate multimodel applications • Develop a mesoscale forecast skill prediction system • Additional Work • mesoscale verification • probability forecasts • deterministic-style solutions • additional forecast products/tools (visualization)

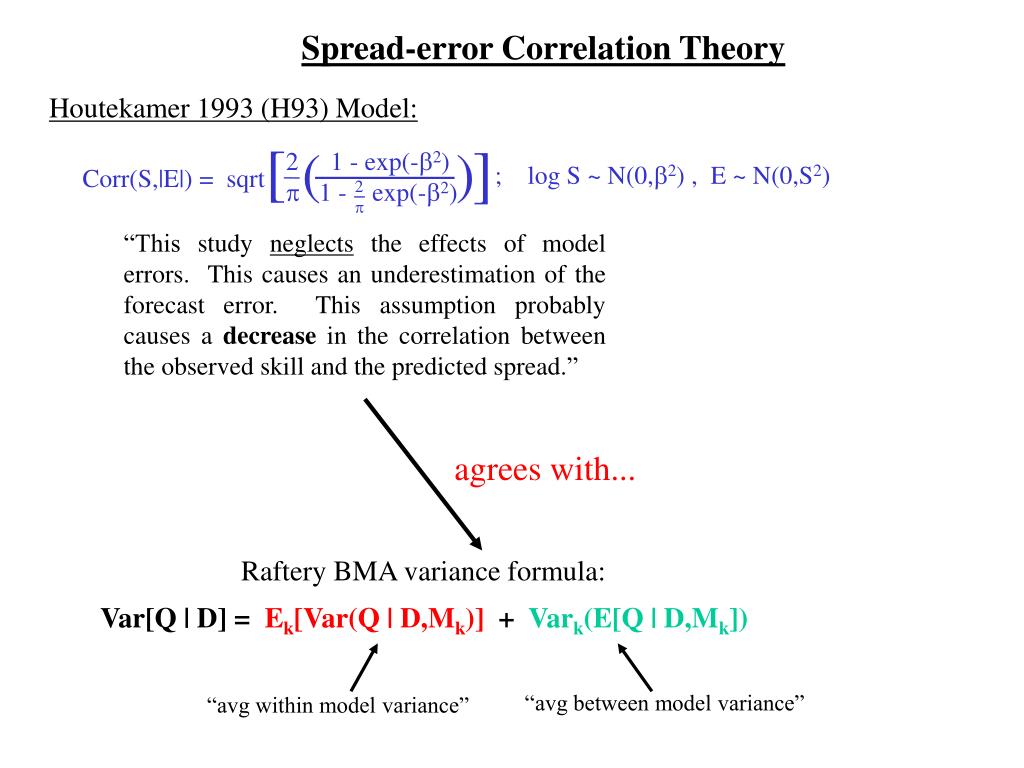

  8. [ ] ( ) 2 1 - exp(-2)  1 - exp(-2) ; log S ~ N(0,2) , E ~ N(0,S2) Corr(S,|E|) = sqrt 2  Spread-error Correlation Theory Houtekamer 1993 (H93) Model: “This study neglects the effects of model errors. This causes an underestimation of the forecast error. This assumption probably causes a decrease in the correlation between the observed skill and the predicted spread.” agrees with... Raftery BMA variance formula: Var[Q | D] = Ek[Var(Q | D,Mk)] + Vark(E[Q | D,Mk]) “avg between model variance” “avg within model variance”

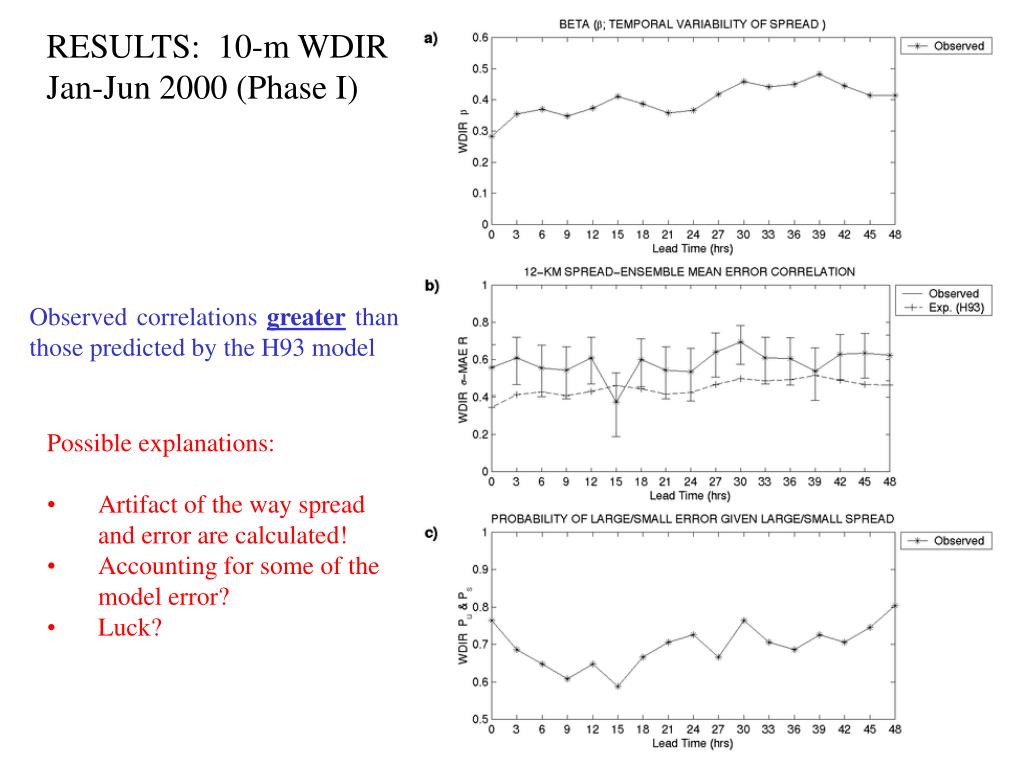

  9. RESULTS: 10-m WDIR Jan-Jun 2000 (Phase I) Observed correlations greater than those predicted by the H93 model • Possible explanations: • Artifact of the way spread and error are calculated! • Accounting for some of the model error? • Luck?

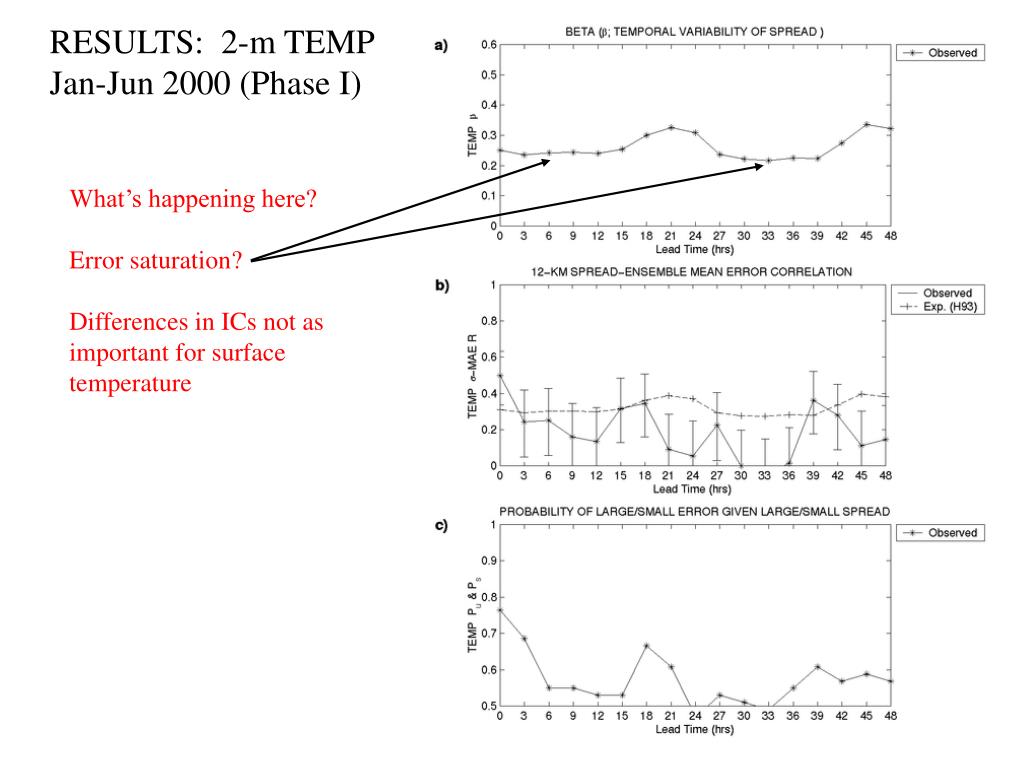

  10. RESULTS: 2-m TEMP Jan-Jun 2000 (Phase I) What’s happening here? Error saturation? Differences in ICs not as important for surface temperature

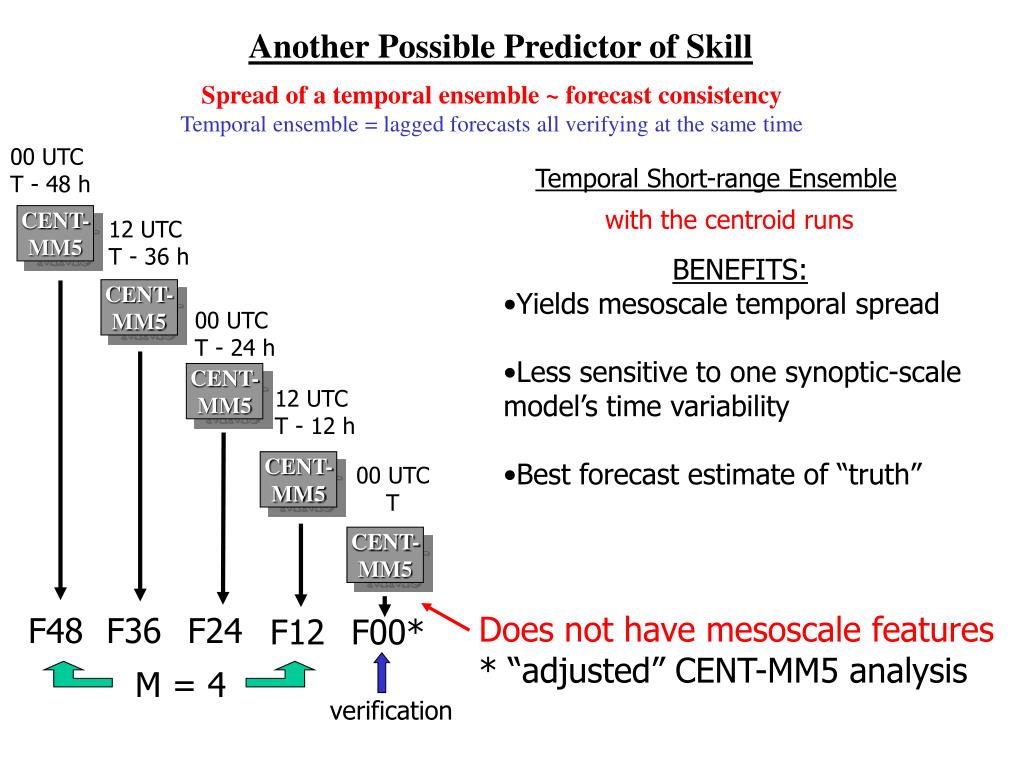

  11. 00 UTC T - 48 h CENT- MM5 12 UTC T - 36 h CENT- MM5 00 UTC T - 24 h CENT- MM5 12 UTC T - 12 h CENT- MM5 00 UTC T CENT- MM5 Does not have mesoscale features * “adjusted” CENT-MM5 analysis F48 F36 F24 F12 F00* M = 4 verification Another Possible Predictor of Skill Spread of a temporal ensemble ~ forecast consistency Temporal ensemble = lagged forecasts all verifying at the same time Temporal Short-range Ensemble with the centroid runs • BENEFITS: • Yields mesoscale temporal spread • Less sensitive to one synoptic-scale model’s time variability • Best forecast estimate of “truth”

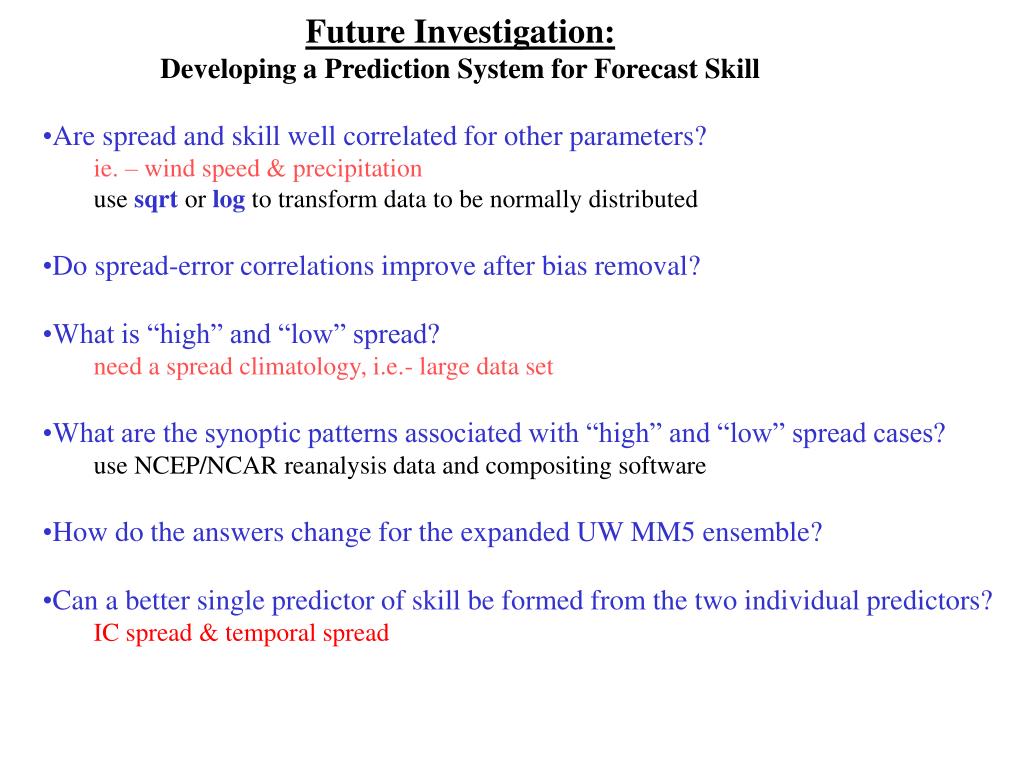

  12. Future Investigation: Developing a Prediction System for Forecast Skill • Are spread and skill well correlated for other parameters? • ie. – wind speed & precipitation • use sqrt or logto transform data to be normally distributed • Do spread-error correlations improve after bias removal? • What is “high” and “low” spread? • need a spread climatology, i.e.- large data set • What are the synoptic patterns associated with “high” and “low” spread cases? • use NCEP/NCAR reanalysis data and compositing software • How do the answers change for the expanded UW MM5 ensemble? • Can a better single predictor of skill be formed from the two individual predictors? • IC spread & temporal spread

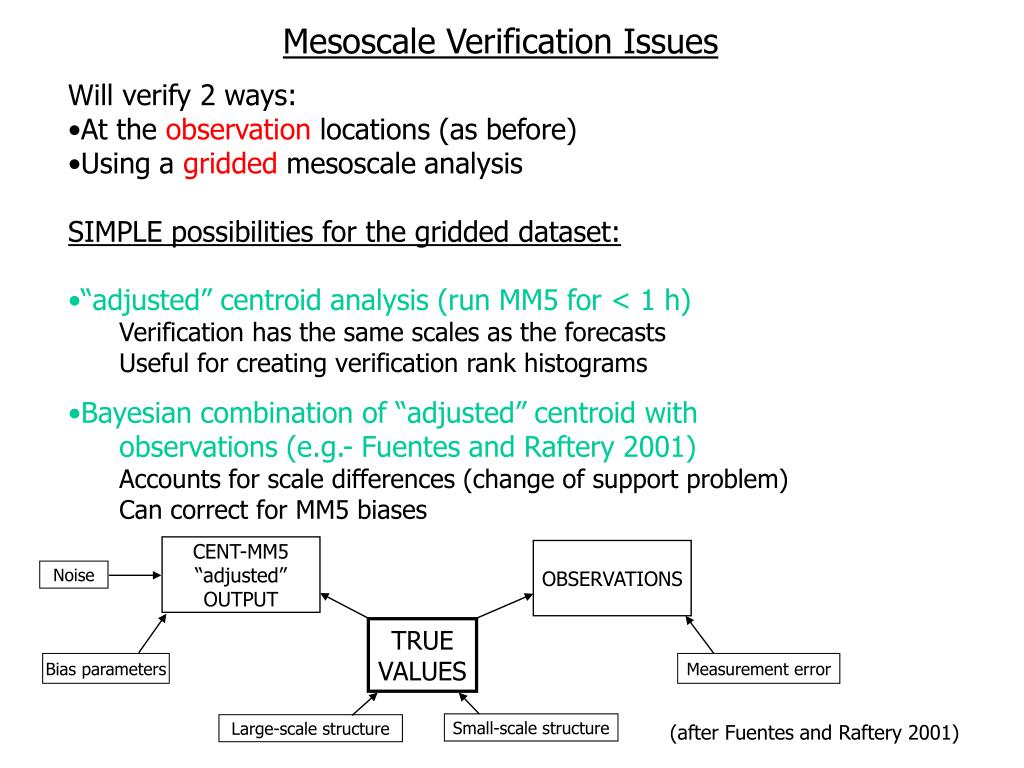

  13. CENT-MM5 “adjusted” OUTPUT OBSERVATIONS Noise TRUE VALUES Bias parameters Measurement error Small-scale structure Large-scale structure (after Fuentes and Raftery 2001) Mesoscale Verification Issues • Will verify 2 ways: • At the observation locations (as before) • Using a gridded mesoscale analysis • SIMPLE possibilities for the gridded dataset: • “adjusted” centroid analysis (run MM5 for < 1 h) • Verification has the same scales as the forecasts • Useful for creating verification rank histograms • Bayesian combination of “adjusted” centroid with • observations (e.g.- Fuentes and Raftery 2001) • Accounts for scale differences (change of support problem) • Can correct for MM5 biases

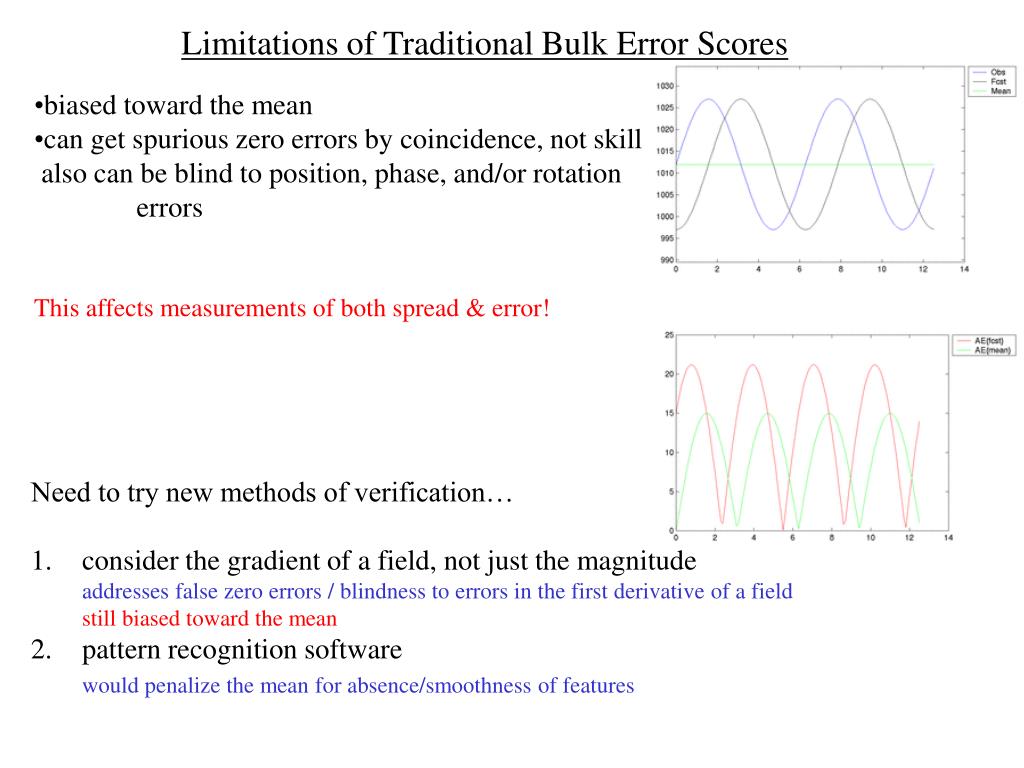

  14. Limitations of Traditional Bulk Error Scores • biased toward the mean • can get spurious zero errors by coincidence, not skill • also can be blind to position, phase, and/or rotation errors • This affects measurements of both spread & error! • Need to try new methods of verification… • consider the gradient of a field, not just the magnitude • addresses false zero errors / blindness to errors in the first derivative of a field • still biased toward the mean • pattern recognition software • would penalize the mean for absence/smoothness of features
