High Efficiency Radiation Monitor

Sentry 8501. High Efficiency Radiation Monitor. System Features. Microprocessor Controlled Uses Windows XP Touch Screen LCD Display Multi-channel Analyzer Broadband Internet Card High Resolution Digital Camera 2” x 2” NaI Detector(s) NEMA enclosure Strobe & Audio Alarm.

debbie
Télécharger la présentation

High Efficiency Radiation Monitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

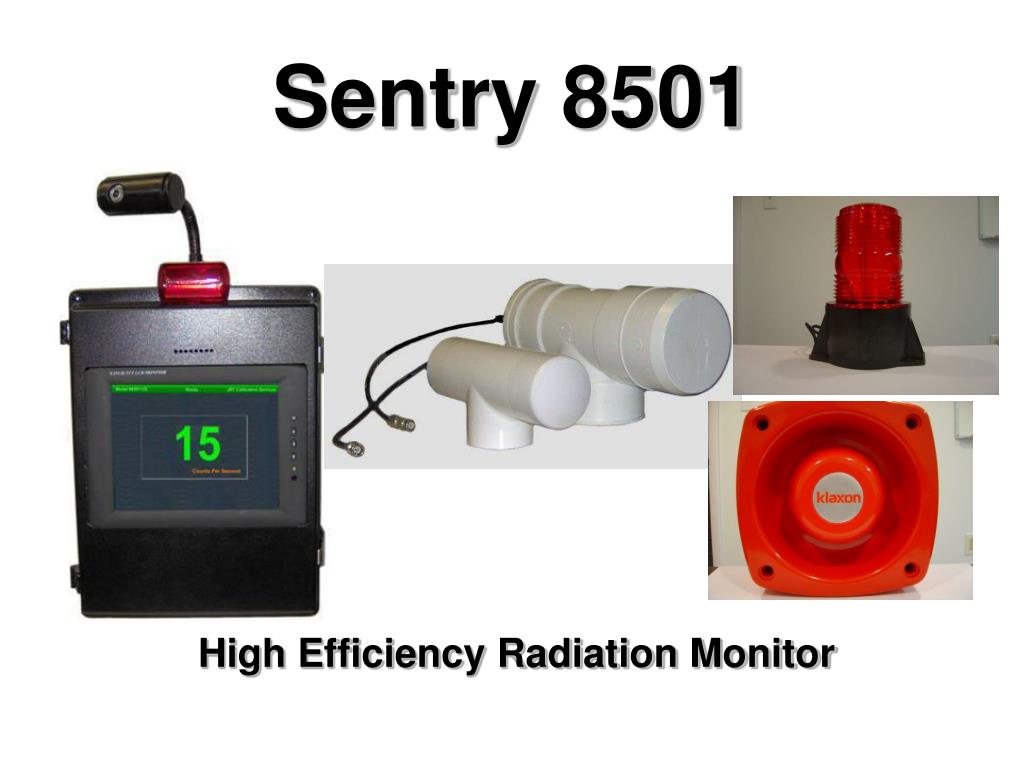

  1. Sentry 8501 High Efficiency Radiation Monitor

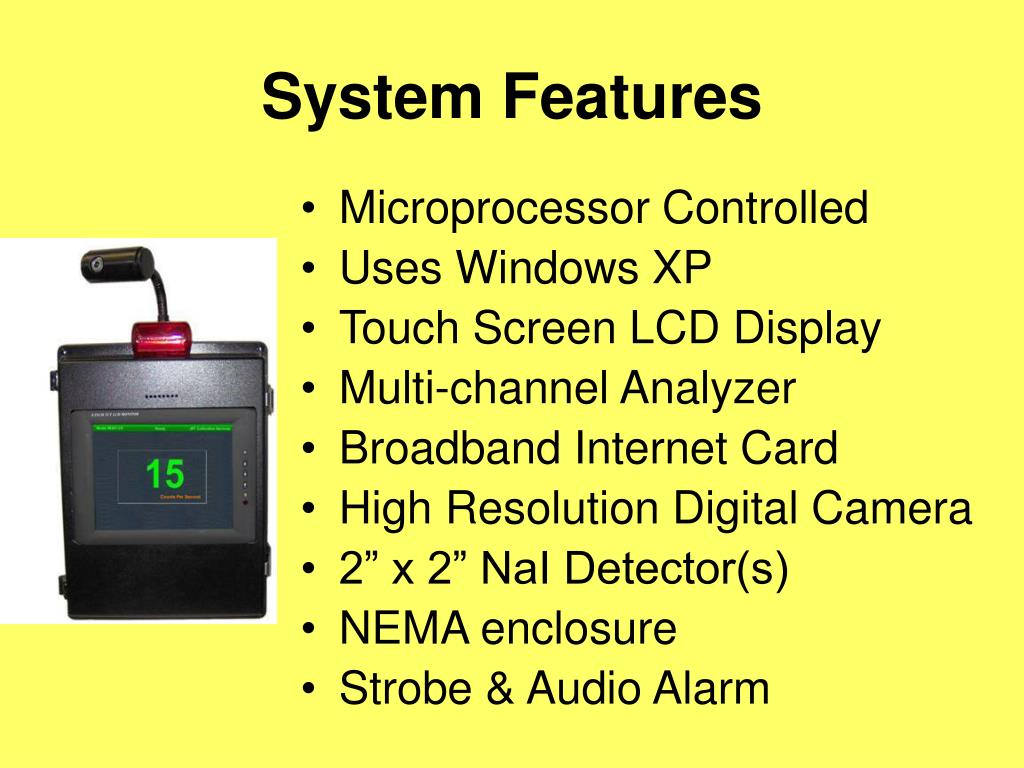

  2. System Features • Microprocessor Controlled • Uses Windows XP • Touch Screen LCD Display • Multi-channel Analyzer • Broadband Internet Card • High Resolution Digital Camera • 2” x 2” NaI Detector(s) • NEMA enclosure • Strobe & Audio Alarm

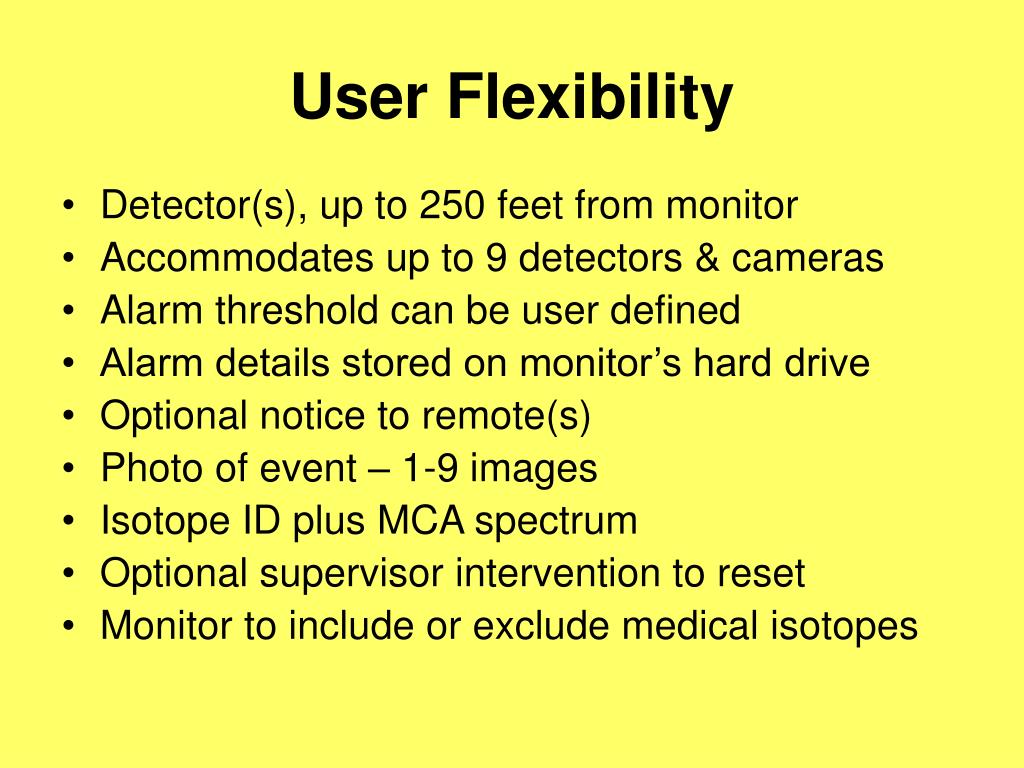

  3. User Flexibility • Detector(s), up to 250 feet from monitor • Accommodates up to 9 detectors & cameras • Alarm threshold can be user defined • Alarm details stored on monitor’s hard drive • Optional notice to remote(s) • Photo of event – 1-9 images • Isotope ID plus MCA spectrum • Optional supervisor intervention to reset • Monitor to include or exclude medical isotopes

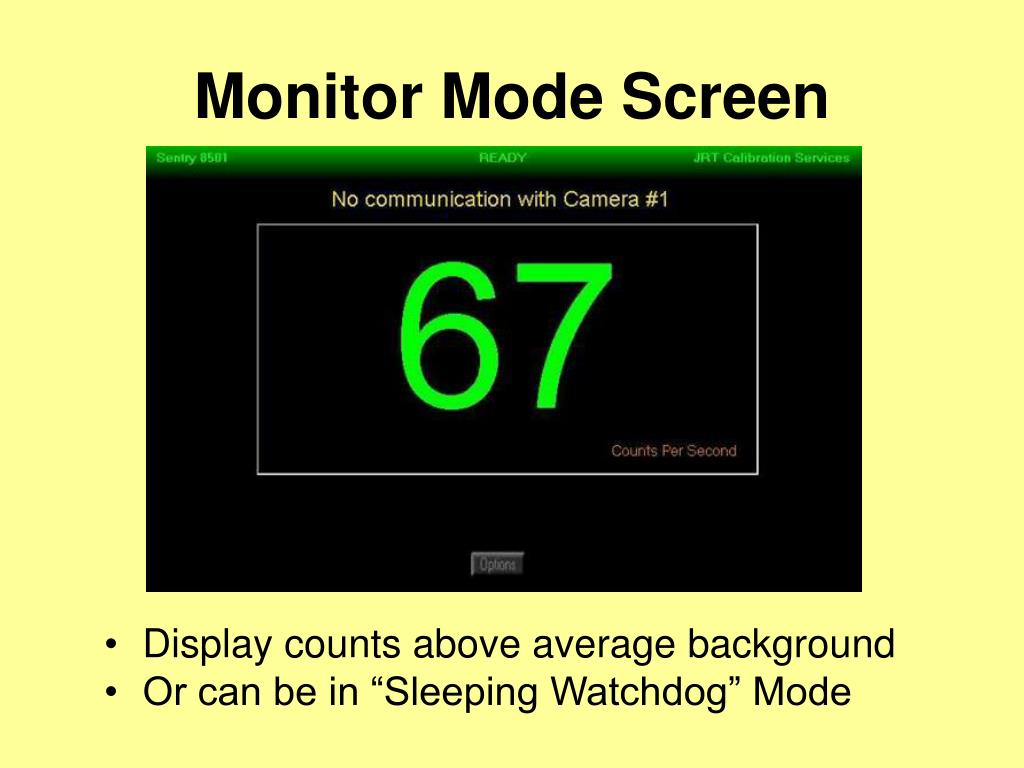

  4. Monitor Mode Screen • Display counts above average background • Or can be in “Sleeping Watchdog” Mode

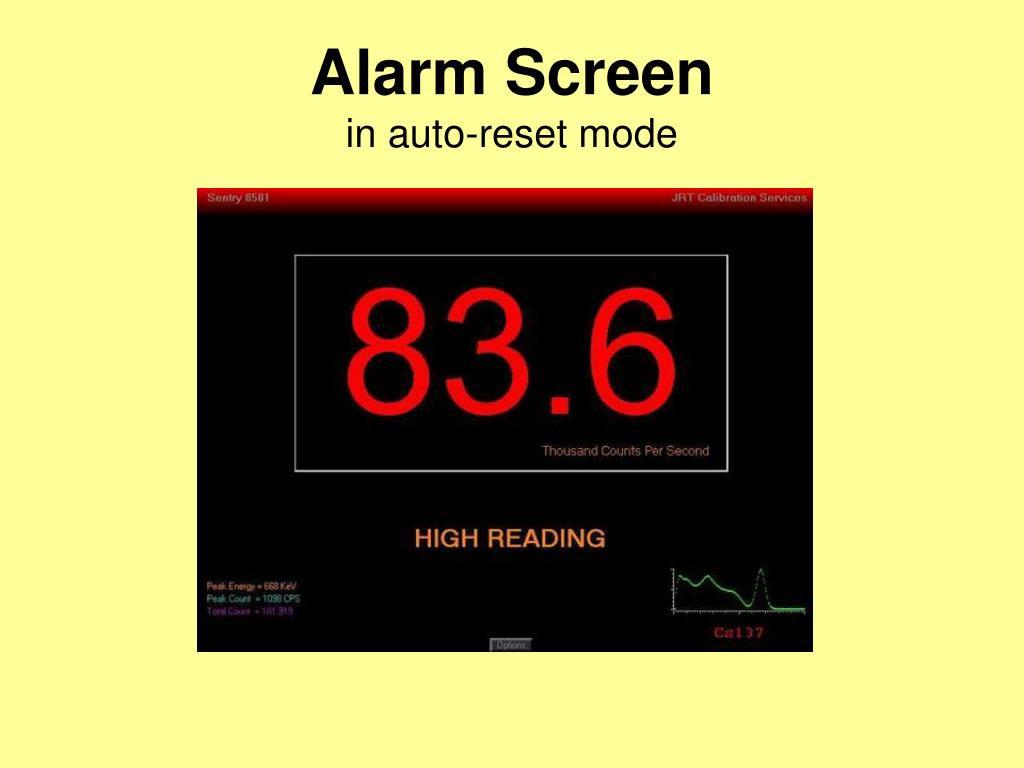

  5. Alarm Screenin auto-reset mode

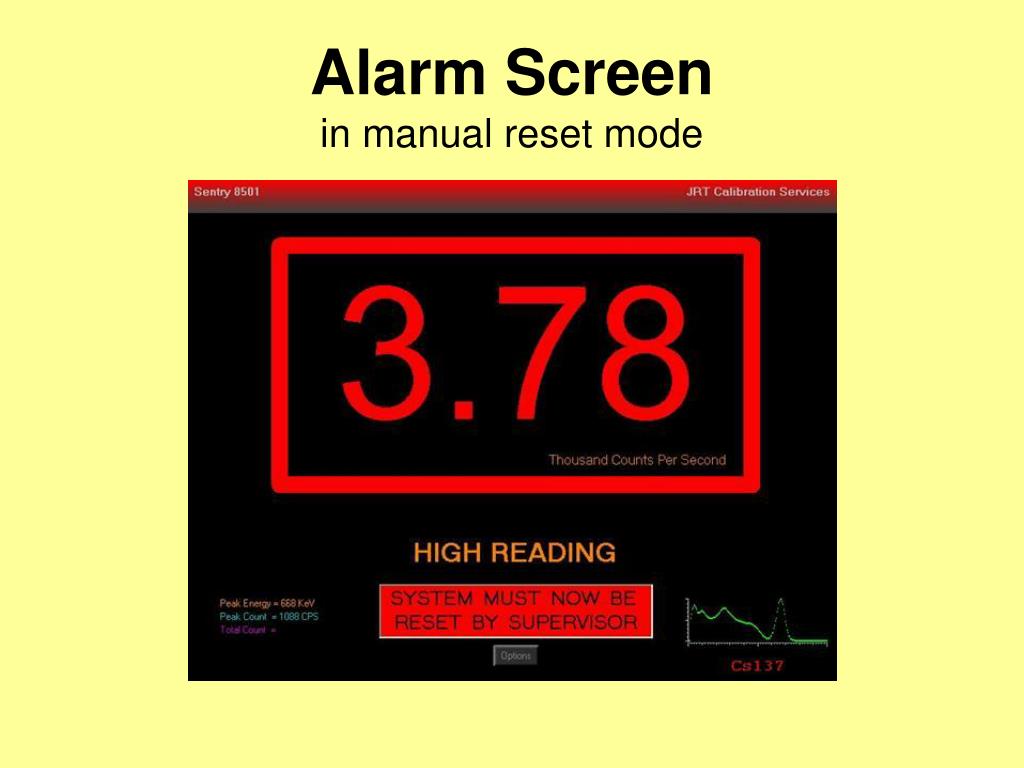

  6. Alarm Screenin manual reset mode

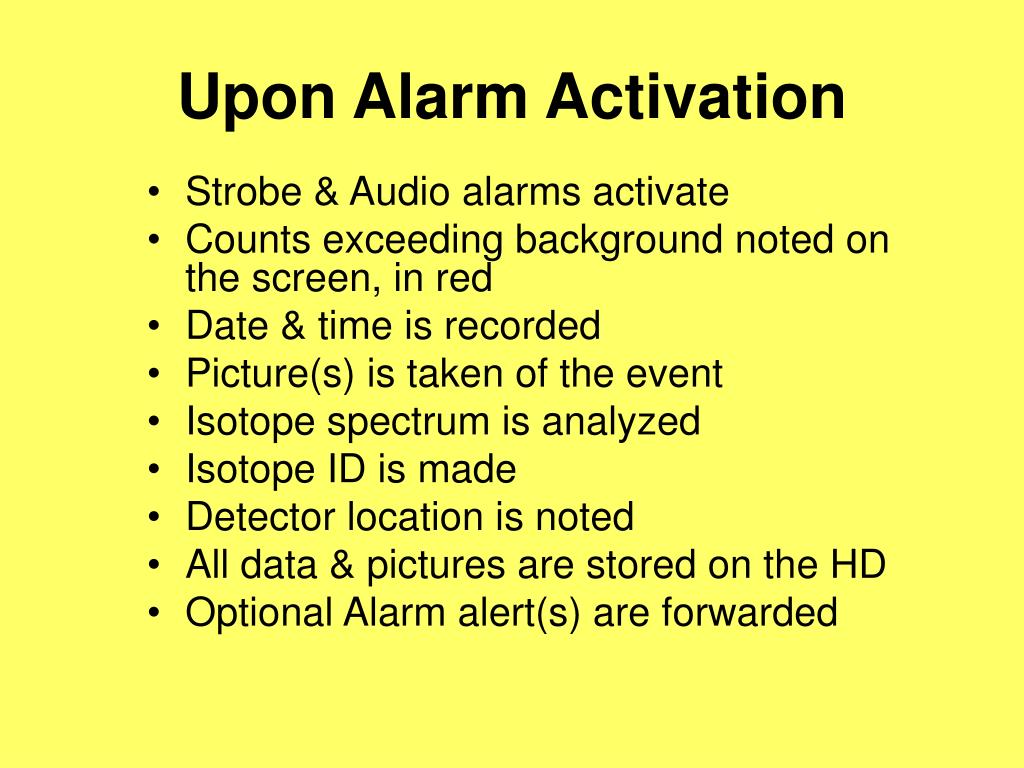

  7. Upon Alarm Activation • Strobe & Audio alarms activate • Counts exceeding background noted on the screen, in red • Date & time is recorded • Picture(s) is taken of the event • Isotope spectrum is analyzed • Isotope ID is made • Detector location is noted • All data & pictures are stored on the HD • Optional Alarm alert(s) are forwarded

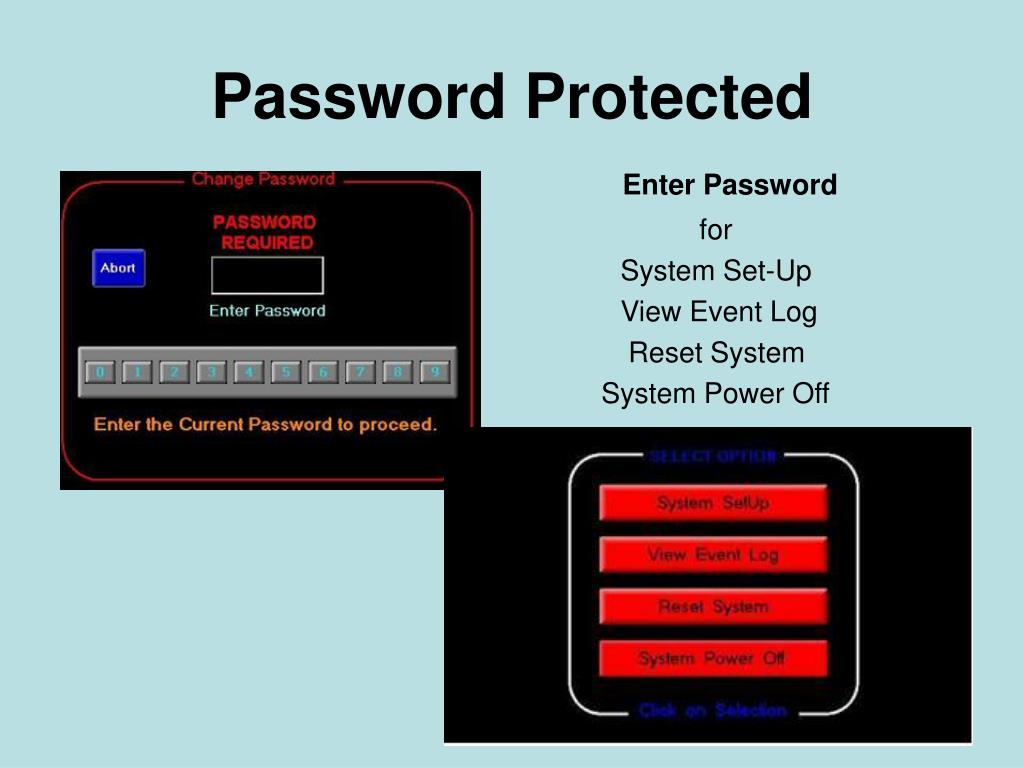

  8. Password Protected Enter Password for System Set-Up View Event Log Reset System System Power Off

  9. Event Log

  10. EVENT – last event at the top • DATE – date of event • TIME – to the second • COUNTS – above alarm threshold • LIMIT – threshold setting • ISOTOPE – nuclide ID • EVENT LOCATION – detector ID • CAMERA – if active, photo exist Tap event line for more details

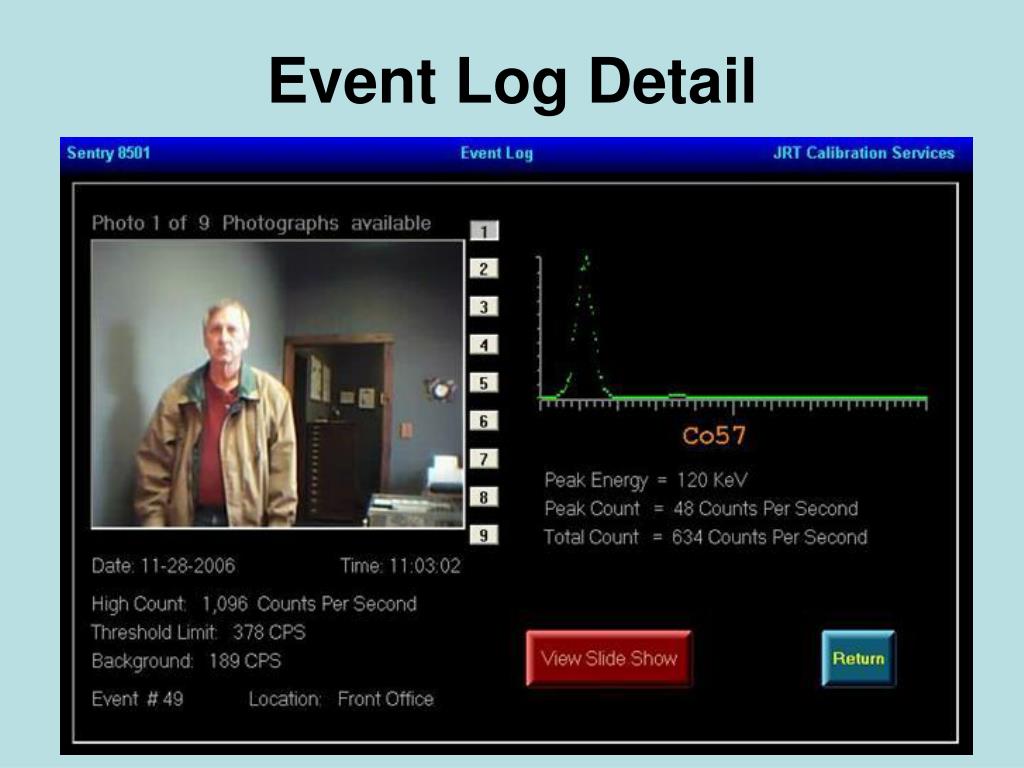

  11. Event Log Detail

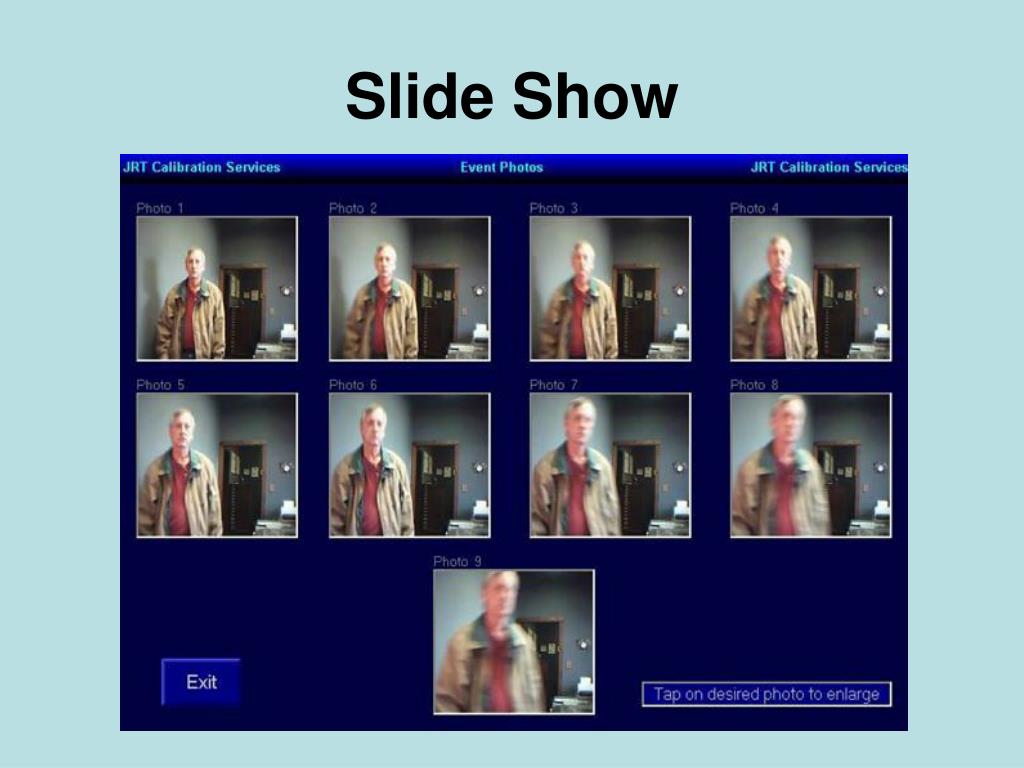

  12. Slide Show

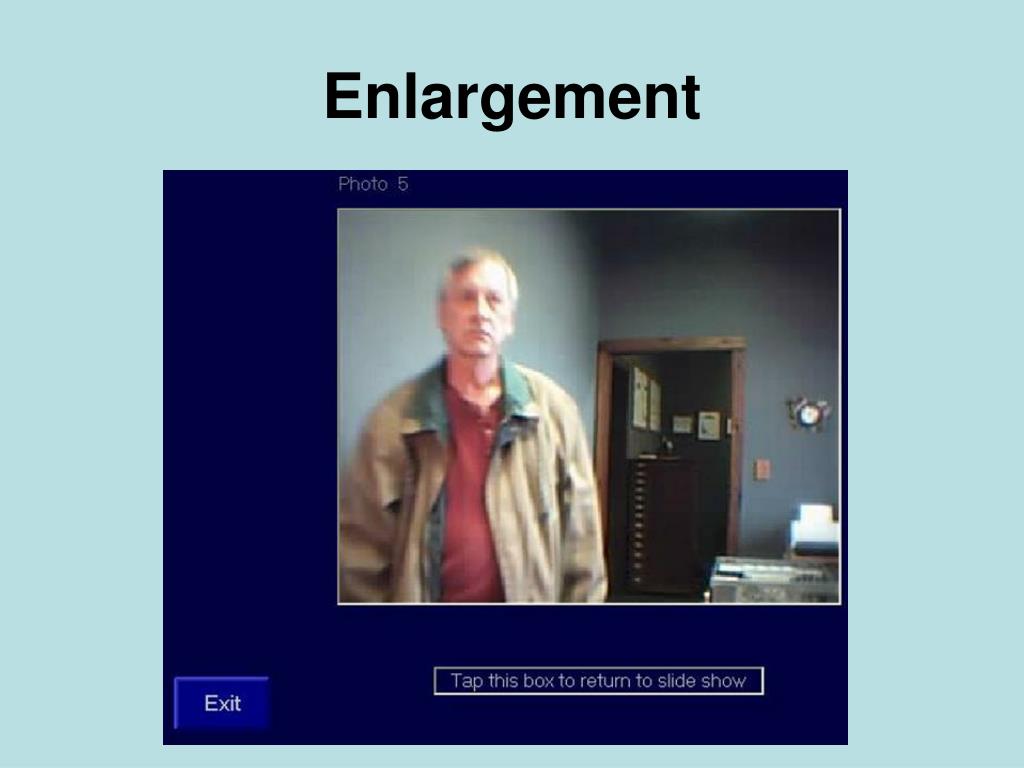

  13. Enlargement

  14. Main Set-Up Screen

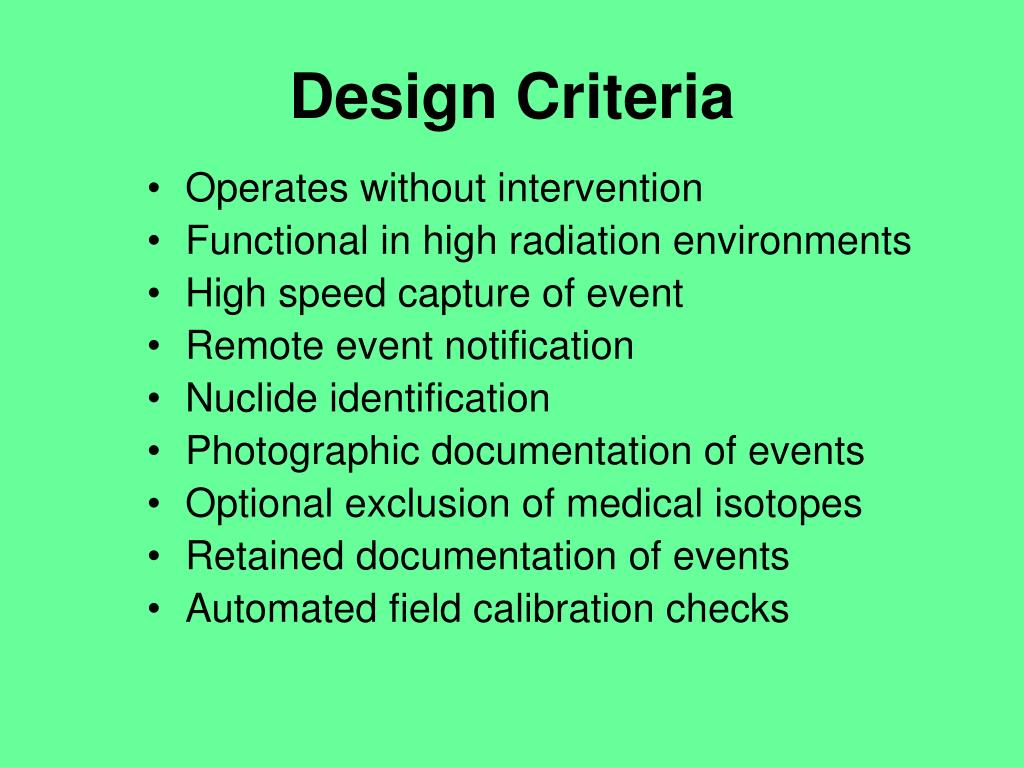

  15. Design Criteria • Operates without intervention • Functional in high radiation environments • High speed capture of event • Remote event notification • Nuclide identification • Photographic documentation of events • Optional exclusion of medical isotopes • Retained documentation of events • Automated field calibration checks

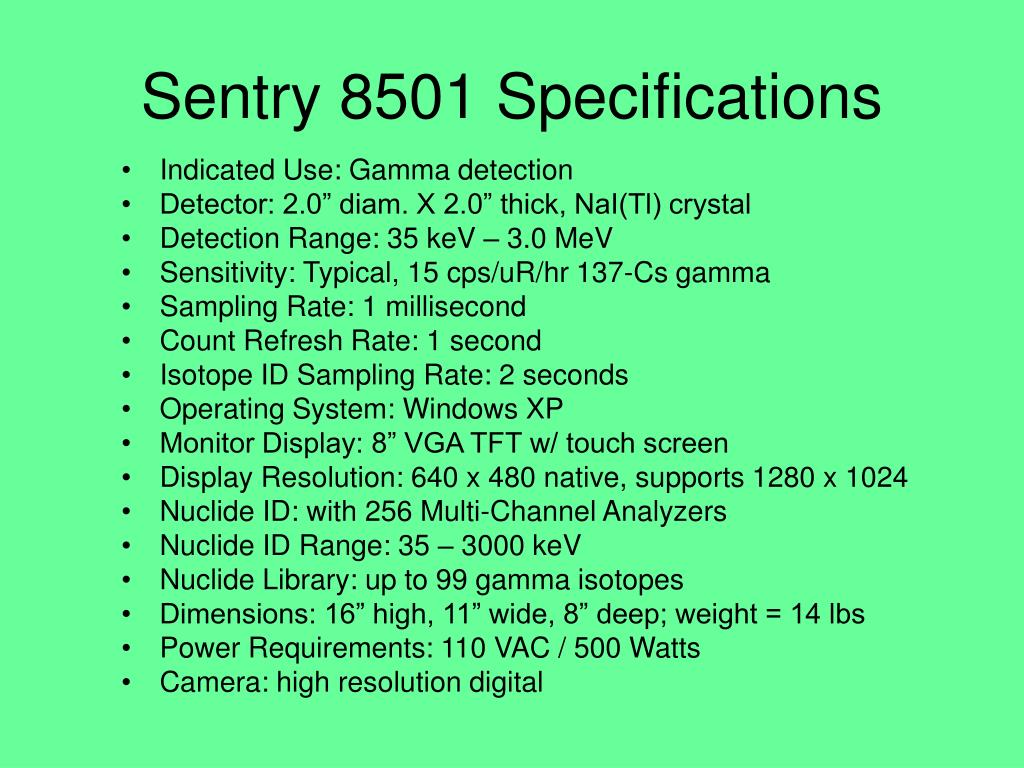

  16. Sentry 8501 Specifications • Indicated Use: Gamma detection • Detector: 2.0” diam. X 2.0” thick, NaI(Tl) crystal • Detection Range: 35 keV – 3.0 MeV • Sensitivity: Typical, 15 cps/uR/hr 137-Cs gamma • Sampling Rate: 1 millisecond • Count Refresh Rate: 1 second • Isotope ID Sampling Rate: 2 seconds • Operating System: Windows XP • Monitor Display: 8” VGA TFT w/ touch screen • Display Resolution: 640 x 480 native, supports 1280 x 1024 • Nuclide ID: with 256 Multi-Channel Analyzers • Nuclide ID Range: 35 – 3000 keV • Nuclide Library: up to 99 gamma isotopes • Dimensions: 16” high, 11” wide, 8” deep; weight = 14 lbs • Power Requirements: 110 VAC / 500 Watts • Camera: high resolution digital

  17. Sentry 8501 High Efficiency Radiation Monitor
