Debugger UpdateSUG, May 2010 George Walter, Sirius Software
Focus of Talk • Present the last year’s Debugger development • Review the year before last, since there was no SUG in 2009, and not everyone may have seen the Insight debugger presentation • Unless otherwise stated, the information pertains to both debuggers • Quick review of the User Interface… Sirius Software
Sirius Software
Get the latest client: • Build 50, released April 2010… • Full Client installer: http://sirius-software.com/debclient.zip • Client Exe only: http://sirius-software.com/debexeonly.zip • Documentation Files: http://sirius-software.com/debdoc.zip Sirius Software
Documentation Online • sirius-software.com/maint/download/jdebugr.pdf • sirius-software.com/products/jdeb2.html Sirius Software
Debugger Update (May 2010) • Better Window Management • Exclude “Uninteresting” Code • Better PC File Management • Record Viewing • Execution History • Color • Macros • Watch Expansion • More Items to Watch • Windows 7 • .NET Framework Sirius Software
Better Window Management • For large/multiple monitors: in Build 50 (April 2010), the following may now be viewed in separate windows: • Audit Trail • Execution Trace • Watch Window • Web Buffer • These can be accessed via the Window menu and new open and close commands. Sirius Software
Window Menu: Open Windows Close Windows Access Windows Sirius Software
Open/Close Window Commands • {open|close}ExternalAuditTrailWindow • {open|close}ExternalExecutionTraceWindow • {open|close}ExternalWatchWindow • {open|close}ExternalWebBufferWindow Sirius Software
External Audit Trail Window Sirius Software
External Watch Window Sirius Software
Sirius Software
Tab Navigation Commands • selectAuditTab • selectSourceTab • selectWebBufferTab • selectExecutionTraceTab • selectProcSelectionTab • selectNextTab Sirius Software
Tab Navigation Commands • Can be mapped to button or hotkey or used in a macro • Work with the corresponding external window • Mapped to a hotkey, these commands permit “no mouse” tab/window selection Sirius Software
Mapping Example <mapping command="selectNextTab" key="n" keyModifier="ctrl" /> <mapping command="selectAuditTab" key="1" keyModifier="ctrl" /> <mapping command="selectSourceTab" key="2" keyModifier="ctrl" /> <mapping command="selectWebBufferTab" key="3" keyModifier="ctrl" /> <mapping command="selectExecutionTraceTab" key="4" keyModifier="ctrl" /> <mapping command="selectProcSelectionTab" key="5" keyModifier="ctrl" /> Sirius Software
Less Window Modality • Value Display • View Text • Expand Object • These windows can remain open while you do other things. Sirius Software
Exclude “Uninteresting” Code • With Build 47+ and 7.6+ Mods: • Exclude arbitrary chunks of code via “exclude on” and “exclude off’ • Exclude procedures by name/pattern • Exclude methods/routines by name/pattern • In excluded code, selected parts may be still be debugged using “Include” directives • Excluded code is NOT sent to the workstation Sirius Software
Code Fragment with Excluded Lines Sirius Software
!debugger Directives • !debugger exclude on/off can be used to bracket code to be excluded (not debugged) • !debugger include on/off can be used to include code for debugging in a block that is being excluded • !debugger exclude/include proc can be used to select included procedures for debugging exclusion or inclusion Sirius Software
!debugger Directives • ! debugger exclude/include routine can be used to select methods/subroutines for debugging exclusion or inclusion • Trailing wildcards may be used in proc, subroutine and method names, e.g., p-init* Sirius Software
Debugger Directive Syntax !debugger {exclude} {on } {include} {off } {proc pspec } {routine rspec} Sirius Software
Alternative to the Directives • In the debugger client, you may create and maintain lists of excluded and included procedures and routines • With this method, NO code changes are needed Sirius Software
Maintain Include and Exclude Lists from the “Proc Selection” tab… Sirius Software
Sirius Software
Better PC File Management • In Build 48+, you can control the location of: • State files such as logs and window position memory files • UI customization files (ui.xml) • Debugger macros (nnn.macro) • Set in debuggerConfig.xml… Sirius Software
Better PC File Management <stateFileFolder> path </stateFileFolder> <uiFolder> path </uiFolder> <macroLibraryFolder> path </macroLibraryFolder> Sirius Software
Record Viewing • Get a PAI display for the current record • With M204 Version 7.2, get a PAFGI display for the current field group • PAI/PAFGI available from the Data Display menu and as commands that can be mapped to buttons or hotkeys • Mods Version 7.6+ required Sirius Software
PAI Sample (Data Display->PAI) Sirius Software
PAFGI Sample (Data Display->PAFGI) Sirius Software
Execution History • At any point, answers “how did I get here?” • Shows calls/returns • Available via “Execution->Get History” and getHistory command Sirius Software
History: Sirius Software
Color Coded Comments Both comment styles are supported and the color is settable… Sirius Software
Sirius Software
Macro Improvements • AutoRun macros • MacroTrace on/off • SetM204Data • New functions Sirius Software

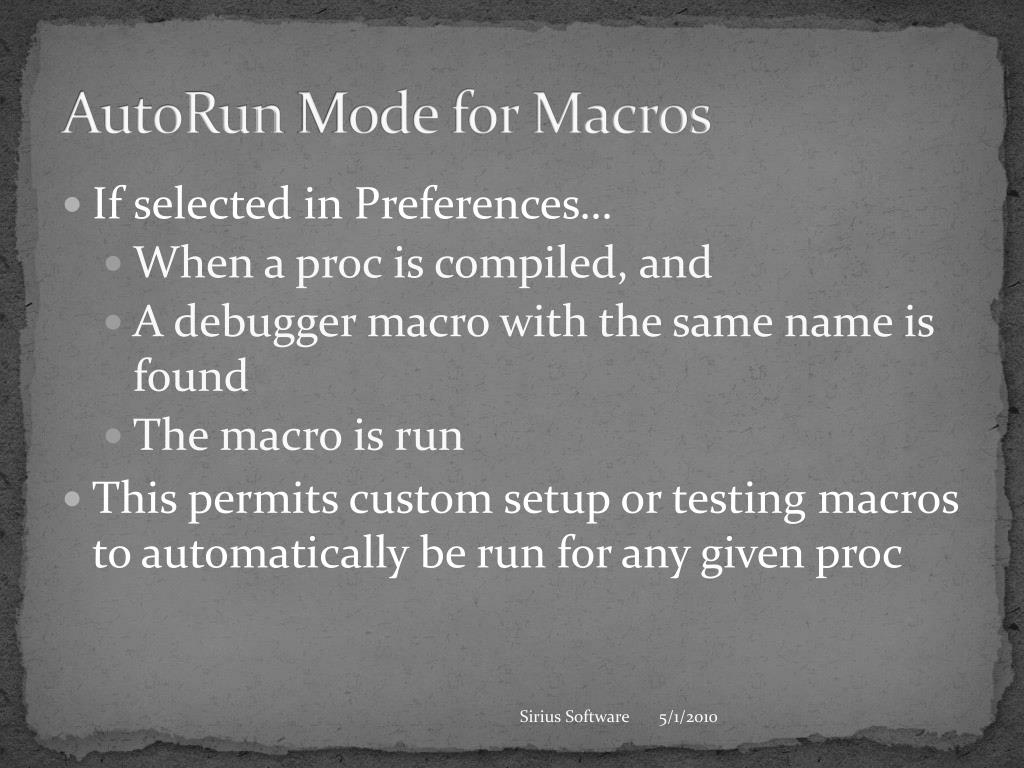

AutoRun Mode for Macros • If selected in Preferences… • When a proc is compiled, and • A debugger macro with the same name is found • The macro is run • This permits custom setup or testing macros to automatically be run for any given proc Sirius Software
MacroTrace on/off • Debug Macros • When on, commands are logged to the macro console; The results of asserts also are logged. >>>macroTrace: step >>>macroTrace: assert %i = 1 >>>passed... >>>macroTrace: run >>>macroTrace: step >>>macroTrace: assert %i = 2 >>>passed... Sirius Software
SetM204Data • Can set Model 204 variables in a macro: setM204Data %xxx = 1111 setM204Data g.next=‘p.foo’ Sirius Software
New Macro Functions • &&assertFailureCount – number of failed asserts in current macro • &&assertSuccessCount – number of successful asserts in current macro • &&assertStatus– string indicating testing status based on asserts: macroTrace on>>>macroTrace: echo &&assertStatusMacro message: Assert Summary: Failed: 0, Succeeded: 17 Sirius Software
New Macro Functions • &&procName name of current proc • &&searchSuccess Boolean success result of last search • &&searchResult line number of last search, or -1 Sirius Software
Improved Watch Expansion • From a right click on a watched item • “Serialize” watched XmlDocs/XmlNodes • Expand ArrayLists (like stringLists and $lists) Sirius Software
Sirius Software
Serial View of XMLDoc Sirius Software
Additional Items to Watch • Parameters (p.parameterName) • User buffer for LOB/MQ applications (u.buffer) • $STATUS/$STATUSD (Mods 7.6+) • $CURREC (Mods 7.6+) • $FIELDGROUPID (M204 7.2+) • $FIELDGROUPOCCURRENCE (M204 7.2+) Sirius Software
Windows 7 Support • Build 50 or better required for proper client operation with Windows 7: • Problem with IE Proxy setting fixed • First build that had full QA cycle with Windows 7 Sirius Software
.NET Runtime Upgrade • Next Release of the Debugger Client with be based on the .NET 3.5 runtime • Faster • Many fixes in the runtime • Better language and GUI features to exploit going forward Sirius Software
Wrap UP • Quick overview of Preferences • Command Display Screen Sirius Software
Sirius Software
Sirius Software
Coming Soon • More syntax color coding • Reserved words • Variables • More improved Window management (make using the tabs optional) • Dockable windows Sirius Software
