  1. CHAPTER 2 THE SOFTWARE PROCESS

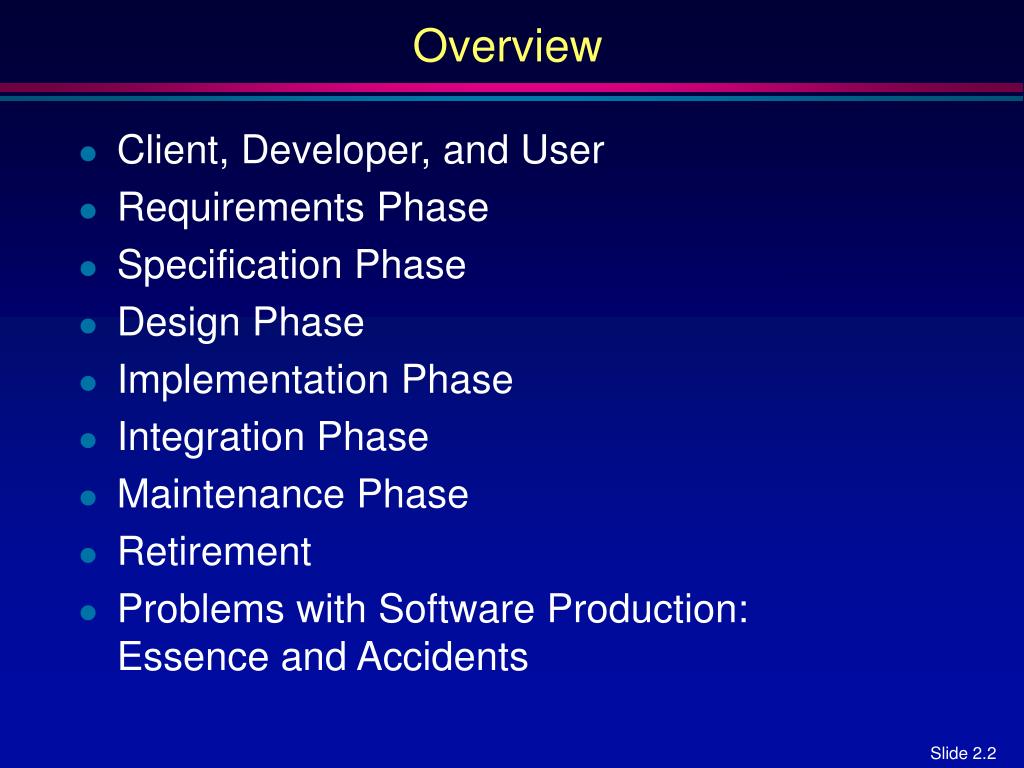

  2. Overview • Client, Developer, and User • Requirements Phase • Specification Phase • Design Phase • Implementation Phase • Integration Phase • Maintenance Phase • Retirement • Problems with Software Production: Essence and Accidents

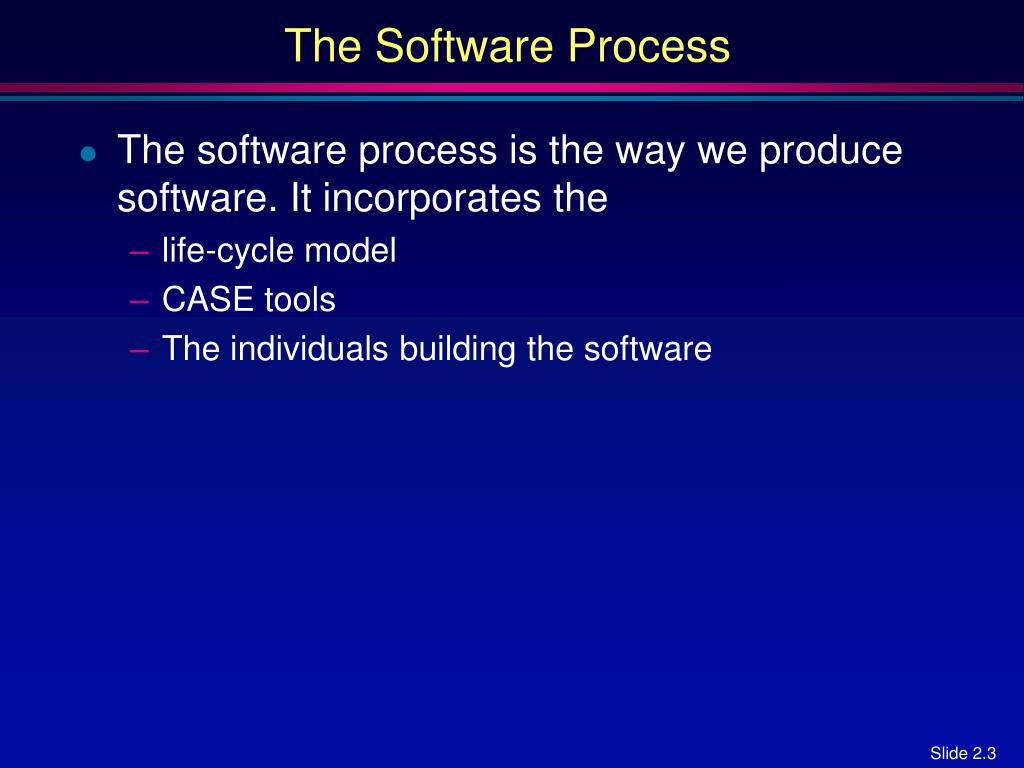

  3. The Software Process • The software process is the way we produce software. It incorporates the • life-cycle model • CASE tools • The individuals building the software

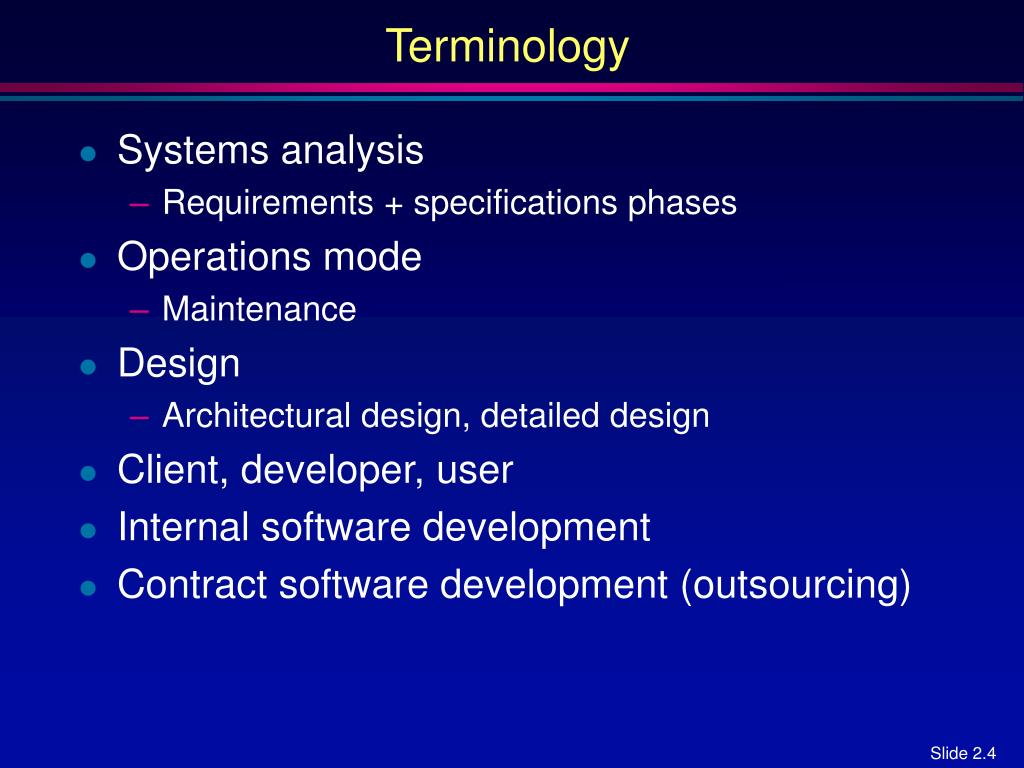

  4. Terminology • Systems analysis • Requirements + specifications phases • Operations mode • Maintenance • Design • Architectural design, detailed design • Client, developer, user • Internal software development • Contract software development (outsourcing)

  5. Testing Phase? • There is NO testing phase separately • Testing is an activity performed throughout software production • Verification • Performed at the end of each phase • Validation • Performed before delivering the product to the client

  6. Documentation Phase? • There is NO documentation phase separately • Every phase must be fully documented before starting the next phase • Postponed documentation may never be completed • The responsible individual may leave • The product is constantly changing—we need the documentation to do this • The design (for example) will be modified during development, but the original designers may not be available to document it

  7. Requirements Phase • Assumption • The software being considered is economically justifiable • Concept exploration • Determine what the client needs, not what the client wants • Determine what constraints exist • Deadline • Reliability • Object code size (e.g., for small embedded systems) • Cost • Functionality of the product is successively refined and analyzed for technical feasibility and financial justification

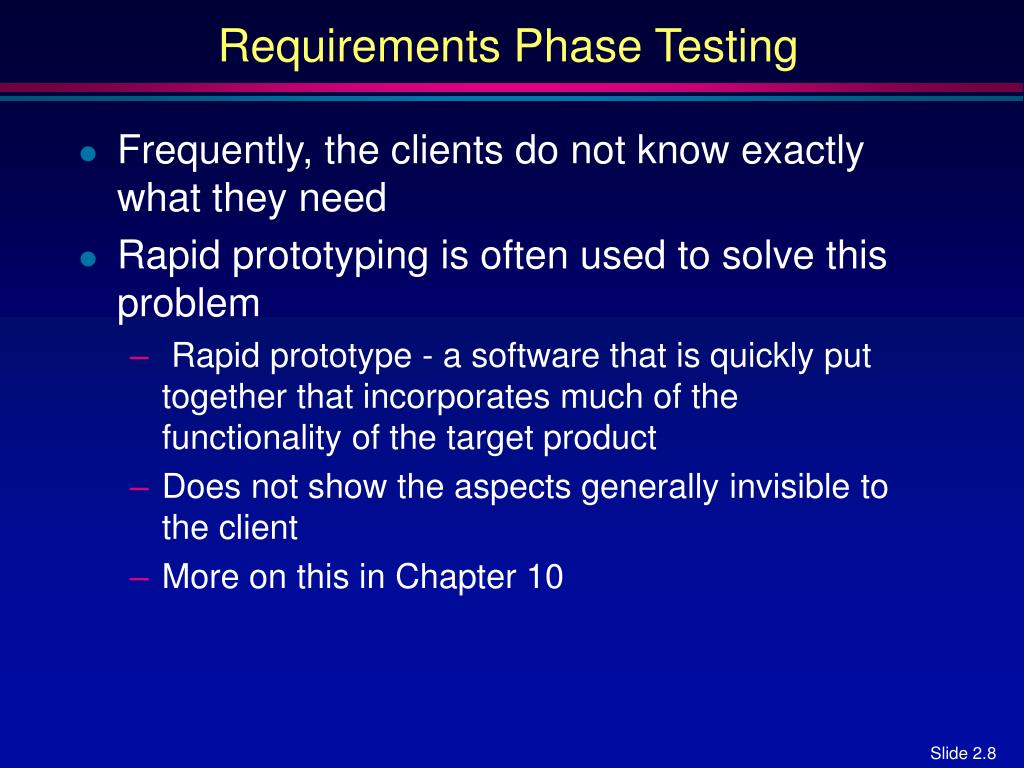

  8. Requirements Phase Testing • Frequently, the clients do not know exactly what they need • Rapid prototyping is often used to solve this problem • Rapid prototype - a software that is quickly put together that incorporates much of the functionality of the target product • Does not show the aspects generally invisible to the client • More on this in Chapter 10

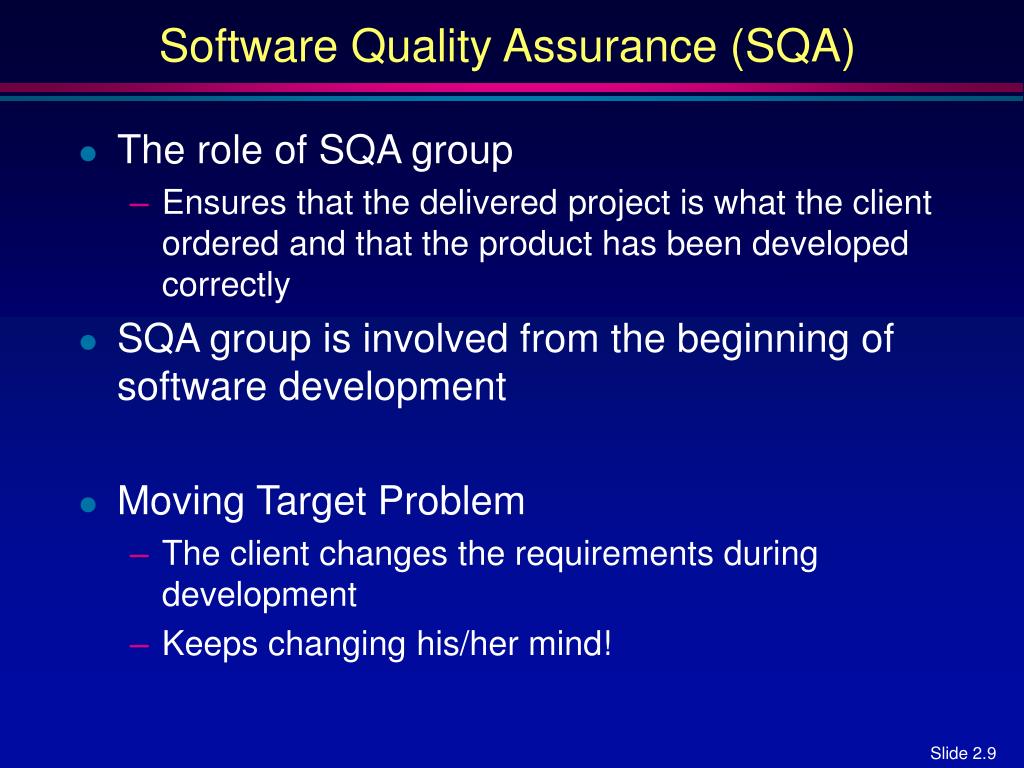

  9. Software Quality Assurance (SQA) • The role of SQA group • Ensures that the delivered project is what the client ordered and that the product has been developed correctly • SQA group is involved from the beginning of software development • Moving Target Problem • The client changes the requirements during development • Keeps changing his/her mind!

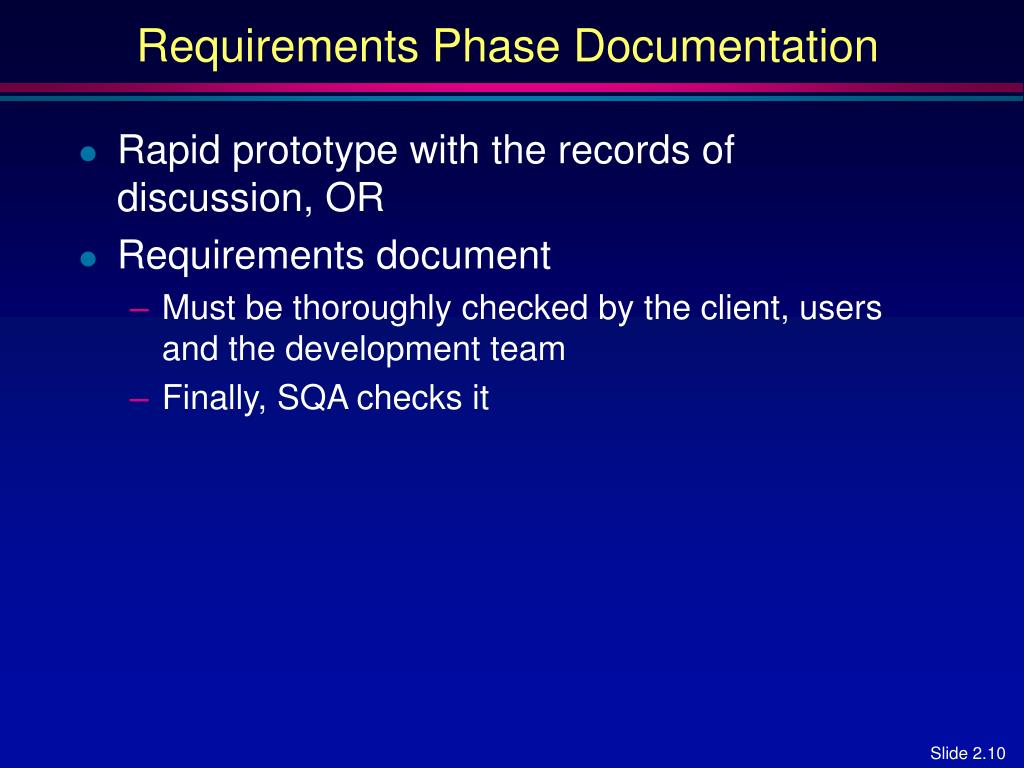

  10. Requirements Phase Documentation • Rapid prototype with the records of discussion, OR • Requirements document • Must be thoroughly checked by the client, users and the development team • Finally, SQA checks it

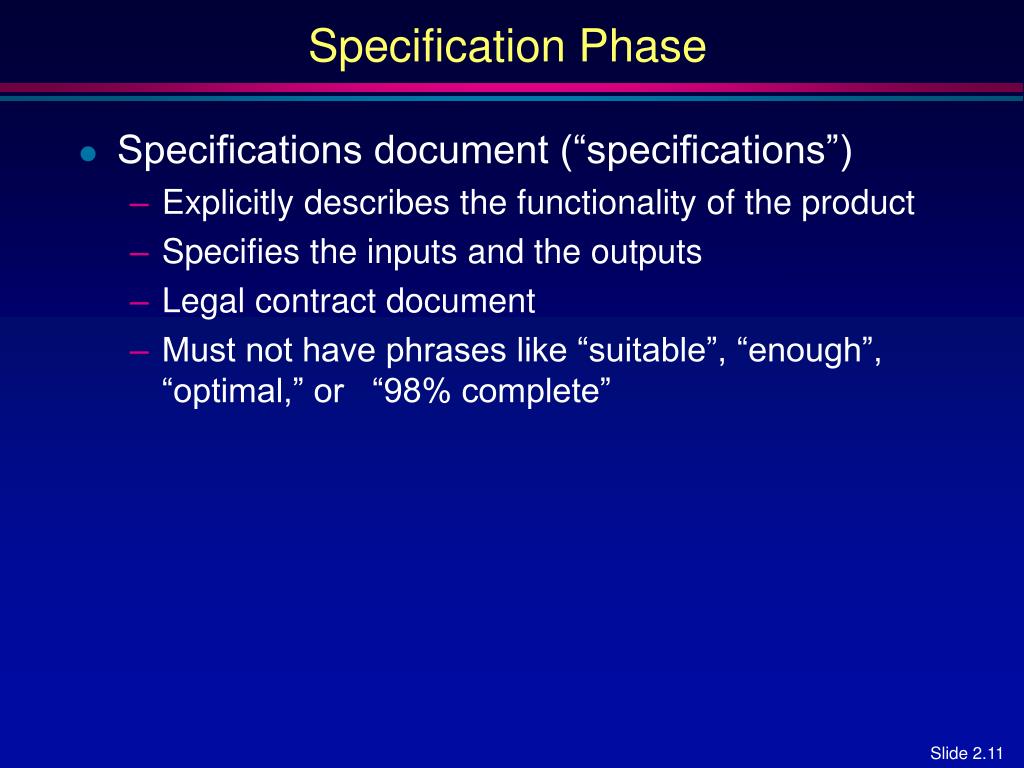

  11. Specification Phase • Specifications document (“specifications”) • Explicitly describes the functionality of the product • Specifies the inputs and the outputs • Legal contract document • Must not have phrases like “suitable”, “enough”, “optimal,” or “98% complete”

  12. Specification Phase (contd) • Specifications must not be • Ambiguous • Incomplete • Contradictory • Once the specifications have been signed off • The Software Product Management Plan (SPMP) is drawn up • This is the earliest possible time for the SPMP • Shows the tasks, which members of the development team are involved in each task, and deadlines for completing each task

  13. Specification Phase (contd) • SPMP • Includes the deliverables (what the client is going to get) and the milestones (when the client gets them) • Describes the software process, life-cycle model, structure of development team, project responsibilities, managerial objectives and priorities, techniques and CASE tools used, detailed schedules, budgets, resource allocations • The most important in SPMP are time and cost estimates

  14. Specification Phase Testing • Traceability of specification document • Must be able to trace every statement in the spec. document to a statement made by the client during the requirements phase • Review • To determine if the specs are correct • Spec team and client participate with SQA member being the chair • Check the SPMP by SQA group

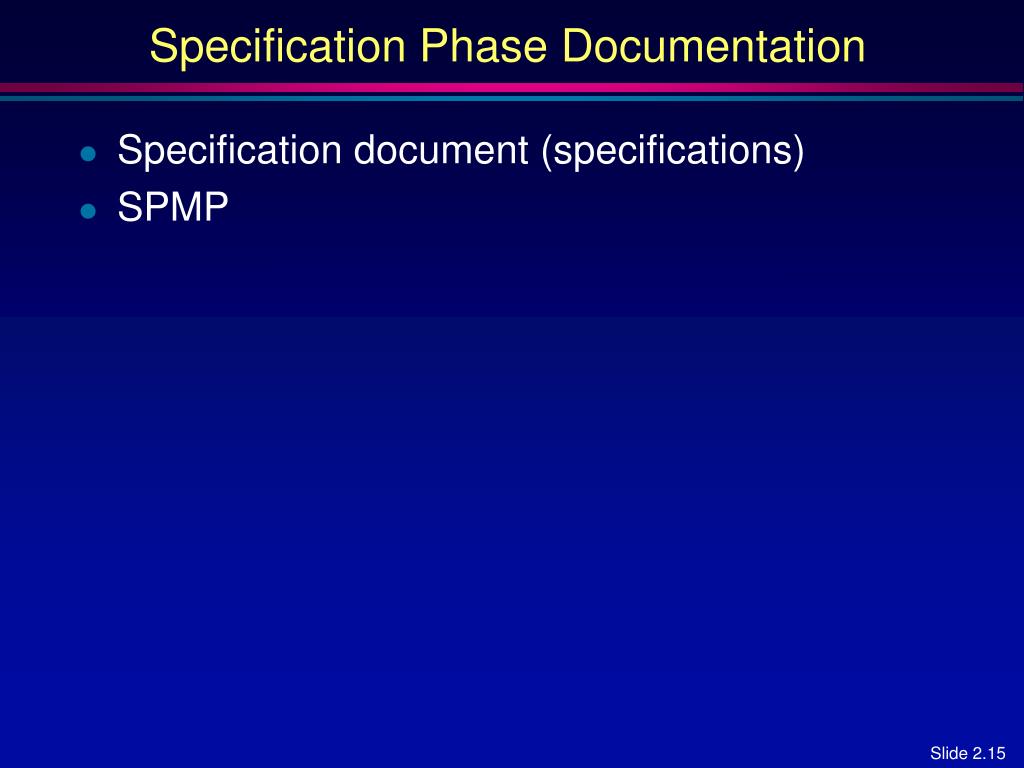

  15. Specification Phase Documentation • Specification document (specifications) • SPMP

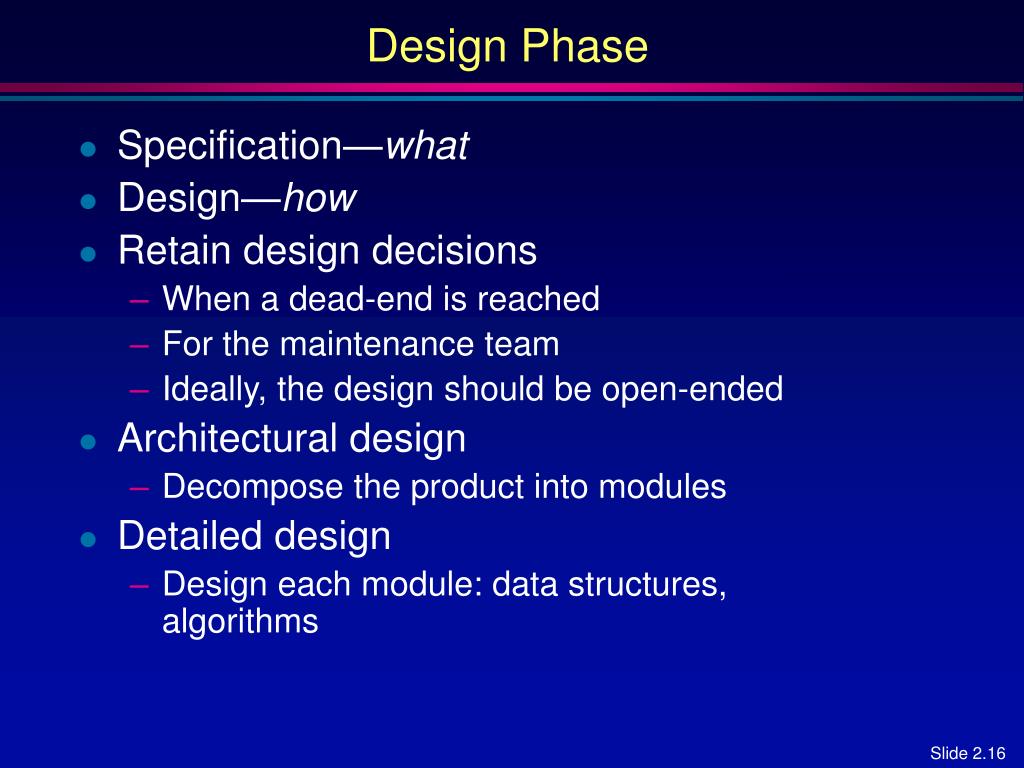

  16. Design Phase • Specification—what • Design—how • Retain design decisions • When a dead-end is reached • For the maintenance team • Ideally, the design should be open-ended • Architectural design • Decompose the product into modules • Detailed design • Design each module: data structures, algorithms

  17. Design Phase Testing • Traceability • Every part of the design can be linked to a statement in the specification document • Review • By the design team and the SQA group (no client)

  18. Design Phase Documentation • Design • Architectural design • Detailed design

  19. Implementation Phase • Implement the detailed design in code

  20. Implementation Phase Testing • Code Review • The programmer explains the code to the review team, which includes a SQA member • Test cases • Informal testing (desk checking) • Formal testing (SQA)

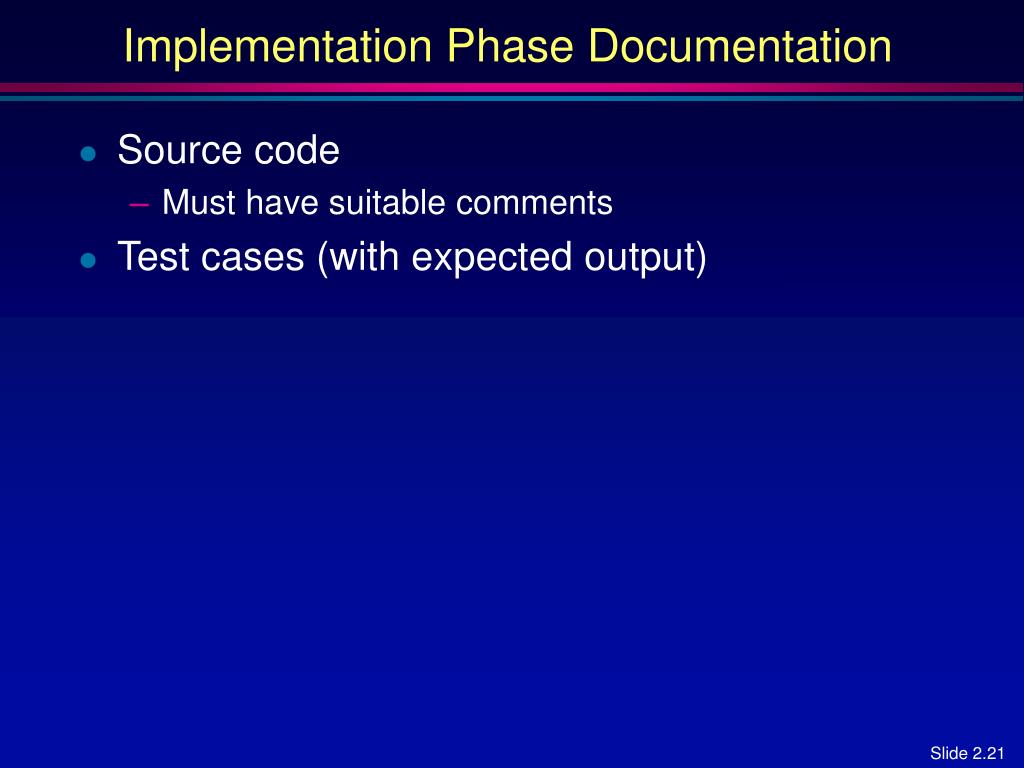

  21. Implementation Phase Documentation • Source code • Must have suitable comments • Test cases (with expected output)

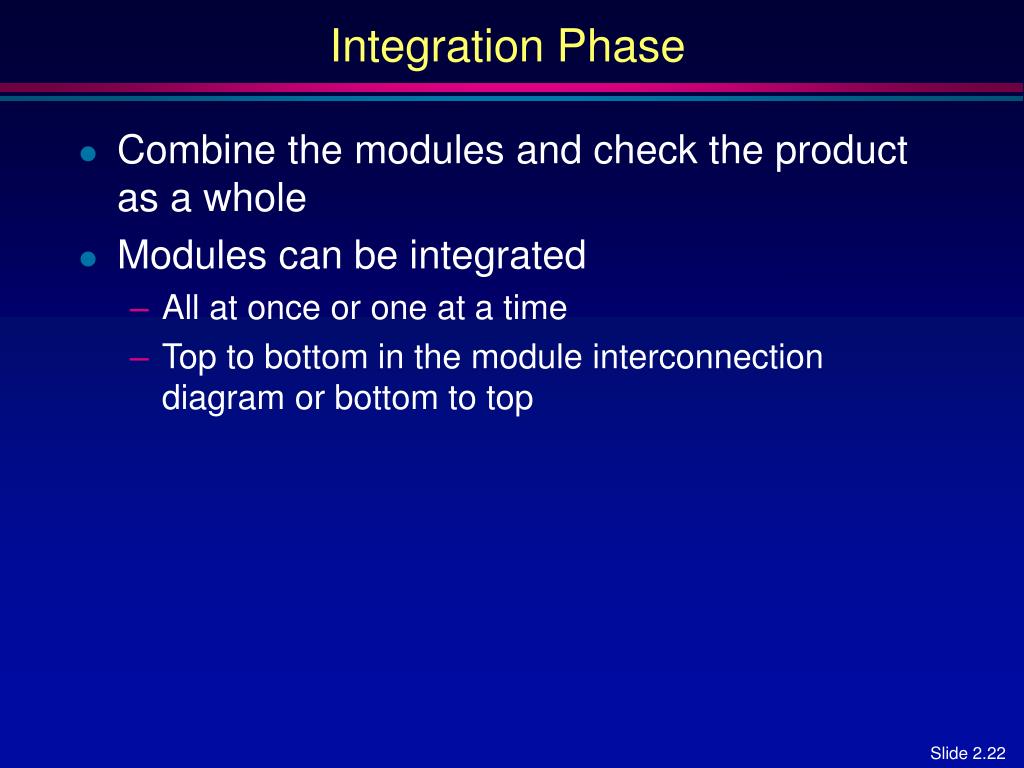

  22. Integration Phase • Combine the modules and check the product as a whole • Modules can be integrated • All at once or one at a time • Top to bottom in the module interconnection diagram or bottom to top

  23. Integration Phase Testing • Product testing • By the integration team and SQA • Acceptance testing • By the client • The software is delivered to the client, who tests it on the actual hardware using actual data

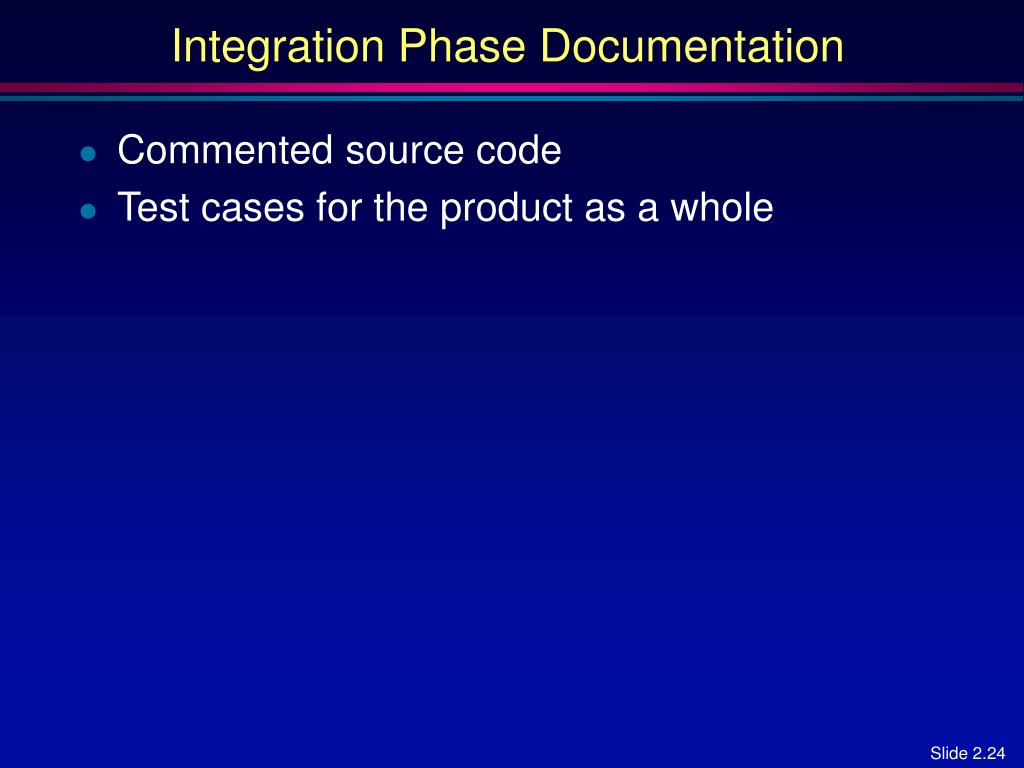

  24. Integration Phase Documentation • Commented source code • Test cases for the product as a whole

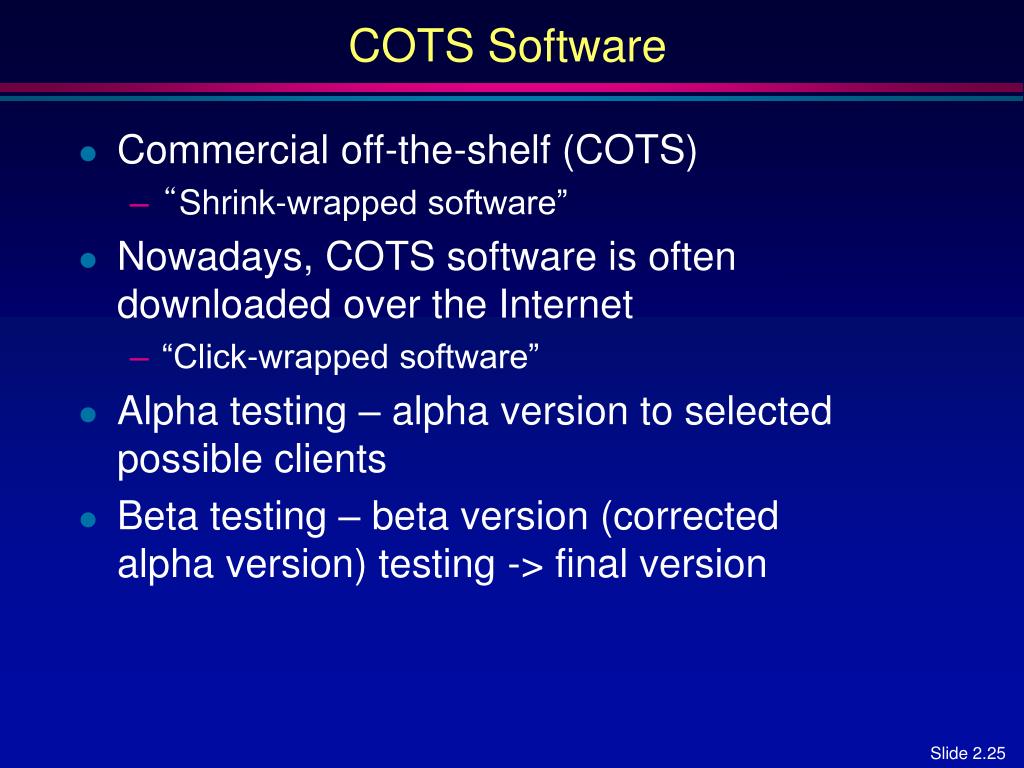

  25. COTS Software • Commercial off-the-shelf (COTS) • “Shrink-wrapped software” • Nowadays, COTS software is often downloaded over the Internet • “Click-wrapped software” • Alpha testing – alpha version to selected possible clients • Beta testing – beta version (corrected alpha version) testing -> final version

  26. Maintenance Phase • Maintenance • Any change once the client has accepted the software • The most money is devoted to this phase • The problem of lack of documentation

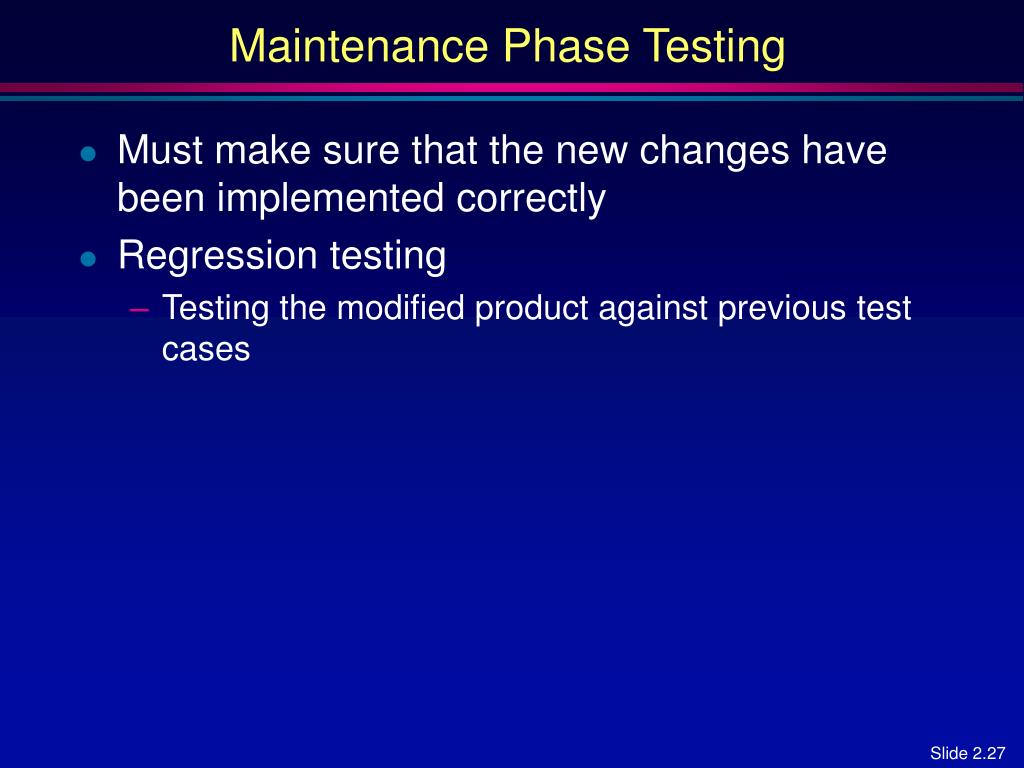

  27. Maintenance Phase Testing • Must make sure that the new changes have been implemented correctly • Regression testing • Testing the modified product against previous test cases

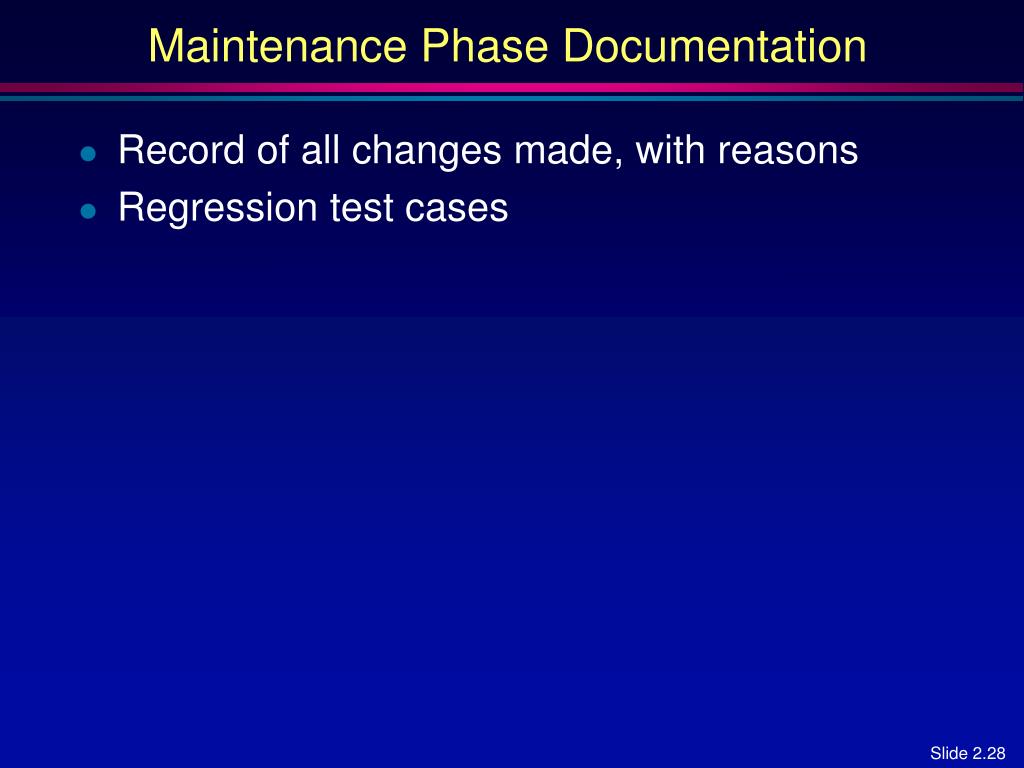

  28. Maintenance Phase Documentation • Record of all changes made, with reasons • Regression test cases

  29. Retirement • Good software is maintained • Sometimes software is rewritten from scratch • Software is now unmaintainable because • A drastic change in design has occurred • The product must be implemented on a totally new hardware/operating system • Documentation is missing or inaccurate • Hardware is to be changed—it may be cheaper to rewrite the software from scratch than to modify it • True retirement is a rare event

  30. Process-Specific Difficulties • Does the product meet the user’s real needs? • Is the specification document free of ambiguities, contradictions, and omissions?

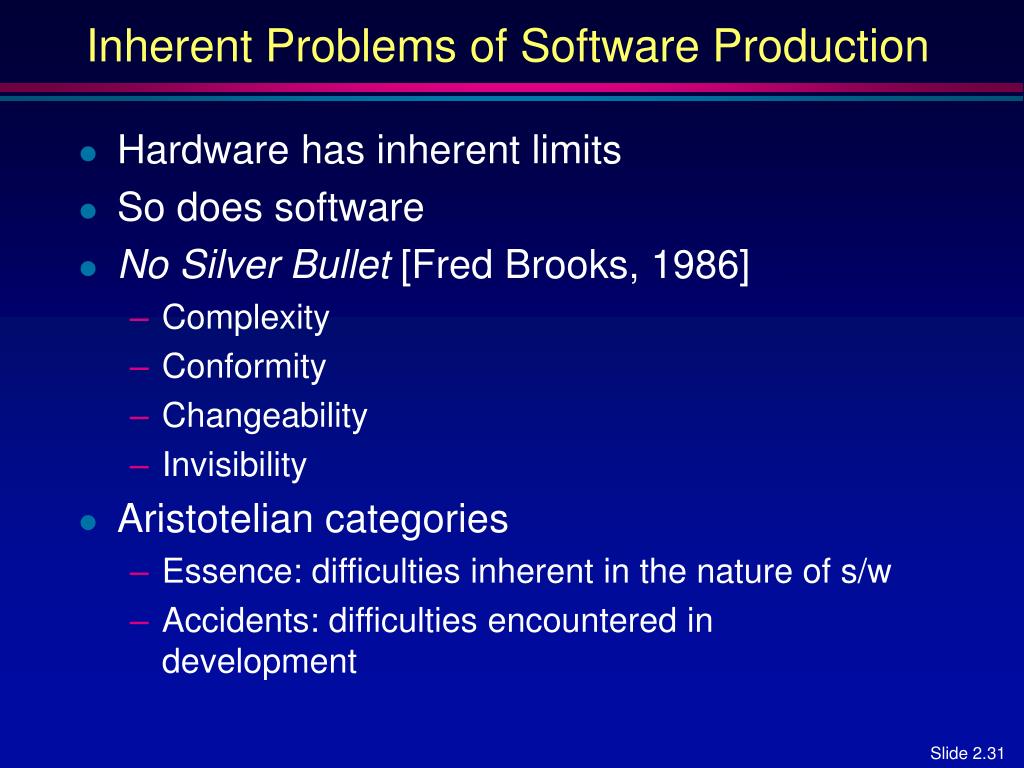

  31. Inherent Problems of Software Production • Hardware has inherent limits • So does software • No Silver Bullet [Fred Brooks, 1986] • Complexity • Conformity • Changeability • Invisibility • Aristotelian categories • Essence: difficulties inherent in the nature of s/w • Accidents: difficulties encountered in development

  32. Complexity • Software is far more complex than hardware • Traditional abstraction will not work • We cannot understand the whole, so we cannot understand any part • Management is difficult • Maintenance is a nightmare (documentation, too)

  33. Conformity • Type 1: Existing gold refinery • Type 2: New gold refinery

  34. Changeability • Software is easier to change than hardware • Pressure to change • Reality • Useful software • Easier to change • Software has a long lifetime (~15 yrs) compared to hardware (~4 yrs)

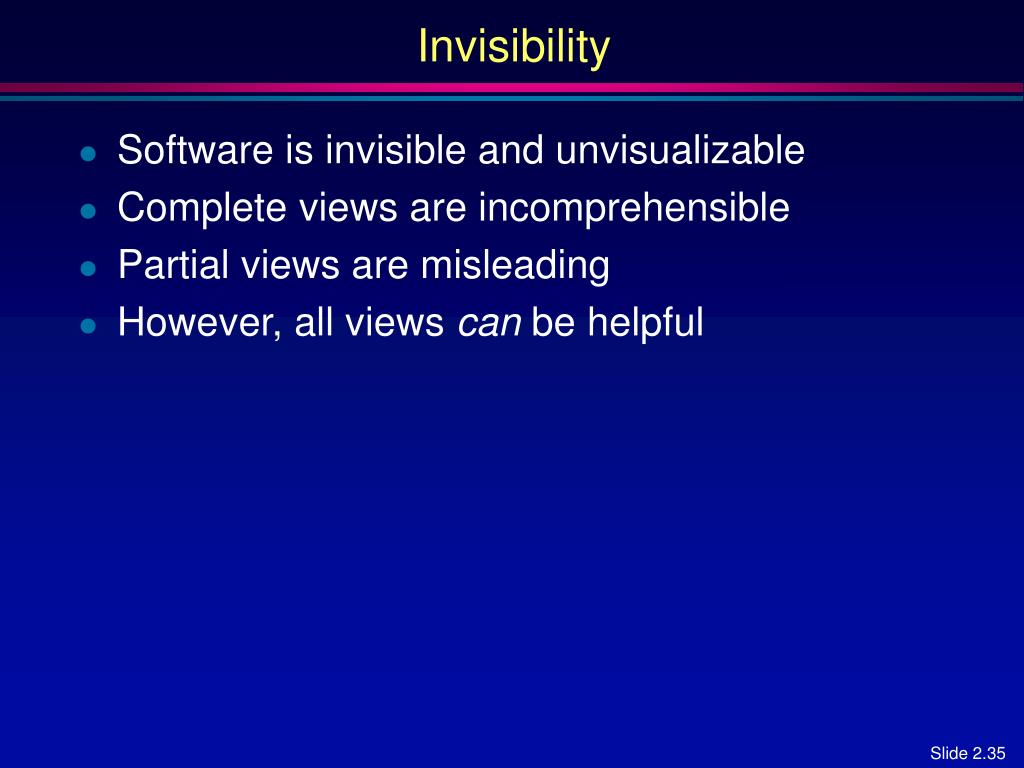

  35. Invisibility • Software is invisible and unvisualizable • Complete views are incomprehensible • Partial views are misleading • However, all views can be helpful

  36. Is There a Silver Bullet? • What about • High-level languages • Time sharing • CASE tools • These are useful but do not solve the intrinsic problems • We have experienced • 6% annual productivity increase • But, no “silver bullet” (order-of-magnitude increase) is possible • Read Chapter 2 (except sections on CMM)
